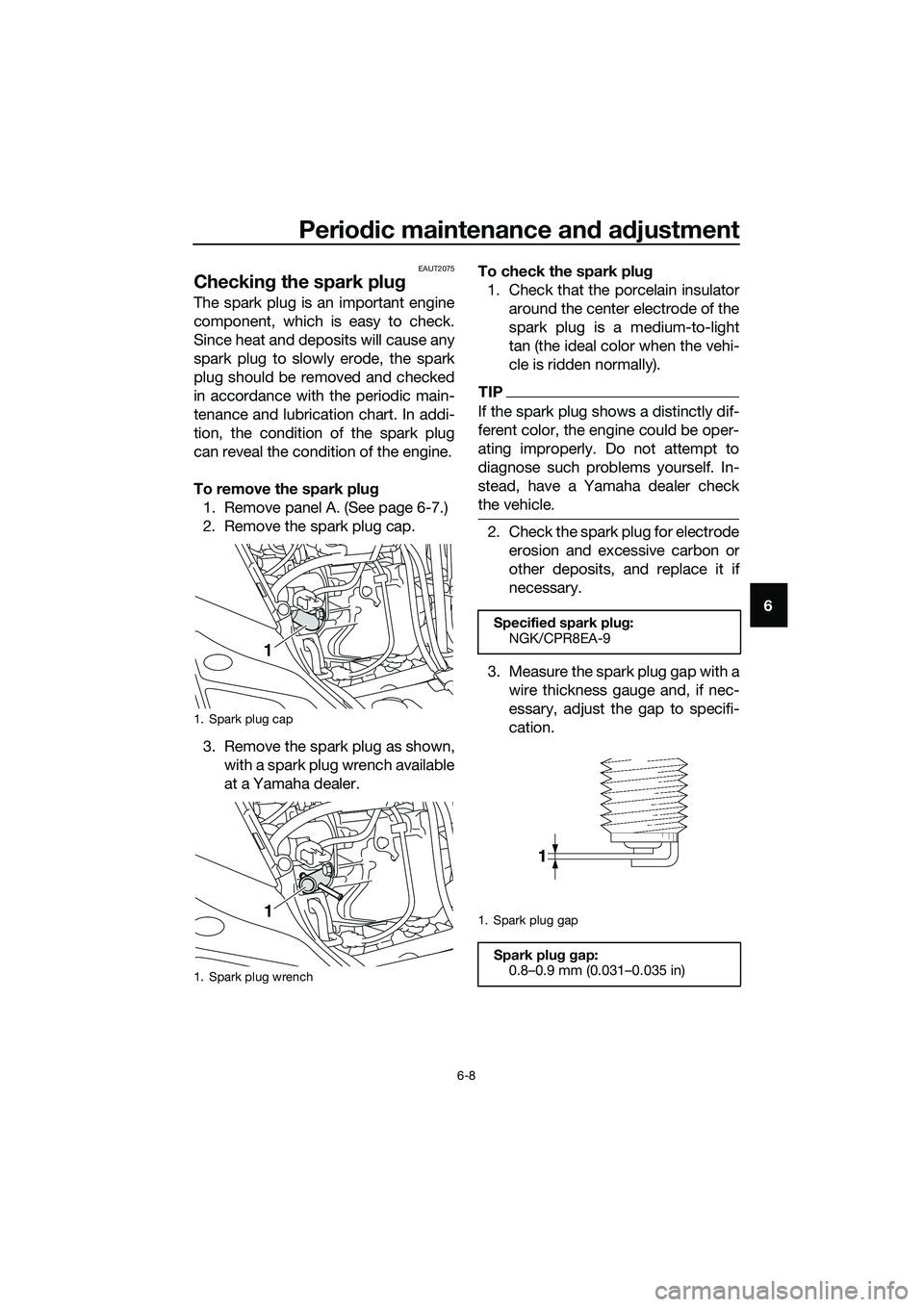

Periodic maintenance and adjustment
6-8
6
EAUT2075
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic main-
tenance and lubrication chart. In addi-
tion, the condition of the spark plug
can reveal the condition of the engine.
To remove the spark plug
1. Remove panel A. (See page 6-7.)
2. Remove the spark plug cap.
3. Remove the spark plug as shown,
with a spark plug wrench available
at a Yamaha dealer.To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light
tan (the ideal color when the vehi-
cle is ridden normally).
TIP
If the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
necessary.
3. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifi-
cation.
1. Spark plug cap
1. Spark plug wrench
1
1
Specified spark plug:
NGK/CPR8EA-9
1. Spark plug gap
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
UBR7E0E0.book Page 8 Tuesday, October 25, 2016 2:44 PM

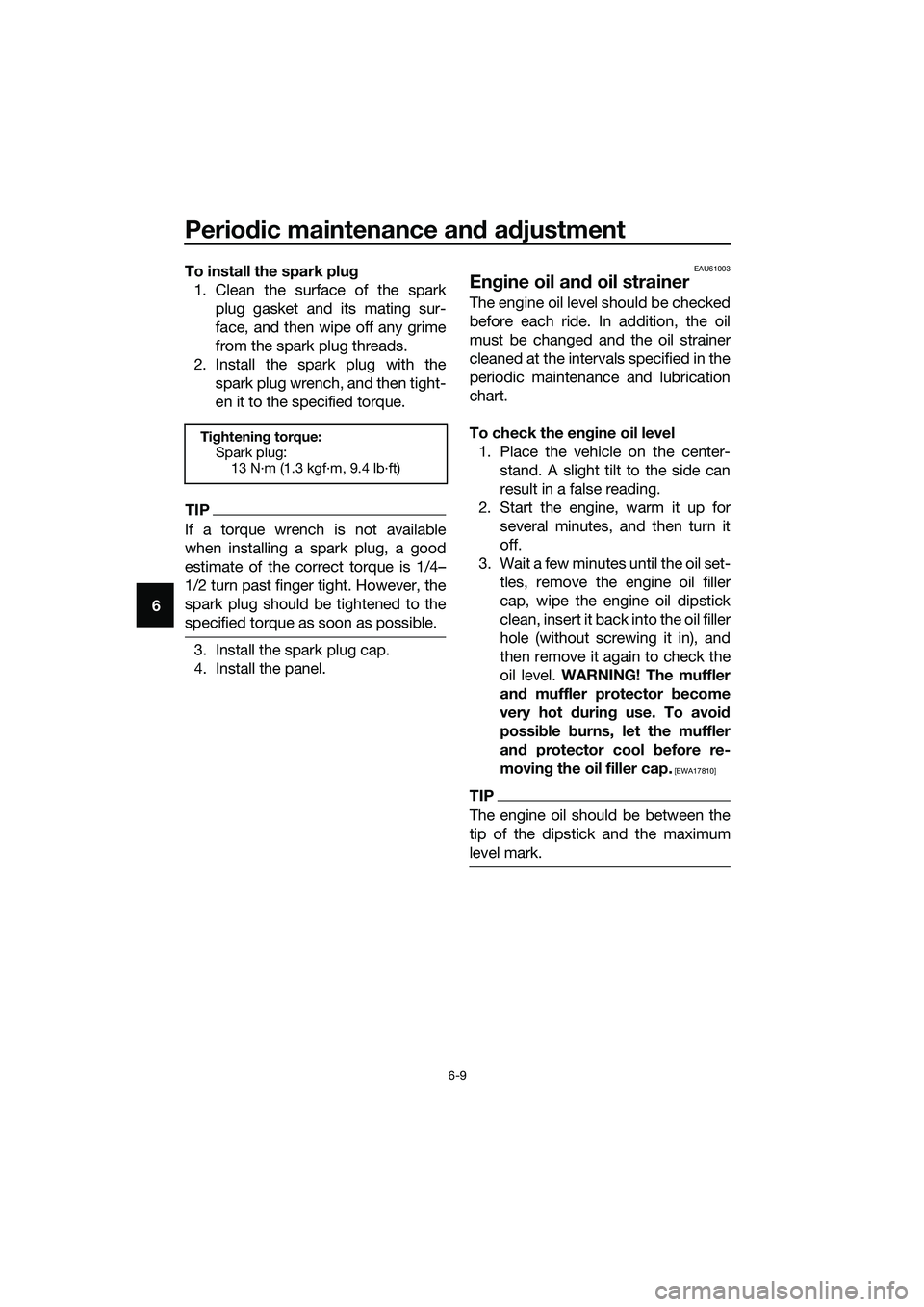

Periodic maintenance and adjustment
6-9
6To install the spark plug
1. Clean the surface of the spark
plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.
2. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
TIP
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4…
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.
3. Install the spark plug cap.
4. Install the panel.
EAU61003
Engine oil and oil strainer
The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil strainer
cleaned at the intervals specified in the
periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the vehicle on the center-
stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, remove the engine oil filler
cap, wipe the engine oil dipstick
clean, insert it back into the oil filler
hole (without screwing it in), and
then remove it again to check the
oil level. WARNING! The muffler
and muffler protector become
very hot during use. To avoid
possible burns, let the muffler
and protector cool before re-
moving the oil filler cap.
[EWA17810]
TIP
The engine oil should be between the
tip of the dipstick and the maximum
level mark.
Tightening torque:
Spark plug:
13 N·m (1.3 kgf·m, 9.4 lb·ft)
UBR7E0E0.book Page 9 Tuesday, October 25, 2016 2:44 PM

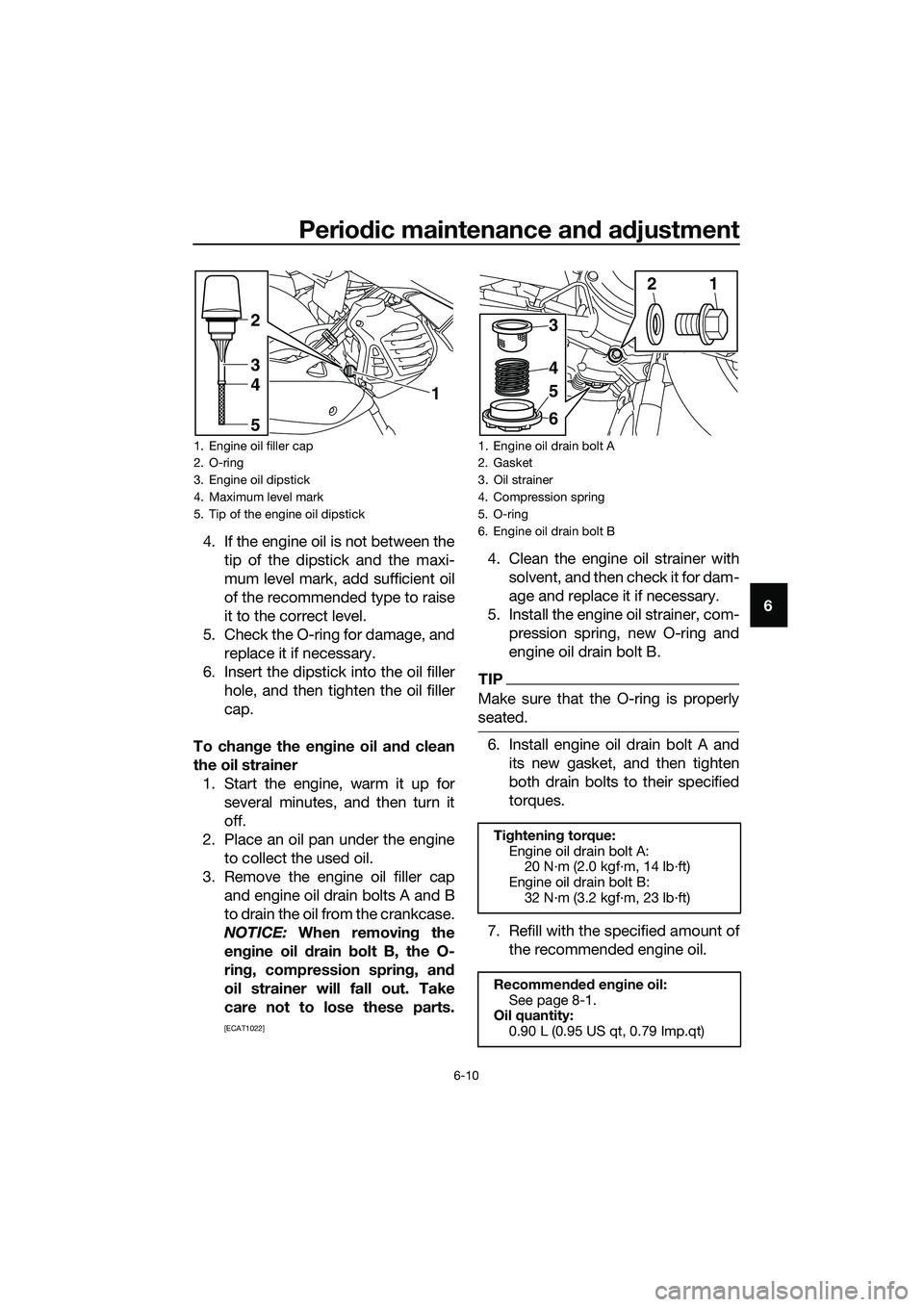

Periodic maintenance and adjustment
6-10
6 4. If the engine oil is not between the
tip of the dipstick and the maxi-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
5. Check the O-ring for damage, and
replace it if necessary.
6. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
To change the engine oil and clean
the oil strainer
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and engine oil drain bolts A and B
to drain the oil from the crankcase.
NOTICE: When removing the
engine oil drain bolt B, the O-
ring, compression spring, and
oil strainer will fall out. Take
care not to lose these parts.
[ECAT1022]
4. Clean the engine oil strainer with
solvent, and then check it for dam-
age and replace it if necessary.
5. Install the engine oil strainer, com-
pression spring, new O-ring and
engine oil drain bolt B.
TIP
Make sure that the O-ring is properly
seated.
6. Install engine oil drain bolt A and
its new gasket, and then tighten
both drain bolts to their specified
torques.
7. Refill with the specified amount of
the recommended engine oil.
1. Engine oil filler cap
2. O-ring
3. Engine oil dipstick
4. Maximum level mark
5. Tip of the engine oil dipstick
1
3
2
4
5
1. Engine oil drain bolt A
2. Gasket
3. Oil strainer
4. Compression spring
5. O-ring
6. Engine oil drain bolt B
Tightening torque:
Engine oil drain bolt A:
20 N·m (2.0 kgf·m, 14 lb·ft)
Engine oil drain bolt B:
32 N·m (3.2 kgf·m, 23 lb·ft)
Recommended engine oil:
See page 8-1.
Oil quantity:
0.90 L (0.95 US qt, 0.79 Imp.qt)
1
3
4
5
6
2
UBR7E0E0.book Page 10 Tuesday, October 25, 2016 2:44 PM

Periodic maintenance and adjustment
6-11
6
TIP
Be sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.
NOTICE
ECA11621
zIn order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
zMake sure that no foreign mate-
rial enters the crankcase.
8. Check the O-ring for damage, and
replace it if necessary.
9. Install and tighten the engine oil
filler cap.
10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
11. Turn the engine off, and then
check the oil level and correct it if
necessary.
12. Reset the oil change tripmeter and
oil change indicator “OIL
CHANGE”. (See page 3-7 for reset
procedures.)
EAU60660

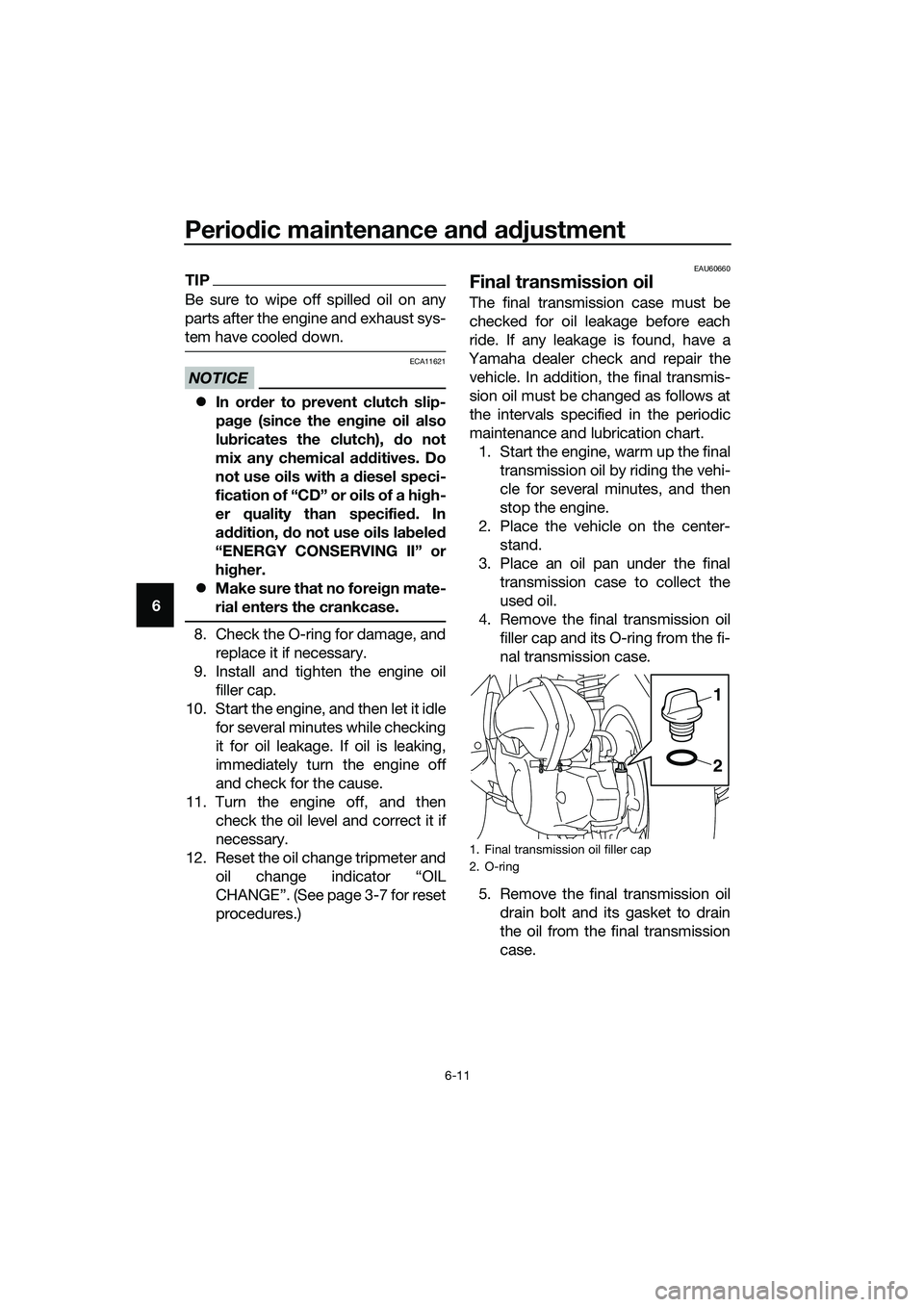

Final transmission oil
The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
vehicle. In addition, the final transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart.
1. Start the engine, warm up the final
transmission oil by riding the vehi-
cle for several minutes, and then
stop the engine.
2. Place the vehicle on the center-
stand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the final transmission oil
filler cap and its O-ring from the fi-
nal transmission case.
5. Remove the final transmission oil
drain bolt and its gasket to drain
the oil from the final transmission
case.
1. Final transmission oil filler cap
2. O-ring
1
2
UBR7E0E0.book Page 11 Tuesday, October 25, 2016 2:44 PM

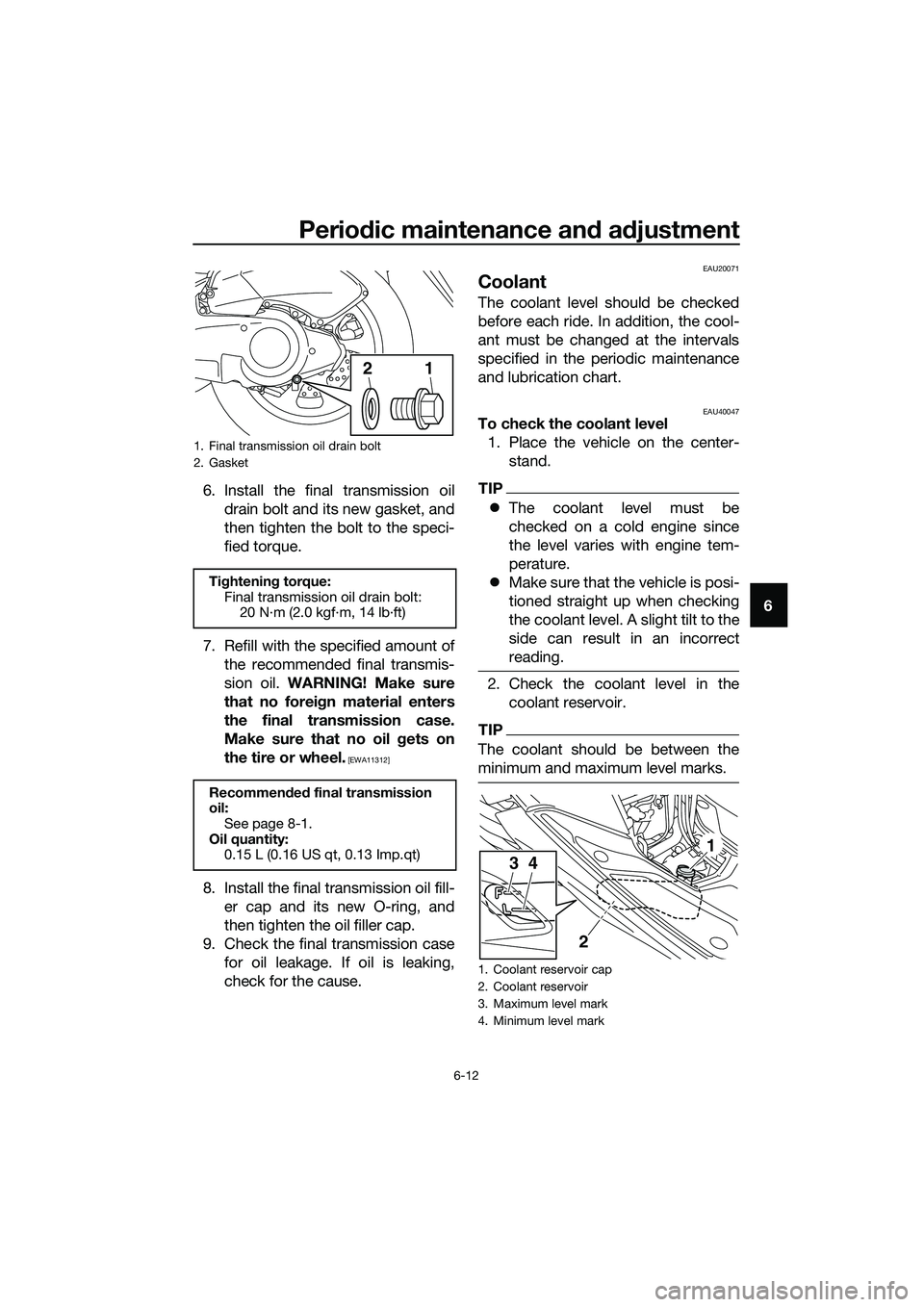

Periodic maintenance and adjustment
6-12
6 6. Install the final transmission oil
drain bolt and its new gasket, and
then tighten the bolt to the speci-
fied torque.
7. Refill with the specified amount of
the recommended final transmis-
sion oil. WARNING! Make sure
that no foreign material enters
the final transmission case.
Make sure that no oil gets on
the tire or wheel.
[EWA11312]
8. Install the final transmission oil fill-
er cap and its new O-ring, and
then tighten the oil filler cap.
9. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20071
Coolant
The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU40047To check the coolant level
1. Place the vehicle on the center-
stand.
TIP
zThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
zMake sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in an incorrect
reading.
2. Check the coolant level in the
coolant reservoir.
TIP
The coolant should be between the
minimum and maximum level marks.
1. Final transmission oil drain bolt
2. Gasket
Tightening torque:
Final transmission oil drain bolt:
20 N·m (2.0 kgf·m, 14 lb·ft)
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.15 L (0.16 US qt, 0.13 Imp.qt)
12
1. Coolant reservoir cap
2. Coolant reservoir
3. Maximum level mark
4. Minimum level mark
34
2
1
UBR7E0E0.book Page 12 Tuesday, October 25, 2016 2:44 PM

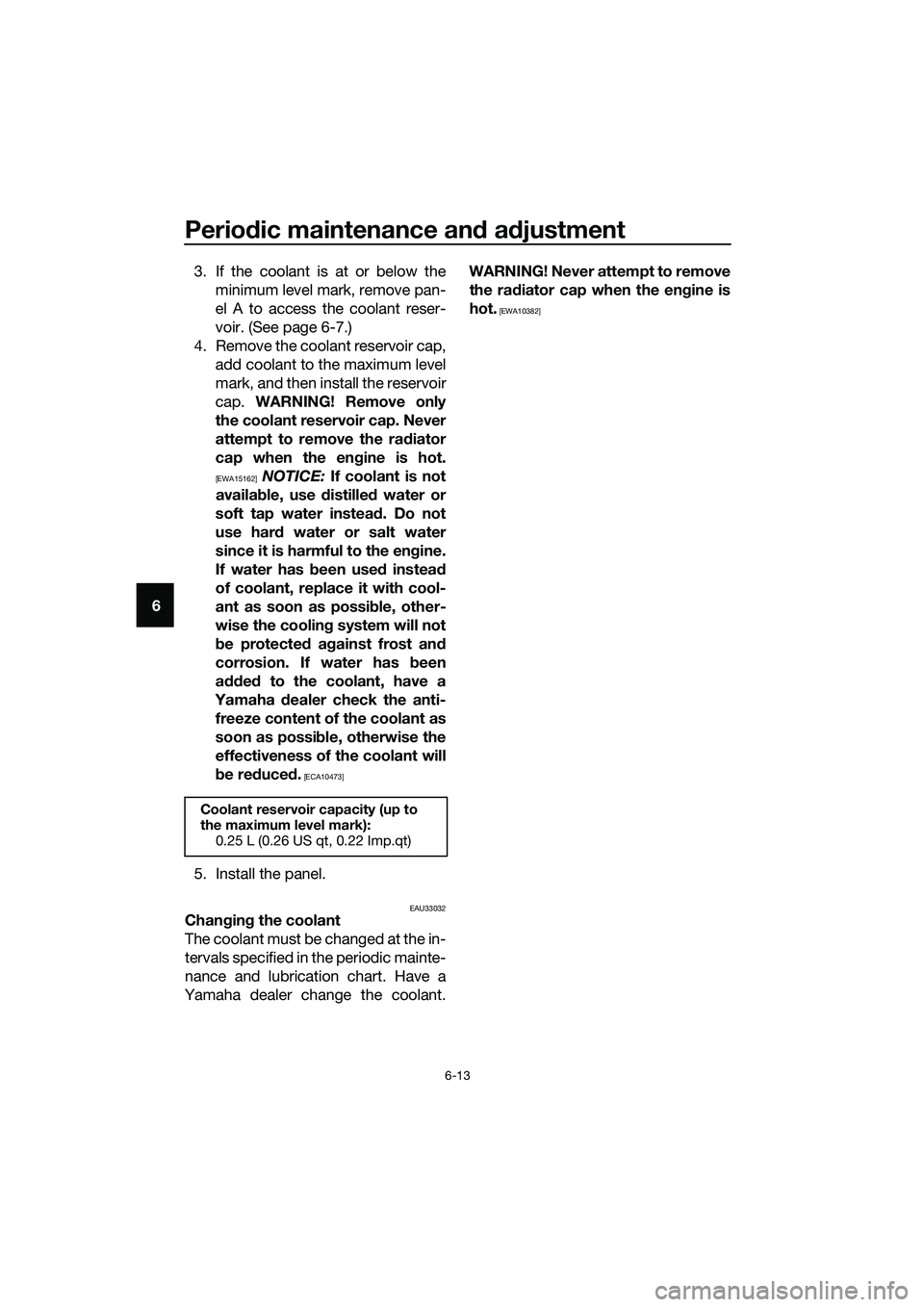

Periodic maintenance and adjustment
6-13
63. If the coolant is at or below the
minimum level mark, remove pan-
el A to access the coolant reser-
voir. (See page 6-7.)
4. Remove the coolant reservoir cap,
add coolant to the maximum level
mark, and then install the reservoir
cap. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is hot.
[EWA15162] NOTICE: If coolant is not
available, use distilled water or
soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10473]
5. Install the panel.
EAU33032Changing the coolant
The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.WARNING! Never attempt to remove
the radiator cap when the engine is
hot.
[EWA10382]
Coolant reservoir capacity (up to
the maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
UBR7E0E0.book Page 13 Tuesday, October 25, 2016 2:44 PM

Periodic maintenance and adjustment
6-14
6
EAU67174

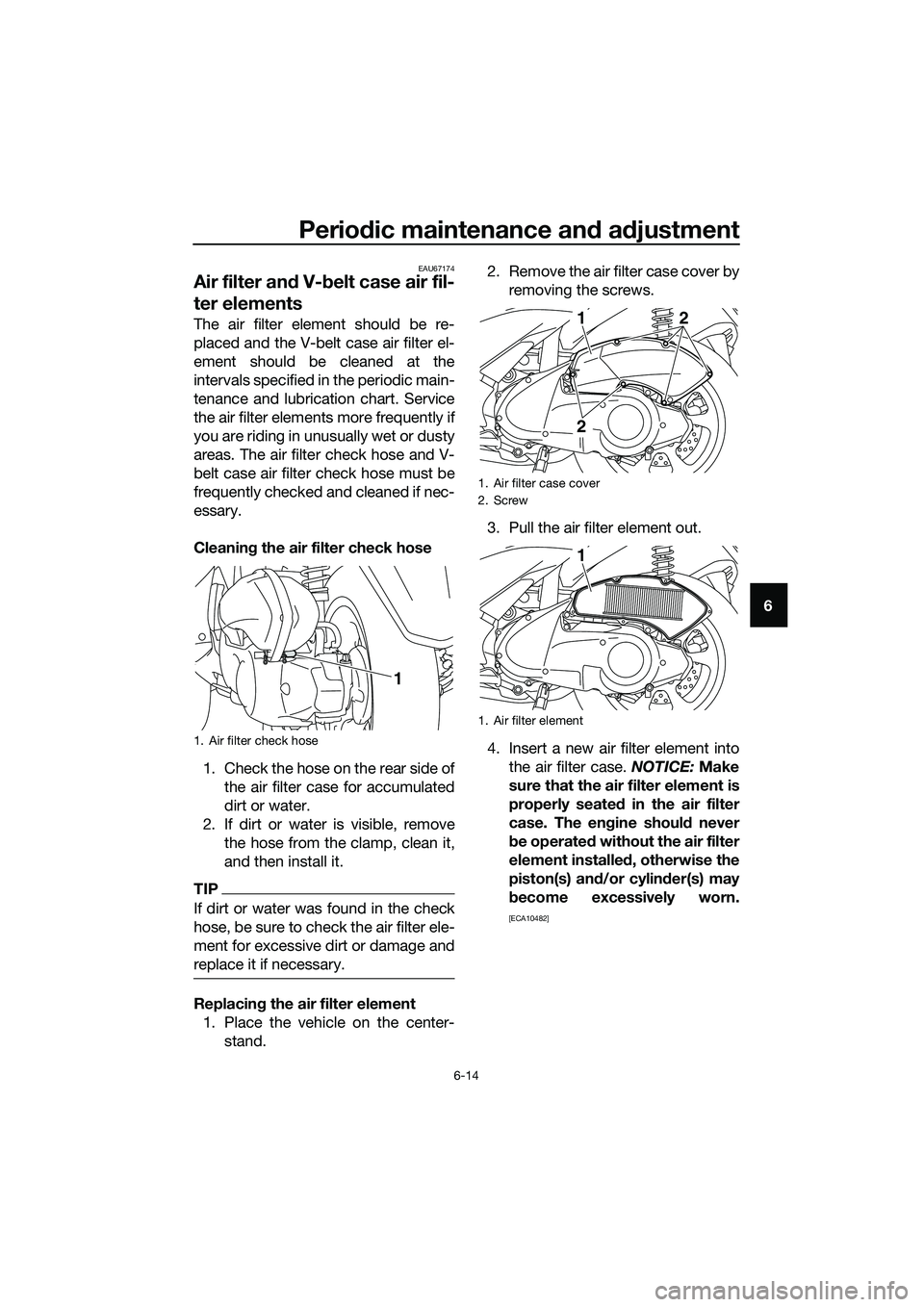

Air filter and V-belt case air fil-
ter elements
The air filter element should be re-
placed and the V-belt case air filter el-
ement should be cleaned at the
intervals specified in the periodic main-
tenance and lubrication chart. Service
the air filter elements more frequently if
you are riding in unusually wet or dusty
areas. The air filter check hose and V-
belt case air filter check hose must be
frequently checked and cleaned if nec-
essary.
Cleaning the air filter check hose
1. Check the hose on the rear side of
the air filter case for accumulated
dirt or water.
2. If dirt or water is visible, remove
the hose from the clamp, clean it,
and then install it.
TIP
If dirt or water was found in the check
hose, be sure to check the air filter ele-
ment for excessive dirt or damage and
replace it if necessary.
Replacing the air filter element
1. Place the vehicle on the center-
stand.2. Remove the air filter case cover by
removing the screws.
3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case. NOTICE: Make
sure that the air filter element is
properly seated in the air filter
case. The engine should never
be operated without the air filter
element installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA10482]
1. Air filter check hose
1
1. Air filter case cover
2. Screw
1. Air filter element
2
21
1
UBR7E0E0.book Page 14 Tuesday, October 25, 2016 2:44 PM

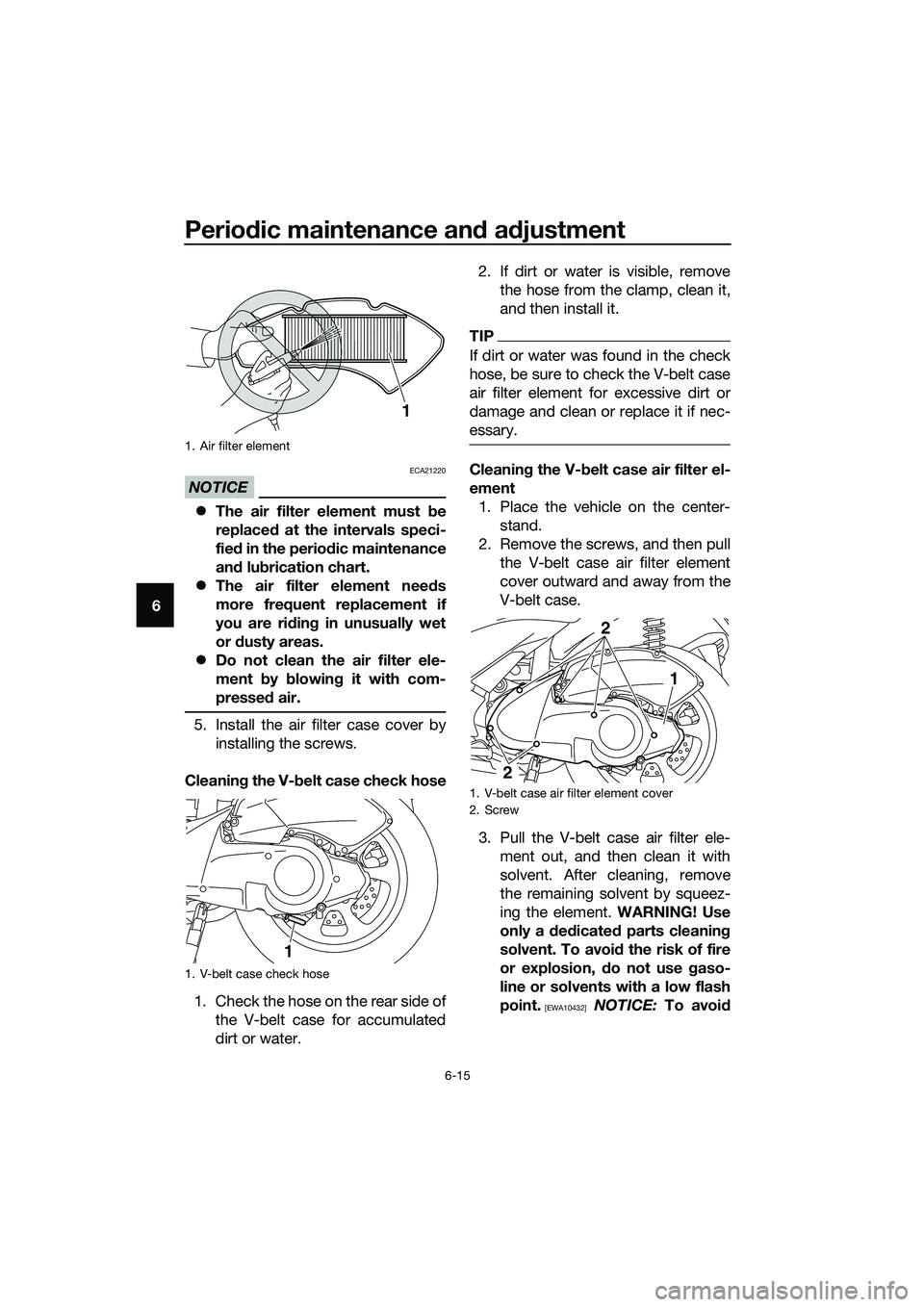

Periodic maintenance and adjustment
6-15
6
NOTICE
ECA21220
zThe air filter element must be
replaced at the intervals speci-
fied in the periodic maintenance
and lubrication chart.
zThe air filter element needs
more frequent replacement if
you are riding in unusually wet
or dusty areas.
zDo not clean the air filter ele-
ment by blowing it with com-
pressed air.
5. Install the air filter case cover by
installing the screws.
Cleaning the V-belt case check hose
1. Check the hose on the rear side of
the V-belt case for accumulated
dirt or water.2. If dirt or water is visible, remove
the hose from the clamp, clean it,
and then install it.
TIP
If dirt or water was found in the check
hose, be sure to check the V-belt case
air filter element for excessive dirt or
damage and clean or replace it if nec-
essary.
Cleaning the V-belt case air filter el-
ement
1. Place the vehicle on the center-
stand.
2. Remove the screws, and then pull
the V-belt case air filter element
cover outward and away from the
V-belt case.
3. Pull the V-belt case air filter ele-
ment out, and then clean it with
solvent. After cleaning, remove
the remaining solvent by squeez-
ing the element. WARNING! Use
only a dedicated parts cleaning
solvent. To avoid the risk of fire
or explosion, do not use gaso-
line or solvents with a low flash
point.
[EWA10432] NOTICE: To avoid
1. Air filter element
1. V-belt case check hose
1
1
1. V-belt case air filter element cover
2. Screw
2
2
1
UBR7E0E0.book Page 15 Tuesday, October 25, 2016 2:44 PM

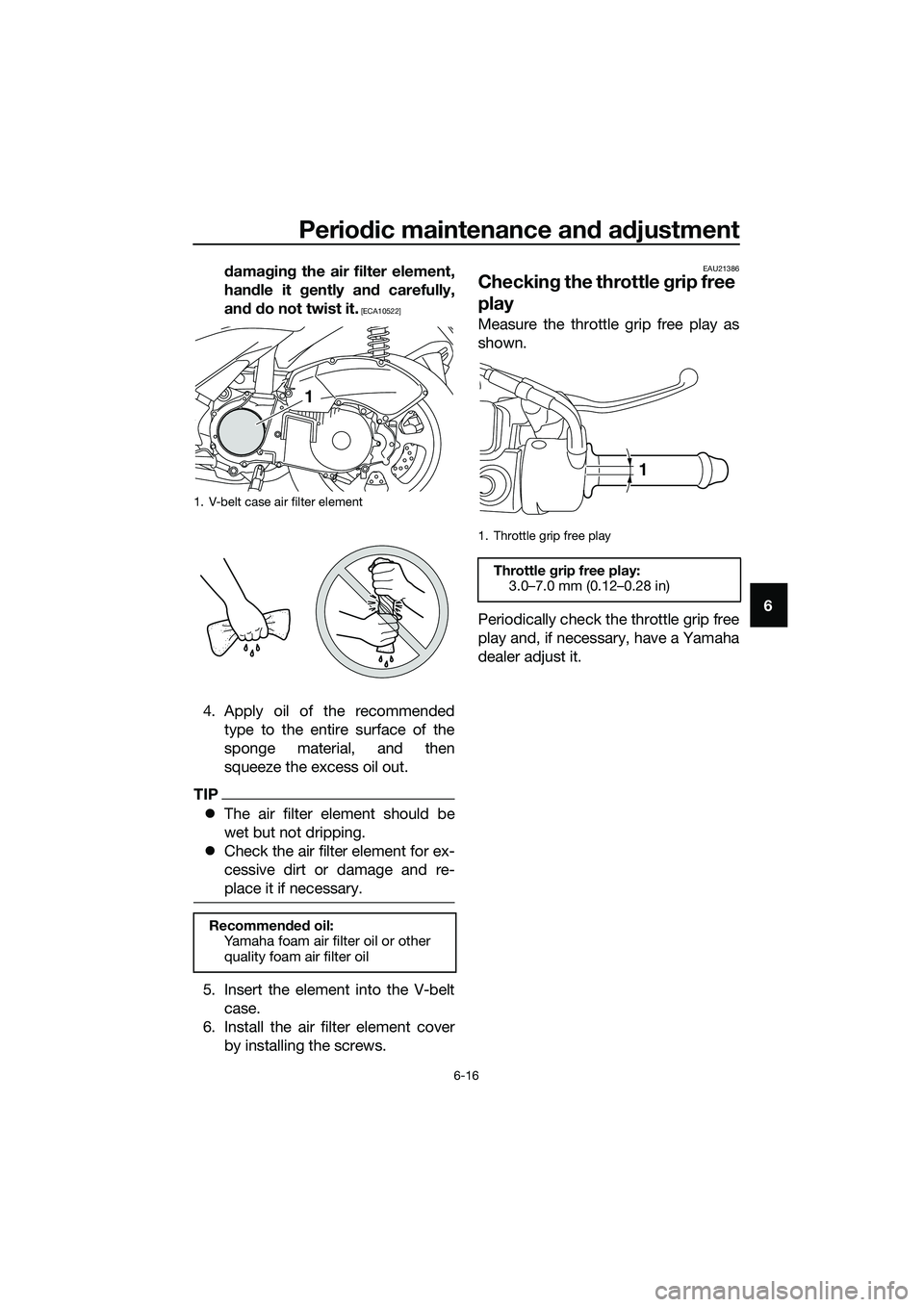

Periodic maintenance and adjustment
6-16
6 damaging the air filter element,
handle it gently and carefully,
and do not twist it.
[ECA10522]
4. Apply oil of the recommended
type to the entire surface of the
sponge material, and then
squeeze the excess oil out.
TIP
zThe air filter element should be
wet but not dripping.
zCheck the air filter element for ex-
cessive dirt or damage and re-
place it if necessary.
5. Insert the element into the V-belt
case.
6. Install the air filter element cover
by installing the screws.
EAU21386
Checking the throttle grip free
play
Measure the throttle grip free play as
shown.
Periodically check the throttle grip free
play and, if necessary, have a Yamaha
dealer adjust it.
1. V-belt case air filter element
Recommended oil:
Yamaha foam air filter oil or other
quality foam air filter oil
1
1. Throttle grip free play
Throttle grip free play:
3.0–7.0 mm (0.12–0.28 in)
1
UBR7E0E0.book Page 16 Tuesday, October 25, 2016 2:44 PM

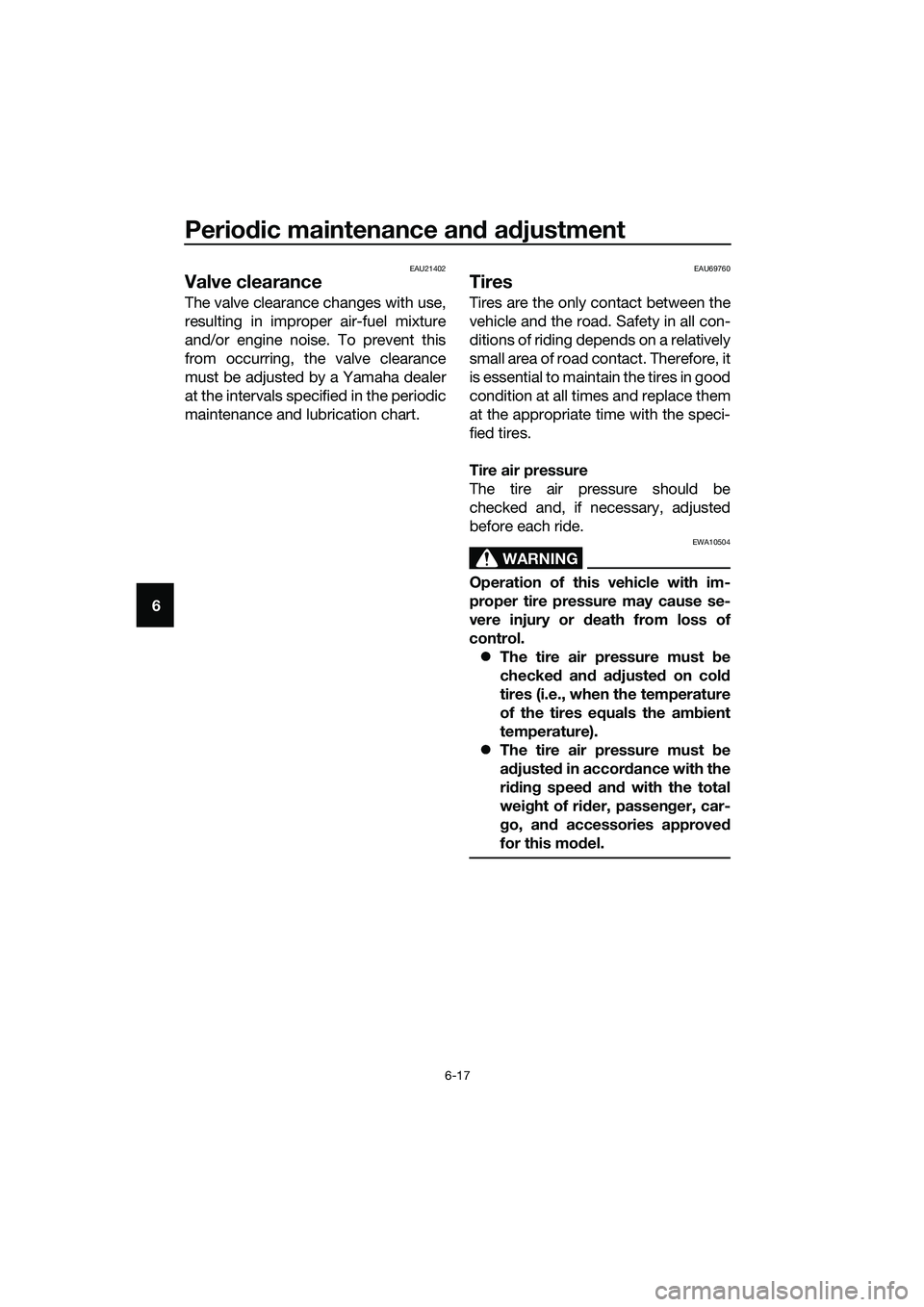

Periodic maintenance and adjustment
6-17
6
EAU21402
Valve clearance
The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU69760
Tires
Tires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.
zThe tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
zThe tire air pressure must be
adjusted in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
UBR7E0E0.book Page 17 Tuesday, October 25, 2016 2:44 PM
