Page 81 of 88
SPECIFICATIONS
9-1
9
Dimensions:Overall length:1565 mm (61.6 in)
Overall width:
680 mm (26.8 in)
Overall height: 923 mm (36.3 in)
Seat height: 670 mm (26.4 in)
Wheelbase:
1080 mm (42.5 in)
Ground clearance: 180 mm (7.09 in)
Minimum turning radius: 1660 mm (65.4 in)Weight:Curb weight:72 kg (159 lb)
Technical permissible mass (Maximum load +
curb weight): 132 kg (291 lb)Noise and vibration level:Noise level (77/311/EEC):
TT-R110E 78.9 dB(A)
Vibration on seat (EN1032, ISO5008): TT-R110E Will not exceed 0.5 m/s²
Vibration on handlebar (EN1032, ISO5008): TT-R110E Will not exceed 2.5 m/s²Engine:Engine type:Air cooled 4-stroke, SOHC
Cylinder arrangement: Single cylinder Displacement:
110 cm³
Bore × stroke:
51.0 × 54.0 mm (2.01 × 2.13 in)
Compression ratio:
9.30 : 1
Starting system: Electric starter and kickstarter
Lubrication system: Wet sump
Engine oil:Recommended brand:YAMALUBE
Type: SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity: Periodic oil change:0.80 L (0.85 US qt, 0.70 Imp.qt)
Air filter:Air filter element:Wet elementFuel:Recommended fuel:TT-R110E Regular unleaded gasoline
(Gasohol (E10) acceptable)
TT-R110ED Regular unleaded gasoline
(Gasohol (E10) acceptable) (CAN)
TT-R110ED Unleaded gasoline (Gasohol
(E10) acceptable) (AUS)
Fuel tank capacity:
3.8 L (1.00 US gal, 0.84 Imp.gal)
Fuel reserve amount: 0.5 L (0.13 US gal, 0.11 Imp.gal)Carburetor:Type × quantity:
VM16 x 1Spark plug(s):Manufacturer/model: NGK/CR6HSA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:Wet, multiple-disc and centrifugal
automaticTransmission:Primary reduction ratio:
3.722 (67/18)
Final drive: Chain
Secondary reduction ratio: 2.500 (35/14)
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U5B685E0.book Page 1 Tuesday, July 10, 2012 5:06 PM
Page 82 of 88
SPECIFICATIONS
9-2
9
Transmission type:Constant mesh 4-speed
Operation: Left foot operation
Gear ratio:
1st: 3.166 (38/12)
2nd:
1.941 (33/17)
3rd: 1.380 (29/21)
4th: 1.095 (23/21)Chassis:Frame type:Backbone
Caster angle: 26.00 °
Trail:
60 mm (2.4 in)Front tire:Type:With tube
Size:
2.50-14 4PR
Manufacturer/model: CHEN SHIN/C-803-2
Speed rating: 120 km/h (75 mph)Rear tire:Type:With tube
Size: 3.00-12 4PR Manufacturer/model:
CHEN SHIN/C-803-2
Speed rating: 120 km/h (75 mph)
Loading:Maximum rider weight:60.0 kg (132 lb)Tire air pressure (measured on cold
tires):
Front: 100 kPa (1.00 kgf/cm², 15 psi)
Rear: 100 kPa (1.00 kgf/cm², 15 psi)
Front wheel:Wheel type:Spoke wheel
Rim size: 14x1.40Rear wheel:Wheel type:Spoke wheel
Rim size: 12x1.60Front brake:Type:Drum brake
Operation: Right hand operationRear brake:Type:Drum brake
Operation: Right foot operation
Front suspension:Type:Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 115.0 mm (4.53 in)Rear suspension:Type:
Swingarm
Spring/shock absorber type: Coil spring/gas-oil damper
Wheel travel: 110.0 mm (4.33 in)Electrical system:Ignition system:DC CDI
Charging system: AC magnetoBattery:Model:GT4B-5
Voltage, capacity: 12 V, 2.5 AhFuse:Fuse:10.0 A
U5B685E0.book Page 2 Tuesday, July 10, 2012 5:06 PM
Page 83 of 88
SPECIFICATIONS
9-3
9
EAU51131
For Europe only
The figures quoted are emission levels
and are not necessarily safe working
levels. Whilst there is a correlation be-
tween the emission and exposure lev-
els, this cannot be used reliably to
determine whether or not further pre-
cautions are required. Factors that in-
fluence the actual level of exposure of
work-force include the characteristics
of the work room, the other sources of
noise, etc. i.e. the number of machines
and other adjacent processes, and the
length of time for which an operator is
exposed to the noise. Also the permis-
sible exposure level can vary from
country. This information, however, will
enable the user of the machine to make
a better evaluation of the hazard and
risk.
U5B685E0.book Page 3 Tuesday, July 10, 2012 5:06 PM
Page 84 of 88
CONSUMER INFORMATION
10-1
10
EAU40792
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU36980
Model label
The model label is affixed to the frame
behind panel B. (See page 7-7.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
1
1. Model label
1
U5B685E0.book Page 1 Tuesday, July 10, 2012 5:06 PM
Page 85 of 88
CONSUMER INFORMATION
10-2
10
EAU48120
Vehicle Emission Control Informa-
tion label (For Canada)
The Vehicle Emission Control Informa-
tion label is affixed at the location in the
illustration. This label shows specifica-
tions related to exhaust emissions as
required by federal law, state law and
Environment Canada.1. Vehicle Emission Control Information label
1
U5B685E0.book Page 2 Tuesday, July 10, 2012 5:06 PM
Page 86 of 88
INDEXAAir filter element, cleaning..................... 7-11BBattery................................................... 7-26
Brake lever .............................................. 4-2
Brake lever, checking and lubricating ... 7-23
Brake lever free play, adjusting............. 7-18
Brake pedal ............................................. 4-3
Brake pedal, checking and lubricating ........................................... 7-24
Brake pedal free play, adjusting............ 7-19
Brake shoes, checking .......................... 7-20CCables, checking and lubricating .......... 7-23
Carburetor, adjusting ............................ 7-14
Care ........................................................ 8-1
Clutch free play, adjusting..................... 7-17DDrive chain, cleaning and lubricating .... 7-22
Drive chain slack ................................... 7-21EEngine break-in ....................................... 6-3
Engine idling speed............................... 7-14
Engine oil ................................................ 7-9
Engine, starting a warm .......................... 6-2
Engine stop switch .................................. 4-2FFront fork, checking .............................. 7-25
Fuel ......................................................... 4-3
Fuel cock................................................. 4-6
Fuel tank breather hose .......................... 4-6
Fuel tank cap .......................................... 4-3
Fuse, replacing ..................................... 7-27
HHandlebar switches ................................ 4-1IIdentification numbers .......................... 10-1KKickstarter............................................... 4-8LLabels, location....................................... 1-1MMain switch ............................................. 4-1
Maintenance and lubrication, periodic .... 7-4
Maintenance, emission control system... 7-3
Matte color, caution ................................ 8-1
Model label ........................................... 10-1PPanels, removing and installing .............. 7-7
Parking ................................................... 6-4
Part locations .......................................... 3-1SSafety information................................... 2-1
Seat ........................................................ 4-8
Shifting.................................................... 6-2
Shift pedal............................................... 4-2
Shift pedal, checking ............................ 7-20
Shock absorber assembly ...................... 4-9
Sidestand................................................ 4-9
Sidestand, checking and lubricating ..... 7-24
Spark arrester, cleaning ....................... 7-13
Spark plug, checking .............................. 7-8
Specifications ......................................... 9-1
Starter (choke) lever ............................... 4-7
Starting and warming up a cold engine .................................................. 6-1
Starting circuit cut-off system ................. 4-9 Start switch.............................................. 4-2
Steering, checking................................. 7-25
Storage.................................................... 8-3
Supporting the motorcycle .................... 7-28
Swingarm pivots, lubricating ................. 7-24
TThrottle grip and cable, checking and
lubricating ........................................... 7-23
Throttle grip free play, checking ............ 7-15
Tires ...................................................... 7-15
Tool kit..................................................... 7-2
Troubleshooting .................................... 7-32
Troubleshooting chart ........................... 7-33VValve clearance..................................... 7-15
Vehicle Emission Control Information label (For Canada) .............................. 10-2
Vehicle identification number ................ 10-1WWheel bearings, checking ..................... 7-26
Wheel (front) ......................................... 7-29
Wheel (rear) .......................................... 7-30
Wheels .................................................. 7-17
U5B685E0.book Page 1 Tuesday, July 10, 2012 5:06 PM
Page 87 of 88
U5B685E0.book Page 2 Tuesday, July 10, 2012 5:06 PM
Page 88 of 88

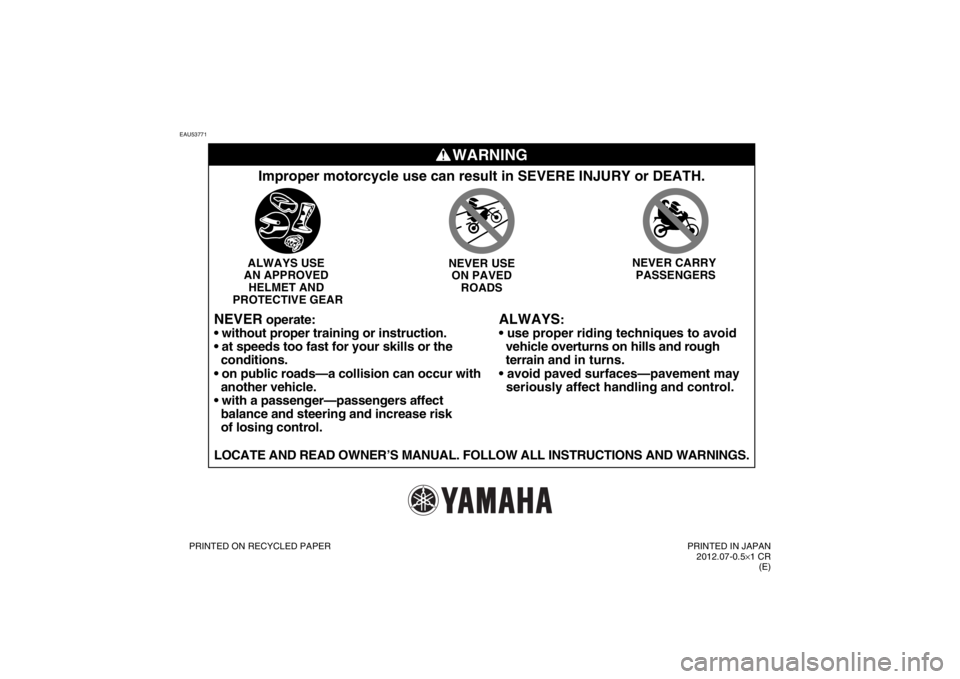

EAU53771
WARNING
ALWAYS
:
vehicle overturns on hills and rough
terrain and in turns.
seriously affect handling and control.
Improper motorcycle use can result in SEVERE INJURY or DEATH.ALWAYS USE
AN APPROVED HELMET AND
PROTECTIVE GEAR NEVER USE
ON PAVED ROADS NEVER CARRY
PASSENGERS
NEVER
operate:
conditions.
another vehicle.
balance and steering and increase risk
of losing control.
LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.\
PRINTED ON RECYCLED PAPER PRINTED IN JAPAN
2012.07-0.5 ×1 CR
