YAMAHA TTR90 2004 Service Manual
Manufacturer: YAMAHA, Model Year: 2004, Model line: TTR90, Model: YAMAHA TTR90 2004Pages: 364, PDF Size: 12.63 MB
Page 41 of 364
GEN
INFO
OUTILS SPECIAUX

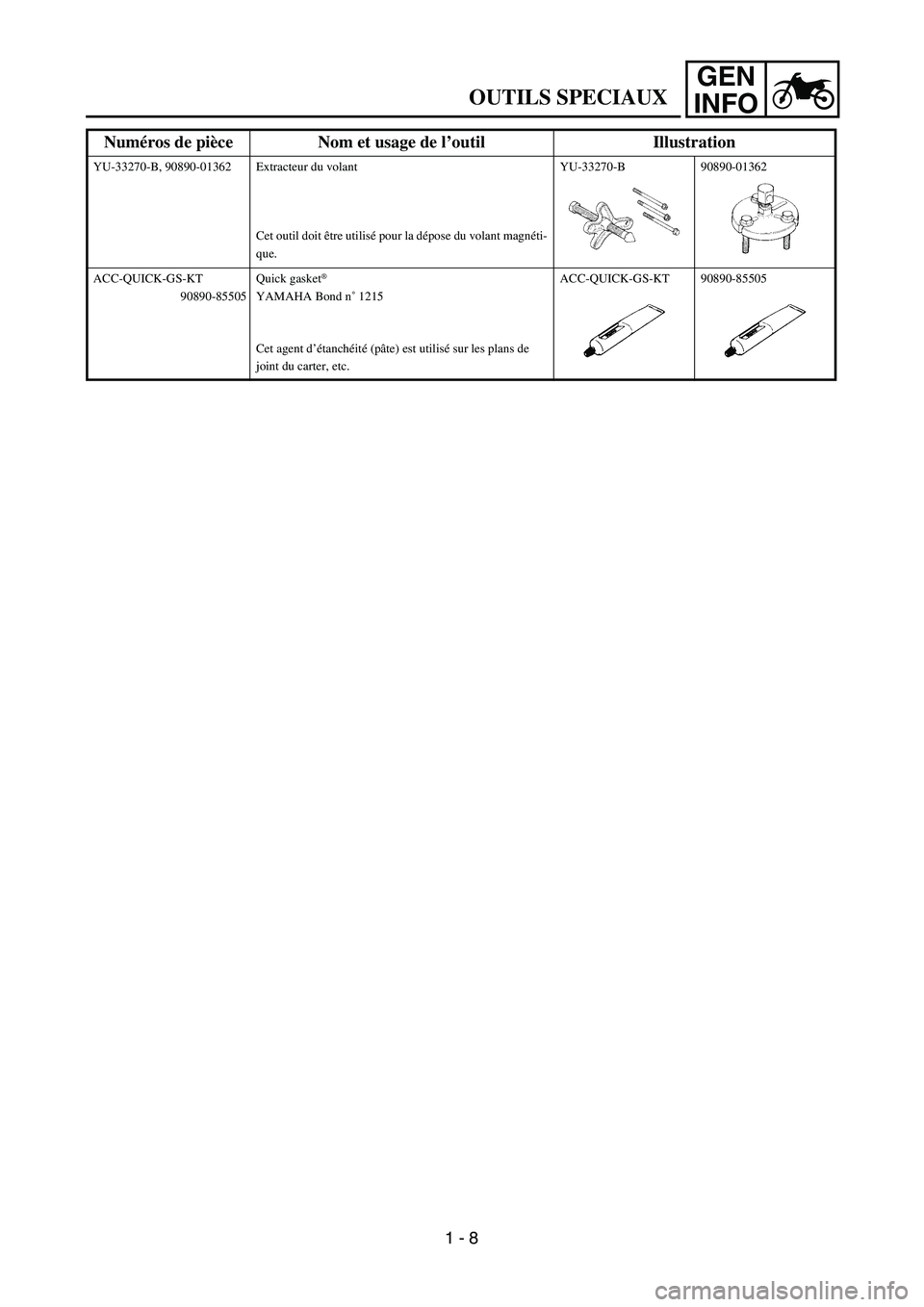

YU-33270-B, 90890-01362 Extracteur du volant
Cet outil doit être utilisé pour la dépose du volant magnéti-
que.YU-33270-B 90890-01362
ACC-QUICK-GS-KT
90890-85505Quick gasket
®
YAMAHA Bond n˚ 1215
Cet agent d’étanchéité (pâte) est utilisé sur les plans de
joint du carter, etc.ACC-QUICK-GS-KT 90890-85505
Numéros de pièce Nom et usage de l’outil Illustration
1 - 8
Page 42 of 364
GEN
INFO

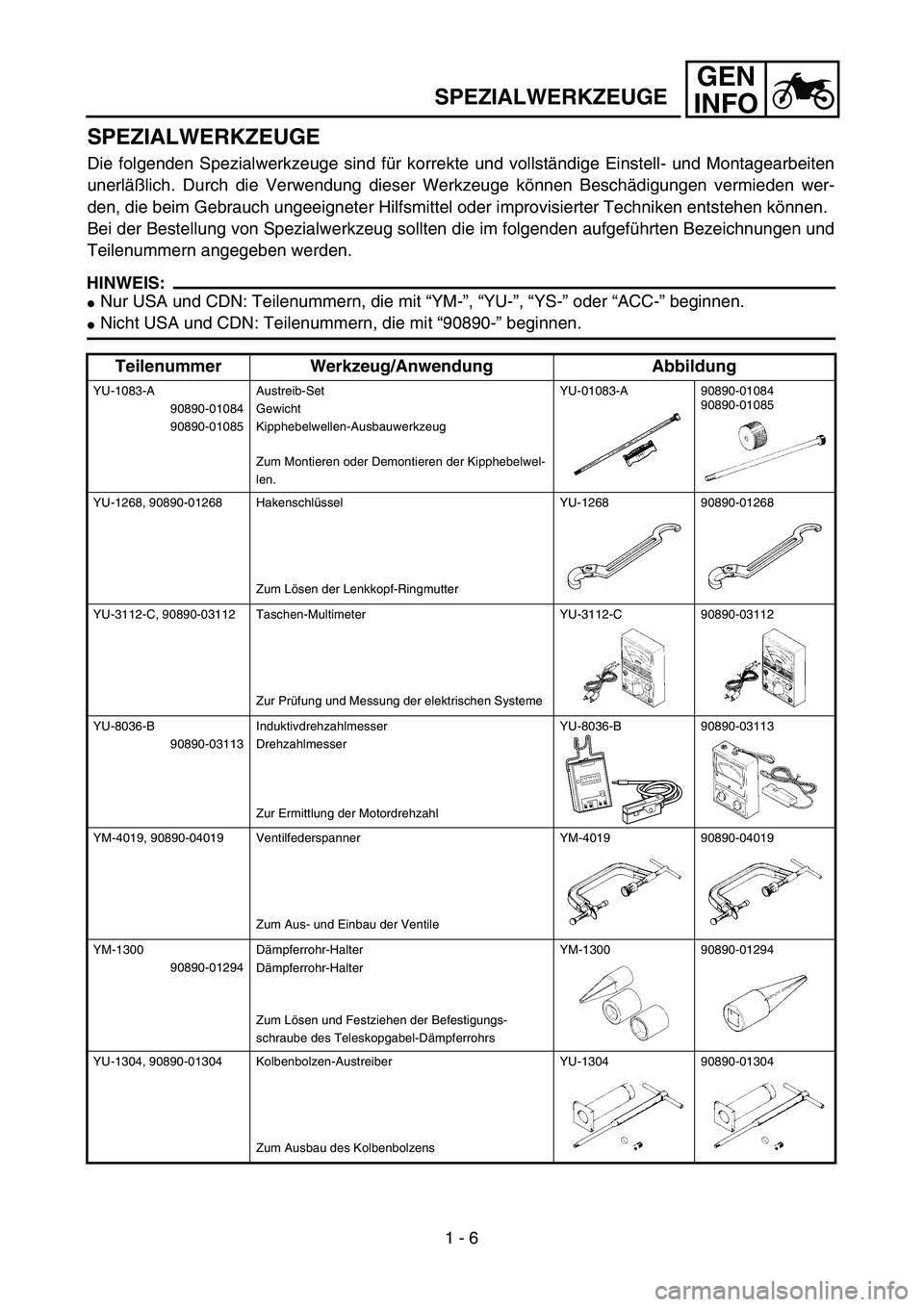

SPEZIALWERKZEUGE
SPEZIALWERKZEUGE
Die folgenden Spezialwerkzeuge sind für korrekte und vollständige Einstell- und Montagearbeiten
unerläßlich. Durch die Verwendung dieser Werkzeuge können Beschädigungen vermieden wer-
den, die beim Gebrauch ungeeigneter Hilfsmittel oder improvisierter Techniken entstehen können.
Bei der Bestellung von Spezialwerkzeug sollten die im folgenden aufgeführten Bezeichnungen und
Teilenummern angegeben werden.
HINWEIS:
Nur USA und CDN: Teilenummern, die mit “YM-”, “YU-”, “YS-” oder “ACC-” beginnen.
Nicht USA und CDN: Teilenummern, die mit “90890-” beginnen.
Teilenummer Werkzeug/Anwendung Abbildung
YU-1083-A
90890-01084
90890-01085Austreib-Set
Gewicht
Kipphebelwellen-Ausbauwerkzeug
Zum Montieren oder Demontieren der Kipphebelwel-
len.YU-01083-A 90890-01084
90890-01085
YU-1268, 90890-01268 Hakenschlüssel
Zum Lösen der Lenkkopf-RingmutterYU-1268 90890-01268
YU-3112-C, 90890-03112 Taschen-Multimeter
Zur Prüfung und Messung der elektrischen SystemeYU-3112-C 90890-03112
YU-8036-B
90890-03113Induktivdrehzahlmesser
Drehzahlmesser
Zur Ermittlung der MotordrehzahlYU-8036-B 90890-03113
YM-4019, 90890-04019 Ventilfederspanner
Zum Aus- und Einbau der VentileYM-4019 90890-04019
YM-1300
90890-01294Dämpferrohr-Halter
Dämpferrohr-Halter
Zum Lösen und Festziehen der Befestigungs-
schraube des Teleskopgabel-DämpferrohrsYM-1300 90890-01294
YU-1304, 90890-01304 Kolbenbolzen-Austreiber
Zum Ausbau des KolbenbolzensYU-1304 90890-01304
1 - 6
Page 43 of 364
GEN
INFO
SPEZIALWERKZEUGE

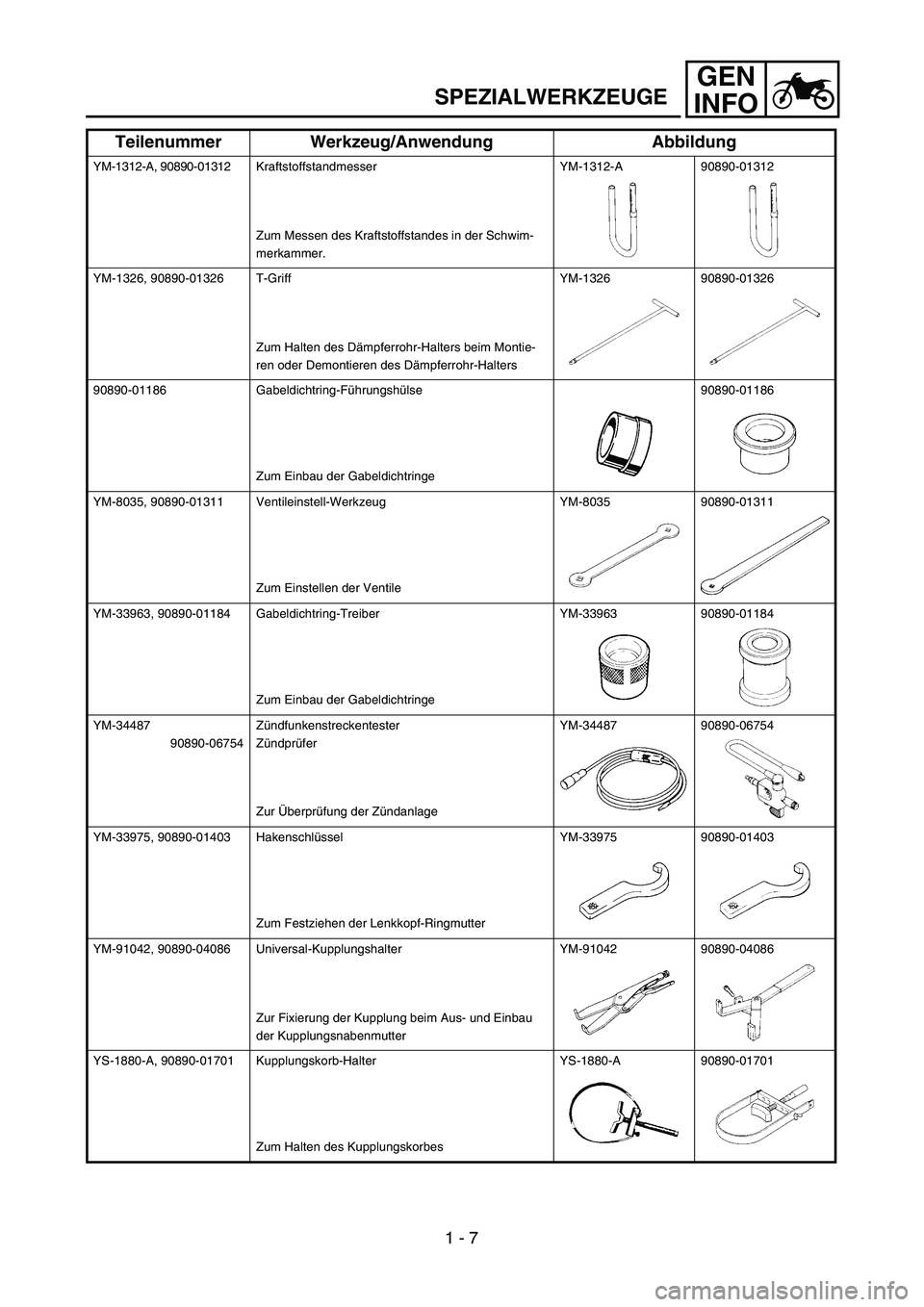

YM-1312-A, 90890-01312Kraftstoffstandmesser
Zum Messen des Kraftstoffstandes in der Schwim-
merkammer.YM-1312-A 90890-01312
YM-1326, 90890-01326 T-Griff
Zum Halten des Dämpferrohr-Halters beim Montie-
ren oder Demontieren des Dämpferrohr-HaltersYM-1326 90890-01326
90890-01186 Gabeldichtring-Führungshülse
Zum Einbau der Gabeldichtringe90890-01186
YM-8035, 90890-01311 Ventileinstell-Werkzeug
Zum Einstellen der VentileYM-8035 90890-01311
YM-33963, 90890-01184 Gabeldichtring-Treiber
Zum Einbau der GabeldichtringeYM-33963 90890-01184
YM-34487
90890-06754Zündfunkenstreckentester
Zündprüfer
Zur Überprüfung der ZündanlageYM-34487 90890-06754
YM-33975, 90890-01403 Hakenschlüssel
Zum Festziehen der Lenkkopf-RingmutterYM-33975 90890-01403
YM-91042, 90890-04086 Universal-Kupplungshalter
Zur Fixierung der Kupplung beim Aus- und Einbau
der KupplungsnabenmutterYM-91042 90890-04086
YS-1880-A, 90890-01701 Kupplungskorb-Halter
Zum Halten des KupplungskorbesYS-1880-A 90890-01701
Teilenummer Werkzeug/Anwendung Abbildung
1 - 7
Page 44 of 364
GEN
INFO
SPEZIALWERKZEUGE

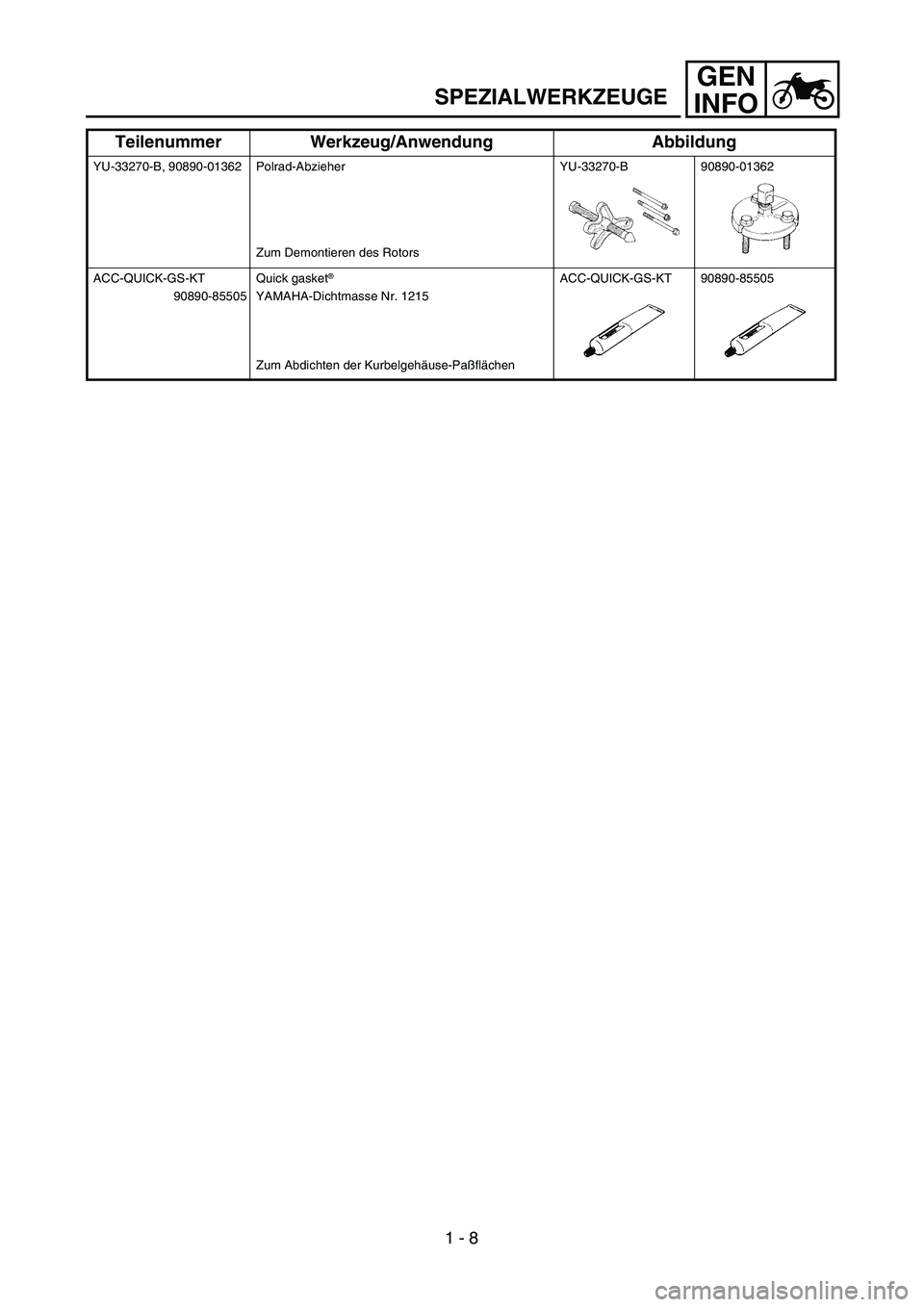

YU-33270-B, 90890-01362 Polrad-Abzieher
Zum Demontieren des RotorsYU-33270-B 90890-01362
ACC-QUICK-GS-KT
90890-85505Quick gasket
®
YAMAHA-Dichtmasse Nr. 1215
Zum Abdichten der Kurbelgehäuse-PaßflächenACC-QUICK-GS-KT 90890-85505
Teilenummer Werkzeug/Anwendung Abbildung
1 - 8
Page 45 of 364
GEN
INFO

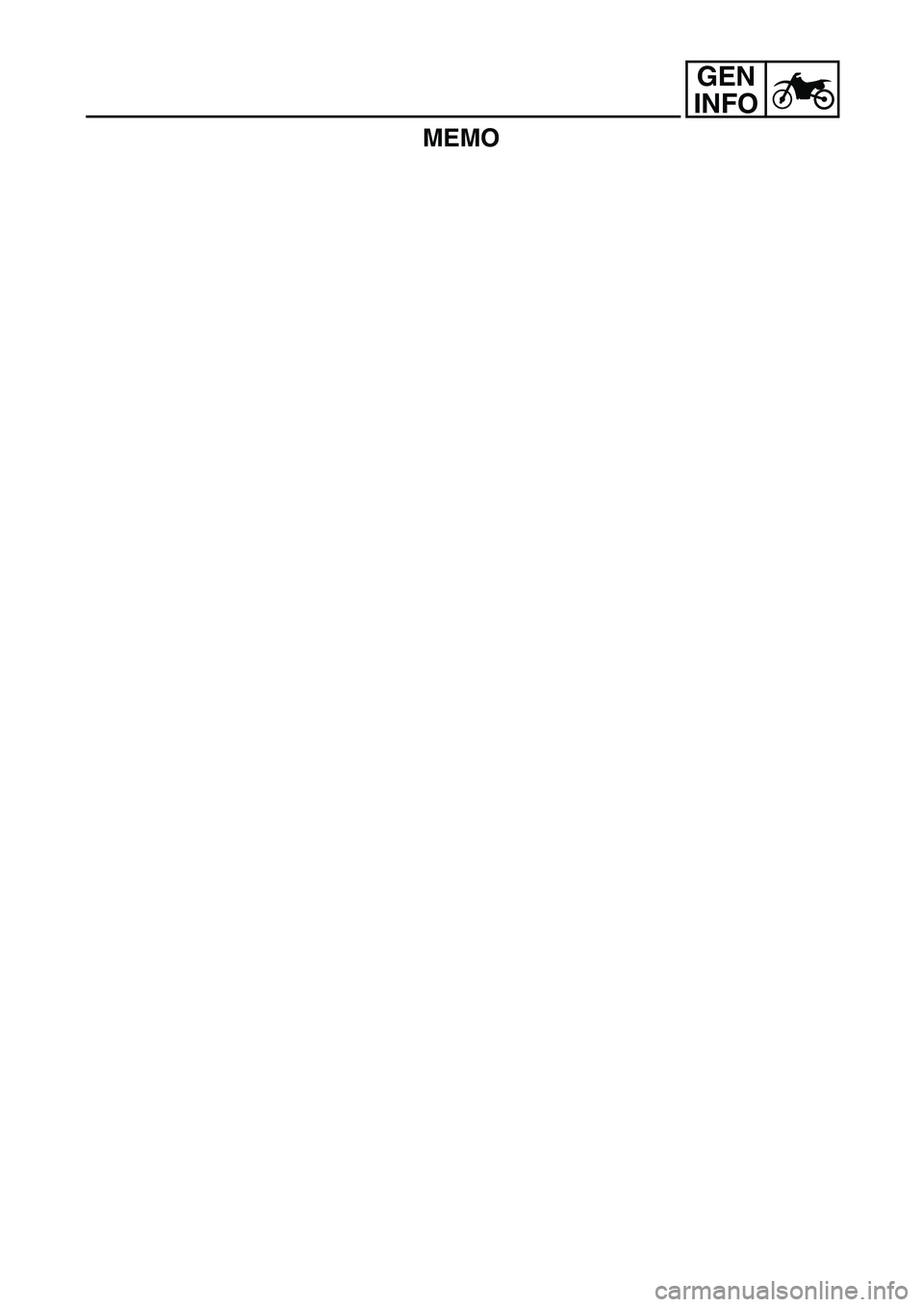

MEMO
Page 46 of 364
1 - 9
GEN
INFO
CONTROL FUNCTIONS
EC150000
CONTROL FUNCTIONS
MAIN SWITCH (TT-R90E)
Functions of the respective switch positions
are as follows:
ON: The engine can be started only at this
position.
OFF: All electrical circuits are switched off.
The key can be removed in this position.
“ENGINE STOP” SWITCH
TT-R90
Make sure that the engine stop switch 1 is
positioned to “”. The engine stop switch has
been equipped to ensure safety in an emer-
gency such when the machine is up set or
trouble takes place in the throttle system. The
engine will not start or run when the engine
stop switch is turned to “”.
TT-R90E
The engine stop switch 1 is located on the left
handlebar. Continue pushing the engine stop
switch till the engine comes to a stop.
ÅTT-R90
ıTT-R90E
Å
1 ı
START SWITCH (TT-R90E)
The start switch 1 is located on the right han-
dlebar. Push this switch to crank the engine
with the starter.
1
SHIFT PEDAL
The gear ratios of the constant-mesh 3 speed
transmission are ideally spaced. The gears
can be shifted by using the shift pedal 1 on
the left side of the engine.
WARNING
When starting out on the machine, shift the
transmission into 1st after pulling in the front
brake lever and closing the throttle grip.
Page 47 of 364
GEN
INFOFONCTIONS DES COMMANDES
ARMATUREN UND DEREN FUNKTION
ARMATUREN UND DEREN FUNK-
TION
HAUPTSCHALTER (TT-R90E)
Die Funktionen der einzelnen Schalterpositio-
nen sind wie folgt:
ON: Der Motor kann nur in dieser Position
gestartet werden.
OFF: Alle elektrischen Schaltkreise sind
deaktiviert. Der Schlüssel kann in dieser
Position abgezogen werden.
MOTORSTOPPSCHALTER
TT-R90
Der Motorstoppschalter 1 muß sich in der
Position “” befinden. Der Motorstoppschal-
ter ist eine Sicherheitseinrichtung, die das
Abschalten in Notsituationen erlaubt (z.B. bei
Umfallen des Motorrads oder klemmender
Drosselklappe). Der Motor wird nicht starten
oder laufen, wenn sich der Motorstoppschalter
in der Position “” befindet.
TT-R90E
Der Motorstoppschalter 1 befindet sich auf
der linken Seite des Lenkers. Den Motorstopp-
schalter gedrückt halten, bis der Motor
abstirbt.
ÅTT-R90
ıTT-R90E
STARTSCHALTER (TT-R90E)
Der Startschalter 1 befindet sich am rechten
Lenkergriff. Diesen Schalter drücken, um den
Motor mit dem Starter zu kurbeln.
FUSSSCHALTHEBEL
Erst das Getriebe erlaubt die Nutzung der Mo-
torleistung in verschiedenen Geschwindigkeits-
bereichen, so daß Anfahren, Bergauffahren und
schnelles Beschleunigen möglich sind. Die Gän-
ge dieses 3-Gang-Getriebes werden über den
Fußschalthebel 1 linksseitig des Motors bei
ausgerückter Kupplung geschaltet.
WARNUNG
Beim Starten der Maschine den Front-
bremshebel ziehen, das Gas herunterdre-
hen, und den 1. Gang einlegen.
FONCTIONS DES COMMANDES
COMMUTATEUR PRINCIPAL (TT-R90E)
Les fonctions du commutateur aux différentes posi-
tions sont les suivantes :
ON: Le moteur ne peut démarrer que lorsque le
commutateur est à cette position.
OFF: Tous les circuits électriques sont coupés. La
clé ne peut être retirée que lorsque le com-
mutateur est à cette position.
COUPE-CIRCUIT DU MOTEUR
TT-R90
Bien veiller à ce que le coupe-circuit du moteur 1
soit placé sur “”. Ce véhicule est équipé d’un
coupe-circuit du moteur afin de couper le moteur
en cas d’urgence, comme p. ex. lors d’une chute ou
lorsqu’un problème apparaît dans le système
d’accélération. Le moteur ne se met pas en marche
ou cesse de tourner dès que le coupe-circuit du
moteur est placé à la position “”.
TT-R90E
Le coupe-circuit du moteur 1 est situé sur la partie
gauche du guidon. Appuyer de façon continue sur
le coupe-circuit du moteur jusqu’à ce que le moteur
s’arrête.
ÅTT-R90
ıTT-R90E
COMMUTATEUR DE DEMARRAGE
(TT-R90E)
Le commutateur de démarrage 1 se trouve sur la
manette droite du guidon. Appuyer sur ce commu-
tateur pour mettre le moteur en marche avec le
démarreur
PEDALE DE CHANGEMENT DE VITESSE
Les 3 rapports de la boîte de vitesses à prise cons-
tante sont idéalement échelonnés. Le changement
de vitesse est commandé par le sélecteur à pédale
1 situé du côté gauche du moteur.
AVERTISSEMENT
Pour mettre le moteur en marche, mettre la boîte
de vitesses en première après avoir rentré le
levier de frein avant et fermé la poignée des gaz.
1 - 9
Page 48 of 364
1 - 10
GEN
INFO
CONTROL FUNCTIONS

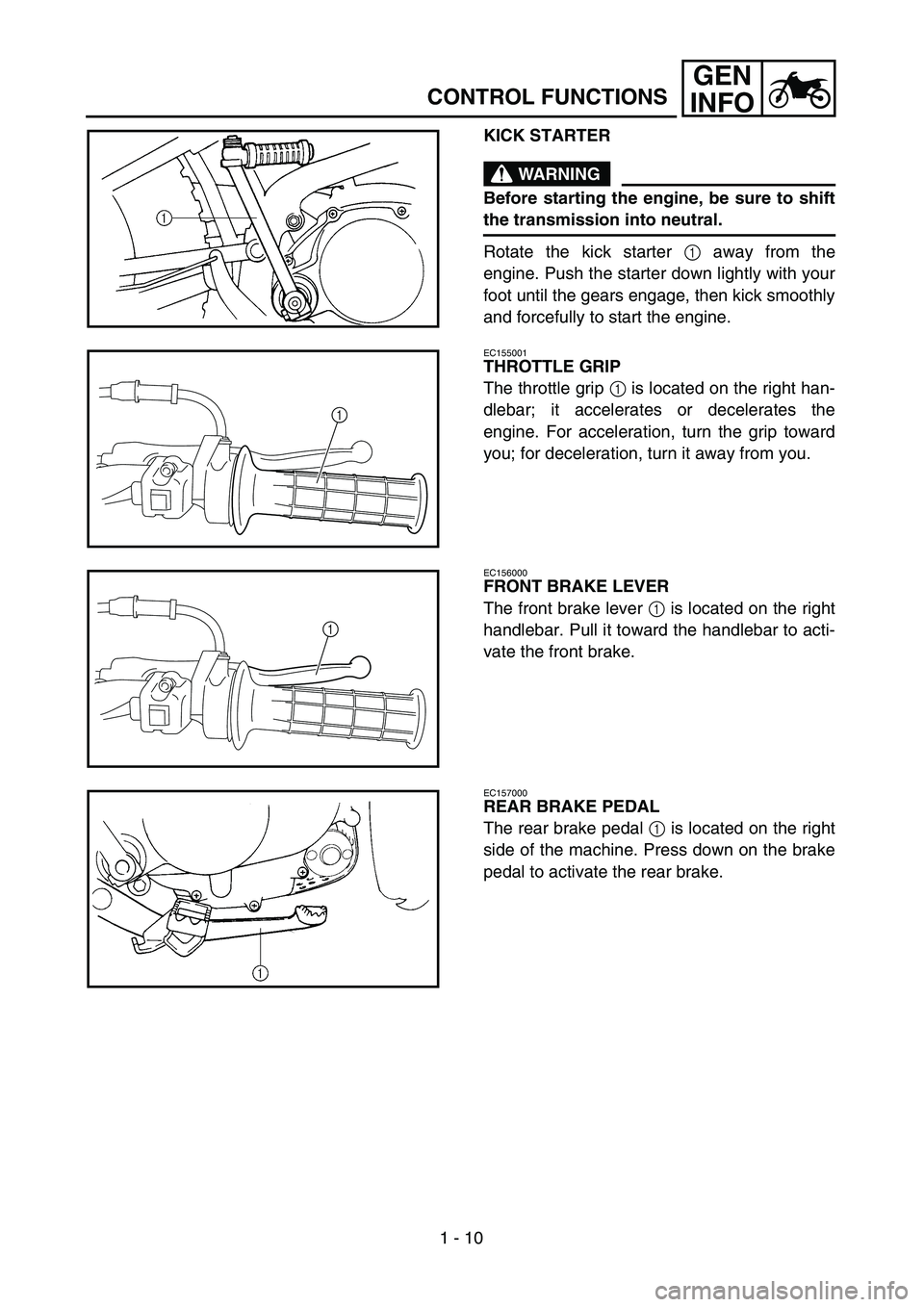

KICK STARTER
WARNING
Before starting the engine, be sure to shift
the transmission into neutral.
Rotate the kick starter 1 away from the
engine. Push the starter down lightly with your
foot until the gears engage, then kick smoothly
and forcefully to start the engine.
EC155001
THROTTLE GRIP
The throttle grip 1 is located on the right han-
dlebar; it accelerates or decelerates the
engine. For acceleration, turn the grip toward
you; for deceleration, turn it away from you.
1
EC156000
FRONT BRAKE LEVER
The front brake lever 1 is located on the right
handlebar. Pull it toward the handlebar to acti-
vate the front brake.
1
EC157000
REAR BRAKE PEDAL
The rear brake pedal 1 is located on the right
side of the machine. Press down on the brake
pedal to activate the rear brake.
Page 49 of 364
GEN
INFOFONCTIONS DES COMMANDES
ARMATUREN UND DEREN FUNKTION

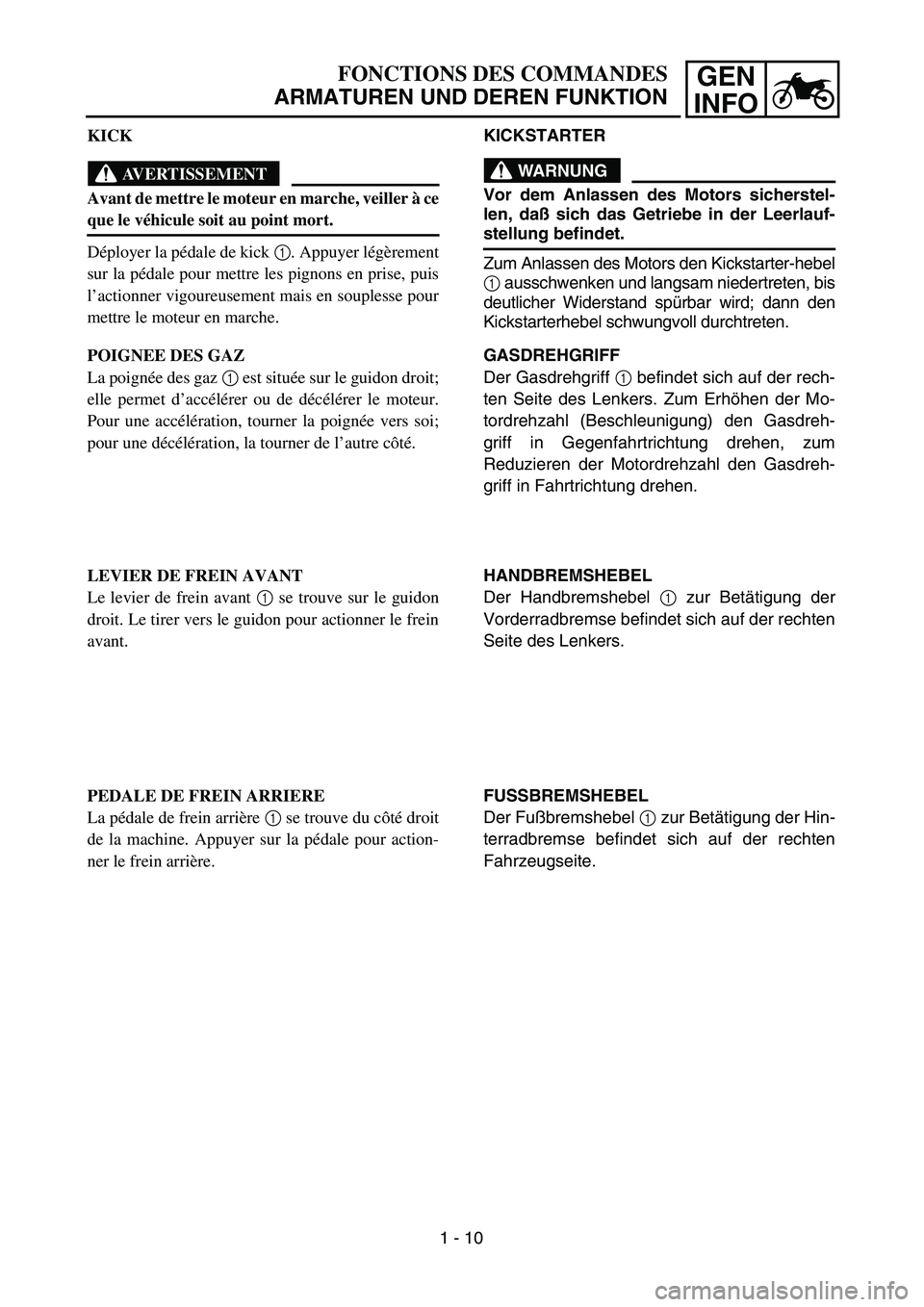

KICKSTARTER
WARNUNG
Vor dem Anlassen des Motors sicherstel-
len, daß sich das Getriebe in der Leerlauf-
stellung befindet.
Zum Anlassen des Motors den Kickstarter-hebel
1 ausschwenken und langsam niedertreten, bis
deutlicher Widerstand spürbar wird; dann den
Kickstarterhebel schwungvoll durchtreten.
GASDREHGRIFF
Der Gasdrehgriff 1 befindet sich auf der rech-
ten Seite des Lenkers. Zum Erhöhen der Mo-
tordrehzahl (Beschleunigung) den Gasdreh-
griff in Gegenfahrtrichtung drehen, zum
Reduzieren der Motordrehzahl den Gasdreh-
griff in Fahrtrichtung drehen.
HANDBREMSHEBEL
Der Handbremshebel 1 zur Betätigung der
Vorderradbremse befindet sich auf der rechten
Seite des Lenkers.
FUSSBREMSHEBEL
Der Fußbremshebel 1 zur Betätigung der Hin-
terradbremse befindet sich auf der rechten
Fahrzeugseite. KICK
AVERTISSEMENT
Avant de mettre le moteur en marche, veiller à ce
que le véhicule soit au point mort.
Déployer la pédale de kick 1. Appuyer légèrement
sur la pédale pour mettre les pignons en prise, puis
l’actionner vigoureusement mais en souplesse pour
mettre le moteur en marche.
POIGNEE DES GAZ
La poignée des gaz 1 est située sur le guidon droit;
elle permet d’accélérer ou de décélérer le moteur.
Pour une accélération, tourner la poignée vers soi;
pour une décélération, la tourner de l’autre côté.
LEVIER DE FREIN AVANT
Le levier de frein avant 1 se trouve sur le guidon
droit. Le tirer vers le guidon pour actionner le frein
avant.
PEDALE DE FREIN ARRIERE
La pédale de frein arrière 1 se trouve du côté droit
de la machine. Appuyer sur la pédale pour action-
ner le frein arrière.
1 - 10
Page 50 of 364
1 - 11
GEN
INFO
CONTROL FUNCTIONS

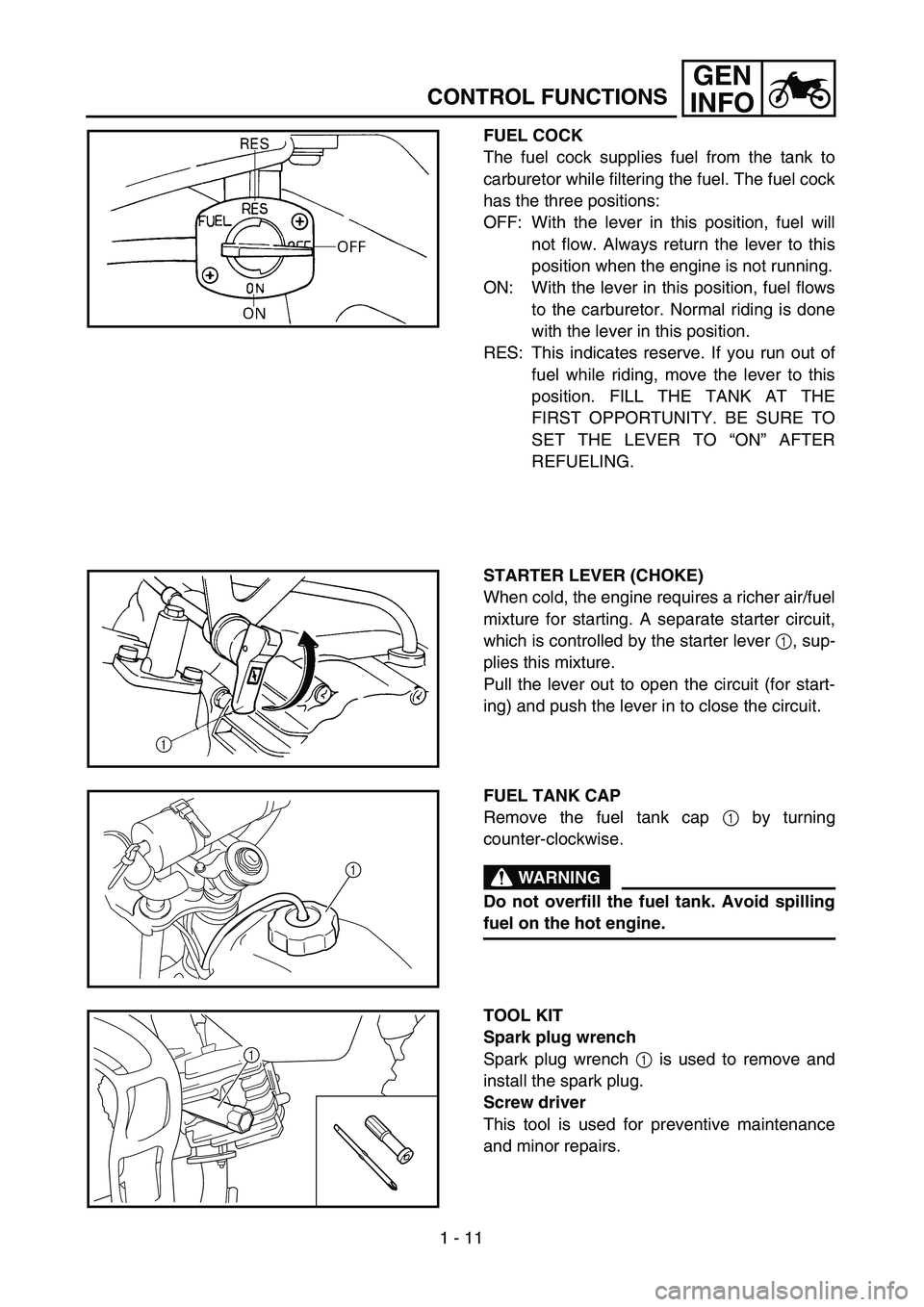

FUEL COCK
The fuel cock supplies fuel from the tank to
carburetor while filtering the fuel. The fuel cock
has the three positions:
OFF: With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not running.
ON: With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
RES: This indicates reserve. If you run out of
fuel while riding, move the lever to this
position. FILL THE TANK AT THE
FIRST OPPORTUNITY. BE SURE TO
SET THE LEVER TO “ON” AFTER
REFUELING.
STARTER LEVER (CHOKE)
When cold, the engine requires a richer air/fuel
mixture for starting. A separate starter circuit,
which is controlled by the starter lever 1, sup-
plies this mixture.
Pull the lever out to open the circuit (for start-
ing) and push the lever in to close the circuit.
FUEL TANK CAP
Remove the fuel tank cap 1 by turning
counter-clockwise.
WARNING
Do not overfill the fuel tank. Avoid spilling
fuel on the hot engine.
1
TOOL KIT
Spark plug wrench
Spark plug wrench 1 is used to remove and
install the spark plug.
Screw driver
This tool is used for preventive maintenance
and minor repairs.
1
