1
SAFETY INFORMATION
1-4
of accessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.

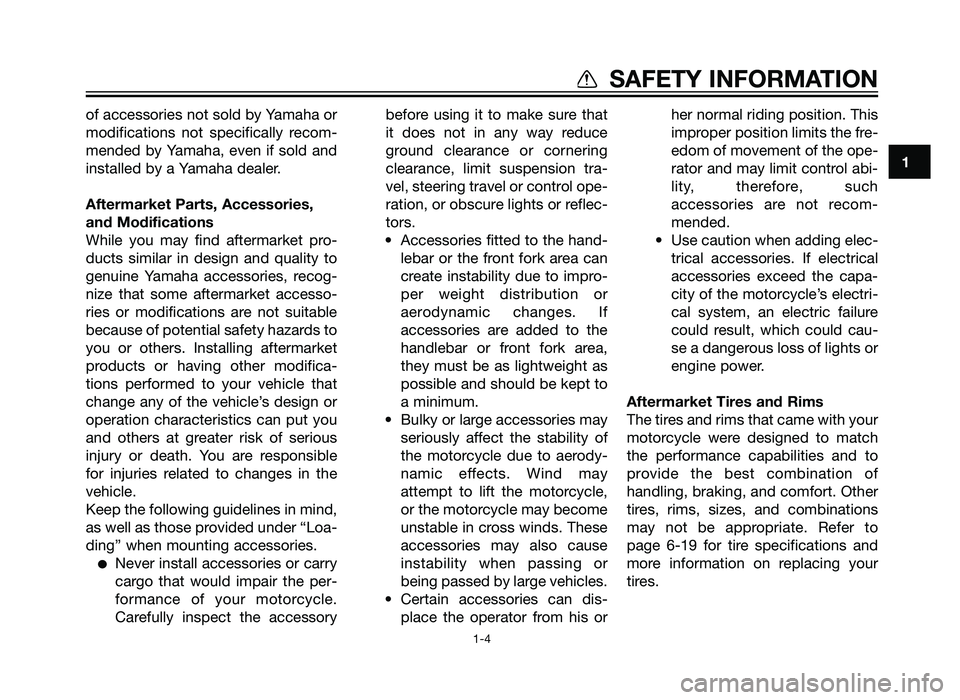

Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket pro-
ducts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifica-
tions performed to your vehicle that
change any of the vehicle’s design or
operation characteristics can put you
and others at greater risk of serious
injury or death. You are responsible
for injuries related to changes in the
vehicle.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
Never install accessories or carry
cargo that would impair the per-
formance of your motorcycle.
Carefully inspect the accessorybefore using it to make sure that
it does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand- lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may
attempt to lift the motorcycle,
or the motorcycle may become
unstable in cross winds. These
accessories may also cause
instability when passing or
being passed by large vehicles.
• Certain accessories can dis- place the operator from his or her normal riding position. This
improper position limits the fre-
edom of movement of the ope-
rator and may limit control abi-
lity, therefore, such
accessories are not recom-
mended.
• Use caution when adding elec- trical accessories. If electrical
accessories exceed the capa-
city of the motorcycle’s electri-
cal system, an electric failure
could result, which could cau-
se a dangerous loss of lights or
engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of
handling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. Refer to
page 6-19 for tire specifications and
more information on replacing your
tires.
1HD-F819D-E0 7/3/11 20:27 Página 11
2AS-F819D-E0.indd 1131/07/12 10:09

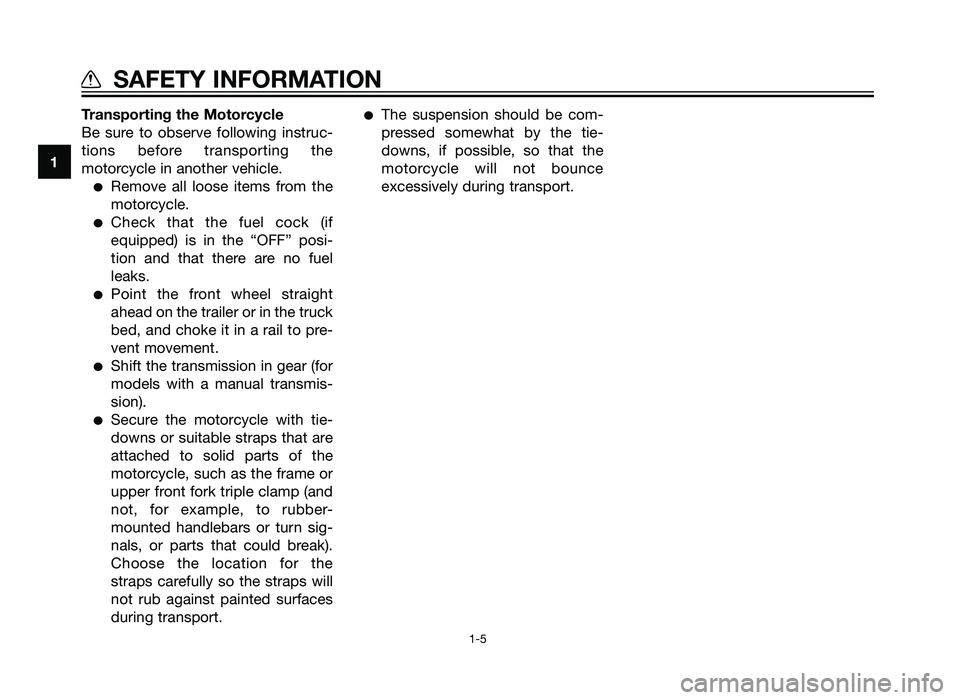

Transporting the Motorcycle
Be sure to observe following instruc-
tions before transporting the
motorcycle in another vehicle.
Remove all loose items from the
motorcycle.
Check that the fuel cock (if
equipped) is in the “OFF” posi-
tion and that there are no fuel
leaks.
Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
Shift the transmission in gear (for
models with a manual transmis-
sion).
Secure the motorcycle with tie-
downs or suitable straps that are
attached to solid parts of the
motorcycle, such as the frame or
upper front fork triple clamp (and
not, for example, to rubber-
mounted handlebars or turn sig-
nals, or parts that could break).
Choose the location for the
straps carefully so the straps will
not rub against painted surfaces
during transport.
The suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the
motorcycle will not bounce
excessively during transport.
1
SAFETY INFORMATION
1-5
1HD-F819D-E0 7/3/11 20:27 Página 12
2AS-F819D-E0.indd 1231/07/12 10:09

EAU10410

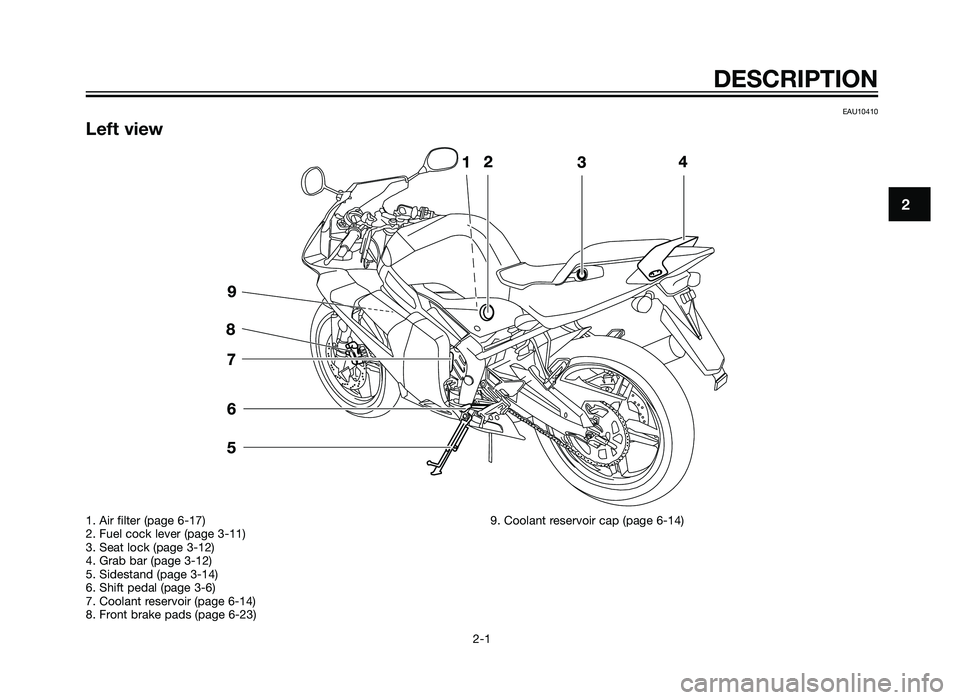

Left view
DESCRIPTION
2-1
2
1. Air filter (page 6-17)
2. Fuel cock lever (page 3-11)
3. Seat lock (page 3-12)
4. Grab bar (page 3-12)
5. Sidestand (page 3-14)
6. Shift pedal (page 3-6)
7. Coolant reservoir (page 6-14)
8. Front brake pads (page 6-23)9. Coolant reservoir cap (page 6-14)
1HD-F819D-E0 7/3/11 20:27 Página 13
2AS-F819D-E0.indd 1331/07/12 10:09

EAU10420

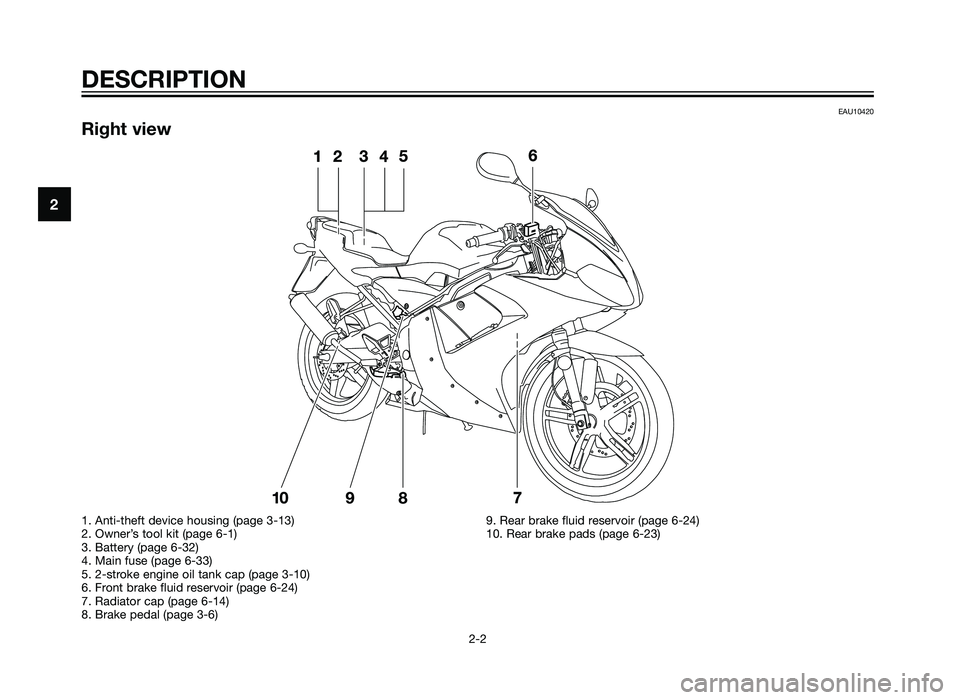

Right view
DESCRIPTION
2-2
2
1. Anti-theft device housing (page 3-13)
2. Owner’s tool kit (page 6-1)
3. Battery (page 6-32)
4. Main fuse (page 6-33)
5. 2-stroke engine oil tank cap (page 3-10)
6. Front brake fluid reservoir (page 6-24)
7. Radiator cap (page 6-14)
8. Brake pedal (page 3-6)9. Rear brake fluid reservoir (page 6-24)
10. Rear brake pads (page 6-23)
1HD-F819D-E0 7/3/11 20:27 Página 14
2AS-F819D-E0.indd 1431/07/12 10:09

EAU10430

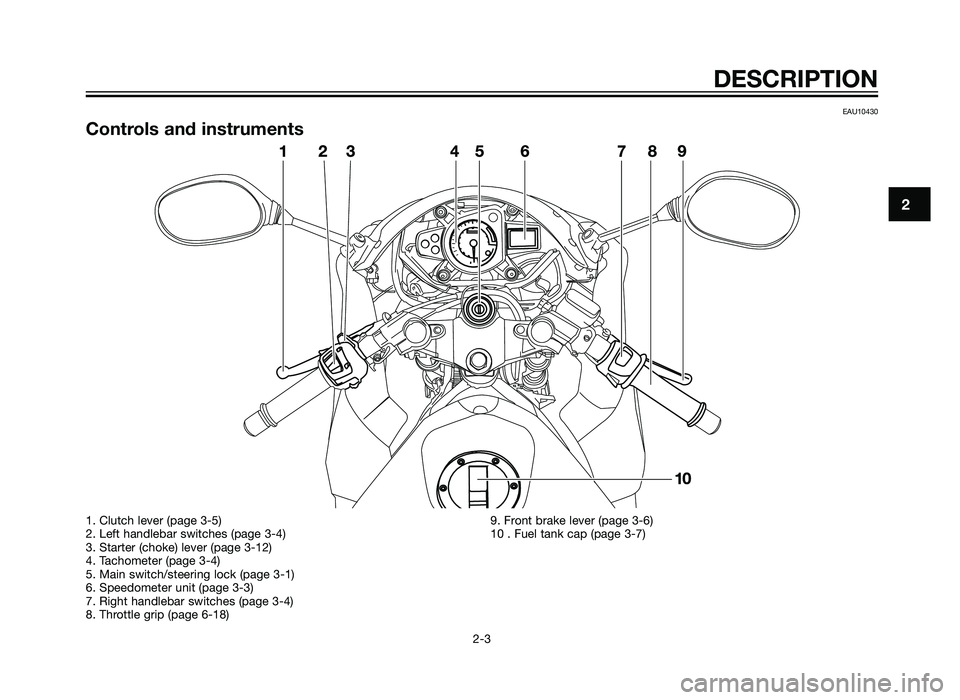

Controls and instruments
DESCRIPTION
2-3
2
1. Clutch lever (page 3-5)
2. Left handlebar switches (page 3-4)
3. Starter (choke) lever (page 3-12)
4. Tachometer (page 3-4)
5. Main switch/steering lock (page 3-1)
6. Speedometer unit (page 3-3)
7. Right handlebar switches (page 3-4)
8. Throttle grip (page 6-18)9. Front brake lever (page 3-6)
10 . Fuel tank cap (page 3-7)
1HD-F819D-E0 7/3/11 20:27 Página 15
2AS-F819D-E0.indd 1531/07/12 10:09

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460

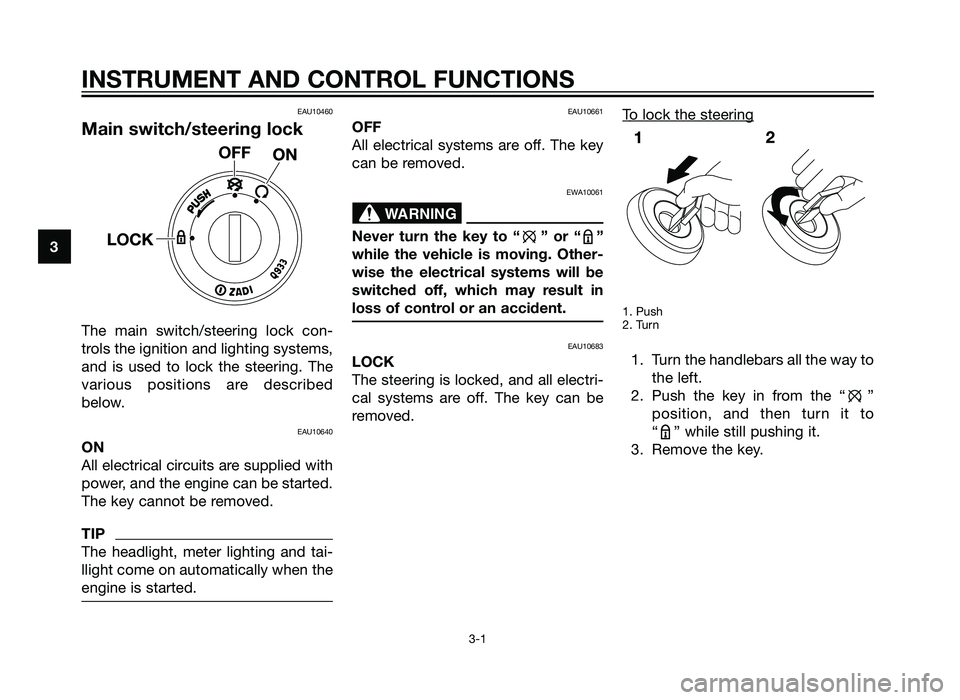

Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10640
ON
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
TIP
The headlight, meter lighting and tai-
llight come on automatically when the
engine is started.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
EWA10061
Never turn the key to “ ” or “ ”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
EAU10683
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.T
o lock the steering
1. Push
2. Turn
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “ ” position, and then turn it to
“ ” while still pushing it.
3. Remove the key.
WARNING
1HD-F819D-E0 7/3/11 20:27 Página 16
2AS-F819D-E0.indd 1631/07/12 10:09

To unlock the steering
1. Push
2. Turn
Push the key in, and then turn it to
“ ” while still pushing it.
EAU11004
Indicator and warning lights
1. Coolant temperature warning light “ ”
2. Oil level warning light “ ”
3. Turn signal indicator light “ ”
4. Neutral indicator light “ ”
5. Engine trouble warning light “ ”
EAU11020
Turn signal indicator light “ ”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU11060
Neutral indicator light “ ”
This indicator light comes on when
the transmission is in the neutral posi-
tion.
EAUM1062
Oil level warning light “ ”
This warning light comes on when the
key is in the “ ” position or if the oil
level in the 2-stroke engine oil tank is
low during operation. If the warning
light comes on during operation, stop
immediately and fill the oil tank with
2-stroke engine oil of either JASO
grade “FC” or ISO grades “EG-C” or
“EG-D”. The warning light should go
off after the 2-stroke engine oil tank
has been refilled.
TIP
If the warning light does not come on
when the key is in the “ ” position or
does not go off after the 2-stroke
engine oil tank has been refilled, have
an Yamaha dealer check the electrical
circuit.
ECA16291
Do not operate the vehicle until you
know that the engine oil level is suf-
ficient.
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
1HD-F819D-E0 7/3/11 20:27 Página 17
2AS-F819D-E0.indd 1731/07/12 10:09

EAU11446
Coolant temperature warning light
“”
This warning light comes on if the
engine overheats. If this occurs, stop
the engine immediately and allow the
engine to cool.
The electrical circuit of the warning
light can be checked by turning the
key to “ ”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come
on initially when the key is turned to
“ ”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
ECA10021
Do not continue to operate the
engine if it is overheating.
TIP
For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the
radiator.
If the engine overheats, see page
6-39 for further instructions.
EAUS1540
Engine trouble warning light “ ”
This warning light flashes if a problem
is detected in the electrical circuit
monitoring the engine. If this occurs,
have a Yamaha dealer check the self-
diagnosis system.
The electrical circuit of the warning
light can be checked by turning the
key to “ ”. If the warning light does
not come on for a few seconds, then
go off, have a Yamaha dealer check
the electrical circuit.
EAU11621
Speedometer unit
1. Speedometer
2. Odometer
UK ONLY
1. Speedometer
2. Odometer
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
1HD-F819D-E0 7/3/11 20:27 Página 18
2AS-F819D-E0.indd 1831/07/12 10:09

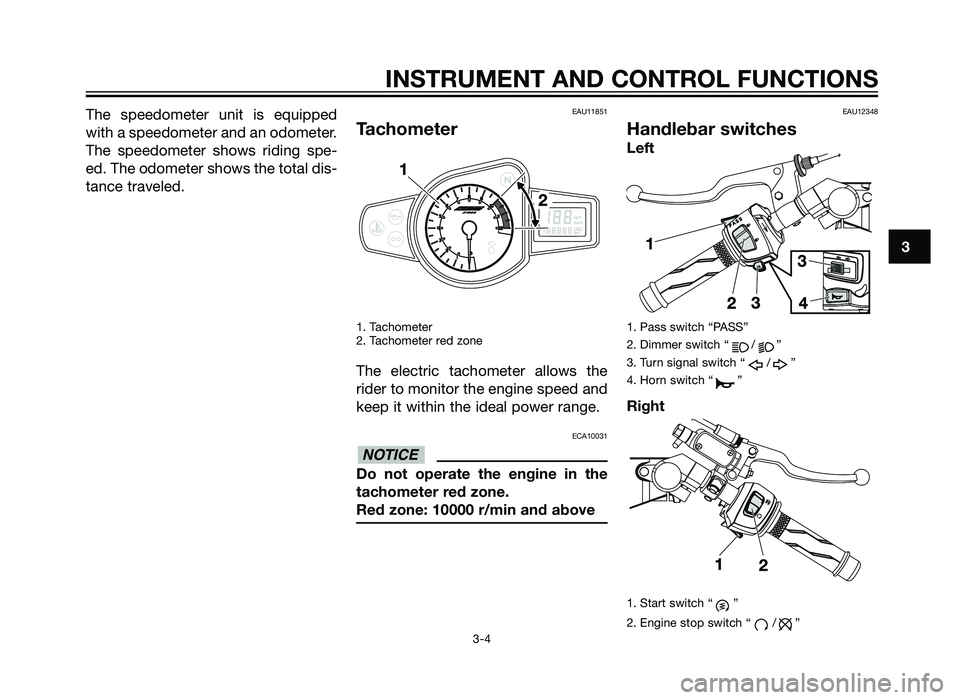

The speedometer unit is equipped
with a speedometer and an odometer.
The speedometer shows riding spe-
ed. The odometer shows the total dis-
tance traveled.EAU11851
Tachometer
1. Tachometer
2. Tachometer red zone
The electric tachometer allows the
rider to monitor the engine speed and
keep it within the ideal power range.
ECA10031
Do not operate the engine in the
tachometer red zone.
Red zone: 10000 r/min and above
EAU12348
Handlebar switches
Left
1. Pass switch “PASS”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
Right
1. Start switch “ ”
2. Engine stop switch “ / ”
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
1HD-F8199-E0 13/5/11 07:11 Página 19
2AS-F819D-E0.indd 1931/07/12 10:09

EAU12360

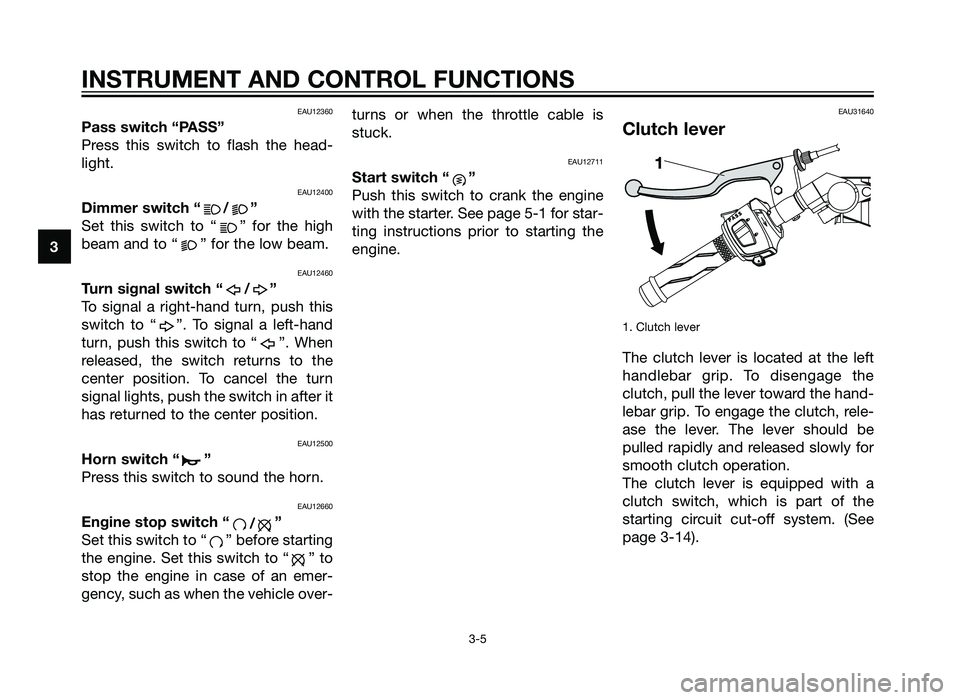

Pass switch “PASS”
Press this switch to flash the head-
light.
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emer-
gency, such as when the vehicle over- turns or when the throttle cable is
stuck.
EAU12711
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 5-1 for star-
ting instructions prior to starting the
engine.
EAU31640
Clutch lever
1. Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the hand-
lebar grip. To engage the clutch, rele-
ase the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the
starting circuit cut-off system. (See
page 3-14).
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
1HD-F819D-E0 7/3/11 20:27 Página 20
2AS-F819D-E0.indd 2031/07/12 10:09
