YAMAHA VIKING 2016 Owners Manual

8-21
8
3. If the coolant is at or below the minimumlevel mark, remove the coolant reservoir
cap, add coolant to the maximum level
mark, install the reservoir cap. Changing the coolant
The coolant must be changed by a Yamaha
dealer at the intervals specified in the periodic
maintenance and lubrication chart.
Adding water instead of coolant lowers the
antifreeze content of the coolant. If water is
used instead of coolant, have a Yamaha deal-
er check the antifreeze content of the coolant
as soon as possible.
The radiator fan is automatically switched on
or off according to the coolant temperature in
the radiator.
NOTICEECB02260Mix antifreeze with distilled water only.
However, if distilled water is not available,
soft water may be used for refilling. If your vehicle overheats, see page 8-56 for
instructions.EBU32400Axle bootsCheck the axle boots for holes or tears.

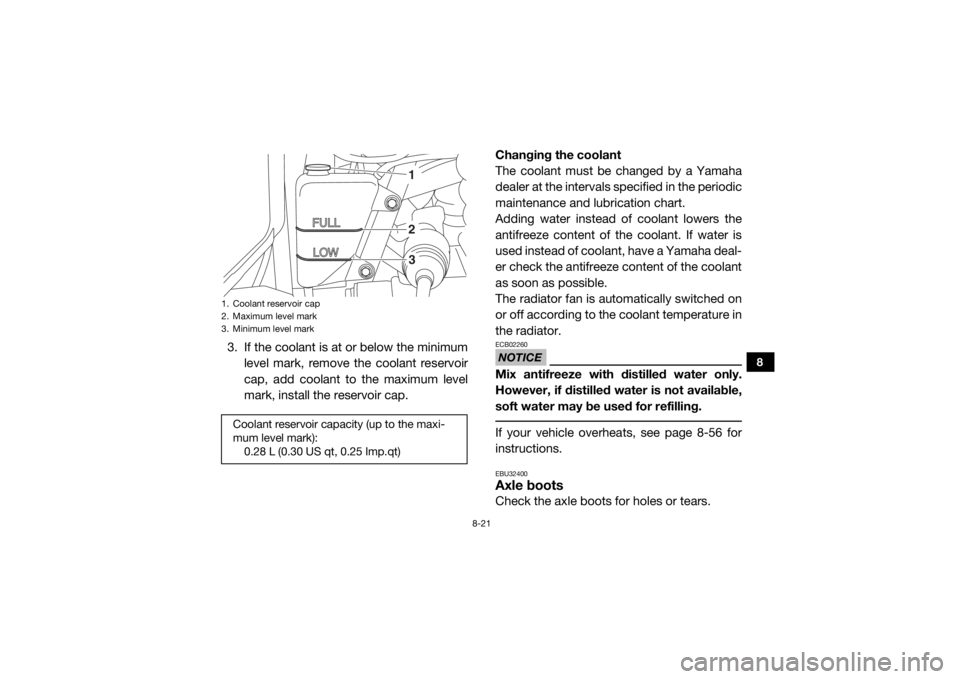

1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level markCoolant reservoir capacity (up to the maxi-
mum level mark):
0.28 L (0.30 US qt, 0.25 Imp.qt)
123
UB427AE0.book Page 21 Monday, May 18, 2015 9:17 AM

8-22
8
If any damage is found, have them replaced
by a Yamaha dealer.
EBU32410Spark plug inspectionRemoval1. Lift the cargo bed up. (See page 4-22 for cargo bed lifting and lowering proce-
dures.)
2. Remove the spark plug cap.
3. Use the spark plug wrench in the tool kit to remove the spark plug as shown.

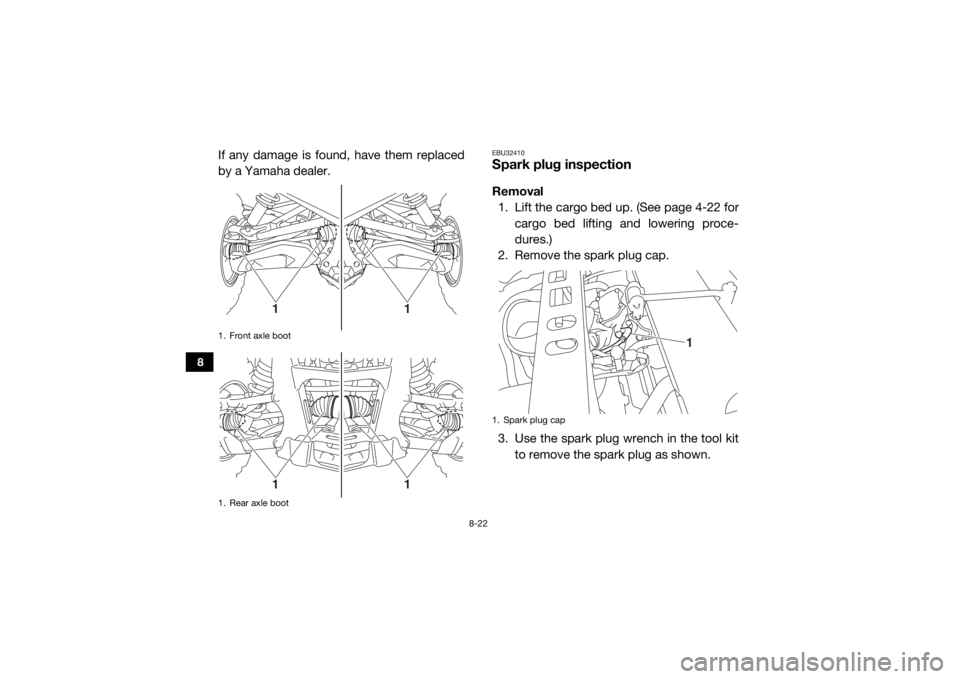

1. Front axle boot
1. Rear axle boot
1
1
1
1
1. Spark plug cap
1
UB427AE0.book Page 22 Monday, May 18, 2015 9:17 AM

8-23
8
Inspection
The spark plug is an important engine com-
ponent and is easy to inspect. The condition
of the spark plug can indicate the condition of
the engine.
The ideal color of the porcelain insulator
around the center electrode is a medium-to-
light tan for a vehicle that is being ridden nor-
mally.
You should periodically remove and inspect
the spark plug because heat and deposits will
cause the spark plug to slowly break downand erode. If electrode erosion becomes ex-
cessive, or if carbon and other deposits are
excessive, you should replace the spark plug
with the specified plug.

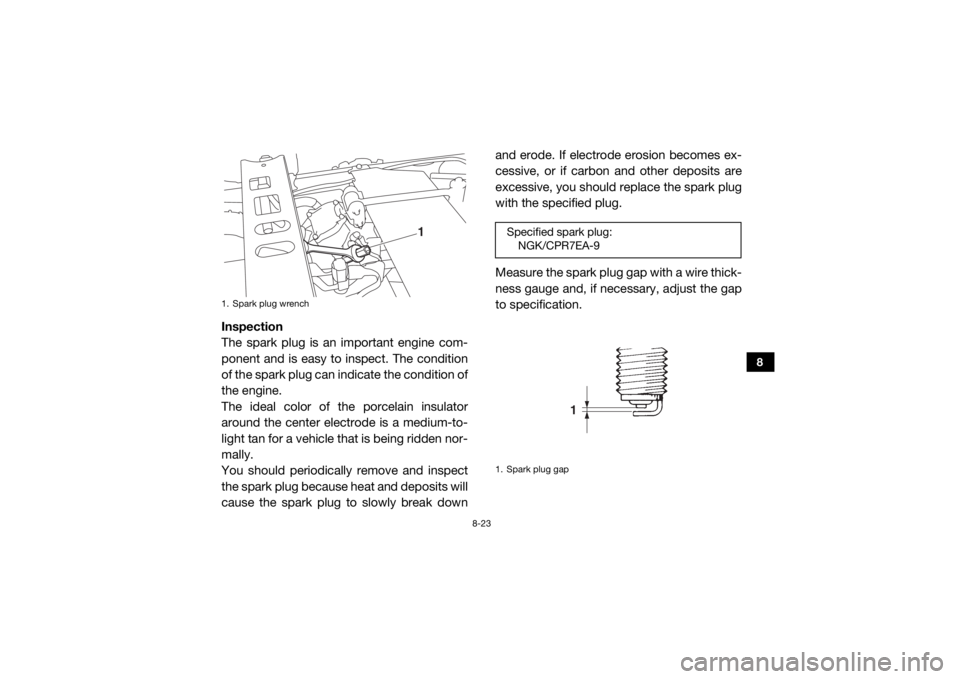

Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.1. Spark plug wrench
1
Specified spark plug:
NGK/CPR7EA-91. Spark plug gap
1
UB427AE0.book Page 23 Monday, May 18, 2015 9:17 AM

8-24
8
Installation1. Clean the surface of the spark plug gas-
ket and its mating surface, and then wipe
off any grime from the spark plug
threads.
2. Install the spark plug and tighten it to the specified torque. If a torque wrench is not
available when you are installing the
spark plug, a good estimate of the cor-
rect torque is one-quarter to one-half turn
past finger tight. Have the spark plug
tightened to the specified torque as soon
as possible.
3. Install the spark plug cap.
4. Lower the cargo bed.
EBU34810Cleaning the air filter elementThe air filter element should be cleaned every
20–40 hours. It should be cleaned and lubri-
cated more often if the vehicle is operated in
extremely dusty areas. Each time air filter ele-
ment maintenance is performed, check the air
inlet to the air filter case for obstructions.
Check the air filter element rubber joint to the
throttle body and manifold fittings for an air-
tight seal. Tighten all fittings securely to avoid
the possibility of unfiltered air entering the en-
gine.NOTICEECB02270Never operate the engine with the air filter
element removed. Doing so would allow
unfiltered air to enter, causing rapid en-
gine wear and possible engine damage.
Additionally, the fuel injection system
would be affected, resulting in poor engine
performance and possible overheating.
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Tightening torque: Spark plug:13 Nm (1.3 m·kgf, 9.4 ft·lbf)
UB427AE0.book Page 24 Monday, May 18, 2015 9:17 AM

8-25
8
1. Remove the center passenger seat cush-ion. (See page 4-15 for seat cushion re-
moval and installation procedures.)
2. Lift up the rubber damper, and then re- move the center passenger seat by re-
moving the bolts.
3. Remove covers A and B by removing the quick fastener screws. 4. Remove the air filter case cover by un-

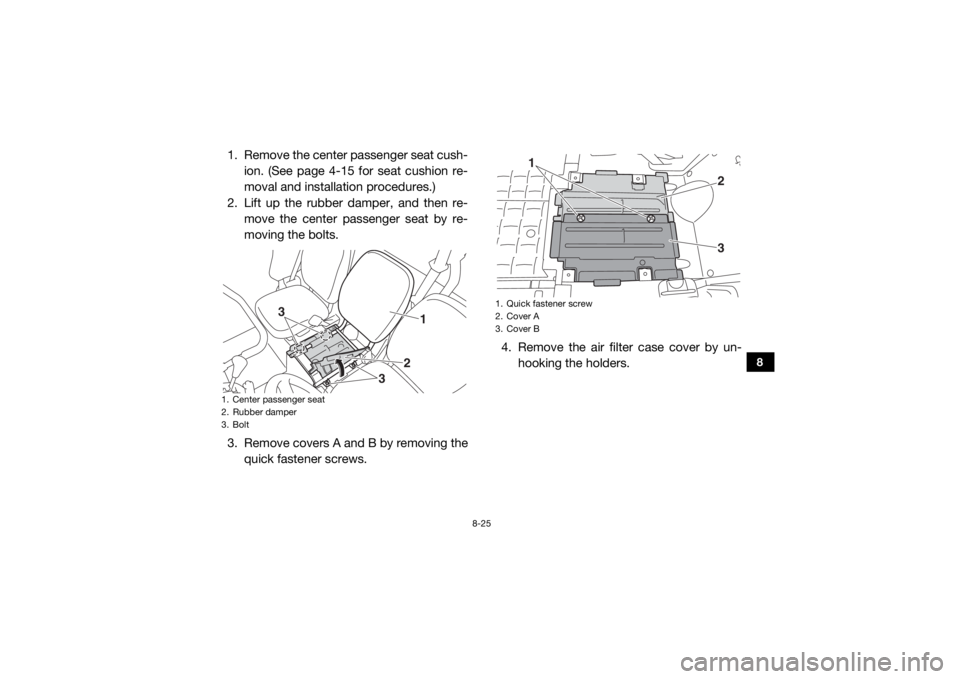

hooking the holders.1. Center passenger seat
2. Rubber damper
3. Bolt
1
2
3
3
1. Quick fastener screw
2. Cover A
3. Cover B
23
1
UB427AE0.book Page 25 Monday, May 18, 2015 9:17 AM

8-26
8
5. Remove the air filter element.6. While pushing the projections on the air
filter frame inward, remove the air filter el-
ement holder.

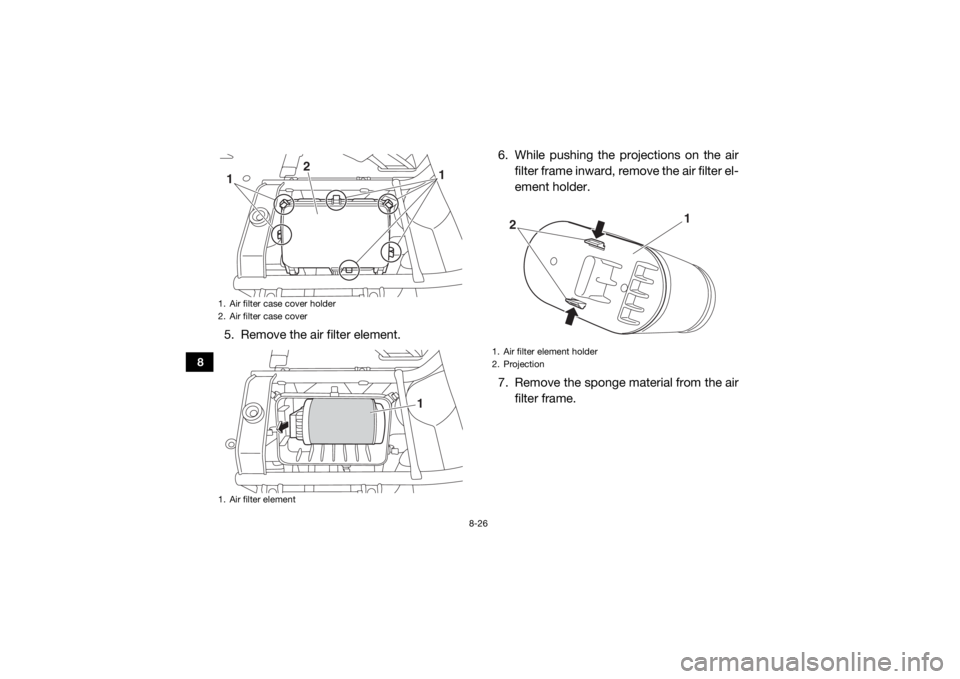

7. Remove the sponge material from the air filter frame.1. Air filter case cover holder
2. Air filter case cover
1. Air filter element
2
1 1
1
1. Air filter element holder
2. Projection
1
2
UB427AE0.book Page 26 Monday, May 18, 2015 9:17 AM

8-27
8

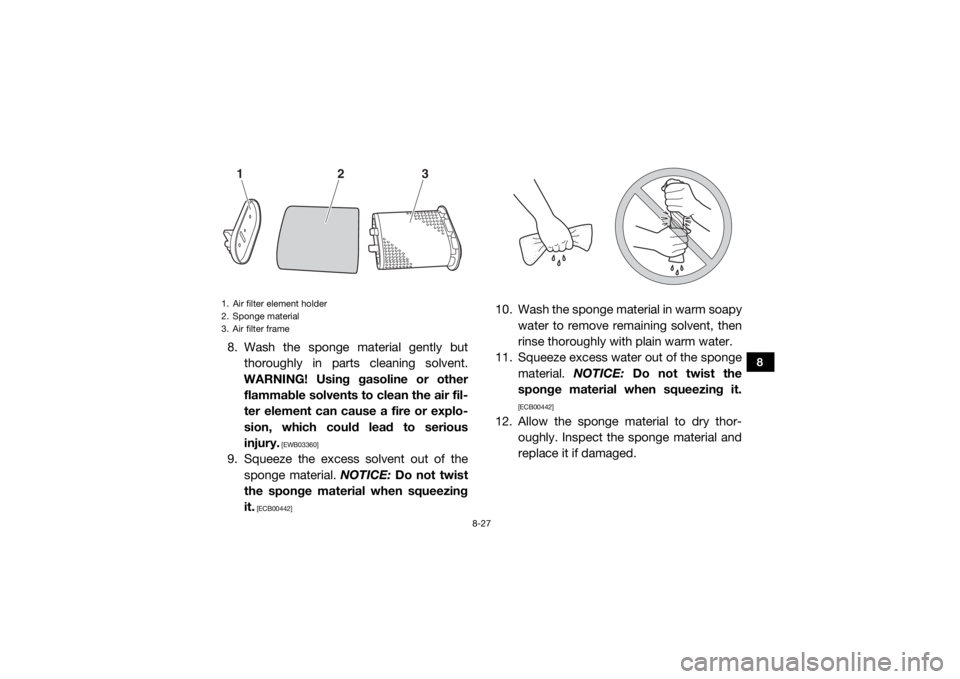

8. Wash the sponge material gently butthoroughly in parts cleaning solvent.
WARNING! Using gasoline or other flammable solvents to clean the air fil-
ter element can cause a fire or explo-
sion, which could lead to serious
injury.
[EWB03360]
9. Squeeze the excess solvent out of the
sponge material. NOTICE: Do not twist
the sponge material when squeezing
it.
[ECB00442]
10. Wash the sponge material in warm soapy
water to remove remaining solvent, then
rinse thoroughly with plain warm water.
11. Squeeze excess water out of the sponge
material. NOTICE: Do not twist the
sponge material when squeezing it.
[ECB00442]
12. Allow the sponge material to dry thor- oughly. Inspect the sponge material and
replace it if damaged.
1. Air filter element holder
2. Sponge material
3. Air filter frame
3
2
1
UB427AE0.book Page 27 Monday, May 18, 2015 9:17 AM

8-28
8
13. Thoroughly apply Yamaha foam air filteroil or other quality liquid foam air filter oil
(not spray type) to the sponge material.
The sponge material should be wet but
not dripping.
14. Pull the sponge material over its frame.
15. Install the air filter element holder.
16. Install the air filter element.
17. Fit the holders on the air filter case cover onto the projections on the air filter case,
and then install the air filter case cover by
hooking the holders onto the cover. 18. Install cover A, then cover B in their orig-
inal positions by installing the quick fas-

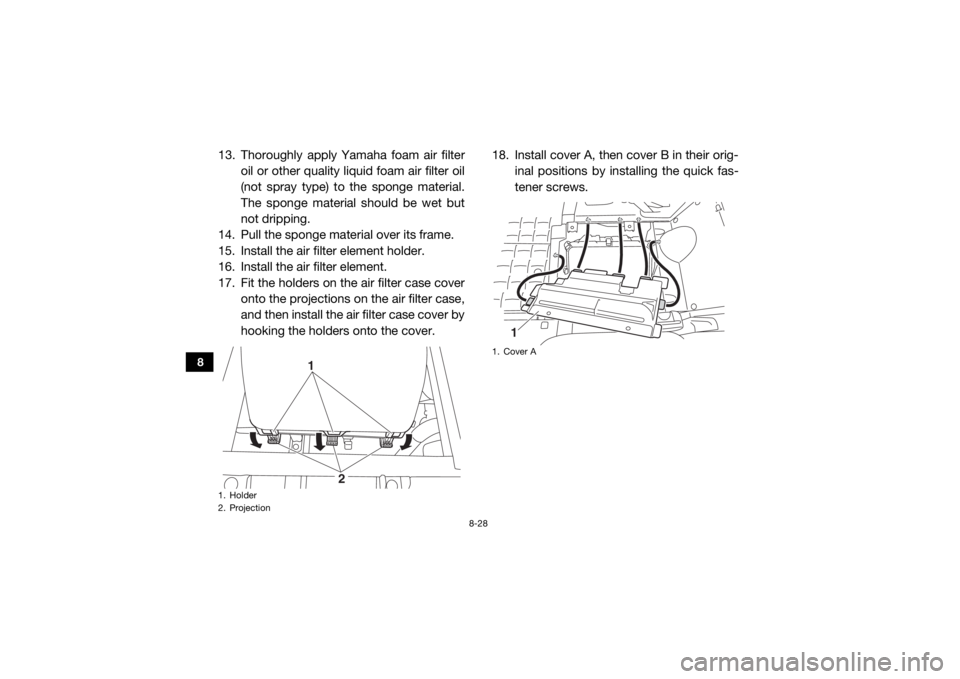

tener screws.1. Holder
2. Projection
1
2
1. Cover A
1
UB427AE0.book Page 28 Monday, May 18, 2015 9:17 AM

8-29
8
19. Install the seat by installing the bolts, andthen place the rubber damper in the orig-
inal position.
20. Install the center passenger seat cushion.EBU32430Cleaning the air filter case/duct check
hoseThere is a check hose at the bottom of the air
filter case under the cargo bed and a check
hose at the bottom of the air duct. The air
duct check hose can be accessed under the vehicle. If dust or water collects in a check
hose, empty the hose and clean the air filter

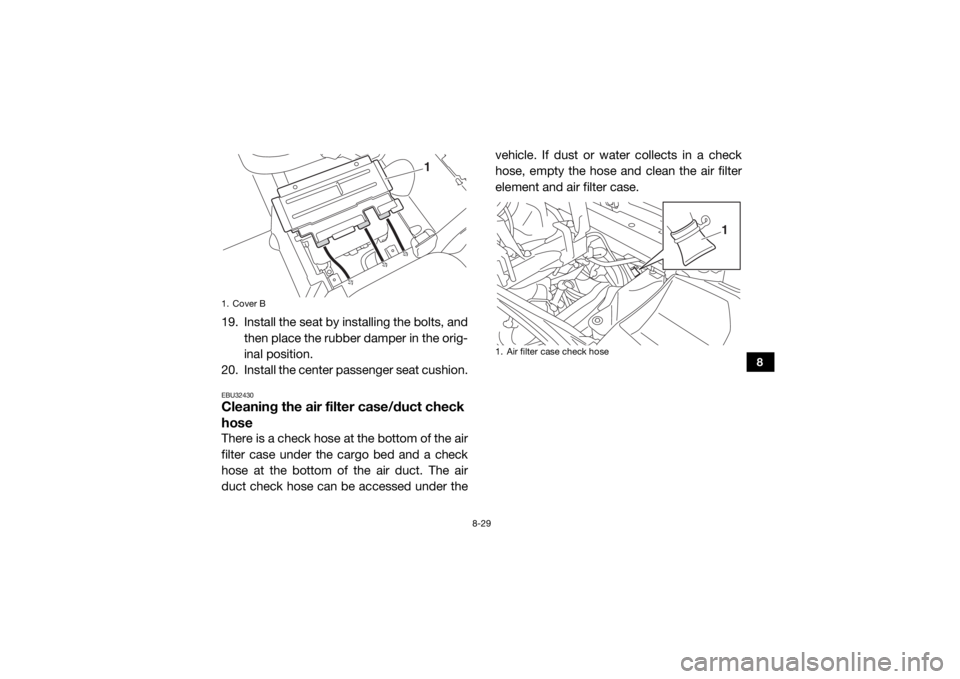

element and air filter case.1. Cover B
1
1. Air filter case check hose
1
UB427AE0.book Page 29 Monday, May 18, 2015 9:17 AM

8-30
8
EBU32440V-belt case drain plugThe V-belt case drain plug is located under
the cargo bed. (See page 4-22 for cargo bed
lifting and lowering procedures.)
After riding in water deep enough to allow wa-
ter to enter the V-belt case, remove the drain
plug to drain any water from the case.
If water drains from the V-belt case after re-
moving the drain plug, have a Yamaha dealer
inspect the vehicle, as the water may affect
other engine parts.
EBU32450Cleaning the spark arrester
WARNING
EWB03370Hot exhaust system may cause burns. To
avoid burns or fires, make sure that the en-
gine is stopped and the exhaust system is
cool before cleaning the spark arrester. Do
not start the engine while cleaning the ex-
haust system. 1. Remove the tailpipe bolts.
1. Air duct check hose
1
1. V-belt case drain plug
1
