Page 131 of 230

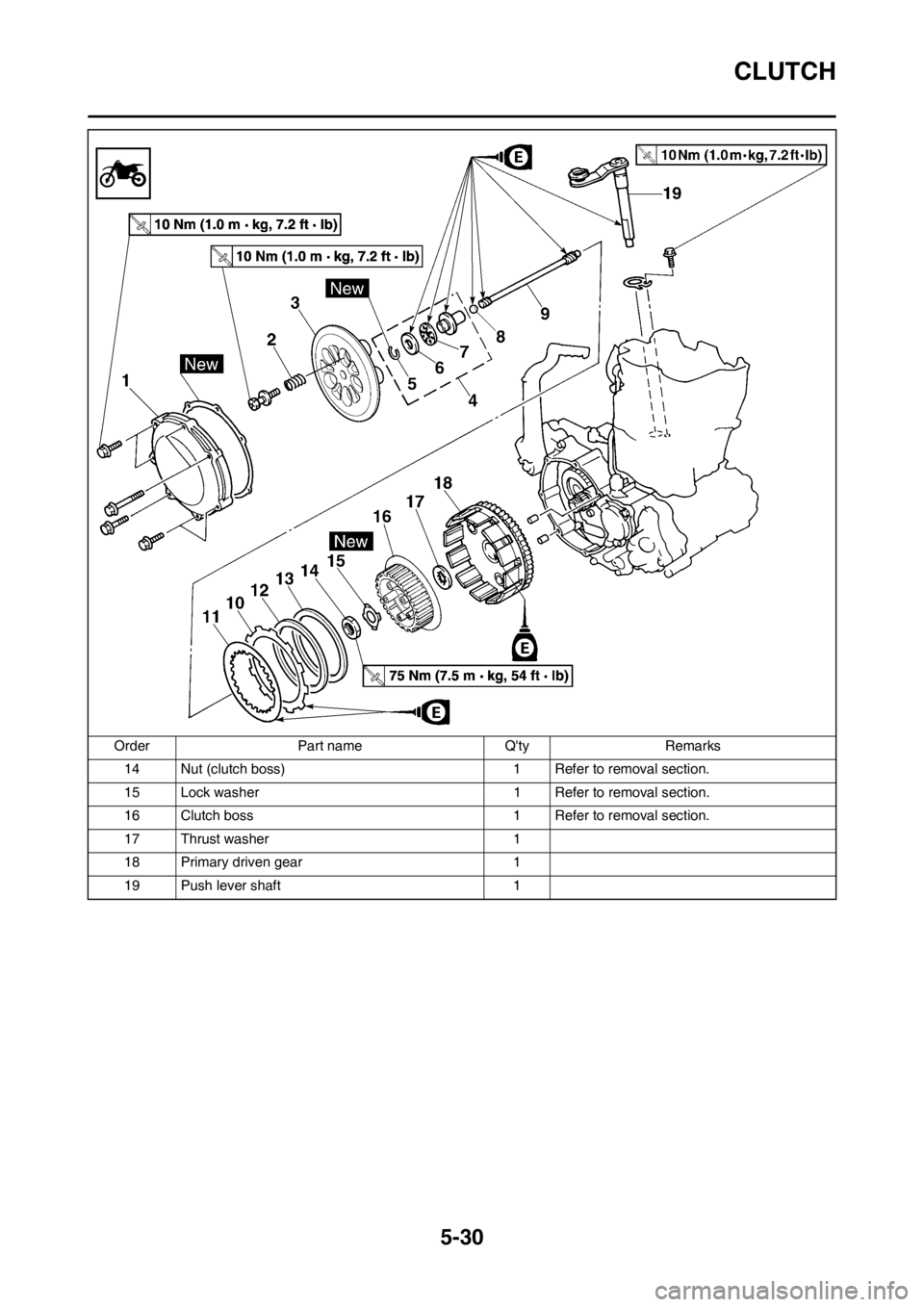

YAMAHA WR 250F 2014  Owners Manual 5-30
CLUTCH
14 Nut (clutch boss) 1 Refer to removal section.
15 Lock washer 1 Refer to removal section.
16 Clutch boss 1 Refer to removal section.
17 Thrust washer 1
18 Primary driven gear 1
19 Push l

Page 132 of 230

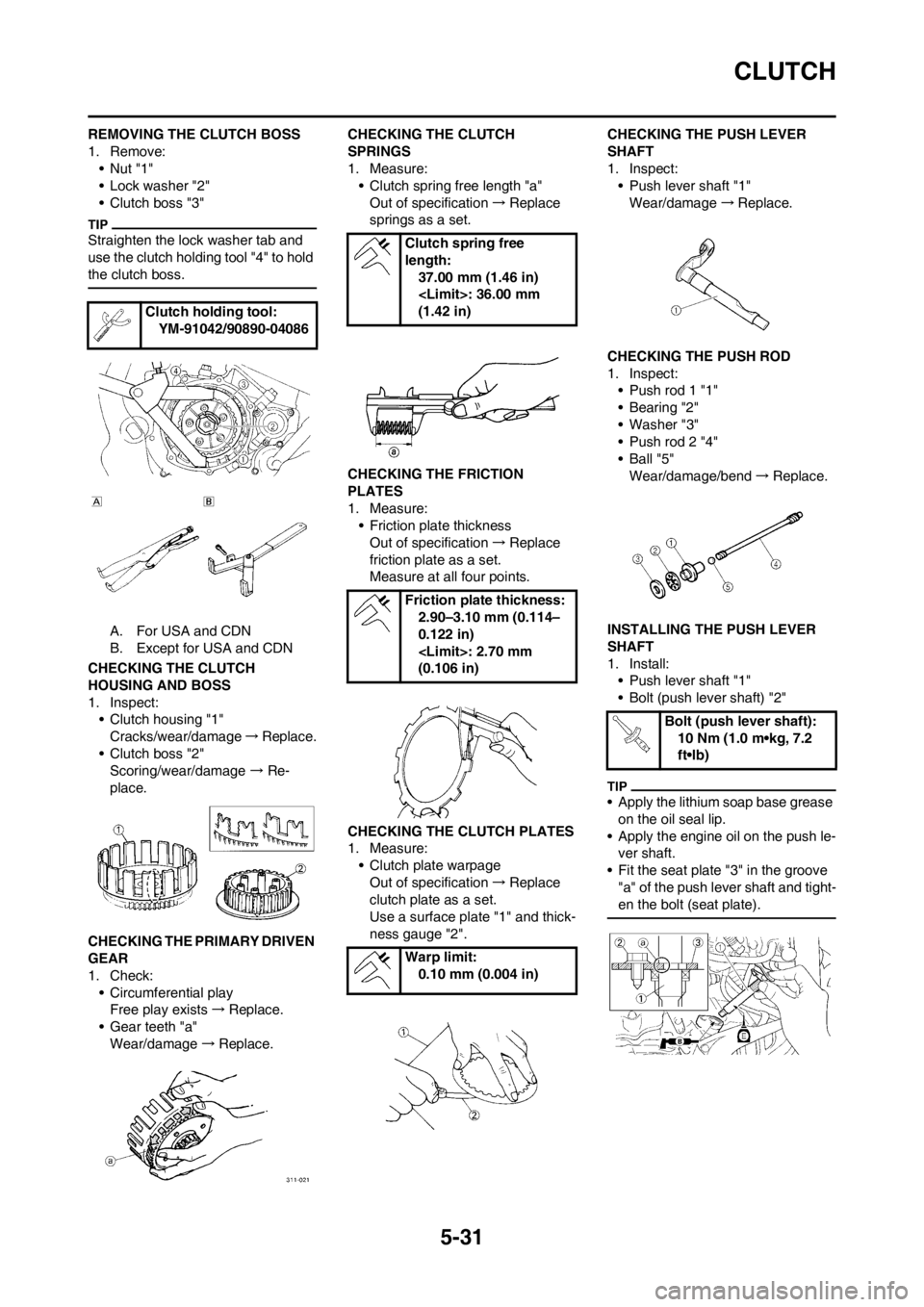

YAMAHA WR 250F 2014  Owners Manual 5-31
CLUTCH
REMOVING THE CLUTCH BOSS
1. Remove:
•Nut "1"
• Lock washer "2"
• Clutch boss "3"
Straighten the lock washer tab and
use the clutch holding tool "4" to hold
the clutch boss.
A. For

Page 133 of 230

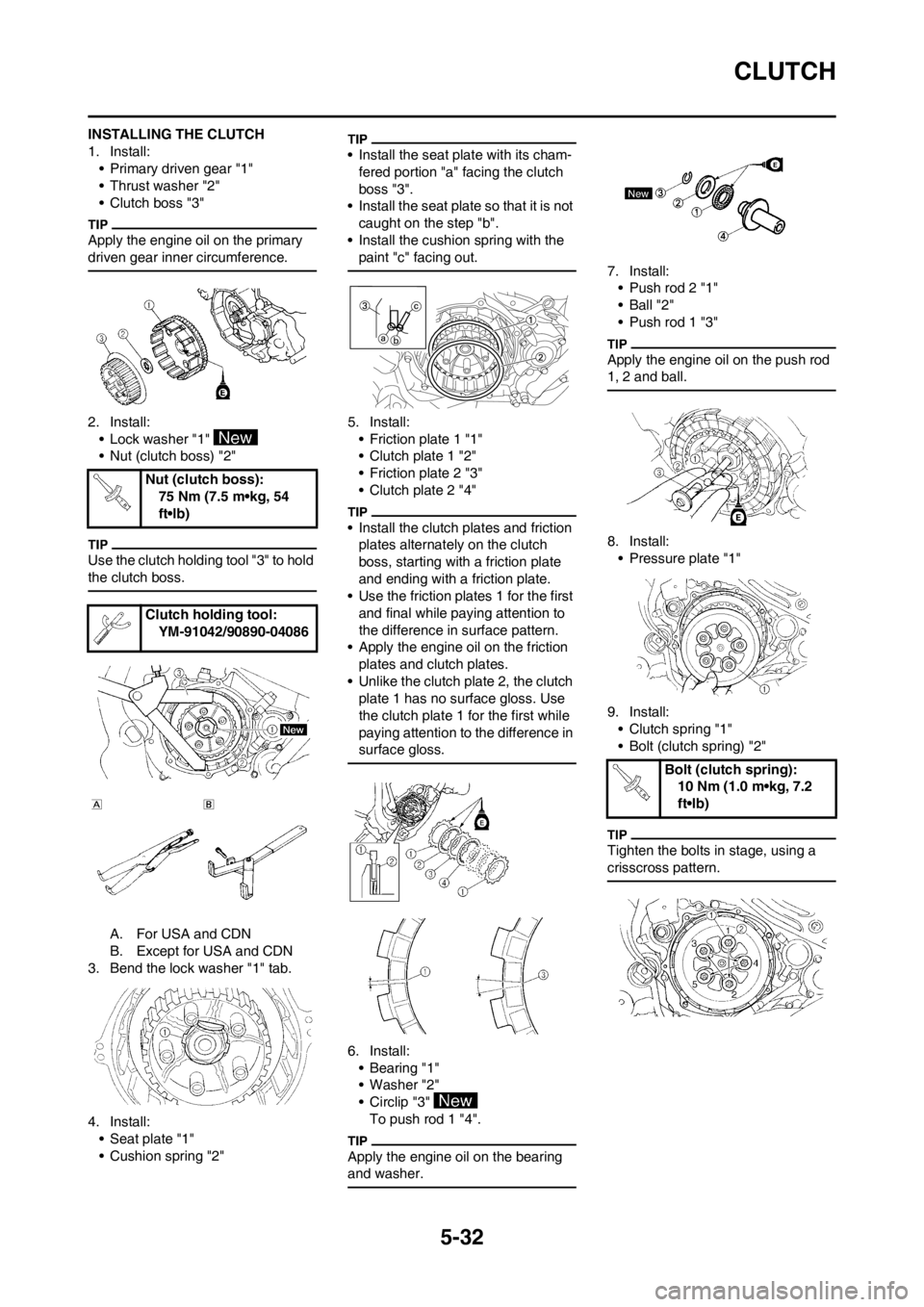

YAMAHA WR 250F 2014  Owners Manual 5-32
CLUTCH
INSTALLING THE CLUTCH
1. Install:
• Primary driven gear "1"
• Thrust washer "2"
• Clutch boss "3"
Apply the engine oil on the primary
driven gear inner circumference.
2. Install:
â€

Page 134 of 230

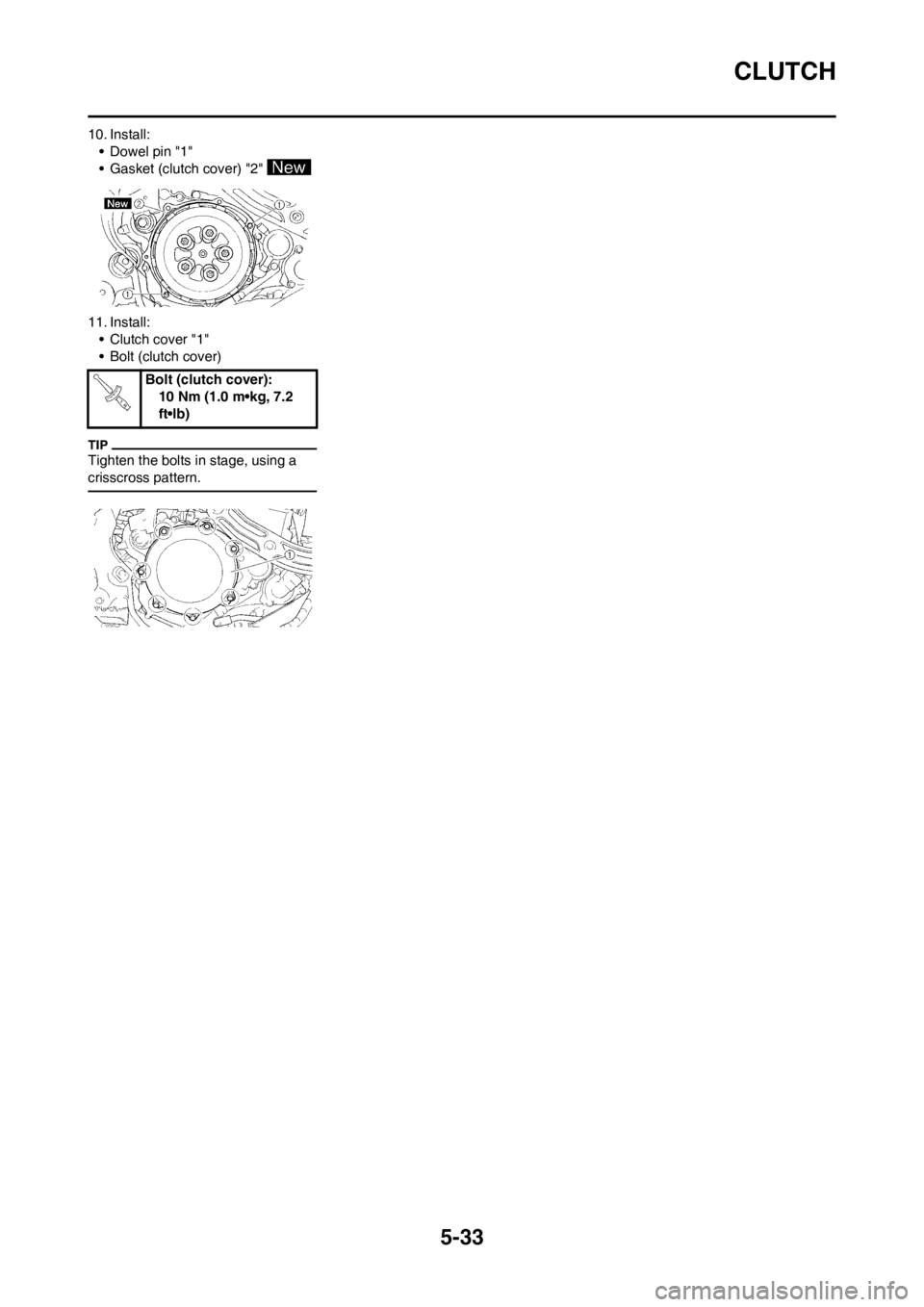

YAMAHA WR 250F 2014  Owners Manual 5-33
CLUTCH
10. Install:
• Dowel pin "1"
• Gasket (clutch cover) "2"
11. Install:
• Clutch cover "1"
• Bolt (clutch cover)
Tighten the bolts in stage, using a
crisscross pattern.
Bolt (clutc

Page 135 of 230

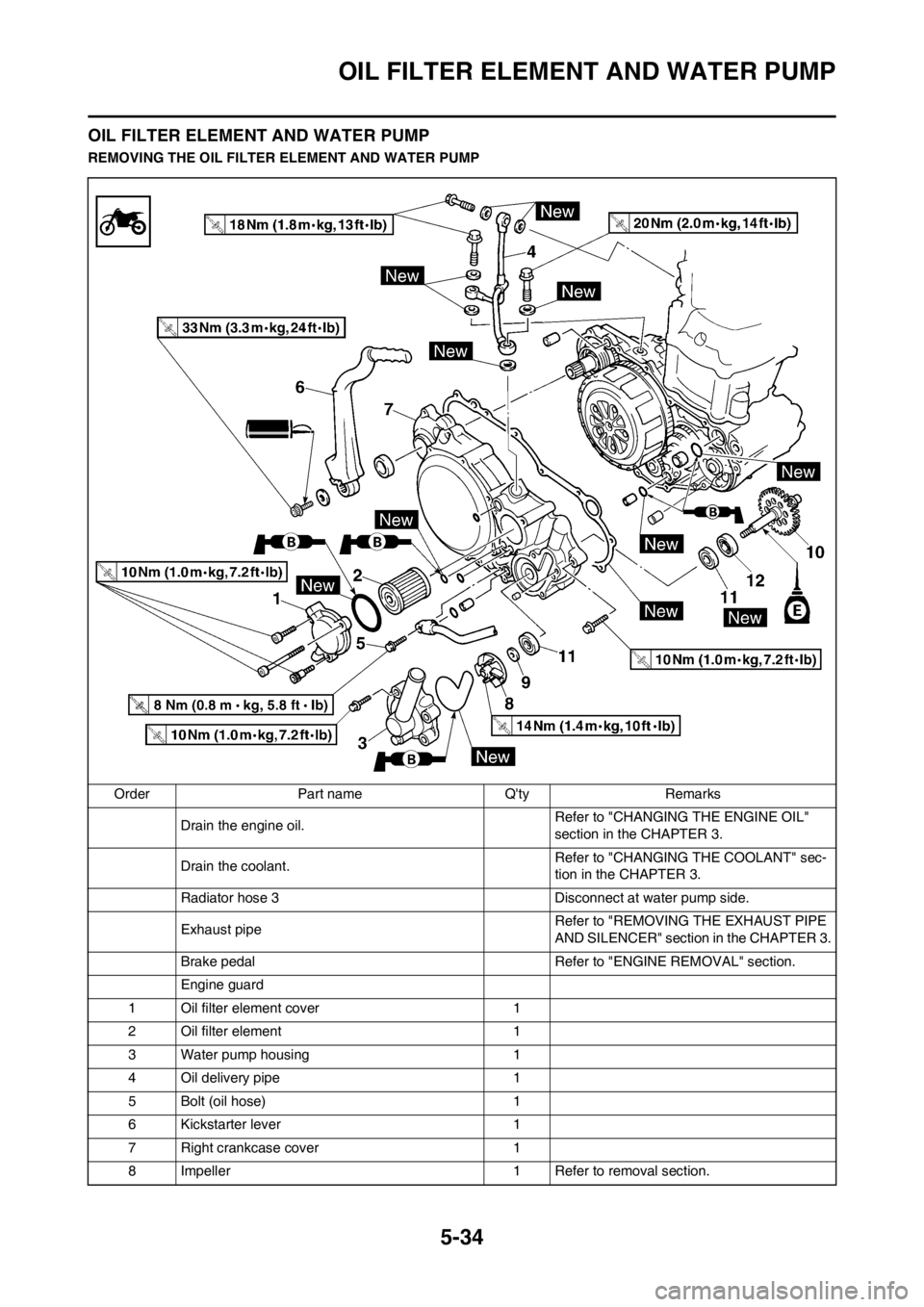

YAMAHA WR 250F 2014  Owners Manual 5-34
OIL FILTER ELEMENT AND WATER PUMP
OIL FILTER ELEMENT AND WATER PUMP
REMOVING THE OIL FILTER ELEMENT AND WATER PUMP
Order Part name Qty Remarks
Drain the engine oil. Refer to "CHANGING THE ENGINE

Page 136 of 230

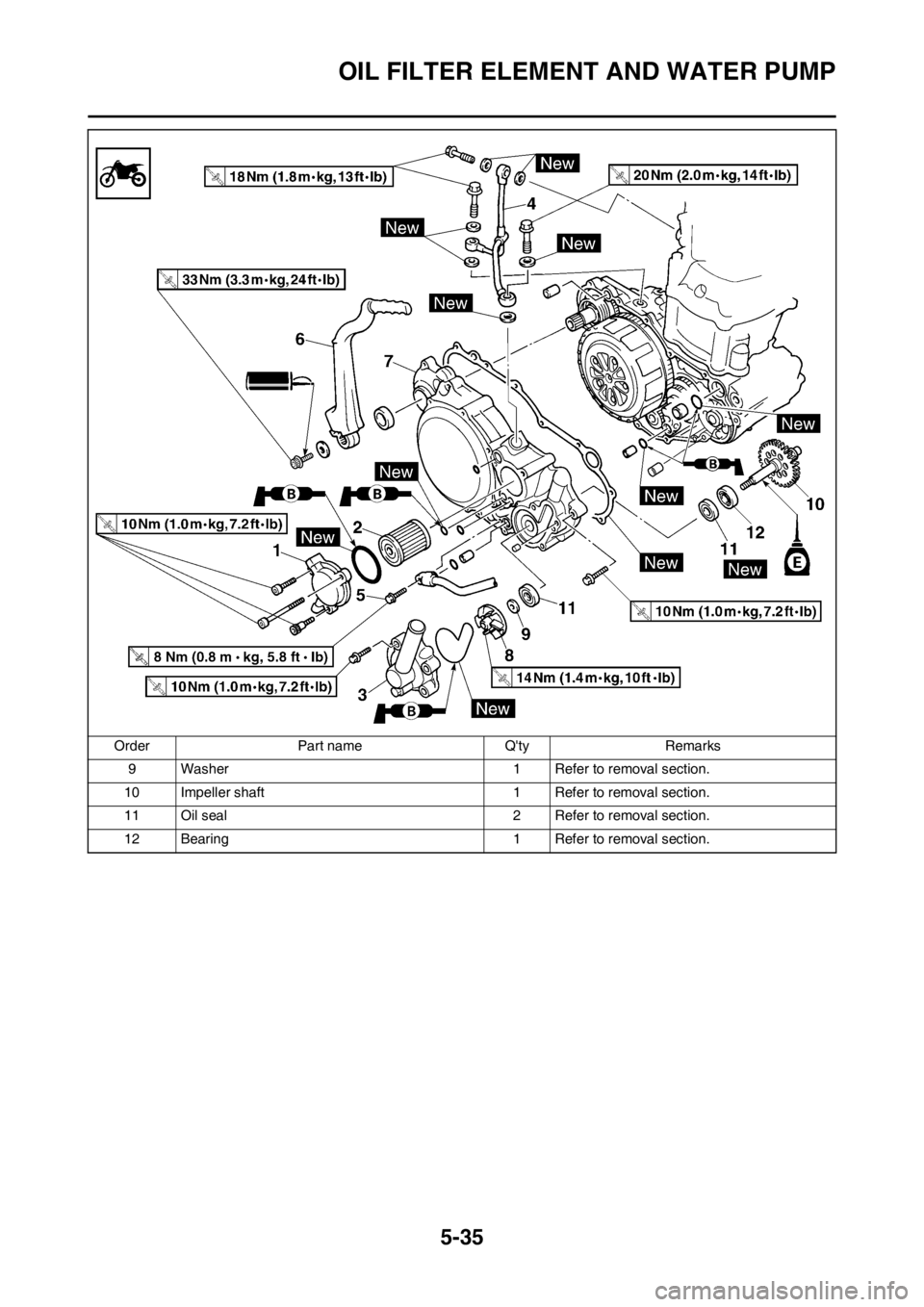

YAMAHA WR 250F 2014  Owners Manual 5-35
OIL FILTER ELEMENT AND WATER PUMP
9 Washer 1 Refer to removal section.
10 Impeller shaft 1 Refer to removal section.
11 Oil seal 2 Refer to removal section.
12 Bearing 1 Refer to removal section.

Page 137 of 230

YAMAHA WR 250F 2014  Owners Manual 5-36
OIL FILTER ELEMENT AND WATER PUMP
REMOVING THE IMPELLER
SHAFT
1. Remove:
• Impeller "1"
• Washer "2"
• Impeller shaft "3"
Hold the impeller shaft on its width
across the flats "a" with sp

Page 138 of 230

YAMAHA WR 250F 2014  Owners Manual 5-37
OIL FILTER ELEMENT AND WATER PUMP
INSTALLING THE RIGHT
CRANKCASE COVER
1. Install:
• Dowel pin "1"
• O-ring "2"
•Collar "3"
• Gasket "4"
Apply the lithium soap base grease
on the O-ri

Page 139 of 230

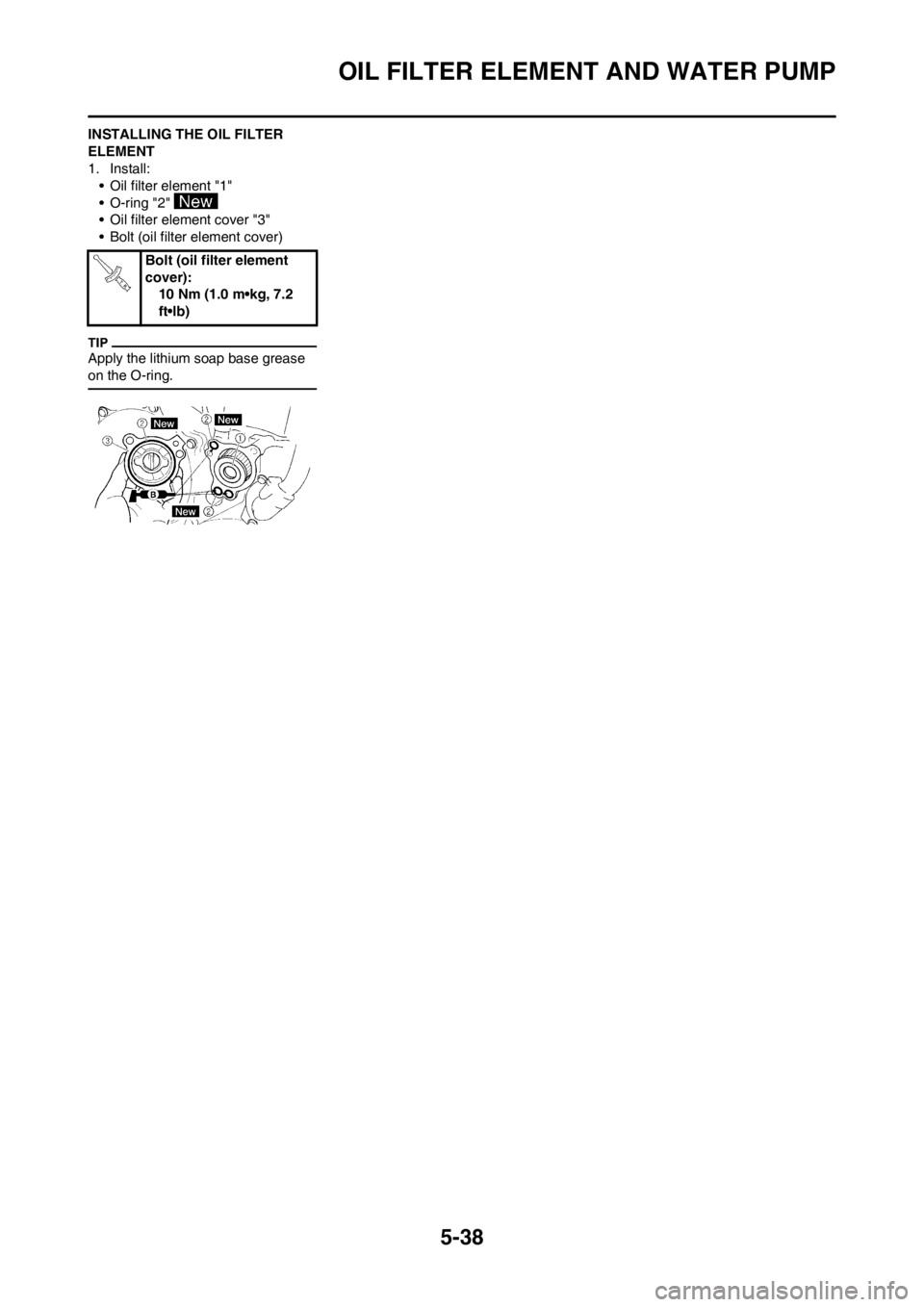

YAMAHA WR 250F 2014  Owners Manual 5-38
OIL FILTER ELEMENT AND WATER PUMP
INSTALLING THE OIL FILTER
ELEMENT
1. Install:
• Oil filter element "1"
• O-ring "2"
• Oil filter element cover "3"
• Bolt (oil filter element cover)
Ap

Page 140 of 230

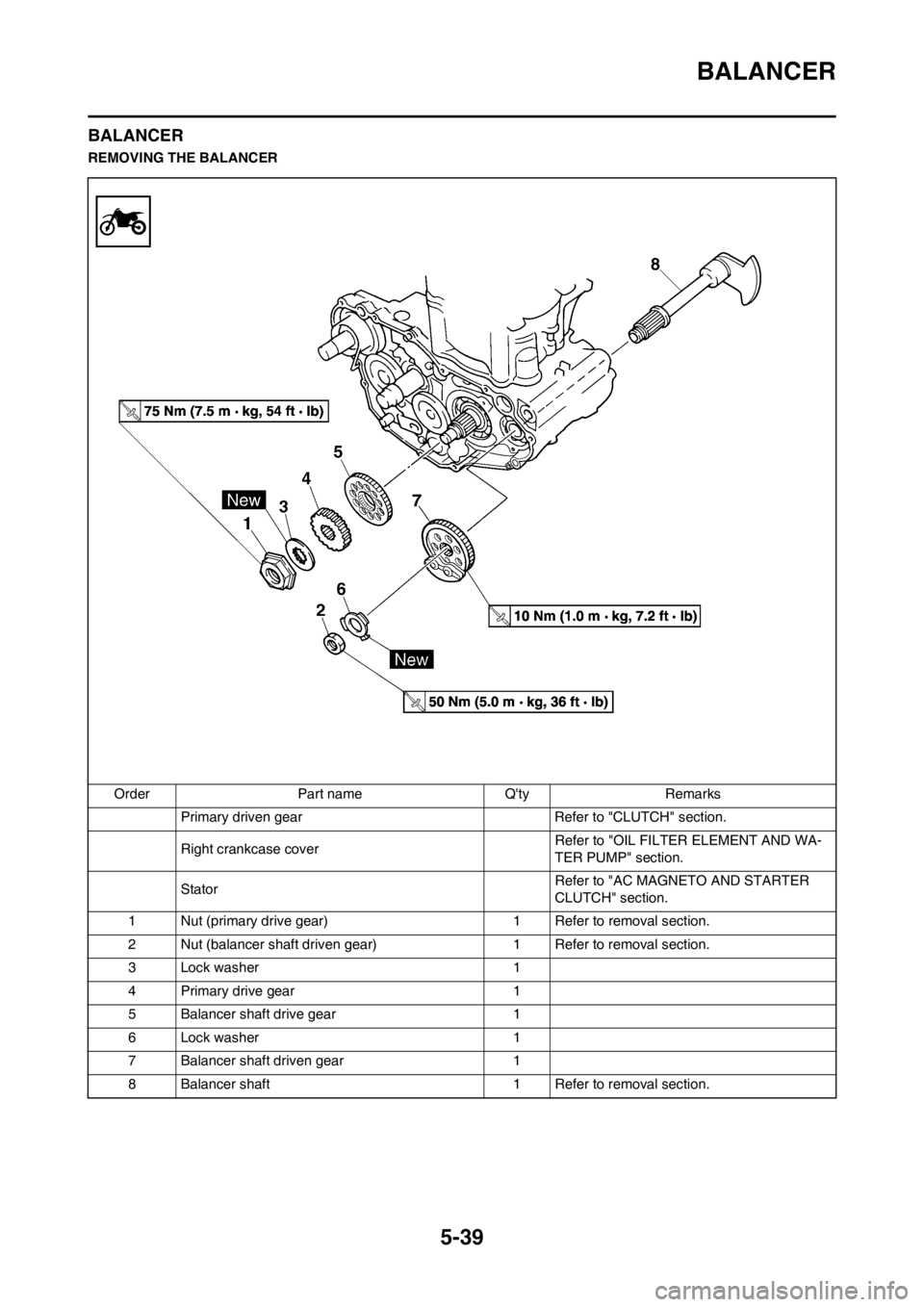

YAMAHA WR 250F 2014  Owners Manual 5-39
BALANCER
BALANCER
REMOVING THE BALANCER
Order Part name Qty Remarks
Primary driven gear  Refer to "CLUTCH" section.
Right crankcase cover Refer to "OIL FILTER ELEMENT AND WA-
TER PUMP" section.
