EAS2GB2284REMOVING THE KICK SHAFT ASSEMBLY
1. Remove:
• Kick shaft assembly “1”
TIP
Unhook the torsion spring “2” from the hole “a”
in the crankcase.
EAS2GB2285CHECKING THE KICK SHAFT AND RATCH-
ET WHEEL
1. Check:
• Ratchet wheel “1” smooth movement
Unsmooth movement  Replace.
• Kick shaft “2”
Wear/damage  Replace the kick shaft as-
sembly.
• Spring “3”
Broken  Replace.
EAS2GB2286CHECKING THE KICK GEAR, KICK IDLE
GEAR AND RATCHET WHEEL
1. Check:
• Kick gear “1”
Wear/damage  Replace the kick shaft as-
sembly.
• Kick idle gear “2”
• Ratchet wheel “3”
• Gear teeth “a”
• Ratchet teeth “b”
Wear/damage  Replace.

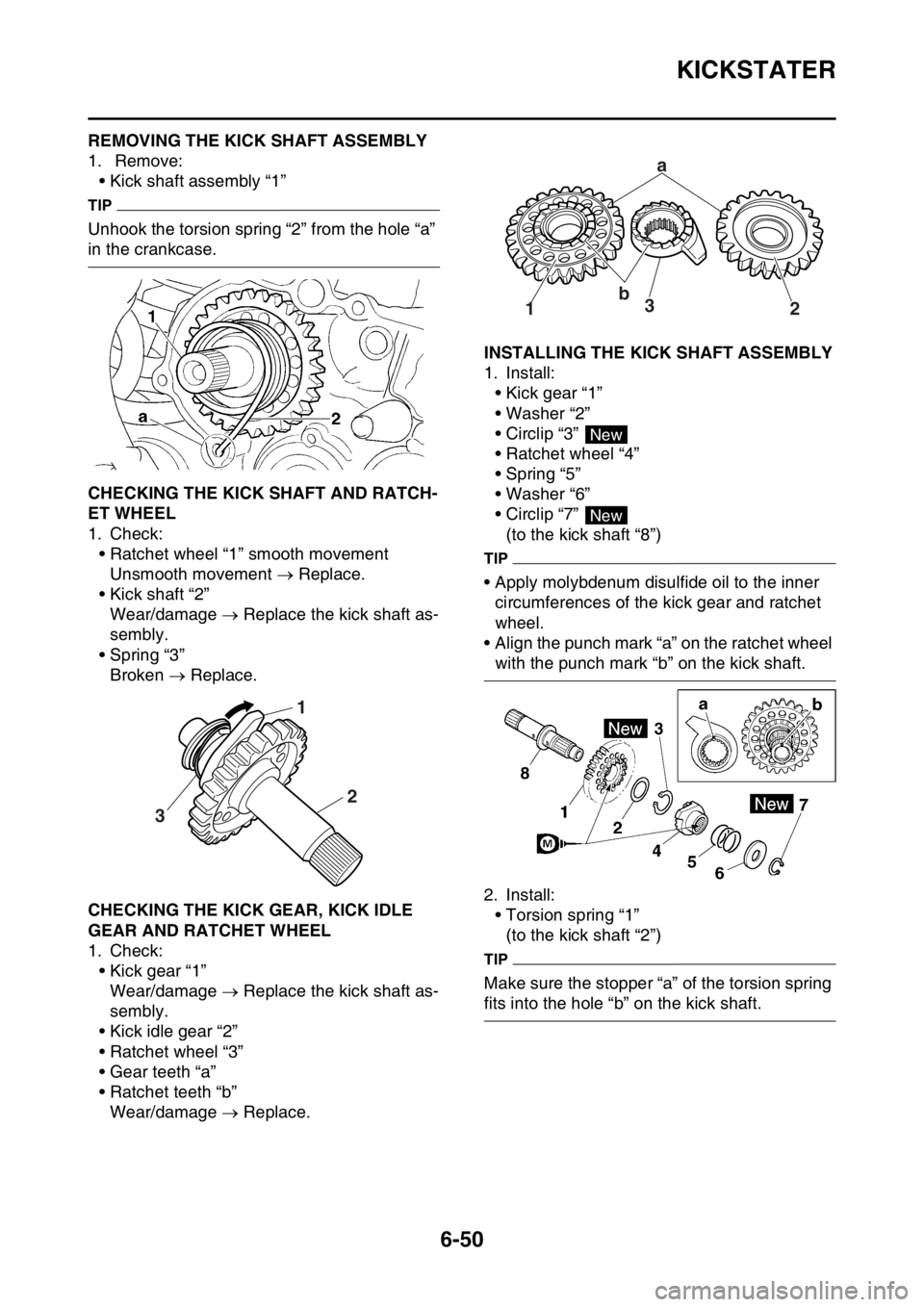

EAS2GB2287INSTALLING THE KICK SHAFT ASSEMBLY
1. Install:
• Kick gear “1”
• Washer “2”
• Circlip “3”
• Ratchet wheel “4”
• Spring “5”
• Washer “6”
• Circlip “7”
(to the kick shaft “8”)
TIP
• Apply molybdenum disulfide oil to the inner
circumferences of the kick gear and ratchet
wheel.
• Align the punch mark “a” on the ratchet wheel
with the punch mark “b” on the kick shaft.
2. Install:
• Torsion spring “1”
(to the kick shaft “2”)
TIP
Make sure the stopper “a” of the torsion spring
fits into the hole “b” on the kick shaft.
31
2
a
b
3
12
New
New

KICKSTATER
6-51
3. Install:
• Spring guide “1”
TIP
Slide the spring guide into the kick shaft, make
sure the groove “a” in the spring guide fits on
the stopper of the torsion spring.
4. Install:
• Kick shaft assembly “1”
TIP
• Before installation, apply molybdenum disul-
fide grease to the contacting surfaces of the
kick shaft ratchet wheel guide “2” and the kick
shaft stopper “a”.
• Apply the engine oil on the kick shaft.
• Slide the kick shaft assembly into the crank-
case and make sure the kick shaft stopper “a”
fits into the kick shaft ratchet wheel guide.5. Install:
• Torsion spring “1”
TIP
Turn the torsion spring clockwise and hook into
the proper hole “a” in the crankcase.
EAS2GB2288INSTALLING THE KICK IDLE GEAR
1. Install:
• Kick idle gear “1”
• Washer “2”
• Circlip “3”
TIP
• Apply the engine oil on the kick idle gear inner
circumference.
• Install the kick idle gear with its depressed
side “a” toward you.
1 2a b
New

SHIFT SHAFT
6-52
EAS2GB2289

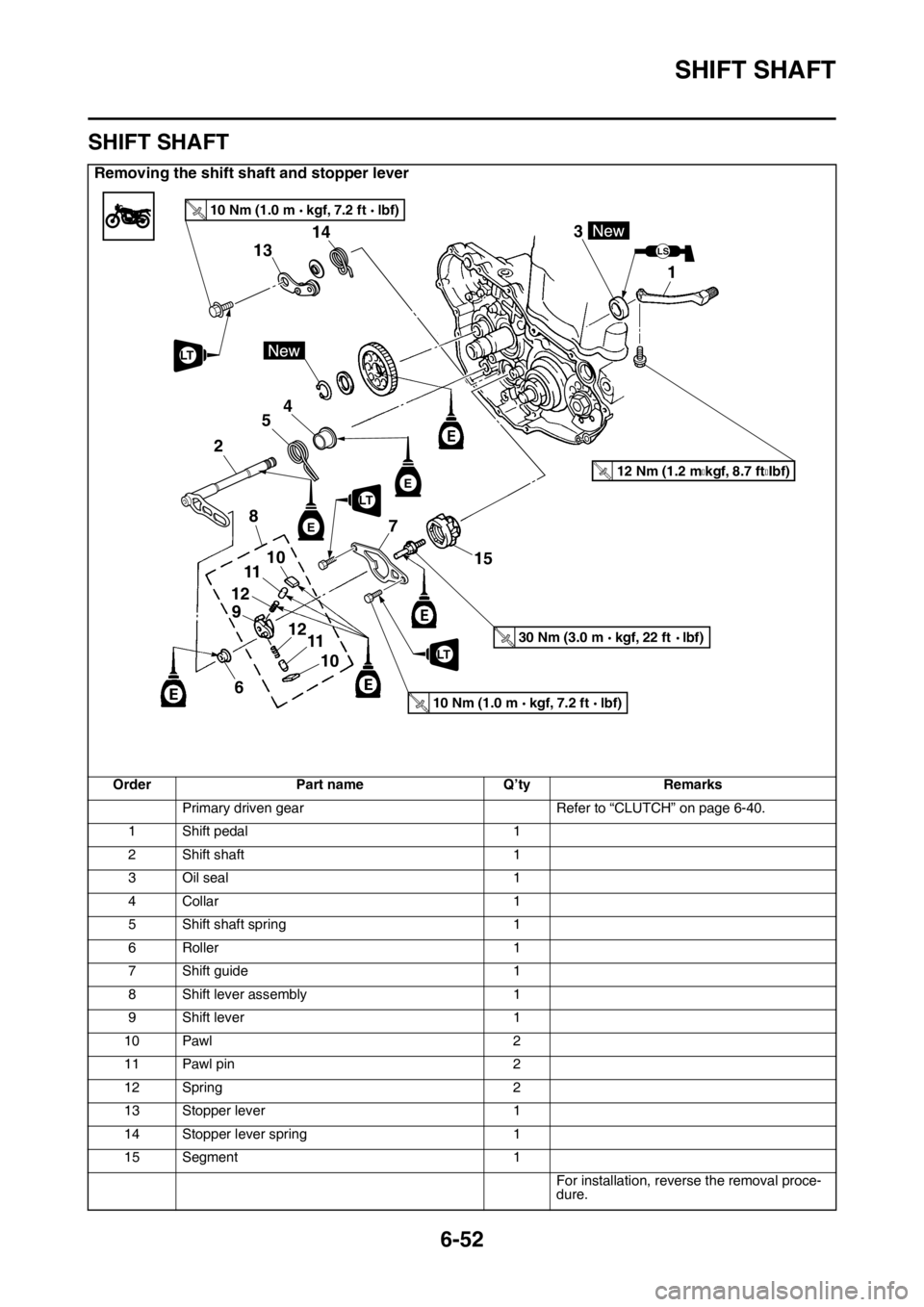

SHIFT SHAFT
Removing the shift shaft and stopper lever
Order Part name Q’ty Remarks
Primary driven gear Refer to “CLUTCH” on page 6-40.
1 Shift pedal 1
2 Shift shaft 1
3 Oil seal 1
4Collar 1
5 Shift shaft spring 1
6Roller 1
7 Shift guide 1
8 Shift lever assembly 1
9 Shift lever 1
10 Pawl 2
11 Pawl pin 2
12 Spring 2
13 Stopper lever 1
14 Stopper lever spring 1
15 Segment 1
For installation, reverse the removal proce-
dure.
LS
1 3
10 Nm (1.0 m kgf, 7.2 ft lbf)
13
15 14
10 Nm (1.0 m kgf, 7.2 ft lbf)
30 Nm (3.0 m kgf, 22 ft lbf)
LT
610 11 12
118
1210
4
25
LT
7
LT
E
12 Nm (1.2 mkgf, 8.7 ftIbf)T.R.E

SHIFT SHAFT
6-53
EAS2GB2290REMOVING THE SHIFT GUIDE AND SHIFT
LEVER ASSEMBLY
1. Remove:
• Bolt (shift guide)
• Shift guide “1”
• Shift lever assembly “2”
TIP
Make sure that the shift lever assembly is re-
moved together with the shift guide.
EAS2GB2291REMOVING THE SEGMENT
1. Remove:
• Bolt (segment) “1”
• Segment “2”
TIP
Turn the segment counterclockwise until it
stops and loosen the bolt.
ECA
NOTICE
If the segment gets an impact, the stopper
lever may be damaged. Take care not to
give an impact to it when removing the bolt.

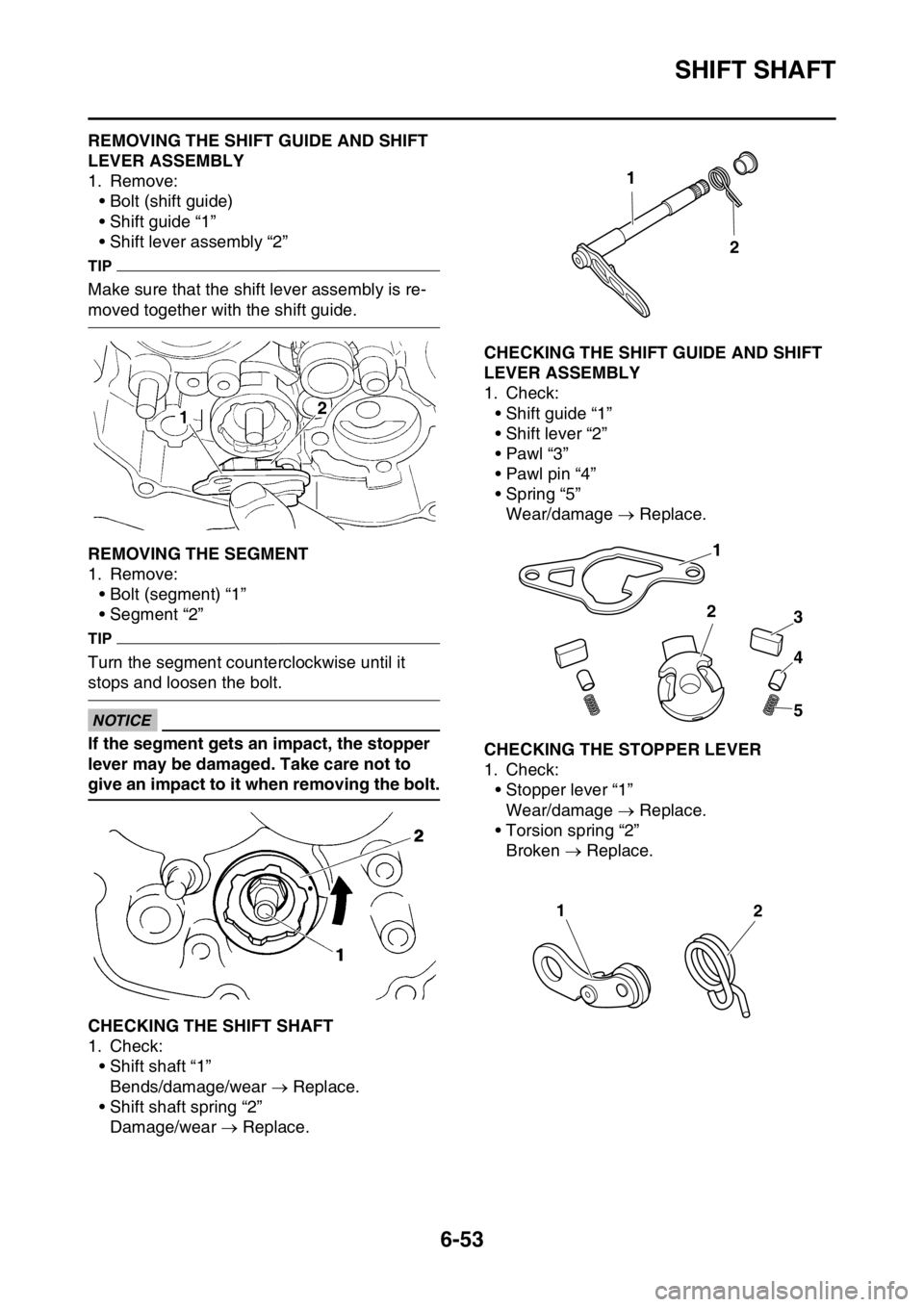

EAS2GB2292CHECKING THE SHIFT SHAFT
1. Check:
• Shift shaft “1”
Bends/damage/wear  Replace.
• Shift shaft spring “2”
Damage/wear  Replace.
EAS2GB2293CHECKING THE SHIFT GUIDE AND SHIFT
LEVER ASSEMBLY
1. Check:
• Shift guide “1”
• Shift lever “2”
•Pawl “3”
• Pawl pin “4”
• Spring “5”
Wear/damage  Replace.
EAS2GB2294CHECKING THE STOPPER LEVER
1. Check:
• Stopper lever “1”
Wear/damage  Replace.
• Torsion spring “2”
Broken  Replace.
1
2
1
2
3
4
5
12

SHIFT SHAFT
6-54

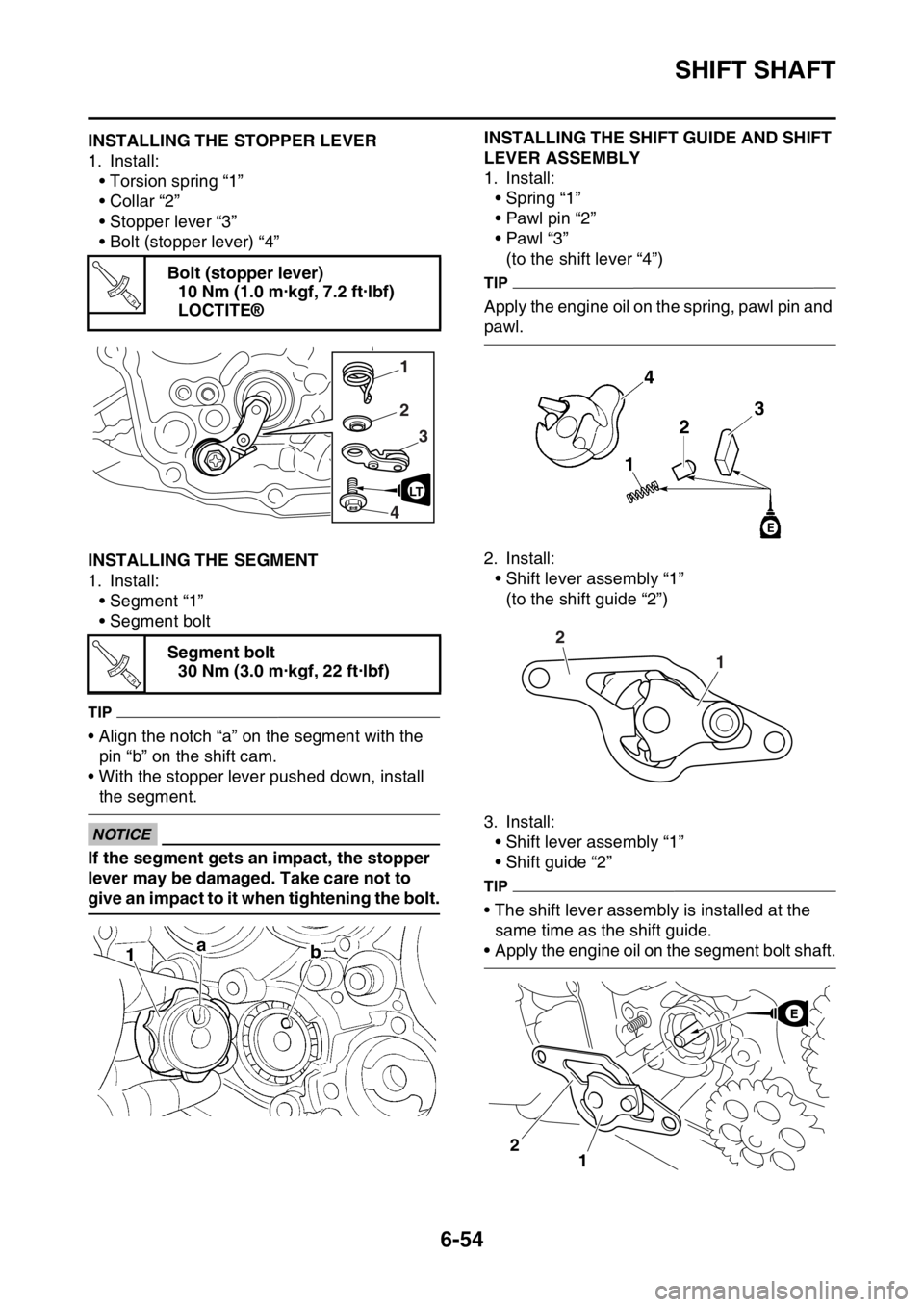

EAS2GB2295INSTALLING THE STOPPER LEVER
1. Install:
• Torsion spring “1”
• Collar “2”
• Stopper lever “3”
• Bolt (stopper lever) “4”
EAS2GB2296INSTALLING THE SEGMENT
1. Install:
• Segment “1”
• Segment bolt
TIP
• Align the notch “a” on the segment with the
pin “b” on the shift cam.
• With the stopper lever pushed down, install
the segment.
ECA
NOTICE
If the segment gets an impact, the stopper
lever may be damaged. Take care not to
give an impact to it when tightening the bolt.
EAS2GB2297
INSTALLING THE SHIFT GUIDE AND SHIFT
LEVER ASSEMBLY
1. Install:
• Spring “1”
• Pawl pin “2”
•Pawl “3”
(to the shift lever “4”)
TIP
Apply the engine oil on the spring, pawl pin and
pawl.
2. Install:
• Shift lever assembly “1”
(to the shift guide “2”)
3. Install:
• Shift lever assembly “1”
• Shift guide “2”
TIP
• The shift lever assembly is installed at the
same time as the shift guide.
• Apply the engine oil on the segment bolt shaft. Bolt (stopper lever)
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
Segment bolt
30 Nm (3.0 m·kgf, 22 ft·lbf)
T R..
2 1
3
4
LT
T R..
1
2
1 2

SHIFT SHAFT
6-55

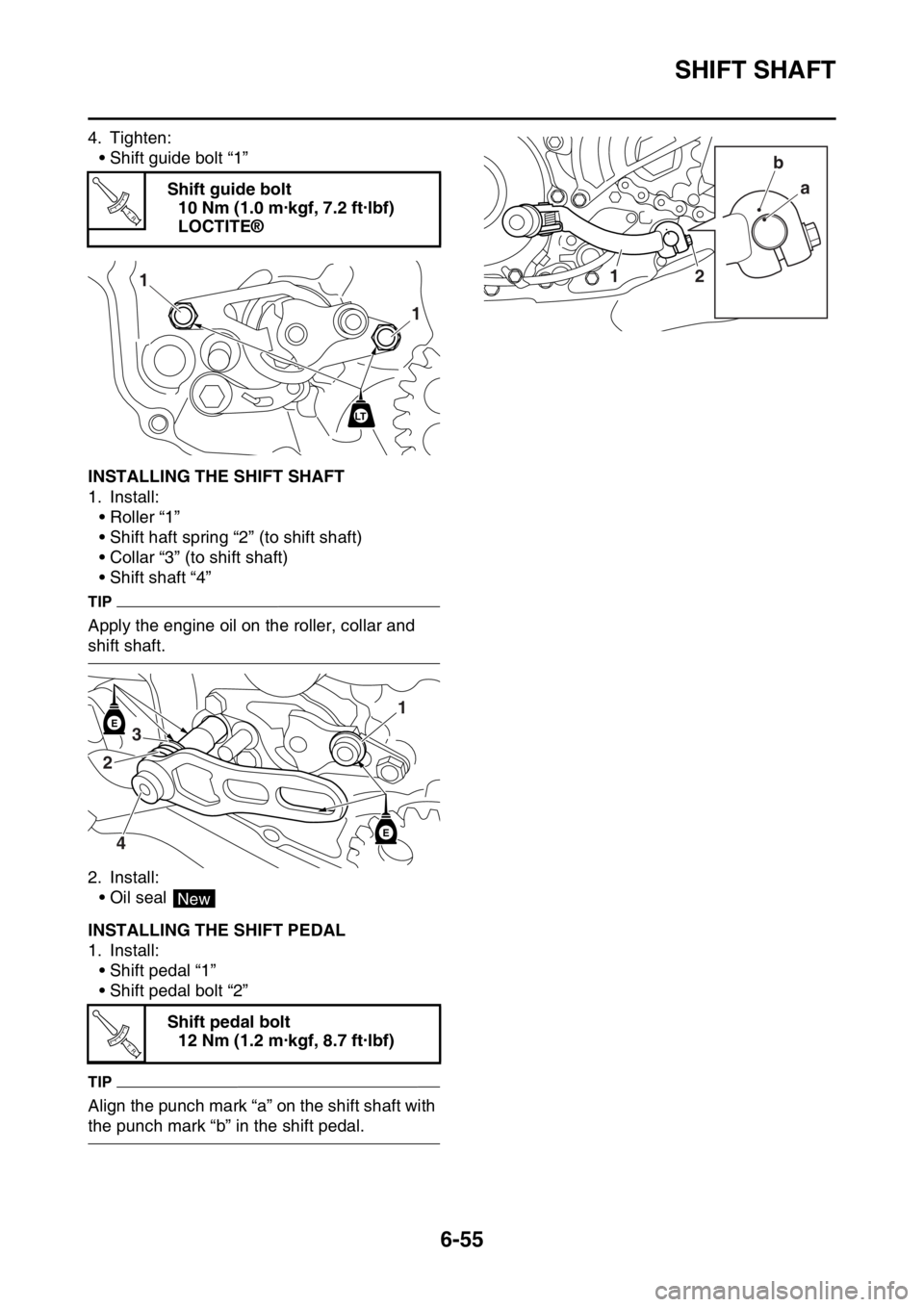

4. Tighten:
• Shift guide bolt “1”
EAS2GB2298INSTALLING THE SHIFT SHAFT
1. Install:
• Roller “1”
• Shift haft spring “2” (to shift shaft)
• Collar “3” (to shift shaft)
• Shift shaft “4”
TIP
Apply the engine oil on the roller, collar and
shift shaft.
2. Install:
• Oil seal
EAS2GB2299INSTALLING THE SHIFT PEDAL
1. Install:
• Shift pedal “1”
• Shift pedal bolt “2”
TIP
Align the punch mark “a” on the shift shaft with
the punch mark “b” in the shift pedal.Shift guide bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
Shift pedal bolt
12 Nm (1.2 m·kgf, 8.7 ft·lbf)
T R..
1 1
LT
E
E
1
23
4
New
T R..
a
12b

OIL PUMP AND BALANCER GEAR
6-56
EAS2GB2300
OIL PUMP AND BALANCER GEAR
Removing the oil pump
Order Part name Q’ty Remarks
Primary driven gear Refer to “CLUTCH” on page 6-40.
Right crankcase cover Refer to “CLUTCH” on page 6-40.
1 Oil pump assembly 1
2 Oil pump cover 1
3 Outer rotor 1
4 Dowel pin 1
5 Inner rotor 1
6 Oil pump drive shaft 1
7 Rotor housing 1
For installation, reverse the removal proce-
dure.
2.0 Nm (0.20 m•kgf, 1.4 ftIbf)T.R
.
5 Nm (0.5 mkgf, 3.6 ftIbf)T.R
.
LT
E
3
2
1
4
5
7
6

OIL PUMP AND BALANCER GEAR
6-57
Removing the balancer
Order Part name Q’ty Remarks
Primary driven gear Refer to “CLUTCH” on page 6-40.
Right crankcase cover Refer to “CLUTCH” on page 6-40.
Generator rotorRefer to “GENERATOR AND STARTER
CLUTCH” on page 6-62.
1 Nut (balancer) 1
2 Nut (primary drive gear) 1
3 Nut (balancer shaft driven gear) 1
4 Conical washer 1
5Balancer 1
6 Conical washer 1
7 Primary drive gear 1
8Collar 1
9 Balancer shaft drive gear 1
10 Conical washer 1
11 Balancer weight gear 1
12 Collar 1
For installation, reverse the removal proce-
dure.
T
.R.
75 Nm (7.5 mkgf, 54 ftlbf)T.R.
50 Nm (5.0 mkgf, 36 ftIbf)T
.R.
New
6
12
11
7
8

OIL PUMP AND BALANCER GEAR
6-58
EAS2GB2301REMOVING THE BALANCER
1. Loosen:
• Balancer nut “1”
• Primary drive gear nut “2”
• Balancer weight gear nut “3”
TIP
Place an aluminum plate “a” between the teeth
of the balancer drive gear “4” and balancer
weight gear “5”.
EAS2GB2302CHECKING THE PRIMARY DRIVE GEAR,
BALANCER SHAFT DRIVE GEAR, AND
BALANCER WEIGHT GEAR
1. Check:
• Primary drive gear “1”
• Balancer shaft drive gear “2”
• Balancer weight gear “3”
Wear/damage  Replace.
EAS2GB2303CHECKING THE BALANCER
1. Check:
•Balancer
Crack/damage  Replace.

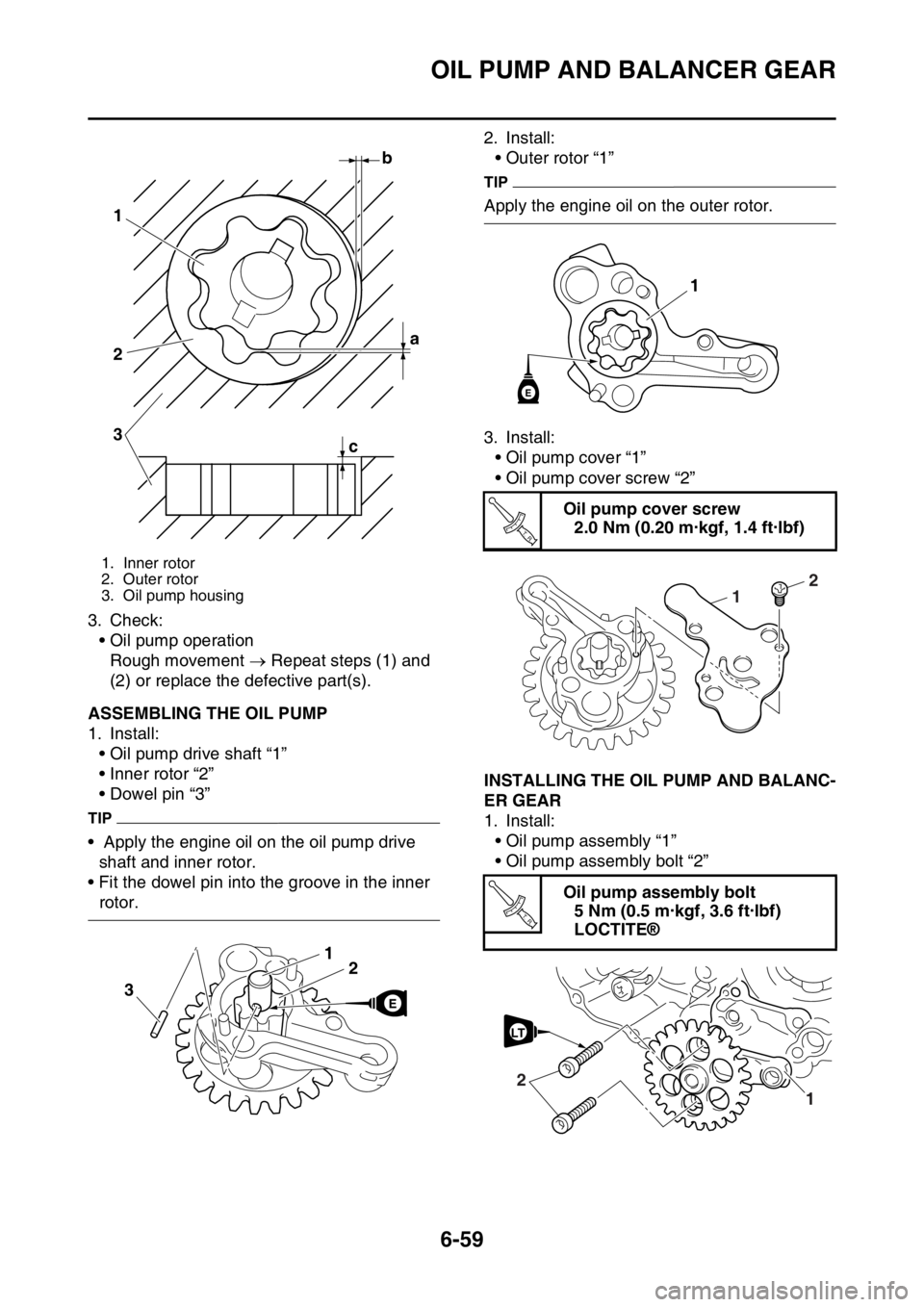

EAS2GB2304CHECKING THE OIL PUMP
1. Check:
• Oil pump drive gear
• Oil pump driven gear
• Oil pump housing
• Oil pump housing cover
Cracks/damage/wear  Replace the defec-
tive part(s).
2. Measure:
• Inner-rotor-to-outer-rotor-tip clearance “a”
• Outer-rotor-to-oil-pump-housing clearance
“b”
• Oil-pump-housing-to-inner-rotor-and-outer-
rotor clearance “c”
Out of specification  Replace the oil pump.
1
4
a5
2
4a
5
3
Inner-rotor-to-outer-rotor-tip
clearance
Less than
0.150 mm (0.0059 in)
Outer-rotor-to-oil-pump-housing
clearance
0.13–0.18 mm (0.0051–0.0071 in)
Oil-pump-housing-to-inner-and-
outer-rotor
clearance
0.06–0.11 mm (0.0024–0.0043 in)

OIL PUMP AND BALANCER GEAR
6-59
3. Check:
• Oil pump operation
Rough movement  Repeat steps (1) and
(2) or replace the defective part(s).
EAS2GB2305ASSEMBLING THE OIL PUMP
1. Install:
• Oil pump drive shaft “1”
• Inner rotor “2”
• Dowel pin “3”
TIP
• Apply the engine oil on the oil pump drive
shaft and inner rotor.
• Fit the dowel pin into the groove in the inner
rotor.2. Install:
• Outer rotor “1”
TIP
Apply the engine oil on the outer rotor.
3. Install:
• Oil pump cover “1”
• Oil pump cover screw “2”
EAS2GB2306INSTALLING THE OIL PUMP AND BALANC-
ER GEAR
1. Install:
• Oil pump assembly “1”
• Oil pump assembly bolt “2”
ECA
1. Inner rotor
2. Outer rotor
3. Oil pump housing
b
a 1
2
3
c
21
3
Oil pump cover screw
2.0 Nm (0.20 m·kgf, 1.4 ft·lbf)
Oil pump assembly bolt
5 Nm (0.5 m·kgf, 3.6 ft·lbf)
LOCTITE®
1
E
T R..
2
1
T R..
1
2
LT
