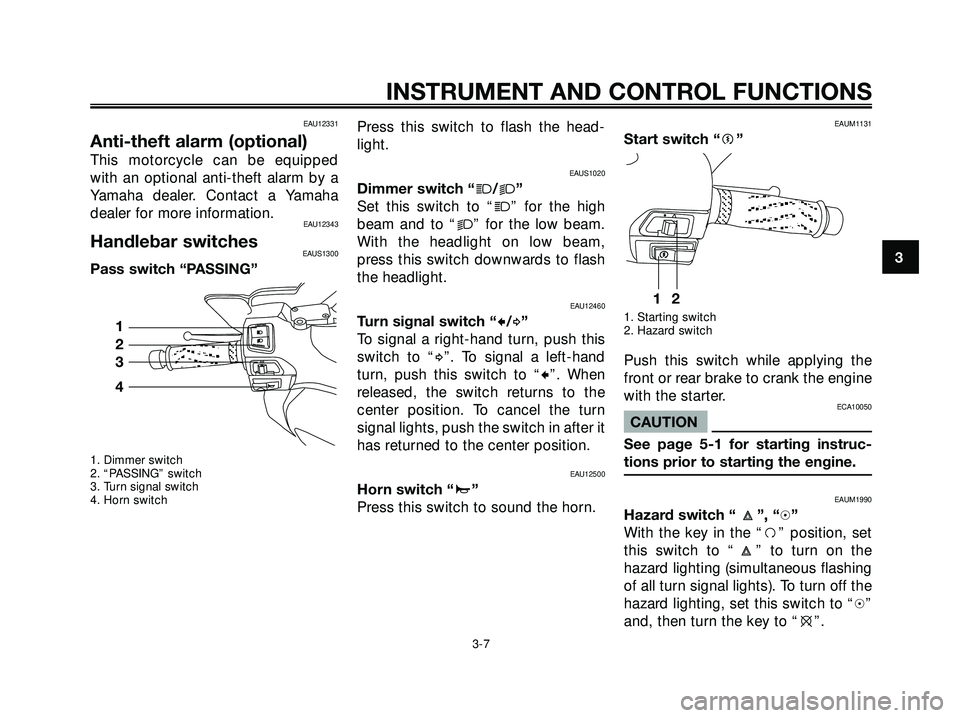

Anti-theft alarm (optional)
This motorcycle can be equipped
with an optional anti-theft alarm by a
Yamaha dealer. Contact a Yamaha
dealer for more information.
EAU12343
Handlebar switchesEAUS1300
Pass switch “PASSING”
1. Dimmer switch
2. “PASSING” switch
3. Turn signal switch
4. Horn switch
Press this switch to flash the head-
light.
EAUS1020
Dimmer switch “j/k”
Set this switch to “
j” for the high
beam and to “
k” for the low beam.
With the headlight on low beam,
press this switch downwards to flash
the headlight.
EAU12460
Turn signal switch “c/d”
To signal a right-hand turn, push this
switch to “
d”. To signal a left-hand
turn, push this switch to “
c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “a”
Press this switch to sound the horn.
EAUM1131
Start switch “g”
1. Starting switch
2. Hazard switch
Push this switch while applying the
front or rear brake to crank the engine
with the starter.
ECA10050
CAUTION
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAUM1990
Hazard switch “ ”, “h”
With the key in the “f” position, set
this switch to “ ” to turn on the
hazard lighting (simultaneous flashing
of all turn signal lights). To turn off the
hazard lighting, set this switch to “h”
and, then turn the key to “e”.
12
1
2
3
4
3
INSTRUMENT AND CONTROL FUNCTIONS
3-7
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-7
Page 22 of 68
NOTE:
Even if the key is turned from “f” to
“e” with the hazard lighting on, the
hazard lighting will continue to flash
regardless of the hazard switch posi-
tion. To cancel the hazard lighting, the
key must be turned to “f” and the
hazard switch must be set to the “h”
position.
The hazard lighting is used in case of
an emergency or to warn other drivers
when your scooter is stopped where
it might be a traffic hazard.
ECA10060
CAUTION
Do not use the hazard light for an
extended length of time, otherwise
the battery may discharge.
EAU12900
Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAUM2080

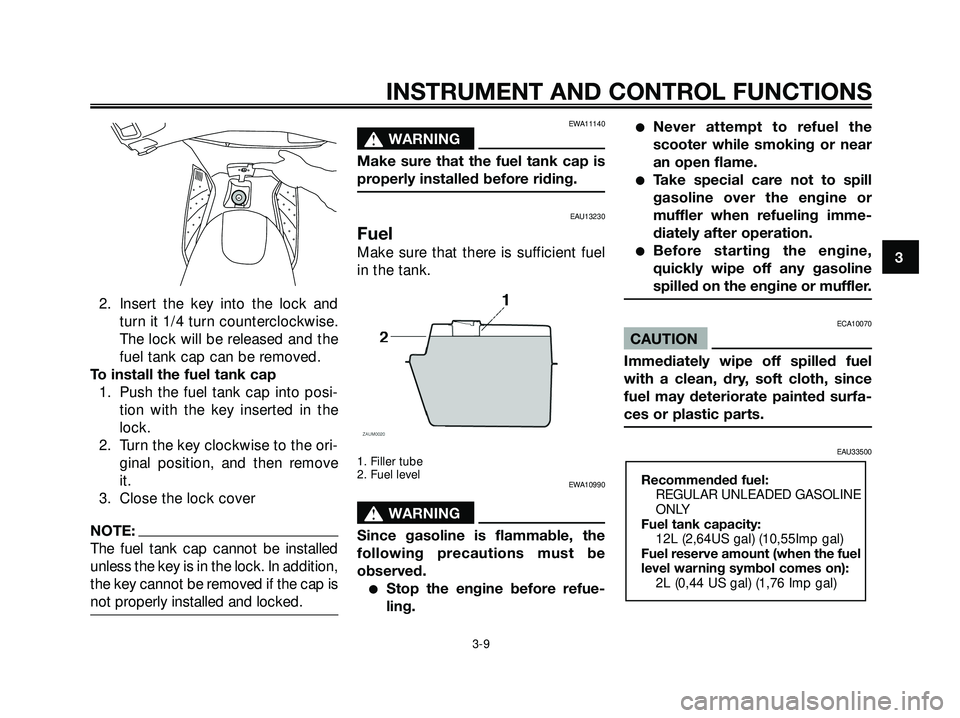

Fuel tank cap
To remove the fuel tank cap
1. Open the fuel tank cap lock
cover.
11
3
INSTRUMENT AND CONTROL FUNCTIONS
3-8
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-8
Page 23 of 68
2. Insert the key into the lock and
turn it 1/4 turn counterclockwise.
The lock will be released and the
fuel tank cap can be removed.
To install the fuel tank cap
1. Push the fuel tank cap into posi-
tion with the key inserted in the
lock.
2. Turn the key clockwise to the ori-
ginal position, and then remove
it.
3. Close the lock cover
NOTE:
The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly installed and locked.
EWA11140
s s
WARNING
Make sure that the fuel tank cap is
properly installed before riding.
EAU13230
Fuel
Make sure that there is sufficient fuel
in the tank.
1. Filler tube
2. Fuel level
EWA10990
s s
WARNING
Since gasoline is flammable, the
following precautions must be
observed.
Stop the engine before refue-
ling.
Never attempt to refuel the
scooter while smoking or near
an open flame.
Take special care not to spill
gasoline over the engine or
muffler when refueling imme-
diately after operation.
Before starting the engine,
quickly wipe off any gasoline
spilled on the engine or muffler.
ECA10070
CAUTION
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfa-
ces or plastic parts.
EAU33500
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
12L (2,64US gal) (10,55Imp gal)
Fuel reserve amount (when the fuel
level warning symbol comes on):
2L (0,44 US gal) (1,76 Imp gal)
3
INSTRUMENT AND CONTROL FUNCTIONS
3-9
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-9
Page 24 of 68

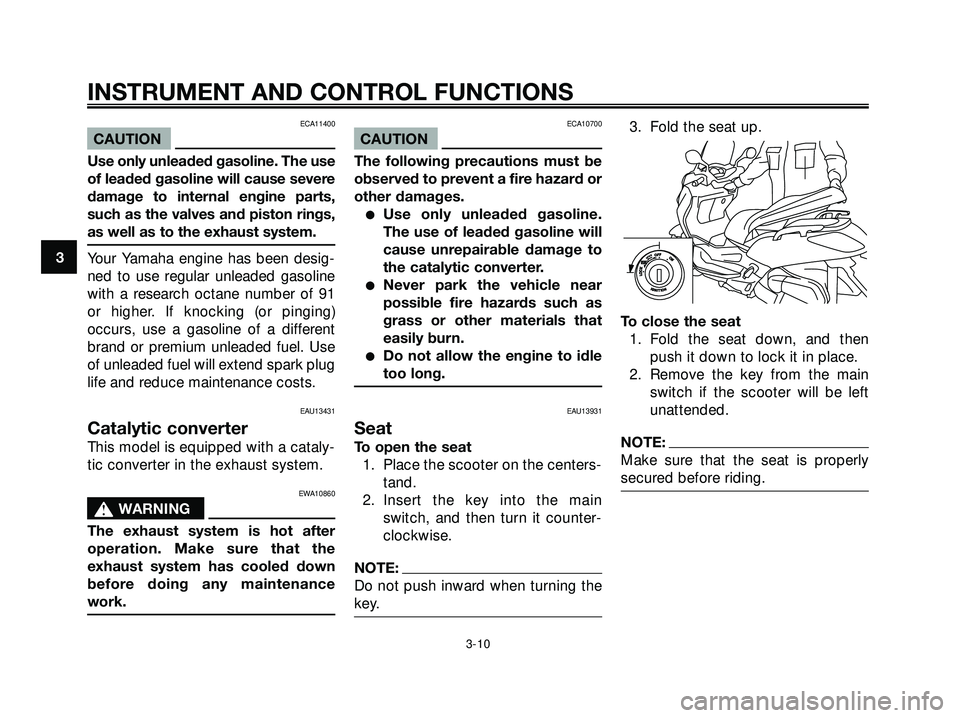

ECA11400
CAUTION
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark plug
life and reduce maintenance costs.
EAU13431
Catalytic converter
This model is equipped with a cataly-
tic converter in the exhaust system.
EWA10860
s s
WARNING
The exhaust system is hot after
operation. Make sure that the
exhaust system has cooled down
before doing any maintenance
work.
ECA10700
CAUTION
The following precautions must be
observed to prevent a fire hazard or
other damages.
Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
Never park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Do not allow the engine to idle
too long.
EAU13931
Seat
To open the seat
1. Place the scooter on the centers-
tand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise.
NOTE:
Do not push inward when turning the
key.
3. Fold the seat up.
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
NOTE:
Make sure that the seat is properly
secured before riding.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-10
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-10
Page 25 of 68
EAU14540

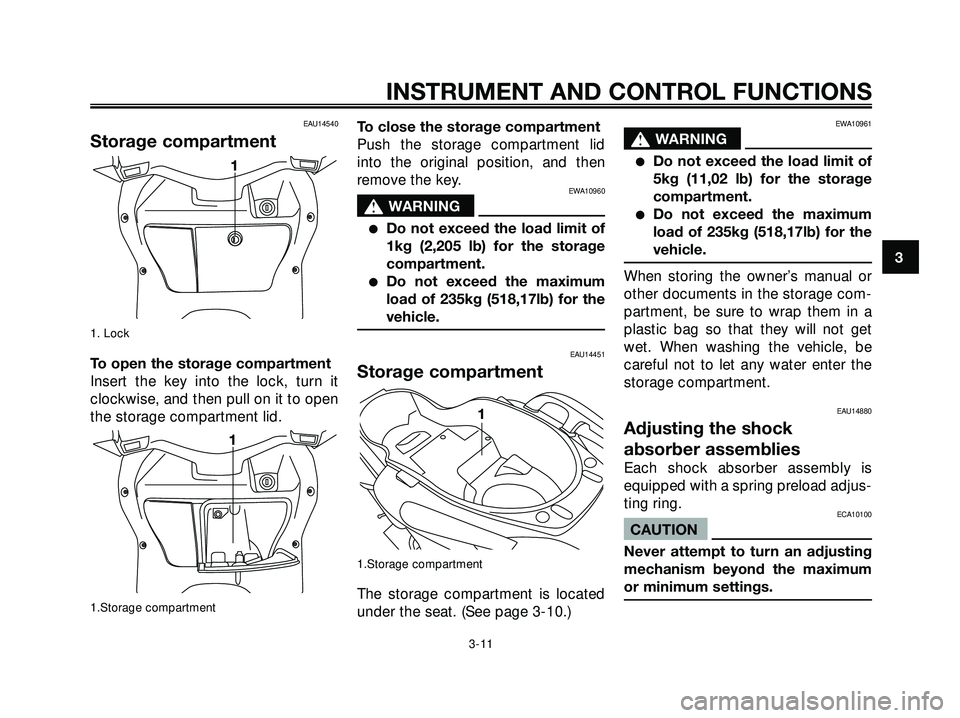

Storage compartment
1. Lock
To open the storage compartment
Insert the key into the lock, turn it
clockwise, and then pull on it to open
the storage compartment lid.
1.Storage compartment
To close the storage compartment
Push the storage compartment lid
into the original position, and then
remove the key.
EWA10960
s s
WARNING
Do not exceed the load limit of
1kg (2,205 lb) for the storage
compartment.
Do not exceed the maximum
load of 235kg (518,17lb) for the
vehicle.
EAU14451
Storage compartment
1.Storage compartment
The storage compartment is located
under the seat. (See page 3-10.)
EWA10961
s s
WARNING
Do not exceed the load limit of
5kg (11,02 lb) for the storage
compartment.
Do not exceed the maximum
load of 235kg (518,17lb) for the
vehicle.
When storing the owner’s manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get
wet. When washing the vehicle, be
careful not to let any water enter the
storage compartment.
EAU14880
Adjusting the shock
absorber assemblies
Each shock absorber assembly is
equipped with a spring preload adjus-
ting ring.
ECA10100
CAUTION
Never attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings.
1
1
1
3
INSTRUMENT AND CONTROL FUNCTIONS
3-11
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-11
Page 26 of 68

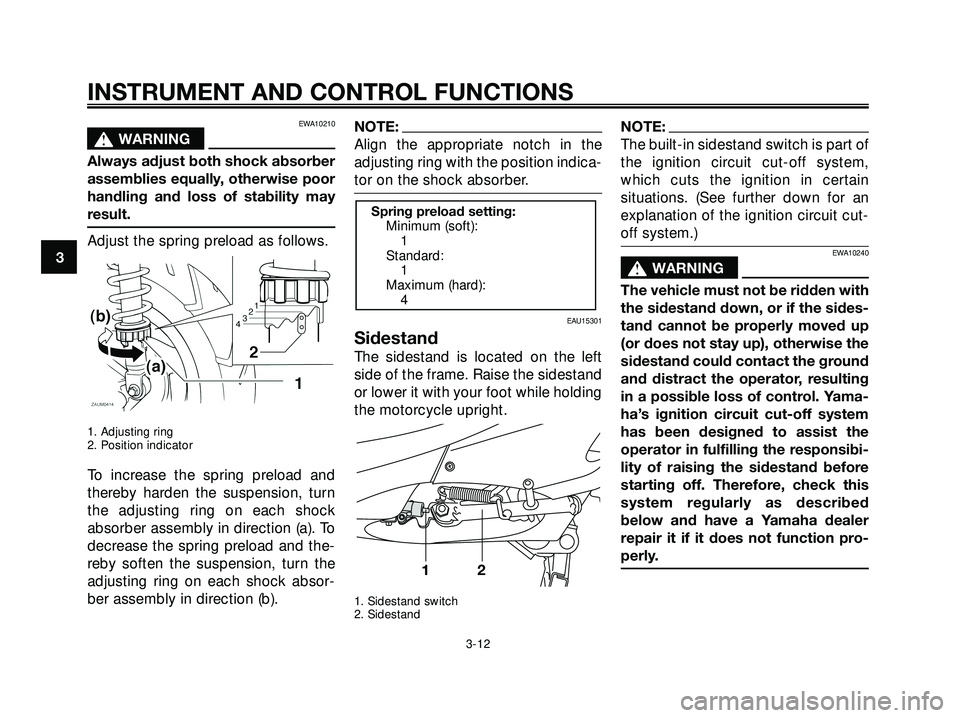

EWA10210
s
sWARNING
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.
Adjust the spring preload as follows.
1. Adjusting ring
2. Position indicator
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock
absorber assembly in direction (a). To
decrease the spring preload and the-
reby soften the suspension, turn the
adjusting ring on each shock absor-
ber assembly in direction (b).
NOTE:
Align the appropriate notch in the
adjusting ring with the position indica-
tor on the shock absorber.
EAU15301
Sidestand
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the motorcycle upright.
1. Sidestand switch
2. Sidestand
NOTE:
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain
situations. (See further down for an
explanation of the ignition circuit cut-
off system.)
EWA10240
s s WARNING
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
12
Spring preload setting: Minimum (soft):1
Standard: 1
Maximum (hard): 4
3
INSTRUMENT AND CONTROL FUNCTIONS
3-12
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-12
Page 27 of 68

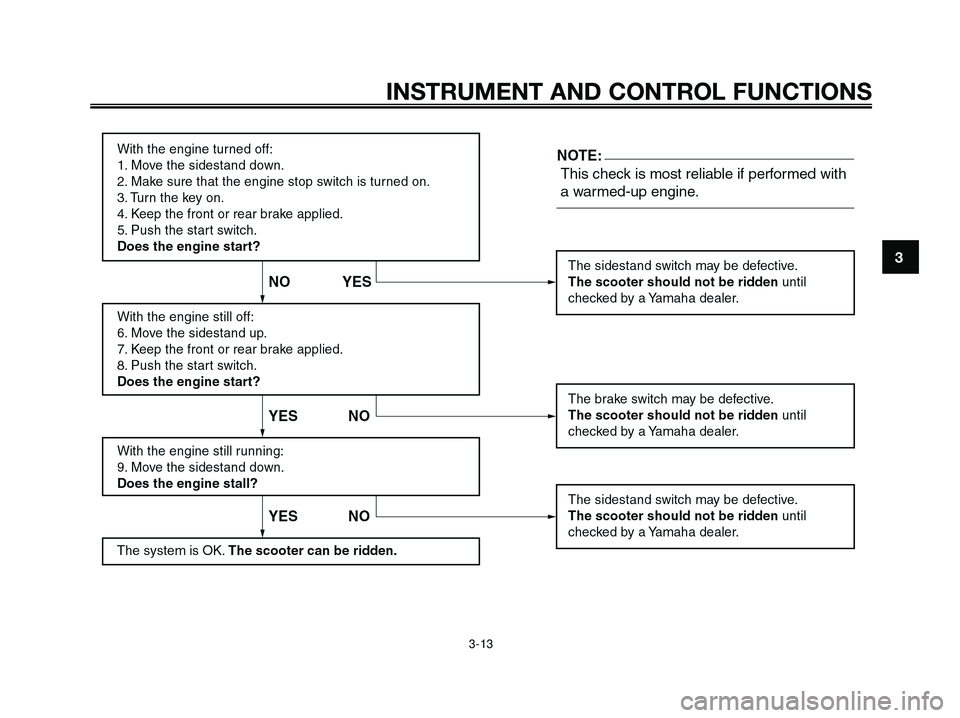

3
INSTRUMENT AND CONTROL FUNCTIONS
3-13
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 3-13
Page 28 of 68
4
PRE-OPERATION CHECKS
4-1

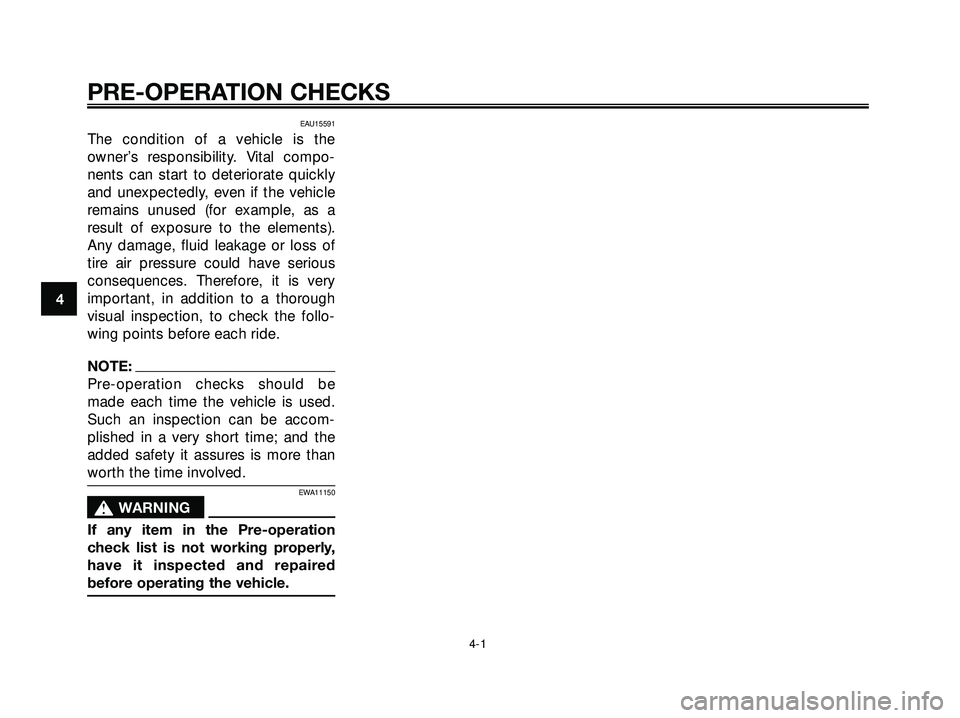

EAU15591
The condition of a vehicle is the
owner’s responsibility. Vital compo-
nents can start to deteriorate quickly
and unexpectedly, even if the vehicle
remains unused (for example, as a
result of exposure to the elements).
Any damage, fluid leakage or loss of
tire air pressure could have serious
consequences. Therefore, it is very
important, in addition to a thorough
visual inspection, to check the follo-
wing points before each ride.
NOTE:
Pre-operation checks should be
made each time the vehicle is used.
Such an inspection can be accom-
plished in a very short time; and the
added safety it assures is more than
worth the time involved.
EWA11150
s s
WARNING
If any item in the Pre-operation
check list is not working properly,
have it inspected and repaired
before operating the vehicle.
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 28
Page 29 of 68
4
PRE-OPERATION CHECKS
4-2
EAU15603
Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-9
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-7
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-8
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-9
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Front brake• Replace if necessary. 3-8, 6-14
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Rear brake• Replace if necessary. 3-8, 6-14
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
6-12
• If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.
Control cables• Make sure that operation is smooth.
• Lubricate if necessary. —
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 29
Page 30 of 68
4
PRE-OPERATION CHECKS
4-3

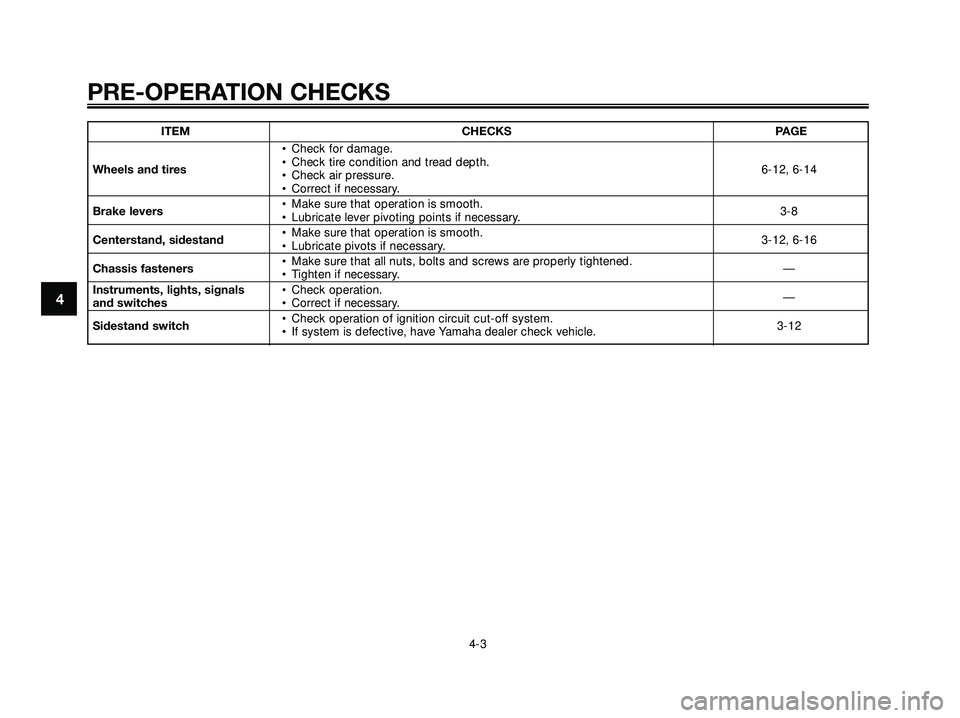

ITEM CHECKS PAGE
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
6-12, 6-14
• Check air pressure.
• Correct if necessary.
Brake levers• Make sure that operation is smooth.
3-8
• Lubricate lever pivoting points if necessary.
Centerstand, sidestand• Make sure that operation is smooth.
3-12, 6-16
• Lubricate pivots if necessary.
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
—
• Tighten if necessary.
Instruments, lights, signals • Check operation.
—
and switches• Correct if necessary.
Sidestand switch• Check operation of ignition circuit cut-off system.
3-12
• If system is defective, have Yamaha dealer check vehicle.
1C0-F8199-E0.qxd 13/04/2005 16:58 Página 30
