To lock the steering
1. Push
2. Turn
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key.T
o unlock the steering
1. Push
2. Turn
Push the key in, and then turn it to
“OFF” while still pushing it.
EAU10941
(Parking)
The steering is locked, and the tai-
llight, license plate light and auxiliary
lights are on. The hazard lights and
turn signal lights can be turned on,
but all other electrical systems are off.
The key can be removed.
The steering must be locked before
the key can be turned to “ ”.
ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
NOTICE
1212
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
Page 22 of 90
EAU11004
Indicator and warning lights
1. Turn signal indicator lights “ ” and “ ”
2. High beam indicator light “ ”
3. Immobilizer system indicator light
4. Engine trouble warning light “ ”
5. Anti-lock Brake System (ABS) warning
light “ ” (for ABS models)
EAU11030
Turn signal indicator lights “ ”
and “ ”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “ ”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAU43023
Engine trouble warning light “ ”
This warning light comes on if an
electrical circuit monitoring the engine
is not working correctly. If this occurs,
have a Yamaha dealer check the self-
diagnosis system.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to
“ON”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
TIP
This warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not
indicate a malfunction.
EAU43032
ABS warning light “ ” (for ABS
models)
ECA10831
If the ABS warning light comes on
or flashes while riding, the ABS
may not work correctly. If this
occurs, have a Yamaha dealer
check the electrical circuit.
See page 3-13 for an explanation of
the ABS.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to
“ON”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
NOTICE
ABS
ABS
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
Page 23 of 90
EWA11350
When the ABS warning light comes
on or flashes while riding, the brake
system reverts to conventional bra-
king. Therefore, be careful not to
cause the wheel to lock during
emergency braking.
TIP
The ABS warning light may come on
while accelerating the engine with the
scooter on its centerstand, but this
does not indicate a malfunction.
EAU38624
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the
key to “ON”. The indicator light
should come on for a few seconds,
and then go off.
If the indicator light does not come on
initially when the key is turned to
“ON”, or if the indicator light remains
on, have a Yamaha dealer check the
electrical circuit.When the key is tur-
ned to “OFF” and 30 seconds havepassed, the indicator light will start
flashing indicating the immobilizer
system is enabled. After 24 hours
have passed, the indicator light will
stop flashing, however the immobili-
zer system is still enabled.
The self-diagnosis device also
detects problems in the immobilizer
system circuits. (See page 3-6 for an
explanation of the self-diagnosis
device.)
EAUS1860
Speedometer
1. Speedometer
UK ONLY
1. Speedometer
The speedometer shows the riding
speed.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
Page 24 of 90

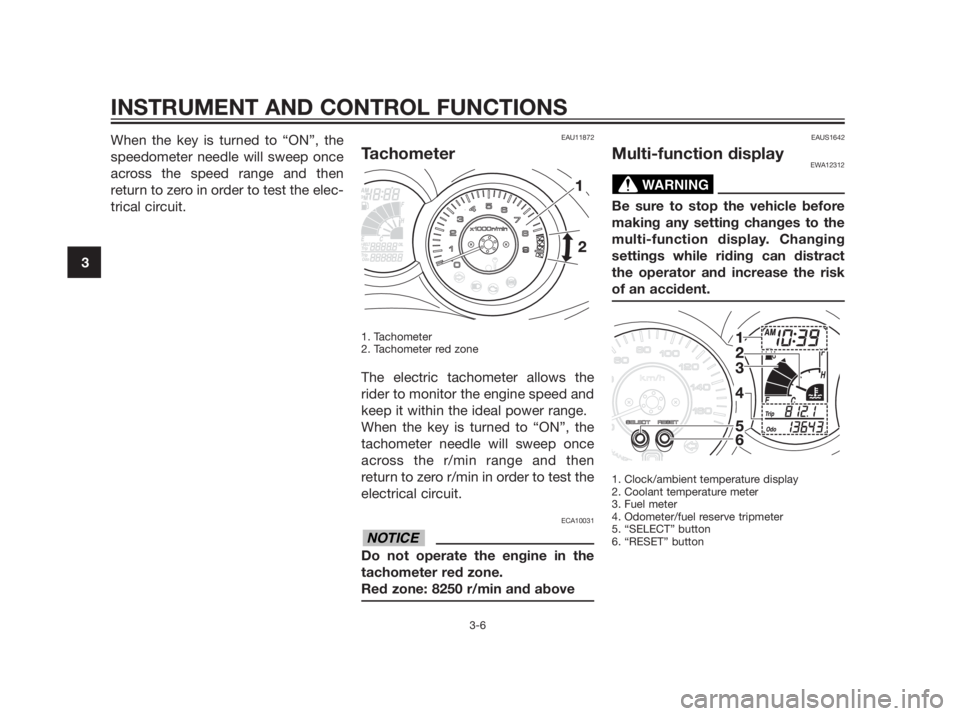

When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then
return to zero in order to test the elec-
trical circuit.EAU11872
Tachometer
1. Tachometer
2. Tachometer red zone
The electric tachometer allows the
rider to monitor the engine speed and
keep it within the ideal power range.
When the key is turned to “ON”, the
tachometer needle will sweep once
across the r/min range and then
return to zero r/min in order to test the
electrical circuit.
ECA10031
Do not operate the engine in the
tachometer red zone.
Red zone: 8250 r/min and above
EAUS1642
Multi-function displayEWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract
the operator and increase the risk
of an accident.
1. Clock/ambient temperature display
2. Coolant temperature meter
3. Fuel meter
4. Odometer/fuel reserve tripmeter
5. “SELECT” button
6. “RESET” button
WARNING
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
Page 25 of 90

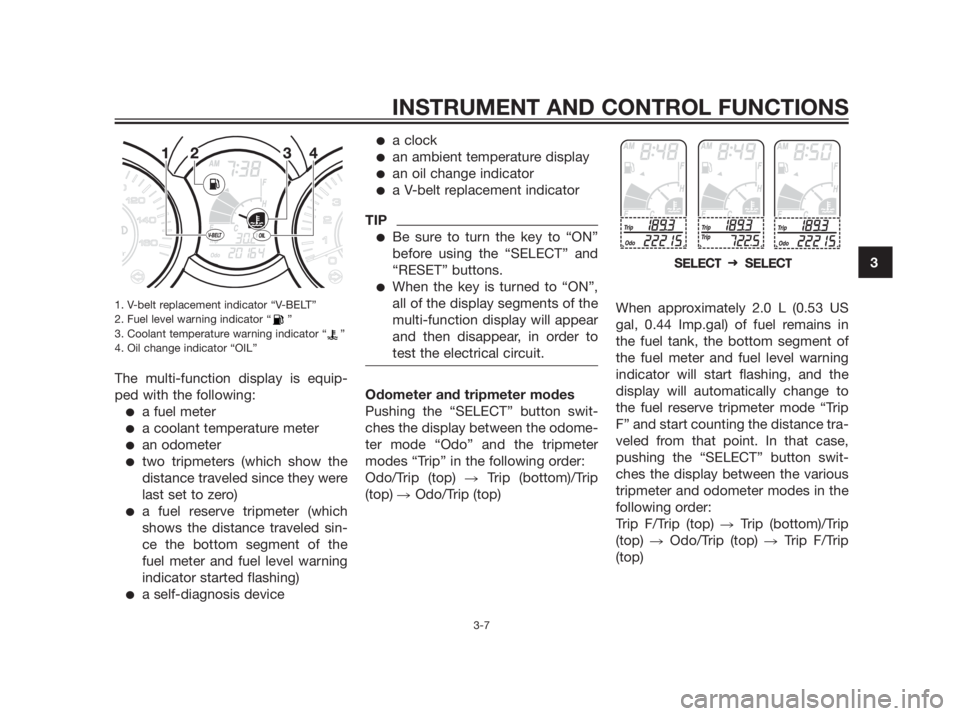

1. V-belt replacement indicator “V-BELT”
2. Fuel level warning indicator “ ”
3. Coolant temperature warning indicator “ ”
4. Oil change indicator “OIL”
The multi-function display is equip-
ped with the following:
a fuel meter
a coolant temperature meter
an odometer
two tripmeters (which show the
distance traveled since they were
last set to zero)
a fuel reserve tripmeter (which
shows the distance traveled sin-
ce the bottom segment of the
fuel meter and fuel level warning
indicator started flashing)
a self-diagnosis device
a clock
an ambient temperature display
an oil change indicator
a V-belt replacement indicator
TIP
Be sure to turn the key to “ON”
before using the “SELECT” and
“RESET” buttons.
When the key is turned to “ON”,
all of the display segments of the
multi-function display will appear
and then disappear, in order to
test the electrical circuit.
Odometer and tripmeter modes
Pushing the “SELECT” button swit-
ches the display between the odome-
ter mode “Odo” and the tripmeter
modes “Trip” in the following order:
Odo/Trip (top) Trip (bottom)/Trip
(top) Odo/Trip (top)When approximately 2.0 L (0.53 US
gal, 0.44 Imp.gal) of fuel remains in
the fuel tank, the bottom segment of
the fuel meter and fuel level warning
indicator will start flashing, and the
display will automatically change to
the fuel reserve tripmeter mode “Trip
F” and start counting the distance tra-
veled from that point. In that case,
pushing the “SELECT” button swit-
ches the display between the various
tripmeter and odometer modes in the
following order:
Trip F/Trip (top) Trip (bottom)/Trip
(top) Odo/Trip (top) Trip F/Trip
(top)
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
Page 26 of 90

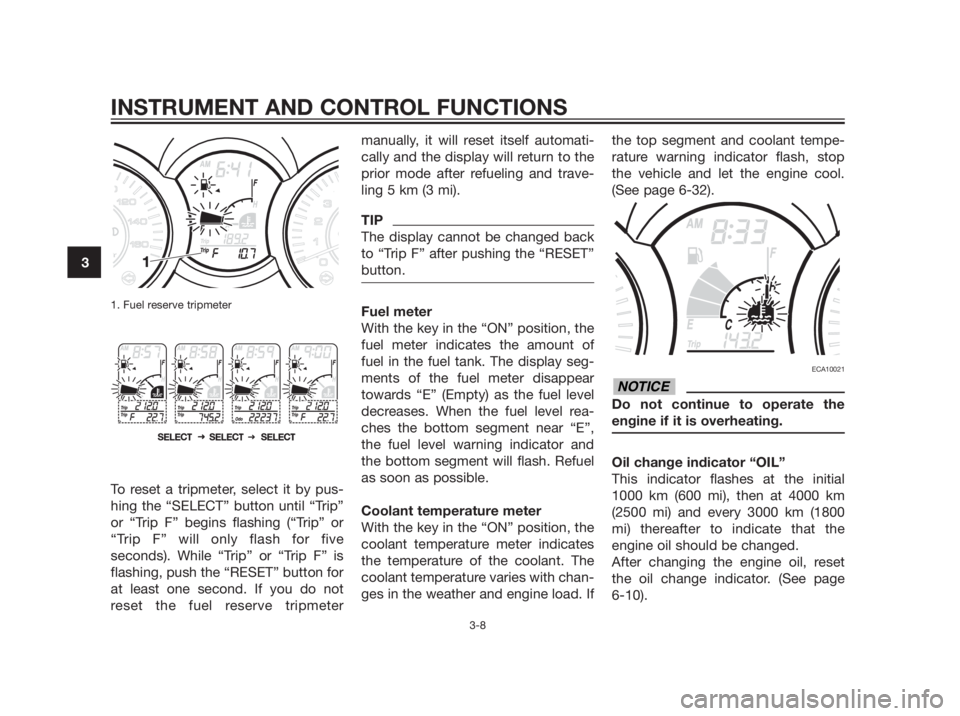

1. Fuel reserve tripmeter
To reset a tripmeter, select it by pus-
hing the “SELECT” button until “Trip”
or “Trip F” begins flashing (“Trip” or
“Trip F” will only flash for five
seconds). While “Trip” or “Trip F” is
flashing, push the “RESET” button for
at least one second. If you do not
reset the fuel reserve tripmetermanually, it will reset itself automati-
cally and the display will return to the
prior mode after refueling and trave-
ling 5 km (3 mi).
TIP
The display cannot be changed back
to “Trip F” after pushing the “RESET”
button.
Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear
towards “E” (Empty) as the fuel level
decreases. When the fuel level rea-
ches the bottom segment near “E”,
the fuel level warning indicator and
the bottom segment will flash. Refuel
as soon as possible.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chan-
ges in the weather and engine load. Ifthe top segment and coolant tempe-
rature warning indicator flash, stop
the vehicle and let the engine cool.
(See page 6-32).
ECA10021
Do not continue to operate the
engine if it is overheating.
Oil change indicator “OIL”
This indicator flashes at the initial
1000 km (600 mi), then at 4000 km
(2500 mi) and every 3000 km (1800
mi) thereafter to indicate that the
engine oil should be changed.
After changing the engine oil, reset
the oil change indicator. (See page
6-10).
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
Page 27 of 90

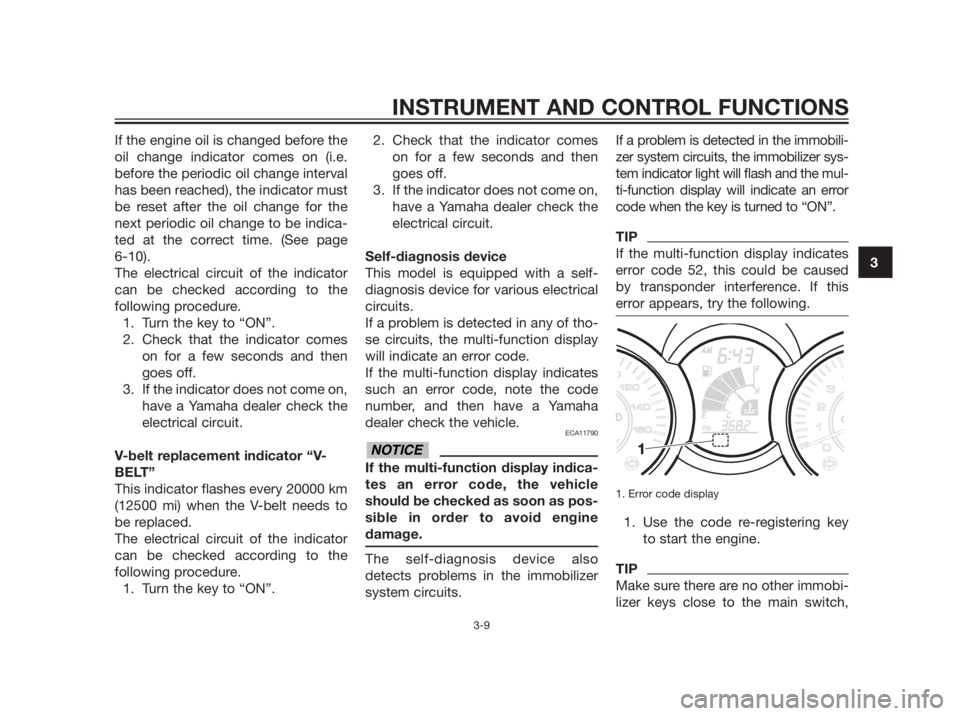

If the engine oil is changed before the
oil change indicator comes on (i.e.
before the periodic oil change interval
has been reached), the indicator must
be reset after the oil change for the
next periodic oil change to be indica-
ted at the correct time. (See page
6-10).
The electrical circuit of the indicator
can be checked according to the
following procedure.
1. Turn the key to “ON”.
2. Check that the indicator comes
on for a few seconds and then
goes off.
3. If the indicator does not come on,
have a Yamaha dealer check the
electrical circuit.
V-belt replacement indicator “V-
BELT”
This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to
be replaced.
The electrical circuit of the indicator
can be checked according to the
following procedure.
1. Turn the key to “ON”.2. Check that the indicator comes
on for a few seconds and then
goes off.
3. If the indicator does not come on,
have a Yamaha dealer check the
electrical circuit.
Self-diagnosis device
This model is equipped with a self-
diagnosis device for various electrical
circuits.
If a problem is detected in any of tho-
se circuits, the multi-function display
will indicate an error code.
If the multi-function display indicates
such an error code, note the code
number, and then have a Yamaha
dealer check the vehicle.
ECA11790
If the multi-function display indica-
tes an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine
damage.
The self-diagnosis device also
detects problems in the immobilizer
system circuits.If a problem is detected in the immobili-
zer system circuits, the immobilizer sys-
tem indicator light will flash and the mul-
ti-function display will indicate an error
code when the key is turned to “ON”.
TIP
If the multi-function display indicates
error code 52, this could be caused
by transponder interference. If this
error appears, try the following.
1. Error code display
1. Use the code re-registering key
to start the engine.
TIP
Make sure there are no other immobi-
lizer keys close to the main switch,
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
Page 28 of 90

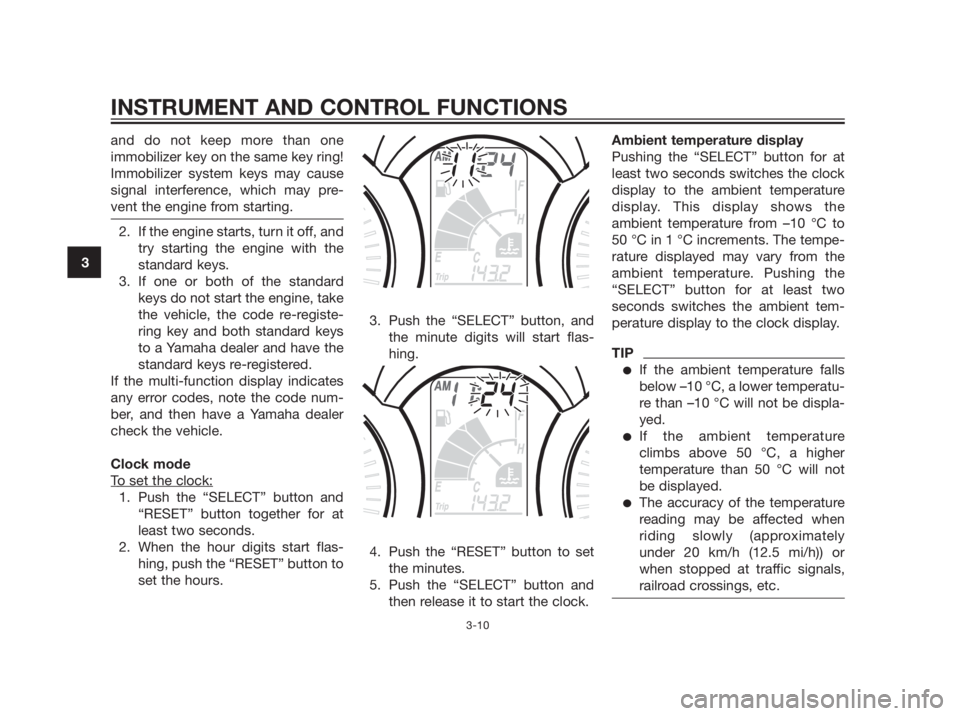

and do not keep more than one
immobilizer key on the same key ring!
Immobilizer system keys may cause
signal interference, which may pre-
vent the engine from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard
keys do not start the engine, take
the vehicle, the code re-registe-
ring key and both standard keys
to a Yamaha dealer and have the
standard keys re-registered.
If the multi-function display indicates
any error codes, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
Clock mode
T
o set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flas-
hing, push the “RESET” button to
set the hours.3. Push the “SELECT” button, and
the minute digits will start flas-
hing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.Ambient temperature display
Pushing the “SELECT” button for at
least two seconds switches the clock
display to the ambient temperature
display. This display shows the
ambient temperature from –10 °C to
50 °C in 1 °C increments. The tempe-
rature displayed may vary from the
ambient temperature. Pushing the
“SELECT” button for at least two
seconds switches the ambient tem-
perature display to the clock display.
TIP
If the ambient temperature falls
below –10 °C, a lower temperatu-
re than –10 °C will not be displa-
yed.
If the ambient temperature
climbs above 50 °C, a higher
temperature than 50 °C will not
be displayed.
The accuracy of the temperature
reading may be affected when
riding slowly (approximately
under 20 km/h (12.5 mi/h)) or
when stopped at traffic signals,
railroad crossings, etc.
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
Page 29 of 90
EAU12331
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12348
Handlebar switches
Left
1. Pass switch “ ”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
Right
1. Hazard switch “ ”
2. Start switch “ ”
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
Page 30 of 90
EAU12350
Pass switch “ ”
Press this switch to flash the head-
light.
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12721
Start switch “ ”
With the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter. See page 5-1 for starting ins-
tructions prior to starting the engine.
EAU44710
The engine trouble warning light and
ABS warning light (ABS model only)
will come on when the key is turned
to “ON” and the start switch is pus-
hed, but this does not indicate a mal-
function.
EAU12733
Hazard switch “ ”
With the key in the “ON” or “ ”
position, use this switch to turn on the
hazard lights (simultaneous flashing
of all turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10061
Do not use the hazard lights for an
extended length of time with the
engine not running, otherwise the
battery may discharge.
EAU12900
Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
