YAMAHA XMAX 250 2013 Service Manual
Manufacturer: YAMAHA, Model Year: 2013, Model line: XMAX 250, Model: YAMAHA XMAX 250 2013Pages: 90, PDF Size: 4.12 MB
Page 41 of 90

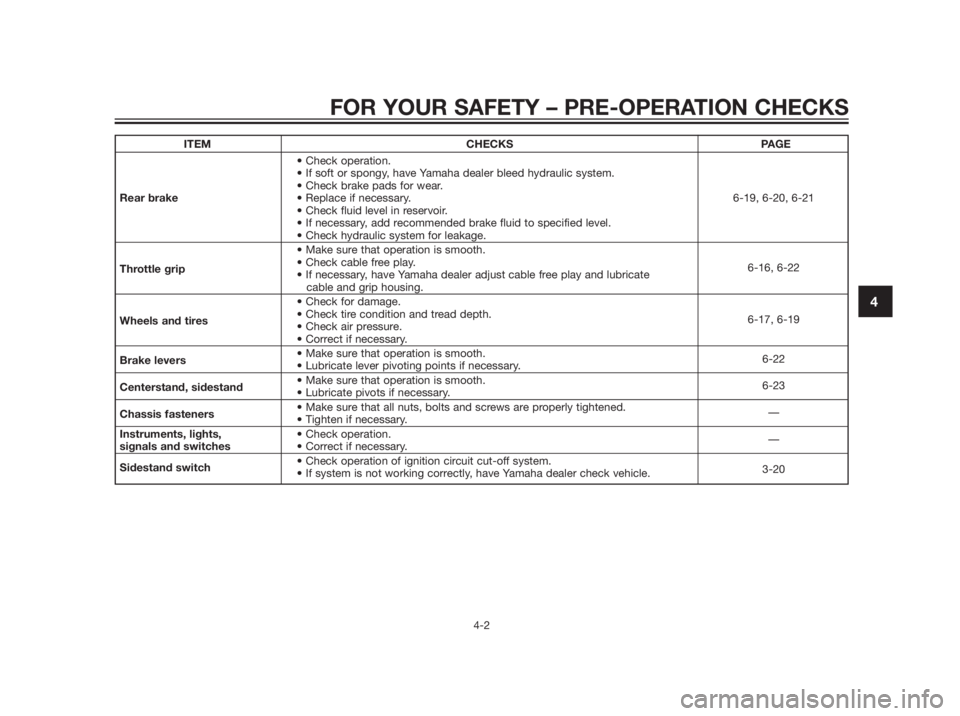

ITEM CHECKS PAGE
Rear brake 6-19, 6-20, 6-21
Throttle grip
6-16, 6-22
cable and grip housing.
Wheels and tires
6-17, 6-19
Brake levers
6-22
Centerstand, sidestand
6-23
Chassis fasteners
—
Instruments, lights, • Check operation.
signals and switches—
Sidestand switch
3-20
FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4

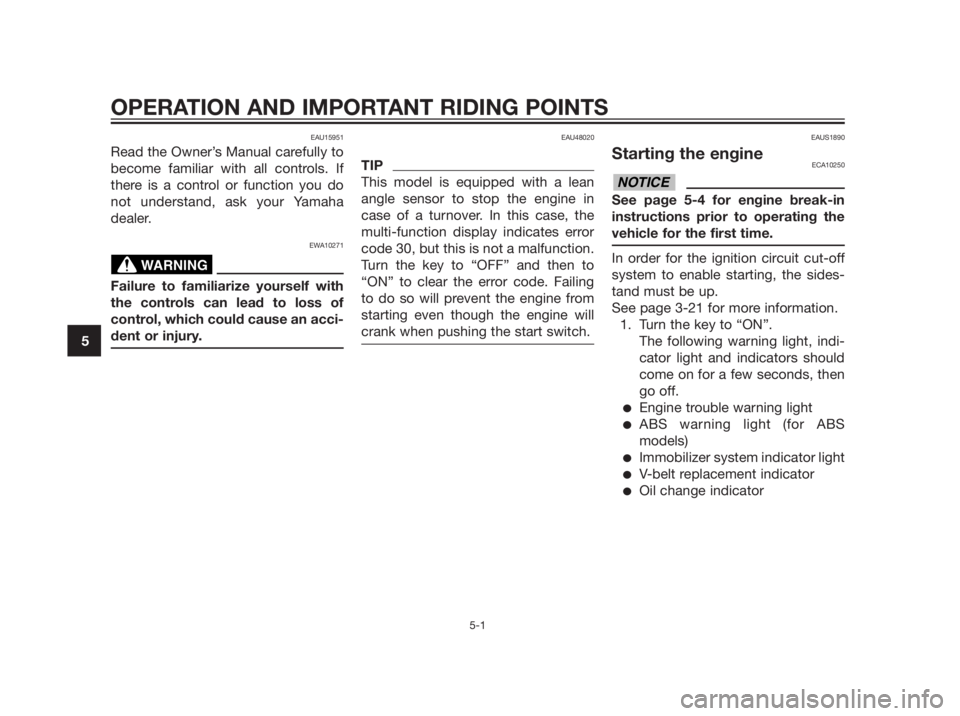

Page 42 of 90
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do
not understand, ask your Yamaha
dealer.
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of
control, which could cause an acci-
dent or injury.
EAU48020
TIP
This model is equipped with a lean
angle sensor to stop the engine in
case of a turnover. In this case, the
multi-function display indicates error
code 30, but this is not a malfunction.
Turn the key to “OFF” and then to
“ON” to clear the error code. Failing
to do so will prevent the engine from
starting even though the engine will
crank when pushing the start switch.
EAUS1890
Starting the engineECA10250
See page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the sides-
tand must be up.
See page 3-21 for more information.
1. Turn the key to “ON”.
The following warning light, indi-
cator light and indicators should
come on for a few seconds, then
go off.
Engine trouble warning light
ABS warning light (for ABS
models)
Immobilizer system indicator light
V-belt replacement indicator
Oil change indicator
NOTICE
WARNING
OPERATION AND IMPORTANT RIDING POINTS
5-1
5

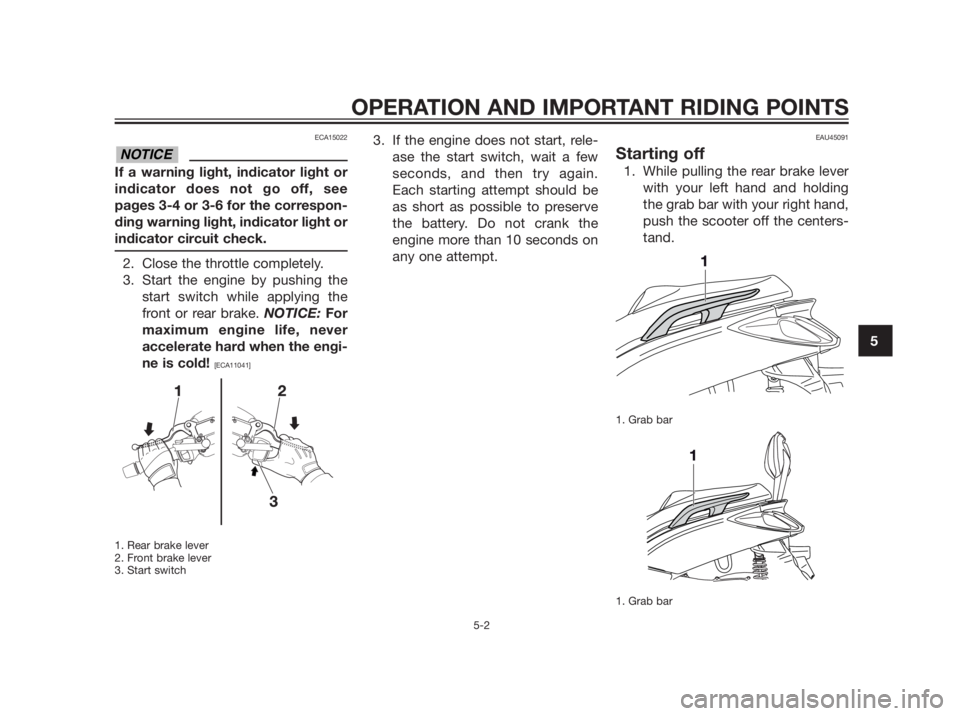

Page 43 of 90
ECA15022
If a warning light, indicator light or
indicator does not go off, see
pages 3-4 or 3-6 for the correspon-
ding warning light, indicator light or
indicator circuit check.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the
front or rear brake. NOTICE: For
maximum engine life, never
accelerate hard when the engi-
ne is cold!
[ECA11041]
1. Rear brake lever
2. Front brake lever
3. Start switch
3. If the engine does not start, rele-
ase the start switch, wait a few
seconds, and then try again.
Each starting attempt should be
as short as possible to preserve
the battery. Do not crank the
engine more than 10 seconds on
any one attempt.EAU45091
Starting off
1. While pulling the rear brake lever
with your left hand and holding
the grab bar with your right hand,
push the scooter off the centers-
tand.
1. Grab bar
1. Grab bar
NOTICE
OPERATION AND IMPORTANT RIDING POINTS
5-2
5
Page 44 of 90

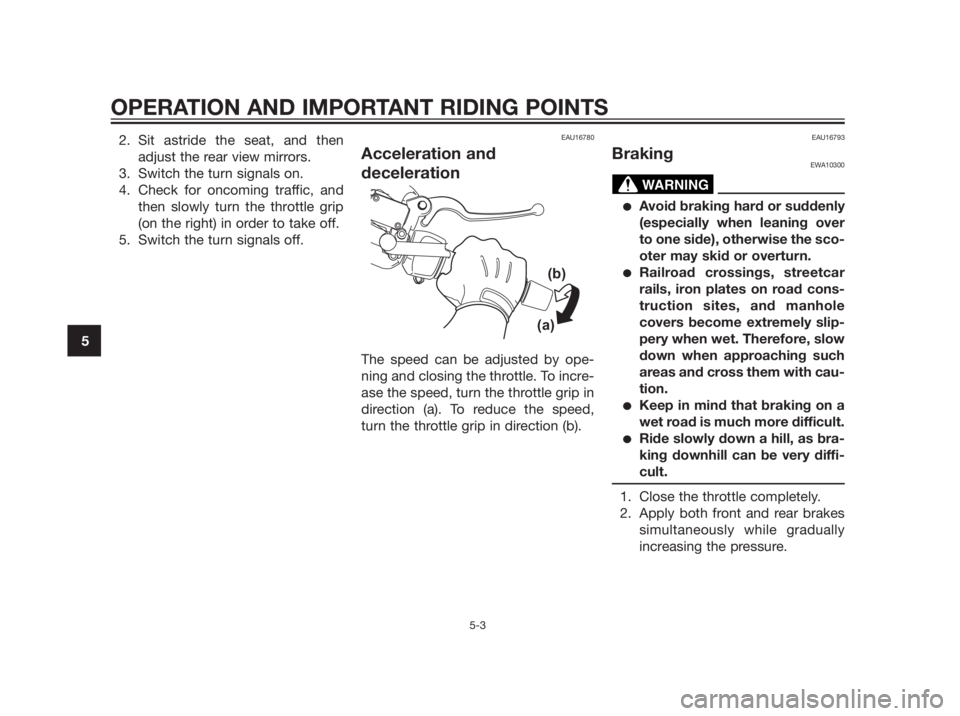

2. Sit astride the seat, and then
adjust the rear view mirrors.
3. Switch the turn signals on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signals off.EAU16780
Acceleration and
deceleration
The speed can be adjusted by ope-
ning and closing the throttle. To incre-
ase the speed, turn the throttle grip in
direction (a). To reduce the speed,
turn the throttle grip in direction (b).
EAU16793
BrakingEWA10300
Avoid braking hard or suddenly
(especially when leaning over
to one side), otherwise the sco-
oter may skid or overturn.
Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Therefore, slow
down when approaching such
areas and cross them with cau-
tion.
Keep in mind that braking on a
wet road is much more difficult.
Ride slowly down a hill, as bra-
king downhill can be very diffi-
cult.
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually
increasing the pressure.
WARNING
(a)(b)
OPERATION AND IMPORTANT RIDING POINTS
5-3
5

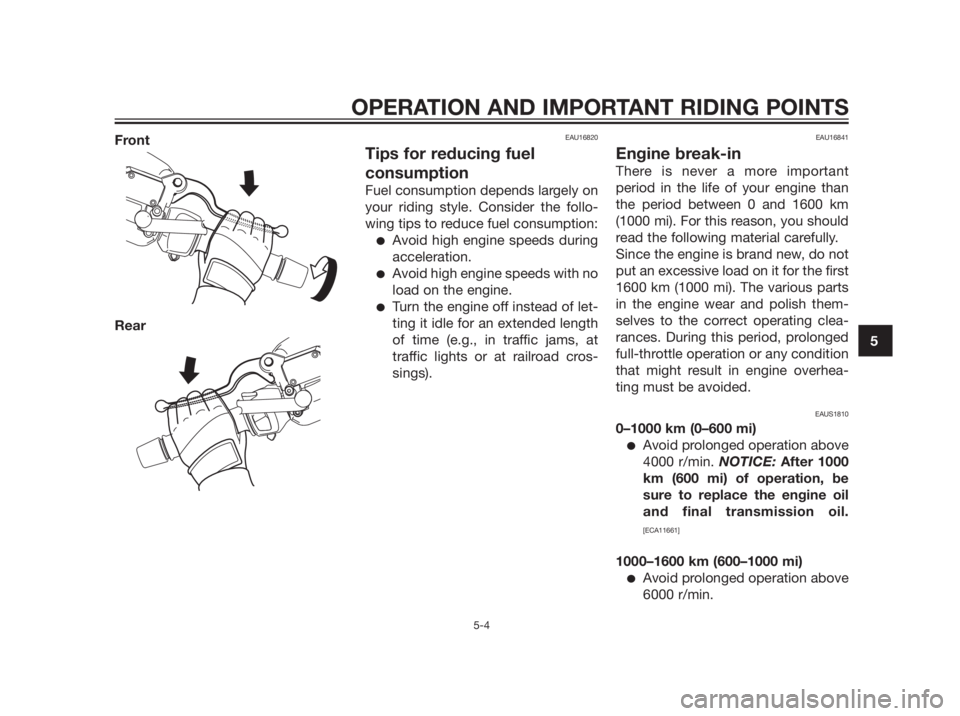

Page 45 of 90
Front
RearEAU16820
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the follo-
wing tips to reduce fuel consumption:
Avoid high engine speeds during
acceleration.
Avoid high engine speeds with no
load on the engine.
Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cros-
sings).
EAU16841
Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1600 km
(1000 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts
in the engine wear and polish them-
selves to the correct operating clea-
rances. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAUS1810
0–1000 km (0–600 mi)
Avoid prolonged operation above
4000 r/min. NOTICE: After 1000
km (600 mi) of operation, be
sure to replace the engine oil
and final transmission oil.
[ECA11661]
1000–1600 km (600–1000 mi)
Avoid prolonged operation above
6000 r/min.
OPERATION AND IMPORTANT RIDING POINTS
5-4
5

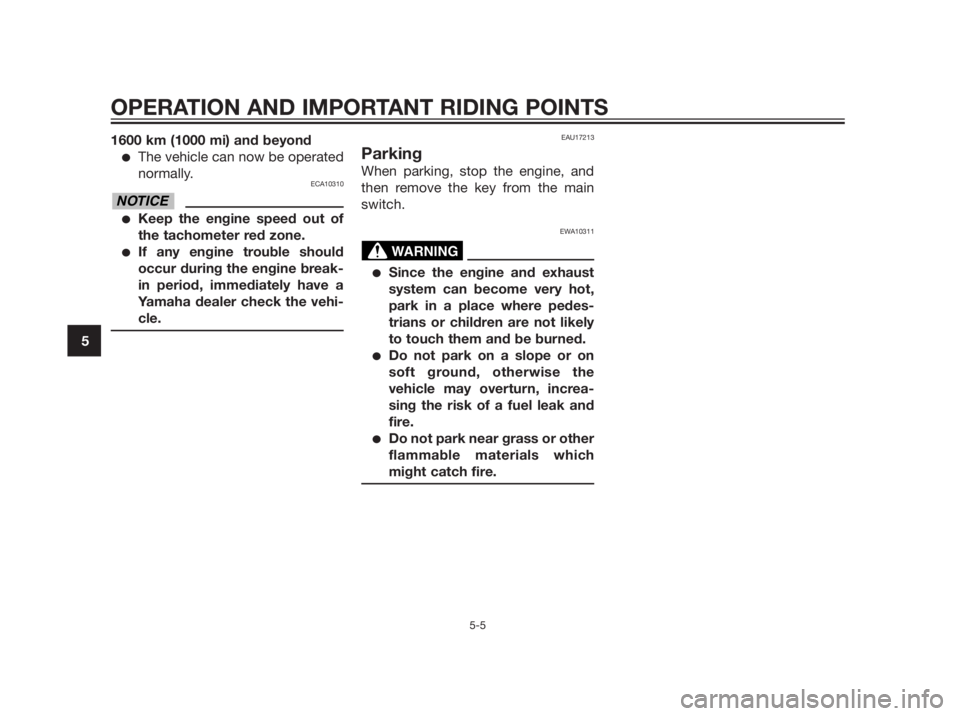

Page 46 of 90
1600 km (1000 mi) and beyond
The vehicle can now be operated
normally.
ECA10310
Keep the engine speed out of
the tachometer red zone.
If any engine trouble should
occur during the engine break-
in period, immediately have a
Yamaha dealer check the vehi-
cle.
EAU17213
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10311
Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them and be burned.
Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn, increa-
sing the risk of a fuel leak and
fire.
Do not park near grass or other
flammable materials which
might catch fire.
WARNING
NOTICE
OPERATION AND IMPORTANT RIDING POINTS
5-5
5
Page 47 of 90

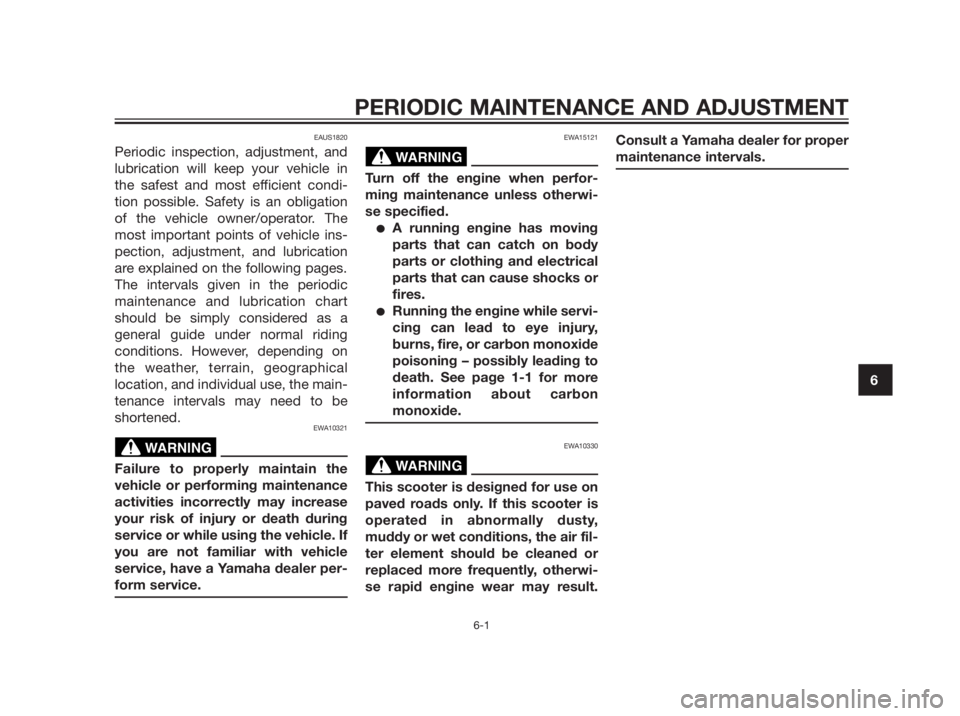

PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
EAUS1820
Periodic inspection, adjustment, and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. Safety is an obligation
of the vehicle owner/operator. The
most important points of vehicle ins-
pection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, depending on
the weather, terrain, geographical
location, and individual use, the main-
tenance intervals may need to be
shortened.
EWA10321
Failure to properly maintain the
vehicle or performing maintenance
activities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle
service, have a Yamaha dealer per-
form service.
EWA15121
Turn off the engine when perfor-
ming maintenance unless otherwi-
se specified.
A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
Running the engine while servi-
cing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more
information about carbon
monoxide.
EWA10330
This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty,
muddy or wet conditions, the air fil-
ter element should be cleaned or
replaced more frequently, otherwi-
se rapid engine wear may result.Consult a Yamaha dealer for proper
maintenance intervals.
WARNING
WARNING
WARNING

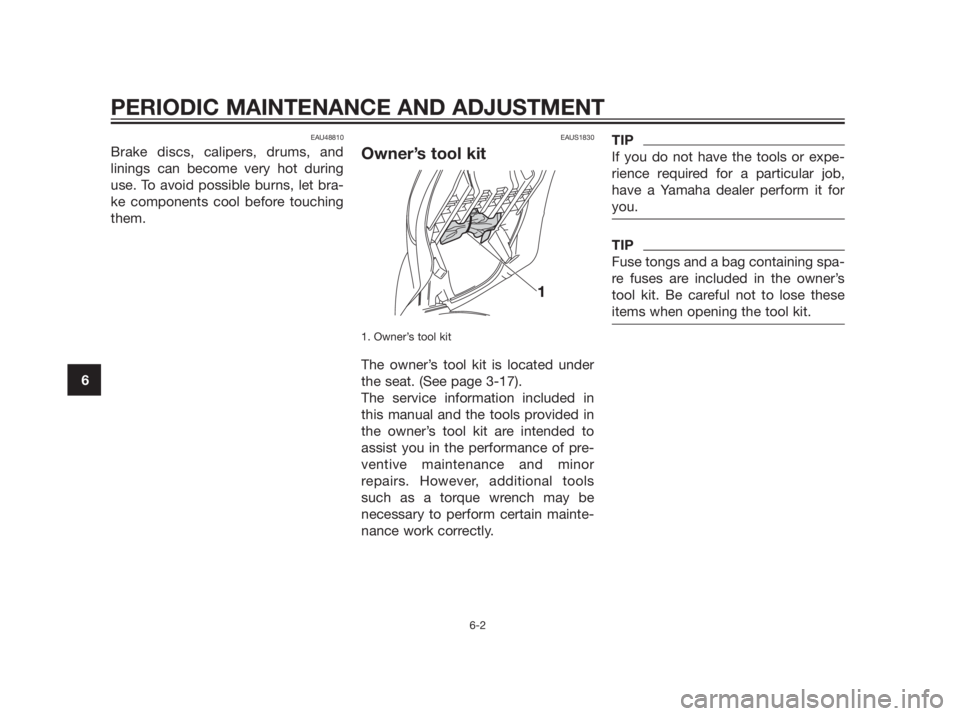

Page 48 of 90
EAU48810
Brake discs, calipers, drums, and
linings can become very hot during
use. To avoid possible burns, let bra-
ke components cool before touching
them.
EAUS1830
Owner’s tool kit
1. Owner’s tool kit
The owner’s tool kit is located under
the seat. (See page 3-17).
The service information included in
this manual and the tools provided in
the owner’s tool kit are intended to
assist you in the performance of pre-
ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be
necessary to perform certain mainte-
nance work correctly.
TIP
If you do not have the tools or expe-
rience required for a particular job,
have a Yamaha dealer perform it for
you.
TIP
Fuse tongs and a bag containing spa-
re fuses are included in the owner’s
tool kit. Be careful not to lose these
items when opening the tool kit.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6

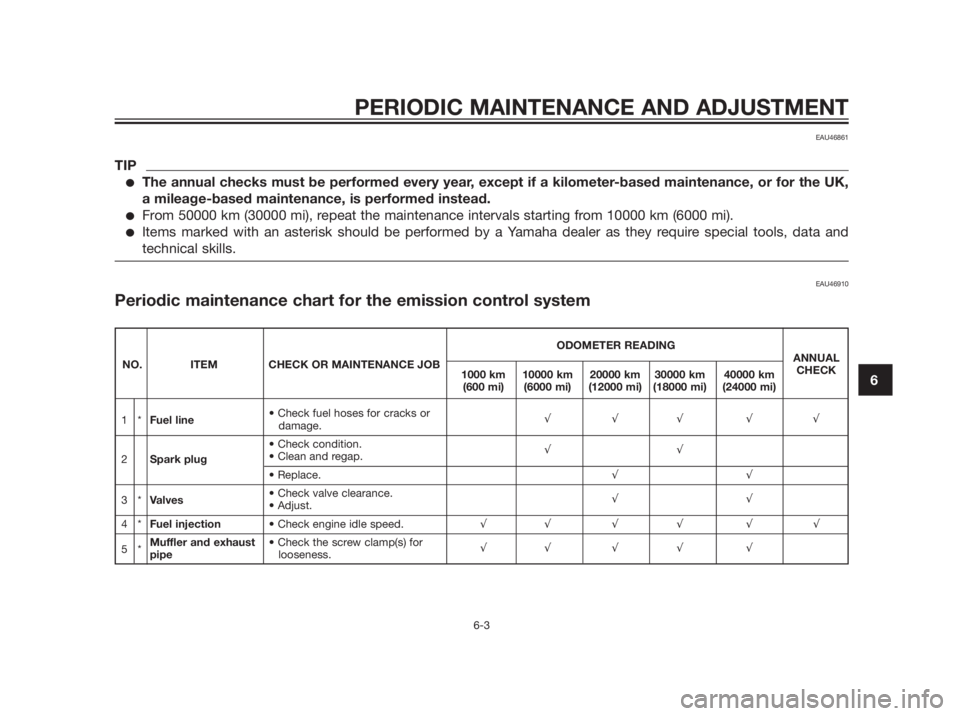

Page 49 of 90
PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU46861
TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK,
a mileage-based maintenance, is performed instead.
From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
EAU46910
Periodic maintenance chart for the emission control system
ODOMETER READING
NO. ITEM CHECK OR MAINTENANCE JOBANNUAL
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
1*Fuel line
damage. 3 3 3 3 3
2Spark plug 3 3
3 3
3*Valves
3 3
4*Fuel injection 3 3 3 3 3 3
5*Muffler and exhaust
pipelooseness. 3 3 3 3 3

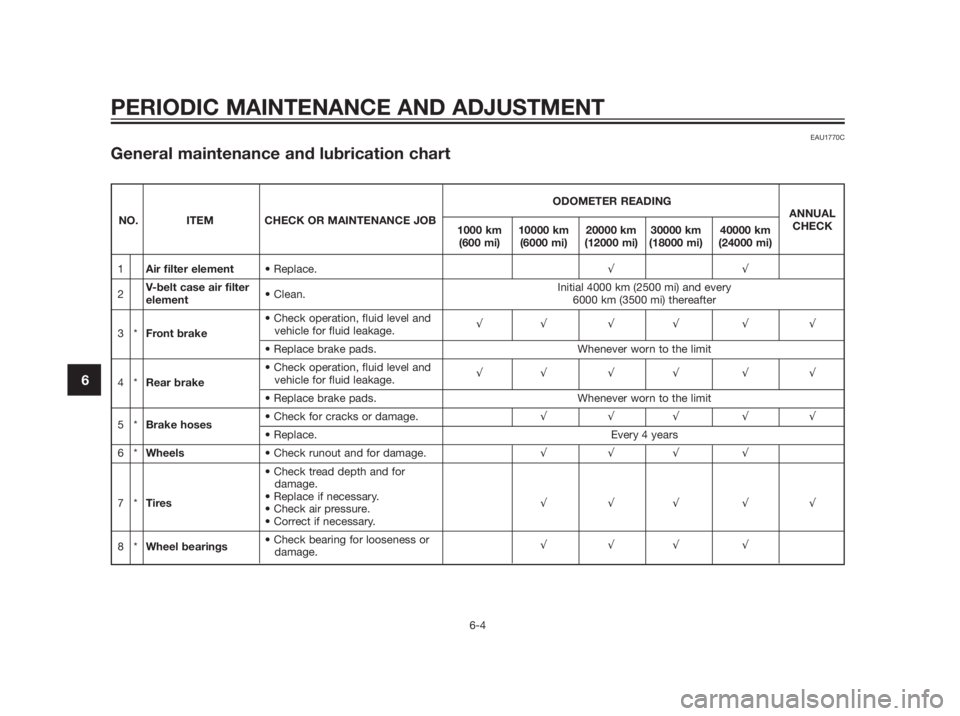

Page 50 of 90
PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
EAU1770C
General maintenance and lubrication chart
ODOMETER READING
NO. ITEM CHECK OR MAINTENANCE JOBANNUAL
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
1Air filter element 3 3
2V-belt case air filter
Initial 4000 km (2500 mi) and every
element6000 km (3500 mi) thereafter
3*Front brakevehicle for fluid leakage. 3 3 3 3 3 3
Whenever worn to the limit
4*Rear brakevehicle for fluid leakage. 3 3 3 3 3 3
Whenever worn to the limit
5*Brake hoses 3 3 3 3 3 Every 4 years
6*Wheels 3 3 3 3
damage.
7*Tires
3 3 3 3 3
8*Wheel bearings
damage. 3 3 3 3
