YAMAHA XMAX 250 2013 Owner's Guide
Manufacturer: YAMAHA, Model Year: 2013, Model line: XMAX 250, Model: YAMAHA XMAX 250 2013Pages: 90, PDF Size: 4.12 MB

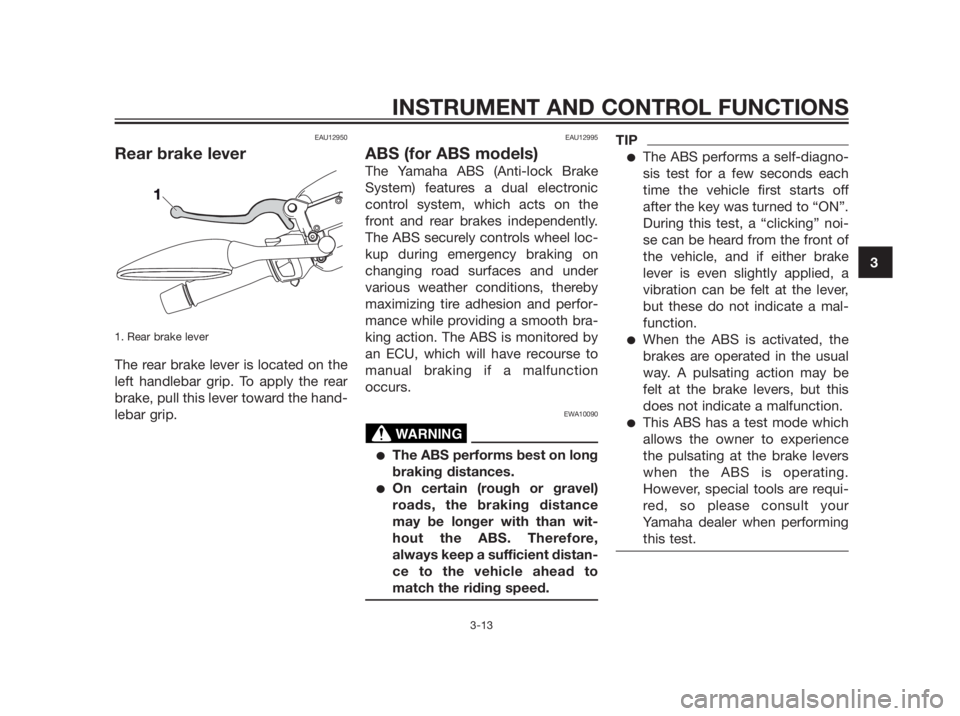

Page 31 of 90
EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAU12995
ABS (for ABS models)
The Yamaha ABS (Anti-lock Brake
System) features a dual electronic
control system, which acts on the
front and rear brakes independently.
The ABS securely controls wheel loc-
kup during emergency braking on
changing road surfaces and under
various weather conditions, thereby
maximizing tire adhesion and perfor-
mance while providing a smooth bra-
king action. The ABS is monitored by
an ECU, which will have recourse to
manual braking if a malfunction
occurs.
EWA10090
The ABS performs best on long
braking distances.
On certain (rough or gravel)
roads, the braking distance
may be longer with than wit-
hout the ABS. Therefore,
always keep a sufficient distan-
ce to the vehicle ahead to
match the riding speed.
TIP
The ABS performs a self-diagno-
sis test for a few seconds each
time the vehicle first starts off
after the key was turned to “ON”.
During this test, a “clicking” noi-
se can be heard from the front of
the vehicle, and if either brake
lever is even slightly applied, a
vibration can be felt at the lever,
but these do not indicate a mal-
function.
When the ABS is activated, the
brakes are operated in the usual
way. A pulsating action may be
felt at the brake levers, but this
does not indicate a malfunction.
This ABS has a test mode which
allows the owner to experience
the pulsating at the brake levers
when the ABS is operating.
However, special tools are requi-
red, so please consult your
Yamaha dealer when performing
this test.WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
Page 32 of 90

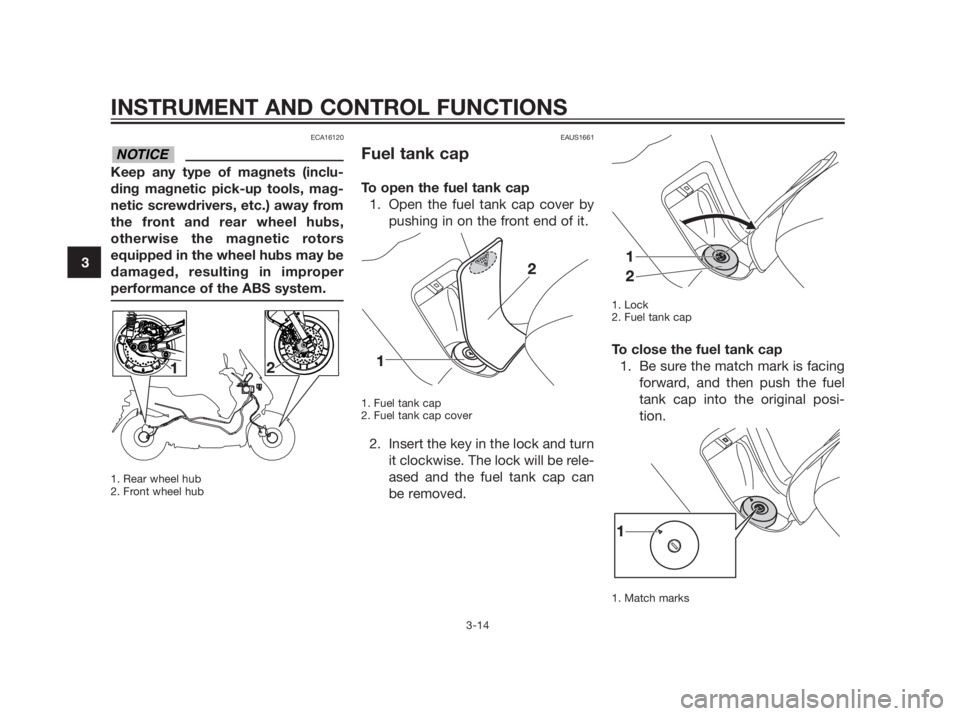

ECA16120
Keep any type of magnets (inclu-
ding magnetic pick-up tools, mag-
netic screwdrivers, etc.) away from
the front and rear wheel hubs,
otherwise the magnetic rotors
equipped in the wheel hubs may be
damaged, resulting in improper
performance of the ABS system.
1. Rear wheel hub 2. Front wheel hub
EAUS1661
Fuel tank cap
To open the fuel tank cap
1. Open the fuel tank cap cover by
pushing in on the front end of it.
1. Fuel tank cap 2. Fuel tank cap cover
2. Insert the key in the lock and turn
it clockwise. The lock will be rele-
ased and the fuel tank cap can
be removed.
1. Lock 2. Fuel tank cap
To close the fuel tank cap
1. Be sure the match mark is facing
forward, and then push the fuel
tank cap into the original posi-
tion.
1. Match marks
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
Page 33 of 90
2. Turn the key counterclockwise
and remove it.
3. Close the fuel tank cover.
EWA11091
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13221
Fuel
Make sure there is sufficient gasoline
in the tank.
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.
1. Before refueling, turn off the engi-
ne and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the
vicinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank
filler hole. Stop filling when the
fuel reaches the bottom of the
filler tube. Because fuel expands
when it heats up, heat from the
engine or the sun can cause fuel
to spill out of the fuel tank.
1. Fuel tank filler tube
2. Maximum fuel level
3. Wipe up any spilled fuel imme-
diately. NOTICE: Immediately
wipe off spilled fuel with a cle-
an, dry, soft cloth, since fuel
may deteriorate painted surfa-
ces or plastic parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
EWA15151
Gasoline is poisonous and can cau-
se injury or death. Handle gasoline
with care. Never siphon gasoline by
mouth. If you should swallow some
gasoline or inhale a lot of gasoline
vapor, or get some gasoline in your
WARNING
WARNINGWARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
Page 34 of 90

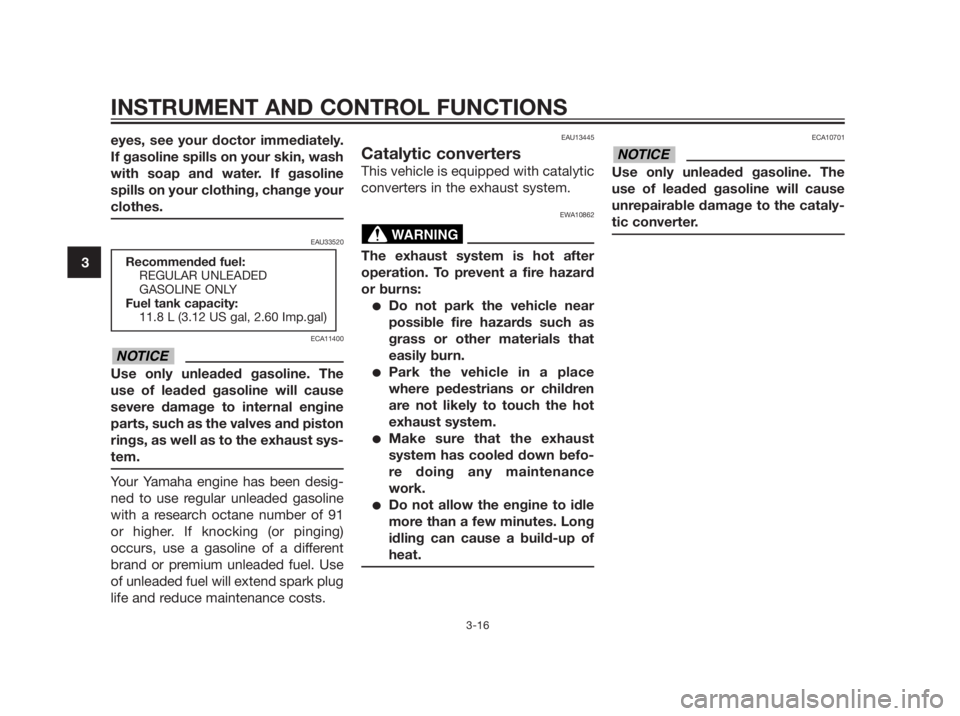

eyes, see your doctor immediately.
If gasoline spills on your skin, wash
with soap and water. If gasoline
spills on your clothing, change your
clothes.
EAU33520
ECA11400
Use only unleaded gasoline. The
use of leaded gasoline will cause
severe damage to internal engine
parts, such as the valves and piston
rings, as well as to the exhaust sys-
tem.
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark plug
life and reduce maintenance costs.
EAU13445
Catalytic converters
This vehicle is equipped with catalytic
converters in the exhaust system.
EWA10862
The exhaust system is hot after
operation. To prevent a fire hazard
or burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
Make sure that the exhaust
system has cooled down befo-
re doing any maintenance
work.
Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
ECA10701
Use only unleaded gasoline. The
use of leaded gasoline will cause
unrepairable damage to the cataly-
tic converter.
NOTICE
WARNING
NOTICE
Recommended fuel:
REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity:
11.8 L (3.12 US gal, 2.60 Imp.gal)
INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
Page 35 of 90

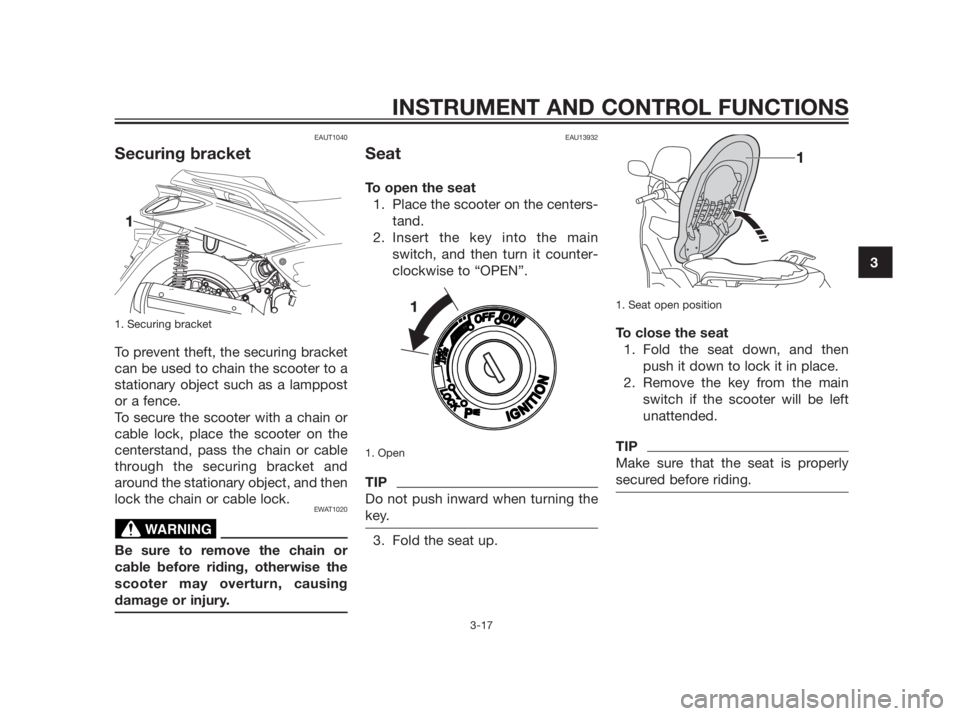

EAUT1040
Securing bracket
1. Securing bracket
To prevent theft, the securing bracket
can be used to chain the scooter to a
stationary object such as a lamppost
or a fence.
To secure the scooter with a chain or
cable lock, place the scooter on the
centerstand, pass the chain or cable
through the securing bracket and
around the stationary object, and then
lock the chain or cable lock.EWAT1020
Be sure to remove the chain or
cable before riding, otherwise the
scooter may overturn, causing
damage or injury.
EAU13932
Seat
To open the seat
1. Place the scooter on the centers-
tand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise to “OPEN”.
1. Open
TIP
Do not push inward when turning the
key.
3. Fold the seat up.
1. Seat open position
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
TIP
Make sure that the seat is properly
secured before riding.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
Page 36 of 90

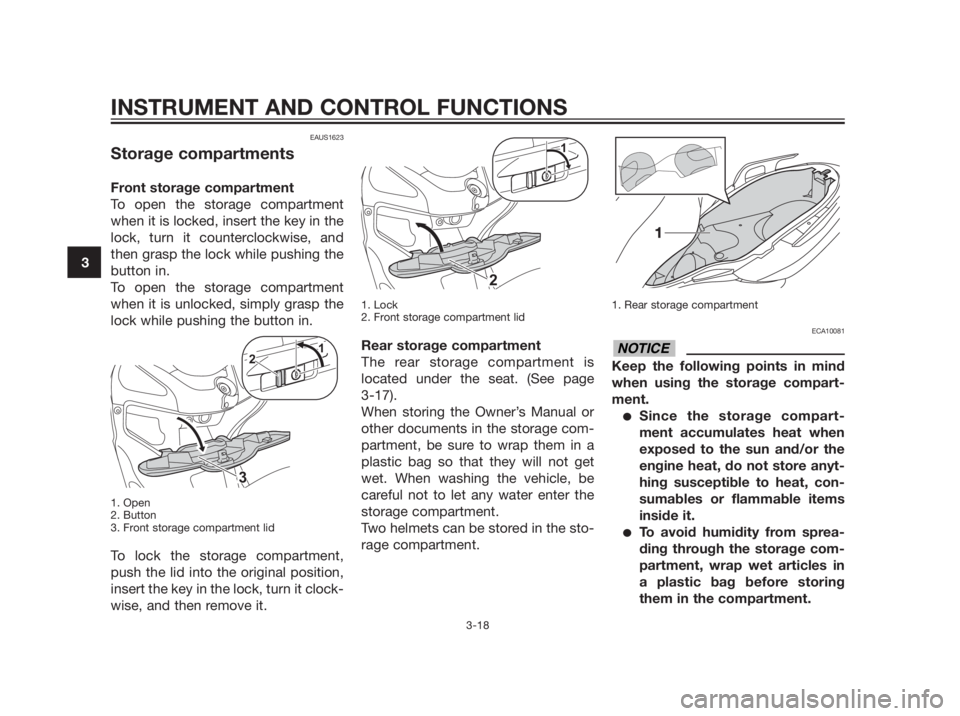

EAUS1623
Storage compartments
Front storage compartment
To open the storage compartment
when it is locked, insert the key in the
lock, turn it counterclockwise, and
then grasp the lock while pushing the
button in.
To open the storage compartment
when it is unlocked, simply grasp the
lock while pushing the button in.
1. Open
2. Button
3. Front storage compartment lid
To lock the storage compartment,
push the lid into the original position,
insert the key in the lock, turn it clock-
wise, and then remove it.
1. Lock
2. Front storage compartment lid
Rear storage compartment
The rear storage compartment is
located under the seat. (See page
3-17).
When storing the Owner’s Manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get
wet. When washing the vehicle, be
careful not to let any water enter the
storage compartment.
Two helmets can be stored in the sto-
rage compartment.
1. Rear storage compartment
ECA10081
Keep the following points in mind
when using the storage compart-
ment.
Since the storage compart-
ment accumulates heat when
exposed to the sun and/or the
engine heat, do not store anyt-
hing susceptible to heat, con-
sumables or flammable items
inside it.
To avoid humidity from sprea-
ding through the storage com-
partment, wrap wet articles in
a plastic bag before storing
them in the compartment.
NOTICE
1
2
21
3
INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
Page 37 of 90

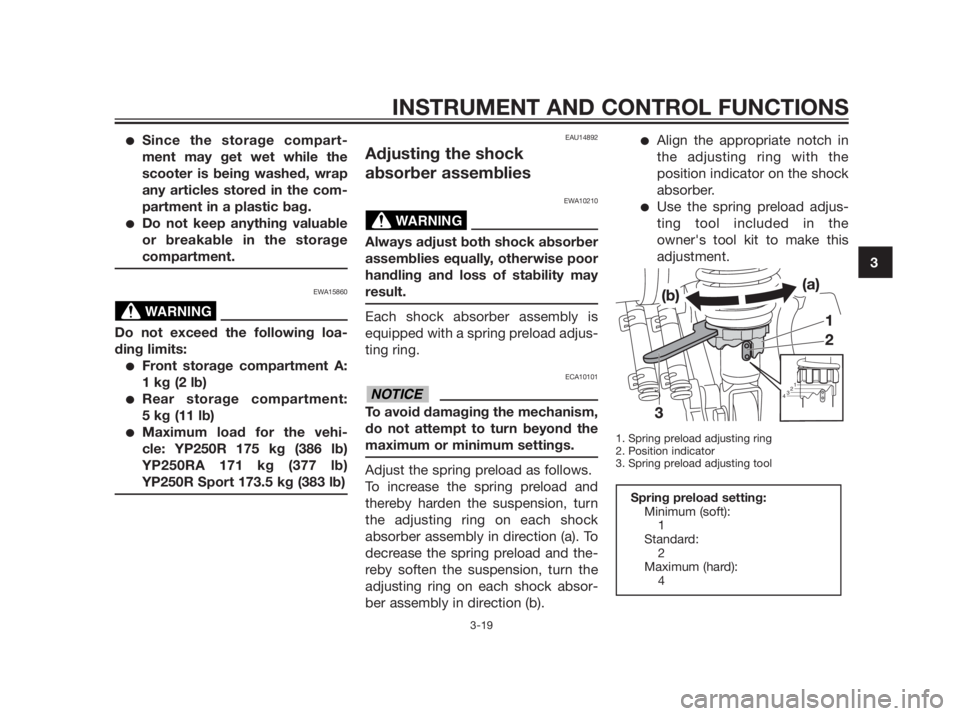

Since the storage compart-
ment may get wet while the
scooter is being washed, wrap
any articles stored in the com-
partment in a plastic bag.
Do not keep anything valuable
or breakable in the storage
compartment.
EWA15860
Do not exceed the following loa-
ding limits:
Front storage compartment A:
1 kg (2 lb)
Rear storage compartment:
5 kg (11 lb)
Maximum load for the vehi-
cle: YP250R 175 kg (386 lb)
YP250RA 171 kg (377 lb)
YP250R Sport 173.5 kg (383 lb)
EAU14892
Adjusting the shock
absorber assemblies
EWA10210
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.
Each shock absorber assembly is
equipped with a spring preload adjus-
ting ring.
ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock
absorber assembly in direction (a). To
decrease the spring preload and the-
reby soften the suspension, turn the
adjusting ring on each shock absor-
ber assembly in direction (b).
Align the appropriate notch in
the adjusting ring with the
position indicator on the shock
absorber.
Use the spring preload adjus-
ting tool included in the
owner's tool kit to make this
adjustment.
1. Spring preload adjusting ring
2. Position indicator
3. Spring preload adjusting tool
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
4
1
2
3
4NOTICE
WARNING
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
Page 38 of 90

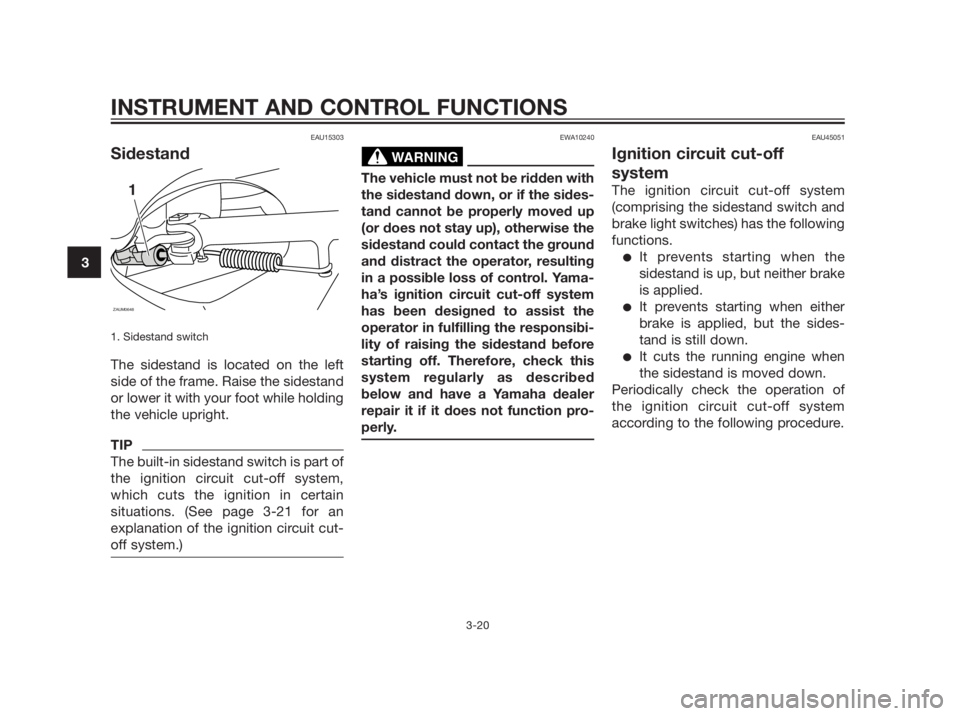

EAU15303
Sidestand
1. Sidestand switch
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.
TIP
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain
situations. (See page 3-21 for an
explanation of the ignition circuit cut-
off system.)
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAU45051
Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the following
functions.
It prevents starting when the
sidestand is up, but neither brake
is applied.
It prevents starting when either
brake is applied, but the sides-
tand is still down.
It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
WARNING
ZAUM0648
1
INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
Page 39 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-21
3

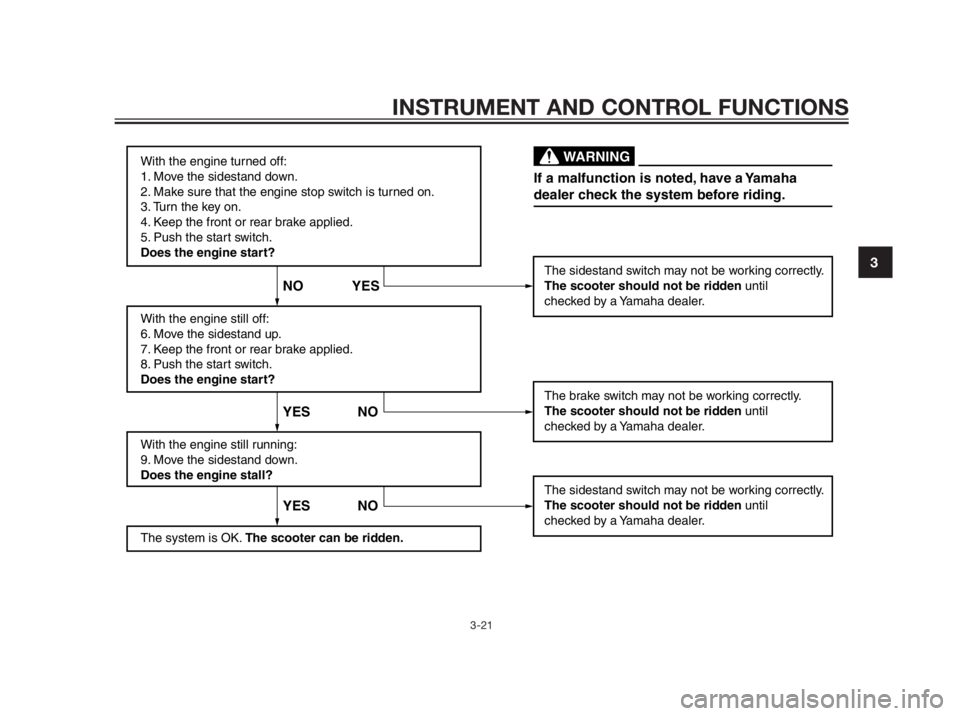

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YES
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
Page 40 of 90

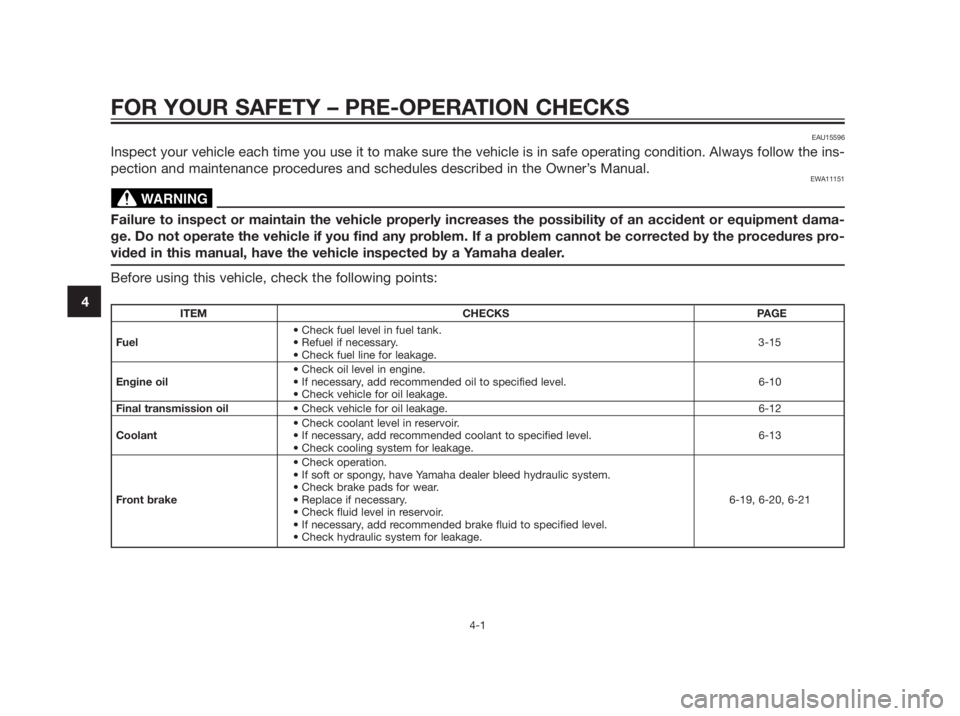

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the ins-
pection and maintenance procedures and schedules described in the Owner’s Manual.
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment dama-
ge. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures pro-
vided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
WARNING
ITEM CHECKS PAGE
Fuel3-15
Engine oil 6-10
Final transmission oil 6-12
Coolant 6-13
Front brake 6-19, 6-20, 6-21
