Smart key system
3-5
3
EAU76473
Smart key
WARNING
EWA17952
The smart key shoul d b e carried
with you. Do not store it on the
vehicle.
 When the smart key is within
operatin g ran ge, exercise due
care because other people not
carryin g the smart key can start
the en gine an d operate the vehi-
cle.
To turn the smart key on or off
Push the smart key button for approxi-
mately 1 second to turn the smart key
on or off. When the smart key is turned
off, the vehicle cannot be operated
even if the smart key is within operating
range. To operate the vehicle, turn the
smart key on and bring it within operat-
ing range.
To check whether the smart key is
turne d on or off
Push the smart key button to confirm
the current operating status of the
smart key.
If the smart key indicator light:  Short flash (0.1 seconds): The
smart key is turned on.
 Long flash (0.5 seconds): The
smart key is turned off.
Remote answer- back function
Push the smart key button to operate
the answer-back function remotely.
The beeper will sound twice and all of
the turn signal lights will flash twice.
This feature is convenient for locating
your vehicle in a parking lot and other
areas. Operatin

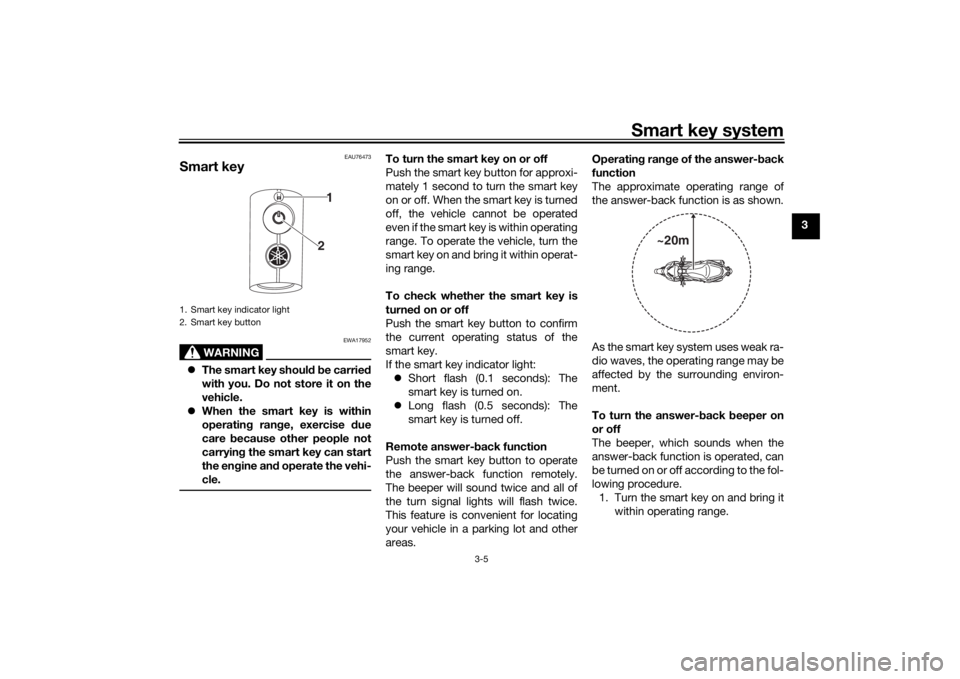

g ran ge of the answer- back
function
The approximate operating range of
the answer-back function is as shown.
As the smart key system uses weak ra-
dio waves, the operating range may be
affected by the surrounding environ-
ment.
To turn the answer- back beeper on
or off
The beeper, which sounds when the
answer-back function is operated, can
be turned on or off according to the fol-
lowing procedure. 1. Turn the smart key on and bring it within operating range.
1. Smart key indicator light
2. Smart key button
1
2
~20m
UBBAE0E0.book Page 5 Thursday, September 24, 2020 3:19 PM

Smart key system
3-6
32. Turn the main switch to “OFF”,
and then push the main switch
knob once.
3. Within 9 seconds of pushing the knob, push and hold the knob
again for 5 seconds.
4. When the beeper sounds, the set- ting is complete.
If the beeper: Sounds twice: The beeper is
turned off.
 Sounds once: The beeper is
turned on.
EAU76483
Replacin g the smart key bat-
teryReplace the battery in the following sit-
uations.
 The smart key system indicator
light flashes for about 20 seconds
when the power of the vehicle is
turned on.
 The answer-back function does
not operate when the smart key
button is pushed.
WARNING
EWA20630
The smart key contains a button cell
b attery.
 Keep new an d use d b atteries
away from chil dren. 
If the b attery compartment does
not close securely, stop usin g
the smart key an d keep it away
from chil dren.
Explosion Hazar d - d o not mishan-
d le the battery.
 Dan ger of explosion if battery is
incorrectly replace d.
 Replace only with the same or
equivalent type.
 Do not expose smart key to ex-
cessive heat, such as sunshine
or fire.
Chemical Burn Hazar d - d o not in-
g est the battery.
 If the battery is swallowed , it
can cause severe internal burns
in just 2 hours an d can lead to
d eath.
 If you think batteries mi ght have
b een swallowed or placed in-
si de any part of the body, seek
imme diate me dical
attention.
1. Smart key system indicator light “ ”ZAUM1530
1
UBBAE0E0.book Page 6 Thursday, September 24, 2020 3:19 PM

Smart key system
3-7
3
NOTICE
ECA15785
Use a cloth when openin g the
smart key case with a screw-
d river. Direct contact with hard
o bjects may damag e or scratch
the smart key.
 Take precautions to prevent the
waterproof seal from bein g
d amag ed or contaminated by
d irt.
 Do not touch the internal cir-
cuits an d terminals. This may
cause malfunctions.
 Do not apply excessive force to
the smart key when replacin g
the battery.
 Make sure the battery is in-
stalle d correctly. Confirm the di-
rection of the positive “+” sid e

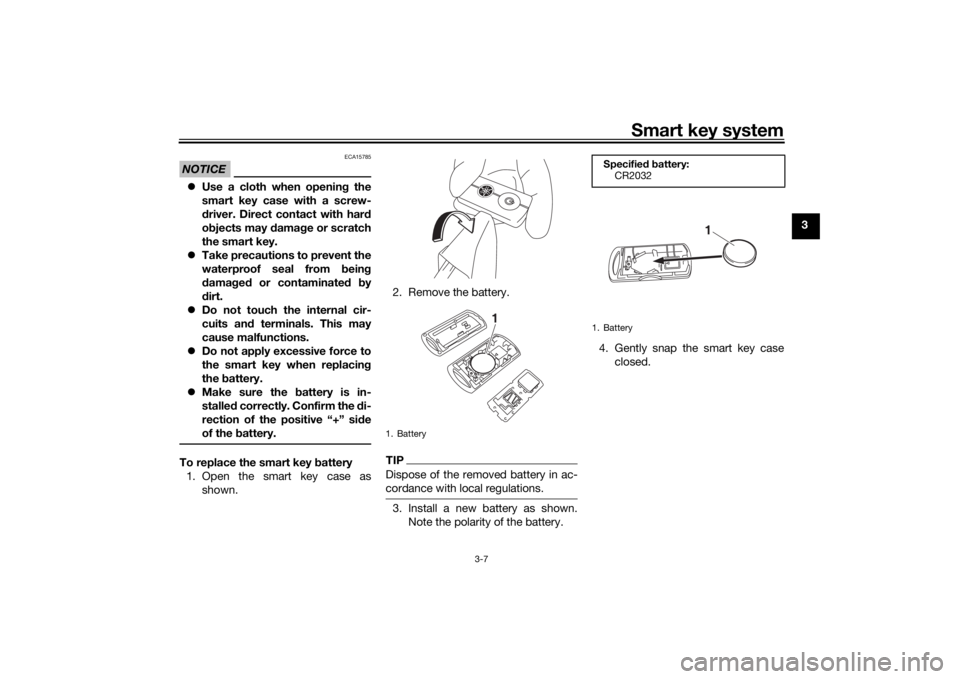

of the battery.To replace the smart key battery
1. Open the smart key case as shown. 2. Remove the battery.
TIPDispose of the removed battery in ac-
cordance with local regulations.3. Install a new battery as shown.
Note the polarity of the battery. 4. Gently snap the smart key case
closed.1. Battery
1
Specified b attery:
CR2032
1. Battery
1
UBBAE0E0.book Page 7 Thursday, September 24, 2020 3:19 PM

Smart key system
3-8
3
EAU76892
Main switchThe main switch is used to turn the ve-
hicle power on and off, lock and unlock
the steering, and open the seat, fuel
tank cap lid and storage compartmentA. After pushing the main switch knob
and confirmation with the smart key
has taken place, the main switch can
be turned while the smart key system
indicator light is on (approximately 4
seconds).
WARNING
EWA18720
Never turn the main switch to
“OFF”, “ ”, or “OPEN” while the ve-
hicle is movin
g. Otherwise the elec-
trical systems will be switche d off,
which may result in loss of control or
an acci dent.TIPDo not push the main switch knob re-
peatedly or turn the main switch back
and forth beyond normal use. Other-
wise, to protect the main switch from
damage, the smart key system will
temporarily disable and the smart key
system indicator light will flash. If this
occurs, wait until the indicator light
stops flashing before operating the

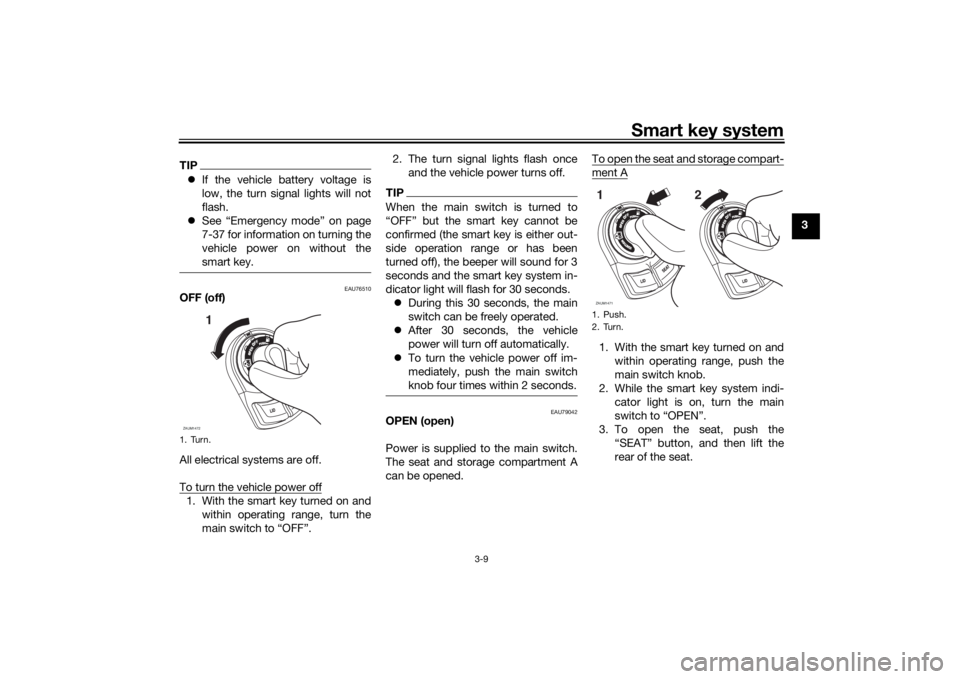

main switch again.The main switch positions are de-
scribed below.
EAU76501
ON (on)
All electrical circuits are supplied with
power, and the engine can be started.
To turn the vehicle power on1. Turn the smart key on and bring it
within operating range.
2. Push the main switch knob and the smart key indicator light will
come on for approximately 4 sec-
onds.
3. While the smart key system indi- cator light is on, turn the main
switch to “ON”. All of the turn sig-
nal lights will flash twice and the
vehicle power will turn on.
1. Main switch
2. Main switch knob
1. Smart key system indicator light “ ”ZAUM1816
2
1
ZAUM1530
1
1. Push.
2. Turn.ZAUM14711 2
UBBAE0E0.book Page 8 Thursday, September 24, 2020 3:19 PM

Smart key system
3-9
3
TIPIf the vehicle battery voltage is
low, the turn signal lights will not
flash.
 See “Emergency mode” on page
7-37 for information on turning the
vehicle power on without the
smart key.
EAU76510
OFF (off)
All electrical systems are off.
To turn the vehicle power off1. With the smart key turned on and
within operating range, turn the
main switch to “OFF”. 2. The turn signal lights flash once
and the vehicle power turns off.
TIPWhen the main switch is turned to
“OFF” but the smart key cannot be
confirmed (the smart key is either out-
side operation range or has been
turned off), the beeper will sound for 3
seconds and the smart key system in-
dicator light will flash for 30 seconds. During this 30 seconds, the main
switch can be freely operated.
 After 30 seconds, the vehicle
power will turn off automatically.
 To turn the vehicle power off im-
mediately, push the main switch
knob four times within 2 seconds.
EAU79042
OPEN (open)
Power is supplied to the main switch.
The seat and storage compartment A
can be opened. To open the seat and storage compart-
ment A1. With the smart key turned on and
within operating range, push the
main switch knob.
2. While the smart key system indi- cator light is on, turn the main
switch to “OPEN”.
3. To open the seat, push the “SEAT” button, and then lift the
rear of the seat.
1. Turn.ZAUM1472
1
1. Push.
2. Turn.ZAUM14711 2
UBBAE0E0.book Page 9 Thursday, September 24, 2020 3:19 PM

Smart key system
3-10
34. To open storage compartment A,push the “LID” button.
TIPMake sure that the seat and storage
compartment are securely closed be-
fore starting off.Open position remin der
To prevent you from accidentally leav-
ing the vehicle unlocked by walking
away with the main switch still in the
“OPEN” position, the smart key system
beeper will sound under the following
conditions.  When the main switch has been in
the “OPEN” position for 3 minutes
 If the smart key is turned off while
the main switch is in the “OPEN”
position
 If you walk out of range of the
smart key system with the main
switch in the “OPEN” position
If the beeper sounds after 3 minutes,
turn the main switch to “OFF” or “ ”.
If the beeper sounds because the
smart key was turned off or moved out
of range, turn the smart key on and
walk back into range.
TIP The beeper will turn off after 1
minute.
 The seat can also be opened with
the mechanical key. (See page
4-20.)
EAU76521
“” (lock)
The steering is locked and all electrical
systems are off.
To lock the steering1. Turn the handlebar all the way to
the left.
1. Storage compartment A
2. “LID” button
1. “SEAT” buttonZAUM18191
2
ZAUM1818
1
1. Push.
2. Push and turn.ZAUM14751
2
UBBAE0E0.book Page 10 Thursday, September 24, 2020 3:19 PM

Smart key system
3-11
3
2. With the smart key turned on and
within operating range, push the
main switch knob.
3. While the smart key system indi- cator light is on, push and turn the
main switch to “ ”.
TIPIf the steering will not lock, try turning
the handlebar back to the right slightly.To unlock the steering1. With the smart key turned on andwithin operating range, push the
main switch knob. 2. While the smart key system indi-
cator light is on, push and turn the
main switch to the desired posi-
tion.
EAU79000
“ ” (fuel tank cap li d)
To open the fuel tank cap lid1. With the smart key turned on and within operating range, push the
main switch knob.
2. While the smart key system indi- cator light is on, turn the main
switch to “ ”. To close the fuel tank cap lid
Push the fuel tank cap lid down until it
is closed.TIPMake sure that fuel tank cap lid is se-
curely closed before starting off.
1. Push.
2. Push and turn.ZAUM182012
1. Push.
2. Turn.ZAUM14771
2
UBBAE0E0.book Page 11 Thursday, September 24, 2020 3:19 PM

Instrument and control functions
4-1
4
EAU4939N
In dicator li ghts an d warnin g
li g hts
EAU11032
Turn si gnal in dicator li ghts “ ”
an d“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU11081
Hi gh beam in dicator li ght “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU88711
Malfunction in dicator li ght
(MIL) “ ”
This light comes on or flashes if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system. The electri-
cal circuit of the warning light can be
checked by vehicle power on. The light
should come on for a few seconds,
and then go off. If the light does not
come on initially when the vehicle pow-
er on, or if the light remains on, have a
Yamaha dealer check the vehicle.NOTICE
ECA26820
If the MIL starts flashin g, re duce en-
g ine spee d to prevent exhaust sys-
tem damag e.
TIPThe engine is sensitively controlled for
the on-board diagnostic system to de-
tect deterioration and malfunction of
the emission control system. Due to
this specification, the MIL may come
on or flash for vehicle modifications,
lack of maintenance, or excessive or
improper use of the vehicle. To prevent
this, observe these precautions.
 Do not attempt to modify the soft-
ware of the engine control unit.
 Do not add any electrical acces-
sories that interfere with engine
control.
 Do not use aftermarket accesso-
ries or parts such as suspension,
spark plugs, injectors, exhaust
system, etc.
 Do not change drivetrain specifi-
cations (chain, sprockets, wheels,
tires, etc.).
 Do not remove or alter the O2 sen-
sor, air induction system, or ex-
haust parts (catalysts or EXUP,
etc.).
 Maintain proper V-belt and drive
belt (if equipped).
1. Left turn signal indicator light “ ”
2. Right turn signal indicator light “ ”
3. High beam indicator light “ ”
4. Anti-lock Brake System (ABS) warning
light “ ”
5. Malfunction indicator light “ ”
6. Traction control system indicator light “ ”
7. Smart key system indicator light “ ”ZAUM1548
1
2
ABS
UBBAE0E0.book Page 1 Thursday, September 24, 2020 3:19 PM

Instrument and control functions
4-2
4

Maintain correct tire pressure.
 Do not operate the vehicle in an
extreme manner. For example, re-
peated or excessive opening and
closing of the throttle, racing,
burnouts, wheelies, etc.
EAU78173
ABS warnin g lig ht “ ”
This warning light comes on when the
vehicle is first turned on, and goes off
after starting riding. If the warning light
comes on while riding, the anti-lock
brake system may not work correctly.
WARNING
EWA16043
If the ABS warnin g li ght does not
turn off after reachin g 10 km/h (6
mi/h), or if the warnin g lig ht comes
on while ri din g:
 Use extra caution to avoi d pos-
si ble wheel lock durin g emer-
g ency brakin g.
 Have a Yamaha dealer check
the vehicle as soon as possi ble.
TIPIf the engine is revved while the brakes
are applied or the vehicle is on its cen-
terstand (if equipped), the ABS warning
light may come on. If this happens, turn
the vehicle power off and then back on
again to reset the ABS warning light.
EAU78591
Traction control system in dicator
li g ht “TCS”
This indicator light will flash when trac-
tion control has engaged.
If the traction control system is turned
off, this indicator light will come on.
(See page 4-15.)TIPWhen the vehicle is turned on, the light
should come on for a few seconds and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check vehicle.
EAU78600
Smart key system in dicator
li g ht “ ”
This indicator light communicates the
status of the smart key system. When
the smart key system is operating nor-
mally, this indicator light will be off. If
there is an error in the smart key sys-
tem, the indicator light will flash. The
indicator light will also flash when com-
munication between the vehicle and
smart key takes place and when cer-
tain smart key system operations are
carried out.
ABS
UBBAE0E0.book Page 2 Thursday, September 24, 2020 3:19 PM

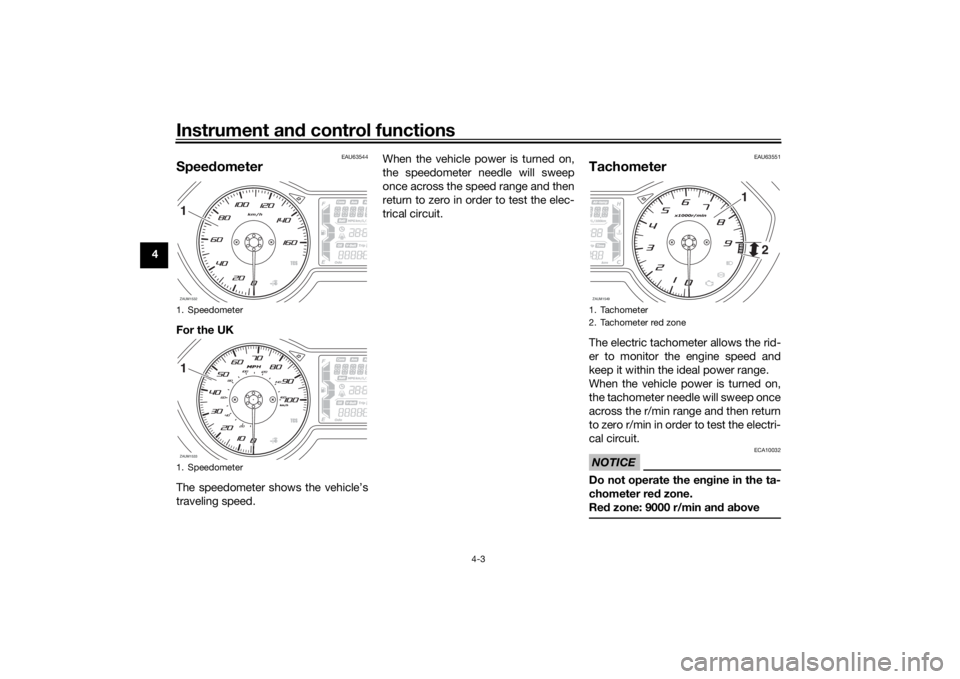

Instrument and control functions
4-3
4
EAU63544

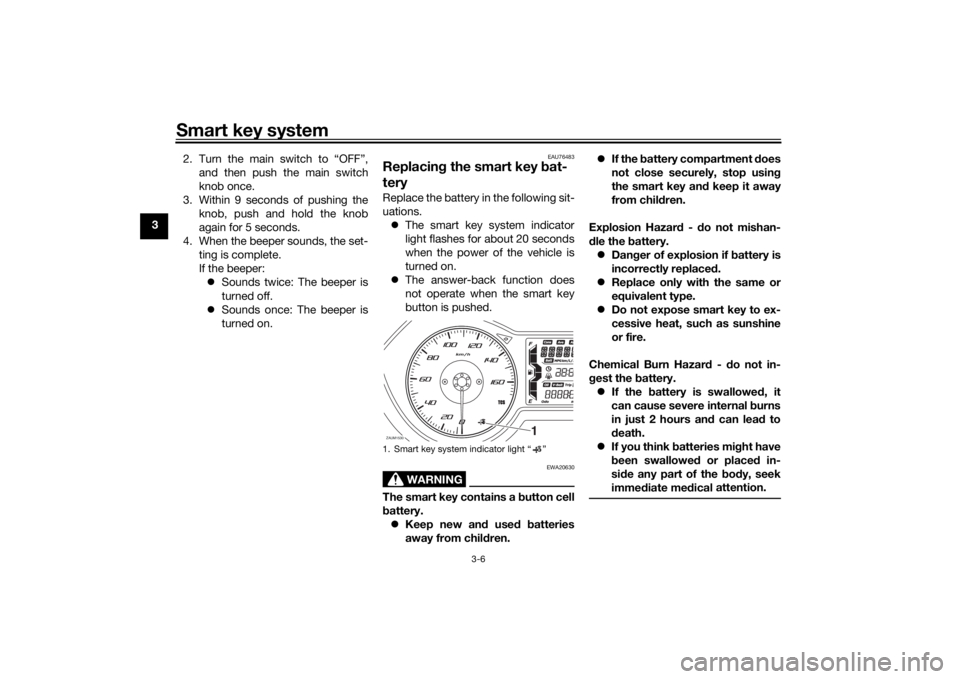

Speed ometerFor the UK
The speedometer shows the vehicle’s
traveling speed. When the vehicle power is turned on,
the speedometer needle will sweep
once across the speed range and then
return to zero in order to test the elec-
trical circuit.
EAU63551
TachometerThe electric tachometer allows the rid-
er to monitor the engine speed and
keep it within the ideal power range.
When the vehicle power is turned on,
the tachometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.NOTICE
ECA10032
Do not operate the en
gine in the ta-
chometer red zone.
Re d zone: 9000 r/min an d a bove
1. Speedometer
1. SpeedometerZAUM15321ZAUM15331
1. Tachometer
2. Tachometer red zoneZAUM1549
1
2
UBBAE0E0.book Page 3 Thursday, September 24, 2020 3:19 PM
