YAMAHA XVS950 2012 Owner's Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a clock


a self-diagnosis device


a brightness control mode
TIPBe sure to turn the key to “ON” before
using the “SELECT ” and “RESET ”
switches, except for setting the bright-
ness control mode.
Speedometer
When the key is turned to “ON ”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit. Odometer, tripmeters, fuel reserve
tripmeter and clock
Push the
“SELECT ” switch to change
the display between the odometer
mode “ODO ”, the tripmeter modes
“ TRIP A ” and “ TRIP B ” in the following
order:
ODO → TRIP A → TRIP B → ODO
If the fuel level warning light comes on
(see page 3-4), the odometer display
will automatically change to the fuel re-
serve tripmeter mode “TRIP F ” and
start counting the distance traveled
from that point. In that case, push the
“ SELECT ” switch to change the display
between the various tripmeter and
odometer modes in the following order:
1. “SELECT ” switch
2. “RESET ” switch
1
2
1. Speedometer
1
1. Odometer/tripmeter/fuel reserve tripmeter
1
U26PE3E0.book Page 6 Tuesday, June 7, 2011 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3TRIP F
→ TRIP A → TRIP B → ODO →
TRIP F
To reset a tripmeter, select it by push-
ing the “ SELECT” switch, and then
push the “RESET ” switch for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically, and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
To set the clock
1. Push the “SELECT ” and “ RESET ”
switches together for at least three
seconds.
2. When the hour digits start flashing, push the “ RESET” switch to set the
hours. 3. Push the
“SELECT ” switch, and
the minute digits will start flashing.
4. Push the “RESET ” switch to set
the minutes.
5. Push the “SELECT ” switch and
then release it to start the clock.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If a problem is detected in any of those
circuits, the engine trouble warning light
will come on and the odometer/tripme-
ter/clock display will indicate an error
code. If the odometer/tripmeter/clock display
indicates any error codes, note the
code number, and then have a Yamaha
dealer check the vehicle.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits.
If a problem is detected in the immobi-
lizer system circuits, the immobilizer
system indicator light will flash and the
display will indicate an error code.
TIPIf the display indicates error code 52,
this could be caused by transponder in-
terference. If this error code appears,
try the following.1. Use the code re-registering key to
start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
1. Clock
1
1. Error code display
1
U26PE3E0.book Page 7 Tuesday, June 7, 2011 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
2. If the engine starts, turn it off and
try starting the engine with the
standard keys.
3. If one or both of the standard keys do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan- dard keys re-registered.
NOTICE
ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoid
engine damage.Brightness control mode This function allows you to adjust the
brightness of the multi-function meter
unit panel to suit the outside lighting
conditions.
To set the brightness
1. Turn the key to
“OFF ”.
2. Push and hold the “SELECT ”
switch.
3. Turn the key to “ ON”, and then re-
lease the “ SELECT” switch after
five seconds.
4. Adjust the multi-function meter unit panel brightness level by pushing
the “ SELECT ” switch.
5. Push the “ RESET” switch.
The odometer/tripmeter/clock dis-
play will return to the prior mode.
EAU12348
Handlebar switches Left
1. Brightness level display
1
1. Pass switch “”
2. Dimmer switch “/”
3. Turn signal switch “/”
4. Horn switch “”
3
412
U26PE3E0.book Page 8 Tuesday, June 7, 2011 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3Right
EAU12350
Pass switch
“”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the center position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch
“”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch “”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON ”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12733
Hazard switch “”
With the key in the “ON ” or “” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAU44602
“ SELECT ” switch
This switch is used to perform selec-
tions in the odometer and tripmeters, to
set the clock and to set the brightness
control mode of the multi-function
meter unit.
See “Multi-function meter unit ” on page
3-5 for detailed information.
1. Engine stop switch “/”
2. “SELECT ” switch
3. “RESET ” switch
4. Start switch “”
5. Hazard switch “”
1
5 2
3
4
U26PE3E0.book Page 9 Tuesday, June 7, 2011 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU42535
“RESET ” switch
This switch is used to reset the tripme-
ters, to set the clock and to set the
brightness control mode of the multi-
function meter unit.
See “Multi-function meter unit ” on page
3-5 for detailed information.
EAU12820
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-18.)
EAU12881
Shift pedal The shift pedal is located on the left
side of the motorcycle and is used in
combination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.TIPUse your toes or heel to shift up and
your toes to shift down.

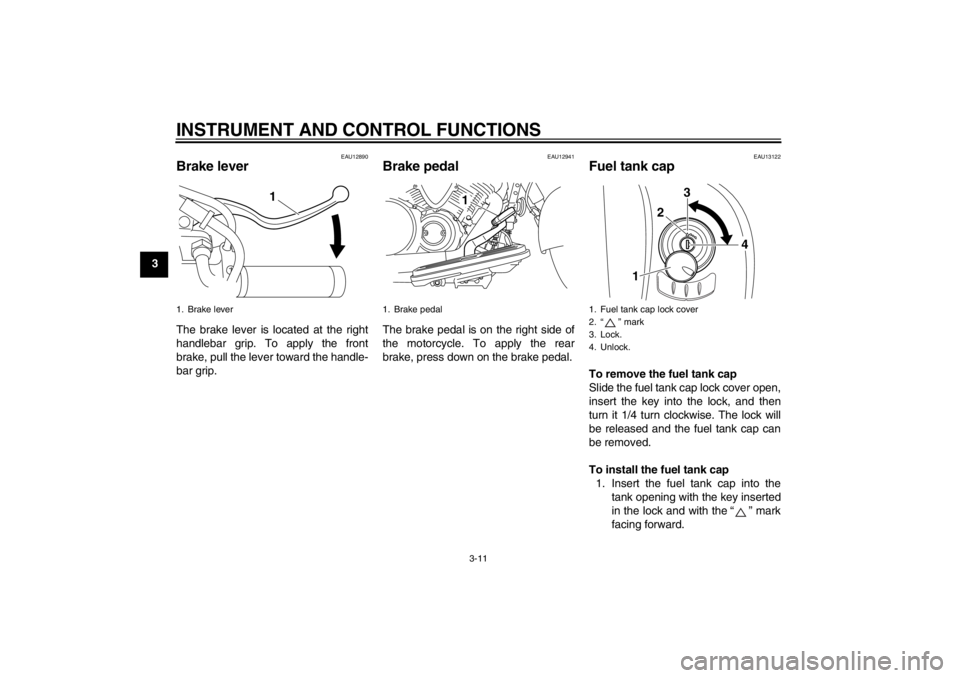

1. Clutch lever
1
1. Shift pedal
2. Neutral position
1
2 3 4 5N1 2
U26PE3E0.book Page 10 Tuesday, June 7, 2011 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU12890
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU13122
Fuel tank cap To remove the fuel tank cap
Slide the fuel tank cap lock cover open,
insert the key into the lock, and then
turn it 1/4 turn clockwise. The lock will
be released and the fuel tank cap can
be removed.
To install the fuel tank cap1. Insert the fuel tank cap into the tank opening with the key inserted
in the lock and with the “” mark
facing forward.
1. Brake lever
1
1. Brake pedal
1
1. Fuel tank cap lock cover
2. “” mark
3. Lock.
4. Unlock.
1 2
3
4
U26PE3E0.book Page 11 Tuesday, June 7, 2011 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
TIPThe fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly installed and locked.
WARNING
EWA10131
Make sure that the fuel tank cap is
properly installed before riding.
Leaking fuel is a fire hazard.
EAU13221
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.1. Before refueling, turn off the en-gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in

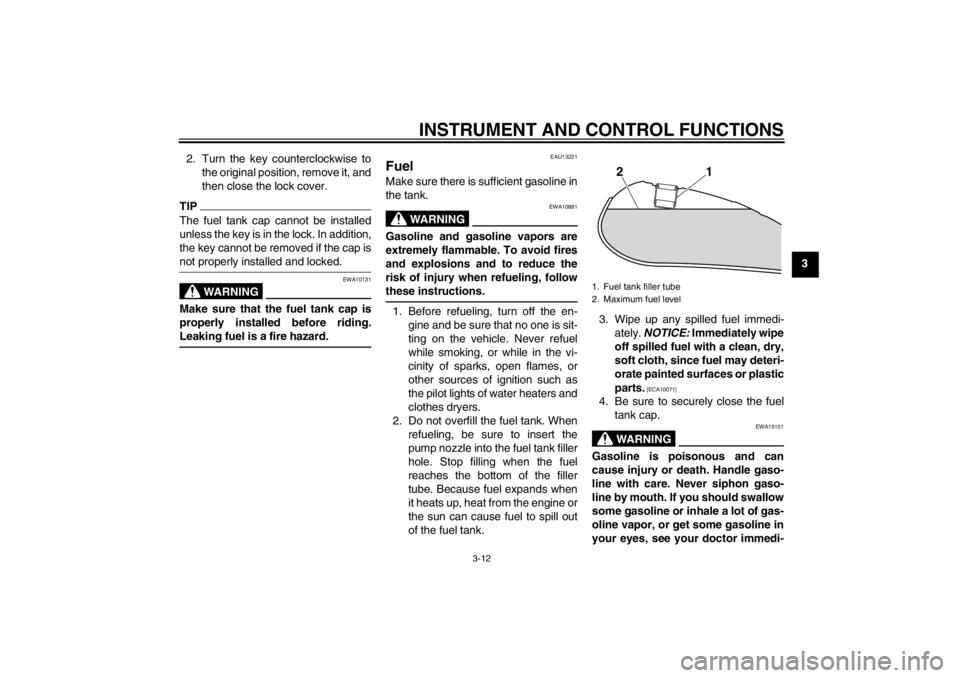

your eyes, see your doctor immedi-1. Fuel tank filler tube
2. Maximum fuel level
1
2
U26PE3E0.book Page 12 Tuesday, June 7, 2011 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.

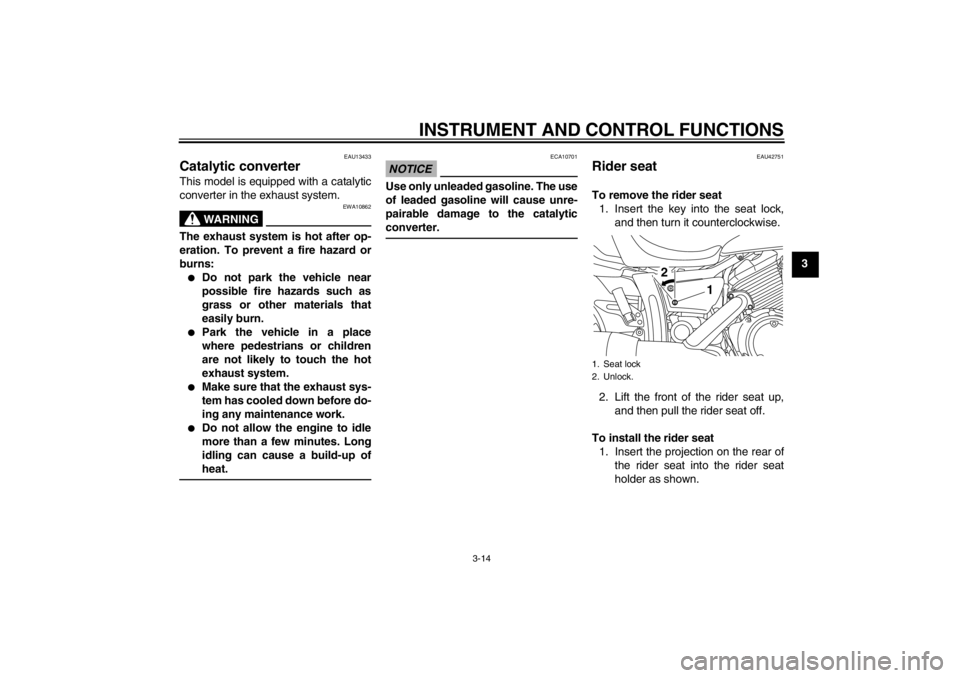

EAU33502
NOTICE
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU39451
Fuel tank breather/overflow
hose Before operating the motorcycle:

Check the fuel tank breather/over-
flow hose connection.


Check the fuel tank breather/over-
flow hose for cracks or damage,
and replace it if damaged.


Make sure that the end of the fuel
tank breather/overflow hose is not
blocked, and clean it if necessary.
Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity: 17.0 L (4.49 US gal, 3.74 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on): 3.4 L (0.90 US gal, 0.75 Imp.gal)
1. Fuel tank breather/overflow hose
1
U26PE3E0.book Page 13 Tuesday, June 7, 2011 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EAU13433
Catalytic converter This model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10862
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:

Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.


Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.


Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.


Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
NOTICE
ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalytic
converter.
EAU42751
Rider seat To remove the rider seat1. Insert the key into the seat lock, and then turn it counterclockwise.
2. Lift the front of the rider seat up, and then pull the rider seat off.
To install the rider seat 1. Insert the projection on the rear of the rider seat into the rider seat
holder as shown.1. Seat lock
2. Unlock.
2
1
U26PE3E0.book Page 14 Tuesday, June 7, 2011 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
32. Push the front of the seat down tolock it in place.
3. Remove the key.
TIPMake sure that the rider seat is properly
secured before riding.
EAU14324
Helmet holder The helmet holder is located under the
rider seat.
To secure a helmet to the helmet
holder 1. Remove the rider seat. (See the previous section “ Rider seat”.)
2. Hook the helmet onto the helmet holder, and then securely install
the seat. WARNING! Never ride
with a helmet attached to the
helmet holder, since the helmet
may hit objects, causing loss of
control and possibly an acci-
dent.
[EWA10161]
To release the helmet from the hel-
met holder
Remove the rider seat, remove the hel-
met from the helmet holder, and then
install the seat.

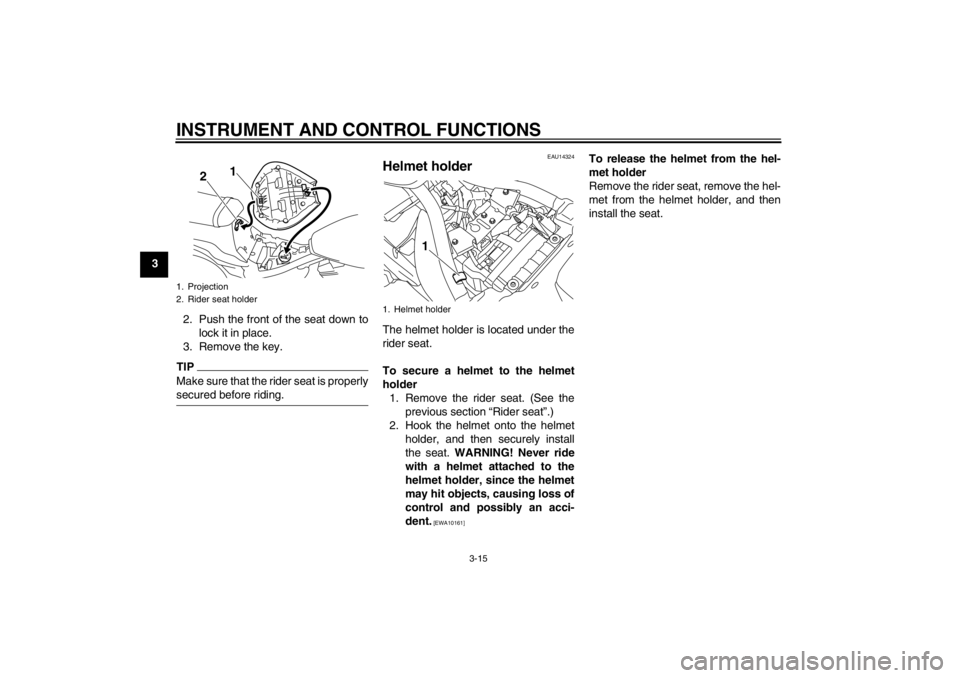

1. Projection
2. Rider seat holder
1
2
1. Helmet holder
1
U26PE3E0.book Page 15 Tuesday, June 7, 2011 5:19 PM
