YAMAHA XVS950 2012 Workshop Manual
Manufacturer: YAMAHA, Model Year: 2012, Model line: XVS950, Model: YAMAHA XVS950 2012Pages: 88, PDF Size: 2.23 MB
Page 51 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
TIPThe engine oil should be between the
minimum and maximum level marks.
5. If the engine oil is at or below theminimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
6. Insert the dipstick into the oil filler hole, and then tighten the oil filler
cap.
To change the engine oil (with or
without oil filter cartridge replace-
ment) 1. Start the engine, warm it up for several minutes, and then turn it
off.
2. Place an oil pan under the engine to collect the used oil.
3. Remove the engine oil filler cap, the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
TIPSkip steps 4 –6 if the oil filter cartridge is
not being replaced.4. Remove the oil filter cartridge with an oil filter wrench.
1. Engine oil filler cap
1. Engine oil dipstick
2. Maximum level mark
3. Minimum level mark
1
1
3
2
1. Engine oil drain bolt
2. Gasket
1. Oil filter wrench
2. Oil filter cartridge
1
2
1
2
U26PE3E0.book Page 10 Tuesday, June 7, 2011 5:19 PM
Page 52 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
TIPAn oil filter wrench is available at a
Yamaha dealer.5. Apply a thin coat of clean engine oil to the O-ring of the new oil filter
cartridge.TIPMake sure that the O-ring is properly
seated.6. Install the new oil filter cartridgewith an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench. 7. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.
8. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11620
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “ CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ ENERGY CONSERVING II ” or
higher.
Make sure that no foreign mate-
rial enters the crankcase.

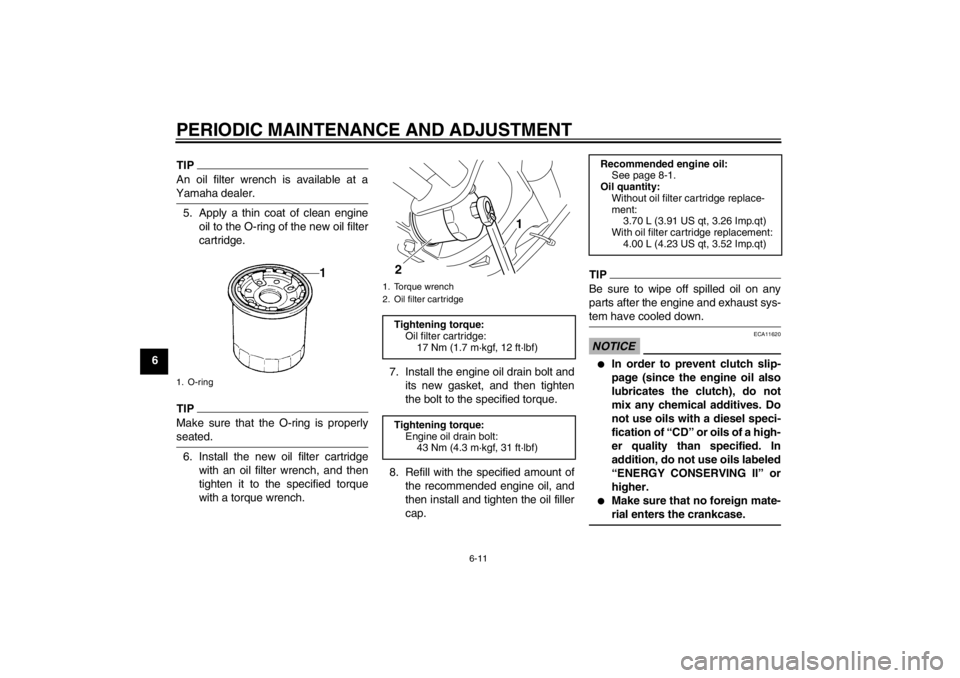

1. O-ring
1. Torque wrench
2. Oil filter cartridgeTightening torque: Oil filter cartridge:17 Nm (1.7 m ·kgf, 12 ft· lbf)
Tightening torque: Engine oil drain bolt:43 Nm (4.3 m ·kgf, 31 ft· lbf)
1
2
Recommended engine oil: See page 8-1.
Oil quantity: Without oil filter cartridge replace-
ment:3.70 L (3.91 US qt, 3.26 Imp.qt)
With oil filter cartridge replacement:
4.00 L (4.23 US qt, 3.52 Imp.qt)
U26PE3E0.book Page 11 Tuesday, June 7, 2011 5:19 PM
Page 53 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
9. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
TIPAfter the engine is started, the engine
oil level warning light should go off if the
oil level is sufficient.NOTICE
ECA10401
If the oil level warning light flickers
or remains on even if the oil level is
correct, immediately turn the engine
off and have a Yamaha dealer check
the vehicle.10. Turn the engine off, wait a few min- utes until the oil settles, and then
check the oil level and correct it if
necessary.
EAU47080
Replacing the air filter element The air filter element should be re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in un-
usually wet or dusty areas.
To replace the air filter element1. Remove the air filter case cover by removing the bolts.
2. Pull the air filter element out. 3. Insert a new air filter element into
the air filter case. NOTICE: Make
sure that the air filter element is
properly seated in the air filter
case. The engine should never
be operated without the air filter
element installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA10481]
4. Install the air filter case cover by in- stalling the bolts.
1. Bolt
2. Air filter case cover1 2
1
1. Air filter element
1
U26PE3E0.book Page 12 Tuesday, June 7, 2011 5:19 PM
Page 54 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
EAU21384
Checking the throttle grip free
play The throttle grip free play should mea-
sure 4.0–6.0 mm (0.16 –0.24 in) at the
inner edge of the throttle grip. Periodi-
cally check the throttle grip free play
and, if necessary, have a Yamaha deal-
er adjust it.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU21565
Tires To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10503
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
1. Throttle grip free play
1
U26PE3E0.book Page 13 Tuesday, June 7, 2011 5:19 PM
Page 55 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6
WARNING
EWA10511
Never overload your vehicle. Opera-
tion of an overloaded vehicle could
cause an accident.
Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.TIPThe tire tread depth limits may differ
from country to country. Always comply
with the local regulations.
Tire information
This motorcycle is equipped with tube-
less tires, tire air valves and cast
wheels.
WARNING
EWA10461
The front and rear tires should be of
the same make and design, other-
wise the handling characteristics of
the vehicle may be different, which
could lead to an accident.After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha Motor Co., Ltd.
Tire air pressure (measured on cold
tires):0–90 kg (0– 198 lb):
Front:
225 kPa (2.25 kgf/cm ², 33 psi)
Rear: 250 kPa (2.50 kgf/cm ², 36 psi)
90– 210 kg (198– 463 lb):
Front: 225 kPa (2.25 kgf/cm ², 33 psi)
Rear: 250 kPa (2.50 kgf/cm ², 36 psi)
Maximum load*:
210 kg (463 lb)
* Total weight of rider, passenger, car- go and accessories
1. Tire sidewall
2. Tire tread depth
Minimum tire tread depth (front and
rear): 1.6 mm (0.06 in)
Front tire:Size: 130/70-18M/C 63H
Manufacturer/model: BRIDGESTONE/EXEDRA G721
J
DUNLOP/D404F
Rear tire:
Size: 170/70B16M/C 75H
Manufacturer/model:
BRIDGESTONE/EXEDRA G722
J
DUNLOP/K555
U26PE3E0.book Page 14 Tuesday, June 7, 2011 5:19 PM
Page 56 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
WARNING
EWA10471
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.
The replacement of all wheel
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience to do so.
Ride at moderate speeds after
changing a tire since the tire
surface must first be “broken
in ” for it to develop its optimal
characteristics.
EAU21962
Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
The wheel rims should be checked
for cracks, bends, warpage or oth-
er damage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
EAU50270
Adjusting the clutch lever free
play The clutch lever free play should mea-
sure 5.0 –10.0 mm (0.20– 0.39 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows. 1. Slide the rubber cover back at the clutch lever.
2. Loosen the locknut.
3. To increase the clutch lever free play, turn the clutch lever free play
adjusting bolt in direction (a). To1. Rubber cover
2. Clutch lever free play adjusting bolt
3. Locknut
4. Clutch lever free play
2 1
3
4
(a)
(b)
U26PE3E0.book Page 15 Tuesday, June 7, 2011 5:19 PM
Page 57 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
6
decrease the clutch lever free play,
turn the adjusting bolt in direction
(b).
TIPIf the specified clutch lever free play
could be obtained as described above,
skip steps 4
–7.4. Fully turn the adjusting bolt in di-
rection (a) to loosen the clutch ca-
ble.
5. Slide the rubber covers apart, and then loosen the locknut.
6. To increase the clutch lever free play, turn the clutch lever free play
adjusting nut in direction (a). To decrease the clutch lever free play,
turn the adjusting nut in direction
(b).
7. Tighten the locknut at the clutch cable, and then slide the rubber
covers to their original positions.
8. Tighten the locknut at the clutch le- ver, and then slide the rubber cov-
er to its original position.
EAU22093
Adjusting the brake lever free
play The brake lever free play should mea-
sure 10.0 –15.0 mm (0.39 –0.59 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows. 1. Loosen the locknut at the brake le- ver.
2. To increase the brake lever free play, turn the brake lever free play
adjusting screw in direction (a). To
decrease the brake lever free play,
turn the adjusting screw in direc-
tion (b).
1. Rubber cover
2. Locknut
3. Clutch lever free play adjusting nut
1
1
23 (a)
(b)
1. Locknut
2. Brake lever free play adjusting screw
3. Brake lever free play
(a)
3
1 2
(b)
U26PE3E0.book Page 16 Tuesday, June 7, 2011 5:19 PM
Page 58 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
63. Tighten the locknut.
WARNING
EWA10630
After adjusting the brake lever
free play, check the free play
and make sure that the brake is
working properly.
A soft or spongy feeling in the
brake lever can indicate the
presence of air in the hydraulic
system. If there is air in the hy-
draulic system, have a Yamaha
dealer bleed the system before
operating the motorcycle. Air in
the hydraulic system will dimin-
ish the braking performance,
which may result in loss of con-
trol and an accident.
EAU22273
Brake light switches The brake light, which is activated by
the brake pedal and brake lever, should
come on just before braking takes ef-
fect. If necessary, adjust the rear brake
light switch as follows, but the front
brake light switch should be adjusted
by a Yamaha dealer.
Turn the rear brake light switch adjust-
ing nut while holding the rear brake light
switch in place. To make the brake light
come on earlier, turn the adjusting nut
in direction (a). To make the brake light
come on later, turn the adjusting nut in
direction (b).
EAU22392
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22430
Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wear
1. Rear brake light switch
2. Rear brake light switch adjusting nut
1
2
(a)
(b)
1. Brake pad wear indicator groove11
U26PE3E0.book Page 17 Tuesday, June 7, 2011 5:19 PM
Page 59 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-18
6
indicator grooves have almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 0.8 mm (0.03 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU22581
Checking the brake fluid level Before riding, check that the brake fluid
is above the minimum level mark.
Check the brake fluid level with the top
of the reservoir level. Replenish the
brake fluid if necessary.
Front brake
Rear brake
WARNING
EWA15990
Improper maintenance can result in
loss of braking ability. Observe
these precautions:
Insufficient brake fluid may al-
low air to enter the brake sys-
tem, reducing braking
performance.
Clean the filler cap before re-
moving. Use only DOT 4 brake
fluid from a sealed container.

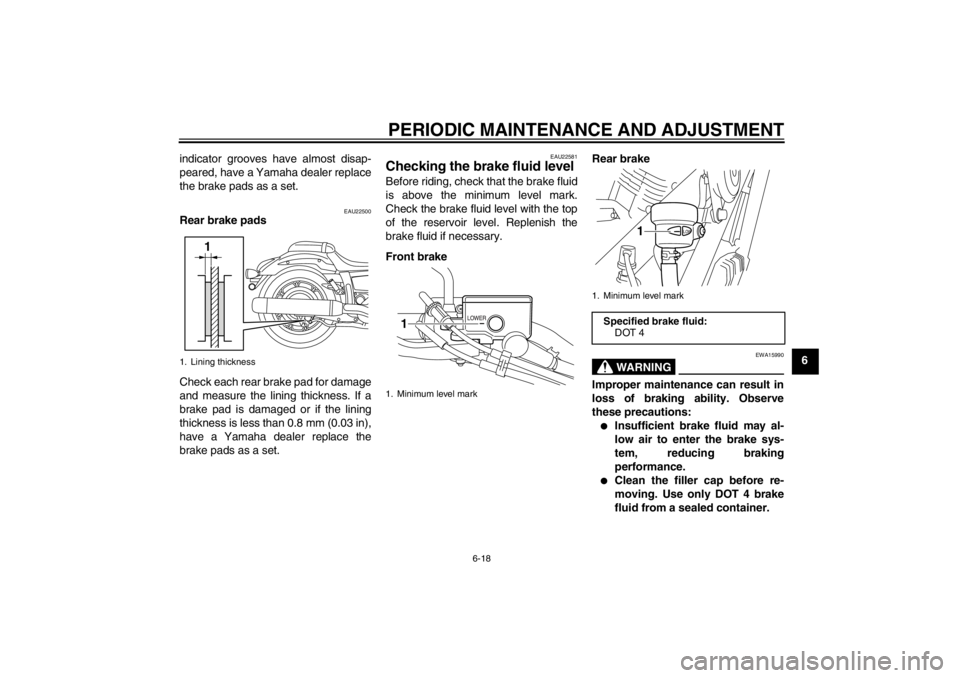

1. Lining thickness
1
1. Minimum level mark
1
1. Minimum level mark
Specified brake fluid:
DOT 4
1
U26PE3E0.book Page 18 Tuesday, June 7, 2011 5:19 PM
Page 60 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
6
Use only the specified brake flu-
id; otherwise, the rubber seals
may deteriorate, causing leak-
age.
Refill with the same type of
brake fluid. Adding a brake fluid
other than DOT 4 may result in a
harmful chemical reaction.
Be careful that water does not
enter the brake fluid reservoir
when refilling. Water will signifi-
cantly lower the boiling point of
the fluid and may result in vapor
lock.
NOTICE
ECA17640
Brake fluid may damage painted sur-
faces or plastic parts. Always clean
up spilled fluid immediately.As the brake pads wear, it is normal for
the brake fluid level to gradually go
down. A low brake fluid level may indi-
cate worn brake pads and/or brake sys-
tem leakage; therefore, be sure to
check the brake pads for wear and the
brake system for leakage. If the brakefluid level goes down suddenly, have a
Yamaha dealer check the cause before further riding.
EAU22731
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenance
and lubrication chart. In addition, have
the oil seals of the master cylinders and
calipers as well as the brake hoses re-
placed at the intervals listed below or
whenever they are damaged or leak-
ing.
Oil seals: Replace every two
years.
Brake hoses: Replace every four
years.
U26PE3E0.book Page 19 Tuesday, June 7, 2011 5:19 PM
