DESCRIPTION
EAU10410

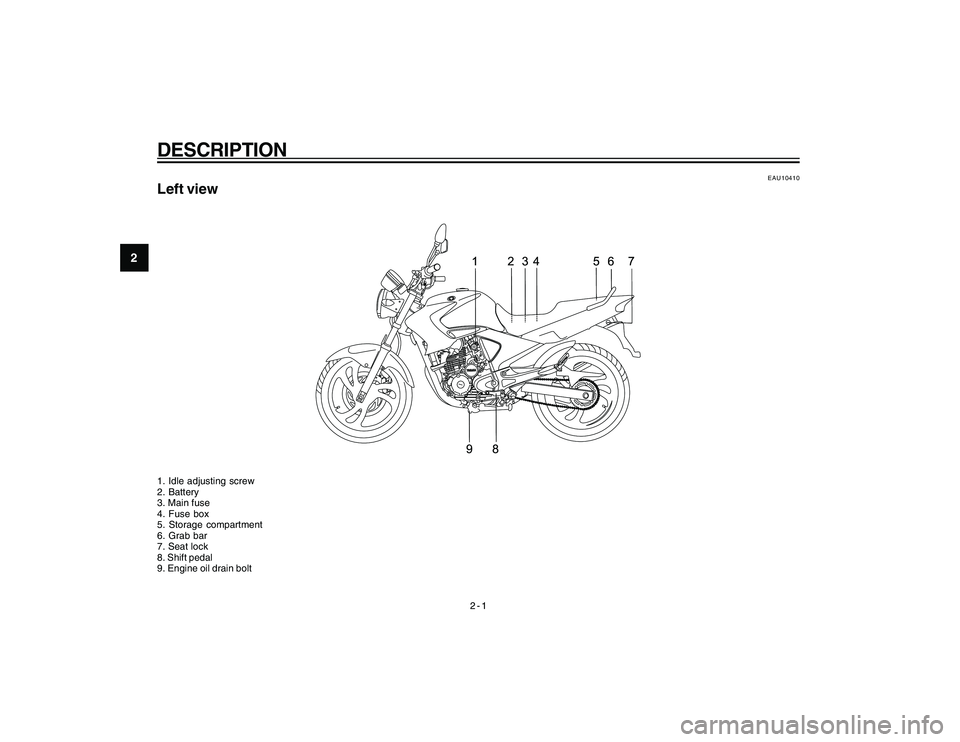

Left view1. Idle adjusting screw
2. Battery
3. Main fuse
4. Fuse box
5. Storage compartment
6. Grab bar
7. Seat lock
8. Shift pedal
9. Engine oil drain bolt
cap 2.pmd24/1/2007, 14:37
1

2-2
2
DESCRIPTION
EAU10420

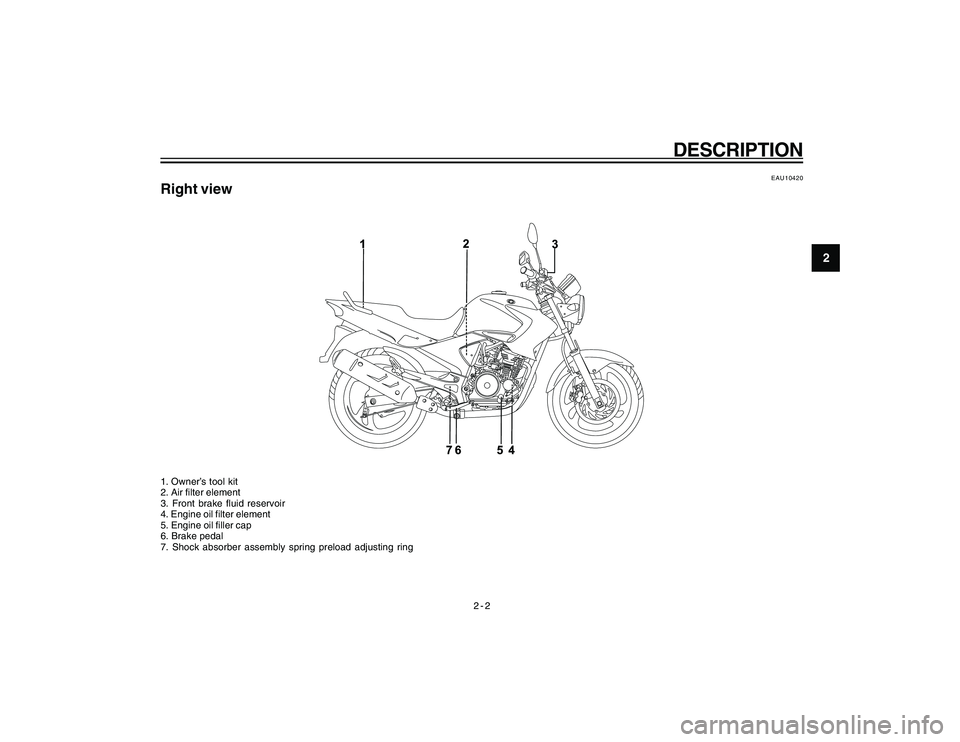

Right view1. Owner’s tool kit
2. Air filter element
3. Front brake fluid reservoir
4. Engine oil filter element
5. Engine oil filler cap
6. Brake pedal
7. Shock absorber assembly spring preload adjusting ring
cap 2.pmd24/1/2007, 14:37
2

2-3
2
DESCRIPTION
EAU10430

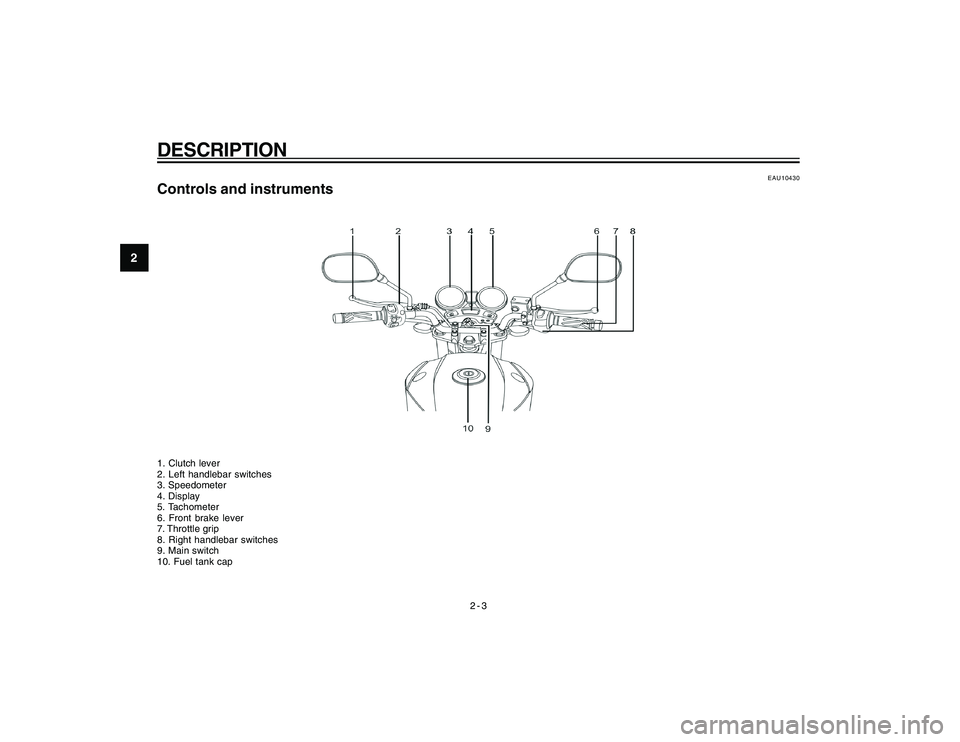

Controls and instruments1. Clutch lever
2. Left handlebar switches
3. Speedometer
4. Display
5. Tachometer
6. Front brake lever
7. Throttle grip
8. Right handlebar switches
9. Main switch
10. Fuel tank cap
cap 2.pmd24/1/2007, 14:37
3

3-1
3
INSTRUMENT AND CONTROL FUNCTIONS
EAU10460

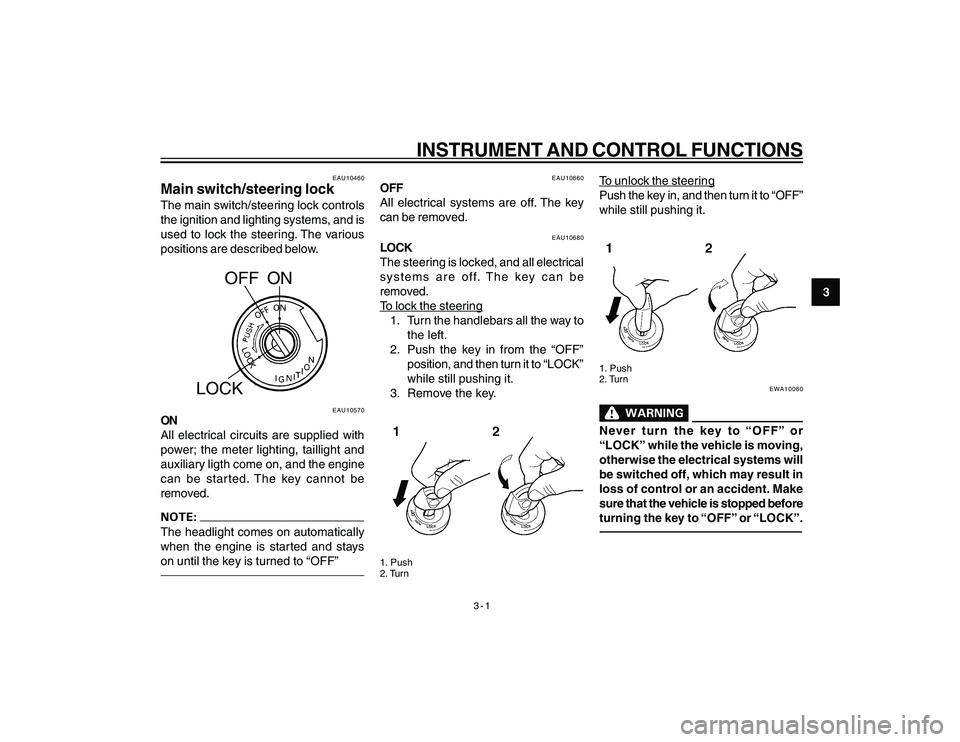

Main switch/steering lockThe main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
OFF ON
LOCK
EAU10570
ON
All electrical circuits are supplied with
power; the meter lighting, taillight and
auxiliary ligth come on, and the engine
can be started. The key cannot be
removed.The headlight comes on automatically
when the engine is started and stays
on until the key is turned to “OFF”
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be
removed.To loc
k the steer
ing
1. Turn the handlebars all the way to the left.
2. Push the key in from the “OFF” position, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
1. Push
2. Turn
To unloc
k the steer
ing
Push the key in, and then turn it to “OFF”
while still pushing it.
1. Push
2. Turn
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped before
turning the key to “OFF” or “LOCK”.
cap 3.pmd 24/1/2007, 14:37
1

3-2
3
INSTRUMENT AND CONTROL FUNCTIONS
EAU11003

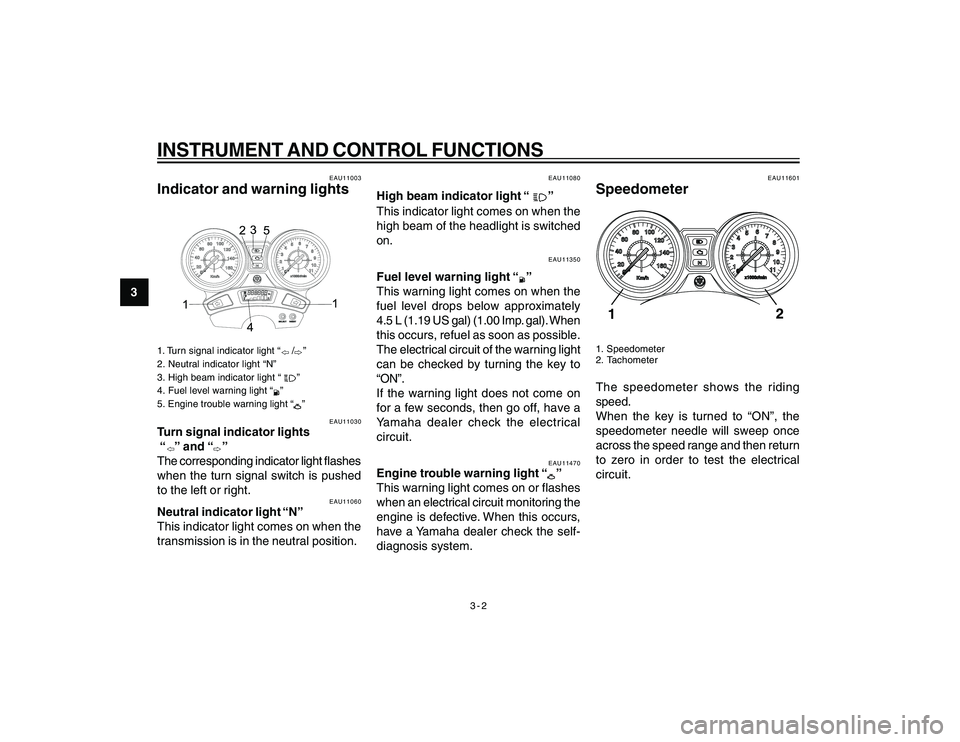

Indicator and warning lights1. Turn signal indicator light “
/
”
2. Neutral indicator light “N”
3. High beam indicator light “”
4. Fuel level warning light “
”
5. Engine trouble warning light “
”
EAU11030
Turn signal indicator lights
“
” and “
”
The corresponding indicator light flashes
when the turn signal switch is pushed
to the left or right.
EAU11060
Neutral indicator light “N”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “
”
This indicator light comes on when the
high beam of the headlight is switched
on.EAU11350
Fuel level warning light “
”
This warning light comes on when the
fuel level drops below approximately
4.5 L (1.19 US gal) (1.00 Imp. gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
EAU11470
Engine trouble warning light “
”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-
diagnosis system.
EAU11601
Speedometer1. Speedometer
2. TachometerThe speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical
circuit.
cap 3.pmd 24/1/2007, 14:37
2

3-3
3
INSTRUMENT AND CONTROL FUNCTIONS
EAU11872

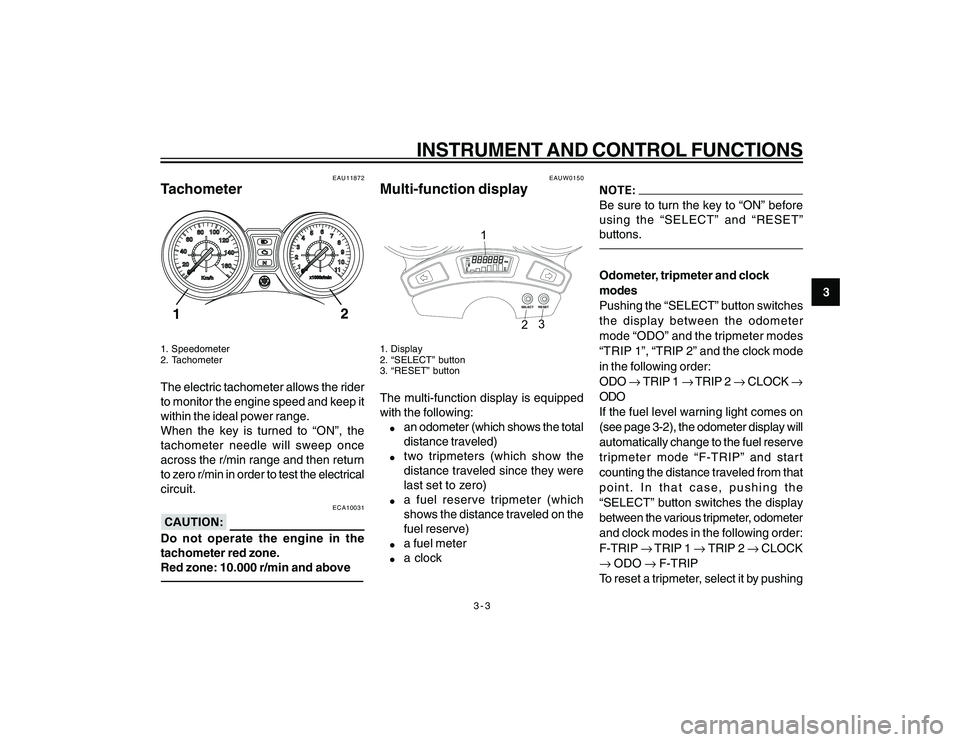

Tachometer1. Speedometer
2. TachometerThe electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the
tachometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electrical
circuit.
ECA10031
Do not operate the engine in the
tachometer red zone.
Red zone: 10.000 r/min and above
EAUW0150
Multi-function display
Km
RESET
SELECT
TRIP
ODO
1
23
1. Display
2. “SELECT” button
3. “RESET” buttonThe multi-function display is equipped
with the following:l
an odometer (which shows the total
distance traveled)
l
two tripmeters (which show the
distance traveled since they were
last set to zero)
l
a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)
l
a fuel meter
l
a clock
Be sure to turn the key to “ON” before
using the “SELECT” and “RESET”
buttons.Odometer, tripmeter and clock
modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1”, “TRIP 2” and the clock mode
in the following order:
ODO
→ TRIP 1 → TRIP 2 → CLOCK →
ODO
If the fuel level warning light comes on
(see page 3-2), the odometer display will
automatically change to the fuel reserve
tripmeter mode “F-TRIP” and start
counting the distance traveled from that
point. In that case, pushing the
“SELECT” button switches the display
between the various tripmeter, odometer
and clock modes in the following order:
F-TRIP → TRIP 1 → TRIP 2 → CLOCK
→ ODO → F-TRIP
To reset a tripmeter, select it by pushing
cap 3.pmd 24/1/2007, 14:37
3

3-4
3

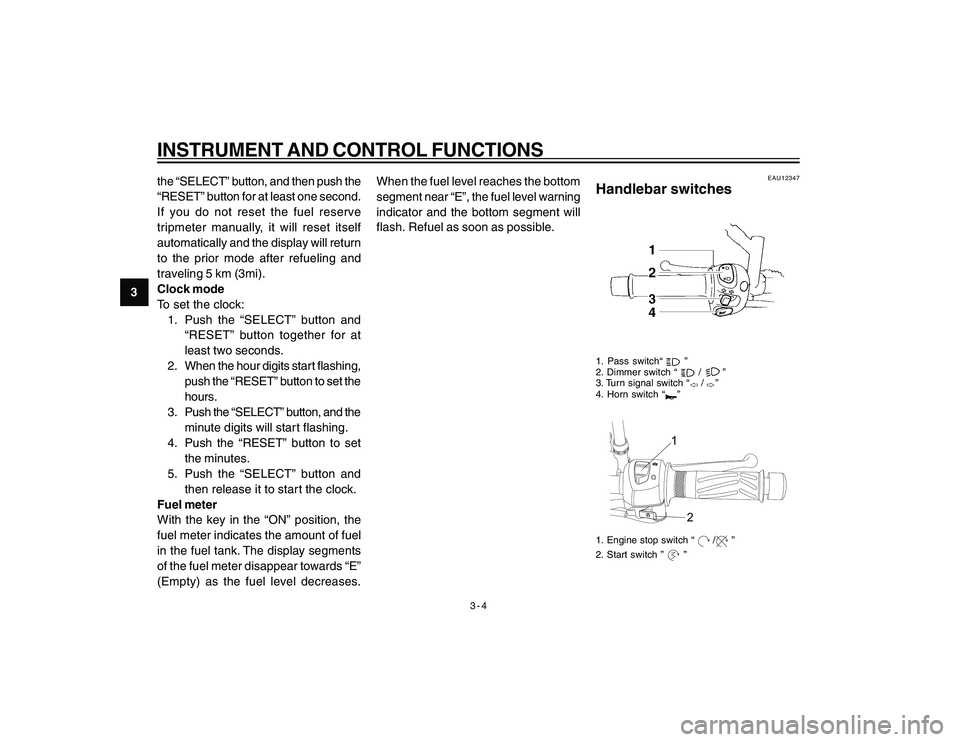

INSTRUMENT AND CONTROL FUNCTIONSthe “SELECT” button, and then push the
“RESET” button for at least one second.
If you do not reset the fuel reserve
tripmeter manually, it will reset itself
automatically and the display will return
to the prior mode after refueling and
traveling 5 km (3mi).
Clock mode
To set the clock:1. Push the “SELECT” button and “RESET” button together for at
least two seconds.
2. When the hour digits start flashing, push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and the minute digits will start flashing.
4. Push the “RESET” button to set the minutes.
5. Push the “SELECT” button and then release it to start the clock.
Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of fuel
in the fuel tank. The display segments
of the fuel meter disappear towards “E”
(Empty) as the fuel level decreases. When the fuel level reaches the bottom
segment near “E”, the fuel level warning
indicator and the bottom segment will
flash. Refuel as soon as possible.
EAU12347
Handlebar switches1. Pass switch“
”
2. Dimmer switch “
/
”
3. Turn signal switch “
/
”
4. Horn switch “
”1
2
1. Engine stop switch “
/
”
2. Start switch ”
”
cap 3.pmd 24/1/2007, 14:37
4

3-5
3
INSTRUMENT AND CONTROL FUNCTIONS
EAU12350

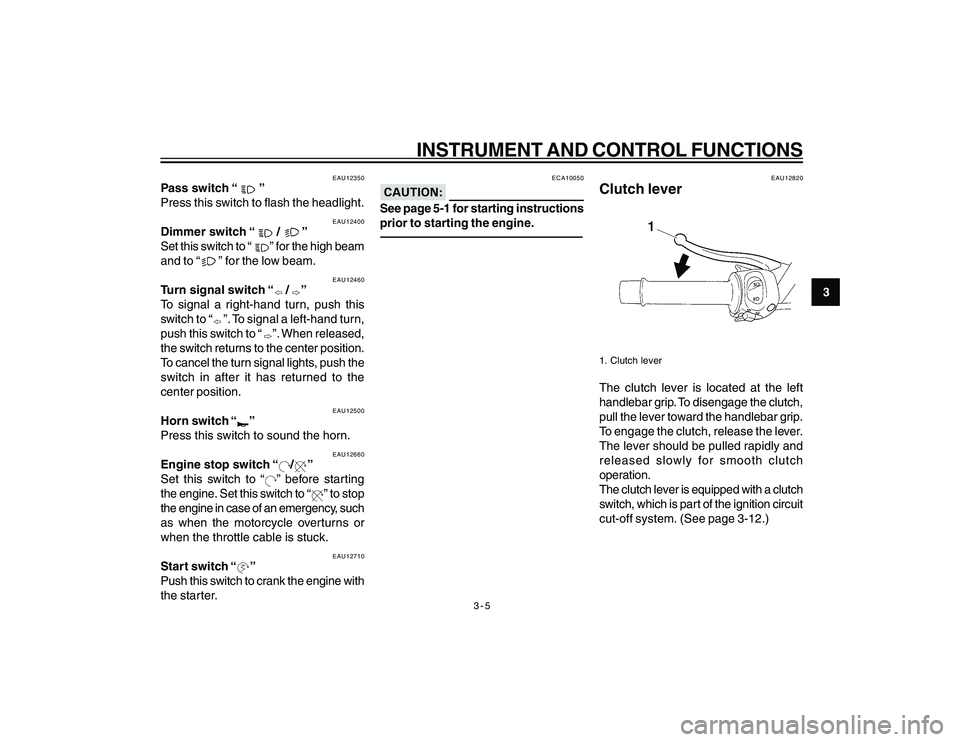

Pass switch “
”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “
/
”
Set this switch to “
” for the high beam
and to “
” for the low beam.
EAU12460
Turn signal switch “
/
”
To signal a right-hand turn, push this
switch to “
”. To signal a left-hand turn,
push this switch to “
”. When released,
the switch returns to the center position.
To cancel the turn signal lights, push the
switch in after it has returned to the
center position.
EAU12500
Horn switch “
”
Press this switch to sound the horn.
EAU12660
Engine stop switch “
/
”
Set this switch to “
” before starting
the engine. Set this switch to “
” to stop
the engine in case of an emergency, such
as when the motorcycle overturns or
when the throttle cable is stuck.EAU12710
Start switch “
”
Push this switch to crank the engine with
the starter.
ECA10050
See page 5-1 for starting instructions
prior to starting the engine.
EAU12820
Clutch lever1. Clutch leverThe clutch lever is located at the left
handlebar grip. To disengage the clutch,
pull the lever toward the handlebar grip.
To engage the clutch, release the lever.
The lever should be pulled rapidly and
released slowly for smooth clutch
operation.
The clutch lever is equipped with a clutch
switch, which is part of the ignition circuit
cut-off system. (See page 3-12.)
cap 3.pmd 24/1/2007, 14:37
5

3-6
3
INSTRUMENT AND CONTROL FUNCTIONS
EAU12870

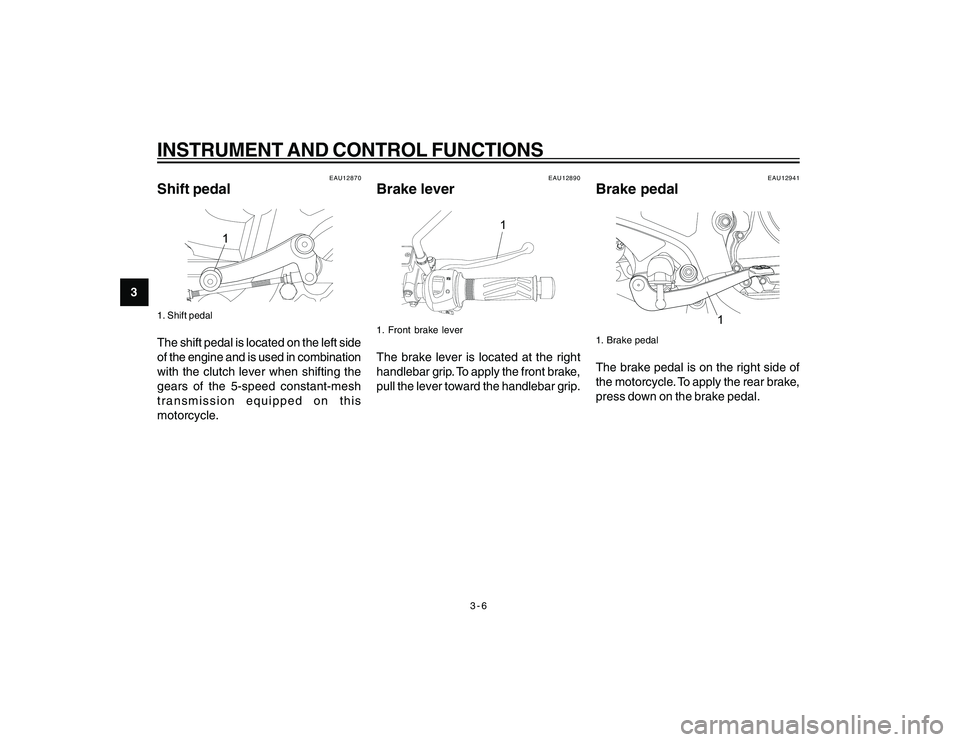

Shift pedal1. Shift pedalThe shift pedal is located on the left side
of the engine and is used in combination
with the clutch lever when shifting the
gears of the 5-speed constant-mesh
transmission equipped on this
motorcycle.
EAU12890
Brake lever
1
1. Front brake leverThe brake lever is located at the right
handlebar grip. To apply the front brake,
pull the lever toward the handlebar grip.
EAU12941
Brake pedal
1
1. Brake pedalThe brake pedal is on the right side of
the motorcycle. To apply the rear brake,
press down on the brake pedal.
cap 3.pmd24/1/2007, 14:37
6

3-7
3
INSTRUMENT AND CONTROL FUNCTIONS
EAU13021

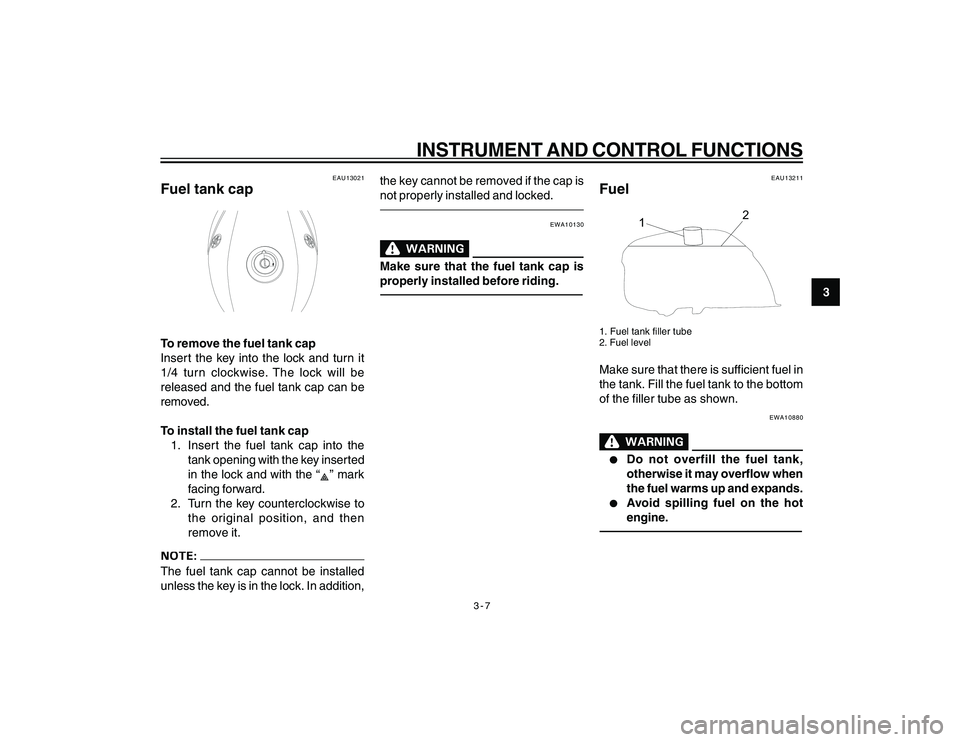

Fuel tank capTo remove the fuel tank cap
Insert the key into the lock and turn it
1/4 turn clockwise. The lock will be
released and the fuel tank cap can be
removed.
To install the fuel tank cap1. Insert the fuel tank cap into the tank opening with the key inserted
in the lock and with the “
” mark
facing forward.
2. Turn the key counterclockwise to the original position, and then
remove it.
The fuel tank cap cannot be installed
unless the key is in the lock. In addition, the key cannot be removed if the cap is
not properly installed and locked.
EWA10130
Make sure that the fuel tank cap is
properly installed before riding.
EAU13211
Fuel
1
2
1. Fuel tank filler tube
2. Fuel levelMake sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
EWA10880
l
l l
l
l
Do not overfill the fuel tank,
otherwise it may overflow when
the fuel warms up and expands.
l
l l
l
l
Avoid spilling fuel on the hot
engine.
cap 3.pmd 24/1/2007, 14:37
7
