8-2

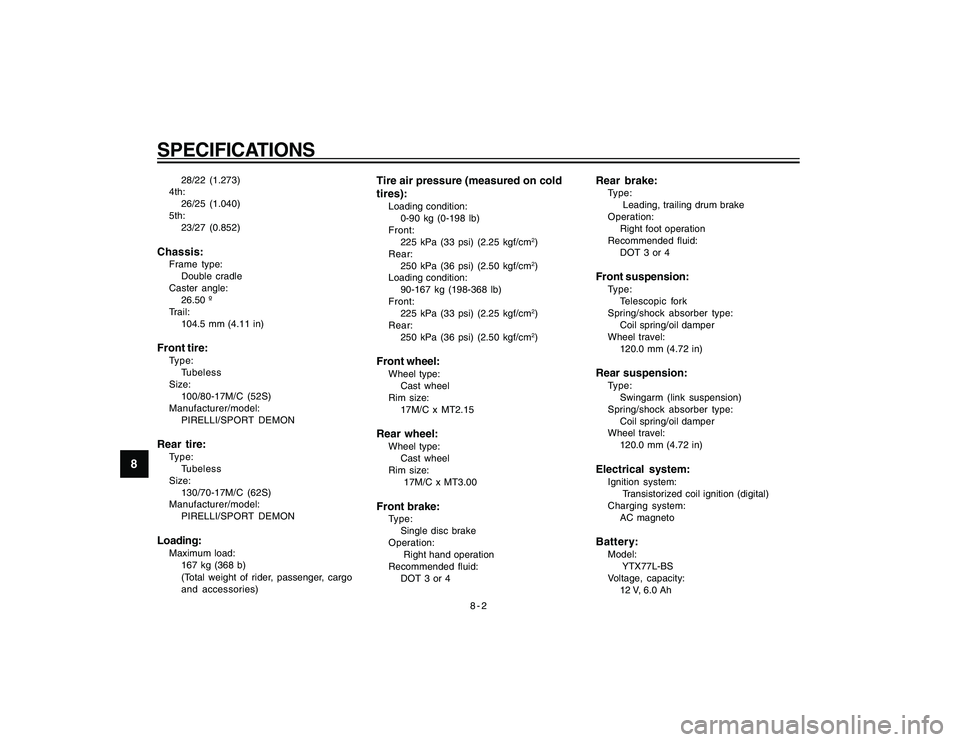

SPECIFICATIONS
8
28/22 (1.273)
4th:
26/25 (1.040)
5th:
23/27 (0.852)
Chassis:Frame type:Double cradle
Caster angle: 26.50 º
Trail:
104.5 mm (4.11 in)Front tire:Type:Tubeless
Size:
100/80-17M/C (52S)
Manufacturer/model: PIRELLI/SPORT DEMONRear tire:Type:Tubeless
Size:
130/70-17M/C (62S)
Manufacturer/model:
PIRELLI/SPORT DEMONLoading:Maximum load:167 kg (368 b)
(Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):Loading condition:0-90 kg (0-198 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm
2)
Rear: 250 kPa (36 psi) (2.50 kgf/cm2)
Loading condition:
90-167 kg (198-368 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm2)
Rear: 250 kPa (36 psi) (2.50 kgf/cm2)
Front wheel:Wheel type:Cast wheel
Rim size:
17M/C x MT2.15Rear wheel:Wheel type:Cast wheel
Rim size:
17M/C x MT3.00Front brake:Type:Single disc brake
Operation: Right hand operation
Recommended fluid:
DOT 3 or 4
Rear brake:Type: Leading, trailing drum brake
Operation: Right foot operation
Recommended fluid:
DOT 3 or 4Front suspension:Type:Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 120.0 mm (4.72 in)Rear suspension:Type:Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)Electrical system:Ignition system: Transistorized coil ignition (digital)
Charging system: AC magnetoBattery:Model: YTX77L-BS
Voltage, capacity:
12 V, 6.0 Ah
cap 8.pmd 24/1/2007, 14:38
2
8-3

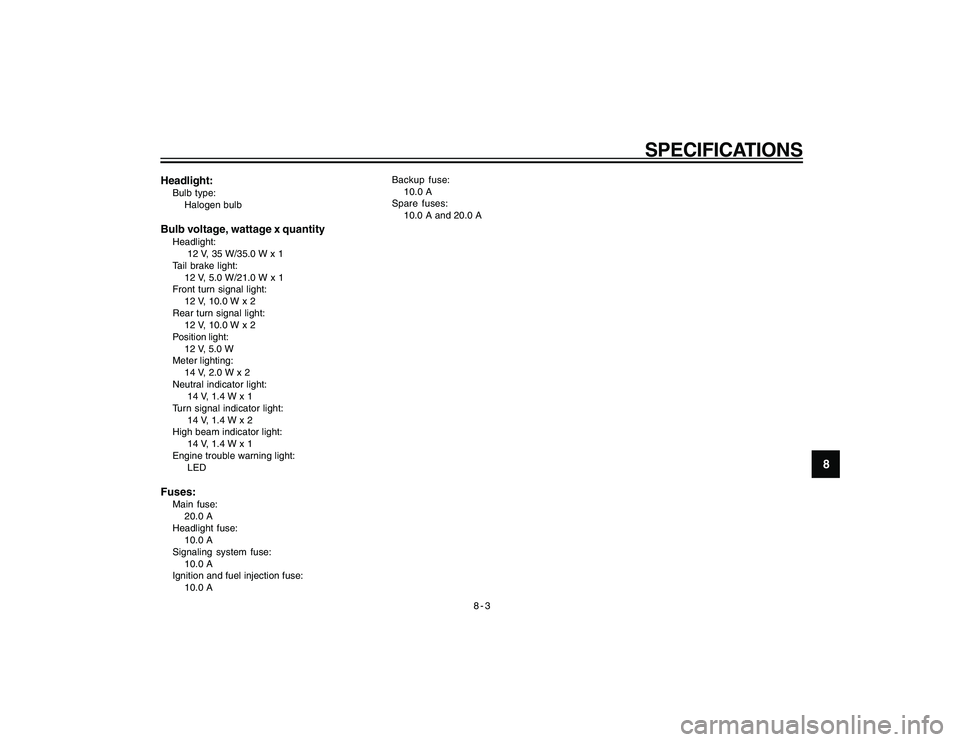

SPECIFICATIONS
8
Headlight:Bulb type:Halogen bulbBulb voltage, wattage x quantityHeadlight: 12 V, 35 W/35.0 W x 1
Tail brake light: 12 V, 5.0 W/21.0 W x 1
Front turn signal light:
12 V, 10.0 W x 2
Rear turn signal light:
12 V, 10.0 W x 2
Position light: 12 V, 5.0 W
Meter lighting:
14 V, 2.0 W x 2
Neutral indicator light:
14 V, 1.4 W x 1
Turn signal indicator light: 14 V, 1.4 W x 2
High beam indicator light:
14 V, 1.4 W x 1
Engine trouble warning light:
LEDFuses:Main fuse:20.0 A
Headlight fuse: 10.0 A
Signaling system fuse:
10.0 A
Ignition and fuel injection fuse:
10.0 A Backup fuse:
10.0 A
Spare fuses:
10.0 A and 20.0 A
cap 8.pmd 24/1/2007, 14:38
3
9-1

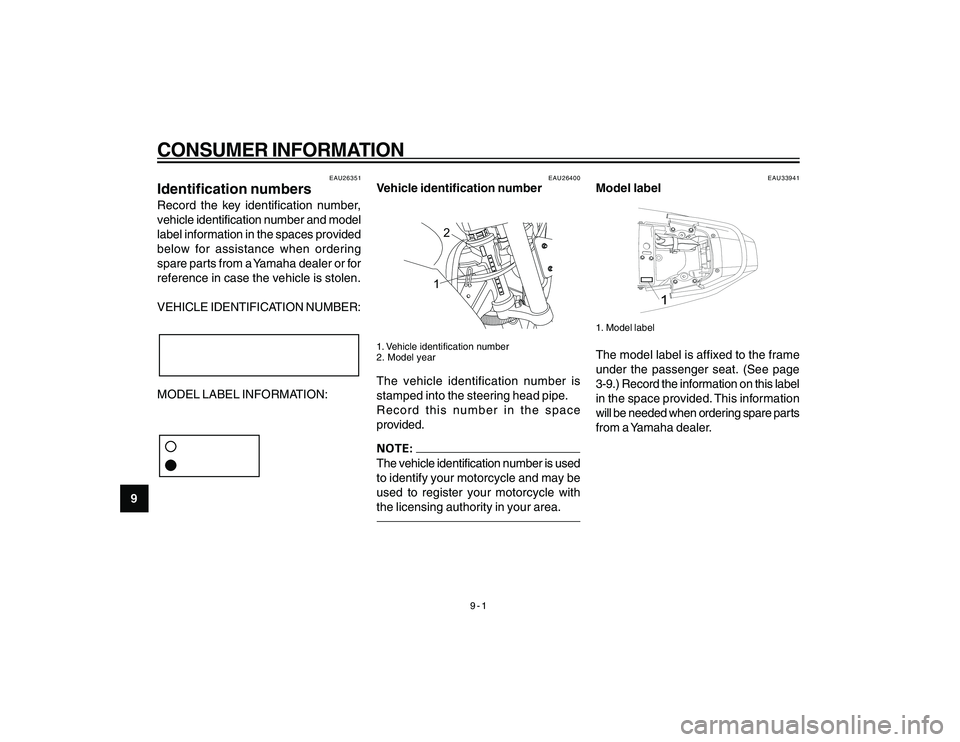

CONSUMER INFORMATION
9
EAU26351
Identification numbersRecord the key identification number,
vehicle identification number and model
label information in the spaces provided
below for assistance when ordering
spare parts from a Yamaha dealer or for
reference in case the vehicle is stolen.
VEHICLE IDENTIFICATION NUMBER:MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
12
1. Vehicle identification number
2. Model yearThe vehicle identification number is
stamped into the steering head pipe.
Record this number in the space
provided.The vehicle identification number is used
to identify your motorcycle and may be
used to register your motorcycle with
the licensing authority in your area.
EAU33941
Model label1. Model labelThe model label is affixed to the frame
under the passenger seat. (See page
3-9.) Record the information on this label
in the space provided. This information
will be needed when ordering spare parts
from a Yamaha dealer.
cap 9.pmd
24/1/2007, 14:38
1
