5-2
5
OPERATION AND IMPORTANT RIDING POINTSpreserve the battery. Do not crank the
engine more than 10 seconds on any
one attempt.
ECA11040
For maximum engine life, never
accelerate hard when the engine is
cold!The engine is warm when it quickly
responds to the throttle.
EAU16671

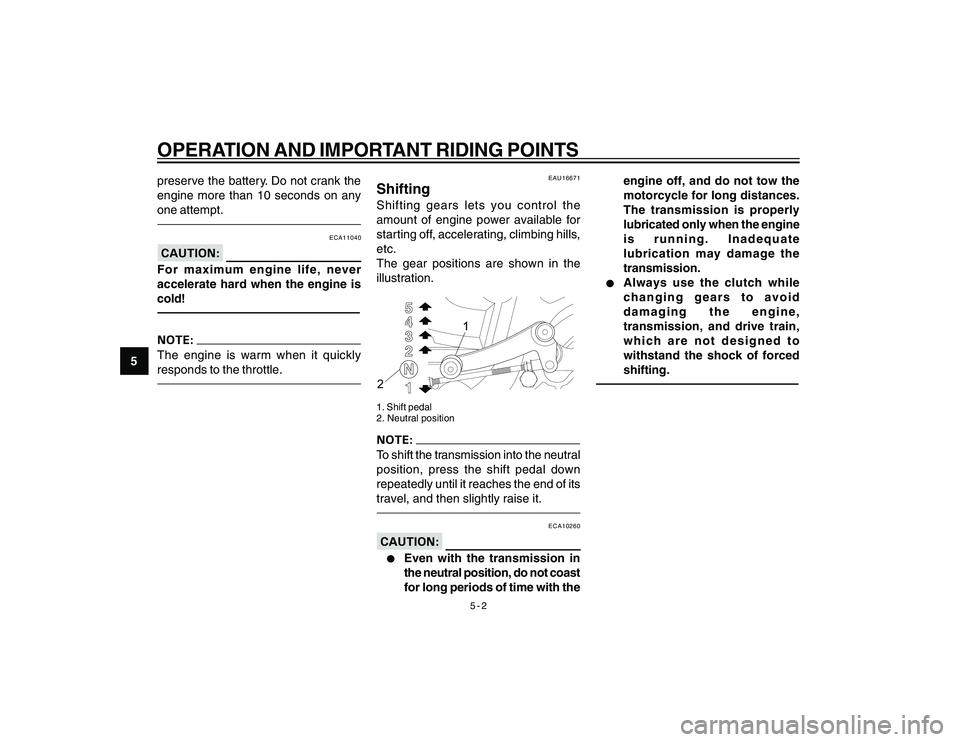

ShiftingShifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the
illustration.
1 2 3 4 5
N
2
1
1. Shift pedal
2. Neutral positionTo shift the transmission into the neutral
position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
ECA10260
l
l l
l
l
Even with the transmission in
the neutral position, do not coast
for long periods of time with the engine off, and do not tow the
motorcycle for long distances.
The transmission is properly
lubricated only when the engine
is running. Inadequate
lubrication may damage the
transmission.
l
l l
l
l
Always use the clutch while
changing gears to avoid
damaging the engine,
transmission, and drive train,
which are not designed to
withstand the shock of forced
shifting.
cap 5.pmd 24/1/2007, 14:37
2
Page 32 of 74
5-3
5
OPERATION AND IMPORTANT RIDING POINTS
EAU16810

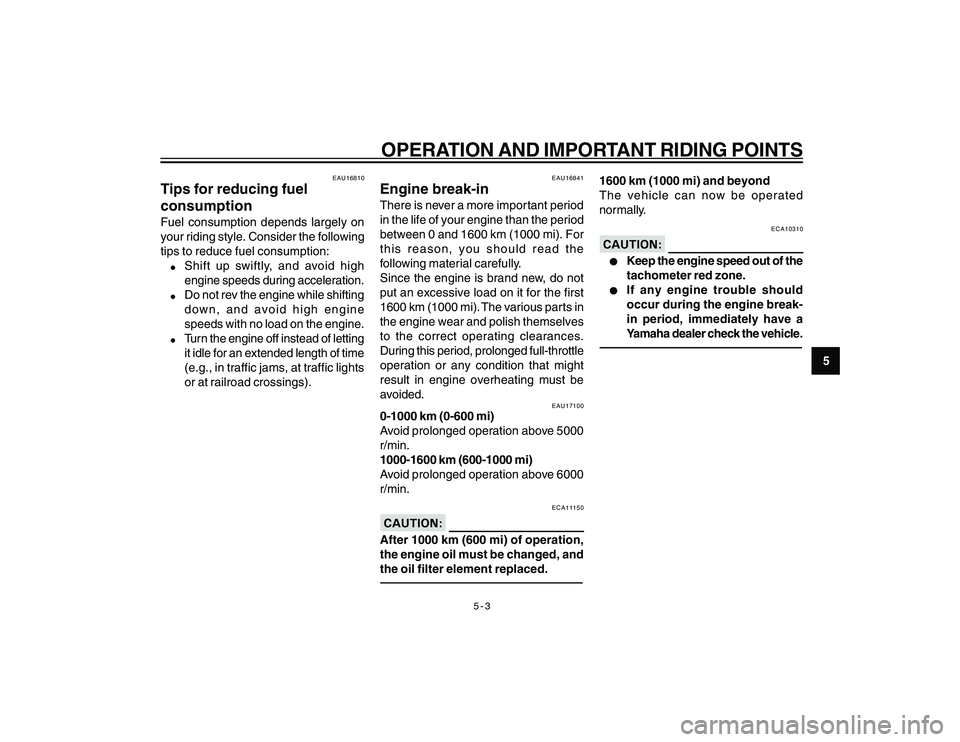

Tips for reducing fuel
consumptionFuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:l
Shift up swiftly, and avoid high
engine speeds during acceleration.
l
Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.
l
Turn the engine off instead of letting
it idle for an extended length of time
(e.g., in traffic jams, at traffic lights
or at railroad crossings).
EAU16841
Engine break-inThere is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the
following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throttle
operation or any condition that might
result in engine overheating must be
avoided.
EAU17100
0-1000 km (0-600 mi)
Avoid prolonged operation above 5000
r/min.
1000-1600 km (600-1000 mi)
Avoid prolonged operation above 6000
r/min.
ECA11150
After 1000 km (600 mi) of operation,
the engine oil must be changed, and
the oil filter element replaced.
1600 km (1000 mi) and beyond
The vehicle can now be operated
normally.
ECA10310
l
l l
l
l
Keep the engine speed out of the
tachometer red zone.
l
l l
l
l
If any engine trouble should
occur during the engine break-
in period, immediately have a
Yamaha dealer check the vehicle.
cap 5.pmd 24/1/2007, 14:37
3
Page 33 of 74
5-4
5
OPERATION AND IMPORTANT RIDING POINTS
EAU17212

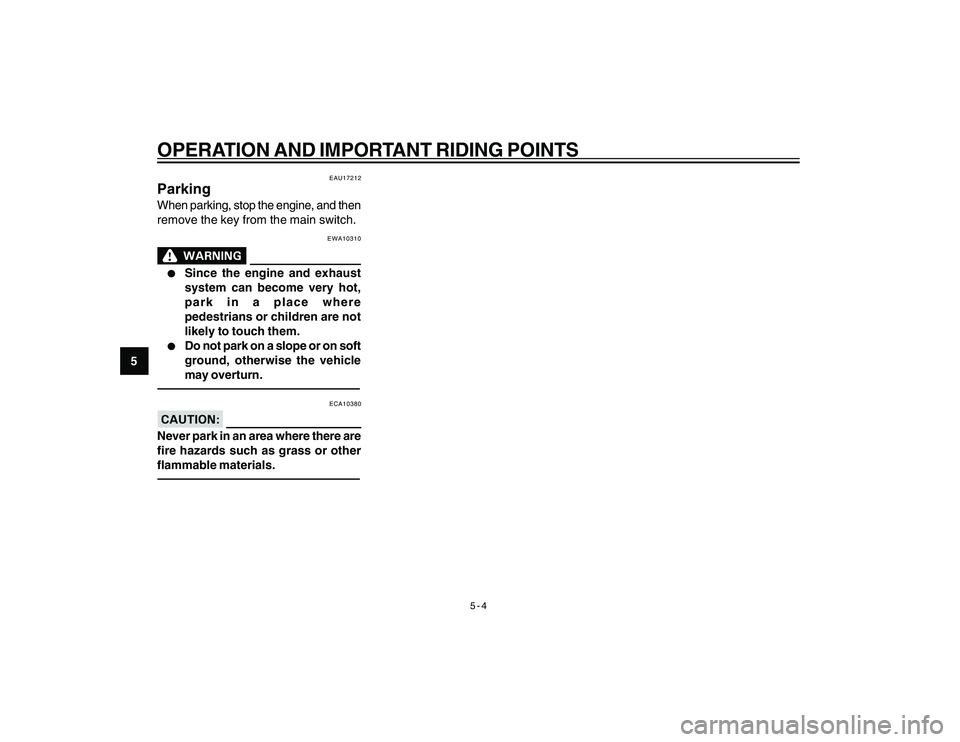

ParkingWhen parking, stop the engine, and then
remove the key from the main switch.
EWA10310
l
l l
l
l
Since the engine and exhaust
system can become very hot,
park in a place where
pedestrians or children are not
likely to touch them.
l
l l
l
l
Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn.
ECA10380
Never park in an area where there are
fire hazards such as grass or other
flammable materials.
cap 5.pmd 24/1/2007, 14:37
4
Page 34 of 74
6-1
6
PERIODIC MAINTENANCE AND MINOR REPAIR
EAU17240

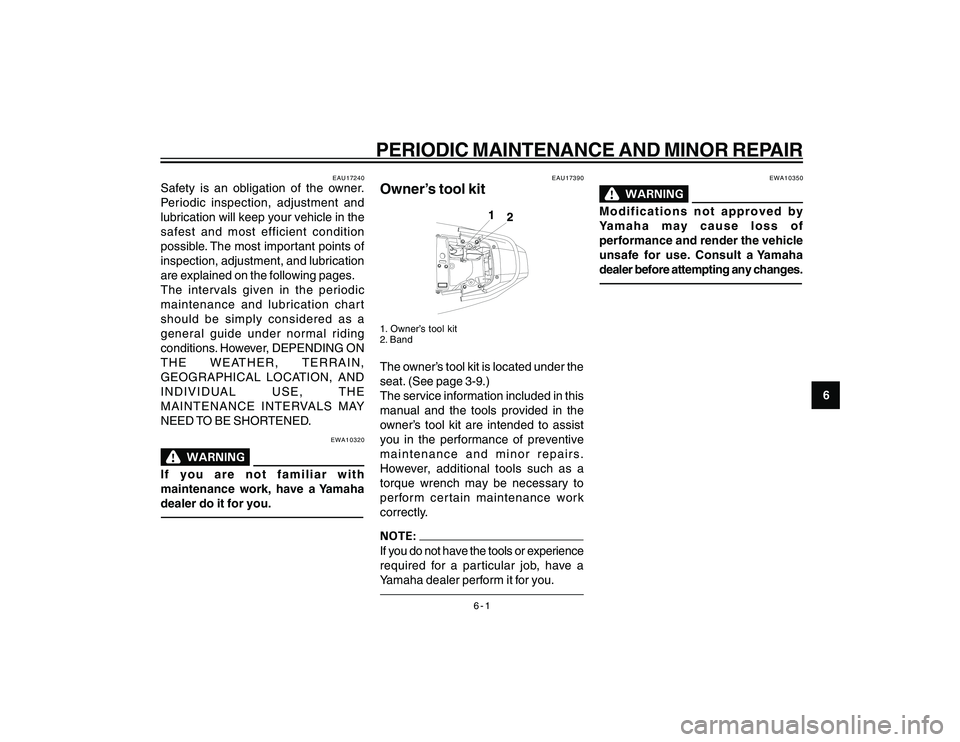

Safety is an obligation of the owner.
Periodic inspection, adjustment and
lubrication will keep your vehicle in the
safest and most efficient condition
possible. The most important points of
inspection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, DEPENDING ON
THE WEATHER, TERRAIN,
GEOGRAPHICAL LOCATION, AND
INDIVIDUAL USE, THE
MAINTENANCE INTERVALS MAY
NEED TO BE SHORTENED.
EWA10320
If you are not familiar with
maintenance work, have a Yamaha
dealer do it for you.
EAU17390
Owner’s tool kit1. Owner’s tool kit
2. BandThe owner’s tool kit is located under the
seat. (See page 3-9.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs.
However, additional tools such as a
torque wrench may be necessary to
perform certain maintenance work
correctly.If you do not have the tools or experience
required for a particular job, have a
Yamaha dealer perform it for you.
EWA10350
Modifications not approved by
Yamaha may cause loss of
performance and render the vehicle
unsafe for use. Consult a Yamaha
dealer before attempting any changes.
cap 6.pmd24/1/2007, 14:37
1
Page 35 of 74
6-2
6
PERIODIC MAINTENANCE AND MINOR REPAIR
EAU17707

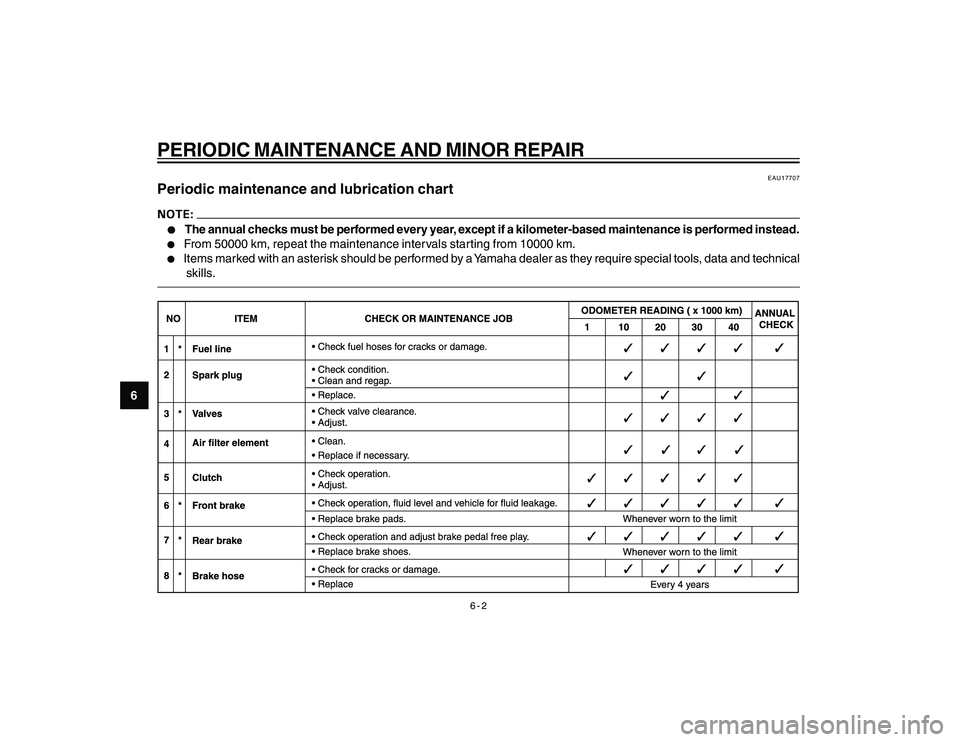

Periodic maintenance and lubrication chartl
l l
l
l
The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.
l
From 50000 km, repeat the maintenance intervals starting from 10000 km.
l
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
cap 6.pmd 24/1/2007, 14:37
2
Page 36 of 74
6-3

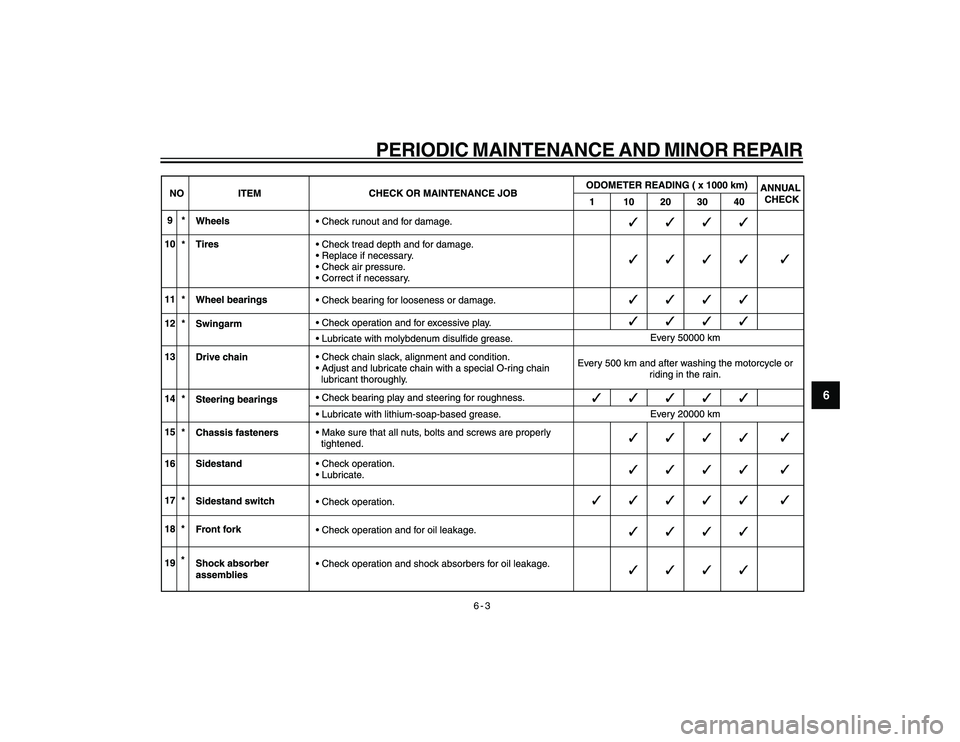

6
PERIODIC MAINTENANCE AND MINOR REPAIR
cap 6.pmd24/1/2007, 14:37
3
Page 37 of 74
6-4

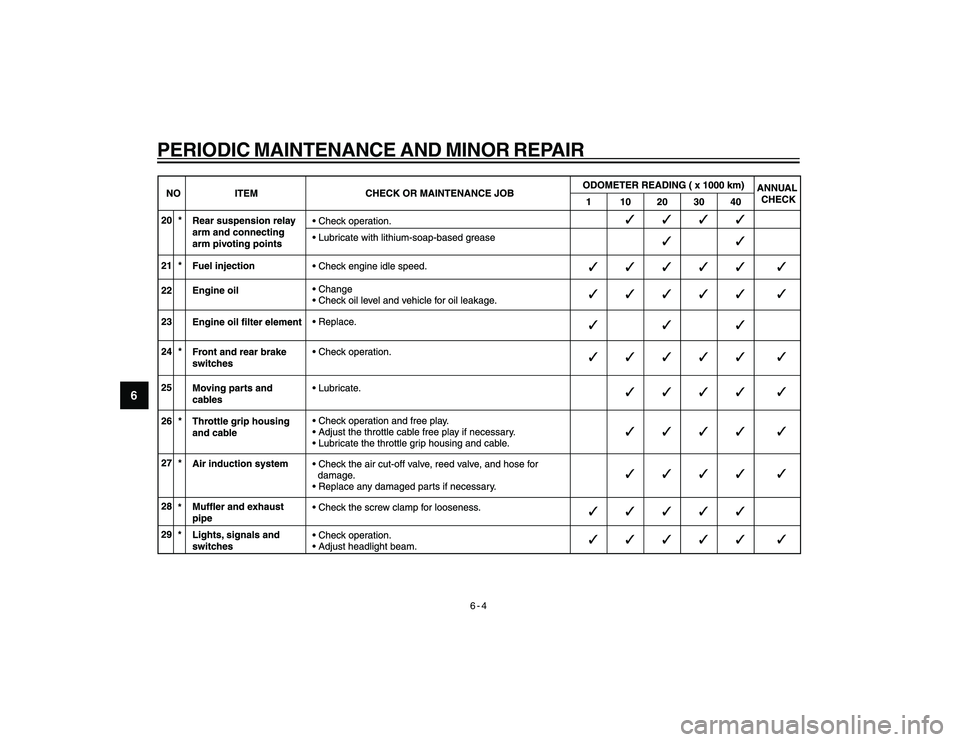

6
PERIODIC MAINTENANCE AND MINOR REPAIR
cap 6.pmd24/1/2007, 14:37
4
Page 38 of 74
6-5
6
PERIODIC MAINTENANCE AND MINOR REPAIR

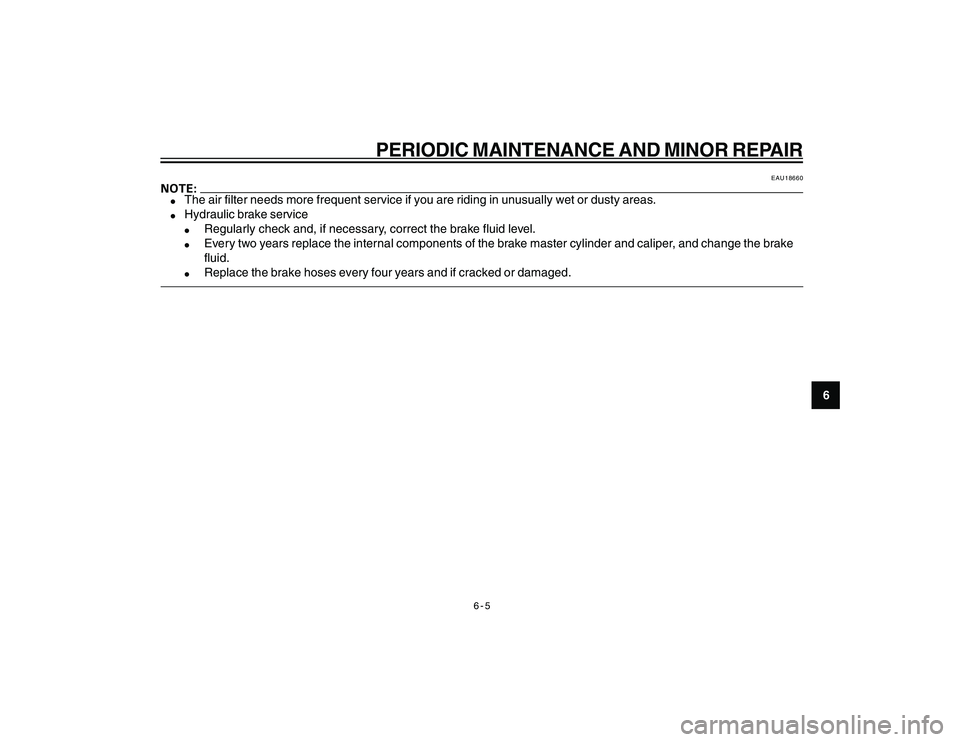

EAU18660
l
The air filter needs more frequent service if you are riding in unusuall\
y wet or dusty areas.
l
Hydraulic brake servicel
Regularly check and, if necessary, correct the brake fluid level.
l
Every two years replace the internal components of the brake master cylinder and caliper, and change the brake
fluid.
l
Replace the brake hoses every four years and if cracked or damaged.
cap 6.pmd24/1/2007, 14:37
5
Page 39 of 74
6-6
6
PERIODIC MAINTENANCE AND MINOR REPAIR
EAU18721

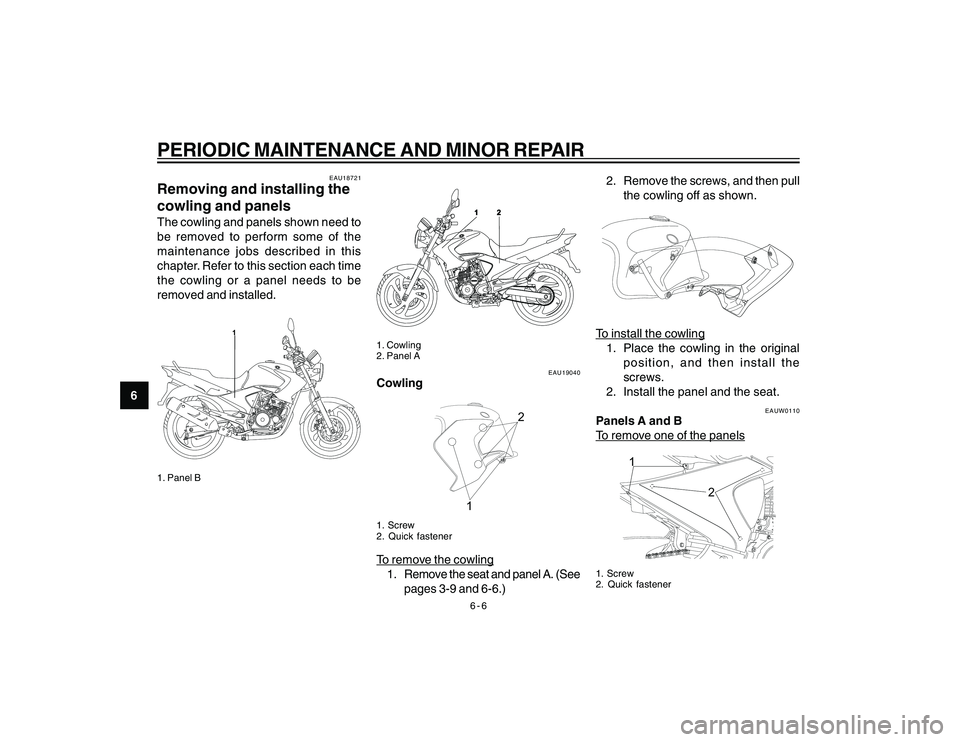

Removing and installing the
cowling and panelsThe cowling and panels shown need to
be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
the cowling or a panel needs to be
removed and installed.
1
1. Panel B
12
1. Cowling
2. Panel A
EAU19040
Cowling
2
1
1. Screw
2. Quick fastenerTo remo
ve the co
wling
1. Remove the seat and panel A. (See pages 3-9 and 6-6.) 2. Remove the screws, and then pull
the cowling off as shown.
To install the co
wling
1. Place the cowling in the original position, and then install the
screws.
2. Install the panel and the seat.
EAUW0110
Panels A and BTo remo
ve one of the panels
1
2
1. Screw
2. Quick fastener
cap 6.pmd 24/1/2007, 14:37
6
Page 40 of 74
6-7
6
PERIODIC MAINTENANCE AND MINOR REPAIR
1. Remove the seat. (See page 3-9.)
2. Remove the screws, and then pullthe panel to the outside as shown.To install the panel1. Place the panel in the original position, and install the screws.
2. Install the seat.
EAU19630

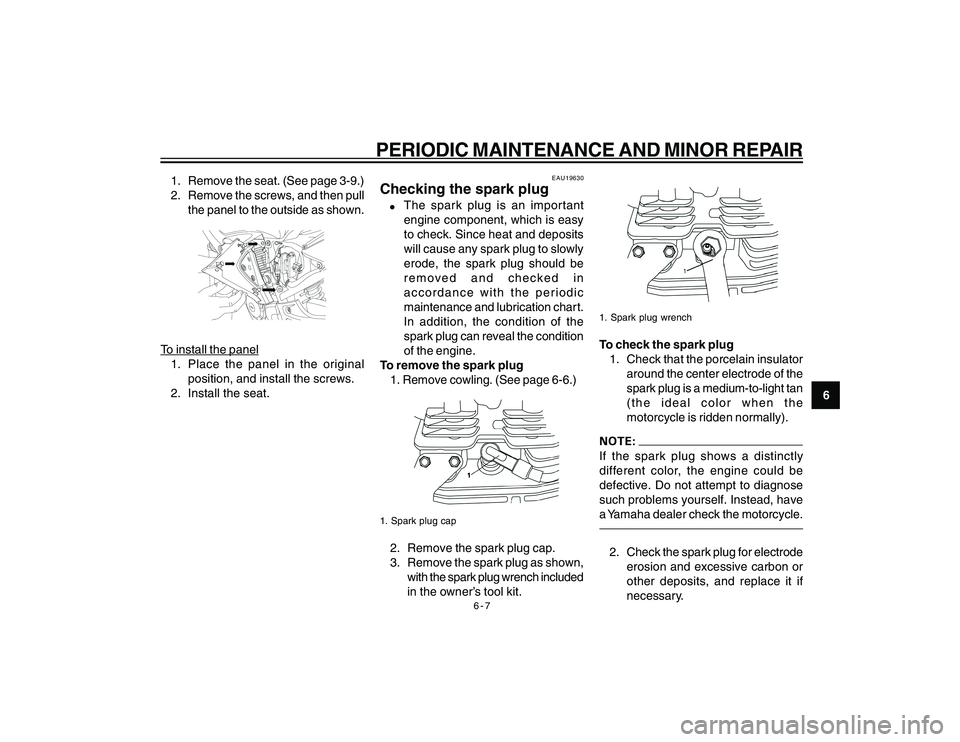

Checking the spark plugl
The spark plug is an important
engine component, which is easy
to check. Since heat and deposits
will cause any spark plug to slowly
erode, the spark plug should be
removed and checked in
accordance with the periodic
maintenance and lubrication chart.
In addition, the condition of the
spark plug can reveal the condition
of the engine.
To remove the spark plug 1. Remove cowling. (See page 6-6.)
1. Spark plug cap2. Remove the spark plug cap.
3. Remove the spark plug as shown, with the spark plug wrench included
in the owner’s tool kit.
1. Spark plug wrenchTo check the spark plug1. Check that the porcelain insulator around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the
motorcycle is ridden normally).If the spark plug shows a distinctly
different color, the engine could be
defective. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the motorcycle.2. Check the spark plug for electrodeerosion and excessive carbon or
other deposits, and replace it if
necessary.
cap 6.pmd 24/1/2007, 14:37
7
