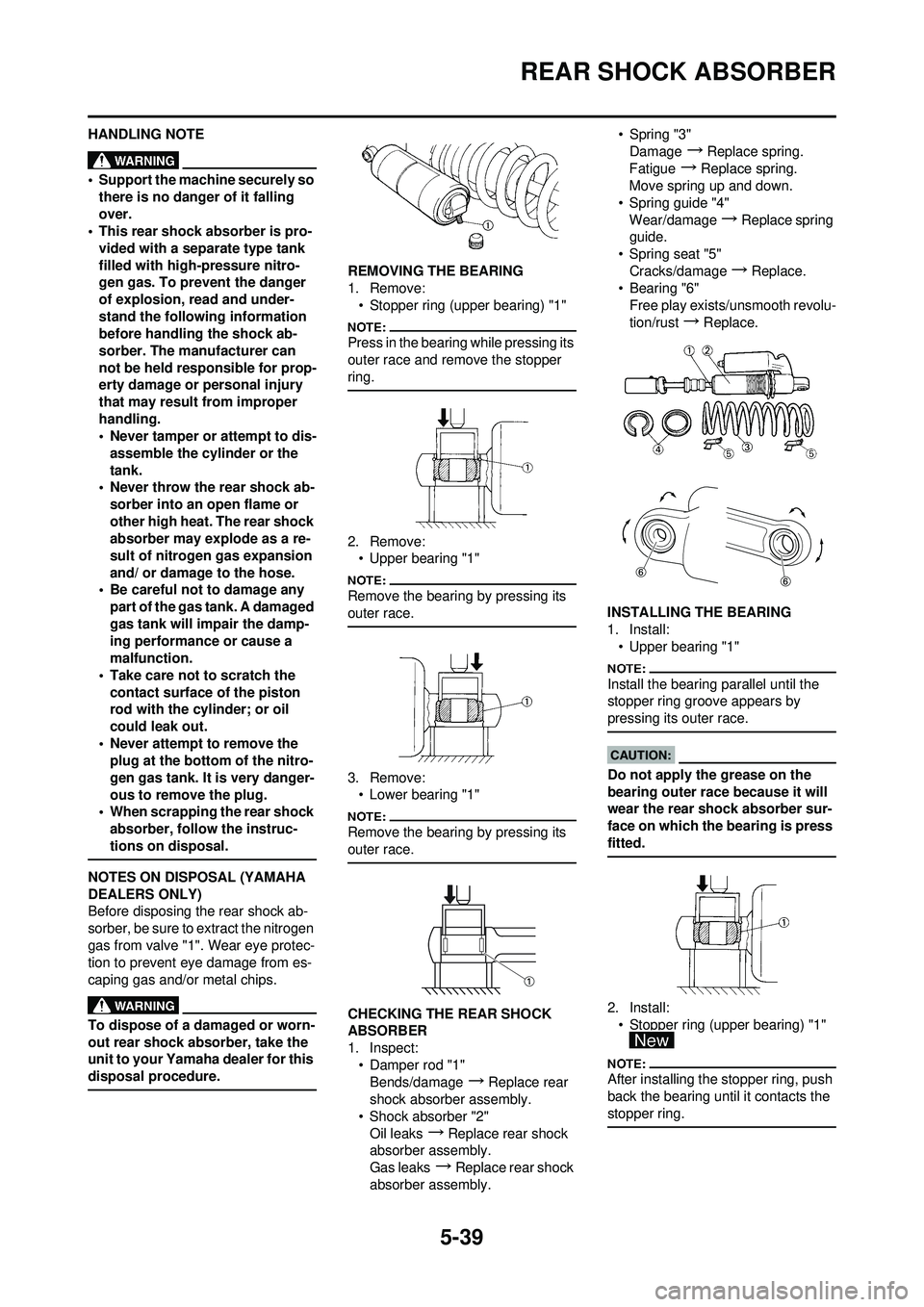

Page 171 of 192

YAMAHA YZ250F 2008  Owners Manual 5-39
REAR SHOCK ABSORBER
HANDLING NOTE
• Support the machine securely so there is no danger of it falling
over.
• This rear shock absorber is pro-
vided with a separate type tank
filled with hig

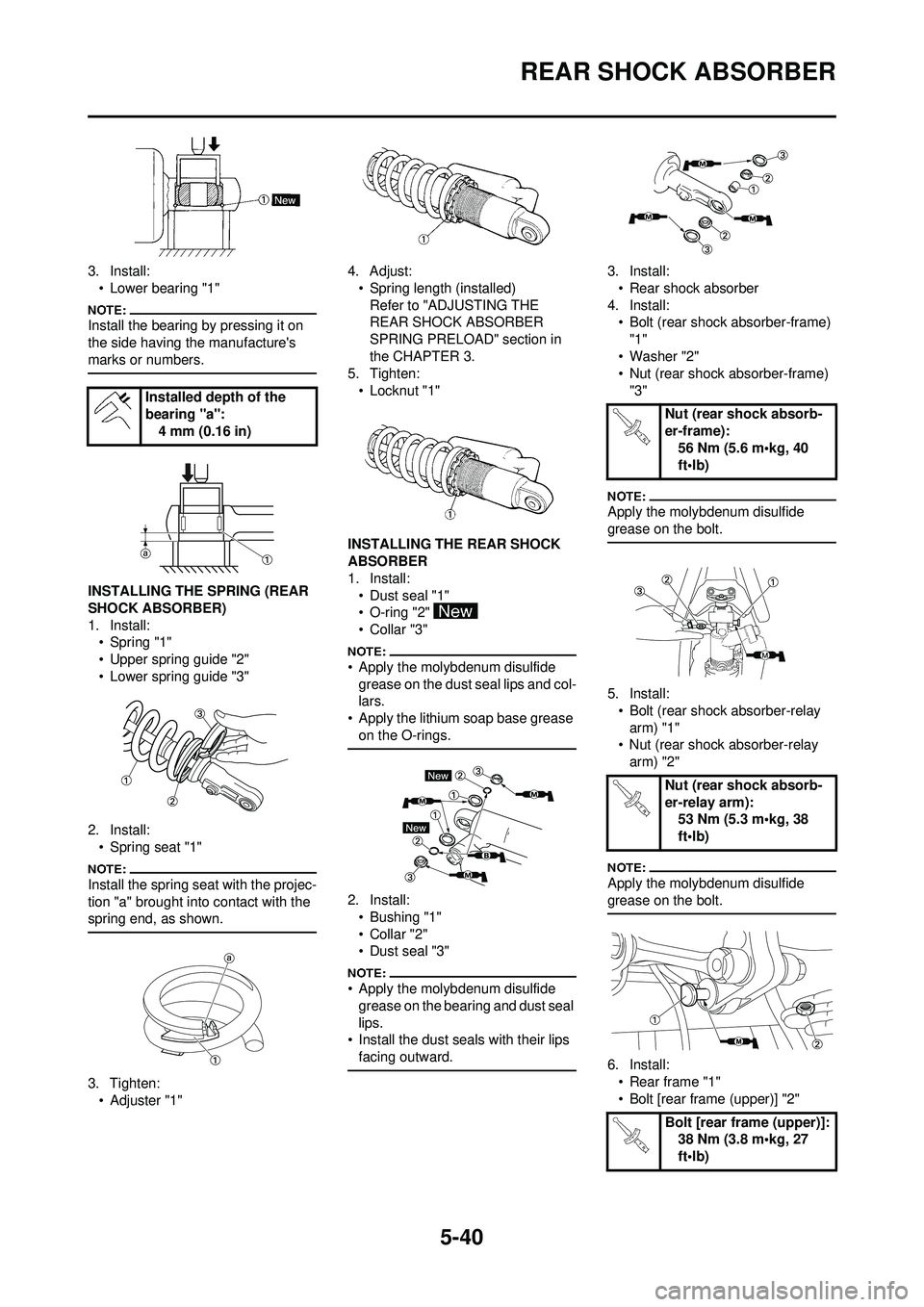

Page 172 of 192

YAMAHA YZ250F 2008  Owners Manual 5-40
REAR SHOCK ABSORBER
3. Install:• Lower bearing "1"
Install the bearing by pressing it on
the side having the manufactures
marks or numbers.
INSTALLING THE SPRING (REAR
SHOCK ABSORBER)
1. In

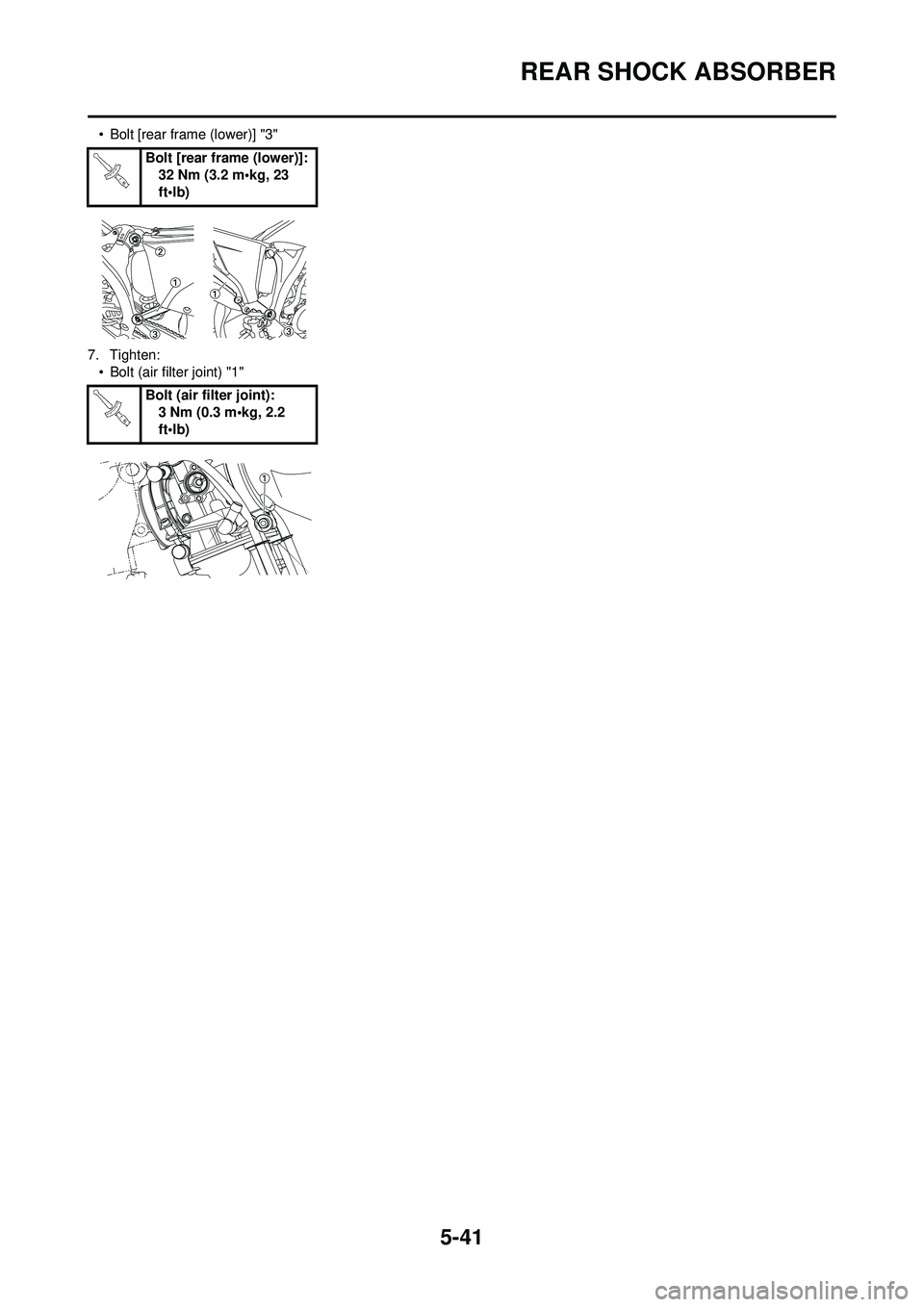

Page 173 of 192

YAMAHA YZ250F 2008  Owners Manual 5-41
REAR SHOCK ABSORBER
• Bolt [rear frame (lower)] "3"
7. Tighten: • Bolt (air filter joint) "1" Bolt [rear frame (lower)]:
32 Nm (3.2 m•kg, 23
ft•lb)
Bolt (air filter joint): 3 Nm (0.3 mâ€

Page 174 of 192

YAMAHA YZ250F 2008  Owners Manual 6-1
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
ELECTRICAL
ELECTRICAL
COMPONENTS AND
WIRING DIAGRAM
ELECTRICAL COMPONENTS
1. Engine stop switch
2. Throttle position sensor
3. Neutral switch4. CDI magne

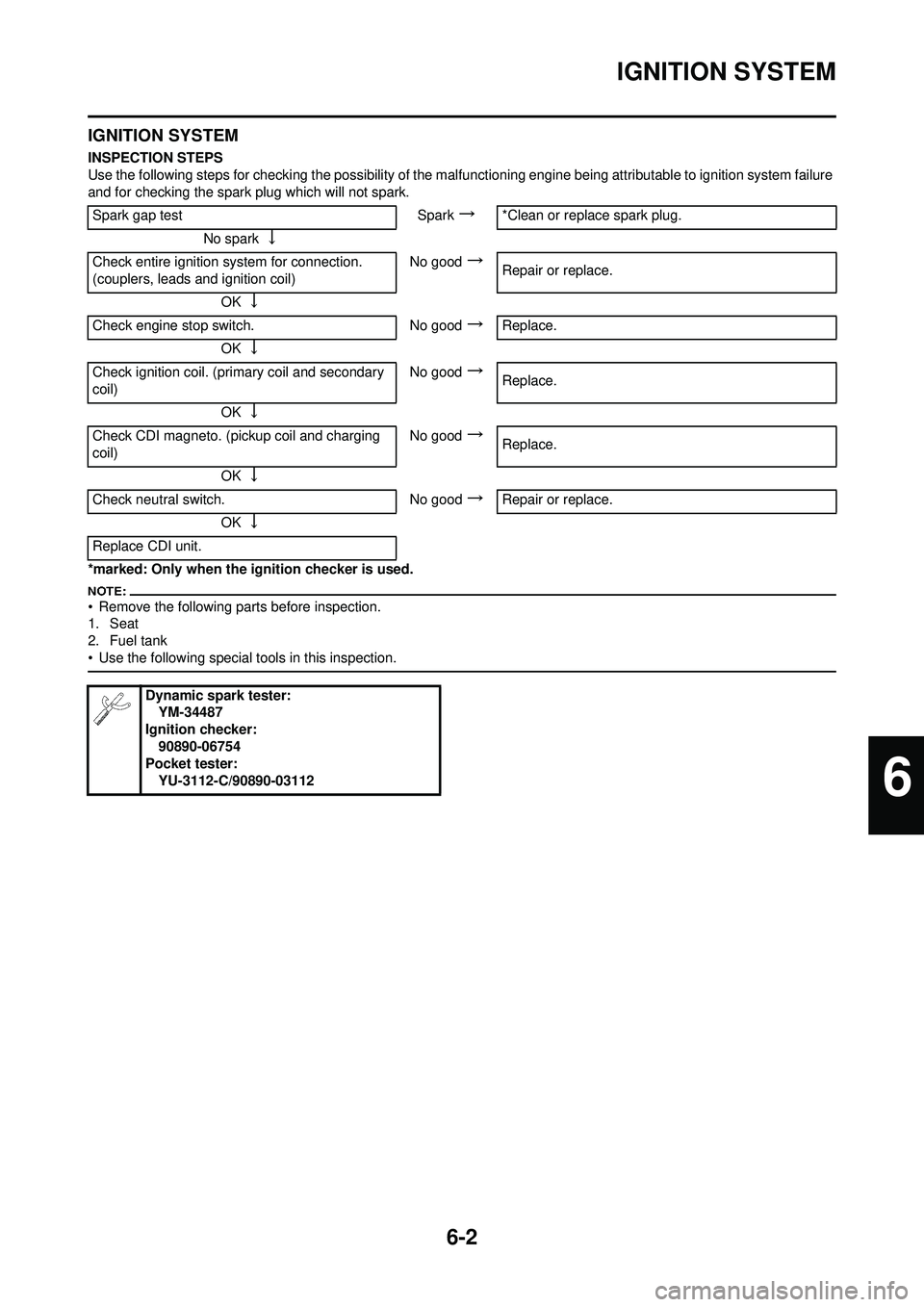

Page 175 of 192

YAMAHA YZ250F 2008  Owners Manual 6-2
IGNITION SYSTEM
IGNITION SYSTEM
INSPECTION STEPS
Use the following steps for checking the possibility of the malfunctioning engine being attributable to ignition system failure
and for checking t

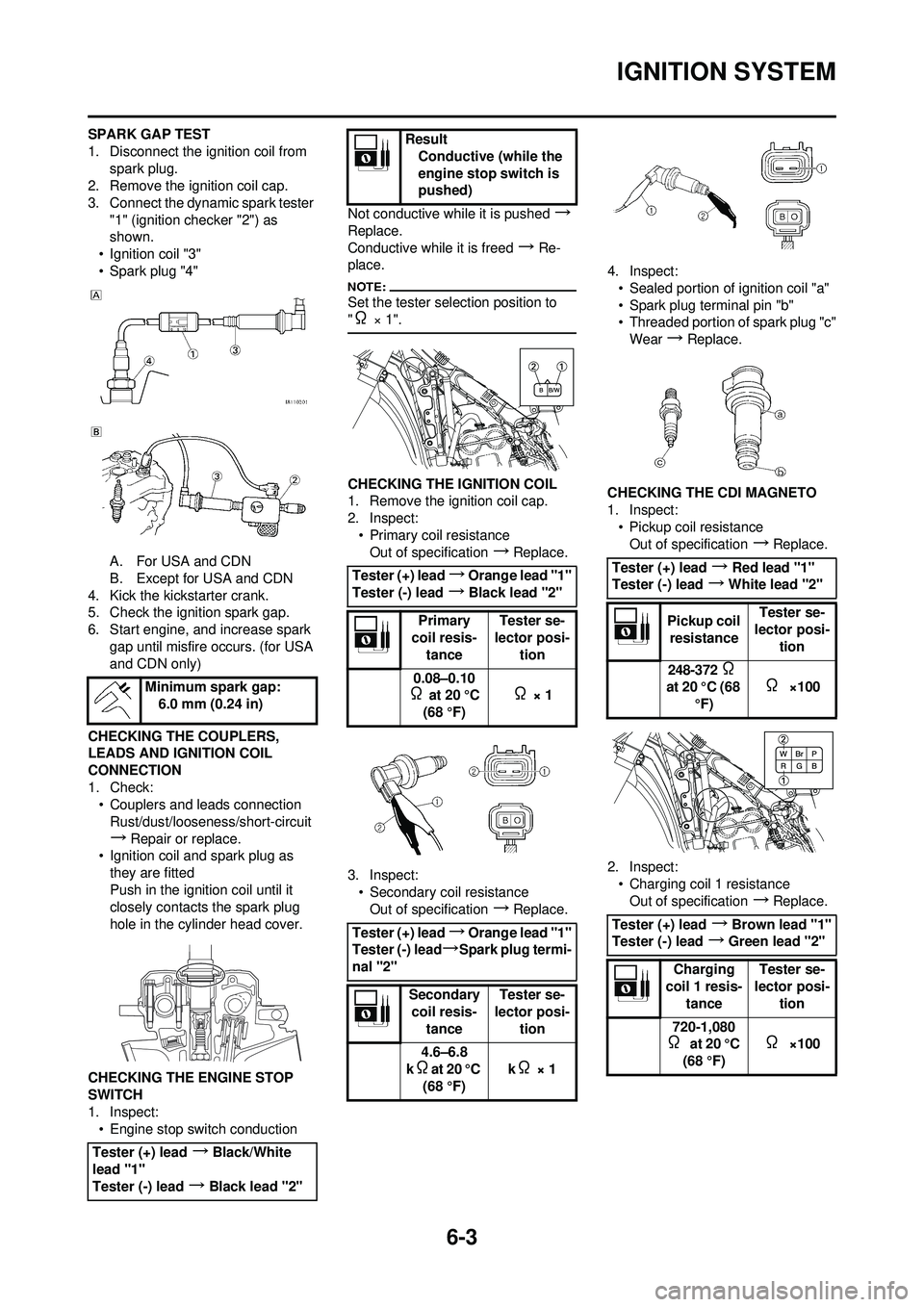

Page 176 of 192

YAMAHA YZ250F 2008  Owners Manual 6-3
IGNITION SYSTEM
SPARK GAP TEST
1. Disconnect the ignition coil from spark plug.
2. Remove the ignition coil cap.
3. Connect the dynamic spark tester
"1" (ignition checker "2") as
shown.
• Igni

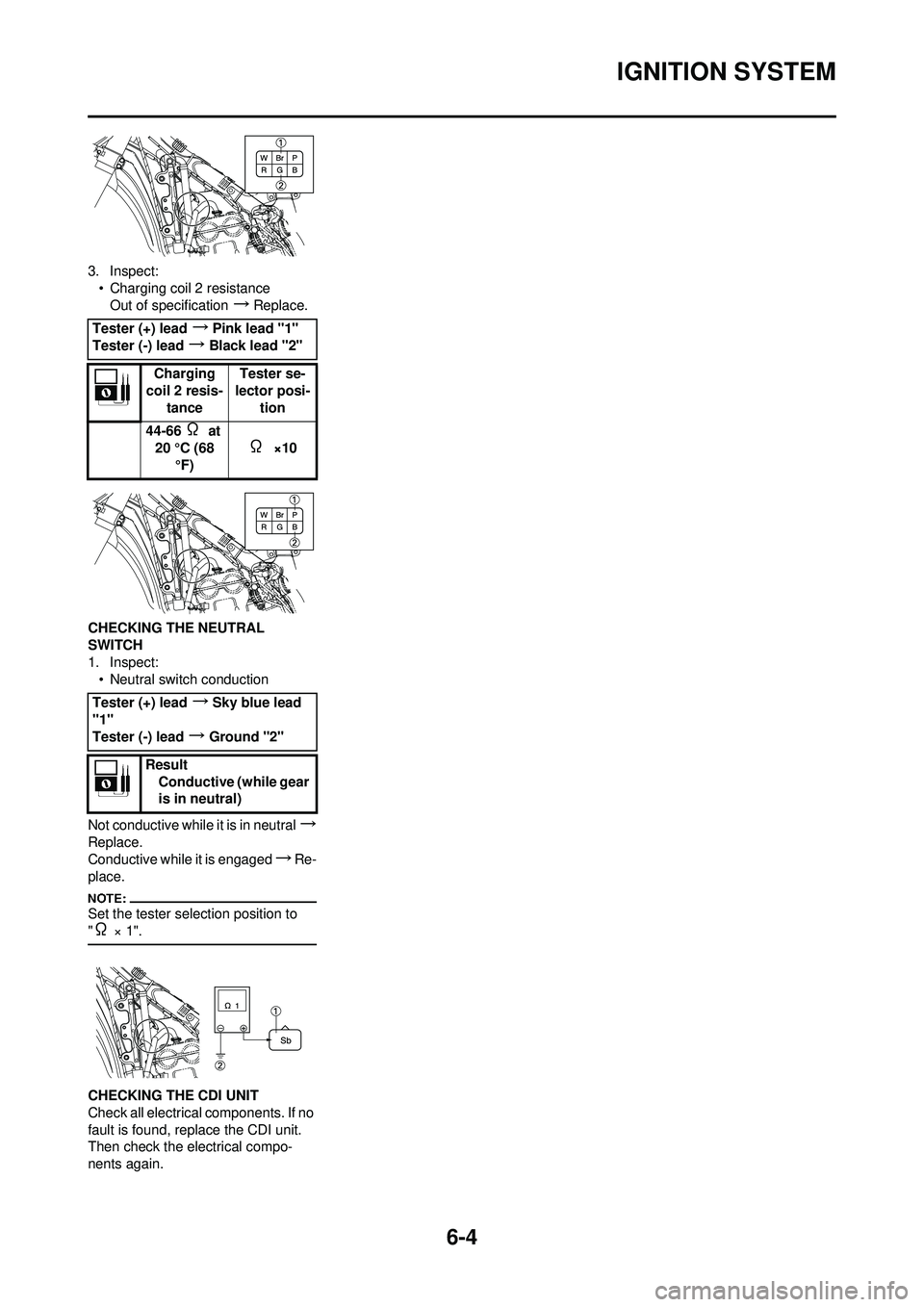

Page 177 of 192

YAMAHA YZ250F 2008  Owners Manual 6-4
IGNITION SYSTEM
3. Inspect:• Charging coil 2 resistanceOut of specification
→Replace.
CHECKING THE NEUTRAL
SWITCH
1. Inspect: • Neutral switch conduction
Not conductive while it is in neutr

Page 178 of 192

YAMAHA YZ250F 2008  Owners Manual 6-5
THROTTLE POSITION SENSOR SYSTEM
THROTTLE POSITION SENSOR SYSTEM
INSPECTION STEPS
If the throttle position sensor will not operate, use the following inspection steps.
*marked: Refer to "IGNITION S

Page 179 of 192

YAMAHA YZ250F 2008  Owners Manual 6-6
THROTTLE POSITION SENSOR SYSTEM
HANDLING NOTE
Do not loosen the screw (throttle
position sensor) "1" except when
changing the throttle position sen-
sor due to failure because it will
cause a d

Page 180 of 192

YAMAHA YZ250F 2008  Owners Manual 6-7
THROTTLE POSITION SENSOR SYSTEM
Measure the output voltage accurate-
ly with a digital electronic voltmeter
that gives an easy reading of a small
voltage.
10. Put the aligning marks "a" on the t
