YAMAHA YZ426F 2000 Betriebsanleitungen (in German)

SPEC
2 - 12
MAINTENANCE SPECIFICATIONS
Oil strainer (frame) M18 ´ 1.5 1 90 9.0 65
Crankcase bearing stopper M6 ´ 1.0 15 10 1.0 7.2
Drive axle oil seal stopper M6 ´ 1.0 2 10 1.0 7.2
Ratchet wheel guide M6 ´ 1.0 2 12 1.2 8.7
Kick crank M8 ´ 1.25 1 33 3.3 24
Primary drive gear M20 ´ 1.0 1 75 7.5 54
Clutch boss M20 ´ 1.0 1 75 7.5 54
Clutch spring M6 ´ 1.0 6 8 0.8 5.8
Balancer driven gear M14 ´ 1.0 1 50 5.0 36
Balancer weight plate M6 ´ 1.0 3 10 1.0 7.2
Drive sprocket M20 ´ 1.0 1 75 7.5 54
Shift guide M6 ´ 1.0 2 10 1.0 7.2
Stopper lever M6 ´ 1.0 1 10 1.0 7.2
Segment M8 ´ 1.25 1 30 3.0 22
Neutral switch M5 ´ 0.8 2 4 0.4 2.9 Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb

SPEC
2 - 13
MAINTENANCE SPECIFICATIONS
EC212201
CHASSIS
Item Standard Limit
Steering system:
Steering bearing type Taper roller bearing ----
Front suspension: USA, CDN AUS,
NZ, ZAEUROPE
Front fork travel 300 mm
(11.8 in)¬----
Fork spring free length 460 mm
(18.1 in)¬455 mm (17.9 in)
Spring rate, STD K = 4.6 N/mm
(0.46 kg/mm,
25.8 lb/in)K = 4.5 N/mm
(0.45 kg/mm,
25.2 lb/in)----
Optional spring/spacer Yes¬----
Oil capacity 578 cm
3
(20.3 lmp oz,
19.5 US oz) ¬----
Oil level 130 mm
(5.12 in)¬----

(From top of outer tube with inner
tube and damper rod fully com-
pressed without spring.)80 ~ 150 mm
(3.15 ~ 5.91 in)¬----
Oil grade Suspension oil
“01”¬----
Inner tube outer diameter 46 mm (1.81 in)¬----
Front fork top end 0 mm (0 in)¬----
Rear suspension: USA, CDN,
AUS, NZ, ZAEUROPE
Shock absorber travel 132 mm
(5.20 in)¬----
Spring free length 265 mm
(10.43 in)275 mm
(10.83 in)----
Fitting length 253 mm
(9.96 in)260 mm
(10.24 in)----
247 ~ 265 mm
(9.72 ~ 10.43 in)257 ~ 275 mm
(10.12 ~ 10.83 in)----
Spring rate, STD K = 54.0 N/mm
(5.40 kg/mm,
302.4 lb/in)K = Approx.
54.0 N/mm
(5.40 kg/mm,
302.4 lb/in)----
Optional spring Yes¬----
Enclosed gas pressure 1,000 kPa
(10 kg/cm
2,
142 psi)¬----
Swingarm:
Swingarm free play limit
End ---- 1.0 mm (0.04 in)

SPEC
2 - 14
MAINTENANCE SPECIFICATIONS
Wheel:
Front wheel type Spoke wheel ----
Rear wheel type Spoke wheel ----
Front rim size/material 21 ´ 1.60/Aluminum ----
Rear rim size/material 19 ´ 2.15/Aluminum ----
Rim runout limit:
Radial ---- 2.0 mm (0.08 in)
Lateral ---- 2.0 mm (0.08 in)
Drive chain:
Type/manufacturer 520DM-DHA/DAIDO ----
Number of links 113 links + joint ----
Chain slack 40 ~ 50 mm (1.6 ~ 2.0 in) ----
Chain length (10 links) ----152.5 mm (6.00 in)
Front disc brake:
Disc outside dia. ´ Thickness 245 ´ 3.0 mm (9.65 ´ 0.12 in) 245 ´ 2.5 mm
(9.65 ´ 0.08 in)
Deflection limit ----0.15 mm (0.006 in)
Pad thickness 4.4 mm (0.17 in) 1 mm (0.04 in)
Master cylinder inside dia. 11.0 mm (0.433 in) ----
Caliper cylinder inside dia. 27.0 mm (1.063 in) ´ 2 ----
Brake fluid type DOT #4 ----
Rear disc brake:
Disc outside dia. ´ Thickness 240 ´ 4.0 mm (9.45 ´ 0.16 in) 240 ´ 3.5 mm
(9.45 ´ 0.14 in)
Deflection limit ----0.15 mm (0.006 in)
Pad thickness 6.4 mm (0.25 in) 1.0 mm (0.04 in)
Master cylinder inside dia. 12.7 mm (0.500 in) ----
Caliper cylinder inside dia. 27.0 mm (1.063 in) ´ 1 ----
Brake fluid type DOT #4 ----
Brake lever and brake pedal:
Brake lever position 82.5 mm (3.25 in) ----
Brake pedal height
(vertical height below footrest top)5 mm (0.20 in) ----
Clutch lever free play (at lever pivot) 2 ~ 4 mm (0.08 ~ 0.16 in) ----
Throttle grip free play 3 ~ 5 mm (0.12 ~ 0.20 in) ----Item Standard Limit

SPEC
2 - 15
MAINTENANCE SPECIFICATIONS
NOTE:
1. First, tighten the ring nut approximately 38 Nm (3.8 m • kg, 27 ft • lb) by using the ring nut
wrench, then loosen the ring nut one turn.
2. Retighten the ring nut 7 Nm (0.7 m • kg, 5.1 ft • lb).Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Handle crown and outer tube M8 ´ 1.25 4 23 2.3 17
Under bracket and outer tube M8 ´ 1.25 4 20 2.0 14
Handle crown and steering shaft M24 ´ 1.0 1 145 14.5 105
Handlebar holder (upper) M8 ´ 1.25 4 23 2.3 17
Steering ring nut M28 ´ 1.0 1 Refer to NOTE.
Front fork and cap bolt M48 ´ 1.0 2 30 3.0 22
Front fork and base valve M30 ´ 1.0 2 55 5.5 40
Cap bolt and damper rod (front fork) M12 ´ 1.25 2 29 2.9 21
Bleed screw (front fork) and cap bolt M5 ´ 0.8 2 1 0.1 0.7
Front fork and protector M6 ´ 1.0 6 10 1.0 7.2
Front fork and brake hose holder M6 ´ 1.0 2 10 1.0 7.2
Front fork and hose cover M8 ´ 1.25 1 16 1.6 11
Front fork and hose cover M6 ´ 1.0 1 7 0.7 5.1
Throttle cable cap M5 ´ 0.8 2 4 0.4 2.9
Clutch lever holder M5 ´ 0.8 2 4 0.4 2.9
Decompression lever holder M5 ´ 0.8 2 4 0.4 2.9
Front brake master cylinder and bracket M6 ´ 1.0 2 9 0.9 6.5
Front brake master cylinder cap M4 ´ 0.7 2 2 0.2 1.4
Brake lever mounting (bolt) M6 ´ 1.0 1 7 0.7 5.1
Brake lever mounting (nut) M6 ´ 1.0 1 7 0.7 5.1
Brake lever position locknut M6 ´ 1.0 2 7 0.7 5.1
Cable guide (front brake hose) and guide stay M5 ´ 0.8 1 4 0.4 2.9
Front brake hose union bolt (master cylinder)M10 ´ 1.25 1 30 3.0 22
Front brake hose union bolt (caliper) M10 ´ 1.25 1 30 3.0 22
Front brake caliper and front fork M8 ´ 1.25 2 23 2.3 17
Brake caliper (front and rear) and pad pin plugM10 ´ 1.0 1 3 0.3 2.2
Front brake caliper and pad pin M10 ´ 1.0 1 18 1.8 13
Rear brake caliper and pad pin M10 ´ 1.0 1 18 1.8 13
Brake caliper (front and rear) and bleed screw M8 ´ 1.25 1 6 0.6 4.3
Front wheel axle and nut M16 ´ 1.5 1 105 10.5 75
Front wheel axle holder M8 ´ 1.25 4 23 2.3 17
Front brake disc and wheel hub M6 ´ 1.0 6 12 1.2 8.7
Rear brake disc and wheel hub M6 ´ 1.0 6 14 1.4 10
Brake pedal mounting M8 ´ 1.25 1 19 1.9 13
Rear brake master cylinder and frame M6 ´ 1.0 2 10 1.0 7.2

SPEC
2 - 16
MAINTENANCE SPECIFICATIONS
NOTE:
- marked portion shall be checked for torque tightening after break-in or before each race.Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Rear brake reservoir tank and frame M6 ´ 1.0 1 10 1.0 7.2
Rear brake hose union bolt (caliper) M10 ´ 1.25 1 30 3.0 22
Rear brake hose union bolt (master cylinder)M10 ´ 1.25 1 30 3.0 22
Rear wheel axle and nut M20 ´ 1.5 1 125 12.5 90
Driven sprocket and wheel hub M8 ´ 1.25 6 42 4.2 30
Nipple (spoke) – 72 3 0.3 2.2
Disc cover and rear brake caliper M6 ´ 1.0 2 7 0.7 5.1
Protector and rear brake caliper M6 ´ 1.0 2 7 0.7 5.1
Engine mounting:
Engine bracket and frame M8 ´ 1.25 7 34 3.4 24
Engine and frame (front) M10 ´ 1.25 1 69 6.9 50
Engine and frame (upper) M10 ´ 1.25 1 55 5.5 40
Engine and frame (lower) M10 ´ 1.25 1 69 6.9 50
Pivot shaft and nut M16 ´ 1.5 1 85 8.5 61
Relay arm and swingarm M14 ´ 1.5 1 80 8.0 58
Relay arm and connecting rod M14 ´ 1.5 1 80 8.0 58
Connecting rod and frame M14 ´ 1.5 1 80 8.0 58
Rear shock absorber and frame M10 ´ 1.25 1 56 5.6 40
Rear shock absorber and relay arm M10 ´ 1.25 1 53 5.3 38
Rear frame and frame M8 ´ 1.25 3 26 2.6 19
Swingarm and brake hose holder M5 ´ – 4 4 0.4 2.9
Drive chain tensioner mounting M8 ´ 1.25 2 19 1.9 13
Chain support and swingarm M6 ´ 1.0 3 7 0.7 5.1
Seal guard and swingarm M5 ´ 0.8 4 4 0.4 2.9
Fuel tank mounting M6 ´ 1.0 2 10 1.0 7.2
Fuel tank and fuel cock M6 ´ 1.0 2 7 0.7 5.1
Fuel tank and seat set bracket M6 ´ 1.0 1 7 0.7 5.1
Fuel tank and hooking screw (fitting band) M6 ´ 1.0 1 7 0.7 5.1
Fuel tank and fuel tank bracket M6 ´ 1.0 4 7 0.7 5.1
Seat mounting M8 ´ 1.25 2 23 2.3 17
Side cover mounting M6 ´ 1.0 2 7 0.7 5.1
Air scoop and fuel tank M6 ´ 1.0 4 4 0.4 2.9
Air scoop and radiator panel (lower) M6 ´ 1.0 2 4 0.4 2.9
Rear fender mounting M6 ´ 1.0 4 7 0.7 5.1

SPEC
2 - 17
MAINTENANCE SPECIFICATIONS
EC212300
ELECTRICAL
Item Standard Limit
Ignition system:
Advancer type Electrical ----
C.D.I.:
Magneto-model/manufacturer F5JG/YAMAHA ----
Source coil 1 resistance (color) 720 ~ 1,080 W at 20 ˚C (68 ˚F)
(Green – Brown)----
Source coil 2 resistance (color) 44 ~ 66 W at 20 ˚C (68 ˚F)
(Black – Pink)----
Pickup coil resistance (color) 248 ~ 372 W at 20 ˚C (68 ˚F)
(White – Red)----
CDI unit-model/manufacturer 5JG/YAMAHA ----
Ignition coil:
Model/manufacturer JF2/YAMAHA ----
Minimum spark gap 6 mm (0.24 in) ----
Primary winding resistance 0.20 ~ 0.30 W at 20 ˚C (68 ˚F) ----
Secondary winding resistance 9.5 ~ 14.3 kW at 20 ˚C (68 ˚F) ----
Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Stator M6 ´ 1.0 3 10 1.0 7.2
Rotor M10 ´ 1.25 1 48 4.8 35
Ignition coil M6 ´ 1.0 2 7 0.7 5.1

2 - 18
SPEC

GENERAL TORQUE SPECIFICATIONS/
DEFINITION OF UNITS
EC220001
GENERAL TORQUE SPECIFICATIONS
This chart specifies torque for standard fasten-
ers with standard I.S.O. pitch threads. Torque
specifications for special components or
assemblies are included in the applicable sec-
tions of this book. To avoid warpage, tighten
multi-fastener assemblies in a crisscross fash-
ion, in progressive stages, until full torque is
reached. Unless otherwise specified, torque
specifications call for clean, dry threads. Com-
ponents should be at room temperature.

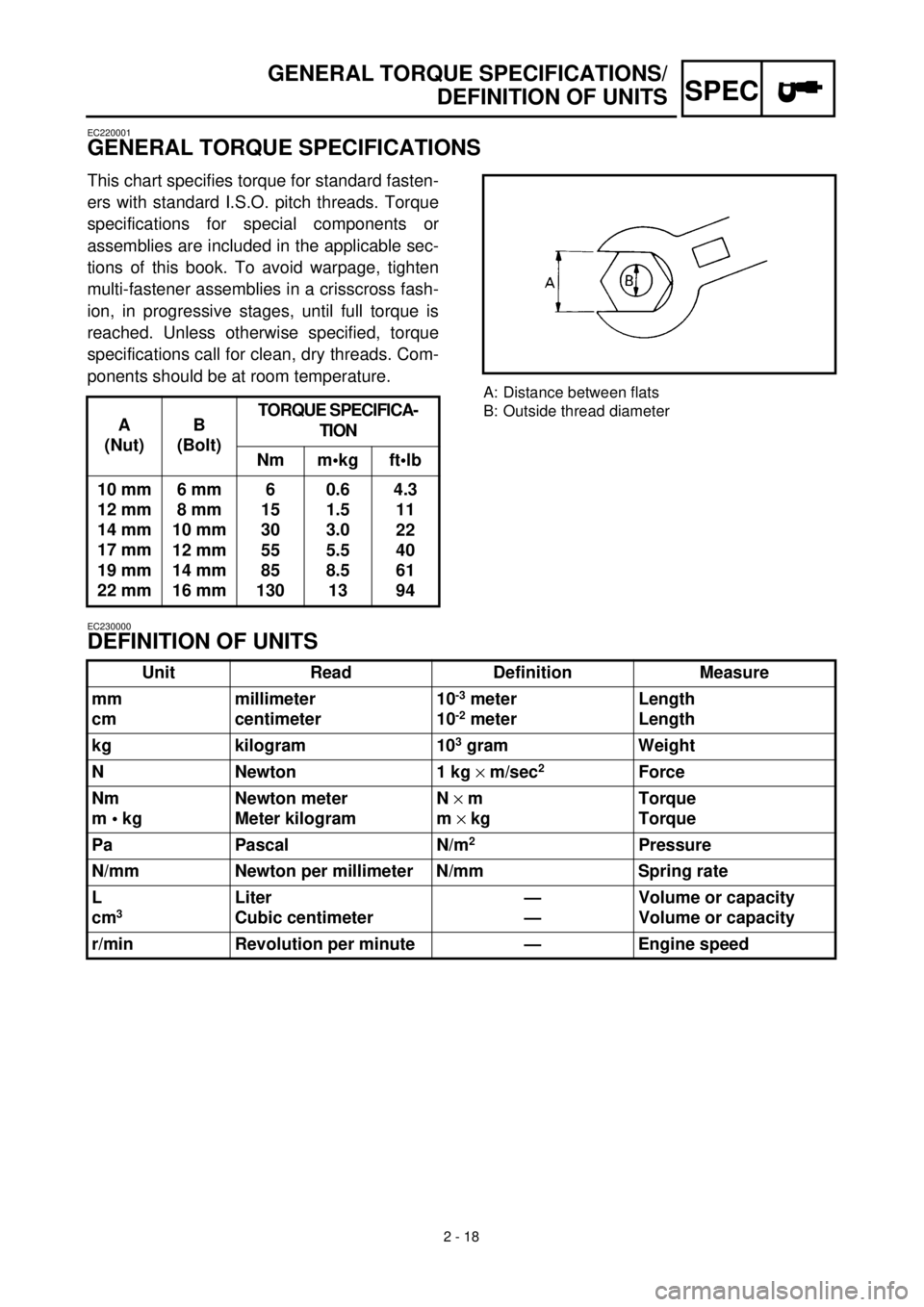

A
(Nut)B
(Bolt)TORQUE SPECIFICA-
TION
Nm m•kg ft•lb
10 mm
12 mm
14 mm
17 mm
19 mm
22 mm6 mm
8 mm
10 mm
12 mm
14 mm
16 mm6
15
30
55
85
1300.6
1.5
3.0
5.5
8.5
134.3
11
22
40
61
94
A: Distance between flats
B: Outside thread diameter
EC230000
DEFINITION OF UNITS
Unit Read Definition Measure
mm
cmmillimeter
centimeter10
-3

meter
10
-2

meterLength
Length
kg kilogram 10
3

gram Weight
N Newton 1 kg
´
m/sec
2

Force
Nm
m • kgNewton meter
Meter kilogramN
´
m
m
´
kgTorque
Torque
Pa Pascal N/m
2

Pressure
N/mm Newton per millimeter N/mm Spring rate
L
cm
3

Liter
Cubic centimeter—
—Volume or capacity
Volume or capacity
r/min Revolution per minute — Engine speed

2 - 1
CARACTERISTIQUES GENERALES
SPEC

CARACTERISTIQUES
CARACTERISTIQUES GENERALES
Nom de modèle: YZ426FLC (Europe)
YZ426FM (E.-U.)
YZ426F(M) (Canada, AUS, NZ, ZA)
Numéro de code de modèle: 5JG1 (E.-U.)
5JG2 (Europe)
5JG4 (Canada, AUS, NZ, ZA)
Dimensions:
Longueur hors-tout 2.171 mm (85,5 in)
Largeur hors-tout 827 mm (32,6 in)
Hauteur hors-tout 1.303 mm (51,3 in)
Hauteur de la selle 998 mm (39,3 in)
Empattement 1.490 mm (58,7 in)
Garde au sol minimale 373 mm (14,7 in)
Poids en ordre de marche:
Avec plein d’huile et de carburant 113,5 kg (250 lb)
Moteur:
Type de moteur 4 temps, refroidis¬sement liquide, double arbre à
cames en tête (DOHC)
Monocylindre, incliné
426 cm
3

(15,0 Imp oz, 14,4 US oz)
95,0
´
60,1 mm (3,74
´
2,37 in)
12,5 : 1
Démarreur au pied Dispositions de cylindres
Cylindrée
Alésage
´
course
Taux de compression
Système de démarrage
Système de graissage: Carter sec

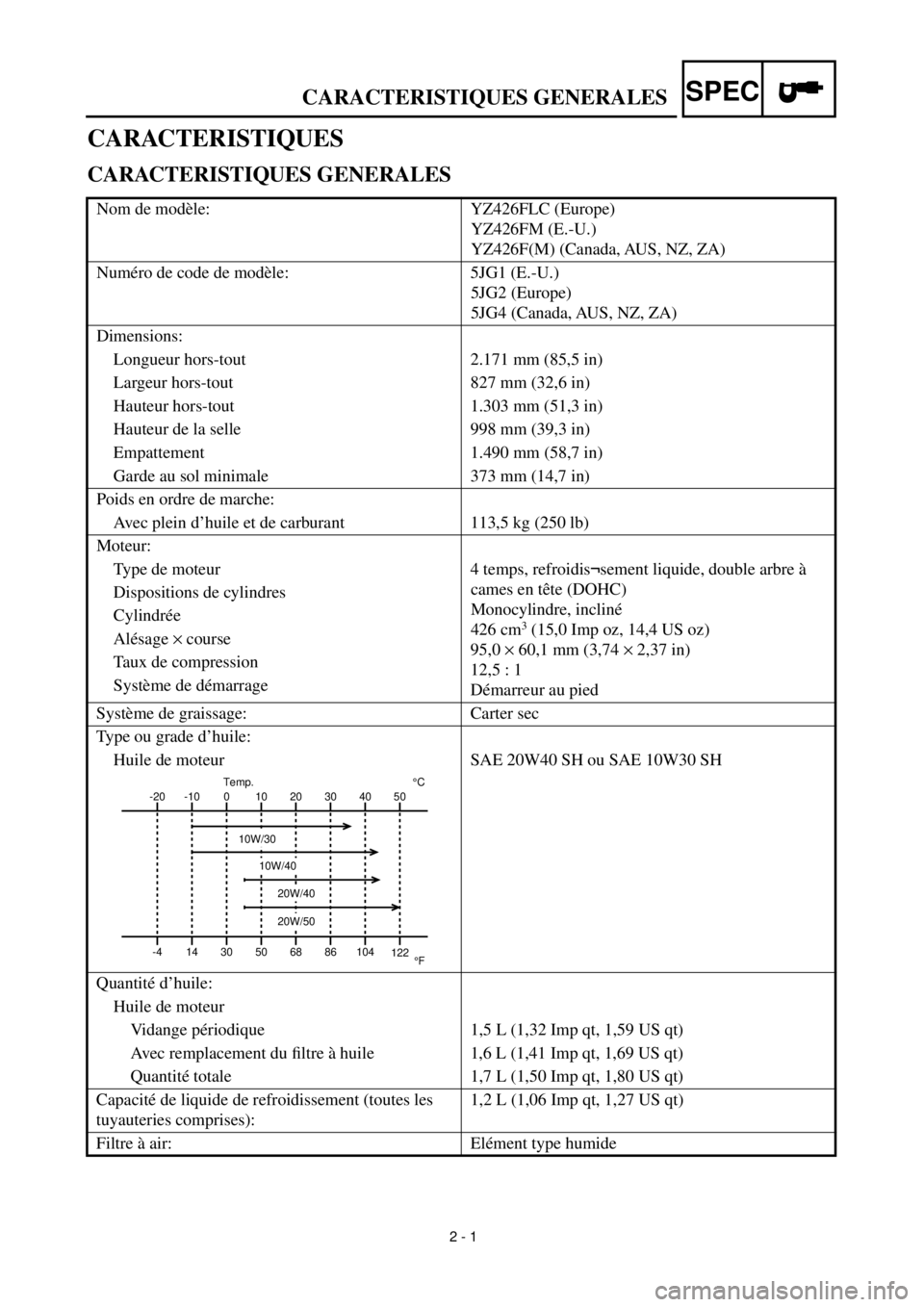

Type ou grade d’huile:
Huile de moteur SAE 20W40 SH ou SAE 10W30 SH
Quantité d’huile:
Huile de moteur
Vidange périodique 1,5 L (1,32 Imp qt, 1,59 US qt)
Avec remplacement du filtre à huile 1,6 L (1,41 Imp qt, 1,69 US qt)
Quantité totale 1,7 L (1,50 Imp qt, 1,80 US qt)
Capacité de liquide de refroidissement (toutes les
tuyauteries comprises):1,2 L (1,06 Imp qt, 1,27 US qt)
Filtre à air: Elément type humide
-20
-4-10
140
3010
5020
6830
8640 50
104
122¡CTemp.
¡F
10W/30
10W/40
20W/40
20W/50

2 - 2
CARACTERISTIQUES GENERALES
SPEC

Essence:
Type Essence super sans plomb d’unindice d’octane de
recherche de 95 ou plus. (Excepté pour AUS)
Uniquement essence sans plomb (Pour AUS)
Capacité du réservoir 8,0 L (1,76 Imp gal, 2,11 US gal)
Carburateur:
Type FCR MX39
Fabricant KEIHIN
Bougie:
Type / fabricant CR8E / NGK
U24ESR-N / DENSO
Ecartement des électrodes 0,7 à 0,8 mm (0,028 à 0,031 in)
Type d’embrayage: Humide, multi-disques
Transmission: E.-U., Canada, ZA,
AUS, NZEurope
Système de réduction primaire Engrenage
¬
Taux de réduction primaire 62/21 (2,952)
¬
Système de réduction secondaire Entraînement par chaîne
¬
Taux de réduction secondaire 49/14 (3,500) 48/14 (3.429)
Type de boîte de vitesse Prise constante, 5 rap-
ports
¬
Commande Au pied gauche
¬
Taux de réduction: 1ère 24/13 (1,846)
¬
2ème 27/18 (1,500)
¬
3ème 23/18 (1,278)
¬
4ème 24/22 (1,091)
¬
5ème 20/21 (0,952)
¬
Partie cycle:
Type de cadre Simple berceau dédoublé
Angle de chasse 27,8˚
Chasse 123 mm (4,84 in)
Pneu:
Type de pneu Avec chambre à air
Taille de pneu (avant)80/100-21 51M (Pour E.-U., Canada, ZA, AUS, NZ et F)
80/100-21 51R (Pour Europe excepté pour F)
Taille de pneu (arrière)110/90-19 62M (Pour E.-U., Canada, ZA, AUS, NZ et F)
110/90-19 NHS (Pour Europe excepté pour F)
Pression de pneu (avant et arrière) 100 kPa (1,0 kg/cm
2

, 15 psi)
Freins:
Type de frein avant Frein à simple disque
Commande Main droite
Type de frein arrière Frein à simple disque
Commande Pied droit
Suspension:
Suspension avant Fourche télescopique
Suspension arrière Bras oscillant (monocross de type biellette)

2 - 3
CARACTERISTIQUES GENERALES
SPEC

Amortisseurs:
Amortisseur avant Ressort hélicoïdal/amortisseur huile
Amortisseur arrière Ressort hélicoïdal/amortisseur huile à gaz-huile
Débattement:
Roue avant 300 mm (11,8 in)
Roue arrière 315 mm (12,4 in)
Partie électrique:
Système d’allumage Magnéto CDI
