YAMAHA YZ450F 2014 Owners Manual

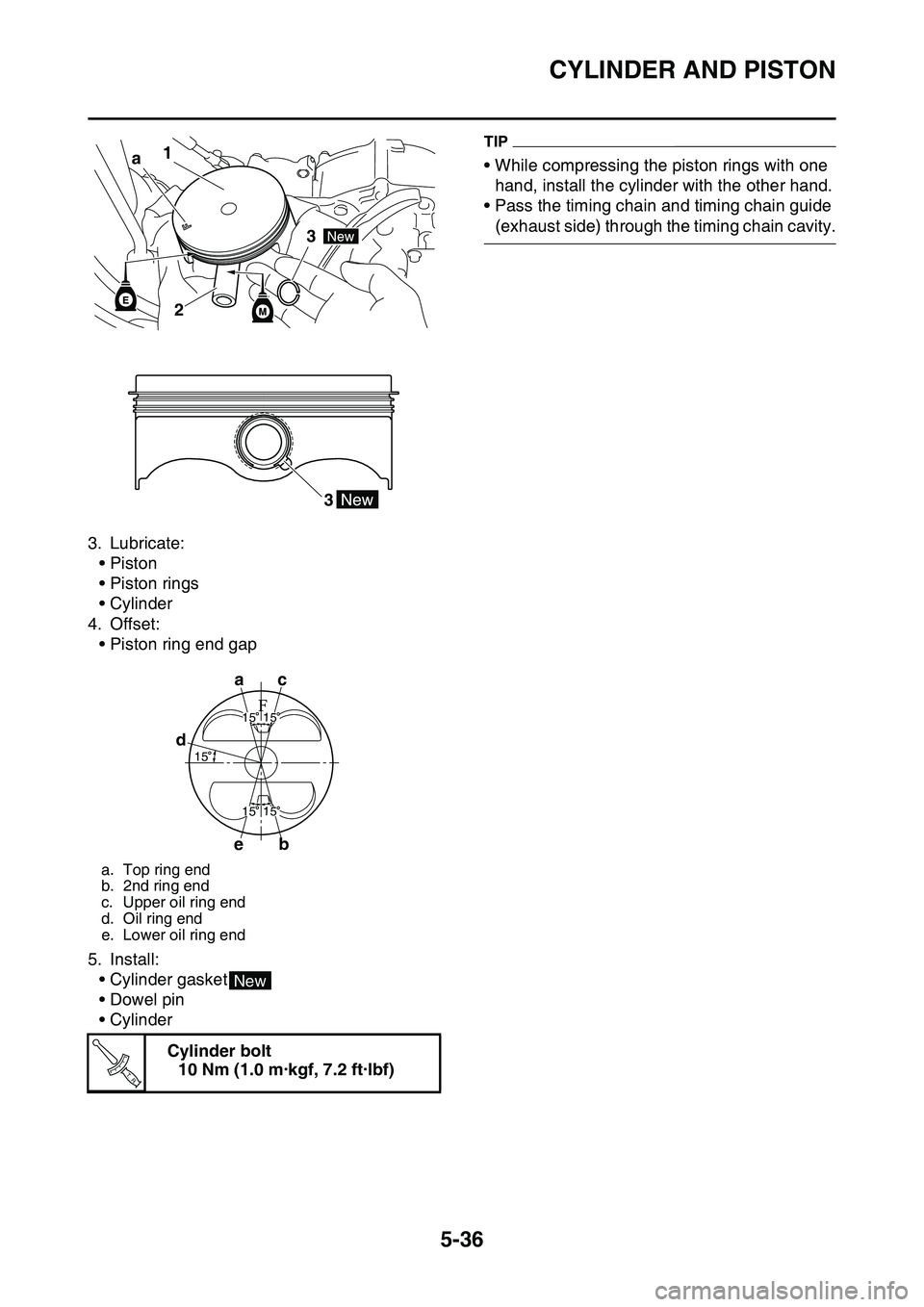

CYLINDER AND PISTON
5-36
3. Lubricate:
•Piston
• Piston rings
• Cylinder
4. Offset:
• Piston ring end gap
5. Install:
• Cylinder gasket
• Dowel pin
• Cylinder
TIP
• While compressing the piston rings with one
hand, install the cylinder with the other hand.
• Pass the timing chain and timing chain guide
(exhaust side) through the timing chain cavity.
a. Top ring end
b. 2nd ring end
c. Upper oil ring end
d. Oil ring end
e. Lower oil ring end
Cylinder bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
3
2 a
3
ac
eb d
15
15
15
1515
New
T R..

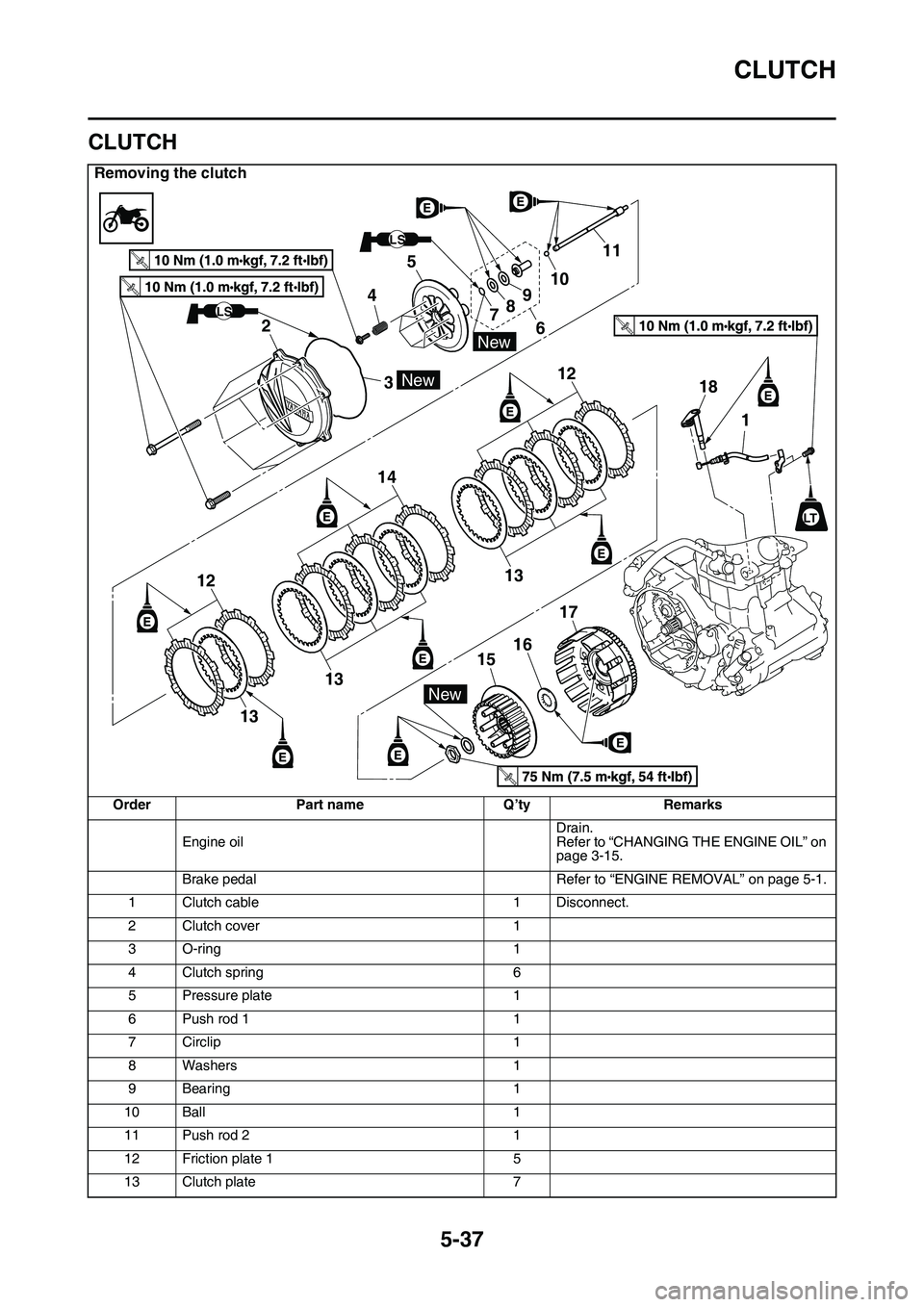

CLUTCH
5-37
EAS1SL1232
CLUTCH
Removing the clutch
OrderPart nameQ’tyRemarks
Engine oilDrain.Refer to “CHANGING THE ENGINE OIL” on page 3-15.
Brake pedalRefer to “ENGINE REMOVAL” on page 5-1.
1Clutch cable1Disconnect.
2Clutch cover1
3O-ring1
4Clutch spring6
5Pressure plate1
6Push rod 11
7Circlip1
8Washers1
9Bearing1
10Ball1
11Push rod 21
12Friction plate 15
13Clutch plate7
LS
LS
New
New
New
2
3 45
789
61011
13
12
12
18
1
14
13
13
17
16
15
T.R.
T.R.
T.R.
T.R.
LT

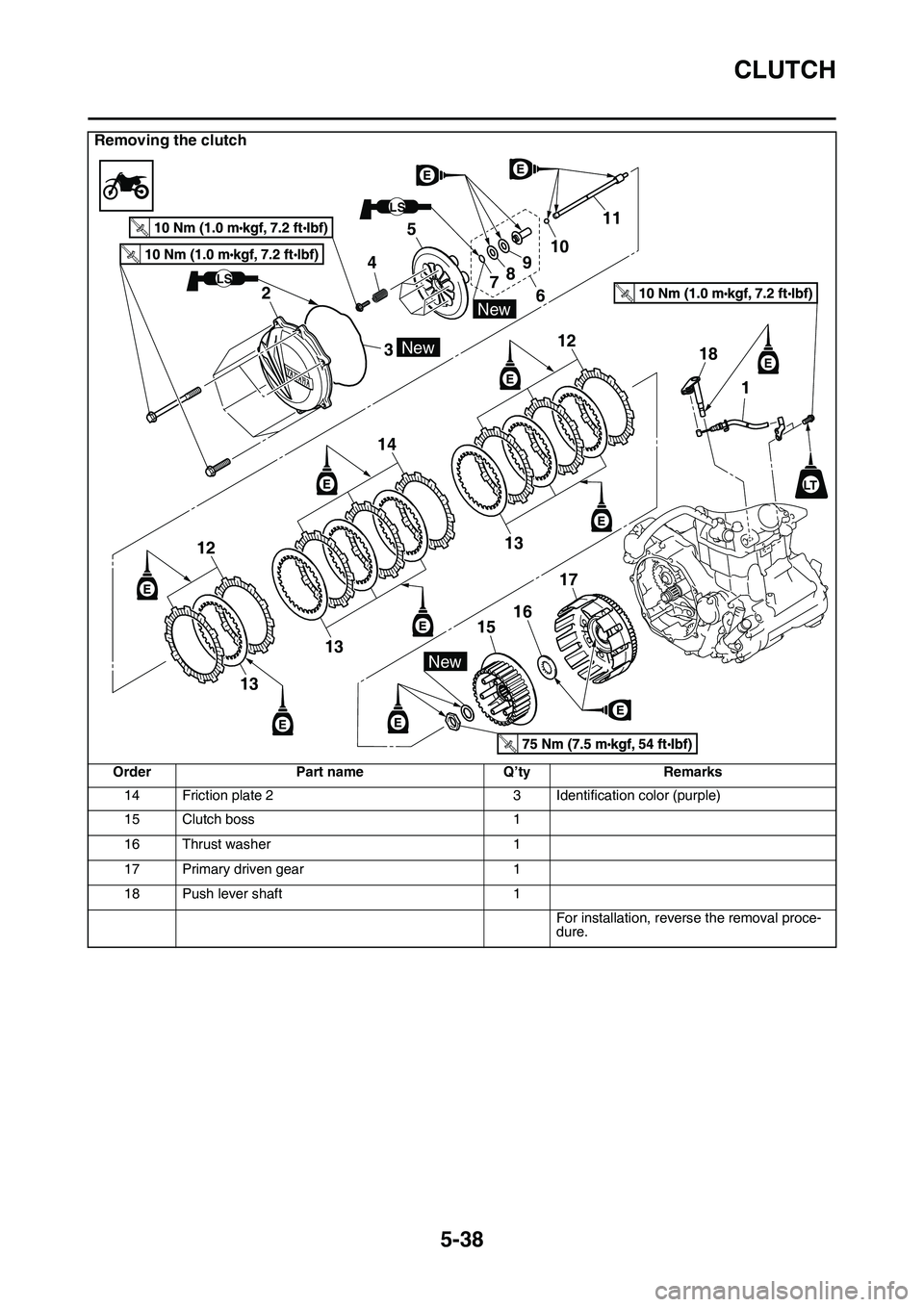

CLUTCH
5-38
14Friction plate 23Identification color (purple)
15Clutch boss1
16Thrust washer1
17Primary driven gear1
18Push lever shaft1
For installation, reverse the removal proce-dure.
Removing the clutch
Order Part name Q’ty Remarks
LS
LS
New
New
New
2
3 45
789
61011
13
12
12
18
1
14
13
13
17
16
15
T.R.
T.R.
T.R.
T.R.
LT

CLUTCH
5-39
Removing the right crankcase cover
OrderPart nameQ’tyRemarks
Right engine guardRefer to “ENGINE REMOVAL” on page 5-1.
Engine oilDrain.Refer to “CHANGING THE ENGINE OIL” on page 3-15.
CoolantDrain.Refer to “CHANGING THE COOLANT” on page 3-8.
Brake pedalRefer to “ENGINE REMOVAL” on page 5-1.
Clutch coverRefer to “CLUTCH” on page 5-37.
1Oil filter element cover1
2Oil filter element1
3Radiator pipe 21
4Kickstarter lever1
5Right crankcase cover1
6Gaskets1
7Dowel pin2
8Collar1
For installation, reverse the removal proce-dure.
T.R.
E
E
LS
New
New
67
2
5
4
1
7 8
New
3
LS
New
New
LS
NewNew
LT

CLUTCH
5-40

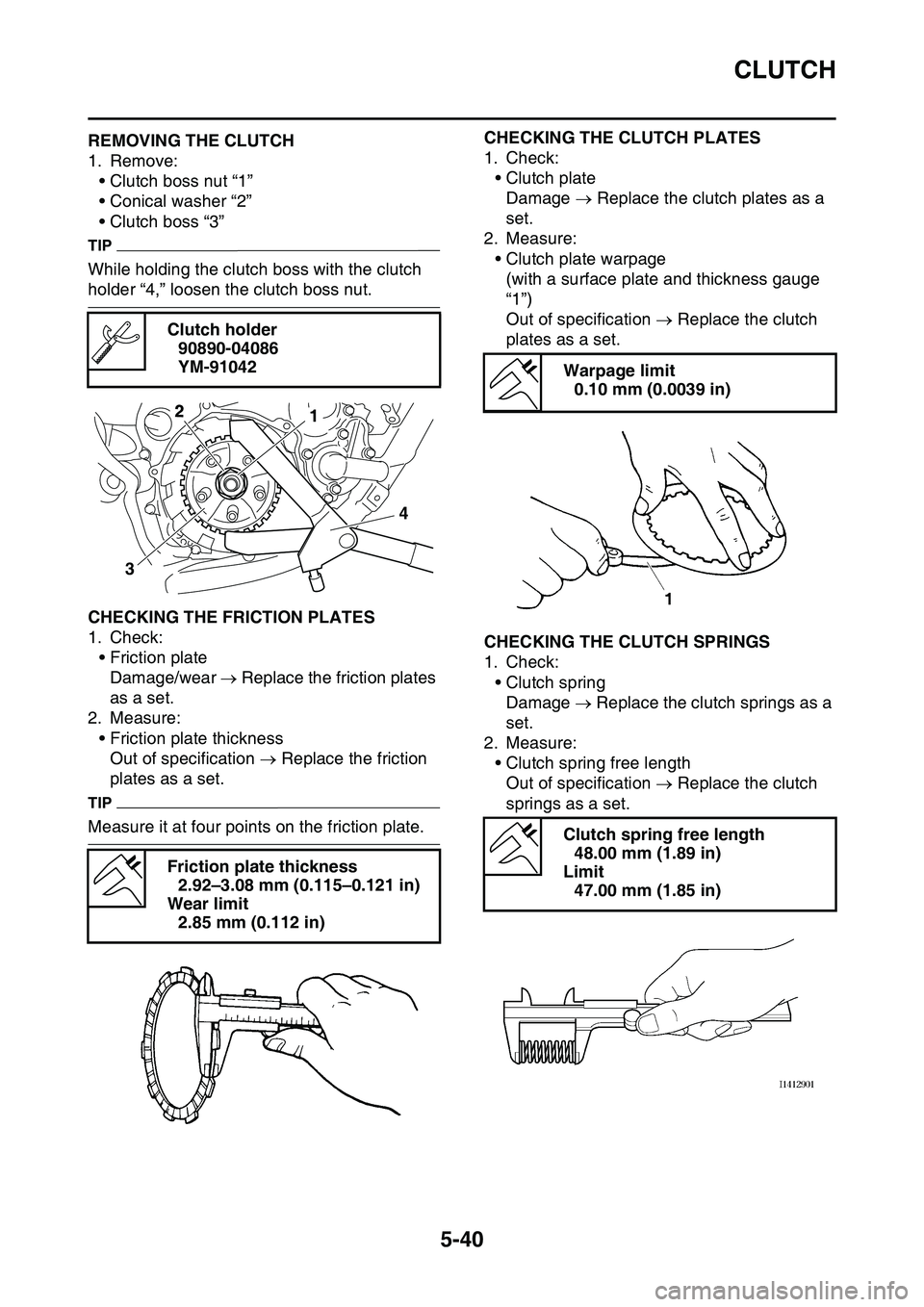

EAS1SL1233REMOVING THE CLUTCH
1. Remove:
• Clutch boss nut “1”
• Conical washer “2”
• Clutch boss “3”
TIP
While holding the clutch boss with the clutch
holder “4,” loosen the clutch boss nut.
EAS1SL1234CHECKING THE FRICTION PLATES
1. Check:
• Friction plate
Damage/wear  Replace the friction plates
as a set.
2. Measure:
• Friction plate thickness
Out of specification  Replace the friction
plates as a set.
TIP
Measure it at four points on the friction plate.
EAS1SL1235
CHECKING THE CLUTCH PLATES
1. Check:
• Clutch plate
Damage  Replace the clutch plates as a
set.
2. Measure:
• Clutch plate warpage
(with a surface plate and thickness gauge
“1”)
Out of specification  Replace the clutch
plates as a set.
EAS1SL1236CHECKING THE CLUTCH SPRINGS
1. Check:
• Clutch spring
Damage  Replace the clutch springs as a
set.
2. Measure:
• Clutch spring free length
Out of specification  Replace the clutch
springs as a set.
EAS1SL1237
Clutch holder
90890-04086
YM-91042
Friction plate thickness
2.92–3.08 mm (0.115–0.121 in)
Wear limit
2.85 mm (0.112 in)
34
12
Warpage limit
0.10 mm (0.0039 in)
Clutch spring free length
48.00 mm (1.89 in)
Limit
47.00 mm (1.85 in)

CLUTCH
5-41

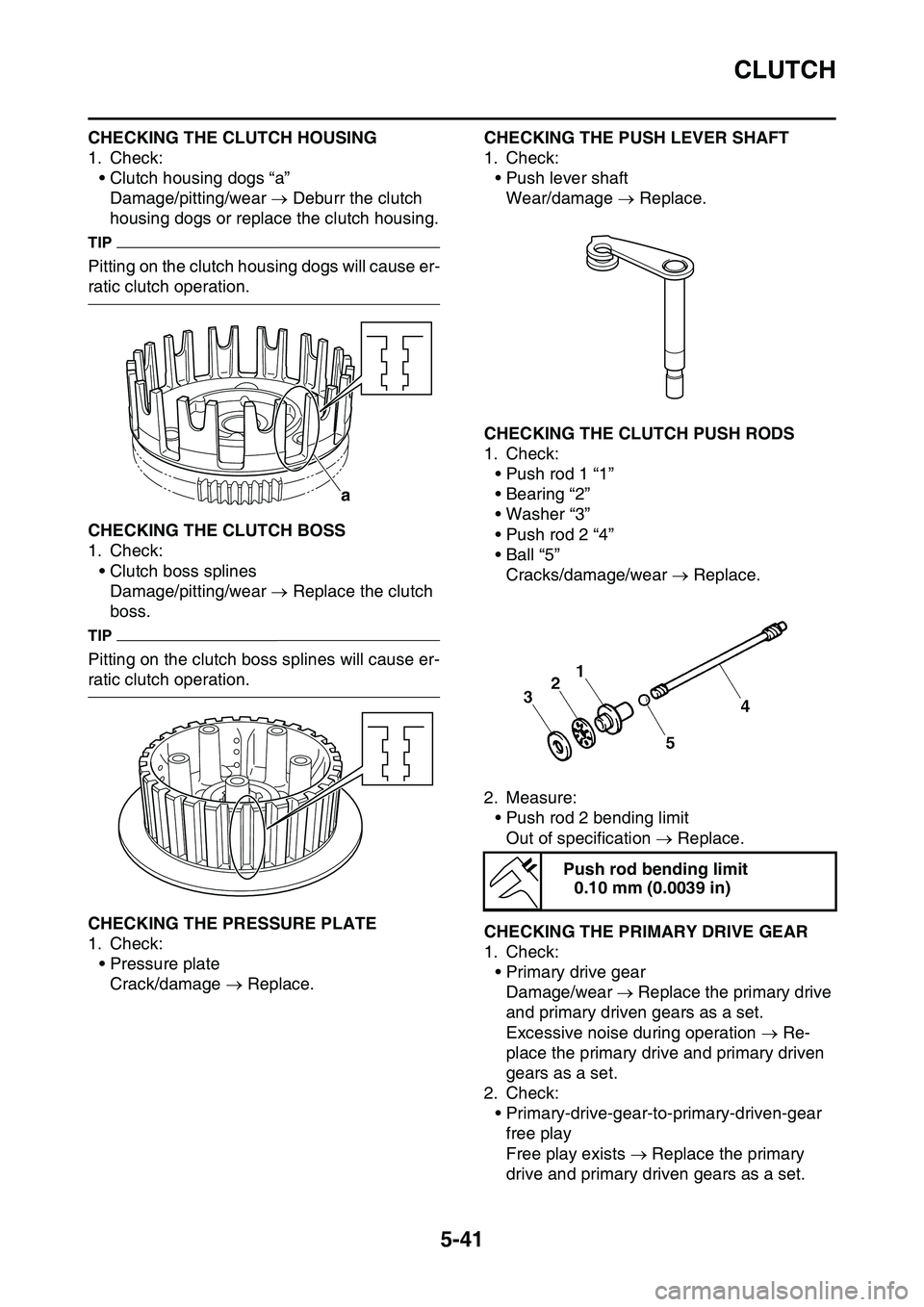

CHECKING THE CLUTCH HOUSING
1. Check:
• Clutch housing dogs “a”
Damage/pitting/wear  Deburr the clutch
housing dogs or replace the clutch housing.
TIP
Pitting on the clutch housing dogs will cause er-
ratic clutch operation.
EAS1SL1238CHECKING THE CLUTCH BOSS
1. Check:
• Clutch boss splines
Damage/pitting/wear  Replace the clutch
boss.
TIP
Pitting on the clutch boss splines will cause er-
ratic clutch operation.
EAS1SL1239CHECKING THE PRESSURE PLATE
1. Check:
• Pressure plate
Crack/damage  Replace.
EAS1SL1240
CHECKING THE PUSH LEVER SHAFT
1. Check:
• Push lever shaft
Wear/damage  Replace.
EAS1SL1241CHECKING THE CLUTCH PUSH RODS
1. Check:
• Push rod 1 “1”
• Bearing “2”
• Washer “3”
• Push rod 2 “4”
•Ball “5”
Cracks/damage/wear  Replace.
2. Measure:
• Push rod 2 bending limit
Out of specification  Replace.
EAS1SL1242CHECKING THE PRIMARY DRIVE GEAR
1. Check:
• Primary drive gear
Damage/wear  Replace the primary drive
and primary driven gears as a set.
Excessive noise during operation  Re-
place the primary drive and primary driven
gears as a set.
2. Check:
• Primary-drive-gear-to-primary-driven-gear
free play
Free play exists  Replace the primary
drive and primary driven gears as a set.
EAS1SL1243
a
Push rod bending limit
0.10 mm (0.0039 in)

CLUTCH
5-42
CHECKING THE PRIMARY DRIVEN GEAR
1. Check:
• Primary driven gear
Damage/wear  Replace the primary drive
and primary driven gears as a set.
Excessive noise during operation  Re-
place the primary drive and primary driven
gears as a set.
EAS1SL1244INSTALLING THE OIL SEAL
1. Install:
• Oil seal “1”
• Washer “2”
• Circlip “3”
TIP
• Apply is lithium-soap-based grease on the oil
seal lip.
• Install the oil seal in parallel with its manufac-
ture's marks or numbers facing inward.
EAS1SL1245INSTALLING THE RIGHT CRANKCASE
COVER
1. Install:
• Dowel pin “1”
• O-rings “2”
• Collar “3”
• Gasket “4”
TIP
Apply the lithium-soap-based grease on the O-
ring.
2. Install:
• Right crankcase cover “1”
• Right crankcase cover bolt “2”
TIP
• Apply the engine oil on the impeller shaft end.
• When installing the crankcase cover onto the
crankcase, make sure that the impeller shaft
end “3” aligns with the balancer end slot “4.”
• Tighten the right crankcase cover bolts in
stages and in a crisscross pattern.
EAS1SL1246INSTALLING THE CLUTCH
1. Install:
• Push lever shaft “1”
TIP
• Apply the lithium soap base grease on the oil
seal lip.
• Before installation, apply the engine oil to the
push lever shaft sliding surface.
New
New
3
2
1
LS
New
New
1
1 4
2
New
New
3
LS
Right crankcase cover bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)T R..
12
1

CLUTCH
5-43

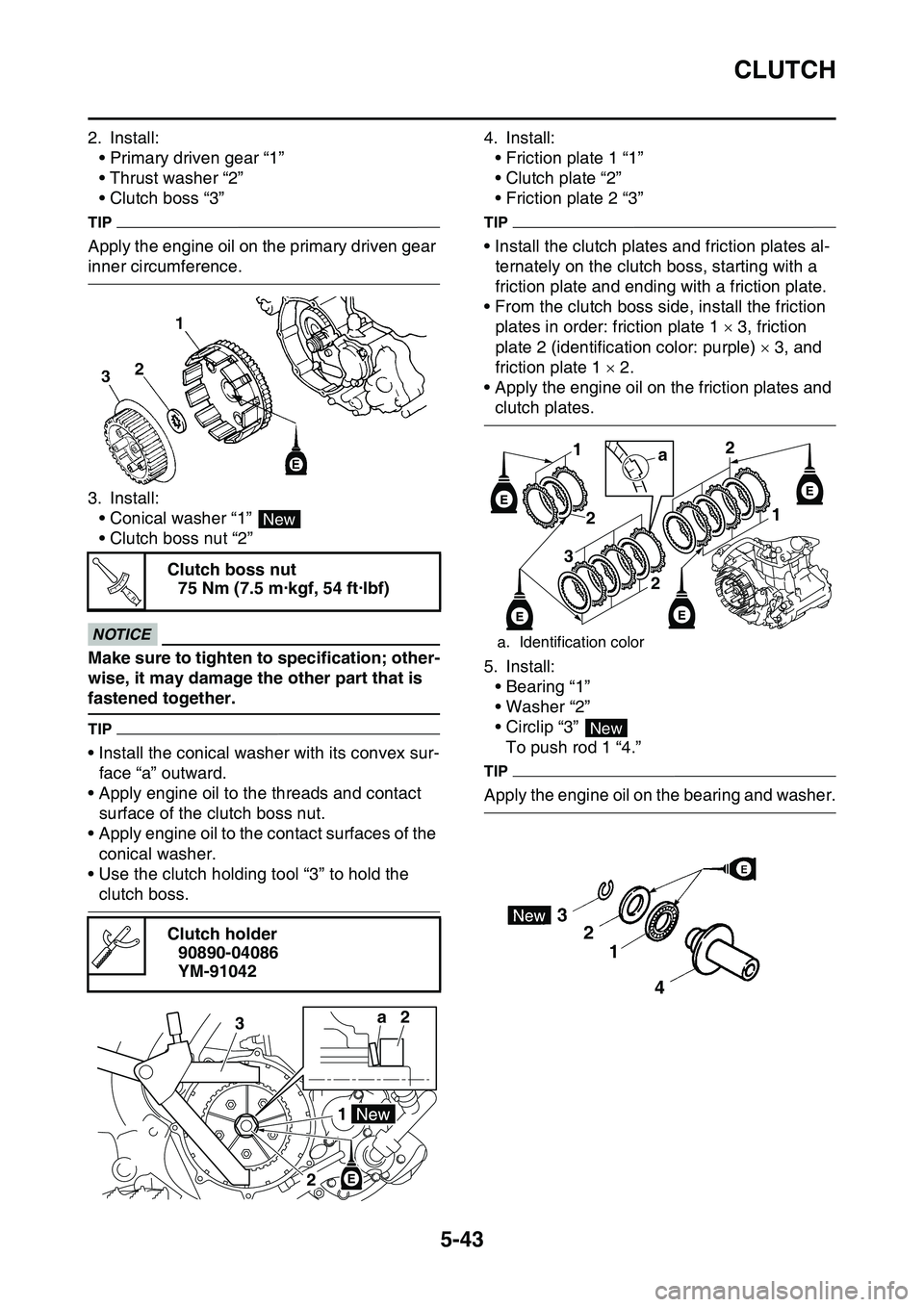

2. Install:
• Primary driven gear “1”
• Thrust washer “2”
• Clutch boss “3”
TIP
Apply the engine oil on the primary driven gear
inner circumference.
3. Install:
• Conical washer “1”
• Clutch boss nut “2”
ECA1DX1020
NOTICE
Make sure to tighten to specification; other-
wise, it may damage the other part that is
fastened together.
TIP
• Install the conical washer with its convex sur-
face “a” outward.
• Apply engine oil to the threads and contact
surface of the clutch boss nut.
• Apply engine oil to the contact surfaces of the
conical washer.
• Use the clutch holding tool “3” to hold the
clutch boss.
4. Install:
• Friction plate 1 “1”
• Clutch plate “2”
• Friction plate 2 “3”
TIP
• Install the clutch plates and friction plates al-
ternately on the clutch boss, starting with a
friction plate and ending with a friction plate.
• From the clutch boss side, install the friction
plates in order: friction plate 1  3, friction
plate 2 (identification color: purple)  3, and
friction plate 1  2.
• Apply the engine oil on the friction plates and
clutch plates.
5. Install:
• Bearing “1”
• Washer “2”
• Circlip “3”
To push rod 1 “4.”
TIP
Apply the engine oil on the bearing and washer.
Clutch boss nut
75 Nm (7.5 m·kgf, 54 ft·lbf)
Clutch holder
90890-04086
YM-91042
New
T R..
a2
3
21
a. Identification color
1
2a
3
2
2
1
New

CLUTCH
5-44
6. Install:
• Push rod 2 “1”
•Ball “2”
• Push rod 1 “3”
TIP
Apply the engine oil on the push rod 1, 2 and
ball.
7. Install:
• Pressure plate “1”
8. Install:
• Clutch spring
• Clutch spring bolt
TIP
Tighten the bolts in stages and in a crisscross
pattern.
9. Install:
• O-ring “1”
TIP
Apply the lithium-soap-based grease to the O-
ring.
10.Install:
• Clutch cover “1”
• Clutch cover bolt
TIP
Tighten the bolts in stages and in a crisscross
pattern.
EAS1SL1247
Clutch spring bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)T R..
Clutch cover bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
New
T R..
1

CLUTCH
5-45

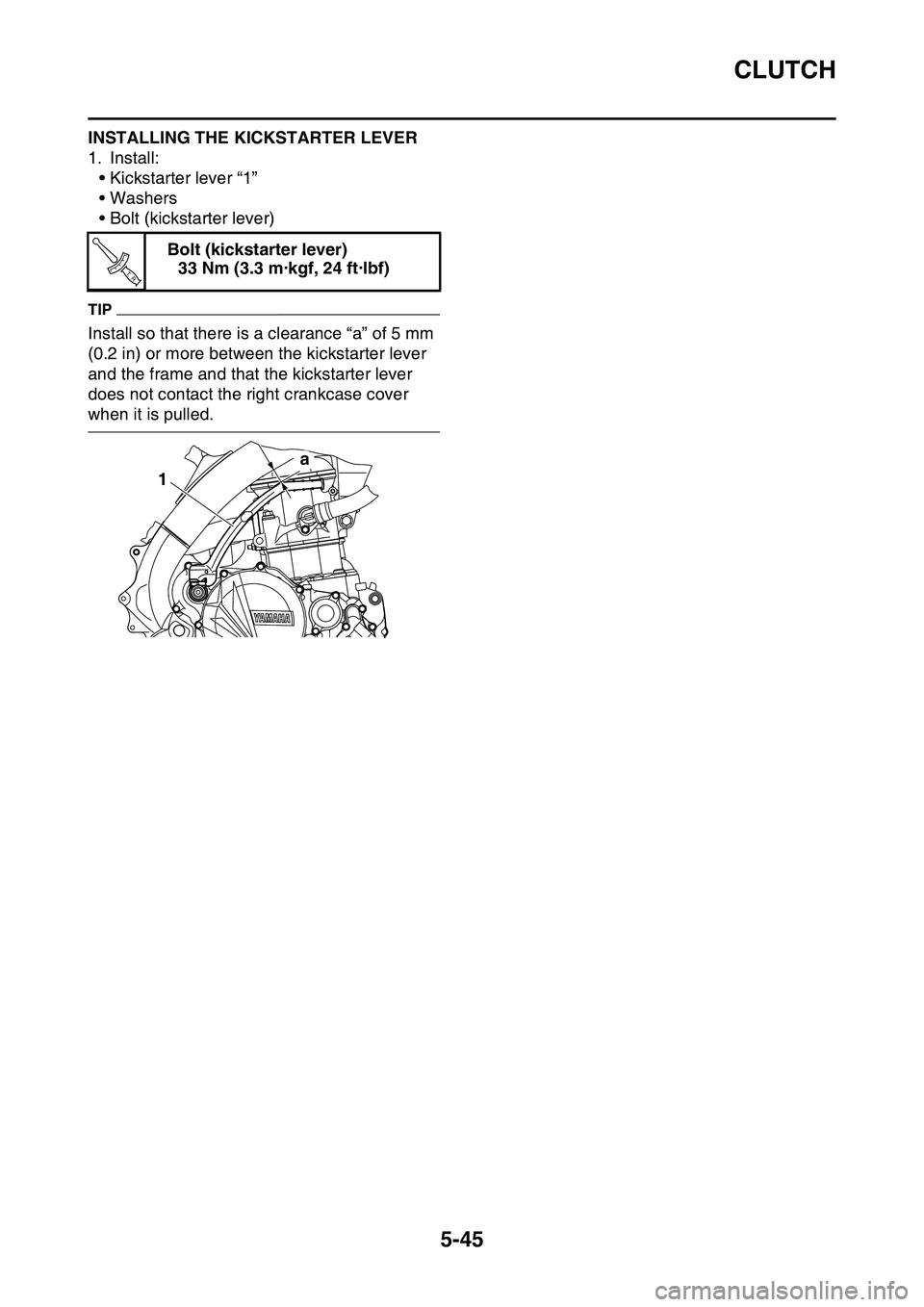

INSTALLING THE KICKSTARTER LEVER
1. Install:
• Kickstarter lever “1”
• Washers
• Bolt (kickstarter lever)
TIP
Install so that there is a clearance “a” of 5 mm
(0.2 in) or more between the kickstarter lever
and the frame and that the kickstarter lever
does not contact the right crankcase cover
when it is pulled.
Bolt (kickstarter lever)
33 Nm (3.3 m·kgf, 24 ft·lbf)T R..
1
a
