YAMAHA YZ85 2014 Service Manual

FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-3
5
Front fork and rear shock a b-
sor ber assem bly • Check that they operate smoothly and there is no oil leakage. 4-7, 4-9, 4-9, 7-26
Chassis fasteners • Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.
—
Movin g parts an d cab les • Check that the control cables move smoothly.
• Check that the control cables are not caught when the handlebars are turned or
when the front forks travel up and down.
• Lubricate moving parts and cables if necessary. 7-24, 7-24, 7-26, 7-25
Exhaust system • Check that the exhaust pipe is tightly mounted and has no cracks.
• Check for leakage. —
I g nition system • Check that all leads and cables are properly connected. 7-8
ITEM
CHECKS PAGE
U1SN82E0.book Page 3 Friday, June 7, 2013 3:51 PM

OPERATION AND IMPORTANT RIDING POINTS
6-1
6
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU41308
Startin g an d warmin g up a
col d en gine1. Turn the fuel cock lever to “ON”.
2. Shift the transmission into the
neutral position.
3. Turn the starter (choke) on and completely close the throttle. (See
page 4-6.)
4. Start the engine by pushing the kickstarter lever down.
5. When the engine is warm, turn the starter (choke) off.TIPThe engine is warm when it responds
quickly to the throttle with the starter
(choke) turned off.NOTICE
ECA11043
For maximum en gine life, never ac-
celerate har d when the en gine is
col d!
EAU16661
Startin g a warm en gineFollow the same procedure as for
starting a cold engine with the excep-
tion that the starter (choke) is not re-
quired when the engine is warm.
Instead, start the engine with the throt-
tle slightly open.TIPIf the engine does not start after sever-
al kicks, try again with the throttle 1/4
to 1/2 open.
U1SN82E0.book Page 1 Friday, June 7, 2013 3:51 PM

OPERATION AND IMPORTANT RIDING POINTS
6-2
6
EAU16672
ShiftingShifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.TIPTo shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
NOTICE
ECA10261
Even with the transmission in
the neutral position, do not
coast for lon g period s of time
with the eng ine off, and d o not
tow the motorcycle for lon g d is-
tances. The transmission is
properly lu bricated only when
the en gine is runnin g. Ina de-
quate lu brication may damag e
the transmission.
 Always use the clutch while
chan gin g g ears to avoi d d am-
a g in g the en gine, transmission,
an d d rive train, which are not
d esi gne d to withstan d the
shock of forced shifting.
EAU16691
To start out an d accelerate
1. Pull the clutch lever to disengage the clutch.
2. Shift the transmission into first gear.
3. Open the throttle gradually and si- multaneously release the clutch
lever slowly. 4. Once the motorcycle has reached
a speed high enough to change
gears, close the throttle, and at the
same time, quickly pull the clutch
lever in.
5. Shift the transmission into second gear. (Make sure not to shift the
transmission into the neutral posi-
tion.)
6. Open the throttle halfway and gradually release the clutch lever.
7. Follow the same procedure when shifting to the next gear.
EAU16711
To decelerate
1. Close the throttle and apply both the front and the rear brakes to
slow the motorcycle.
2. Downshift through the gears and shift the transmission into the neu-
tral position when the motorcycle
is almost completely stopped.
1. Shift pedal
2. Neutral position
U1SN82E0.book Page 2 Friday, June 7, 2013 3:51 PM

OPERATION AND IMPORTANT RIDING POINTS
6-3
6
EAU41504
Engine break-in
WARNING
EWA10322
Failure to properly maintain the vehi-
cle or performin g maintenance ac-
tivities incorrectly may increase
your risk of injury or death durin g
service or while usin g the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha d ealer perform
service.1. Before starting the engine, fill the fuel tank with a break-in oil-fuel
mixture as follows.
2. Start and warm up the engine. Check the operation of the con-
trols and the engine stop button.
(See page 4-1.)
3. Operate the motorcycle in the lower gears at moderate throttle
openings for five to eight minutes.
Stop the engine and check the spark plug condition (see page
7-8); it will show a rich condition
during break-in.
4. Allow the engine to cool. Restart the engine and operate the motor-
cycle as in the step above for five
minutes. Then, very briefly shift to
the higher gears and check the
full-throttle response. Stop the en-
gine and check the spark plug.
5. After again allowing the engine to cool, restart and run the motorcy-
cle for five more minutes. Full
throttle and the higher gears may
be used, but sustained full-throttle
operation should be avoided.
Stop the engine and check the
spark plug again.
6. Allow the engine to cool, remove the cylinder head and cylinder,
and inspect the piston and cylin-
der. Remove any high spots on
the piston with #600-grit wet
sandpaper. Clean all components
and carefully reassemble the cyl-
inder head and cylinder.
7. Drain the break-in oil-fuel mixture from the fuel tank and refill with
the specified mix. (See page 4-3.) 8. Start the engine and check the op-
eration of the motorcycle through-
out its entire operating range.
Stop the engine and check the
spark plug condition. Restart the
motorcycle and ride it for about 10
to 15 more minutes. The motorcy-
cle will now be ready to ride nor-
mally.
After the engine break-in period, thor-
oughly check the motorcycle for loose
parts, oil leakage and any other prob-
lems. Be sure to inspect and make ad-
justments thoroughly, especially cable
and drive chain slack and loose
spokes. In addition, check all fittings
and fasteners for looseness, and tight-
en if necessary.
NOTICE
ECA15561
 When any of the followin g parts
have been replaced , they must
b e broken in.
Cylin der or crankshaft:
A bout one hour of b reak-in op-
eration is necessary.
Piston, rin gs or transmission
g ears:
Recommen ded 2-stroke en gine oil:
See page 9-1.
Mixin g ratio ( gasoline to oil):
15:1
U1SN82E0.book Page 3 Friday, June 7, 2013 3:51 PM

OPERATION AND IMPORTANT RIDING POINTS
6-4
6
These parts require a
bout 30
minutes of break-in operation at
half-throttle or less. O bserve the
con dition of the en gine carefully
d urin g operation.
 If any en gine trou ble shoul d oc-
cur durin g the en gine break-in
period , imme diately have a
Yamaha dealer check the vehi-
cle.
EAU17192
Parkin gWhen parking, stop the engine, and
then turn the fuel cock lever to “OFF”.
WARNING
EWA10312
Since the en gine an d exhaust
system can b ecome very hot,
park in a place where ped estri-
ans or chil dren are not likely to
touch them an d b e burne d.
 Do not park on a slope or on soft
groun d, otherwise the vehicle
may overturn, increasin g the
risk of a fuel leak an d fire.
 Do not park near grass or other
flamma ble materials which
mi ght catch fire.
U1SN82E0.book Page 4 Friday, June 7, 2013 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-1
7
EAU42074
Periodic inspection, adjustment, and
lubrication will keep your vehicle in the
safest and most efficient condition
possible. Safety is an obligation of the
vehicle owner/operator. The most im-
portant points of vehicle inspection,
adjustment, and lubrication are ex-
plained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, depending on the
weather, terrain, geographical location,
and individual use, the maintenance in-
tervals may need to be shortened.
WARNING
EWA10322
Failure to properly maintain the vehi-
cle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death durin g
service or while usin g the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha d ealer perform
service.
WARNING
EWA15123
Turn off the en gine when performin g
maintenance unless otherwise
specified .
 A runnin g en gine has movin g
parts that can catch on body
parts or clothin g an d electrical
parts that can cause shocks or
fires.
 Runnin g the en gine while ser-
vicin g can lead to eye injury,
b urns, fire, or car bon monoxi de
poisonin g – possi bly lea din g to
d eath. See pag e 2-2 for more in-
formation a bout car bon monox-
i d e.
WARNING
EWA15461
Brake discs, calipers, drums, and
linin gs can b ecome very hot d uring
use. To avoi d possi ble burns, let
b rake components cool before
touchin g them.
U1SN82E0.book Page 1 Friday, June 7, 2013 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-2
7
EAU4179A
Periodic maintenance an d lu brication chartThe following chart is intended as a general guide to maintenance and lubrication. Bear in mind that such factors as weath-
er, terrain, geographical location, and individual usage will alter the required maintenance and lubrication intervals. If you
are in doubt as to what intervals to follow in maintaining and lubricating your motorcycle, consult your Yamaha dealer.TIPItems marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.NO. ITEM ROUTINEAfter
break-in Every
race Every
third race Every
fifth race As
required
1 *Piston Check piston for carbon deposits and cracks or dam-
age.
Clean. √
√
√
Replace. √
√
2 *Piston rings Check piston ring end gap and rings for damage.
√
Replace.
3 *Piston pin and small
end bearing
Check piston pin and small end bearing for damage. √√√
Replace. √
√
4
*Cylinder head Check cylinder head for carbon deposits.
Clean.
√
√
√
Check cylinder head gasket for damage.
Replace cylinder head gasket. Tighten cylinder head nuts if necessary. √
U1SN82E0.book Page 2 Friday, June 7, 2013 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-3
7
√

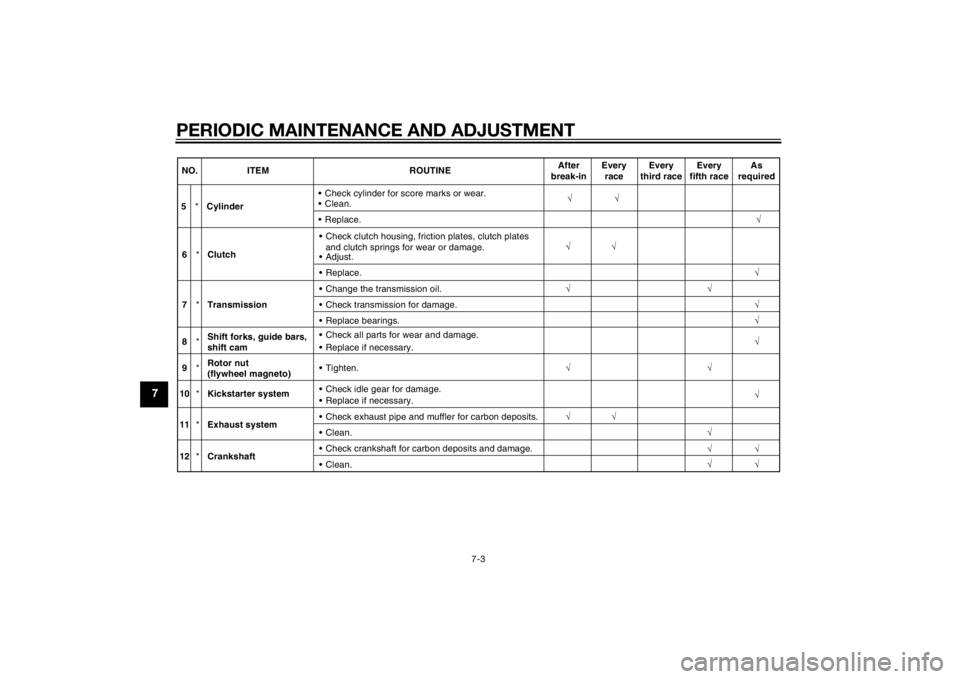

5 *Cylinder • Check cylinder for score marks or wear.
Clean.
√
Replace. √
NO. ITEM ROUTINE
After
break-in Every
race Every
third race Every
fifth race As
required
6 *Clutch Check clutch housing, friction plates, clutch plates
and clutch springs for wear or damage.
Adjust. √
√
Replace. √
7 *Transmission Change the transmission oil.
√
Check transmission for damage. √
Replace bearings. √
8 *Shift forks, guide bars,
shift cam
Replace if necessary. Check all parts for wear and damage.
√
9 *Rotor nut
(flywheel
magneto) Tighten.
√√√
10 *Kickstarter system Check idle gear for damage.
√
Replace if necessary.
11 *Exhaust system Check exhaust pipe and muffler for carbon deposits.
√
√
Clean. √
√
√
√
√
12
*Crankshaft Check crankshaft for carbon deposits and damage.
Clean.
U1SN82E0.book Page 3 Friday, June 7, 2013 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-4
7

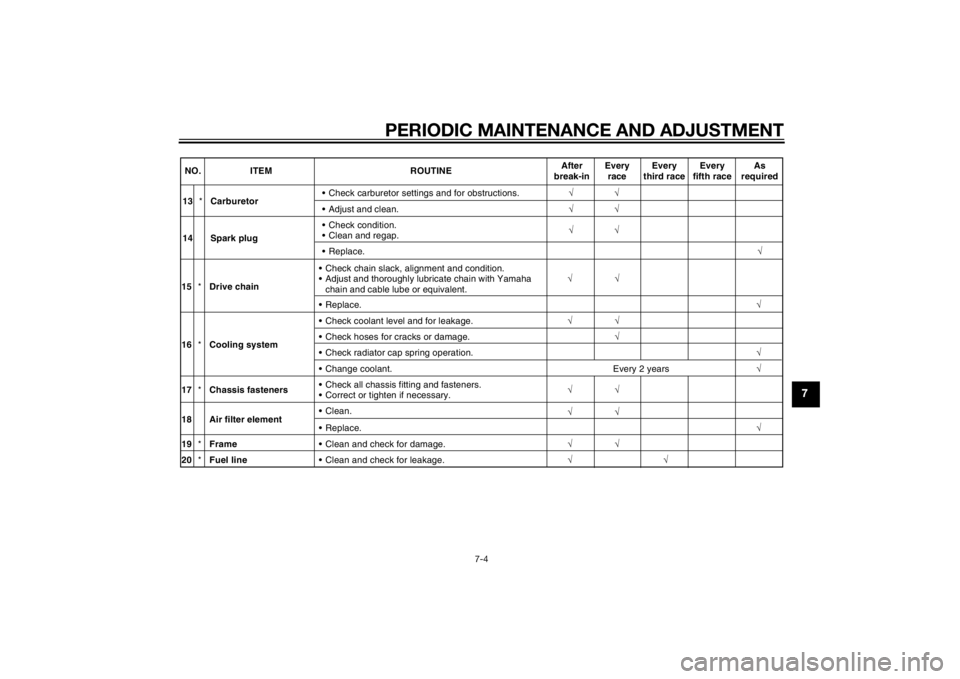

NO.ITEM ROUTINEAfter
break-in Every
race Every
third race Every
fifth race As
required
√
√
√
13
*Carburetor Check carburetor settings and for obstructions.
√
Adjust and clean. √
14 Spark plug Check condition.
Clean and regap.
√
Replace. √
15 Drive chain Check chain slack, alignment and condition.
Adjust and thoroughly lubricate chain with Yamaha
chain and cable lube or equivalent. √
√
√
√
√
Replace. √
16 * *
Cooling system Check coolant level and for leakage.
√
√
Check hoses for cracks or damage. √
Check radiator cap spring operation. √
Change coolant. Every 2 years √
17 *Chassis fasteners Check all chassis fitting and fasteners.
Correct or tighten if necessary. √
18 Air filter element Clean.
√
Replace. √
19 *Frame Clean and check for damage. √
20 *Fuel line Clean and check for leakage. √√
U1SN82E0.book Page 4 Friday, June 7, 2013 3:51 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-5
7
√ √

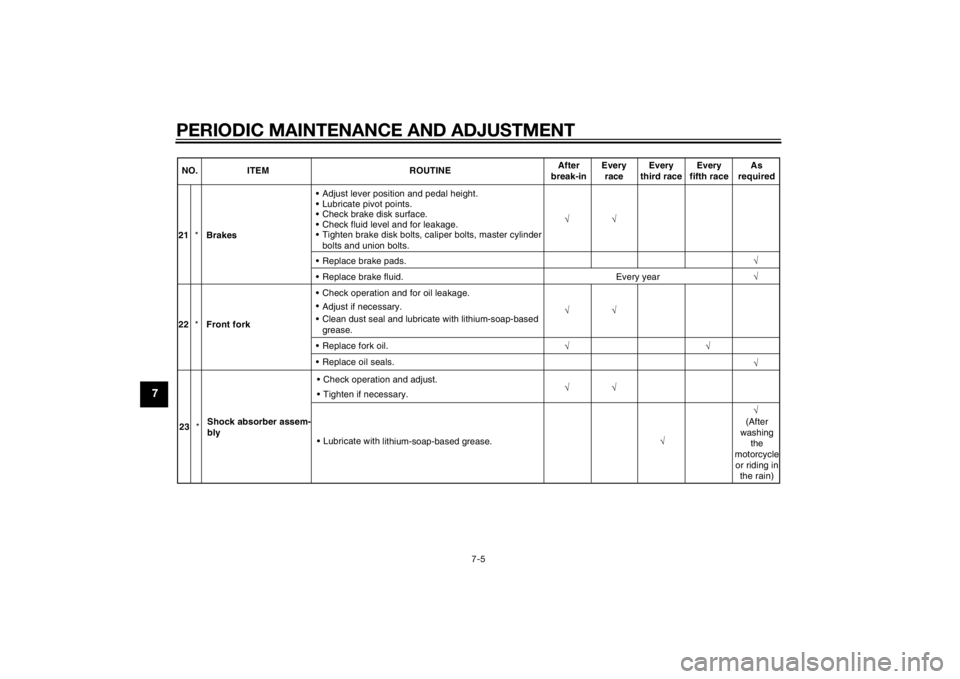

21 *Brakes Adjust lever position and pedal height.
Lubricate pivot points.
Check brake disk surface.
Check fluid level and for leakage.
Tighten brake disk bolts, caliper bolts, master cylinder
bolts and union bolts. √
Replace brake pads. √
Replace brake fluid. Every year√
22 *Front fork
Replace oil seals. Replace fork oil.
Clean dust seal and lubricate with lithium-soap-based
grease.Adjust if necessary.
Check operation and for oil leakage.
√
√√√
NO. ITEM ROUTINE
After
break-in Every
race Every
third race Every
fifth race As
required
√
√
√
23 *Shock absorber assem-
bly Check operation and adjust.
Tighten if necessary.
Lubricate with
lithium-soap-based grease
. √(After
washing the
motorcycle or riding in the rain)
U1SN82E0.book Page 5 Friday, June 7, 2013 3:51 PM
