4-1
4
EAU01114
4-PRE-OPERATION CHECKSOwners are personally responsible for their vehicle’s condition. Your motorcycle’s vital functions can start to deteriorate
quickly and unexpectedly, even if it remains unused (for instance, if it is exposed to the elements). Any damage, fluid leak or
loss of tire pressure could have serious consequences. Therefore, it is very important that, in addition to a thorough visual in-
spection, you check the following points before each ride.
EAU00340
PRE-OPERATION CHECK LIST
ITEM CHECKS PAGE
Front brake
• Check operation, free play, fluid level and fluid leakage.
• Fill with DOT 4 brake fluid if necessary.6-25 ~ 6-28
Rear brake6-25 ~ 6-28
Clutch• Check operation condition and free play.
• Adjust if necessary.6-25
Throttle grip and housing• Check for smooth operation.
• Lubricate if necessary.6-21, 6-30
Engine oil• Check oil level.
• Fill with oil if necessary.6-10 ~ 6-13
Coolant reservoir tank• Check coolant level.
• Fill with coolant if necessary.6-13 ~ 6-16
Drive chain• Check chain slack and condition.
• Adjust if necessary.6-28 ~ 6-29
Wheels and tires• Check tire pressure, wear and damage.6-21 ~ 6-24
6-37 ~ 6-40
Control cable• Check for smooth operation.
• Lubricate if necessary.6-30
Brake pedal shaft• Check for smooth operation.
• Lubricate if necessary.6-30
Brake and clutch lever
pivots• Check for smooth operation.
• Lubricate if necessary.6-31
E_5eb_Preop.fm Page 1 Thursday, November 18, 1999 4:05 PM
Page 42 of 111
PRE-OPERATION CHECKS
4-2
4
NOTE:Pre-operation checks should be made each time the motorcycle is used. Such an inspection can be thoroughly accom-
plished in a very short time; and the added safety it assures is more than worth the time involved.
WARNING
If any item in the PRE-OPERATION CHECK is not working properly, have it inspected and repaired before operating
the motorcycle.Sidestand pivot• Check for smooth operation.
• Lubricate if necessary.6-31
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
Fuel tank• Check fuel level.
• Fill with fuel if necessary.3-13 ~ 3-14
Lights, signals and
switches• Check for proper operation. 6-35 ~ 6-36 ITEM CHECKS PAGE
E_5eb_Preop.fm Page 2 Thursday, November 18, 1999 4:05 PM
Page 43 of 111
E_5eb_Preop.fm Page 3 Thursday, November 18, 1999 4:05 PM
Page 44 of 111

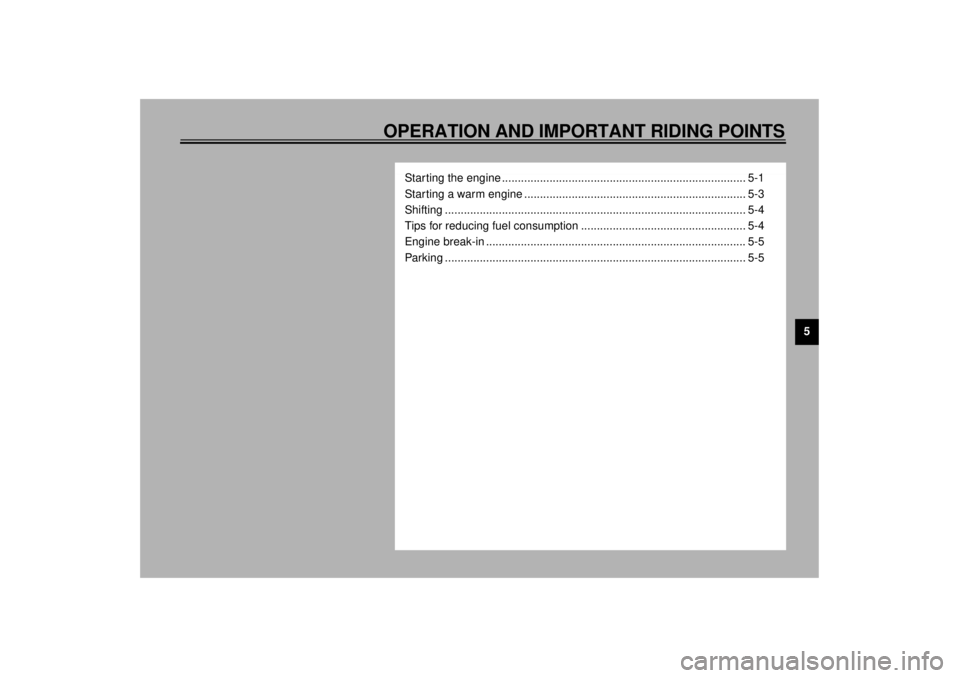

5
OPERATION AND IMPORTANT RIDING POINTS
Starting the engine ............................................................................. 5-1
Starting a warm engine ...................................................................... 5-3
Shifting ............................................................................................... 5-4
Tips for reducing fuel consumption .................................................... 5-4
Engine break-in .................................................................................. 5-5
Parking ............................................................................................... 5-5
E_5eb_OperationTOC.fm Page 1 Thursday, November 18, 1999 4:05 PM
Page 45 of 111
5-1
5
EAU00372
5-OPERATION AND IMPORTANT RIDING POINTS
EAU00373
WARNING
@ l
Before riding this motorcycle,
become thoroughly familiar
with all operating controls and
their functions. Consult a
Yamaha dealer regarding any
control or function that you do
not thoroughly understand.
l
Never start your engine or let it
run for any length of time in a
closed area. The exhaust fumes
are poisonous and can cause
loss of consciousness and
death within a short time. Al-
ways operate your motorcycle
in an area with adequate ventila-
tion.
l
Before starting out, always be
sure the sidestand is up. Failure
to retract the sidestand com-
pletely can result in a serious
accident when you try to turn a
corner.
@
EAU01382*
Starting the engineNOTE:@ This motorcycle is equipped with an ig-
nition circuit cut-off system. The engine
can be started only under one of the
following conditions:l
The transmission is in neutral.
l
The sidestand is up, the transmis-
sion is in gear and the clutch is dis-
engaged.
The motorcycle must not be ridden
when the sidestand is down.
@
EW000054
WARNING
@ Before going through the following
steps, check the function of the
sidestand switch and clutch switch.
(Refer to page 3-24.) @
E_5eb_Operation.fm Page 1 Thursday, November 18, 1999 4:05 PM
Page 46 of 111
OPERATION AND IMPORTANT RIDING POINTS
5-2
5
CF-28E
TURN THE MAIN SWITCH TO “ON” AND THE
ENGINE STOP SWITCH TO “ ”.
IF TRANSMISSION IS IN NEUTRAL AND
SIDESTAND IS DOWN,PUSH THE START SWITCH.
ENGINE WILL START.RETRACT THE SIDESTAND AND PUT
TRANSMISSION IN GEAR.
IF TRANSMISSION IS IN GEAR AND
SIDESTAND IS UP,PULL IN THE CLUTCH LEVER AND PUSH START
THE SWITCH. ENGINE WILL START.
MOTORCYCLE CAN BE RIDDEN.
MOTORCYCLE CAN BE RIDDEN.
E_5eb_Operation.fm Page 2 Thursday, November 18, 1999 4:05 PM
Page 47 of 111
OPERATION AND IMPORTANT RIDING POINTS
5-3
51. Turn the main switch to “ON” and
the engine stop switch to “ ”.
ECA00005
CAUTION:@ The oil level/coolant temperature in-
dicator light and fuel indicator light
should come on for a few seconds
and then go off. If an indicator light
does not go off, refer to the corre-
sponding indicator light circuit
check in the “INSTRUMENT AND
CONTROL FUNCTIONS” section. @2. Shift the transmission into neutral.NOTE:@ When the transmission is in neutral, the
neutral indicator light should be on. If
the light does not come on, ask a
Yamaha dealer to inspect it. @3. Turn on the starter (choke) and
completely close the throttle grip.
4. Start the engine by pushing the
start switch.
NOTE:@ If the engine fails to start, release the
start switch, wait a few seconds, then
try again. Each attempt should be as
short as possible to preserve the bat-
tery. Do not crank the engine more
than 10 seconds on any one attempt. @5. After starting the engine, move the
starter (choke) to the halfway posi-
tion.NOTE:@ For maximum engine life, never accel-
erate hard with a cold engine! @6. After the engine is warm, turn off
the starter (choke) completely.NOTE:@ The engine is warm when it responds
normally to the throttle with the starter
(choke) turned off. @
EAU01258
Starting a warm engineThe starter (choke) is not required
when the engine is warm.
EC000046
CAUTION:@ See the “Engine break-in” section
prior to operating the motorcycle for
the first time. @
E_5eb_Operation.fm Page 3 Thursday, November 18, 1999 4:05 PM
Page 48 of 111
OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU00423
ShiftingThe transmission lets you control the
amount of power you have available at
a given speed for starting, accelerating,
climbing hills, etc. The use of the shift
pedal is shown in the illustration.
To shift into neutral, depress the shift
pedal repeatedly until it reaches the
end of its travel, then raise the pedal
slightly.
EC000048
CAUTION:@ l
Do not coast for long periods
with the engine off, and do not
tow the motorcycle a long dis-
tance. Even with gears in neu-
tral, the transmission is only
properly lubricated when the
engine is running. Inadequate
lubrication may damage the
transmission.
l
Always use the clutch when
changing gears. The engine,
transmission, and driveline are
not designed to withstand the
shock of forced shifting and can
be damaged by shifting without
using the clutch.
@
EAU00424
Tips for reducing fuel
consumptionYour motorcycle’s fuel consumption
depends to a large extent on your
riding style. The following tips can help
reduce fuel consumption:l
Warm up the engine before riding.
l
Turn off the starter (choke) as
soon as possible.
l
Shift up swiftly and avoid high en-
gine speeds during acceleration.
l
Do not double-clutch or rev the en-
gine while shifting down and avoid
high engine speeds with no load
on the engine.
l
Turn off the engine instead of let-
ting it idle for an extended length
of time, i.e. in traffic jams, at traffic
lights or railroad crossings.
1. Shift pedal
N. Neutral
E_5eb_Operation.fm Page 4 Thursday, November 18, 1999 4:05 PM
Page 49 of 111
OPERATION AND IMPORTANT RIDING POINTS
5-5
5
EAU01128
Engine break-inThere is never a more important period
in the life of your motorcycle than the
period between zero and 1,600 km. For
this reason we ask that you carefully
read the following material. Because
the engine is brand new, you must not
put an excessive load on it for the first
1,600 km. The various parts in the en-
gine wear and polish themselves to the
correct operating clearances. During
this period, prolonged full throttle oper-
ation, or any condition which might re-
sult in excessive heating of the engine,
must be avoided.
EAU01329
0 ~ 1,000 km
Avoid operation above 5,000 r/min.
1,000 ~ 1,600 km
Avoid cruising speeds in excess of
6,000 r/min.
EC000052
CAUTION:@ After 1,000 km of operation, be sure
to replace the engine oil and oil fil-
ter. @1,600 km and beyond
Proceed with normal riding.
EC000053
CAUTION:@ l
Never let engine speeds enter
the red zone.
l
If any engine trouble should oc-
cur during the break-in period,
consult a Yamaha dealer imme-
diately.
@
EAU00460
ParkingWhen parking the motorcycle, stop the
engine and remove the ignition key.
EW000058
WARNING
@ The exhaust system is hot. Park the
motorcycle in a place where pedes-
trians or children are not likely to
touch the motorcycle. Do not park
the motorcycle on a slope or soft
ground; the motorcycle may over-
turn. @
E_5eb_Operation.fm Page 5 Thursday, November 18, 1999 4:05 PM
Page 50 of 111
6
PERIODIC MAINTENANCE AND MINOR REPAIR
Tool kit................................................................... 6-1
Periodic maintenance and lubrication ................... 6-3
Cowling and panel removal and installation.......... 6-6
Cowlings A and B ................................................. 6-6
Panel C ................................................................. 6-8
Spark plug inspection ........................................... 6-9
Engine oil ............................................................ 6-10
Cooling system ................................................... 6-13
Changing the coolant .......................................... 6-14
Air filter ............................................................... 6-17
Air intake duct ..................................................... 6-19
Carburetor adjustment ........................................ 6-20
Idle speed adjustment ........................................ 6-20
Throttle cable free play inspection ...................... 6-21
Valve clearance adjustment ................................ 6-21
Tires .................................................................... 6-21
Wheels ................................................................ 6-24
Clutch lever free play adjustment........................ 6-25
Brake light switch adjustment ............................. 6-25
Checking the front and rear brake pads.............. 6-26
Inspecting the brake fluid level............................ 6-27
Brake fluid replacement ...................................... 6-28
Drive chain slack check ...................................... 6-28Drive chain slack adjustment ............................. 6-29
Drive chain lubrication........................................ 6-29
Cable inspection and lubrication ........................ 6-30
Throttle cable and grip lubrication ...................... 6-30
Brake pedal lubrication....................................... 6-30
Brake and clutch lever lubrication ...................... 6-31
Sidestand lubrication.......................................... 6-31
Rear suspension lubrication............................... 6-31
Front fork inspection ........................................... 6-32
Steering inspection ............................................ 6-32
Wheel bearings .................................................. 6-33
Battery................................................................ 6-33
Fuse replacement .............................................. 6-34
Headlight bulb replacement ............................... 6-35
Tail/brake light bulb replacement ........................ 6-36
Turn signal light bulb replacement...................... 6-36
Supporting the motorcycle ................................. 6-37
Front wheel removal ........................................... 6-37
Front wheel installation ...................................... 6-38
Rear wheel removal ........................................... 6-39
Rear wheel installation ....................................... 6-40
Troubleshooting .................................................. 6-40
Troubleshooting chart ......................................... 6-41
E_5eb_PeriodicTOC.fm Page 1 Thursday, November 18, 1999 4:06 PM
