SEAT BELTS NOT FASTENED (red)
This warning light comes on constantly when
the car is stationary and the driver’s seat belt is
not correctly fastened.
The warning light will flash and a buzzer will sound if the
vehicle is in motion and the front seat belts are not
correctly fastened.
<
If, when turning the key to MAR the
warning light ¬does not turn on or if it
stays on when travelling, there could be a fault in
the retaining systems; in this event air bags or
pretensioners may not be deployed in case of
impact or, in a minor number of cases, they may
deploy incorrectly. Contact an Abarth Dealership
immediately to have the system checked before
driving off.
WARNING
A problem with the warning light ¬
(light off) is indicated by the warning
light “, which indicates that the front passenger
airbag is deactivated, flashing for more than the
usual four seconds.
WARNING
Warning light “indicates a fault with
warning light ¬. This condition is
indicated by intermittent blinking of warning
light “for longer than 4 seconds. In this case,
the warning light ¬may not indicate failures in
the retaining systems. Before driving off,
contact an Abarth Dealership to have the
system checked immediately.
WARNING
FRONT PASSENGER’S AIR BAG DEACTIVATED (amber)
The warning light
“comes on when the
front passenger airbag is disabled.
With the front passenger air bag enabled, when the
ignition key is turned to MAR the
“warning light
comes on constantly for about 4 seconds, flashes for
another 4 seconds and then should go out.
“
The buzzer of the SBR (Seat Belt Reminder) system may
only be switched off by an Abarth Dealership.
The system can be reactivated from the set-up menu.
141-150 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 143

144
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
LOW ENGINE OIL PRESSURE (red)When the ignition key is moved to MAR, the
warning light switches on, and should go out
as soon as the engine is started.
The warning light switches on constantly together with
the message in the display when the system detects that
the engine oil pressure is insufficient.
v
If the warning light vturns on when
travelling (with the message on the
display) stop the car immediately and contact
an Abarth Dealership.
WARNING
EOBD SYSTEM FAILURE (amber)
In normal conditions, when the ignition key is
moved to MAR, the warning light turns on and
should go off after engine start-up. The initial switching-
on indicates that the warning light is working properly.
If the warning light stays on or turns on when travelling:
❒ on permanently: this means there is a fault in the
supply/ignition system which could cause high
exhaust emissions, loss of performance, poor
handling and high fuel consumption levels.
The display shows the dedicated message.
Under these conditions, you may continue travelling at a
moderate speed without demanding excessive effort
from the engine. Prolonged use of the car with the
warning light on may cause damage. Contact an Abarth
Dealership as soon as possible.
The warning light switches off if the failure disappears,
but it is still stored by the system.
❒ flashing: this indicates possible damage to the
catalytic converter (see “EOBD system” in the
“Knowing your car” section).
U
141-150 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 144

145
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Contact an Abarth Dealership as soon
as possible if the warning light Udoes
not light up when the key is turned to MAR or
if, during travel, the warning light comes on
either constantly or flashing (along with a
message on the display). The operation of the
warning light Umay be checked by the traffic
control authorities using specific devices. Always
comply with the traffic regulations in force in
the country where you are driving.
WARNING
If the light flashes, release the accelerator pedal to
reduce engine revs until the warning light stops flashing;
continue the journey at a moderate speed, trying to
avoid driving conditions that may cause further flashing,
and contact an Abarth Dealership as soon as possible. EXCESSIVE ENGINE COOLANT
TEMPERATURE (red)
When the key is turned to the MAR position
the warning light comes on but should go out after a
few seconds. The warning light turns on when the
engine is overheated. If the warning light comes on
when driving, proceed as follows:
❒ when driving normally: stop the car, switch off the
engine and check that the water level in the
reservoir is not below the MIN mark. If it is not, wait
for a few minutes for the engine to cool down then
slowly and carefully open the cap, top up with
coolant and check that the level is between the MIN
and MAX marks. Also check visually for any fluid
leaks. Contact an Abarth Dealership if the warning
should come on when the engine is started again.
❒ if the vehicle is used under demanding conditions
(e.g. towing trailers uphill or fully loaded): slow down
and, if the light stays on, stop the car. Wait for 2 or
3 minutes with the engine running and slightly
accelerated to further favour the coolant circulation.
Then stop the engine. Check correct liquid level as
described above.
IMPORTANT Over demanding routes, it is advisable to
keep the engine on and slightly accelerated for a few
minutes before switching it off.
The display shows the dedicated message.
ç
141-150 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 145

146
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
FUEL RESERVE (amber)When the key is turned to the MAR position
the warning light comes on but should go out
after a few seconds.
The warning light turns on when about 7 litres of fuel
are left in the tank.
IMPORTANT The warning light will flash to indicate a
system failure. If this is the case, contact an Abarth
Dealership to have the system checked.
ç
FRONT FOG LIGHTS (green) The light comes on when the front fog lights
are turned on.
5
SIDE/TAIL LIGHTS AND LOW BEAMS (green)
FOLLOW ME HOME (green)
Side/tail lights and low beams
The warning light comes on when side/tail lights or low
beams are turned on.
Follow me home
The warning light will turn on when this device is active
(see “Follow me home” in section “Knowing your car”).
The display will show a dedicated message.
3
RIGHT-HAND DIRECTION INDICATOR (green – blinking)
The warning light turns on when the direction
indicator control lever is moved upwards or,
together with the left indicator, when the hazard light
button is pressed.
D
LEFT-HAND DIRECTION INDICATOR (green – blinking)
The warning light turns on when the direction
indicator control lever is moved downwards or,
together with the right indicator, when the hazard
warning light button is pressed.
F
141-150 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 146

147
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
CRUISE CONTROL (green) (for versions/markets where provided)
When the key is turned to the MAR position
the warning light comes on but should go out
after a few seconds.
The warning light switches on by rotating the Cruise
Control twist switch to ON.
The display will show a dedicated message.
Ü
MAIN BEAM HEADLIGHTS (blue)
The warning light comes on when the main
beams are turned on.
1
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
INCOMPLETE DOOR LOCKING (red)
The symbol is shown on the display when one
or more doors or the tailgate are not perfectly
closed.
The display shows the dedicated message.
An acoustic signal is emitted with the doors open and
the car moving.
´
ENGINE OIL LEVEL LOW (red)
The symbol is shown on the display when the
engine oil level falls below the minimum
recommended value. Restore the correct engine
oil level (see “Checking fluid levels” in the “Servicing and
maintenance” section).
The display shows the dedicated message.
k
GENERIC WARNING (amber)
Engine oil pressure sensor failure
The symbol is shown on the display when a fault in the
engine oil pressure sensor is detected. Contact an Abarth
Dealership to have the fault fixed as soon as possible.
è
ELECTRIC STEERING FAILURE (red)
When the symbol is shown on the display, you
will not benefit from the electric power steering and the
effort needed to turn the wheel will be greatly
increased, although it will still be possible to steer the
car. Contact an Abarth Dealership.
The display shows the dedicated message.
g
141-150 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 147

148
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
FIAT CODE VEHICLE PROTECTIONSYSTEM FAILURE
(amber)
(for versions/markets where provided)
The symbol (together with a dedicated message) may be
shown on the display to indicate that there is a fault in
the Fiat Code system or, if applicable, the alarm system.
In this case, contact an Abarth Dealership as soon as
possible.
Y
WORN BRAKE PADS
(amber)
The symbol is shown on the display if the front
brake pads are worn; in this case, have them changed as
soon as possible.
The display will show a dedicated message.
d
EXTERIOR LIGHTS FAILURE (amber)
(for versions/markets where provided)
The symbol is shown on the display when a
failure with one of the following lights is detected:
– side lights
– brake lights
– rear fog lights
– direction indicators
– number plate lights
– DRL lights
The display will show a dedicated message.
The failure relating to these lights could be one or more
blown bulbs, a blown protection fuse or a break in the
electrical connection.
W
FUEL CUT-OFF SYSTEM (amber)
The symbol is shown on the display when the
fuel cut-off system has intervened.
The display shows the dedicated message.
For the procedure to restore the system see “Fuel cut-
off system” in the “Knowing your car” section.
sSPORT MODE
The symbol is shown on the display when
“Sport” driving mode is engaged and remains off when
“Normal” mode is activated (see “Manettino Abarth car
dynamic control system” in the “Knowing your car”
section).S
141-150 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 148

149
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
TYRE PRESSURE CHECK
(amber)
TYRE PRESSURE LOW (amber)
TYRE PRESSURE UNSUITABLE FOR
SPEED
(amber)
(for versions/markets where provided)
Check tyre pressures
The symbol is shown on the display to indicate the flat
tyre. Should two or more tyres be flat, the display will
show the indications corresponding to each tyre in
sequence.
Restore correct tyre pressures as soon as possible (see
“Cold tyre pressures” in the “Technical specifications”
section).
Tyre pressure low
The symbol is shown on the display if the pressure of
one or more tyres drops below the preset level. In this
way the TPMS system warns the driver that one or
more tyres may be dangerously flat and liable to
puncture.
n
IMPORTANT Do not continue driving with one or
more flat tyres as handling may be compromised. Stop
the car, avoiding harsh braking or steering manoeuvres.
Repair using the dedicated kit (see the “Automatic
Fix&Go quick tyre repair kit” paragraph in the “In an
emergency” section) and contact an Abarth Dealership
as soon as possible.
Tyre pressure unsuitable for speed
Should travelling at a higher speed than 160 km/h be
required, inflate tyres to pressures values specified in
paragraph “Inflation pressures”.
If the TPMS system (where provided) detects that the
pressure of one or more tyres is unsuitable for the
current speed, the symbol will be shown on the display
together with the dedicated message (see paragraph
“Low tyre pressure” in this section) and it will stay on
until the car speed returns within the preset threshold.
IMPORTANT In this case, slow down immediately
because tyre overheating could compromise tyre
performance and durability beyond repair, and may even
make the tyre explode.
141-150 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 149

150
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Strong radio-frequency interference
could inhibit the regular operation of
the TPMS system.
This condition will be indicated by a message.
The message will disappear automatically as
soon as the interference ceases to disturb the
system.
WARNINGWINDSCREEN WIPER AUTOMATIC
OPERATION NOT AVAILABLE
(amber)
The symbol is shown on the display when the
windscreen wiper automatic control, which adapts
operation speed to vehicle speed, is not available.
The display will show a dedicated message.
u
POSSIBLE PRESENCE OF ICE ON
THE ROAD
The outside temperature indicator starts
flashing when the outside temperature reaches or falls
below 3°C and the
❄symbol lights up on the display to
warn the driver of the possible presence of ice on the
road.
The display will show a dedicated message.
❄
SERVICE DUE
The display shows a dedicated message to indicate the
scheduled servicing deadline.
õ
ALTERNATOR (BATTERY) FAILURE (red)
If the symbol is shown on the display, contact
an Abarth Dealership immediately.
The display shows the dedicated message.w
EXCEEDING SPEED LIMIT (red)
The symbol is shown on the display when the
car exceeds the set speed limit (see
“Reconfigurable Multifunction Display” in section
“Knowing your car”).
12 0
141-150 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 150

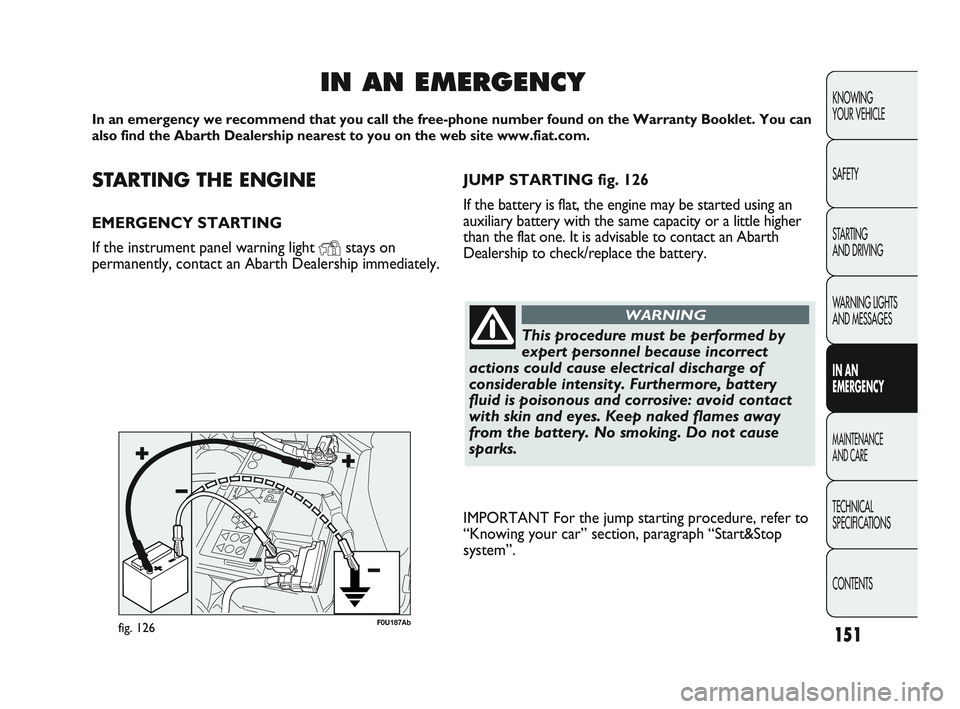

STARTING THE ENGINE
EMERGENCY STARTING
If the instrument panel warning light
Ystays on
permanently, contact an Abarth Dealership immediately.
IN AN EMERGENCY
In an emergency we recommend that you call the free-phone number found o\
n the Warranty Booklet. You can
also find the Abarth Dealership nearest to you on the web site www.fiat.\
com.
This procedure must be performed by
expert personnel because incorrect
actions could cause electrical discharge of
considerable intensity. Furthermore, battery
fluid is poisonous and corrosive: avoid contact
with skin and eyes. Keep naked flames away
from the battery. No smoking. Do not cause
sparks.
WARNING
IMPORTANT For the jump starting procedure, refer to
“Knowing your car” section, paragraph “Start&Stop
system”.
fig. 126F0U187Ab
151
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
JUMP STARTING fig. 126
If the battery is flat, the engine may be started using an
auxiliary battery with the same capacity or a little higher
than the flat one. It is advisable to contact an Abarth
Dealership to check/replace th e battery.
151-182 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:44 Pagina 151

152
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U128Abfig. 127
FIX & GO Automatic QUICK TYRE
REPAIR KIT
The Fix&Go Automatic quick tyre repair kit is located in
the luggage compartment.
The kit fig. 127 includes:
❒a canister A, containing sealant, which is fitted with:– filler tube B;
– an adhesive label C with the message “max. 80 km/h” to apply in a position clearly visible by the
driver (on the dashboard) after repairing the tyre;
❒informative leaflet (see fig. 128), used to ensure the
correct use of the quick tyre repair kit and then
given to the personnel who will handle the treated
tyre;
BUMP STARTING
Never bump start the engine by pushing, towing or
driving downhill. This could cause a flow of fuel into the
catalytic converter and damage it beyond repair.
IMPORTANT Remember that the brake servo and the
power steering system are not activated until the engine
is started; a greater effort will therefore be required to
press the brake pedal or turn the steering wheel.
151-182 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:44 Pagina 152
