ACURA CSX 2006 Service Repair Manual
Manufacturer: ACURA, Model Year: 2006, Model line: CSX, Model: ACURA CSX 2006Pages: 2893, PDF Size: 67.66 MB
Page 1191 of 2893
µ
µ
µ µ
µ
YES
NO
YES
NO
14-274A/T Gear Position Indicator
Paddle Shifter - (Downshift Switch) Circuit Troubleshooting (cont’d)
SDNP (GRN)
CABLE REEL 20P CONNECTOR
SDNP (GRN)
CABLE REEL 20P CONNECTOR
GND (BLK)
7. Check for continuity between cable reel 20Pconnector terminal No. 17 and body ground.
Repair short to body ground in the wire
between cable reel 20P connector terminal No. 17
and PCM connector terminal D15.
Go to step 8.
8. Turn the ignition switch to ON (II), and shift to S. 9. Measure the voltage between cable reel 20P
connector terminals No. 6 and No. 17.
Replace the cable reel (see page 24-200).
Go to step 10.
Wire side of female terminals Wire side of female terminals
I s t her e cont i nui t y ?I s t her e about 5 V i n neut r al posi t i on and no
v ol t age w hen pr essi ng t he pad d l e shi f t er( d ow nshi f t sw i t ch)?
08/08/21 14:50:01 61SNR030_140_0276
ProCarManuals.com
DYNOMITE -2009-
Page 1192 of 2893
Î Î
µ
µ
YES
NO
14-275
CABLE REEL 20P CONNECTOR
SDNP (GRN)
JUMPER WIRE PCM CONNECTOR B (44P)
SDNP (BRN)
10. Turn the ignition switch to LOCK (0).
11. Jump the SCS line with the HDS.
12. Disconnect PCM connector B (44P).
13. Connect cable reel 20P connector terminal No. 17and body ground with a jumper wire. 14. Check for continuity between PCM connector
terminal B40 and body ground.
Check for poor connections or loose
terminals between cable reel 20P connector
terminal No. 17 and PCM connector terminal B40. If
the connection is OK, update the PCM if it does not
have the latest software (see page 11-227), or
subsitute a known-good PCM (see page 11-7), then
recheck. If the symptom goes away with a known-
good PCM, replace the original PCM (see page
11-228).
Repair open in the wire between PCM
connector terminal B40 and the cable reel 20P
connector.
Wire side of female terminals Terminal side of female terminals
Is there continuity?
08/08/21 14:50:01 61SNR030_140_0277
ProCarManuals.com
DYNOMITE -2009-
Page 1193 of 2893
´
µ
´µ
´´
´
µ ´
µ
(#'
)
14-276A/T Gear Position Indicator
Paddle Shifter + (Upshift Switch) Replacement
A
B C
D
SRS components are located in this area. Review the
SRS component locations (see page 24-11) and the
precautions and procedures (see page 24-13) before
doing repair or service.1. Remove the steering wheel (see page 17-6).
2. Remove the paddle shifter (upshift switch) and the paddle shifter (downshift switch) connectors
from the connector holder, and disconnect the
connectors.
3. Remove the screws (A) securing the paddle shifter (upshift switch) and the paddle shifter
(downshift switch).
4. Remove the screws (B) securing the steering wheel rear cover (C), then remove the steering wheel rear
cover.
5. Remove the paddle shifter (upshift switch) (D) from the rear cover.
6. Install a new paddle shifter (upshift switch) in the steering wheel rear cover.
7. Install the steering wheel rear cover, and secure the rear cover with the screws.
8. Secure the paddle shifter (upshift switch) and the paddle shifter (downshift switch) with the screws. 9. Connect the paddle shifter (upshift switch) and
the paddle shifter (downshift switch) connector,
and install the connectors in the connector holder.
10. Install the steering wheel (see page 17-8).
08/08/21 14:50:02 61SNR030_140_0278
ProCarManuals.com
DYNOMITE -2009-
Page 1194 of 2893
´
µ
´µ
µµ ´
µ
´
µ
(#'
)
14-277
Paddle Shifter - (Downshift Switch) Replacement
A
B C
D
SRS components are located in this area. Review the
SRS component locations (see page 24-11) and the
precautions and procedures (see page 24-13) before
doing repair or service.
1. Remove the steering wheel (see page 17-6).
2. Remove the paddle shifter (upshift switch) and the paddle shifter (downshift switch) connectors
from the connector holder, and disconnect the
connectors.
3. Remove the screws (A) securing the paddle shifter (upshift switch) and the paddle shifter
(downshift switch).
4. Remove the screws (B) securing the steering wheel rear cover (C), then remove the steering wheel rear
cover.
5. Remove the paddle shifter (downshift switch) (D) from the rear cover.
6. Install a new paddle shifter (downshift switch) in the steering wheel rear cover.
7. Install the steering wheel rear cover, and secure the rear cover with the screws. 8. Secure the paddle shifter (upshift switch) and the
paddle shifter (downshift switch) with the screws.
9. Connect the paddle shifter (upshift switch) and the paddle shifter (downshift switch) connector,
and install the connectors in the connector holder.
10. Install the steering wheel (see page 17-8).
08/08/21 14:50:02 61SNR030_140_0279
ProCarManuals.com
DYNOMITE -2009-
Page 1195 of 2893
Î
Î (#'
)

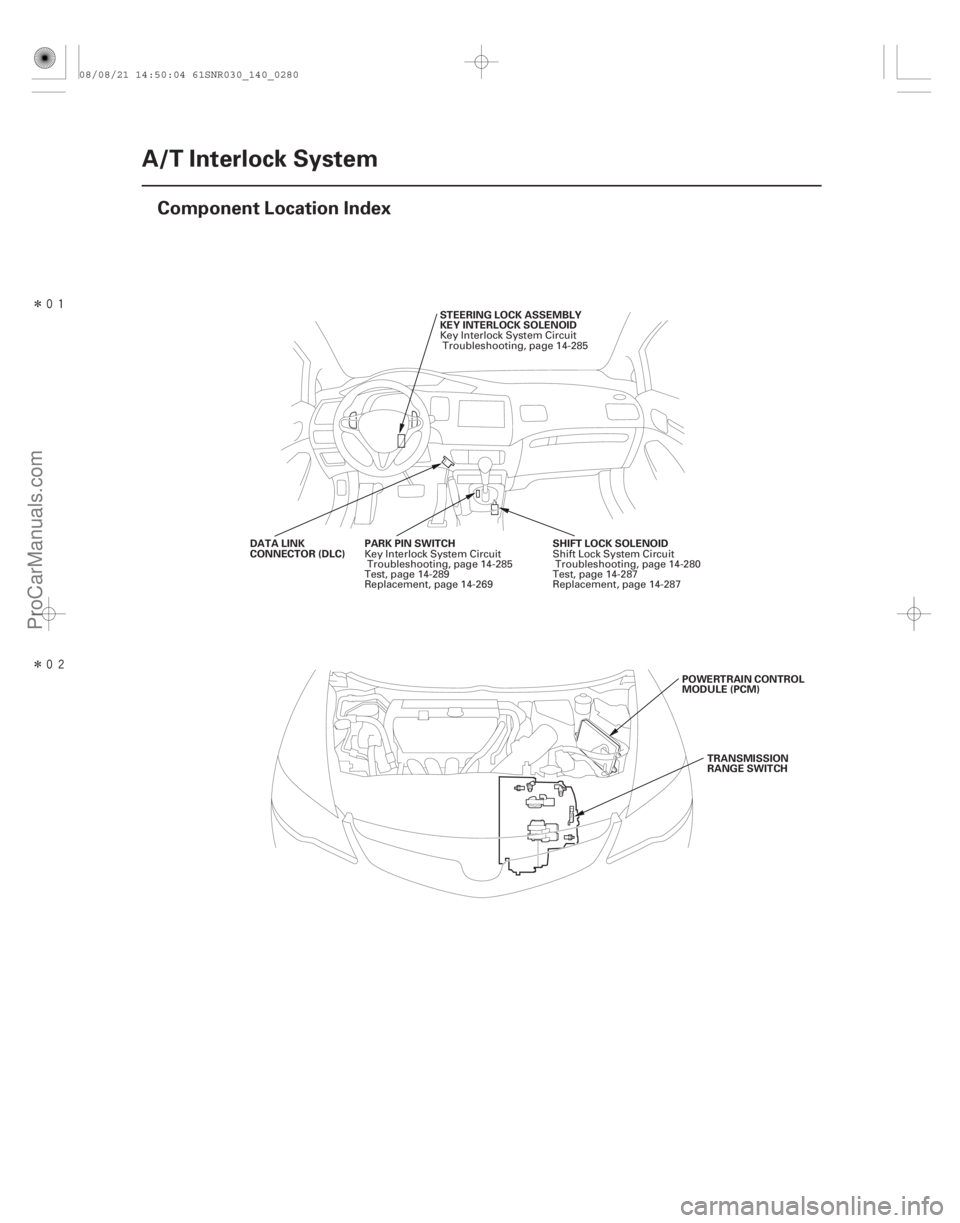

14-278A/T Interlock System
Component Location Index
STEERING LOCK ASSEMBLY
KEY INTERLOCK SOLENOID
DATA LINK
CONNECTOR (DLC) PARK PIN SWITCH SHIFT LOCK SOLENOID
POWERTRAIN CONTROL
MODULE (PCM)TRANSMISSION
RANGE SWITCH
Key Interlock System Circuit
Troubleshooting, page 14-285
Key Interlock System Circuit Troubleshooting, page 14-285
Test, page 14-289
Replacement, page 14-269 Shift Lock System Circuit
Troubleshooting, page 14-280
Test, page 14-287
Replacement, page 14-287
08/08/21 14:50:04 61SNR030_140_0280
ProCarManuals.com
DYNOMITE -2009-
Page 1196 of 2893
Î
(#'
)
Ó
Ú
Ø µ
14-279
Circuit Diagram
22
36 444342 27 28
3033 34 35
32 25
20 21 22 16 1817
13 14 15
12
11 789
31
3123
31
456
1514
2120 25
24
34
33
292827
42 44
40
37
36 31
123456 9
87
11 12 151413 17 1816
32
29
30
42 43 44
40
39
36
18
17
16 19
3598
10 2120
27
2
26 29 40
4
23 24
41 23
41
39
10
26
G601
4 3
DN
R
P ST
S RVS
FWD
BKSW LT GRN
LT GRNWHT
No. 12 (15 A)
YEL
BRN
PG SG 16
15
BLK A40
BKSW
WHT/BLK BLK LT BLU
BLK
C(44P)
B(44P)
A(44P)
Terminal side of female terminals
G503
BLK A36
A37
WHT
RED
RED
WHT
1
19 CANH
CANL
17
P
R
N
D
S
GAUGE CONTROL MODULE (TACH)
2 1 3 4 1
3827
65 41017
6
549 38 10
KEYSW KEYSOL
G504
BLU
PNK
PUR
BLK P-PIN
ATPPBLU/BLK 5 4 6 2 1
3
GRY PUR
LT BLU
A24
VCC5
APSB A18
A34
SG5
SG4
A35
A17
APSA VCC4 A25
BLUYEL
BRN
PG1
PG2
LG1
LG2
C40 B1
C44 B36
BRN/YEL
BRN/YEL
G101 PNK
BLK
B13 BLK/GRN
BRN
C36
IG1
12 V
No. 2 (15 A)
UNDER-DASH FUSE/RELAY BOX
No. 10 (7. 5 A)
BLU/WHT
RED/BLK
WHT ORN
SLS
A27
RED
BLK BAT
IG1
IGNITION SWITCH
5V
BLK
BLU/WHT
TRANSMISSION RANGE SWITCH
B22
ATPRVS
ATPFWD
ATPP
ATPR ATPN ATPD
ATPS
YEL/RED
B28
G101
B12
B21
BLU
PNK
RED/BLK
WHT
BLK/BLU
B14 B15
WHT/RED
BLU/BLK YEL/GRN
RED
BLU/YEL
1
2 YEL
PNK
UNDER-HOOD FUSE/RELAY BOX
No. 2 (IG) (50 A)
No. 1 (100 A)
BATTERY
STARTER
CUT
RELAY
SHIFT
LOCK
SOLENOID BRAKE
PEDAL
POSITION
SWITCH
ACCELERATOR
PEDAL
POSITION
SENSOR
KEY
INTERLOCK
SOLENOID IGNITION
KEY
SWITCH UNDER-DASH
FUSE/RELAY BOX
No.35(7.5A)
F-CAN
TRANSCEIVER
CPU A/T
GEAR
POSITION
INDICATOR
DRIVER
CIRCUIT
PARK PIN
SWITCH DASH-LIGHT
BRIGHTNESS
CONTROL
CIRCUIT
POWERTRAIN CONTROL
MODULE (PCM)
MULTIPLEX
INTEGRATED
CONTROL
UNIT (MICU)
SHIFT
INDICATOR
RED/WHT
GRN
G504
BLK/RED* BLK* *1: ’06 model
*2: ’07 09 models
BLK PCM Connector Terminal Locations GND
1
2
08/08/21 14:50:06 61SNR030_140_0281
ProCarManuals.com
DYNOMITE -2009-
Page 1197 of 2893
Î
(#'
)
µ
µ µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
14-280A/T Interlock System
Shift Lock System Circuit Troubleshooting
A
SHIFT LOCK SOLENOID CONNECTOR
IG1 (YEL)
SHIFT LOCK SOLENOID CONNECTOR IG1 (YEL) SLS (PNK)
1. Connect the HDS to the DLC located under the
driver’s side of the dashboard.
2. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go
to the DLC circuit troubleshooting (see page
11-204).
3. Select Shift Lock Solenoid Test in the Miscellaneous Test Menu, and check that the shift
lock solenoid operates with the HDS.
Go to step 16.
Go to step 5.
4. Turn the ignition switch to LOCK (0).
5. Remove the center console (see page 20-92).
6. Disconnect the shift lock solenoid connector.
7. Turn the ignition switch to ON (II). 8. Measure the voltage between shift lock solenoid
connector terminal No. 1 and body ground.
Go to step 9.
CheckforablownNo.10(7.5A)fuseinthe
under-dash fuse/relay box. If the fuse is OK, repair
open in the wire between the shift lock solenoid
connector and the under-dash fuse/relay box.
9. Shift the shift lever to P, and press the brake pedal. Do not press the accelerator.
10. Measure the voltage between shift lock solenoid connector terminals No. 1 and No. 2 while pressing
the brake pedal.
Go to step 11.
Go to step 12.
Wire side of female terminals
Wire side of female terminals
Does t he shi f t l ock sol enoi d w or k pr oper l y ? Is t her e about bat t er y v ol t age?
Is there battery voltage?
08/08/21 14:50:06 61SNR030_140_0282
ProCarManuals.com
DYNOMITE -2009-
Page 1198 of 2893
µ
µ µ
µ
YES
NO
YES
NO
14-281
SHIFT LOCK SOLENOID CONNECTOR
IG1 (YEL) SLS (PNK)
SLS (PNK)
PCM CONNECTOR A (44P)
SHIFT LOCK
SOLENOID
CONNECTOR
SLS (PNK)
11. Release the brake pedal, and measure the voltage between shift lock solenoid connector terminals
No. 1 and No. 2. The shift lever must be in P.
Repair short to body ground in the wire
between PCM connector terminal A27 and the shift
lock solenoid.
Check the shift lock mechanism. If the
mechanism is OK, replace the shift lock solenoid
(see page 14-287). 12. Turn the ignition switch to LOCK (0).
13. Jump the SCS line with the HDS.
14. Disconnect PCM connector A (44P).
15. Check for continuity between PCM connector
terminal A27 and shift lock solenoid connector
terminal No. 2.
Check for poor connections or loose
terminals between shift lock solenoid connector
terminal No. 2 and PCM connector terminal A27. If
the connection is OK, update the PCM if it does not
have the latest software (see page 11-227), or
substitute a known-good PCM (see page 11-7), then
recheck. If the symptom goes away with a known-
good PCM, replace the original PCM (see page
11-228).
Repair open in the wire between PCM
connector terminal A27 and the shift lock solenoid
connector.
(cont’d)
Wire side of female terminals Wire side of
female terminalsTerminal side of
female terminals
Is t her e about bat t er y v ol t age?
Is there continuity?
08/08/21 14:50:07 61SNR030_140_0283
ProCarManuals.com
DYNOMITE -2009-
Page 1199 of 2893
Î
µ
µ
µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
14-282A/T Interlock System
Shift Lock System Circuit Troubleshooting (cont’d)
BKSW (LT GRN)
PCM CONNECTOR A (44P)
16. Monitor the Brake Switch in the Data List with the
HDS, and press the brake pedal.
Go to step 21.
If the brake lights come on, go to step 17. If
the brake lights do not work, repair the faulty brake
light circuit.
17. Turn the ignition switch to LOCK (0).
18. Jump the SCS line with the HDS.
19. Disconnect PCM connector A (44P). 20. Measure the voltage between PCM connector
terminal A40 and body ground when pressing the
brake pedal and when the brake pedal is released.
Reconnect all connectors, then update the
PCM if it does not have the latest software
(see page 11-227), or substitute a known- good PCM
(see page 11-7), then recheck. If the symptom goes
away with a known-good PCM, replace the original
PCM (see page 11-228).
Repair open in the wire between PCM
connector terminal A40 and the brake pedal
position switch.
21. Monitor the A/T P Switch in the Data List with the HDS with the shift lever in P.
Go to step 33.
Go to step 22.
Terminal side of female terminals
Is the Brake Switch ON?
Is there about battery voltage when pressing thebr ak e ped al , and no v ol t age w hen t he ped al i sreleased?
Is the A/ T P Switch ON?
08/08/21 14:50:07 61SNR030_140_0284
ProCarManuals.com
DYNOMITE -2009-
Page 1200 of 2893
Î Î
µ
µ µ
µ
µ
µ
YES
NO YES
NO
YES
NO
14-283

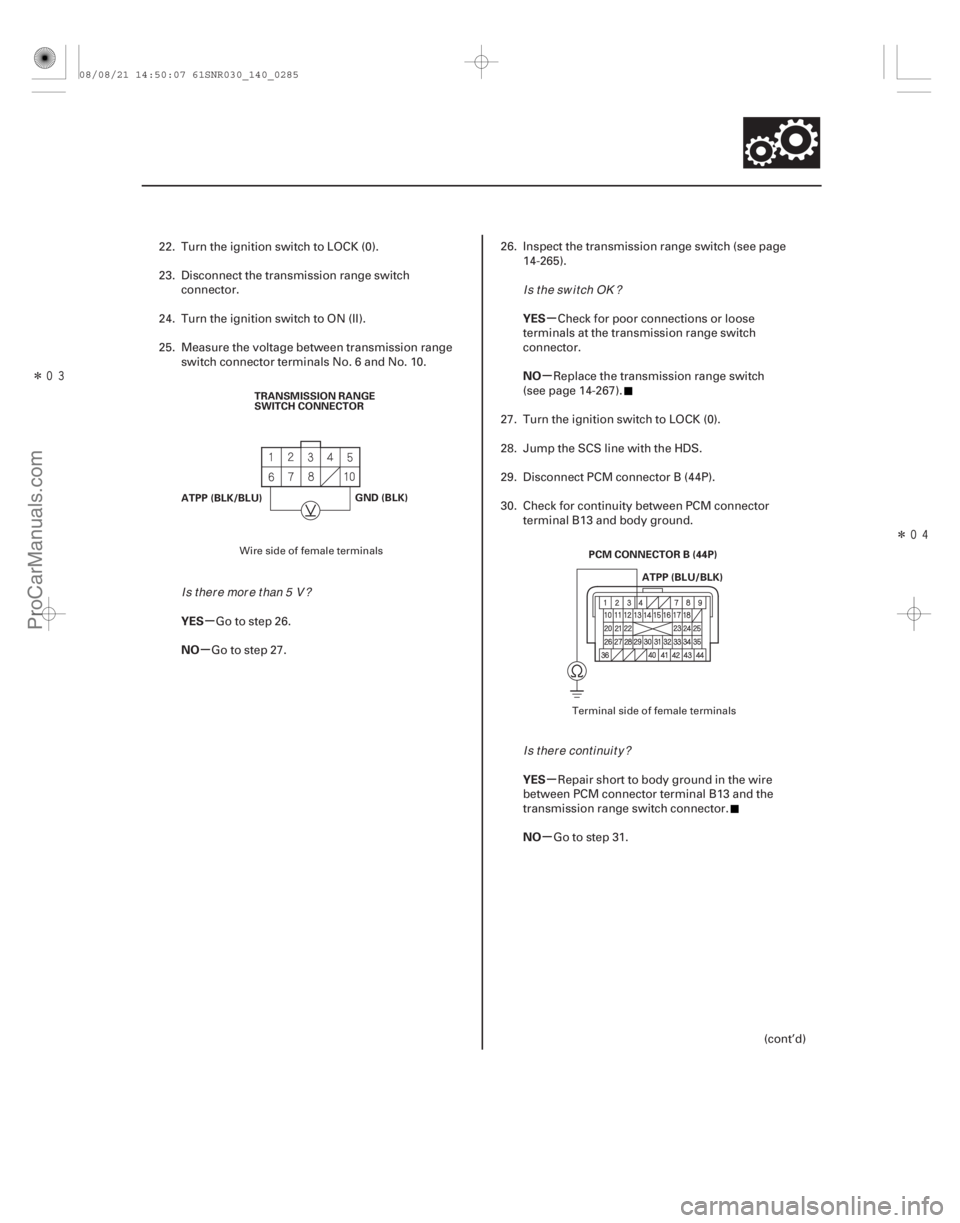

TRANSMISSION RANGE
SWITCH CONNECTOR
ATPP (BLK/BLU) GND (BLK)
PCM CONNECTOR B (44P)ATPP (BLU/BLK)
22. Turn the ignition switch to LOCK (0).
23. Disconnect the transmission range switchconnector.
24. Turn the ignition switch to ON (II).
25. Measure the voltage between transmission range switch connector terminals No. 6 and No. 10.
Go to step 26.
Go to step 27. 26. Inspect the transmission range switch (see page
14-265).
Check for poor connections or loose
terminals at the transmission range switch
connector.
Replace the transmission range switch
(see page 14-267).
27. Turn the ignition switch to LOCK (0).
28. Jump the SCS line with the HDS.
29. Disconnect PCM connector B (44P).
30. Check for continuity between PCM connector terminal B13 and body ground.
Repair short to body ground in the wire
between PCM connector terminal B13 and the
transmission range switch connector.
Go to step 31.
(cont’d)
Wire side of female terminals Terminal side of female terminals
I s t her e mor e t han 5 V ?Is the switch OK ?
Is there continuity?
08/08/21 14:50:07 61SNR030_140_0285
ProCarManuals.com
DYNOMITE -2009-
