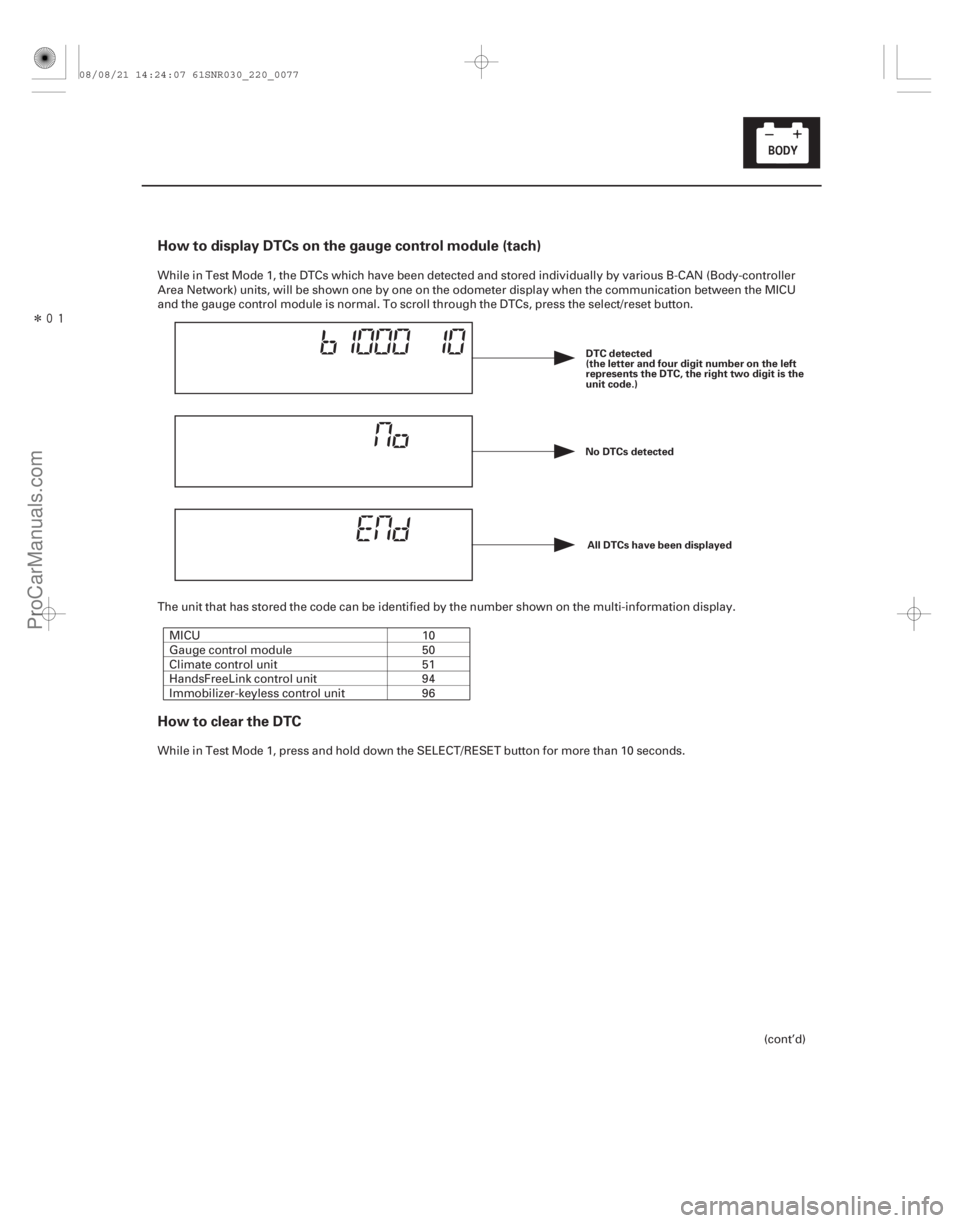

How to display DTCs on the gauge control module (tach)
How to clear the DTC
22-75
No DTCs detectedAll DTCs have been displayed
DTC detected
(the letter and four digit number on the left
represents the DTC, the right two digit is the
unit code.)
While in Test Mode 1, the DTCs which have been detected and stored individually by various B-CAN (Body-controller
Area Network) units, will be shown one by one on the odometer display when the communication between the MICU
and the gauge control module is normal. To scroll through the DTCs, press the select/reset button.
The unit that has stored the code can be identified by the number shown on the multi-information display.
MICU 10
Gauge control module 50
Climate control unit 51
HandsFreeLink control unit 94
Immobilizer-keyless control unit 96
While in Test Mode 1, press and hold down the SELECT/RESET button for more than 10 seconds.
(cont’d)
08/08/21 14:24:07 61SNR030_220_0077
ProCarManuals.com
DYNOMITE -2009-

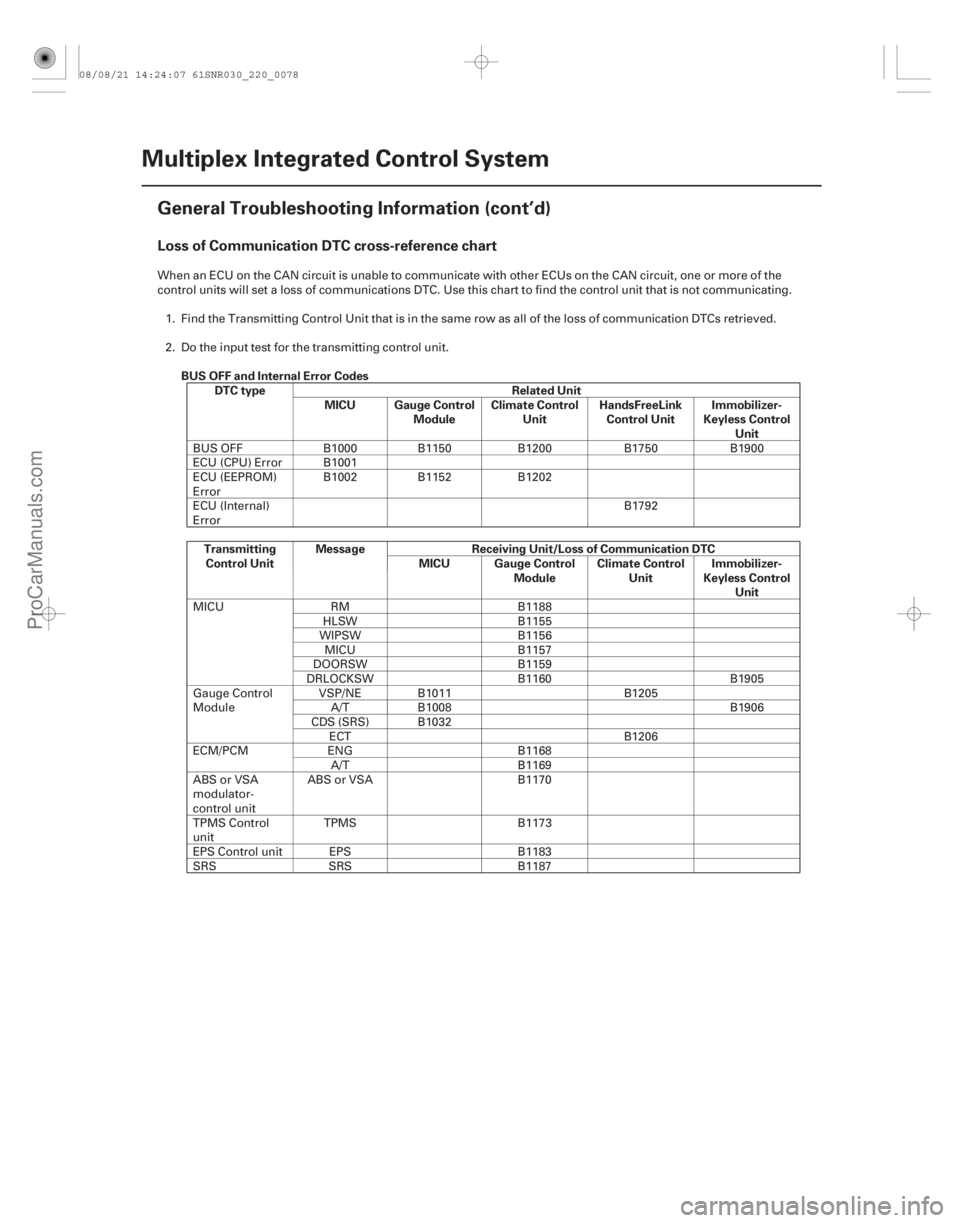

Loss of Communication DTC cross-reference chart
BUS OFF and Internal Error CodesDTC type Related Unit MICU Gauge ControlModuleClimate Control
Unit HandsFreeLink
Control Unit Immobilizer-
Keyless Control Unit
Transmitting Control Unit Message Receiving Unit/Loss of Communication DTC
MICU Gauge ControlModuleClimate Control
Unit Immobilizer-
Keyless Control Unit
22-76Multiplex Integrated Control System
General Troubleshooting Information (cont’d)
When an ECU on the CAN circuit is unable to communicate with other ECUs on the CAN circuit, one or more of the
control units will set a loss of communications DTC. Use this chart to find the control unit that is not communicating.
1. Find the Transmitting Control Unit that is in the same row as all of the loss of communication DTCs retrieved.
2. Do the input test for the transmitting control unit.
BUS OFF B1000 B1150 B1200 B1750 B1900
ECU (CPU) Error B1001
ECU (EEPROM)
Error B1002 B1152 B1202
ECU (Internal)
Error B1792
MICU RM B1188 HLSW B1155
WIPSW B1156 MICU B1157
DOORSW B1159
DRLOCKSW B1160 B1905
Gauge Control
Module VSP/NE B1011 B1205
A/T B1008 B1906
CDS (SRS) B1032 ECT B1206
ECM/PCM ENG B1168 A/T B1169
ABS or VSA
modulator-
control unit ABS or VSA B1170
TPMS Control
unit TPMS B1173
EPS Control unit EPS B1183
SRS SRS B1187
08/08/21 14:24:07 61SNR030_220_0078
ProCarManuals.com
DYNOMITE -2009-

(#'
) MICUDTC Description DTC typePage
22-77

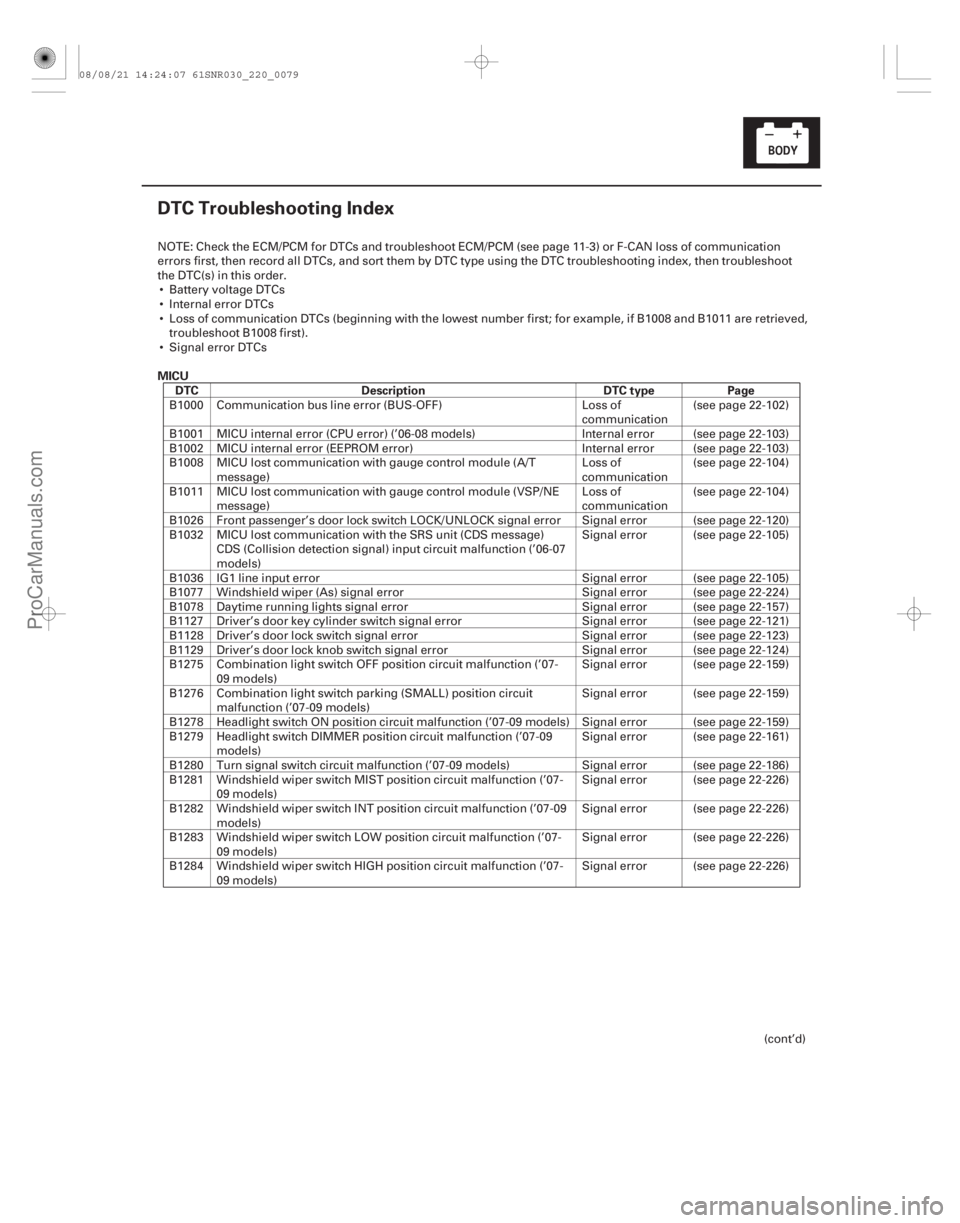

DTC Troubleshooting Index
NOTE: Check the ECM/PCM for DTCs and troubleshoot ECM/PCM (see page 11-3) or F-CAN loss of communication
errors first, then record all DTCs, and sort them by DTC type using the DTC troubleshooting index, then troubleshoot
the DTC(s) in this order.
 Battery voltage DTCs
 Internal error DTCs
 Loss of communication DTCs (beginning with the lowest number first; for example, if B1008 and B1011 are retrieved, troubleshoot B 1008 first).
 Signal error DTCs
B1000 Communication bus line error (BUS-OFF) Loss of communication(see page 22-102)
B1001 MICU internal error (CPU error) (’06-08 models) Internal error (see page 22-103)
B1002 MICU internal error ( EEPROM error) Internal error (see page 22-103)
B1008 MICU lost communication with gauge control m odule (A/T
message) Loss of
communication(see page 22-104)
B1011 MICU lost communication with gauge control m odule (VSP/NE
message) Loss of
communication(see page 22-104)
B1026 Front passenger’s door lock switch LOCK/UNLOCK signal error Signal error (see page 22-120)
B1032 MICU lost communication with the SRS unit (CDS message) CDS (Collision detection signal) input circuit malfunction (’06-07
models) Signal error (see page 22-105)
B1036 IG1 line input error Signal error (see page 22-105)
B1077 Windshield wiper (As) signal error Signal error (see page 22-224)
B1078 Daytime r unning lights signal error Signal error (see page 22-157)
B1127 Driver’s door key cylinder switch signal error Signal error (see page 22-121)
B1128 Driver’s door lock switch signal error Signal error (see page 22-123)
B1129 Driver’s door lock knob switch signal error Signal error (see page 22-124)
B1275 Combination light switch OFF position circuit malfunction (’07- 09 models) Signal error (see page 22-159)
B1276 Combination light switch parking (SMALL) position circuit malfunction (’07-09 models) Signal error (see page 22-159)
B1278 Headlight switch ON position circuit malfunction (’07-09 models) Signal error (see page 22-159)
B1279 Headlight switch DIMMER position circuit malfunction (’07-09 models) Signal error (see page 22-161)
B1280 Turn signal switch circuit malfunction (’07-09 models) Signal error (see page 22-186)
B1281 Windshield wiper switch MIST position circuit malfunction (’07- 09 models) Signal error (see page 22-226)
B1282 Windshield wiper switch INT position circuit malfunction (’07-09 models) Signal error (see page 22-226)
B1283 Windshield wiper switch LOW position circuit malfunction (’07- 09 models) Signal error (see page 22-226)
B1284 Windshield wiper switch HIGH position circuit malfunction (’07- 09 models) Signal error (see page 22-226)
(cont’d)
08/08/21 14:24:07 61SNR030_220_0079
ProCarManuals.com
DYNOMITE -2009-

Gauge Control ModuleDTC Description DTC typePage
22-78Multiplex Integrated Control System
DTC Troubleshooting Index (cont’d)
B1150 Communication bus line error (BUS-OFF)
Loss of
communication (see page 22-106)
B1152 Gauge control m odule internal error (EEPROM error) Internal error (see page 22-262)
B1155 Gauge control m odule lost communication with the MICU
(Headlight switch message) Loss of
communication(see page 22-263)
B1156 Gauge control m odule lost communication with the MICU
(Wiper switch message) Loss of
communication(see page 22-263)
B1157 Gauge control m odule lost communication with the MICU
(MICU message) Loss of
communication(see page 22-264)
B1159 Gauge control m odule lost communication with the MICU
(DOORSW message) Loss of
communication(see page 22-263)
B1160 Gauge control m odule lost communication with the MICU
(DRLOCKSW message) Loss of
communication(see page 22-264)
B1168 Gauge control m odule lost communication with the ECM/PCM
(Engine messages) Loss of
communication(see page 22-265)
B1169 Gauge control m odule lost communication with the PCM (A/T
message) Loss of
communication(see page 22-265)
B1170 Gauge control m odule lost communication with ABS/VSA
modulator-control unit (ABS/VSA message) Loss of
communication(see page 22-265)
B1173 Gauge control m odule lost communication with the TPMS
control unit (TMPS message) (’08-09 models) Loss of
communication(see page 22-266)
B1175 Fuel level sensor (Fuel gauge sending unit) circuit open Signal error (see page 22-267)
B1176 Fuel level sensor (Fuel gauge sending unit) circuit short Signal error (see page 22-268)
B1177 Battery voltage a bnormal (’06 model) Battery voltage (see page 22-269)
B1178 F-CAN communication line error Loss of
communication (see page 22-265)
B1183 Gauge control m odule lost communication with EPS control unit
(EPS message) Loss of
communication(see page 22-270)
B1187 Gauge control m odule lost communication with the SRS unit
(SRS message) Loss of
communication(see page 22-265)
B1188 Gauge control m odule lost communication with the MICU (RM
message) Loss of
communication(see page 22-263)
08/08/21 14:24:07 61SNR030_220_0080
ProCarManuals.com
DYNOMITE -2009-

Climate Control UnitDTC Description DTC typePage
HandsFreeLink Control Unit DTC Description DTC typePage
Immobilizer-Keyless Control Unit DTC Description DTC typePage
22-79
B1200 Communication bus line error (BUS-OFF) Loss of
communication (see page 22-107)
B1202 Climate control unit internal error ( EEPROM error)Internal error (see page 21-28)
B1205 Climate control unit lost communication with the gauge control module (VSP/NE message) Loss of
communication(see page 21-28)
B1206 Climate control unit lost communication with the gauge control module (ECT message) Loss of
communication(see page 21-28)
B1207 Climate control unit lost communication with the gauge control module (ILLUMI message) Loss of
communication(see page 21-28)
B1220 Recirculation control motor circuit short Signal error (see page 21-29)
B1225 In-car temperature sensor circuit open Signal error (see page 21-31)
B1226 In-car temperature sensor circuit short Signal error (see page 21-32)
B1227 Outside air temperature sensor circuit open Signal error (see page 21-33)
B1228 Outside air temperature sensor circuit short Signal error (see page 21-34)
B1229 Sunlight sensor circuit open Signal error (see page 21-35)
B1230 Sunlight sensor circuit short Signal error (see page 21-36)
B1231 Evaporator temperature sensor circuit open Signal error (see page 21-37)
B1232 Evaporator temperature sensor circuit short Signal error (see page 21-39)
B1233 Air mix control motor circuit open Signal error (see page 21-40)
B1234 Air mix control motor circuit short Signal error (see page 21-41)
B1235 Air mix control motor stuck Signal error (see page 21-42)
B1239 Mode control motor circuit open or short Signal error (see page 21-44)
B1240 Mode control motor, linkage, door malfunctionSignal error (see page 21-46)
B1241 Blower motor circuit malfunction Signal error (see page 21-47)
B2983 Recirculation control motor, linkage, door malfunctionSignal error (see page 21-51)
B2986 Recirculation control motor circuit open Signal error (see page 21-52)
B1750 Communication bus line error (BUS-OFF) Loss of
communication (see page 22-107)
B1775 Microphone input/output short to power/open Signal error (see page 23-376)
B1776 Microphone input/output short to ground/open Signal error (see page 23-377)
B1779 HFL switch (HFL talk/HFL back buttons) circuit open/short Signal error (see page 23-379)
B1780 HFL switch (HFL talk/HFL back buttons) circuit short Signal error (see page 23-381)
B1792 HandsFreeLink control unit internal error Internal error (see page 23-382)
B1900 Communication bus line error (BUS-OFF) Loss of
communication (see page 22-108)
B1905 Immobilizer-keyless control unit lost communication with the MICU (DRLOCKSW message) Loss of
communication(see page 22-317)
B1906 Immobilizer-keyless control unit lost communication with the gauge control module (A/T message) Loss of
communication(see page 22-318)
B1925 Ignition key switch signal error Signal error (see page 22-319)
08/08/21 14:24:08 61SNR030_220_0081
ProCarManuals.com
DYNOMITE -2009-

Î
(#')

µµ
µ
Body Controller Area Network (B-CAN) and Fast Controller Area Network (F-CAN)
22-80 Multiplex Integrated Control System
System Description
GAUGE CONTROL MODULE (TACH)
CAN H CAN L
MICU
ECM/PCM
(F-CAN)
(B-CAN)UNDER-DASH FUSE/RELAY BOX
DATA LINK CONNECTOR
SRS UNIT
ABS MODULATOR-CONTROL UNIT*1
VSA MODULATOR-CONTROL UNIT*2
YAW RATE-LATERAL
ACCELERATION SENSOR*2
EPS CONTROL UNIT
TPMS CONTROL UNIT*3






 F-CAN
TRANSCEIVER
B-CAN
TRANSCEIVER
IMMOBILIZER-
KEYLESS CONTROL
UNITCLIMATE
CONTROL
UNIT
HANDSFREELINK
CONTROL UNIT*4
*1: ’06 07 Touring and Premium models
*2: ’07 TYPE S and ’08 09 models
*3: ’08 09 models
*4: ’09 model with navigation system
The body controller area network (B-CAN) and the fast controller area network (F-CAN) share information between
multiple electronic control units (ECUs). B-CAN communication moves at a slower speed (33.33 kbps) for convenience
related items and for other functions. F-CAN information moves at a faster speed (500 kbps) for ‘‘real time’’ functions
such as fuel and emissions data. To allow both systems to share information, the gauge control module translates
information from B-CAN to F-CAN and from F-CAN to B-CAN.
 The single wire method is used between the units not requiring the communication to move at a fast speed.
 Using a single wire method reduces the number of the wires used on the body controller area network.
08/08/21 14:24:08 61SNR030_220_0082
ProCarManuals.com
DYNOMITE -2009-



µµ
Gateway Function
Network ‘‘Loss of Communication’’ Error Checking Function
Except TYPE S Error Code List
Error code Type of communication line(s) error
TYPE S Error Code List Error code Type of communication line(s) error
22-81
(GATE WAY)CPU BAT
GND
FCAN BCAN
RTH
CAN H
5V
5V
CAN L
CAN H
CAN L
CAN H
Example: Error 1
The gauge control module acts as a gateway to allow both systems to share information, the gauge control module
translates information from B-CAN to F-CAN and from F-CAN to B-CAN.
The ECUs on the CAN circuit send messages to each other. If there is any malfunction on the network, the odo/trip
display on the gauge control module can indicate the error messages by entering the gauge self-diagnostic function
(see page 22-241).
 Error 1: There is a malfunction in the communication line between the gauge control module (tach) and the F-CAN.
 Error 2: There is a malfunction in the communication line between the gauge control module (tach) and the B-CAN.
 Error 3: There is a malfunction in the communication line between the gauge control module (tach) and the gauge control module (speedo) (UART line).
Error 1 F-CAN communication
Error 2 B-CAN communication
Error 3 UART communication
Error 12 F-CAN and B-CAN communication
Error 13 F-CAN and UART communication
Error 23 B-CAN and UART communication
Error 123 F-CAN, B-CAN and UART communication
Error 1 F-CAN communication
Error 2 B-CAN communication
Error 12 F-CAN and B-CAN communication
(cont’d)
08/08/21 14:24:08 61SNR030_220_0083
ProCarManuals.com
DYNOMITE -2009-

MICU Control Functions Index
SystemFunction
22-82Multiplex Integrated Control System
System Description (cont’d)
The MICU (built into the under-dash fuse/relay box) is one of the B-CAN components. The MICU controls many
systems related to the body controller area and security system, and also works as a gateway to the diagnose the
other B-CAN connected ECUs with the HDS.
Refer to the each system circuit diagram in detail.
Multiplex Control Sends the switch input signal information to the MICU and outputs the information. The MICU controls the ECUs electric load and communication based upon the information
received the B-CAN.
On-Board Diagnosis The MICU has a gateway function which sends the results of the MICU internal diagnosis and the B-CAN connected ECUs diagnosis to the HDS.
Self-Diagnosis Test mode 1 diagnoses the communication line between the MICU and B-CAN connected unit. Test mode 2 checks the switch inputs connected to the MICU.
Interior Light(s) The MICU controls the interior lights ON, OFF and dimming based upon the information of the related switches and/or the B-CAN related information.
Sleep Function The MICU has a sleep function, which it enters during the power down mode.
The MICU also controls the function of these circuits:  Entry lights control (map lights and ceiling light)
 Exterior lights control (including the daytime running lights control)
Horn
 Interlock system
 Key-in reminder
 Keyless entry
 Lights-on reminder
 Power door locks
 Power window key-off timer
 Seat belt reminder
 Security alarm
 Turn signal/hazard flasher
 Wiper/washer
08/08/21 14:24:08 61SNR030_220_0084
ProCarManuals.com
DYNOMITE -2009-

Î
Self-diagnostic Function
22-83
GAUGE CONTROL MODULE
CAN H CAN L B-CAN
B-CAN (33.33 kbps)
F-CAN (500 kbps)
SRS UNIT MICU
ECM/PCM
ABS MODULATOR-
CONTROL UNIT* IMMOBILIZER-
KEYLESS
CONTROL UNIT
K-LINE
DATA LINK
CONNECTOR HDS CLIMATE CONTROL
UNIT
TMPS CONTROL
UNIT* EPS CONTROL
UNIT
NAVIGATION
UNIT
VSA MODULATOR-
CONTROL UNIT*
HANDSFREELINK
CONTROL UNIT*
AUDIO UNIT
YAWRATE-LATERAL
ACCELERATION
SENSOR*
*1: ’06-08 Touring and Premium models
*2: ’07 TYPES and ’08-09 models
*3: ’08-09 models
*4: ’09 model with navigation system
1
3 2
4
2
By connecting the HDS to the data link connector (DLC), the HDS can retrieve the diagnostic results from the MICU via
a diagnostic line called K-LINE. The K-LINE is distinguished from the CAN line, and connected to the CAN related ECUs.
The MICU is a gateway between the HDS and B-CAN related ECUs, and sends B-CAN diagnostic results to the HDS.
When doing a function test with the HDS, the HDS sends an output signal through the K-LINE to the MICU. The MICU
either relays the request to another ECU, or commands the function its self.
(cont’d)
08/08/21 14:24:09 61SNR030_220_0085
ProCarManuals.com
DYNOMITE -2009-

Wake-up and Sleep Function
Fail-safe Function
Hardware Fail-safe Control
Software Fail-safe Control
Fail-safe function
22-84Multiplex Integrated Control System
System Description (cont’d)

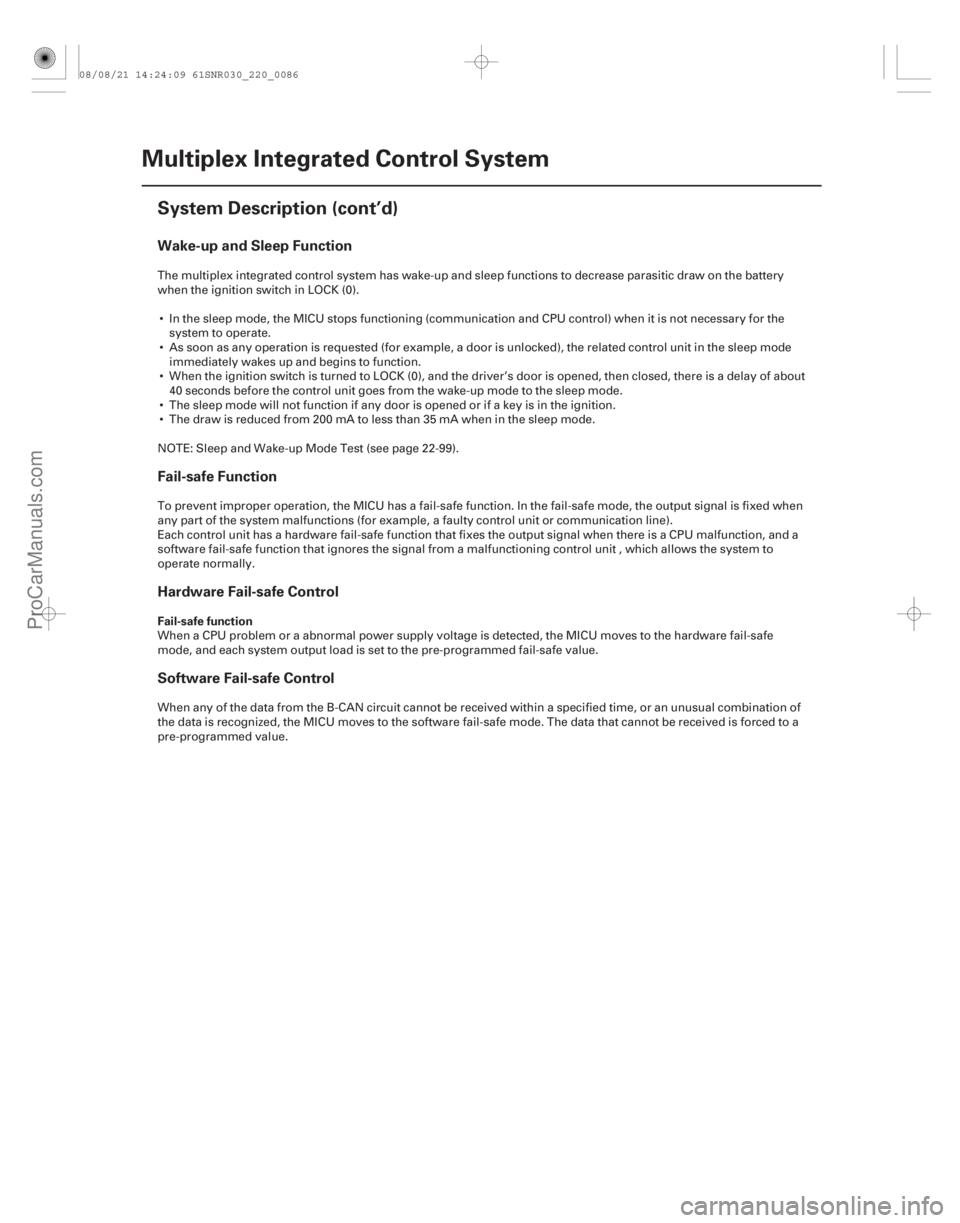

The multiplex integrated control system has wake-up and sleep functions to decrease parasitic draw on the battery
when the ignition switch in LOCK (0).
 In the sleep mode, the MICU stops functioning (communication and CPU control) when it is not necessary for the system to operate.
 As soon as any operation is requested (for example, a door is unlocked), the related control unit in the sleep mode
immediately wakes up and begins to function.
 When the ignition switch is turned to LOCK (0), and the driver’s door is opened, then closed, there is a delay of about 40 seconds before the control unit goes from the wake-up mode to the sleep mode.
 The sleep mode will not function if any door is opened or if a key is in the ignition.
 The draw is reduced from 200 mA to less than 35 mA when in the sleep mode.
NOTE: Sleep and Wake-up Mode Test (see page 22-99).
To prevent improper operation, the MICU has a fail-safe function. In the fail-safe mode, the output signal is fixed when
any part of the system malfunctions (for example, a faulty control unit or communication line).
Each control unit has a hardware fail-safe function that fixes the output signal when there is a CPU malfunction, and a
software fail-safe function that ignores the signal from a malfunctioning control unit , which allows the system to
operate normally.
When a CPU problem or a abnormal power supply voltage is detected, the MICU moves to the hardware fail-safe
mode, and each system output load is set to the pre-programmed fail-safe value.
When any of the data from the B-CAN circuit cannot be received within a specified time, or an unusual combination of
the data is recognized, the MICU moves to the software fail-safe mode. The data that cannot be received is forced to a
pre-programmed value.
08/08/21 14:24:09 61SNR030_220_0086
ProCarManuals.com
DYNOMITE -2009-
