Entering the self-diagnostic function with the HDS
Entering the self-diagnostic function (manual method)
22-241
Self-diagnostic Function
ON (II)
OFF ON
OFF ON
Ignition
Switch
Lighting
Switch
SEL/RESET
Switch
5sec.
5sec.
LOCK (0)
Before troubleshooting the gauge system, refer to multiplex integrated control system B-CAN System Diagnosis Test
Mode A (see page 22-93).
The gauge control module (tach) has a self-diagnostic function shown, and also has a customizable reset function.
 The beeper drive circuit check.
 The indicator drive circuit check.
 The switch input test.
 The LCD segments check.
 The gauges drive circuit check (Tachometer, Fuel gauge, Coolant temperature gauge).
 The communication line check (B-CAN, F-CAN, and UART lines).
NOTE: Indicators are also controlled via the communication line.
Using the HDS, select Body Electrical, Gauges, then Function Test and do the self-diagnostic function.
Before doing the self-diagnostic function, check the No. 10 (7.5 A) fuse in the under-dash fuse/relay box and the No. 23
(10 A) fuse in the under-hood fuse/relay box. 1. Push and hold the SEL/RESET switch button.
2. Turn the headlights ON.
3. Turn the ignition switch to ON (II).
4. Within 5 sec., turn the headlights OFF, then ON and OFF again.
5. Within 5 sec., release the SEL/RESET switch button, and then push and release the button three times repeatedly.
NOTE:  While in the self-diagnostic mode, the dash lights brightness controller operates normally.
 While in the self-diagnostic mode, the SEL/RESET switch button is used to start the Beeper Drive Circuit Test and the Gauge Drive Circuit Check.
 If the vehicle speed exceeds 2 km/h (1.2 mph) or the ignition switch is turned to LOCK (0), the self-diagnostic mode ends.
(cont’d)
Move to self-diagnostic mode.
08/08/21 14:35:11 61SNR030_220_0243
ProCarManuals.com
DYNOMITE -2009-

´µ

The Indicator Drive Circuit Check
Switch Input Check
The Beeper Drive Circuit Check
The LCD Segment Check
The Gauge Drive Circuit Check
22-242Gauges
Self-diagnostic Function (cont’d)
OFF ON
OFF ON
OFF ON
OFF ON
Gauge needles
Beeper
5sec.
Self-diagnostic
mode
SEL/RESET
SWITCH
When entering the self-diagnostic mode, the following indicators blink:
A/T gear position indicator, ABS indicator, brake system indicator, charging system indicator, cruise control indicator,
cruise main indicator, door indicator, DRL indicator, EPS indicator, fog light indicator , high beam indicator,
immobilizer indicator, lights-on indicator, low fuel indicator, low oil pressure indicator, low tire pressure indicator ,
maintenance minder indicator, malfunction indicator lamp (MIL), REV limit indicator (TYPE S model), seat belt
reminder indicator, security indicator, side airbag cutoff indicator, SRS indicator, TPMS indicator , trunk indicator,
VSA activation indicator , VSA indicator , and washer fluid level indicator.
1: ’07 TYPE S and ’08-09 models
2: ’08-09 models
3: TYPE S and ’08 Premium and ’09 models
At the initial stage of the self-diagnostic function, the beep sounds intermittently, the beeper sounds continuously
when any of the following switch inputs are switched from OFF to ON:
Cruise control main, dash lights brightness controller volume ( ), ( ) button, mph km/h switch, parking brake switch,
SEL/RESET switch, SET, RESUME, CANCEL switches, and VSA OFF switch . : ’07 TYPE S and ’08-09 models
When entering the self-diagnostic mode, the beeper sounds five times.
When entering the self-diagnostic mode, all the segments blink five times.
When entering the self-diagnostic mode, the tachometer needle sweeps from the minimum position to maximum
position, then returns to the minimum position.
NOTE:
After the beeper stops sounding and the gauge needle returns to the minimum position, pushing the SEL/RESET
switch starts the Beeper Drive Circuit Check (one beep) and the Gauge Drive Circuit Check again.
The check cannot be started again until the gauge needle returns to the minimum position.
If the needle fails to sweep, or the beeper does not sound, replace the gauge control module (tach).
3 2
2
11
The needle sweeps from the
minimum position to the
maximum position, then return
to the minimum position.
08/08/21 14:35:12 61SNR030_220_0244
ProCarManuals.com
DYNOMITE -2009-


The Communication Line Check
Ending the self-diagnostic function
TYPE S model Error Code ListError code Type of communication line(s) error
Except TYPE S model Error Code List Error code Type of communication line(s) error
Example Indication
22-243
Normal (all segments come on.): Faulty (Error 1):
Fault (Error 13): Fault (Error 123):
While in the self-diagnostic mode, the Communication Line Check starts after the LCD Segments Check.
If all segments come on, the communication line is OK. If faulty, the word ‘‘Error’’ will be indicated on the odometer
display followed by number(s).
Error 1 F-CAN communication
Error 2 B-CAN communication
Error 12 F-CAN and B-CAN communication
Error 1 F-CAN communication
Error 2 B-CAN communication
Error 3 UART communication
Error 12 F-CAN and B-CAN communication
Error 13 F-CAN and UART communication
Error 23 B-CAN and UART communication
Error 123 F-CAN, B-CAN and UART communication
 If the word ‘‘Error 1’’ is indicated, there is a malfunction in the communication line between the gauge control module (tach) and the fast-controller area network (F-CAN). Check for DTCs in the ECM/PCM and troubleshoot any
DTCs found. If no DTCs are found, go to indicated troubleshooting.
 If the word ‘‘Error 2’’ is indicated, there is a malfunction in the communication line between the gauge control module (tach) and the body-controller area network (B-CAN). Go to indicated troubleshooting (B 1155 to B1160).
 Except TYPE S model: If the word ‘‘Error 3’’ is indicated, there is a malfunction in the UART communication line between the gauge control module (tach) and the gauge control module (speedo). Go to the gauge control module
(tach) input test and check terminal No. 20. If the wire harness is OK, substitute a known-good gauge control module
(speedo) and recheck.
If any F-CAN or B-CAN communication line errors are found, go to DTC check using HDS.
Turn the ignition switch to LOCK (0).
NOTE: If the vehicle speed exceeds 2 km/h (1.2 mph), the self-diagnostic function ends.
08/08/21 14:35:12 61SNR030_220_0245
ProCarManuals.com
DYNOMITE -2009-

Î(#'
)
Except TYPE S model
22-244Gauges
Circuit Diagram - Gauge Control Module (Tach)
UART
WHT
IG1 HOT in ON (II) and START (III)
UNDER-HOOD FUSE/RELAY BOX
5V



MAIN CIRCUIT
MAIN CIRCUIT
MICU
  LT GRN
20
21
PNK
124
CAN L
CAN H

 CHIME
BRN
WHT BRN
RED 19
1
WHT No. 2 (IG) (50 A)
GAUGE CONTROL MODULE (TACH) 18 17 TACHOMETER ORN
IG1
BAT
BLU
WHT
No. 23 (10 A)
BATTERY
IGNITION SWITCH
No. 1 (BAT) (100 A)
(7.5 A) No. 10UNDER-DASH
FUSE/RELAY
BOX
GAUGE CONTROL
MODULE (SPEEDO)
DRIVE
CIRCUIT DIMMING
CIRCUIT
PARKING
BRAKE
REMINDER
SEAT
BELT
REMINDER
KEY-IN
REMINDER
F-CAN
TRANSCEIVER B-CAN
TRANSCEIVER
IMMOBILIZER-
KEYLESS
CONTROL UNIT GAUGE
CONTROL
MODULE
(SPEEDO) 10 V
STABILIZING
CIRCUIT
HIGH BEAM
INDICATOR
(LED)
LIGHTS-ON
REMINDER
CLIMATE CONTROL
UNIT
HANDSFREELINK
CONTROL UNIT*3 IMMOBILIZER
INDICATOR
(LED)
ON/OFF
5V
5V
CONTROL
CIRCUIT
H1
D4 G2D2
Q1 P5 P10 Q9
A
ECM/PCM
ABS MODULATOR-
CONTROL UNIT*1
VSA MODULATOR-
CONTROL UNIT*2
YAW RATE-LATERAL
ACCELERATION SENSOR*2
EPS CONTROL UNIT
TPMS CONTROL UNIT*2
DATA LINK CONNECTOR
SRS UNIT







 MICU
08/08/21 14:35:12 61SNR030_220_0246
ProCarManuals.com
DYNOMITE -2009-

Î
µ
µ
22-245
C
(LED)
LCD DISPLAY
LCD DRIVERMAIN CIRCUIT
33
ORN
ORN 32
LT GRN
3 1
PUR (LED)
(LED)
(LED)
C
LCD DISPLAY
B
A
GAUGE CONTROL MODULE (TACH)
ODO,
TRIP A/TRIP B
OUTSIDE AIR
TEMPERATURE
CHECK FUEL CAP
SERVICE OIL LIFE ILLUMINATION CONTROL &
DIMMING CIRCUIT
FOR POINTER
ILLUMINATION CONTROL &
DIMMING CIRCUIT
FOR DIALILLUMINATION CONTROL &
DIMMING CIRCUIT
FOR LCD
FUEL
GAUGE
SENDING
UNIT FUEL
TANK
UNIT ILLUMINATION CONTROL &
DIMMING CIRCUIT
FOR SHIFT INDICATOR
SHIFT
INDICATOR
(A/T)
MAIN CIRCUIT
A :CANline
: Other communication line



 *1: ’06 07 models
*2: ’08 09 models
*3: ’09 model with navigation system
(cont’d)
08/08/21 14:35:13 61SNR030_220_0247
ProCarManuals.com
DYNOMITE -2009-

Î
22-246Gauges

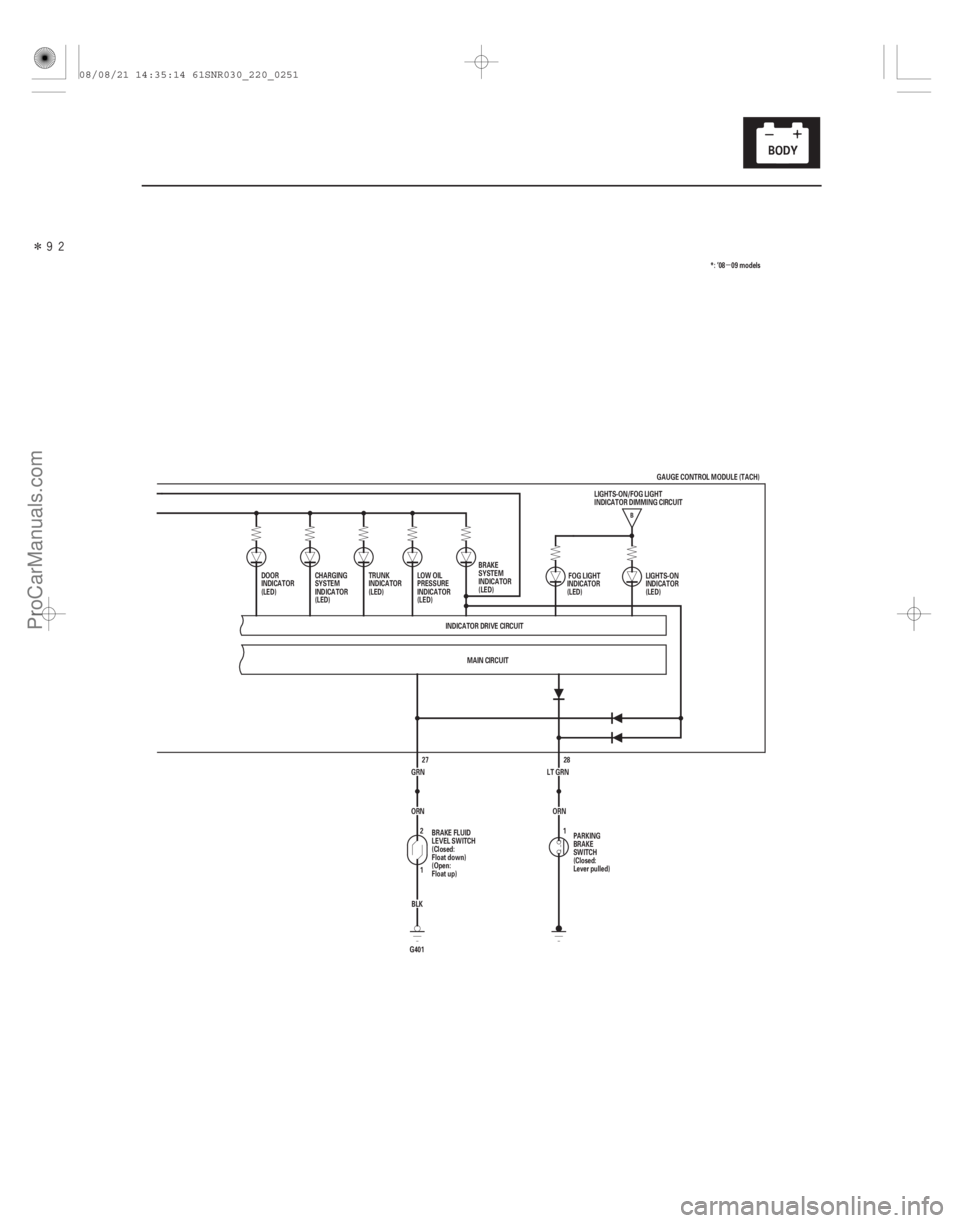

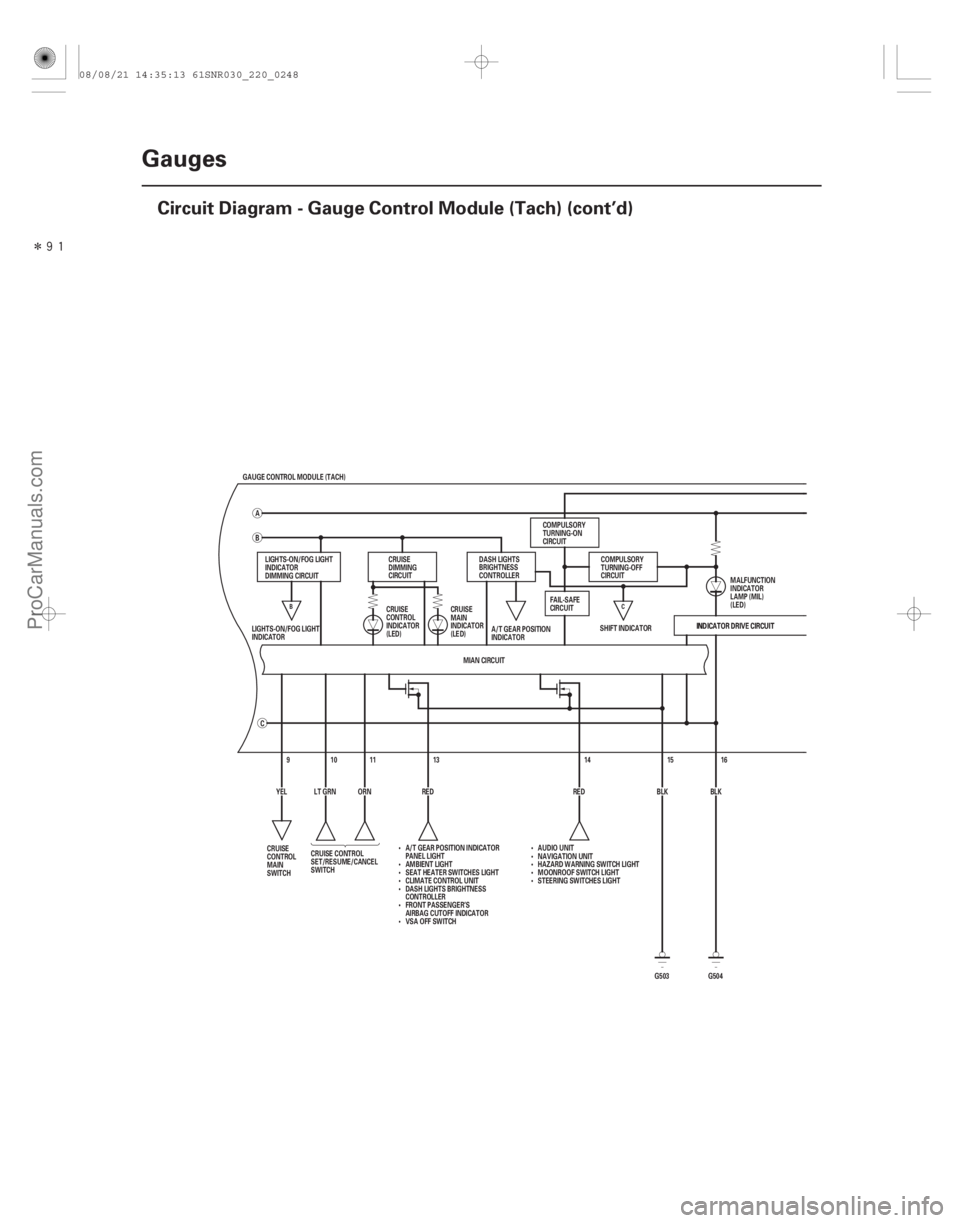

Circuit Diagram - Gauge Control Module (Tach) (cont’d)
G504
G503
SHIFT INDICATOR
AUDIO UNIT
NAVIGATION UNIT
HAZARD WARNING SWITCH LIGHT
MOONROOF SWITCH LIGHT
STEERING SWITCHES LIGHT
RED







GAUGE CONTROL MODULE (TACH)
MIAN CIRCUIT INDICATOR DRIVE CIRCUIT
16
15
14
13
91011
C
B
A
INDICATOR DRIVE CIRCUIT
BLK
BLK




 RED
YEL LT GRN ORN
LIGHTS-ON/FOG LIGHT
INDICATOR
DIMMING CIRCUIT
CRUISE CONTROL
SET/RESUME/CANCEL
SWITCH CRUISE
CONTROL
INDICATOR
(LED)
DASH LIGHTS
BRIGHTNESS
CONTROLLER
A/T GEAR POSITION
INDICATOR COMPULSORY
TURNING-ON
CIRCUIT
CRUISE
DIMMING
CIRCUIT
LIGHTS-ON/FOG LIGHT
INDICATOR
CRUISE
CONTROL
MAIN
SWITCH FAIL-SAFE
CIRCUIT
COMPULSORY
TURNING-OFF
CIRCUIT
MALFUNCTION
INDICATOR
LAMP (MIL)
(LED)
A/T GEAR POSITION INDICATOR
PANEL LIGHT
AMBIENT LIGHT
SEAT HEATER SWITCHES LIGHT
CLIMATE CONTROL UNIT
DASH LIGHTS BRIGHTNESS
CONTROLLER
FRONT PASSENGER’S
AIRBAG CUTOFF INDICATOR
VSA OFF SWITCH CRUISE
MAIN
INDICATOR
(LED)
C
B
08/08/21 14:35:13 61SNR030_220_0248
ProCarManuals.com
DYNOMITE -2009-

Î
µ´µ
22-247
G5014
3 6
7
1
2
5
BLK
PUR
7
BLU 6
YEL 5
4
BRN
GRY
RED MAIN CIRCUIT
D
INDICATOR DRIVE CIRCUIT E
MAINTENANCE
MINDER
INDICATOR
(LED) SIDE
AIRBAG
CUTOFF
INDICATOR
(LED)
ILLUMI
() ILLUMI
()SEL/
RESET km/h
mph
LIGHTS
(LED)
GAUGE CONTROL
MODULE (TACH) No. 14 (7.5 A) FUSE
(UNDER-DASH
FUSE/RELAY BOX) SEAT BELT
REMINDER
INDICATOR
(LED)
SRS
INDICATOR
(LED)
DASH LIGHTS BRIGHTNESS CONTROLLER and
ODOMETER SELECT/RESET SWITCH
WASHER
FLUID LEVEL
INDICATOR
(LED)
GAUGE CONTROL MODULE (TACH)
DRL
INDICATOR
(LED)
(cont’d)
08/08/21 14:35:14 61SNR030_220_0249
ProCarManuals.com
DYNOMITE -2009-

Î
22-248Gauges
Circuit Diagram - Gauge Control Module (Tach) (cont’d)
