Page 551 of 1680

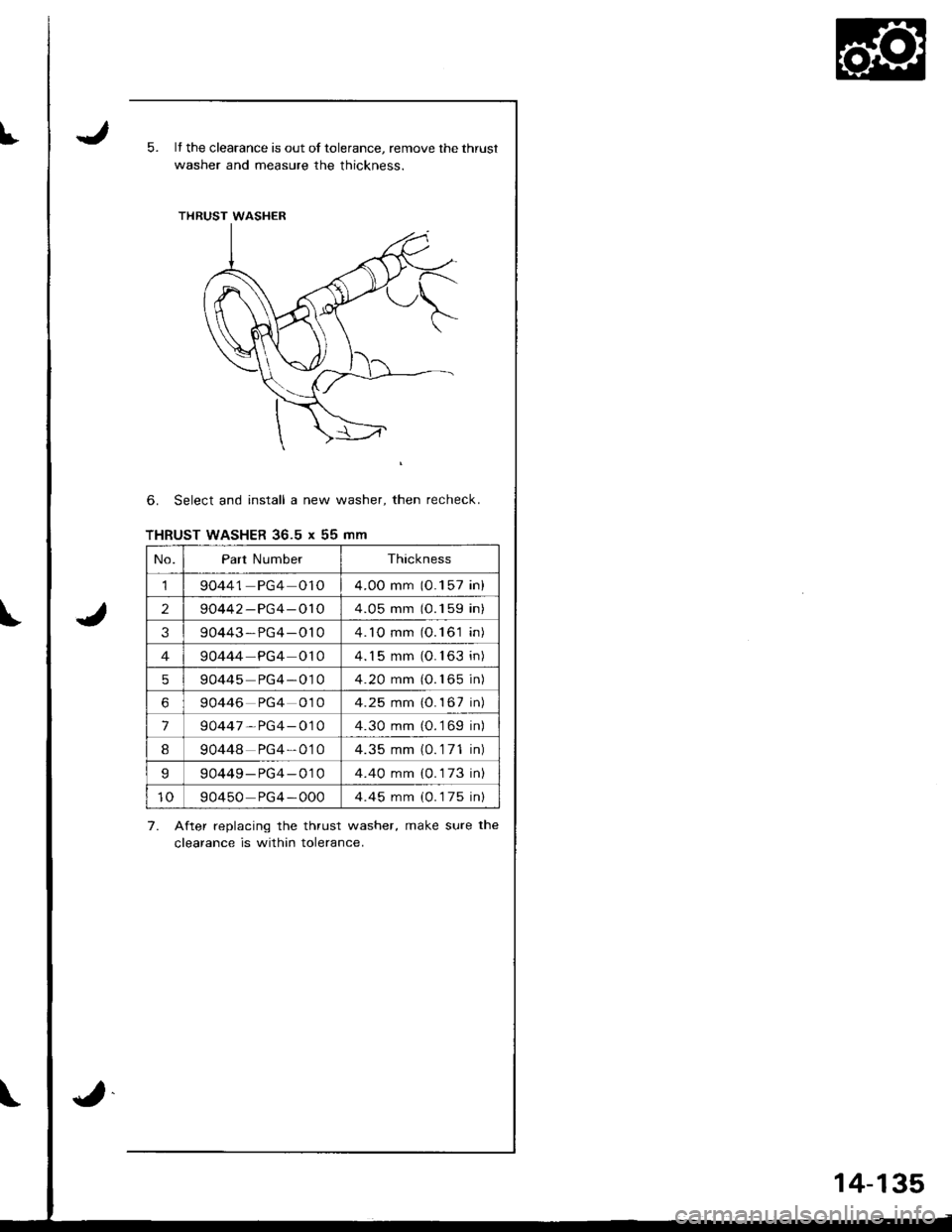

ACURA INTEGRA 1998  Service Repair Manual It5.It the clearance is out of tolerance, remove the thrust
washer and measure the thickness.
6. Select and install a new washer, then recheck.
THRUST WASHER 36.5 x 55 mm
7. After replacing the thrust

Page 552 of 1680

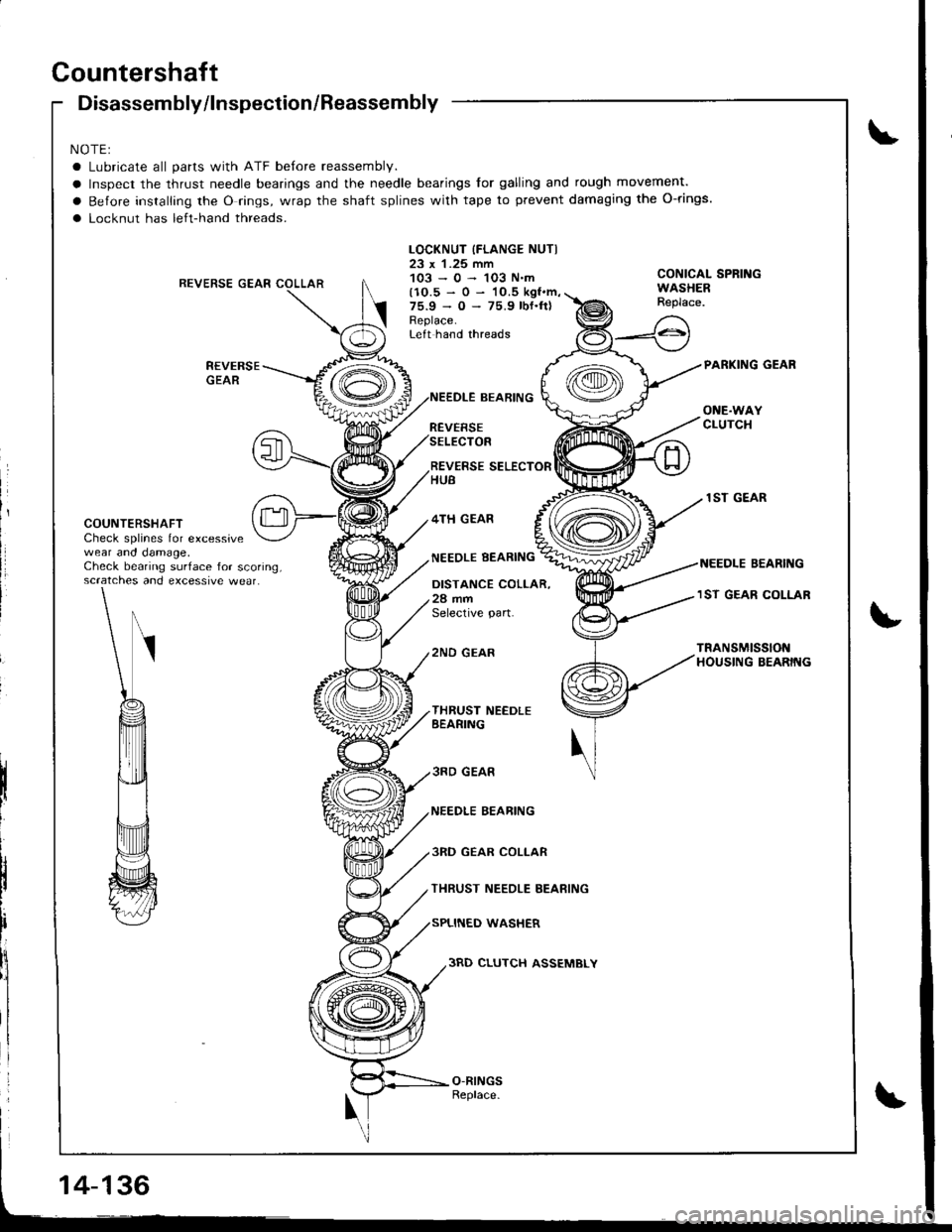

ACURA INTEGRA 1998  Service Repair Manual Countershaft
Disassembly/lnspection/Reassembly
NOTEI
a Lubricate all parts with ATF before reassembly.
a Inspect the thrust needle bearings and the needle bearings for galling and rough movement.
a Be

Page 553 of 1680

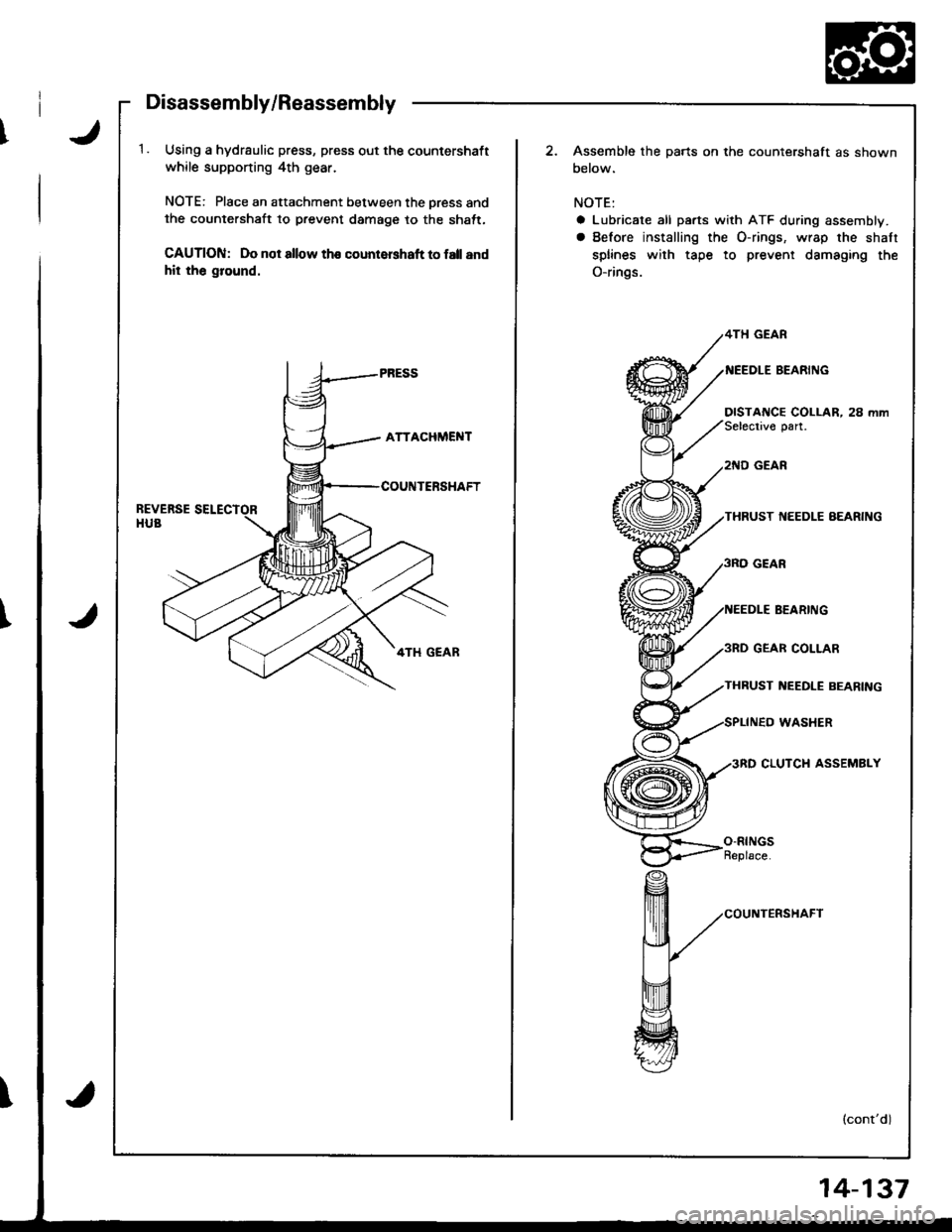

ACURA INTEGRA 1998  Service Repair Manual Disassembly/Reassembly
1. Using a hydrsulic press, press out the countershaft
while supponing 4th gear.
NOTE: Place an attachment between the oress andthe countershaft to prevent damage to the shatt,

Page 554 of 1680

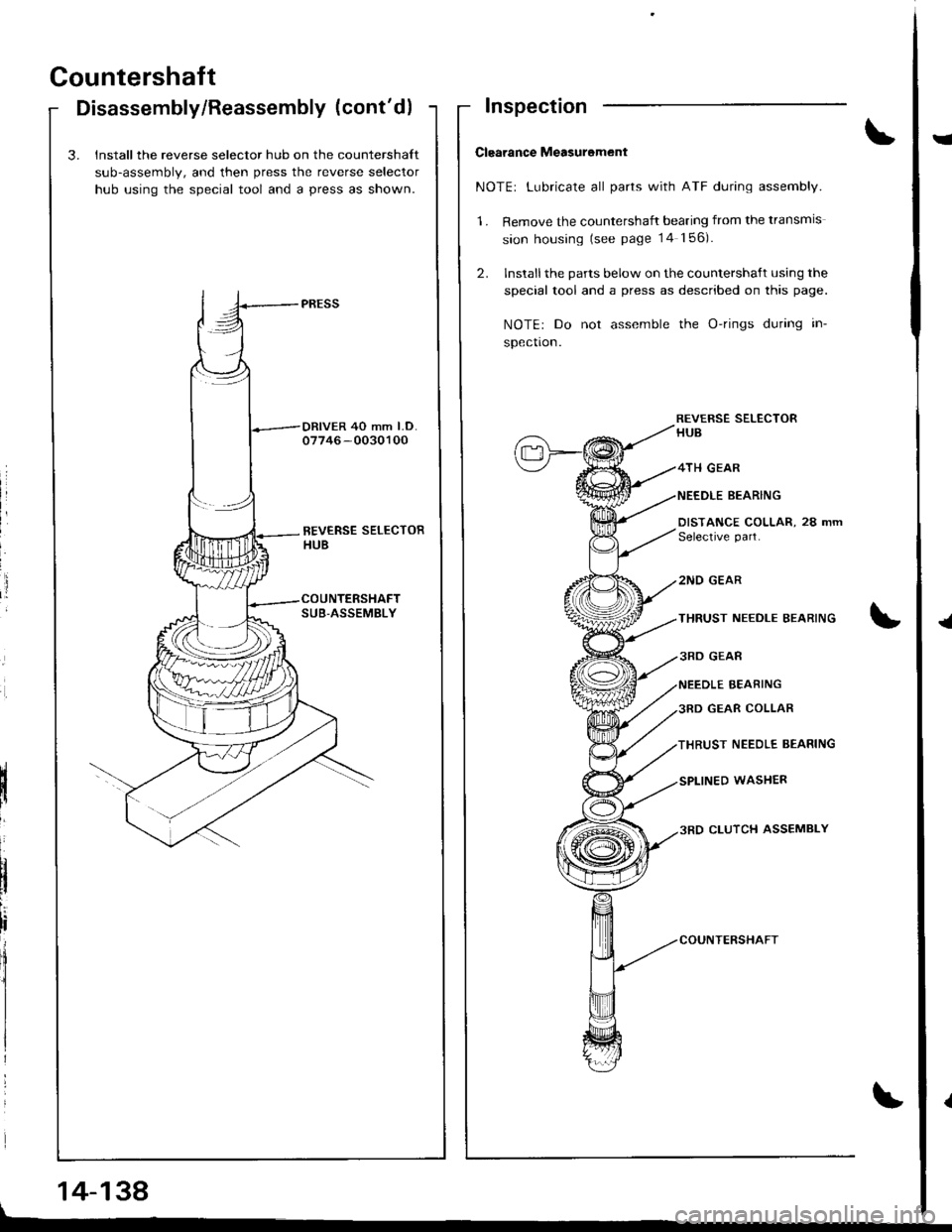

ACURA INTEGRA 1998  Service Repair Manual Countershaft
Disassembly/Reassembly (contdl
3. Install the reverse selector hub on the countershaft
sub-assembly, and then press the reverse selector
hub using the special tool and a press as shown.

Page 555 of 1680

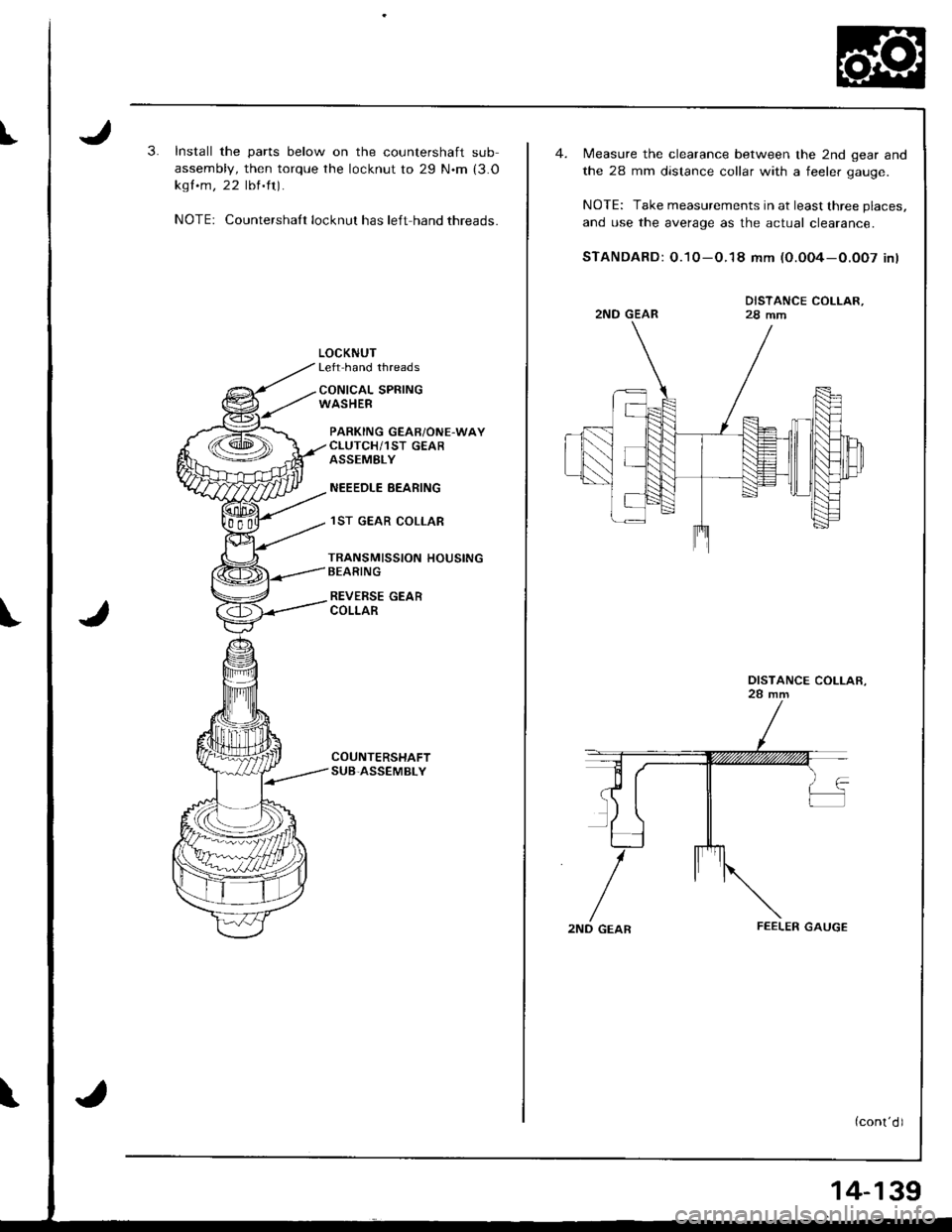

ACURA INTEGRA 1998  Service Repair Manual I3.Install the parts below on the countershaft sub
assembly, then torque the locknut to 29 N.m (3.O
kgf .m, 22 lblft).
NOTE: Countershalt locknut has left hand threads.
LOCKNUTLeft hand threads
CONIC

Page 556 of 1680

ACURA INTEGRA 1998  Service Repair Manual Countershaft
Inspection (contd)
5. lf the clearance is out of tolerance. remove the
28 mm distance collar and measure the width.
6. Select and install a new distance collar. then
recheck.
DISTANCE CO

Page 557 of 1680

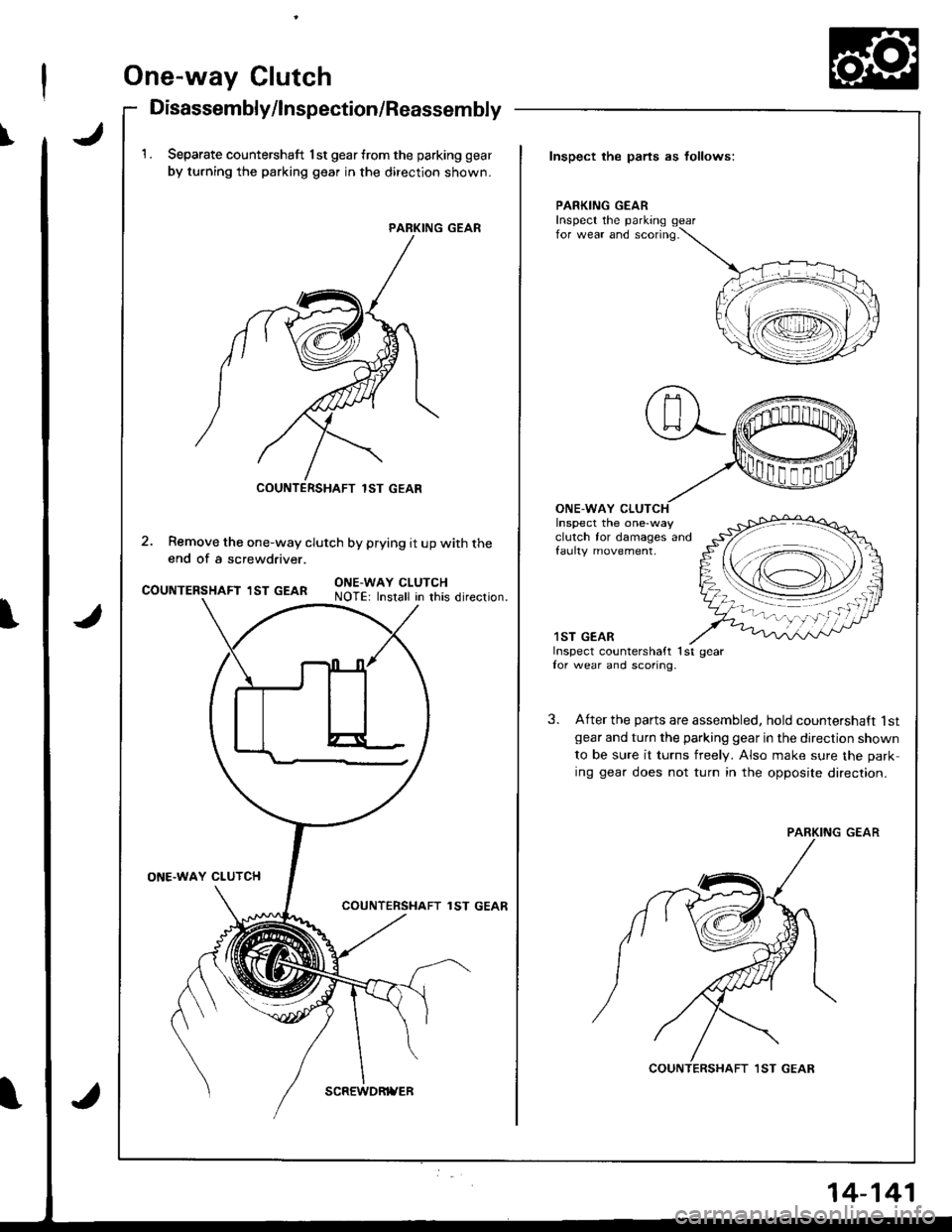

ACURA INTEGRA 1998  Service Repair Manual One-way Glutch
I
Disassembly/lnspection/Reassembly
1 . Separate countershaft l st gear from the parking gear
by turning the parking gear in the direction shown.
PARKING GEAR
2. Remove the one-way clut

Page 558 of 1680

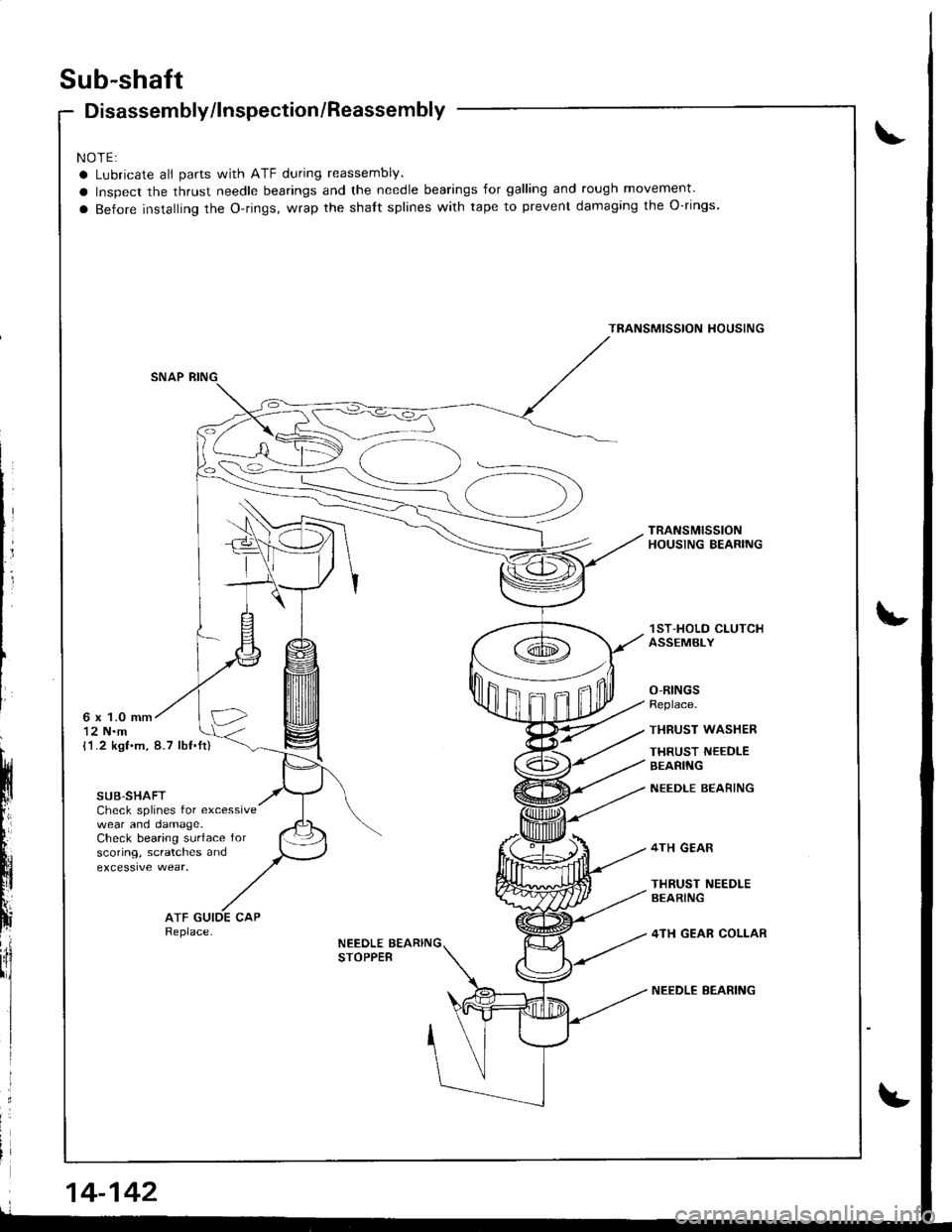

ACURA INTEGRA 1998  Service Repair Manual Sub-shaft
Disassembly/lnspection/Reassembly
NOTE:
a Lubricate all parts with ATF during reassembly.
a Inspect the thrust needle bearings and the needle bearings for galling and rough movement
a Befor

Page 559 of 1680

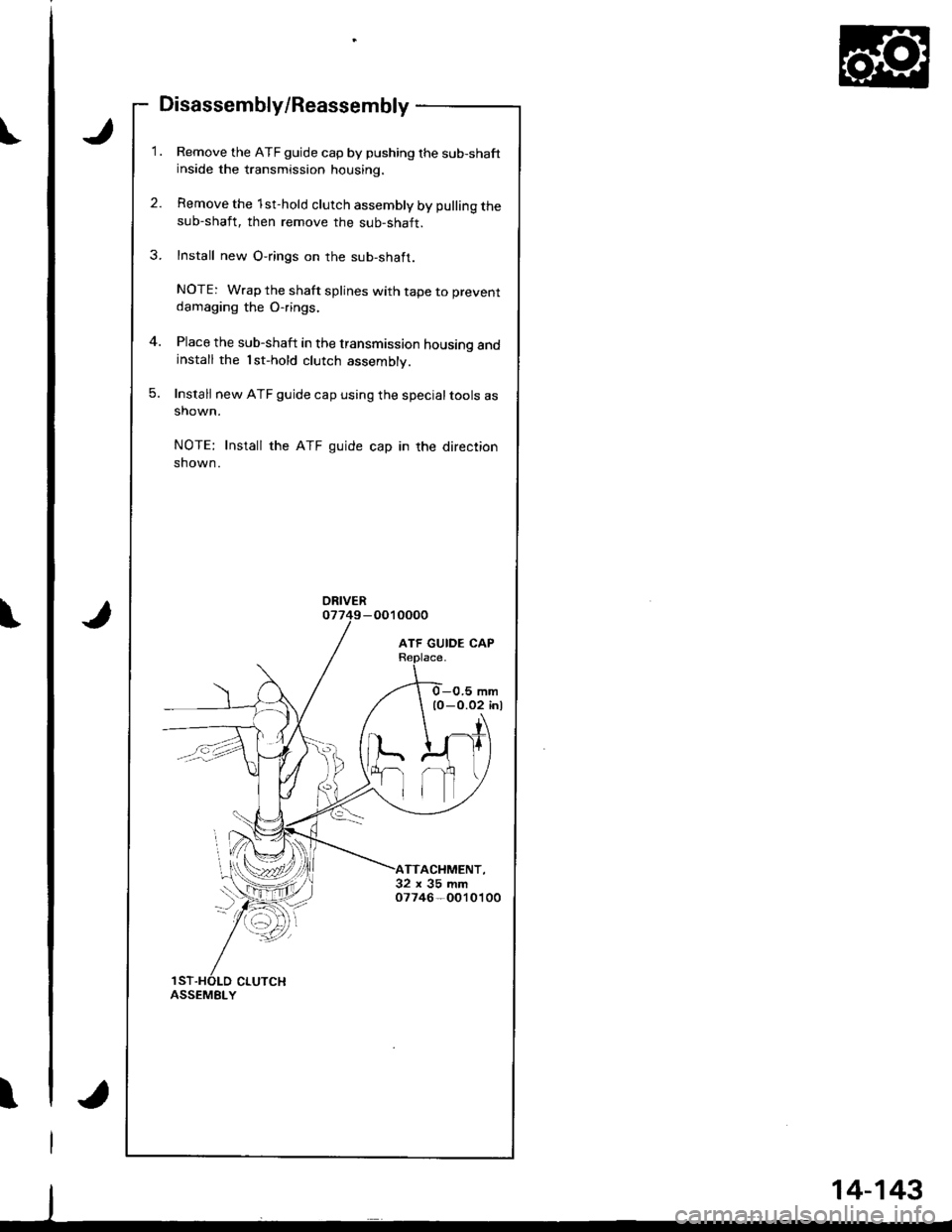

ACURA INTEGRA 1998  Service Repair Manual t
Disassembly/Reassembly
Remove the ATF guide cap by pushing the sub-shaftinside the transmission housing.
Remove the 1st-hold clutch assembly by pulling thesub-shaft, then remove the sub-shaft.
Insta

Page 560 of 1680

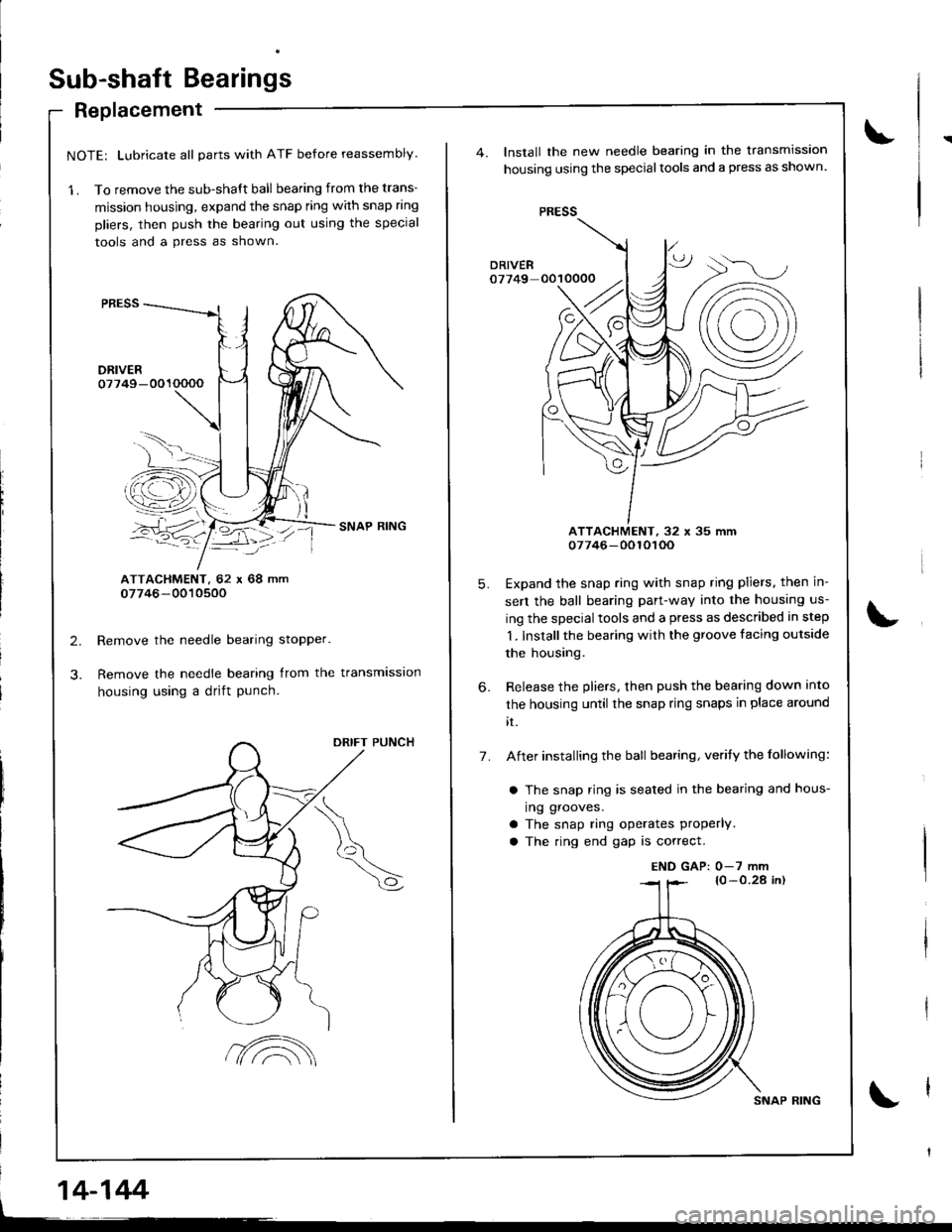

ACURA INTEGRA 1998  Service Repair Manual Sub-shaft Bearings
Replacement
NOTE: Lubricate all parts with ATF before reassembly.
1 . To remove the sub-shaft ball bearing from the trans-
mission housing, expand the snap ring with snap ring
plier
