ACURA MDX 2022 Owners Manual

530
uuAcuraWatchTMuTraffic Jam Assist
Driving
■When Traffic Jam Assist may automatically be canceled when:
It is possible that under any of the following circumstances, contour lines
representing traffic lane lines will appear in the gauge, a buzzer will sound, and
Traffic Jam Assist will be canceled.
• The temperature of the camera is too high.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, is dirty.
Under the following circumstances, some features of Traffic Jam Assist may not
work.
■Vehicle conditions
• The front grille is dirty.
• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshield is streake d or blocked by dirt, mud, leaves, wet
snow, etc.
• The inside of the windshield is fogged up.
• Your vehicle is fitted with tires or wheels of differing size, type, or structure, or the
tires are not properly inflated.
• The vehicle is tilted due to a heav y load or suspension modifications.
• The interval between your vehicle and th e detected vehicle ahead of you is too
short.
• Snow chains are inst alled on the tires.
• The vehicle is towing a trailer.
■Traffic Jam Assist: Conditions and limitations
22 ACURA MDX-31TYA6000_02.book 530 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

531
uuAcuraWatchTMuTraffic Jam Assist
Continued
Driving
■Environmental conditions
• Bad weather (rain, fog, snow, etc.).
• You are driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto your vehicle or the roadway.
• Brightness in the immediate are suddenl y changes between light and dark, such
as at the an entrance or exit of a tunnel.
• The road has puddles or the surface of th e road is shiny due to recent rainfall.
• Shadows are cast across the lane lines (e .g., trees, buildings, guardrails, vehicle,
etc.).
• Spray or snow coming off the vehicle ahead.
• Driving at night or in a dark condition such as a tunnel.
■Roadway conditions
Certain features of the road can interfere with proper camera operation. Here are
some examples:
• The lines are not very distinguisha ble from the surface of the road.
• The section of the road has lane res trictions or temporarily marked lanes.
• The lines are faded, removed lines remain visible next to newer lines (duplicate
lines), or the road is marked with tire tracks.
Faded lines Duplicate lines Tire tracks
22 ACURA MDX-31TYA6000_02.book 531 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

532
uuAcuraWatchTMuTraffic Jam Assist
Driving
• The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).
• The lane markings are extremely narro w, wide, or of inconsistent width.
• The lane lines are partly concealed by your vehicle or another vehicle.
• The road is hilly or the vehicle is approaching the crest of a hill.
• The vehicle is shaking considerably be cause of an uneven road surface, etc.
• Objects on the road (curb, guard rail, pylons, etc.) are recogn ized as white lines
(or yellow lines).
• The lines appear distorted or they briefl y disappear out of the camera detection
range due to an uneven road surface.
• The road is unpaved, or has a rough or bumpy surface.
• The roads has double lines.
• The surface of the road is slippery due to icy or snowy conditions.
• Sections of the paved road are obscured by puddles or snow.
• The road has ruts.
Very wide or narrow traffic lane
22 ACURA MDX-31TYA6000_02.book 532 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

533
uuAcuraWatchTMuTraffic Jam Assist
Continued
Driving
• The section of the road branches off or merges with another road.
■Certain features of the road can in terfere with proper radar sensor
operation. Here are some examples:
• The road has curves, undulations, slopes, etc.
• The radar beam is reflecting off multiple items that are within close proximity of
your vehicle. This can happen when you are driving, for example, across a narrow
truss bridge.
Lane void of lines at junction
22 ACURA MDX-31TYA6000_02.book 533 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

534
uuAcuraWatchTMuTraffic Jam Assist
Driving
■Detection limitations
• The vehicle ahead suddenly accelerates.
• The vehicle ahead is a panel truck or a vehicle whose shape is not of standard
dimensions.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.
• The ground clearance of the vehicle ahead is unusually high.
• A vehicle suddenly cuts in front of yours.
Radar detects upper
section of an empty
carrier truck.Panel truck,
tanker truck,
etc.
22 ACURA MDX-31TYA6000_02.book 534 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

535
uuAcuraWatchTMuRoad Departure Mitigation System
Continued
Driving
Road Departure Mi tigation System
Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected lane markings and/or leaving the roadway
altogether.
The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicle is getting too close
to detected lane markings without a turn
signal activated, the system, in addition to a
visual alert, applies st eering torque and alerts
you with rapid vibrations on the steering
wheel, to help you remain within the detected
lane.
2 Customized Features P. 345
As a visual alert, appears on the gauge.
If the system determines that its steering input
is insufficient to keep your vehicle on the
roadway, it may apply braking.
u Braking is applied only when the lane
markings are solid continuous lines.
■How the System Works
1Road Departure Mitigation System
Important Safety Reminder
Like all assistance systems, the Road Departure
Mitigation system has limitations.
Over-reliance on the Road Departure Mitigation system
may result in a collision. It is always your responsibility to
keep the vehicle within your driving lane.
The Road Departure Mitigati on system only alerts you
when lane drift is detected without a turn signal in use.
The Road Departure Mitigation system may not detect
all lane markings or lane or roadway departures;
accuracy will vary based on weather, speed and lane
marker condition. It is always your responsibility to
safely operate the vehicle and avoid collisions.
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera P. 547
The Road Departure Mitigati on system may not work
properly or may work im properly under the certain
conditions:
2 Road Departure Mitigation Conditions and
Limitations P. 539
There are times when you may not notice Road
Departure Mitigation functions due to your operation
of the vehicle, or road surface conditions.
The Road Departure Mitiga tion is not activated for
about 15 seconds after the power system is turned on.
22 ACURA MDX-31TYA6000_02.book 535 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

uuAcuraWatchTMuRoad Departure Mitigation System
536
Driving
The system cancels assisting operations when you turn th e steering wheel to avoid
crossing over detected lane markings.
If the system operates several times without detecting driver response, the system
beeps to alert you.1 Road Departure Mitigation System
If LKAS is off and you have selected Narrow from the
customized options using the audio/information
screen, the message below will appear in case the
system determines a possibility of your vehicle
crossing over detect ed lane markings.
2 Customized Features P. 345
In the following case, a beeper sounds, a message
related to the ACC with Low Speed Follow/ACC
appears on the driver information interface, and the
braking function controlled by the Road Departure
Mitigation system is canceled.
•The vehicle has repeatedly applied the brakes to
maintain the set speed (for example, you are
descending a long slope).
22 ACURA MDX-31TYA6000_02.book 536 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

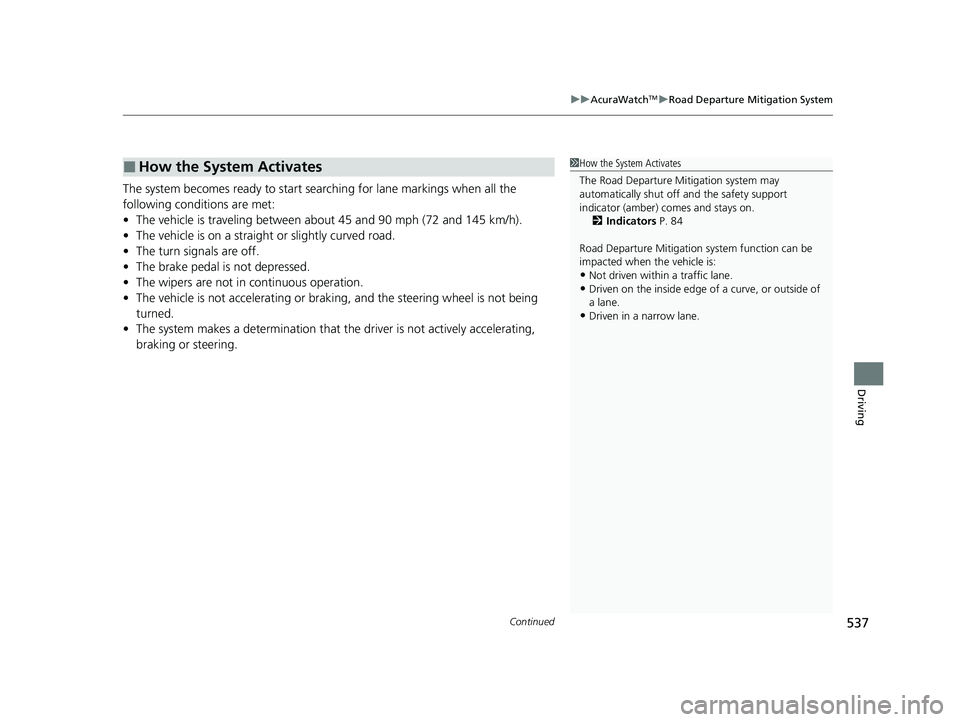

Continued537
uuAcuraWatchTMuRoad Departure Mitigation System
Driving
The system becomes ready to start sear ching for lane markings when all the
following conditions are met:
• The vehicle is traveling between about 45 and 90 mph (72 and 145 km/h).
• The vehicle is on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.
• The vehicle is not accelera ting or braking, and the steering wheel is not being
turned.
• The system makes a determination that th e driver is not actively accelerating,
braking or steering.
■How the System Activates1 How the System Activates
The Road Departure Mi tigation system may
automatically shut off and the safety support
indicator (amber) co mes and stays on.
2 Indicators P. 84
Road Departure Mi tigation system function can be
impacted when the vehicle is:
•Not driven within a traffic lane.
•Driven on the inside edge of a curve, or outside of
a lane.
•Driven in a narrow lane.
22 ACURA MDX-31TYA6000_02.book 537 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

uuAcuraWatchTMuRoad Departure Mitigation System
538
Driving
When you turn the Road Departure Mitigation
on and off, do the following.
1. Press the safety support switch.
2. Roll the right selector wheel to the
symbol and push it.
u The message appears on the driver
information interface when the system
becomes on or off.
u A check mark appears in the box and the
color of the symbol changes green
when the system is on. The check mark
disappears and the color of the
symbol changes gray when the system is
off.
The Road Departure Mitigation is in the
previously selected on (checked) or off
(unchecked) setting each time you start the
engine.
■Road Departure Mitigation On and Off1 Road Departure Mitigation On and Off
When you have selected Warning Only from the
customized options using the audio/information
screen, the system does not operate the steering
wheel and braking. 2 Customized Features P. 345
You can also select the safety support content from
the driver information interface. 2 Driver Information Interface (Right Side
Area) P. 108
The vehicle stability assist
TM (VSA ®) system, adaptive
cruise control (ACC) with low speed follow, safety
support and low tire pressu re/TPMS indicators may
come on in amber along with a message in the driver
information interface when you set the power mode
to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20
km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
Safety Support Switch
Right Selector Wheel
22 ACURA MDX-31TYA6000_02.book 538 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

539
uuAcuraWatchTMuRoad Departure Mitigation System
Continued
Driving
The system may not properly detect lane ma rkings and the position of your vehicle
under certain conditions. Some examples of these conditions are listed below.
■Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as an entrance or exit of a tunnel.
• There is little contrast between lane lines and the roadway surface.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflec ted onto the roadway.
• Driving in the shadows of trees, buildings, etc.
• Shadows of adjacent objects are parallel to lane markings.
• Roadway objects or structures are misinterpreted as lane markers.
• Reflections on the interi or of the windshield.
• Driving at night or in a dark condition such as a tunnel.
■Road Departure Mitigation Conditions and Limitations
22 ACURA MDX-31TYA6000_02.book 539 ページ ２０２０年１１月５日　木曜日　午前１１時３９分
