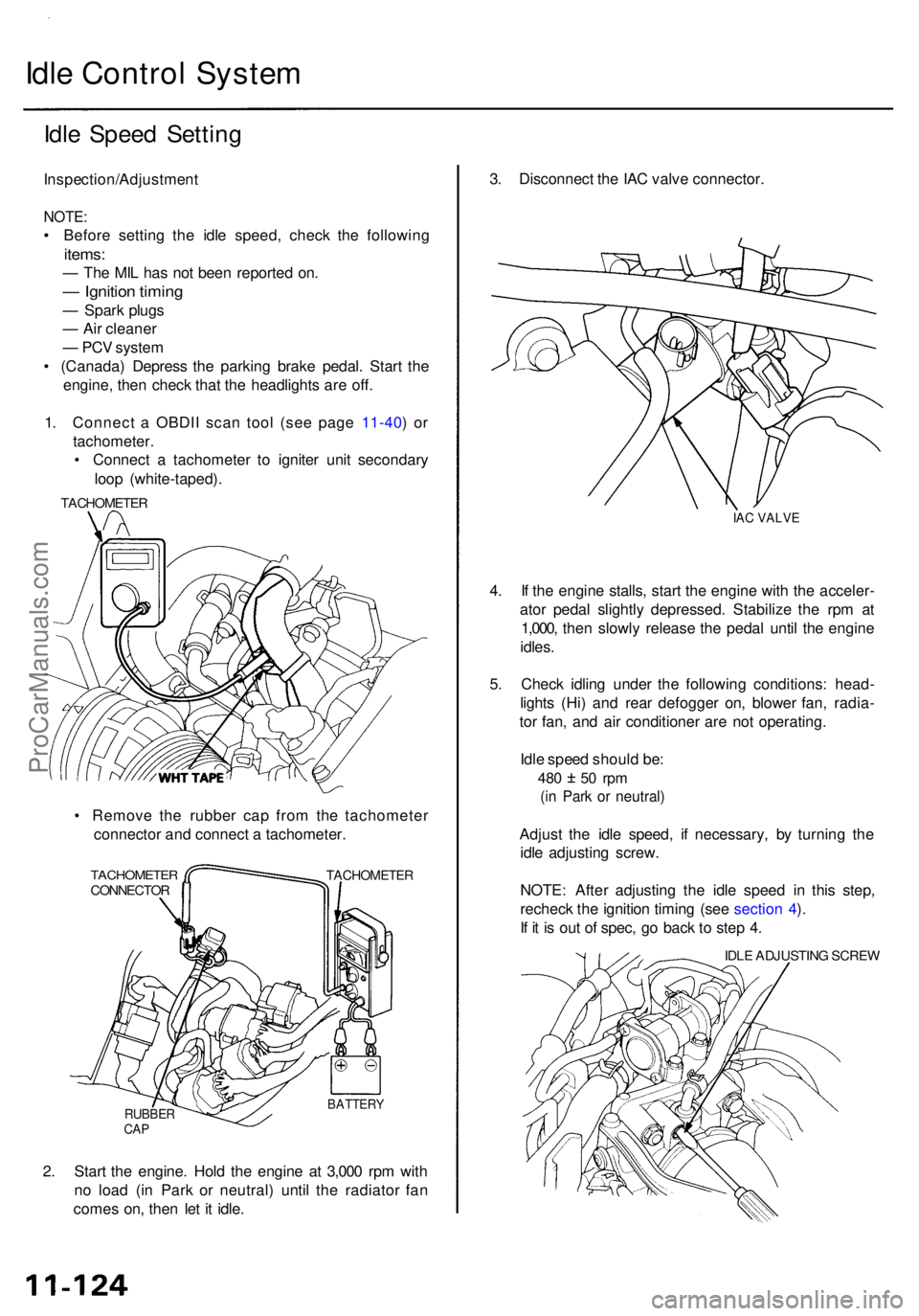

Idle Contro l Syste m
Idle Spee d Settin g
Inspection/Adjustmen t
NOTE:
• Befor e settin g th e idl e speed , chec k th e followin g
items:
— Th e MI L ha s no t bee n reporte d on .
— Ignitio n timin g
— Spar k plug s
— Ai r cleane r
— PC V syste m
• (Canada ) Depres s th e parkin g brak e pedal . Star t th e
engine , the n chec k tha t th e headlight s ar e off .
1 . Connec t a OBDI I sca n too l (se e pag e 11-40 ) o r
tachometer .
• Connec t a tachomete r t o ignite r uni t secondar y
loo p (white-taped) .
• Remov e th e rubbe r ca p fro m th e tachomete r
connecto r an d connec t a tachometer .
TACHOMETE RCONNECTORTACHOMETE R
RUBBERCAP
BATTER Y
2. Star t th e engine . Hol d th e engin e a t 3,00 0 rp m wit h
n o loa d (i n Par k o r neutral ) unti l th e radiato r fa n
come s on , the n le t i t idle . 3
. Disconnec t th e IA C valv e connector .
IAC VALV E
4. I f th e engin e stalls , star t th e engin e wit h th e acceler -
ato r peda l slightl y depressed . Stabiliz e th e rp m a t
1,000 , the n slowl y releas e th e peda l unti l th e engin e
idles .
5 . Chec k idlin g unde r th e followin g conditions : head -
light s (Hi ) an d rea r defogge r on , blowe r fan , radia -
to r fan , an d ai r conditione r ar e no t operating .
Idl e spee d shoul d be :
480 5 0 rp m
(in Par k o r neutral )
Adjust th e idl e speed , i f necessary , b y turnin g th e
idl e adjustin g screw .
NOTE : Afte r adjustin g th e idl e spee d i n thi s step ,
rechec k th e ignitio n timin g (se e sectio n 4 ).
I f i t i s ou t o f spec , g o bac k t o ste p 4 .
IDL E ADJUSTIN G SCRE W
TACHOMETE
R
