Mirrors
Rearvie w Mirro r Remova l - wit h OnSta r Syste m
1. Carefull y remov e th e rearvie w mirro r bas e lowe r
cove r wit h a flat-ti p screwdriver .
CAUTION : Whe n pryin g wit h a flat-ti p screwdriver ,
wra p it wit h protectiv e tap e t o preven t damage .
REARVIE W MIRRO RHARNES S UPPE R
COVE R
HOOK S
REARVIE W MIRRO R
BAS E LOWE R COVE RHOOK
LOWE RCOVER
2. Carefull y remov e th e rearvie w mirro r harnes s uppe r
cover wit h a flat-ti p screwdriver .
CAUTION: Whe n pryin g wit h a flat-ti p screwdriver ,
wra p it wit h protectiv e tap e t o preven t damage .
HARNES S COVE RCLIP
HOO K
HOO K
UPPE RCOVE R
REARVIE W MIRRO R
HARNES S UPPE R
COVERREARVIE W MIRRO R
HARNES S COVE R
CLIP
3. Disconnec t th e connector , an d loose n th e scre w
wit h a Tor x T2 0 bit , the n slid e th e rearvie w mirro r
rearwar d an d of f th e lug .
LUG
CONNECTO R
SCREW5 x 0.8 m m2.8 N- m (0.2 9 kgf-m ,2.1 Ibf-ft )Loosen . REARVIE
W MIRRO R
4. Instal l th e mirro r i n th e revers e orde r o f removal .
NOTE:
• Befor e installin g th e mirror , remov e th e Tor x
screw , an d appl y liqui d threa d loc k t o it .
• Mak e sur e th e connecto r i s plugge d i n properly .
HOOKS
REARVIEWMIRRO RBASE
ProCarManuals.com

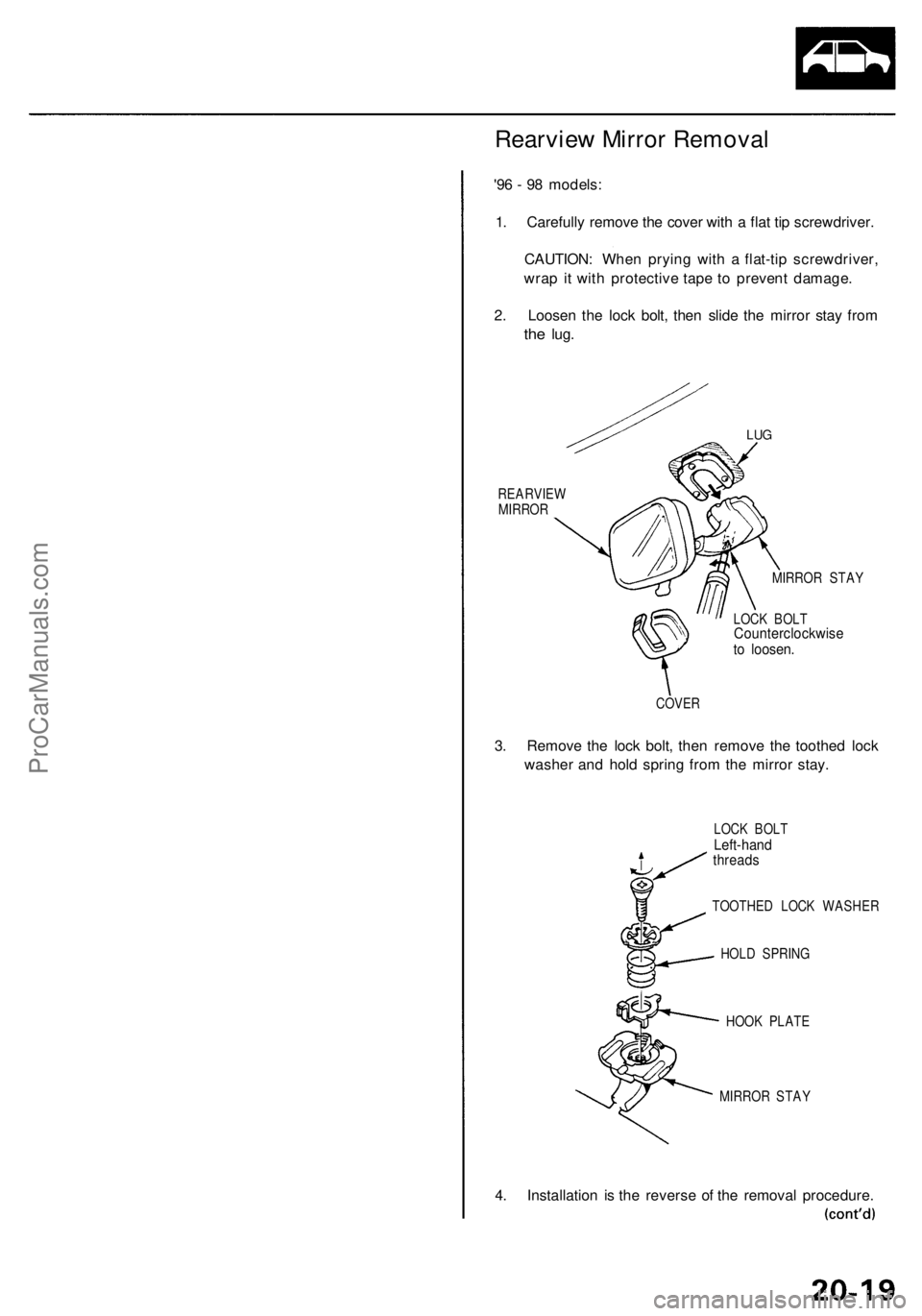

Rearview Mirror Removal

'96 - 98 models:

1. Carefully remove the cover with a flat tip screwdriver.

CAUTION: When prying with a flat-tip screwdriver,

wrap it with protective tape to prevent damage.

2. Loosen the lock bolt, then slide the mirror stay from

the
lug.

LUG

REARVIEW

MIRROR

MIRROR STAY

LOCK BOLT

Counterclockwise

to loosen.

COVER

3. Remove the lock bolt, then remove the toothed lock

washer and hold spring from the mirror stay.

LOCK BOLT

Left-hand

threads

TOOTHED LOCK WASHER

HOLD SPRING

HOOK PLATE

MIRROR STAY

4. Installation is the reverse of the removal procedure.ProCarManuals.com
