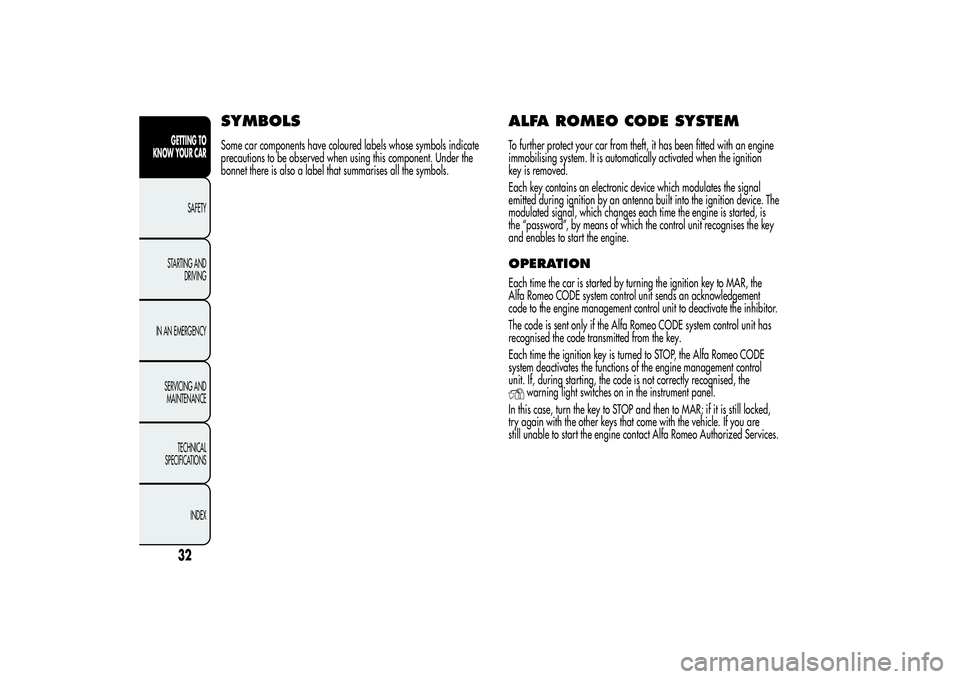

SYMBOLSSome car components have coloured labels whose symbols indicate
precautions to be observed when using this component. Under the
bonnet there is also a label that summarises all the symbols.
ALFA ROMEO CODE SYSTEMTo further protect your car from theft, it has been fitted with an engine
immobilising system. It is automatically activated when the ignition
key is removed.
Each key contains an electronic device which modulates the signal
emitted during ignition by an antenna built into the ignition device. The
modulated signal, which changes each time the engine is started, is
the “password”, by means of which the control unit recognises the key
and enables to start the engine.OPERATIONEach time the car is started by turning the ignition key to MAR, the
Alfa Romeo CODE system control unit sends an acknowledgement
code to the engine management control unit to deactivate the inhibitor.
The code is sent only if the Alfa Romeo CODE system control unit has
recognised the code transmitted from the key.
Each time the ignition key is turned to STOP, the Alfa Romeo CODE
system deactivates the functions of the engine management control
unit. If, during starting, the code is not correctly recognised, the
warning light switches on in the instrument panel.
In this case, turn the key to STOP and then to MAR; if it is still locked,
try again with the other keys that come with the vehicle. If you are
still unable to start the engine contact Alfa Romeo Authorized Services.
32GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ALARM(for versions/markets, where provided)ALARM ACTIVATIONThe alarm activates in the following cases:
❒wrongful opening of a door/bonnet/luggage compartment
(perimeter protection);
❒wrongful operation of the ignition switch (key turned to MAR);
❒cutting of the battery cables;
❒movement inside the passenger compartment (volumetric protection);
❒anomalous lifting/tilting of the car (for versions/markets, where
provided).
Operation of the alarm is indicated by an acoustic and visual signal
(flashing of the direction indicators for several seconds). The alarm
activation modes may vary according to the market. There is a
maximum number of acoustic/visual cycles. When this is reached the
system returns to normal operation.
IMPORTANT The engine locking function is guaranteed by the Alfa
Romeo CODE, which is automatically activated when the ignition key
is extracted from the ignition switch.
IMPORTANT The alarm is adapted to meet requirements in various
countries.
SWITCHING ON THE ALARMWith the doors and bonnet closed and the ignition key either turned to
STOP or removed, direct the key with the remote control towards the
car, then press and release the
button. Except for specific markets,
the system emits a visual and acoustic signal and enables door locking.
A self-diagnosis stage precedes the switching on of the alarm: in the
event of faults, the system will generate a further acoustic and/or
visual signal through the LED on the dashboard.
If after the alarm is switched on, a second acoustic signal is emitted
and/or a visual signal via the LED on the dashboard, wait about
4 seconds and switch off the alarm by pressing the
button, check
that the doors, bonnet and luggage compartment are closed correctly
and then reactivate the system by pressing the
button.
If the alarm emits an acoustic signal even when the doors, bonnet and
boot are correctly closed, a fault has occurred in system operation:
in this case, contact Alfa Romeo Authorized Services.
ALARM SELF-ACTIVATION(for versions/markets, where provided)
If the alarm has not been activated using the remote control, once
about 30 seconds have elapsed from when the ignition key was turned
to STOP and a door or the tailgate was last opened and then closed,
the alarm activates automatically.
This is indicated by the LED on the button A fig. 18 lighting up
intermittently and the indications of activation described previously.
To deactivate the alarm, press the
button on the remote control.
The alarm also activates when the doors are closed by turning the
metal insert of the key in the driver side door latch. If the system
self-activates, the doors are not locked.
38GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IGNITION DEVICEThe key can be turned to three different positions fig. 19:
❒STOP: engine off, key can be removed, steering column locked.
Some electrical devices (e.g. car radio, central door locking system,
alarm, etc.) are enabled;
❒MAR: driving position. All electrical devices are enabled;
❒AVV: engine start-up.
The ignition switch is fitted with a safety system that requires the
ignition key to be turned back to STOP if the engine does not start,
before the starting operation can be repeated.
If the ignition switch is tampered with (e.g.: attempted
theft), have it checked over by Alfa Romeo Authorized
Services before driving again.
Always remove the key when you leave the car to
prevent someone from accidentally operating the
controls. Remember to engage the handbrake. Engage
1
stgear if the car is parked uphill or reverse if the car is parked
downhill. Never leave children unattended in the car.
STEERING LOCKEngagement
When the key is at STOP, remove the key and turn the steering wheel
until it locks.
Disengagement
Move the steering wheel slightly and turn the ignition key to MAR.
It is absolutely forbidden to carry out any after-market
operation involving steering system or steering column
modifications (e.g.: installation of anti-theft device)
that could badly affect performance and safety, invalidate the
warranty and also result in non-compliance of the car with
type-approval requirements.Never remove the key while the car is moving. The
steering wheel will lock as soon as it is turned. This
holds true for cars being towed as well.
fig. 19
A0K0063
40GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Electric seat heating
(for versions/markets, where provided)

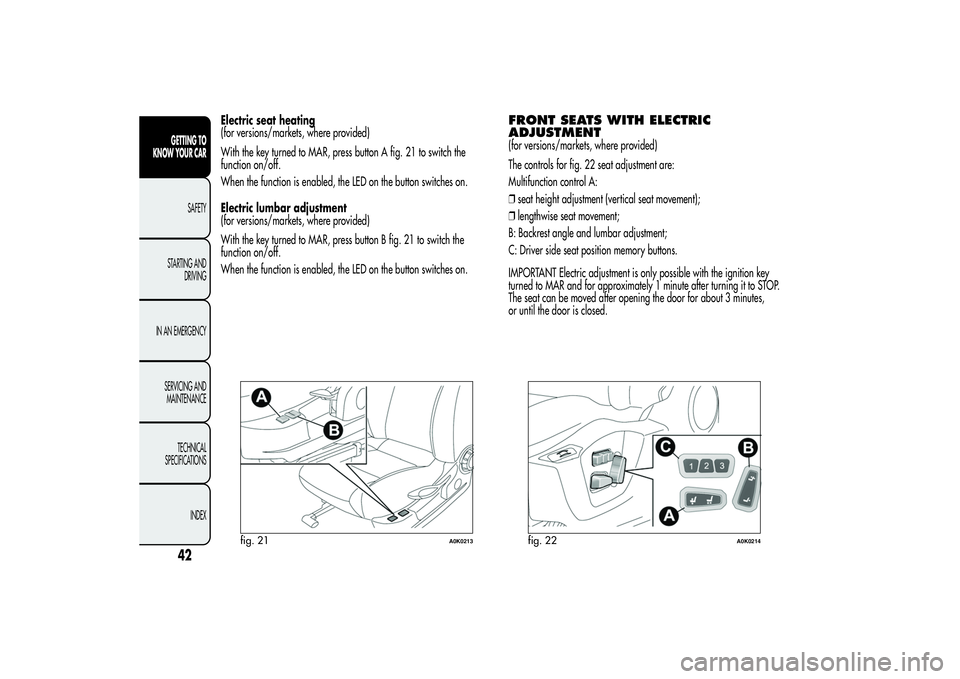

With the key turned to MAR, press button A fig. 21 to switch the
function on/off.
When the function is enabled, the LED on the button switches on.
Electric lumbar adjustment
(for versions/markets, where provided)
With the key turned to MAR, press button B fig. 21 to switch the
function on/off.
When the function is enabled, the LED on the button switches on.
FRONT SEATS WITH ELECTRIC
ADJUSTMENT(for versions/markets, where provided)
The controls for fig. 22 seat adjustment are:
Multifunction control A:
❒seat height adjustment (vertical seat movement);
❒lengthwise seat movement;
B: Backrest angle and lumbar adjustment;
C: Driver side seat position memory buttons.
IMPORTANT Electric adjustment is only possible with the ignition key
turned to MAR and for approximately 1 minute after turning it to STOP.
The seat can be moved after opening the door for about 3 minutes,
or until the door is closed.
fig. 21
A0K0213
fig. 22
A0K0214
42GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

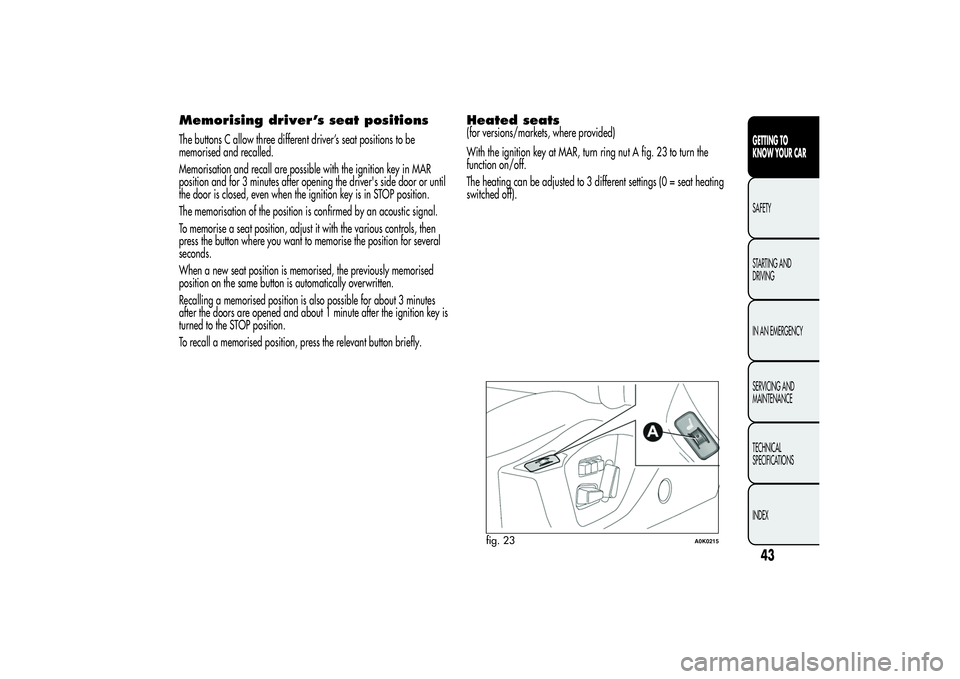

Memorising driver’s seat positionsThe buttons C allow three different driver’s seat positions to be
memorised and recalled.
Memorisation and recall are possible with the ignition key in MAR
position and for 3 minutes after opening the driver's side door or until
the door is closed, even when the ignition key is in STOP position.
The memorisation of the position is confirmed by an acoustic signal.
To memorise a seat position, adjust it with the various controls, then
press the button where you want to memorise the position for several
seconds.
When a new seat position is memorised, the previously memorised
position on the same button is automatically overwritten.
Recalling a memorised position is also possible for about 3 minutes
after the doors are opened and about 1 minute after the ignition key is
turned to the STOP position.
To recall a memorised position, press the relevant button briefly.
Heated seats(for versions/markets, where provided)
With the ignition key at MAR, turn ring nut A fig. 23 to turn the
function on/off.
The heating can be adjusted to 3 different settings (0 = seat heating
switched off).
fig. 23
A0K0215
43GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

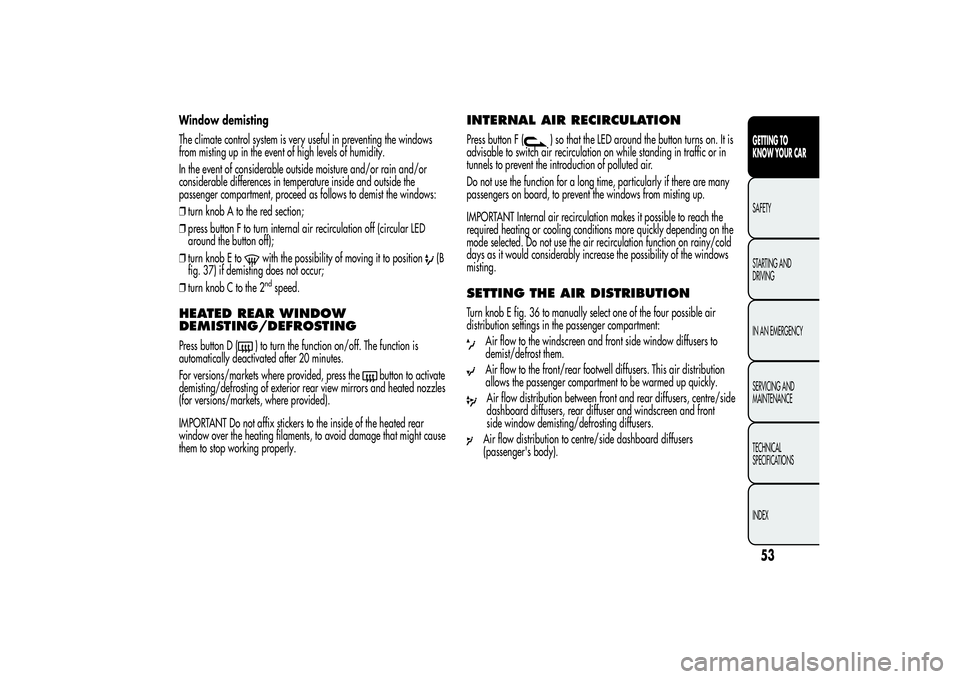

Window demisting
The climate control system is very useful in preventing the windows
from misting up in the event of high levels of humidity.
In the event of considerable outside moisture and/or rain and/or
considerable differences in temperature inside and outside the
passenger compartment, proceed as follows to demist the windows:
❒turn knob A to the red section;
❒press button F to turn internal air recirculation off (circular LED
around the button off);
❒turn knob E to
with the possibility of moving it to position
(B
fig. 37) if demisting does not occur;
❒turn knob C to the 2
ndspeed.
HEATED REAR WINDOW
DEMISTING/DEFROSTINGPress button D (
) to turn the function on/off. The function is
automatically deactivated after 20 minutes.
For versions/markets where provided, press the
button to activate
demisting/defrosting of exterior rear view mirrors and heated nozzles
(for versions/markets, where provided).
IMPORTANT Do not affix stickers to the inside of the heated rear
window over the heating filaments, to avoid damage that might cause
them to stop working properly.
INTERNAL AIR RECIRCULATIONPress button F (
) so that the LED around the button turns on. It is
advisable to switch air recirculation on while standing in traffic or in
tunnels to prevent the introduction of polluted air.
Do not use the function for a long time, particularly if there are many
passengers on board, to prevent the windows from misting up.
IMPORTANT Internal air recirculation makes it possible to reach the
required heating or cooling conditions more quickly depending on the
mode selected. Do not use the air recirculation function on rainy/cold
days as it would considerably increase the possibility of the windows
misting.
SETTING THE AIR DISTRIBUTIONTurn knob E fig. 36 to manually select one of the four possible air
distribution settings in the passenger compartment:
Air flow to the windscreen and front side window diffusers to
demist/defrost them.Air flow to the front/rear footwell diffusers. This air distribution
allows the passenger compartment to be warmed up quickly.Air flow distribution between front and rear diffusers, centre/side
dashboard diffusers, rear diffuser and windscreen and front
side window demisting/defrosting diffusers.Air flow distribution to centre/side dashboard diffusers
(passenger's body).
53GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

There are also another 4 positions (see diagram below fig. 37):
(Position A) Air flow distribution between centre/side dashboard
vents, rear diffuser and windscreen and front side window
demisting/defrosting diffusers. This distribution setting ventilates
the passenger compartment well and prevents the windows
from misting up.(Position B) Air flow distributed between footwell diffusers and
windscreen and front side window defrosting/demisting diffusers.
This distribution setting allows the passenger compartment to
warm up efficiently and prevents the windows from misting up.(Position C) Air flow distribution between footwell diffusers (hotter
air) and centre/side dashboard diffusers and rear diffuser
(cooler air).(Position D) Automatic demisting/defrosting activation (see
description in previous pages).
START&STOPManual climate control
If the Start&Stop function is activated (engine off when the car speed is
zero), the system keeps the air flow selected by the user.
In these conditions, the compartment cooling and heating cannot be
guaranteed, as the compressor stops with the engine coolant pump.
The Start&Stop function can be deactivated to enhance the operation
of the climate control system by pressing the dedicated button on
the dashboard.
NoteIn winter, the climate control system must be turned on at least
once a month for about 10 minutes. Have the system checked by
Alfa Romeo Authorized Services before summer.SERVICING MAINTENANCEIn winter, the climate control system must be turned on at least once a
month for about 10 minutes.
Have the system checked by Alfa Romeo Authorized Services before
summer.
fig. 37
A0K0183
54GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

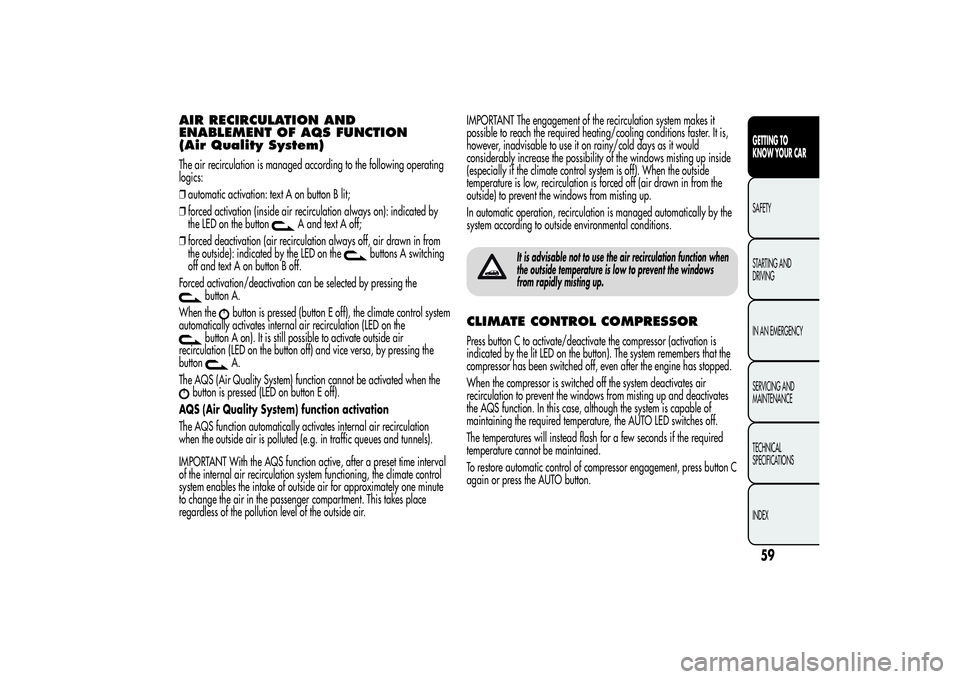

AIR RECIRCULATION AND
ENABLEMENT OF AQS FUNCTION
(Air Quality System)The air recirculation is managed according to the following operating
logics:
❒automatic activation: text A on button B lit;
❒forced activation (inside air recirculation always on): indicated by
the LED on the button
A and text A off;
❒forced deactivation (air recirculation always off, air drawn in from
the outside): indicated by the LED on the
buttons A switching
off and text A on button B off.
Forced activation/deactivation can be selected by pressing the
button A.
When the
button is pressed (button E off), the climate control system
automatically activates internal air recirculation (LED on the
button A on). It is still possible to activate outside air
recirculation (LED on the button off) and vice versa, by pressing the
button
A.
The AQS (Air Quality System) function cannot be activated when the
button is pressed (LED on button E off).
AQS (Air Quality System) function activation
The AQS function automatically activates internal air recirculation
when the outside air is polluted (e.g. in traffic queues and tunnels).
IMPORTANT With the AQS function active, after a preset time interval
of the internal air recirculation system functioning, the climate control
system enables the intake of outside air for approximately one minute
to change the air in the passenger compartment. This takes place
regardless of the pollution level of the outside air.IMPORTANT The engagement of the recirculation system makes it
possible to reach the required heating/cooling conditions faster. It is,
however, inadvisable to use it on rainy/cold days as it would
considerably increase the possibility of the windows misting up inside
(especially if the climate control system is off). When the outside
temperature is low, recirculation is forced off (air drawn in from the
outside) to prevent the windows from misting up.
In automatic operation, recirculation is managed automatically by the
system according to outside environmental conditions.
It is advisable not to use the air recirculation function when
the outside temperature is low to prevent the windows
from rapidly misting up.
CLIMATE CONTROL COMPRESSORPress button C to activate/deactivate the compressor (activation is
indicated by the lit LED on the button). The system remembers that the
compressor has been switched off, even after the engine has stopped.
When the compressor is switched off the system deactivates air
recirculation to prevent the windows from misting up and deactivates
the AQS function. In this case, although the system is capable of
maintaining the required temperature, the AUTO LED switches off.
The temperatures will instead flash for a few seconds if the required
temperature cannot be maintained.
To restore automatic control of compressor engagement, press button C
again or press the AUTO button.
59GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒if the outside temperature is higher than the set one, the system will
not be able to satisfy the request. The temperature values will then
flash on the display for a few seconds to indicate this;
❒the fan speed can be reset manually.
With the compressor on and the engine running, manual ventilation
cannot be lower than the minimum speed (only one LED lit).
IMPORTANT With the climate control compressor off, air cannot be
introduced to the passenger compartment with a temperature lower
than the outside temperature; moreover, under certain environmental
conditions, windows could mist rapidly since the air is not
dehumidified.RAPID WINDOW DEMISTING/
DEFROSTING (MAX-DEF function)Press the
button to activate (LED on button on) the windscreen and
side window demisting/defrosting function. The climate control system
carries out the following operations:
❒switches on the air conditioning compressor when climatic
conditions are suitable;
❒deactivates air recirculation;
❒sets maximum air temperature (HI) in both zones;
❒sets fan speed according to the engine coolant temperature;
❒directs air flow to windscreen and front side windows diffusers;
❒activates the heated rear window.
❒displays the fan speed (LED G lit).
IMPORTANT The MAX-DEF function remains on for about 3 minutes
from when the engine coolant reaches the appropriate temperature.When the function is activated, the LED on the AUTO button switches
off. With the function activated the only possible manual adjustments
are adjusting the fan speed and turning the heated rear window off.
When the B, C,
or AUTO buttons are pressed, the climate control
system will turn the MAX-DEF off.
HEATED REAR WINDOW
DEMISTING/DEFROSTINGPress the
button to activate (LED on button on) heated rear window
demisting/defrosting. This function switches off automatically after
about 20 minutes or when the engine is turned off. It is not switched on
automatically the next time the engine is started.
For versions/markets where provided, press the
button to activate
demisting/defrosting of exterior rear view mirrors and heated nozzles
(for versions/markets, where provided).
IMPORTANT Do not affix stickers to the inside of the heated rear
window over the heating filaments, to avoid damage that might cause
them to stop working properly.
Thermal comfort windscreen
(for versions/markets, where provided)
Some versions feature a thermal comfort windscreen which, with the
car exposed to the sun, reduces the temperature in the passenger
compartment relative to the outside temperature, thus ensuring greater
comfort.
Humidity sensor
(for versions/markets, where provided)
The humidity sensor helps to prevent the windows from misting up. For
full functionality, it is advisable to activate the AUTO function (LED N
on).
60GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
With compressor off:

When the outside temperature is low, the system could automatically
turn the compressor on and turn air recirculation off for safer driving.TURNING THE CLIMATE CONTROL
SYSTEM OFFPress the
button (LED on button off).
With climate control off:
❒air recirculation is on, thus isolating the passenger compartment
from the outside;
❒the compressor is off;
❒the fan is off;
❒the heated rear window can be switched on or off;
❒the AQS (Air Quality System) function cannot be activated.
IMPORTANT The climate control system control unit stores the
temperatures set before the system was switched off and restores them
when any button of the system is pressed (except for button D).
To restart the climate control system in fully automatic mode press the
AUTO button.
START&STOPAutomatic Climate Control
The automatic climate control system manages the Start&Stop function
(engine off when speed is zero) to ensure adequate comfort inside
the car.
Specifically, the Start&Stop function is turned off when the weather is
particularly hot or cold to guarantee an adequate level of comfort
inside the passenger compartment; therefore, the engine will not be
stopped during these transient conditions, even if the speed is zero.When the Start&Stop function is active (engine off at zero car speed),
the climate control system will request the reactivation of the engine
if the inside temperature conditions rapidly deteriorate (or if the user
requests maximum cooling – LO – or quick demisting – MAX DEF).
With the Start&Stop function on (engine off at zero speed), air flow is
reduced to the minimum to maintain comfort conditions inside the
passenger compartment as long as possible when the system is in
AUTO mode (LED N on).
The climate control system control unit attempts to manage the
discomfort caused by the engine stopping (compressor and engine
coolant pump off) but operation of the climate control system can be
enhanced by turning the Start&Stop off by pressing the dedicated
button on the dashboard.
NoteIn particularly severe climate conditions it is recommended to
limit the use of the Start&Stop function to prevent the compressor from
continuously switching on and off, with consequent rapid misting of the
windows and accumulation of humidity with unpleasant smells in the
passenger compartment.
NoteWhen the Start&Stop function is on (engine off and vehicle
speed zero), the automatic recirculation management is turned off
always taking air in from outside, to reduce the probability of window
misting up (as the compressor is off).
ADDITIONAL HEATER(for versions/markets, where provided)
This allows the passenger compartment to be heated more quickly in
cold weather conditions. The additional heater turns off automatically
after the required comfort conditions are achieved.
61GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
