stop start Alfa Romeo Giulietta 2013 Owner handbook (in English)

GETTING TO KNOW YOUR CAR

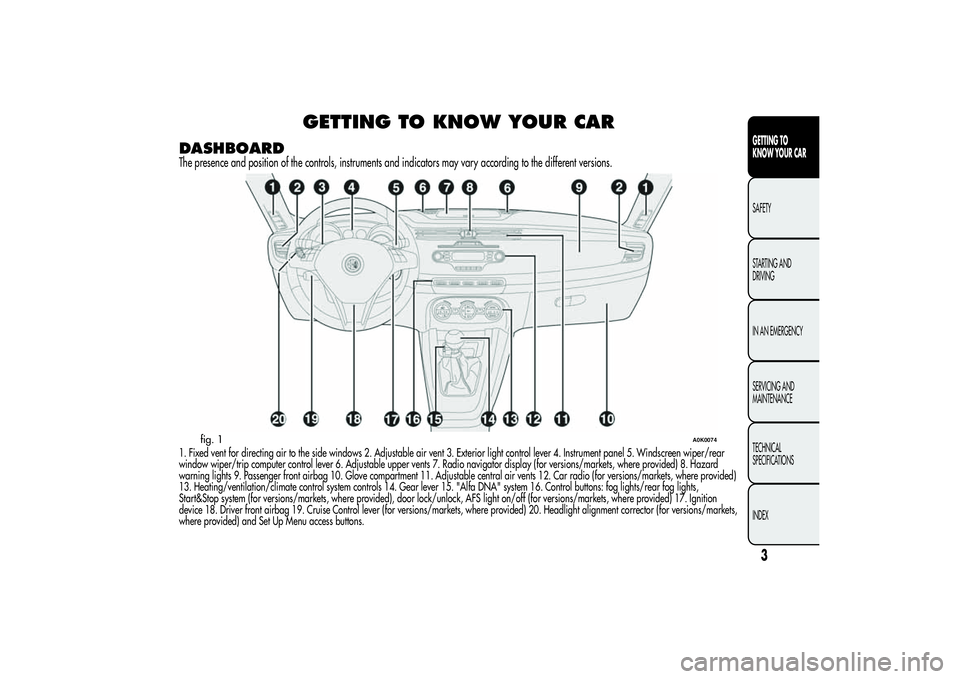

DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different versions.1. Fixed vent for directing air to the side windows 2. Adjustable air vent 3. Exterior light control lever 4. Instrument panel 5. Windscreen wiper/rear
window wiper/trip computer control lever 6. Adjustable upper vents 7. Radio navigator display (for versions/markets, where provided) 8. Hazard
warning lights 9. Passenger front airbag 10. Glove compartment 11. Adjustable central air vents 12. Car radio (for versions/markets, where provided)
13. Heating/ventilation/climate control system controls 14. Gear lever 15. "Alfa DNA" system 16. Control buttons: fog lights/rear fog lights,
Start&Stop system (for versions/markets, where provided), door lock/unlock, AFS light on/off (for versions/markets, where provided) 17. Ignition
device 18. Driver front airbag 19. Cruise Control lever (for versions/markets, where provided) 20. Headlight alignment corrector (for versions/markets,
where provided) and Set Up Menu access buttons.
fig. 1
A0K0074
3GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

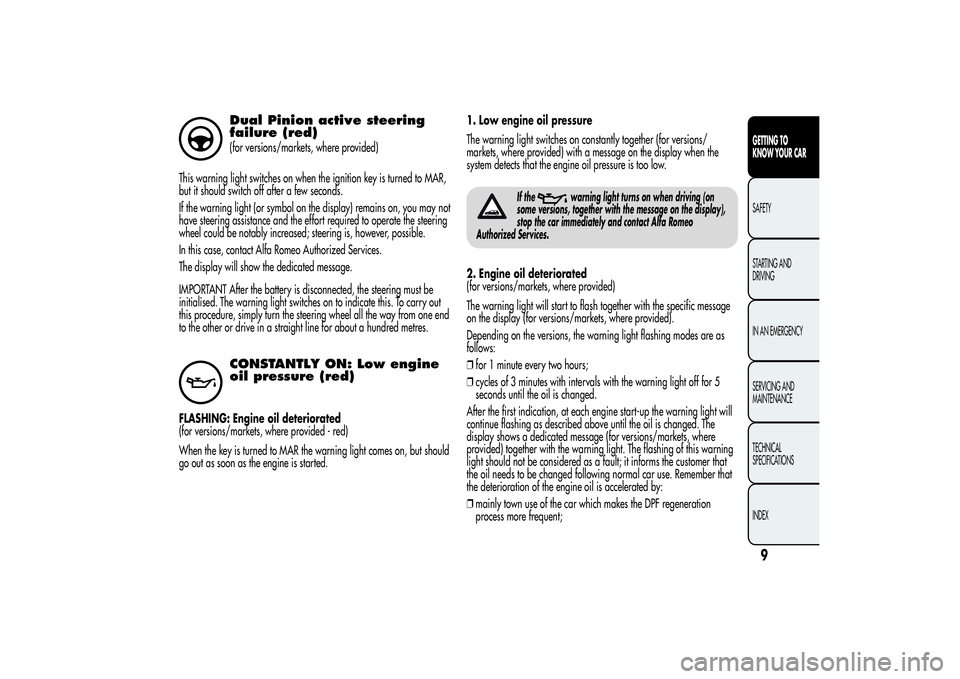

Dual Pinion active steering
failure (red)(for versions/markets, where provided)
This warning light switches on when the ignition key is turned to MAR,
but it should switch off after a few seconds.
If the warning light (or symbol on the display) remains on, you may not
have steering assistance and the effort required to operate the steering
wheel could be notably increased; steering is, however, possible.
In this case, contact Alfa Romeo Authorized Services.
The display will show the dedicated message.
IMPORTANT After the battery is disconnected, the steering must be
initialised. The warning light switches on to indicate this. To carry out
this procedure, simply turn the steering wheel all the way from one end
to the other or drive in a straight line for about a hundred metres.CONSTANTLY ON: Low engine
oil pressure (red)
FLASHING: Engine oil deteriorated
(for versions/markets, where provided - red)
When the key is turned to MAR the warning light comes on, but should
go out as soon as the engine is started.1. Low engine oil pressure
The warning light switches on constantly together (for versions/
markets, where provided) with a message on the display when the
system detects that the engine oil pressure is too low.
If the
warning light turns on when driving (on
some versions, together with the message on the display),
stop the car immediately and contact Alfa Romeo
Authorized Services.
2. Engine oil deteriorated
(for versions/markets, where provided)
The warning light will start to flash together with the specific message
on the display (for versions/markets, where provided).
Depending on the versions, the warning light flashing modes are as
follows:
❒for 1 minute every two hours;
❒cycles of 3 minutes with intervals with the warning light off for 5
seconds until the oil is changed.
After the first indication, at each engine start-up the warning light will
continue flashing as described above until the oil is changed. The
display shows a dedicated message (for versions/markets, where
provided) together with the warning light. The flashing of this warning
light should not be considered as a fault; it informs the customer that
the oil needs to be changed following normal car use. Remember that
the deterioration of the engine oil is accelerated by:
❒mainly town use of the car which makes the DPF regeneration
process more frequent;
9GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒use of the car for short drives, in which the engine does not have
time to reach its regular operating temperature;
❒repeated interruption of the regeneration process, signalled by the
DPF warning light coming on.
If the warning light switches on, the deteriorated
engine oil must be changed as soon as possible, and
never more than 500 km from the first time that the
warning light switches on. Failure to observe the above may
result in severe damage to the engine and invalidate the
warranty. Remember that the operation of this warning light is
not related to the amount of oil in the engine. Therefore, never
top up with oil when the warning light starts flashing.Engine coolant overheating
(red)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light turns on when the engine is overheated.
The display will show the dedicated message.
If the warning light comes on when driving, proceed as follows:
❒normal driving conditions: stop the car, switch off the engine and
check that the water level in the reservoir is not below the MIN
mark. In this case, wait for a few minutes for the engine to cool
down, then slowly and carefully open the cap, top up with coolant
and check that the level is between the MIN and MAX reference
on the reservoir itself. Also check visually for any fluid leaks. If the
warning light comes on again at the next engine start-up, contact
Alfa Romeo Authorized Services.❒If the car is used under demanding conditions (e.g. towing trailers
uphill or fully loaded): slow down and, if the light stays on, stop
the car. Stand for 2 or 3 minutes with the engine running and
slightly accelerated to promote a better circulation of coolant. Then
stop the engine. Check the correct liquid level as described above.
IMPORTANT Under severe use of the car, it is advisable to keep the
engine on and slightly accelerated for a few minutes before switching it
off.
Doors not closed correctly
(red)(for versions/markets, where provided)
The warning light (or symbol on the display) lights up when one or
more doors or the tailgate are not closed correctly. An acoustic signal
is activated with the doors open and the car moving.
On some versions the warning light (or symbol on the display) also
lights up when the bonnet is not closed correctly.EOBD/injection system failure
(amber)
Under normal conditions, when the ignition key is turned to MAR-ON,
the warning light switches on, but should switch off as soon as the
engine is started.
10GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

If the warning light remains on or comes on whilst driving, it means
that the injection system is not working properly; in particular, if the
warning light comes on constantly, this indicates a malfunction in the
supply/ignition system that could cause excessive exhaust emissions, a
possible loss of performance, poor driveability and high fuel
consumption.
A specific message is displayed on certain versions.
Under these conditions, you may continue travelling at moderate speed
without demanding excessive effort from the engine. Prolonged use of
the car with the warning light on may cause damage.
Contact Alfa Romeo Authorized Services as soon as possible.
The warning light goes out after the fault disappears, but the
notification is stored in the system.
NOTE (valid only for petrol engines)
If the warning light is flashing, this indicates that the catalytic converter
may be damaged.
If the warning light comes on intermittently, release the accelerator
pedal to lower the speed of the engine until the warning light stops
flashing; continue the journey at moderate speed, trying to avoid
driving conditions that may cause further flashing and contact Alfa
Romeo Authorized Services as soon as possible.
Contact Alfa Romeo Authorized Services as soon as possible
if the
warning light does not light up or if, while
travelling, the warning light comes on either constantly or
flashing (in combination with a message on the display on some
versions). The operation of warning light
may be checked by the
traffic police using specific devices. Follow the laws in force in the
country where you are driving.
ESC system (amber)(for versions/markets, where provided)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
If the warning light (or the symbol on the display) does not switch off,
or if it remains lit when driving, contact Alfa Romeo Authorized
Services.
A specific message is displayed on certain versions.
Flashing of the warning light while driving indicates the intervention of
the ESC system.
ASR failureTurning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
If the warning light (or the symbol on the display) does not switch off,
or if it remains lit when driving, contact Alfa Romeo Authorized
Services.
A specific message is displayed on certain versions.
The warning light flashes while driving to indicate the intervention of
the ASR system.Hill Holder failureThis warning light comes on, on some versions together with the
symbol and a message in the display, in the event of a fault with
the Hill Holder system.
In this case, contact Alfa Romeo Authorized Services.
11GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

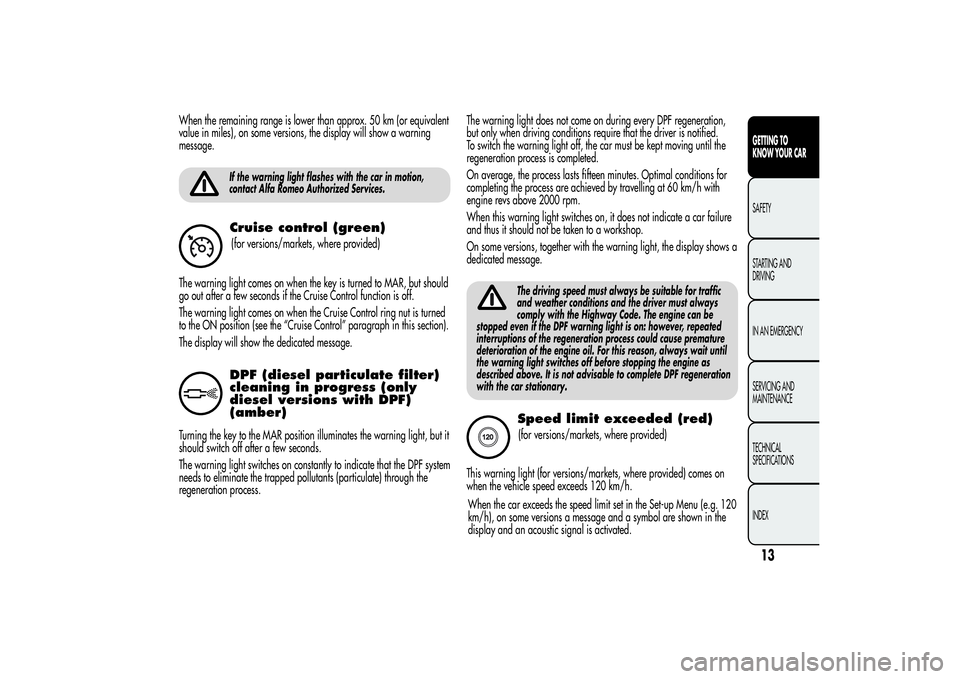

When the remaining range is lower than approx. 50 km (or equivalent
value in miles), on some versions, the display will show a warning
message.
If the warning light flashes with the car in motion,
contact Alfa Romeo Authorized Services.Cruise control (green)(for versions/markets, where provided)
The warning light comes on when the key is turned to MAR, but should
go out after a few seconds if the Cruise Control function is off.
The warning light comes on when the Cruise Control ring nut is turned
to the ON position (see the “Cruise Control” paragraph in this section).
The display will show the dedicated message.DPF (diesel particulate filter)
cleaning in progress (only
diesel versions with DPF)
(amber)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light switches on constantly to indicate that the DPF system
needs to eliminate the trapped pollutants (particulate) through the
regeneration process.The warning light does not come on during every DPF regeneration,
but only when driving conditions require that the driver is notified.
To switch the warning light off, the car must be kept moving until the
regeneration process is completed.
On average, the process lasts fifteen minutes. Optimal conditions for
completing the process are achieved by travelling at 60 km/h with
engine revs above 2000 rpm.
When this warning light switches on, it does not indicate a car failure
and thus it should not be taken to a workshop.
On some versions, together with the warning light, the display shows a
dedicated message.
The driving speed must always be suitable for traffic
and weather conditions and the driver must always
comply with the Highway Code. The engine can be
stopped even if the DPF warning light is on: however, repeated
interruptions of the regeneration process could cause premature
deterioration of the engine oil. For this reason, always wait until
the warning light switches off before stopping the engine as
described above. It is not advisable to complete DPF regeneration
with the car stationary.Speed limit exceeded (red)(for versions/markets, where provided)
This warning light (for versions/markets, where provided) comes on
when the vehicle speed exceeds 120 km/h.
13GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
When the car exceeds the speed limit set in the Set-up Menu (e.g. 120
km/h), on some versions a message and a symbol are shown in the
display and an acoustic signal is activated.

General failure (amber)(for versions/markets, where provided)
The warning light switches on in the circumstances indicated below.
In these circumstances, contact Alfa Romeo Authorized Services as
soon as possible to eliminate the fault.
Exterior lights failure
See description for the
warning light.
Brake lights failure
See description for “Brake lights failure”.
Fuel cut-off
This warning light comes on when the fuel cut-off inertia switch is
triggered. The display shows the dedicated message.
Start&Stop failure
(for versions/markets, where provided)
The warning light comes on when a failure is detected in the
Start&Stop system.Rain sensor failure
(for versions/markets, where provided)
The warning light comes on when a rain sensor failure is detected.
Parking sensor failure
(for versions/markets, where provided)
See the description for the
warning light.
Dusk sensor failure
(for versions/markets, where provided)
This warning light comes on when a dusk sensor failure is detected.
AFS adaptive lights failure
(for versions/markets, where provided)
The warning light switches on when a fault is detected with the AFS
adaptive lights (see “AFS adaptive lights” paragraph in this section).
The display shows the dedicated message.
Anti-pinch system failure
The warning light comes on when a failure is detected in the electric
window anti-pinch system. The display shows the dedicated message.
Engine oil pressure sensor failure
The warning light turns on when failure is detected in the engine oil
pressure sensor. The display shows the dedicated message.
14GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Start&Stop system
activation/deactivation(for versions/markets, where provided)
Start&Stop system fault
Start&Stop system activation
A message will appear on the display when the Start&Stop system is
activated.
The LED on the
button (on the dashboard control trim) is off in this
condition (see “Start&Stop” paragraph in this section).
Turning the Start&Stop off
❒Versions with reconfigurable multifunction display: a message
appears on the display when the Start&Stop system is deactivated.
❒Versions with reconfigurable multifunction display: the
symbol
and a message appear on the display when the Start&Stop system
is deactivated.
The LED on the
button is on when the system is deactivated.
Start&Stop system fault
If the Start&Stop system is faulty the
(versions with multifunction
display) or
(versions with reconfigurable multifunction display)
symbol flashes on the display.
For versions/markets where provided, a warning message is also
displayed.
In this case, contact Alfa Romeo Authorized Services.
Luggage compartment open
On some versions a message + symbol on the display are shown when
the luggage compartment is open.
Bonnet open
On some versions a message + symbol on the display are shown when
the bonnet is open.
Possible presence of ice on the
road
On versions equipped with “Reconfigurable multifunction display”, a
message + symbol will appear on the display when the outdoor
temperature falls to or below 3°C.
On versions with “Multifunction display” only the dedicated message is
shown.
IMPORTANT In the event of outdoor temperature sensor failure, dashes
are shown on the display instead of the value.
Fuel cut-off
On some versions the display will show a message + symbol if the fuel
cut-off intervenes.
For the fuel cut-off system reactivation procedure see paragraph “Fuel
cut-off system” in this section.
16GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DISPLAYThe car may be provided with a multifunction/reconfigurable
multifunction display that shows useful information to the user,
according to the previous settings, when driving.
With the ignition key removed, the display activates and shows the
time and total milometer reading (in km or miles) for a few seconds
when a door is opened/closed.
MULTIFUNCTION DISPLAY
"STANDARD" SCREENThe following information appears on the display fig. 4:ADateBMilometer (distance covered in km or miles)CDriving mode selected via "Alfa DNA" (dynamic car control system)
(for versions/markets, where provided): d = Dynamic; n = Natural;
a = All WeatherDTime (always displayed, even with key removed and doors closed)EStart&Stop function indicator (for versions/markets where provided)FOutside temperatureGGear Shift Indicator (for versions/markets, where provided)HHeadlamp alignment position (only with dipped headlamps on)fig. 4
A0K1222
18GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

RECONFIGURABLE MULTIFUNCTION
DISPLAY “STANDARD” SCREENThe following information appears on the display fig. 5:ATimeBTrip mileage (in km or miles)CMilometer (distance covered in km or miles)DCar status indications (e.g. doors open, possible ice on road,
etc.)/Start&Stop function indicator (for versions/markets, where
provided)/Gear Shift Indicator (for versions/markets, where
provided)EHeadlamp alignment position (only with dipped headlamps on)FOutside temperatureOn some versions, selecting “DYNAMIC” driving mode (see “Alfa DNA
system” paragraph in this section) causes the display to show the
turbine pressure fig. 6.fig. 5
A0K0005
fig. 6
A0K0006
19GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

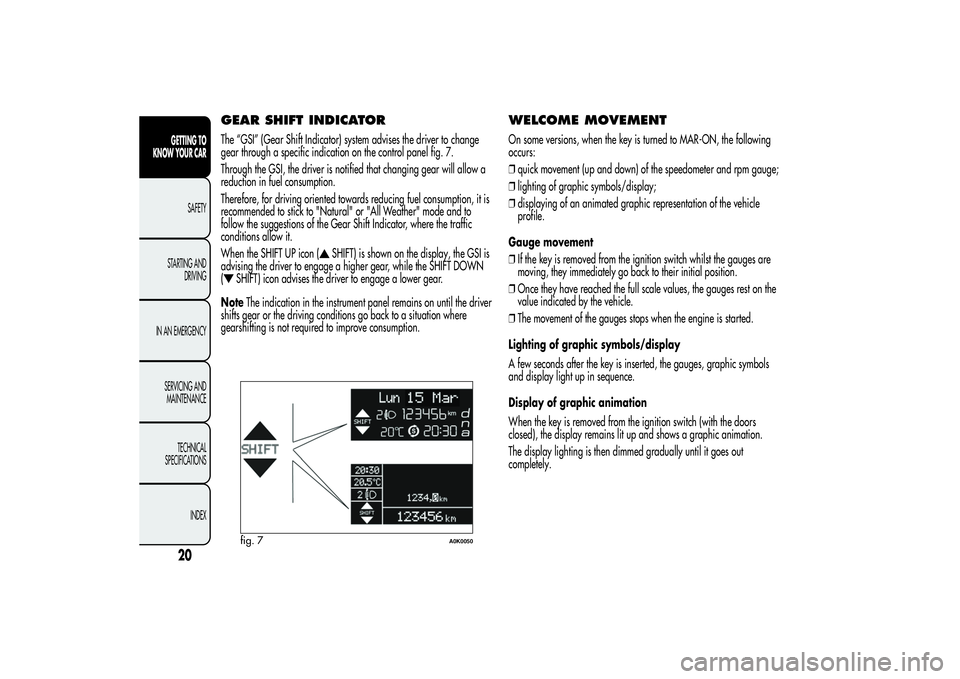

GEAR SHIFT INDICATORThe “GSI” (Gear Shift Indicator) system advises the driver to change
gear through a specific indication on the control panel fig. 7.
Through the GSI, the driver is notified that changing gear will allow a
reduction in fuel consumption.
Therefore, for driving oriented towards reducing fuel consumption, it is
recommended to stick to "Natural" or "All Weather" mode and to
follow the suggestions of the Gear Shift Indicator, where the traffic
conditions allow it.
When the SHIFT UP icon (
SHIFT) is shown on the display, the GSI is
advising the driver to engage a higher gear, while the SHIFT DOWN
(
SHIFT) icon advises the driver to engage a lower gear.
NoteThe indication in the instrument panel remains on until the driver
shifts gear or the driving conditions go back to a situation where
gearshifting is not required to improve consumption.
WELCOME MOVEMENTOn some versions, when the key is turned to MAR-ON, the following
occurs:
❒quick movement (up and down) of the speedometer and rpm gauge;
❒lighting of graphic symbols/display;
❒displaying of an animated graphic representation of the vehicle
profile.
Gauge movement
❒If the key is removed from the ignition switch whilst the gauges are
moving, they immediately go back to their initial position.
❒Once they have reached the full scale values, the gauges rest on the
value indicated by the vehicle.
❒The movement of the gauges stops when the engine is started.
Lighting of graphic symbols/display
A few seconds after the key is inserted, the gauges, graphic symbols
and display light up in sequence.
Display of graphic animation
When the key is removed from the ignition switch (with the doors
closed), the display remains lit up and shows a graphic animation.
The display lighting is then dimmed gradually until it goes out
completely.
fig. 7
A0K0050
20GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
