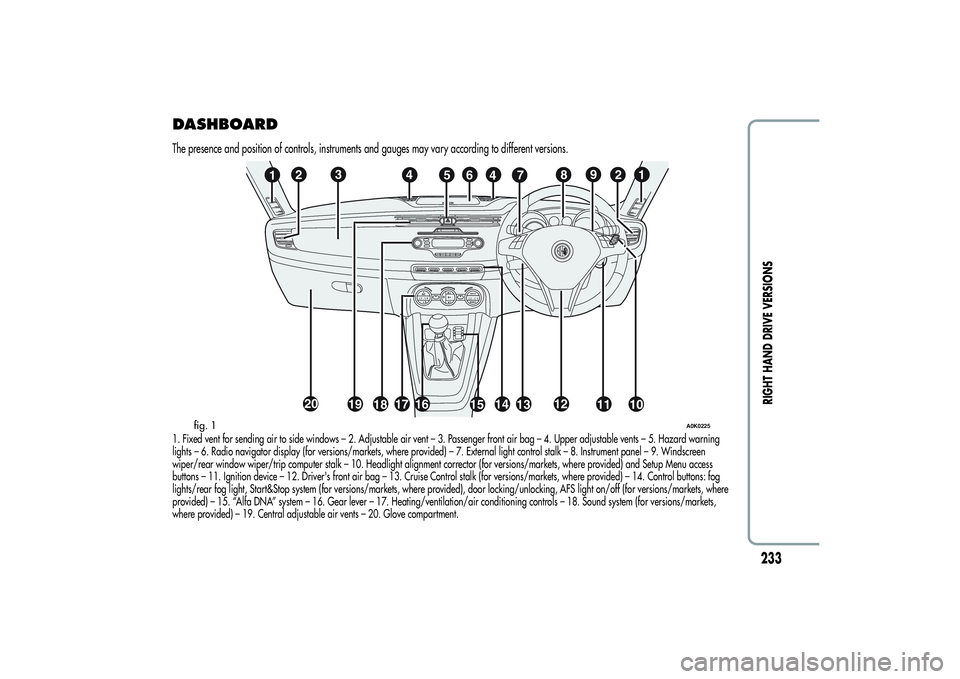

DASHBOARDThe presence and position of controls, instruments and gauges may vary according to different versions.1. Fixed vent for sending air to side windows – 2. Adjustable air vent – 3. Passenger front air bag – 4. Upper adjustable vents – 5. Hazard warning
lights – 6. Radio navigator display (for versions/markets, where provided) – 7. External light control stalk – 8. Instrument panel – 9. Windscreen
wiper/rear window wiper/trip computer stalk – 10. Headlight alignment corrector (for versions/markets, where provided) and Setup Menu access
buttons – 11. Ignition device – 12. Driver's front air bag – 13. Cruise Control stalk (for versions/markets, where provided) – 14. Control buttons: fog
lights/rear fog light, Start&Stop system (for versions/markets, where provided), door locking/unlocking, AFS light on/off (for versions/markets, where
provided) – 15. “Alfa DNA” system – 16. Gear lever – 17. Heating/ventilation/air conditioning controls – 18. Sound system (for versions/markets,
where provided) – 19. Central adjustable air vents – 20. Glove compartment.
19.5
22.0
cACA
AUTO
MONOC
123
4
56
4789
21
20
19
1817
16
1514
1312
1110
fig. 1
A0K0225
233
RIGHT HAND DRIVE VERSIONS

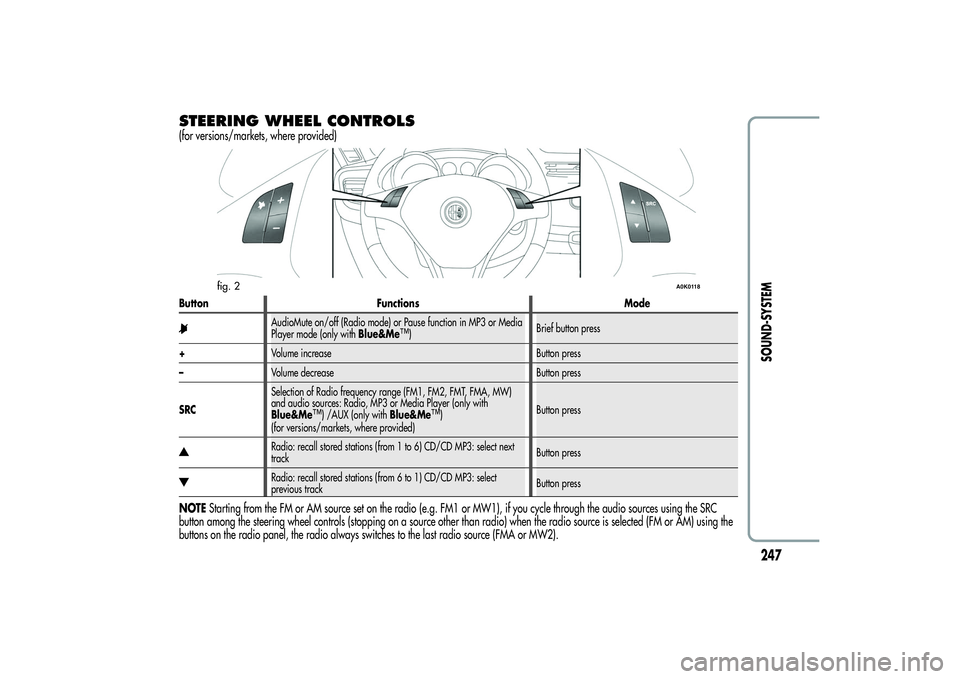

STEERING WHEEL CONTROLS(for versions/markets, where provided)Button Functions Mode
AudioMute on/off (Radio mode) or Pause function in MP3 or Media
Player mode (only withBlue&Me
™)Brief button press
+Volume increase Button press
–Volume decrease Button press
SRCSelection of Radio frequency range (FM1, FM2, FMT, FMA, MW)
and audio sources: Radio, MP3 or Media Player (only with
Blue&Me
™) /AUX (only withBlue&Me
™)
(for versions/markets, where provided)Button press
Radio: recall stored stations (from 1 to 6) CD/CD MP3: select next
trackButton pressRadio: recall stored stations (from 6 to 1) CD/CD MP3: select
previous trackButton press
NOTEStarting from the FM or AM source set on the radio (e.g. FM1 or MW1), if you cycle through the audio sources using the SRC
button among the steering wheel controls (stopping on a source other than radio) when the radio source is selected (FM or AM) using the
buttons on the radio panel, the radio always switches to the last radio source (FMA or MW2).
fig. 2
A0K0118
247SOUND-SYSTEM

STORING THE LAST STATION
LISTENED TOThe radio automatically stores the last station that was selected for
each reception band, which is then tuned into when the radio is
turned on or when the reception band is changed.AUTOMATIC TUNINGBriefly press the
or
button to start the automatic tuning
search for the next station that can be received in the selected
direction.
If the
or
button is pressed down longer, the fast search starts.
When the button is released, the tuner will stop on the next station
that can be received.
If the TA function (traffic alerts) is on, the tuner will only search for
stations that broadcast traffic news and alerts.
MANUAL TUNINGThis is used to manually search for stations in the preselected band.
Select the desired frequency band and then press the
or
button briefly and repeatedly to start the search in the desired
direction.
If the
or
buttons are pressed longer, the fast search will start
and then stop when the button is released.
262
SOUND-SYSTEM

DISPLAY INFORMATIONWhen the CD player is working, the display will show the
following information:
❒“CD Track 5”: indicates the number of the CD track;
❒“03:42”: indicates the time elapsed since the start of the track (if
the relevant Menu function is activated).TRACK SELECTION (forward/back)Briefly press the
button to play the previous CD track and the
button to play the next track.
The tracks are selected cyclically: the first track is selected after the
last track and vice versa.
If the track has been played for more than 3 seconds, pressing thebutton will cause the track to be started again from the
beginning.
In this case, if you want to play the previous track, press the button
twice consecutively.
TRACK FAST FORWARD/REWINDHold down the
button to fast forward the selected track and
hold down thebutton to fast rewind the track.
The fast forward/rewind will stop once the button is released.
PAUSE FUNCTIONTo pause the CD player, press the MUTE button. The text “CD
Pause” appears on the display.
To resume listening to the track, press the button MUTE again.
If another audio source is selected, the pause function is
deactivated.
266
SOUND-SYSTEM

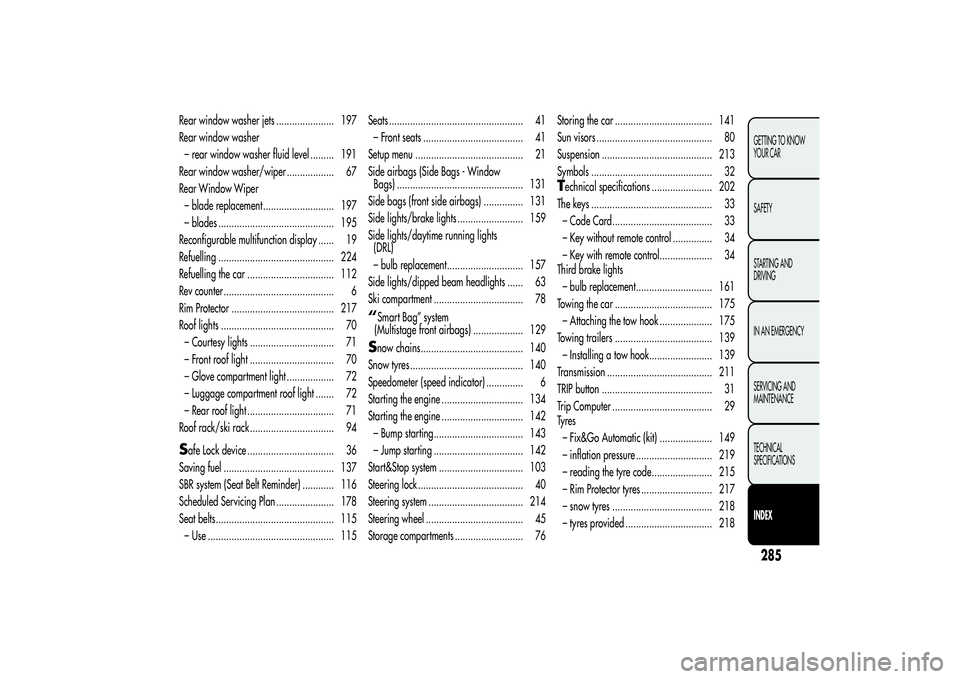

Rear window washer jets ...................... 197
Rear window washer
– rear window washer fluid level ......... 191
Rear window washer/wiper .................. 67
Rear Window Wiper
– blade replacement ........................... 197
– blades ............................................ 195
Reconfigurable multifunction display ...... 19
Refuelling ............................................ 224
Refuelling the car ................................. 112
Rev counter .......................................... 6
Rim Protector ....................................... 217
Roof lights ........................................... 70
– Courtesy lights ................................ 71
– Front roof light ................................ 70
– Glove compartment light .................. 72
– Luggage compartment roof light ....... 72
– Rear roof light ................................. 71
Roof rack/ski rack ................................ 94Safe Lock device ................................. 36
Saving fuel .......................................... 137
SBR system (Seat Belt Reminder) ............ 116
Scheduled Servicing Plan ...................... 178
Seat belts............................................. 115
– Use ................................................ 115Seats ................................................... 41
– Front seats ...................................... 41
Setup menu ......................................... 21
Side airbags (Side Bags - Window
Bags) ................................................ 131
Side bags (front side airbags) ............... 131
Side lights/brake lights ......................... 159
Side lights/daytime running lights
(DRL)
– bulb replacement............................. 157
Side lights/dipped beam headlights ...... 63
Ski compartment .................................. 78
“Smart Bag” system
(Multistage front airbags) ................... 129Snow chains....................................... 140
Snow tyres ........................................... 140
Speedometer (speed indicator) .............. 6
Starting the engine ............................... 134
Starting the engine ............................... 142
– Bump starting.................................. 143
– Jump starting .................................. 142
Start&Stop system ................................ 103
Steering lock ........................................ 40
Steering system .................................... 214
Steering wheel ..................................... 45
Storage compartments .......................... 76Storing the car ..................................... 141
Sun visors ............................................ 80
Suspension .......................................... 213
Symbols .............................................. 32
Technical specifications ....................... 202
The keys .............................................. 33
– Code Card...................................... 33
– Key without remote control ............... 34
– Key with remote control.................... 34
Third brake lights
– bulb replacement............................. 161
Towing the car ..................................... 175
– Attaching the tow hook .................... 175
Towing trailers ..................................... 139
– Installing a tow hook........................ 139
Transmission ........................................ 211
TRIP button .......................................... 31
Trip Computer ...................................... 29
Ty r e s
– Fix&Go Automatic (kit) .................... 149
– inflation pressure ............................. 219
– reading the tyre code....................... 215
– Rim Protector tyres ........................... 217
– snow tyres ...................................... 218
– tyres provided ................................. 218
