Alfa Romeo Giulietta 2013 Owner handbook (in English)

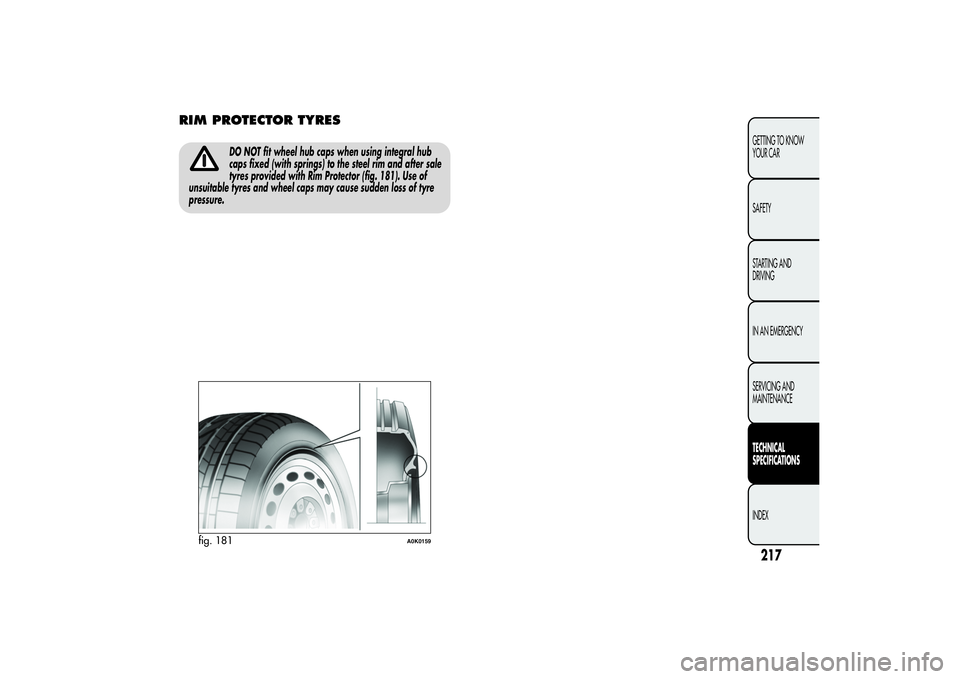

RIM PROTECTOR TYRES
DO NOT fit wheel hub caps when using integral hub
caps fixed (with springs) to the steel rim and after sale
tyres provided with Rim Protector (fig. 181). Use of
unsuitable tyres and wheel caps may cause sudden loss of tyre
pressure.
fig. 181
A0K0159
217GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

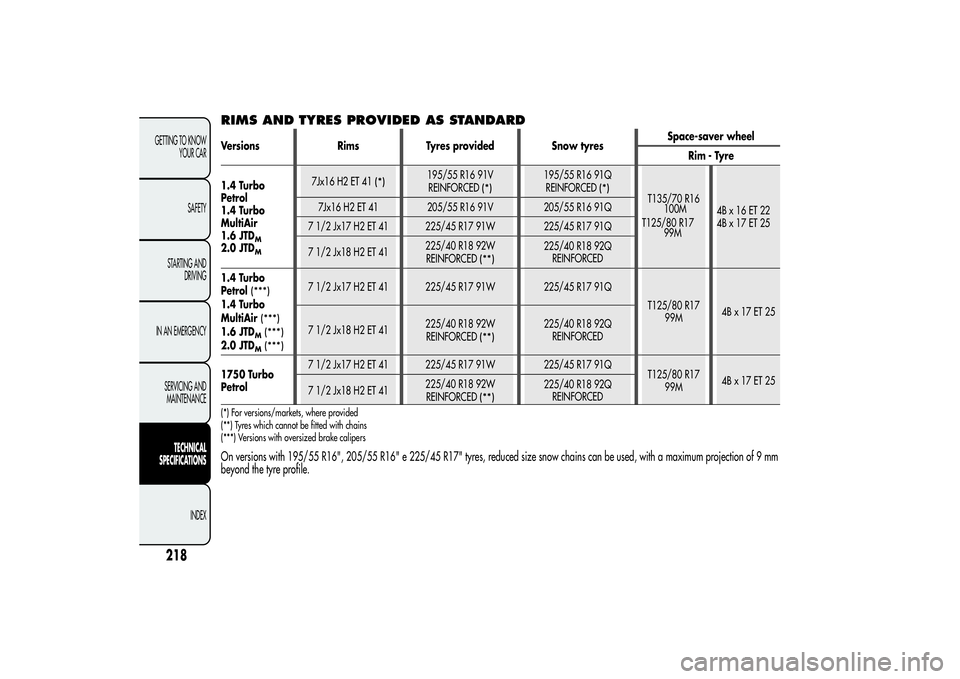

RIMS AND TYRES PROVIDED AS STANDARDVersions Rims Tyres provided Snow tyresSpace-saver wheel
Rim - Tyre
1.4 Turbo
Petrol
1.4 Turbo
MultiAir
1.6 JTD
M
2.0 JTD
M
7Jx16 H2 ET 41
(*)
195/55 R16 91V
REINFORCED
(*)
195/55 R16 91Q
REINFORCED
(*)
T135/70 R16
100M
T125/80 R17
99M4Bx16ET22
4Bx17ET25 7Jx16 H2 ET 41 205/55 R16 91V 205/55 R16 91Q
7 1/2 Jx17 H2 ET 41 225/45 R17 91W 225/45 R17 91Q
7 1/2 Jx18 H2 ET 41225/40 R18 92W
REINFORCED
(**)
225/40 R18 92Q
REINFORCED
1.4 Turbo
Petrol
(***)
1.4 Turbo
MultiAir
(***)
1.6 JTD
M(***)
2.0 JTD
M(***)
7 1/2 Jx17 H2 ET 41 225/45 R17 91W 225/45 R17 91Q
T125/80 R17
99M4Bx17ET25
7 1/2 Jx18 H2 ET 41225/40 R18 92W
REINFORCED
(**)
225/40 R18 92Q
REINFORCED
1750 Turbo
Petrol7 1/2 Jx17 H2 ET 41 225/45 R17 91W 225/45 R17 91Q
T125/80 R17
99M4Bx17ET25
7 1/2 Jx18 H2 ET 41225/40 R18 92W
REINFORCED
(**)
225/40 R18 92Q
REINFORCED
(*) For versions/markets, where provided
(**) Tyres which cannot be fitted with chains
(***) Versions with oversized brake calipersOn versions with 195/55 R16", 205/55 R16" e 225/45 R17" tyres, reduced size snow chains can be used, with a maximum projection of 9 mm
beyond the tyre profile.
218GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

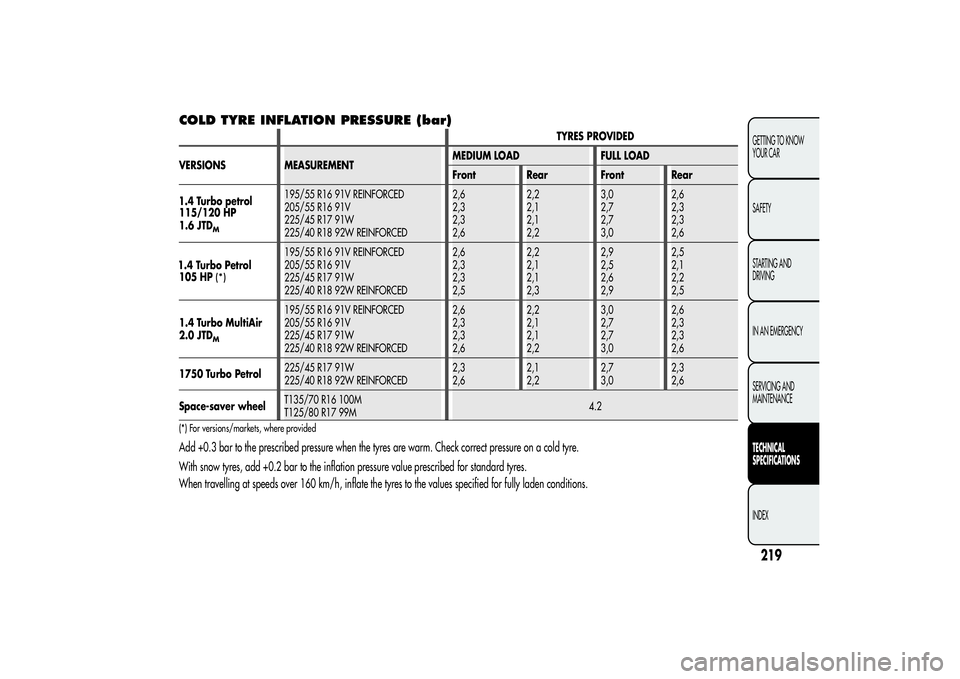

COLD TYRE INFLATION PRESSURE (bar)
TYRES PROVIDED
VERSIONS MEASUREMENTMEDIUM LOAD FULL LOAD
Front Rear Front Rear
1.4 Turbo petrol
115/120 HP
1.6 JTD
M
195/55 R16 91V REINFORCED
205/55 R16 91V
225/45 R17 91W
225/40 R18 92W REINFORCED2,6
2,3
2,3
2,62,2
2,1
2,1
2,23,0
2,7
2,7
3,02,6
2,3
2,3
2,6
1.4 Turbo Petrol
105 HP
(*)
195/55 R16 91V REINFORCED
205/55 R16 91V
225/45 R17 91W
225/40 R18 92W REINFORCED2,6
2,3
2,3
2,52,2
2,1
2,1
2,32,9
2,5
2,6
2,92,5
2,1
2,2
2,5
1.4 Turbo MultiAir
2.0 JTD
M
195/55 R16 91V REINFORCED
205/55 R16 91V
225/45 R17 91W
225/40 R18 92W REINFORCED2,6
2,3
2,3
2,62,2
2,1
2,1
2,23,0
2,7
2,7
3,02,6
2,3
2,3
2,6
1750 Turbo Petrol225/45 R17 91W
225/40 R18 92W REINFORCED2,3
2,62,1
2,22,7
3,02,3
2,6
Space-saver wheelT135/70 R16 100M
T125/80 R17 99M4.2
(*) For versions/markets, where providedAdd +0.3 bar to the prescribed pressure when the tyres are warm. Check correct pressure on a cold tyre.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
When travelling at speeds over 160 km/h, inflate the tyres to the values specified for fully laden conditions.
219GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

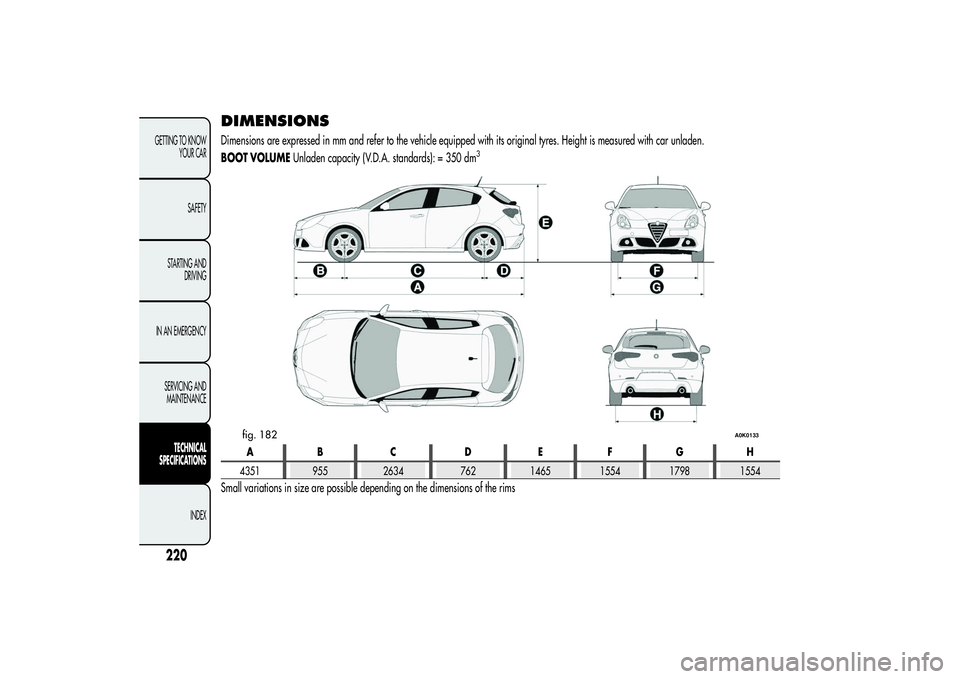

DIMENSIONSDimensions are expressed in mm and refer to the vehicle equipped with its original tyres. Height is measured with car unladen.
BOOT VOLUMEUnladen capacity (V.D.A. standards): = 350 dm
3
AB C D E FGH
4351 955 2634 762 1465 1554 1798 1554
Small variations in size are possible depending on the dimensions of the rims
fig. 182
A0K0133
220GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

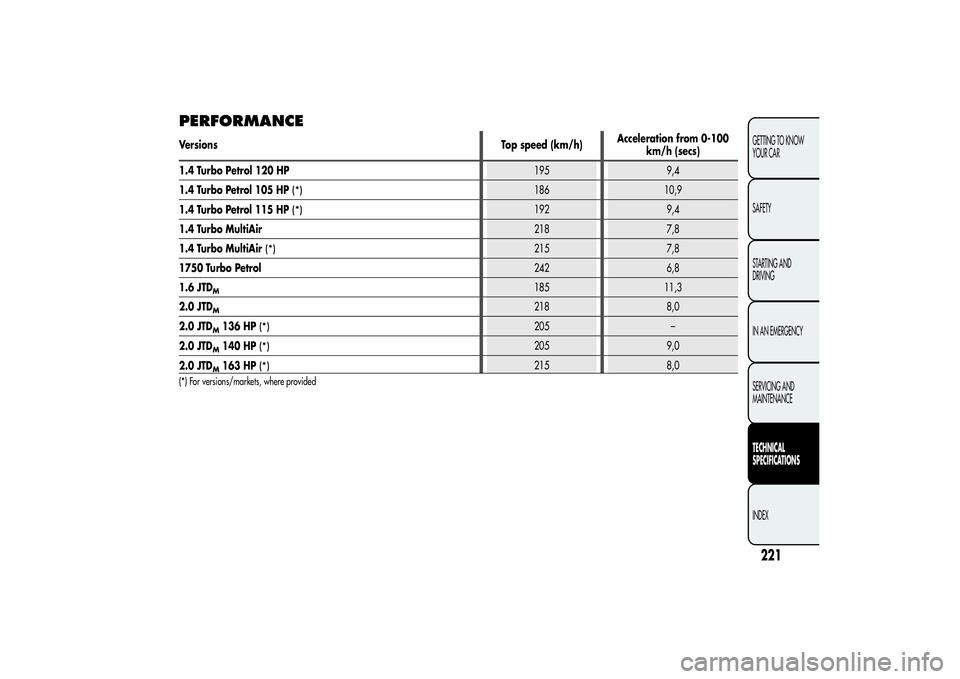

PERFORMANCEVersionsTop speed (km/h)Acceleration from 0-100
km/h (secs)
1.4 Turbo Petrol 120 HP195 9,4
1.4 Turbo Petrol 105 HP
(*)
186 10,9
1.4 Turbo Petrol 115 HP
(*)
192 9,4
1.4 Turbo MultiAir218 7,8
1.4 Turbo MultiAir
(*)
215 7,8
1750 Turbo Petrol242 6,8
1.6 JTD
M
185 11,3
2.0 JTD
M
218 8,0
2.0 JTD
M136 HP
(*)
205 –
2.0 JTD
M140 HP
(*)
205 9,0
2.0 JTD
M163 HP
(*)
215 8,0
(*) For versions/markets, where provided
221GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

WEIGHTSVersions 1.4 Turbo Petrol 1.4 Turbo MultiAir 1750 Turbo Petrol
Weight empty (with all fluids, fuel tank 90% full
and without optional equipment):1280 1290 1320
Payload including the driver:
(*)
505 505 505
Maximum permitted loads
(**)
1100 1100 1100 – front axle:
– rear axle: 850 850 850
– total: 1785 1795 1825
Towable loads (kg)
1300 1300 1300 – trailer with brakes:
– trailer without brakes: 500 500 500
Maximum load on roof: 50 50 50
Maximum load on ball (trailer with brakes): 60 60 60
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the effective payload with respect to the maximum permitted
load.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
222GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Versions 1.6 JTD
M
2.0 JTD
M
Weight empty (with all fluids, fuel tank 90% full and without
optional equipment):1310 1320
Payload including the driver:
(*)
505 505
Maximum permitted loads
(**)
1100 1100 – front axle:
– rear axle: 850 850
– total:1815 1825
Towable loads
1300 1300 – trailer with brakes:
– trailer without brakes: 500 500
Maximum load on roof: 50 50
Maximum load on ball (trailer with brakes): 60 60
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the effective payload with respect to the maximum permitted
load.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
223GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

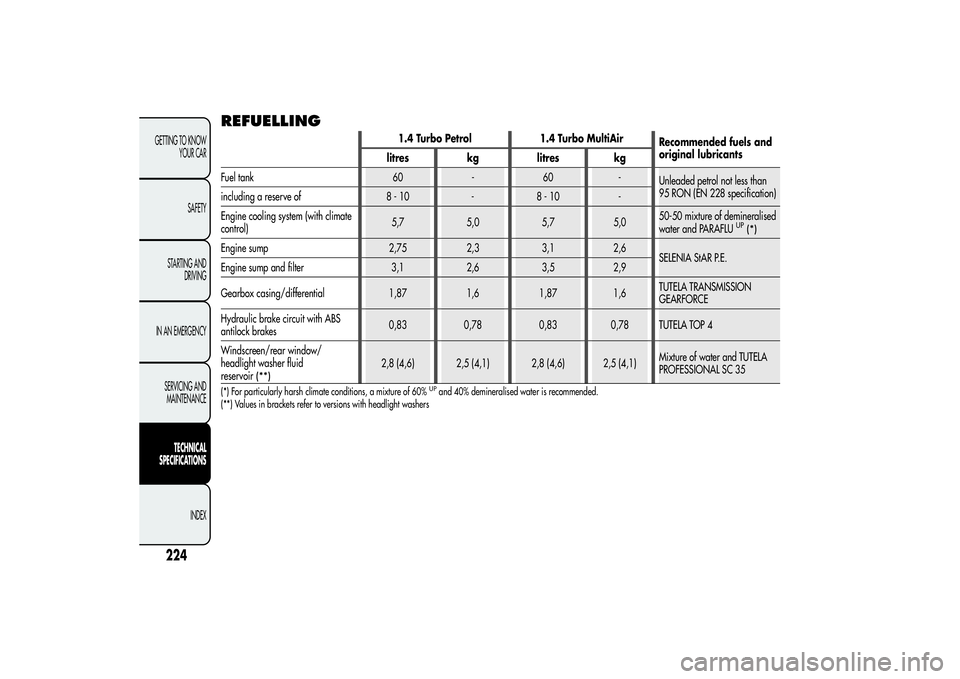

REFUELLING
1.4 Turbo Petrol 1.4 Turbo MultiAir
Recommended fuels and
original lubricants
litres kg litres kg
Fuel tank 60 - 60 -
Unleaded petrol not less than
95 RON (EN 228 specification)
including a reserve of 8 - 10 - 8 - 10 -
Engine cooling system (with climate
control)5,7 5,0 5,7 5,050-50 mixture of demineralised
water and PARAFLU
UP(*)
Engine sump 2,75 2,3 3,1 2,6
SELENIA StAR P.E.
Engine sump and filter 3,1 2,6 3,5 2,9
Gearbox casing/differential 1,87 1,6 1,87 1,6TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
antilock brakes0,83 0,78 0,83 0,78 TUTELA TOP 4
Windscreen/rear window/
headlight washer fluid
reservoir
(**)
2,8 (4,6) 2,5 (4,1) 2,8 (4,6) 2,5 (4,1)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) For particularly harsh climate conditions, a mixture of 60%
UPand 40% demineralised water is recommended.
(**) Values in brackets refer to versions with headlight washers
224GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

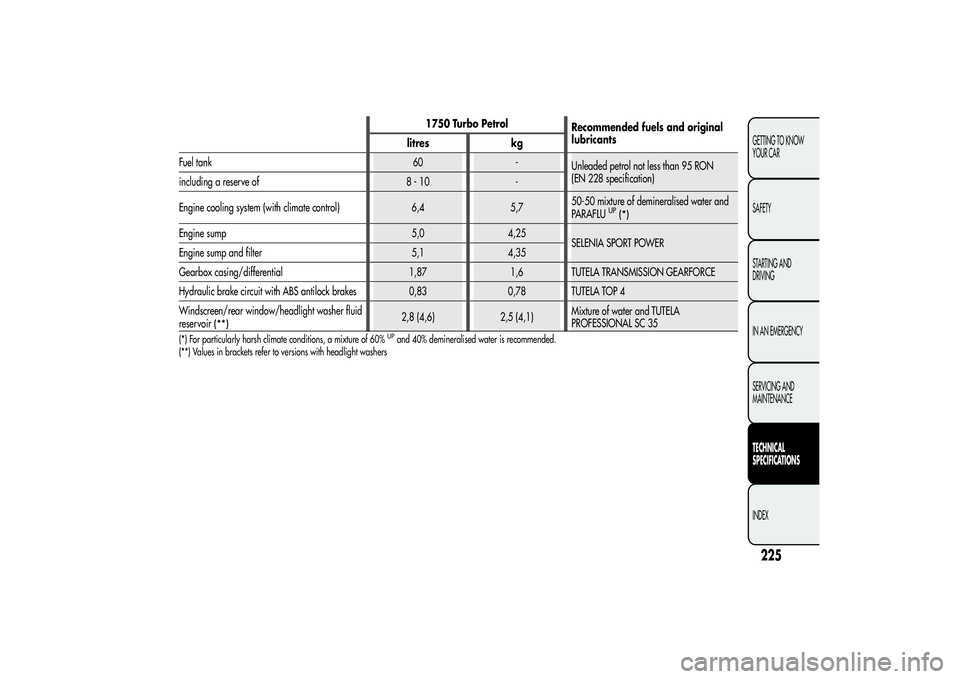

1750 Turbo Petrol
Recommended fuels and original
lubricants
litres kg
Fuel tank 60 -
Unleaded petrol not less than 95 RON
(EN 228 specification)
including a reserve of 8 - 10 -
Engine cooling system (with climate control) 6,4 5,750-50 mixture of demineralised water and
PARAFLU
UP(*)
Engine sump 5,0 4,25
SELENIA SPORT POWER
Engine sump and filter 5,1 4,35
Gearbox casing/differential 1,87 1,6 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit with ABS antilock brakes 0,83 0,78 TUTELA TOP 4
Windscreen/rear window/headlight washer fluid
reservoir
(**)
2,8 (4,6) 2,5 (4,1)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) For particularly harsh climate conditions, a mixture of 60%
UPand 40% demineralised water is recommended.
(**) Values in brackets refer to versions with headlight washers
225GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

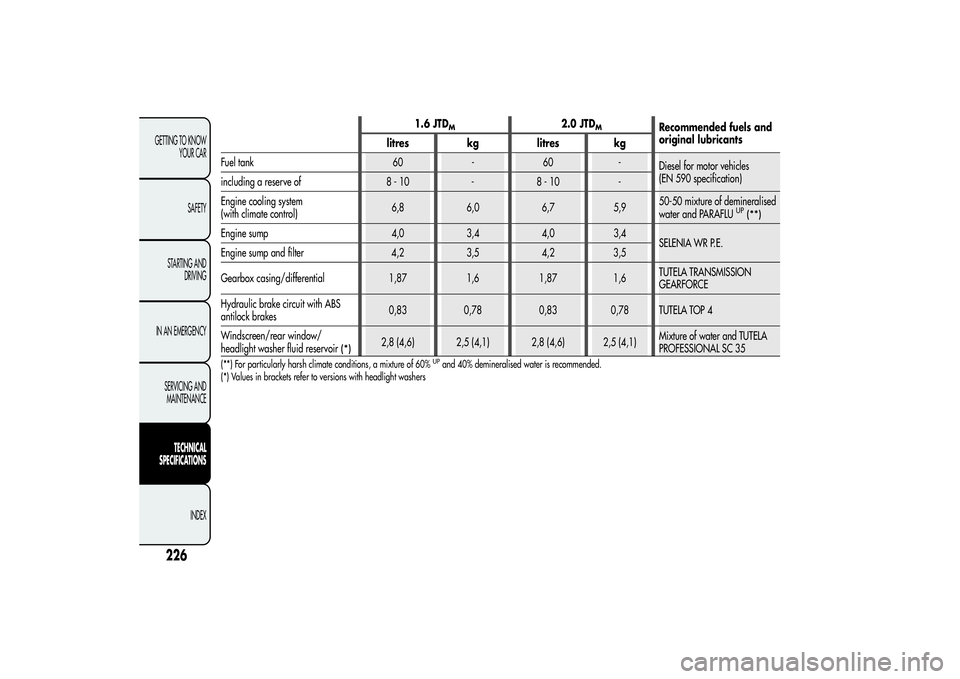

1.6 JTD
M
2.0 JTD
M
Recommended fuels and
original lubricants
litres kg litres kg
Fuel tank 60 - 60 -
Diesel for motor vehicles
(EN 590 specification)
including a reserve of 8 - 10 - 8 - 10 -
Engine cooling system
(with climate control)6,8 6,0 6,7 5,950-50 mixture of demineralised
water and PARAFLU
UP(**)
Engine sump 4,0 3,4 4,0 3,4
SELENIA WR P.E.
Engine sump and filter 4,2 3,5 4,2 3,5
Gearbox casing/differential 1,87 1,6 1,87 1,6TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
antilock brakes0,83 0,78 0,83 0,78 TUTELA TOP 4
Windscreen/rear window/
headlight washer fluid reservoir
(*)
2,8 (4,6) 2,5 (4,1) 2,8 (4,6) 2,5 (4,1)Mixture of water and TUTELA
PROFESSIONAL SC 35
(**) For particularly harsh climate conditions, a mixture of 60%
UPand 40% demineralised water is recommended.
(*) Values in brackets refer to versions with headlight washers
