Alfa Romeo Giulietta 2013 Owner handbook (in English)

STEERING WHEEL CONTROLS(for versions/markets, where provided)Button Functions Mode
AudioMute on/off (Radio mode) or Pause function in MP3 or Media
Player mode (only withBlue&Me
™)Brief button press
+Volume increase Button press
–Volume decrease Button press
SRCSelection of Radio frequency range (FM1, FM2, FMT, FMA, MW)
and audio sources: Radio, MP3 or Media Player (only with
Blue&Me
™) /AUX (only withBlue&Me
™)
(for versions/markets, where provided)Button press
Radio: recall stored stations (from 1 to 6) CD/CD MP3: select next
trackButton pressRadio: recall stored stations (from 6 to 1) CD/CD MP3: select
previous trackButton press
NOTEStarting from the FM or AM source set on the radio (e.g. FM1 or MW1), if you cycle through the audio sources using the SRC
button among the steering wheel controls (stopping on a source other than radio) when the radio source is selected (FM or AM) using the
buttons on the radio panel, the radio always switches to the last radio source (FMA or MW2).
fig. 2
A0K0118
247SOUND-SYSTEM

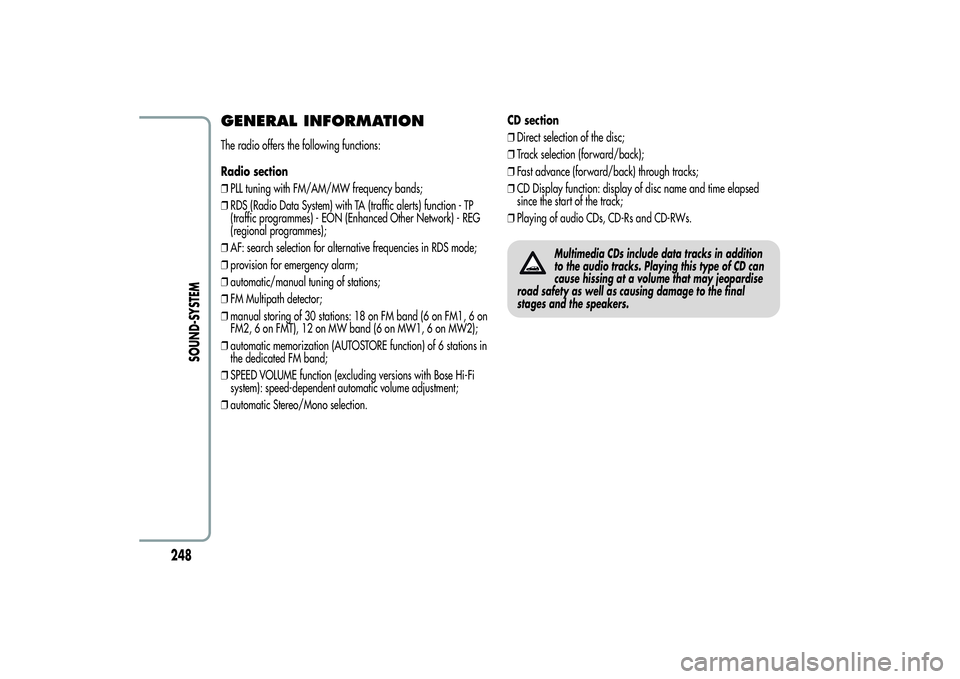

GENERAL INFORMATIONThe radio offers the following functions:
Radio section
❒PLL tuning with FM/AM/MW frequency bands;
❒RDS (Radio Data System) with TA (traffic alerts) function - TP
(traffic programmes) - EON (Enhanced Other Network) - REG
(regional programmes);
❒AF: search selection for alternative frequencies in RDS mode;
❒provision for emergency alarm;
❒automatic/manual tuning of stations;
❒FM Multipath detector;
❒manual storing of 30 stations: 18 on FM band (6 on FM1, 6 on
FM2, 6 on FMT), 12 on MW band (6 on MW1, 6 on MW2);
❒automatic memorization (AUTOSTORE function) of 6 stations in
the dedicated FM band;
❒SPEED VOLUME function (excluding versions with Bose Hi-Fi
system): speed-dependent automatic volume adjustment;
❒automatic Stereo/Mono selection.CD section
❒Direct selection of the disc;
❒Track selection (forward/back);
❒Fast advance (forward/back) through tracks;
❒CD Display function: display of disc name and time elapsed
since the start of the track;
❒Playing of audio CDs, CD-Rs and CD-RWs.
Multimedia CDs include data tracks in addition
to the audio tracks. Playing this type of CD can
cause hissing at a volume that may jeopardise
road safety as well as causing damage to the final
stages and the speakers.
248
SOUND-SYSTEM

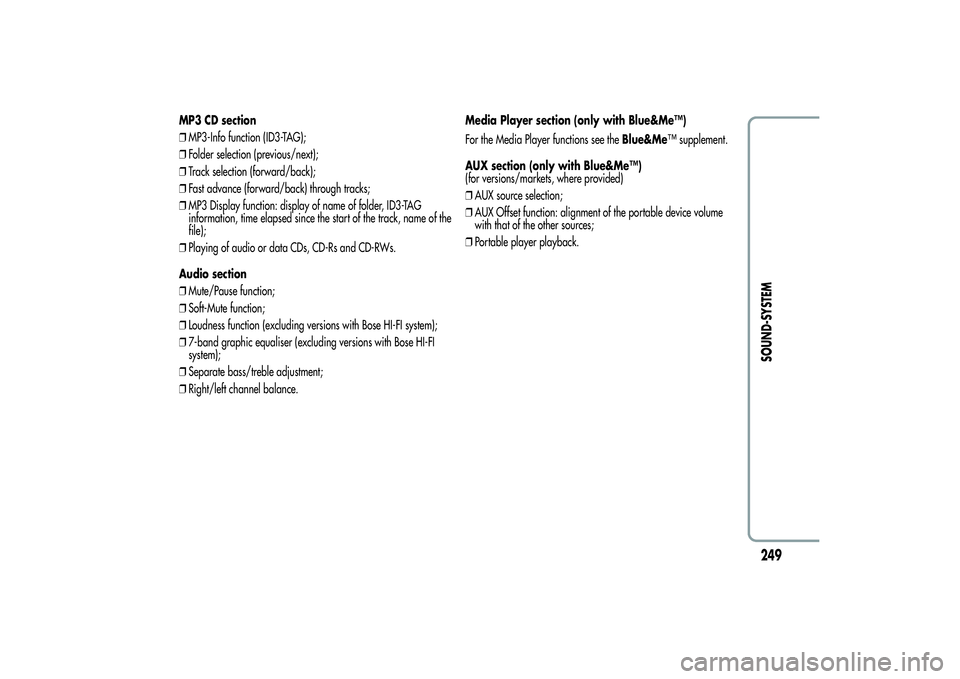

MP3 CD section
❒MP3-Info function (ID3-TAG);
❒Folder selection (previous/next);
❒Track selection (forward/back);
❒Fast advance (forward/back) through tracks;
❒MP3 Display function: display of name of folder, ID3-TAG
information, time elapsed since the start of the track, name of the
file);
❒Playing of audio or data CDs, CD-Rs and CD-RWs.
Audio section
❒Mute/Pause function;
❒Soft-Mute function;
❒Loudness function (excluding versions with Bose HI-FI system);
❒7-band graphic equaliser (excluding versions with Bose HI-FI
system);
❒Separate bass/treble adjustment;
❒Right/left channel balance.Media Player section (only with Blue&Me™)
For the Media Player functions see theBlue&Me™ supplement.
AUX section (only with Blue&Me™)
(for versions/markets, where provided)
❒AUX source selection;
❒AUX Offset function: alignment of the portable device volume
with that of the other sources;
❒Portable player playback.
249SOUND-SYSTEM

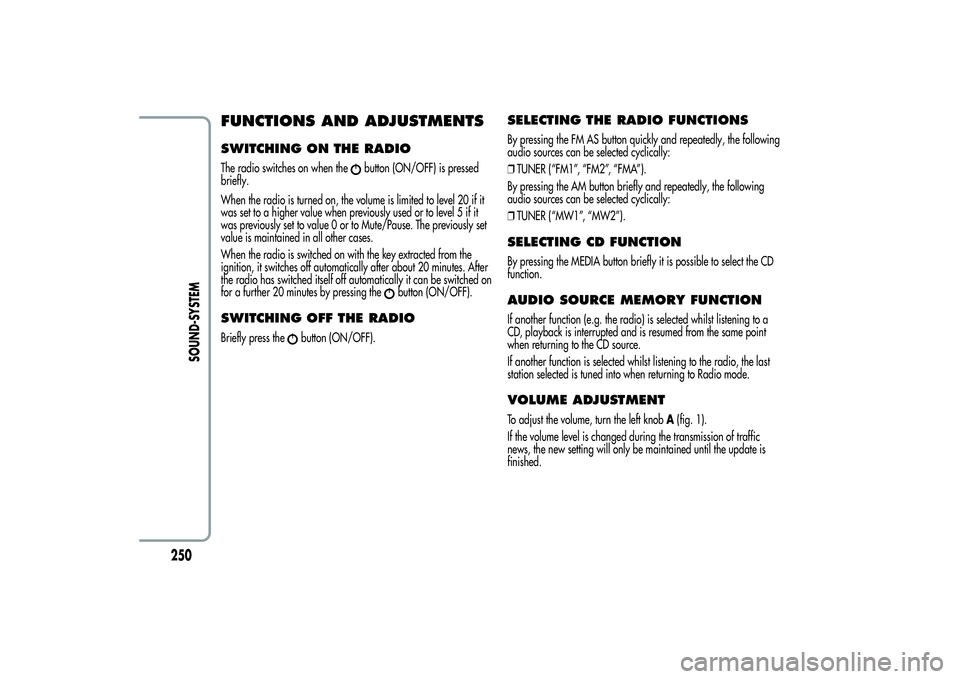

FUNCTIONS AND ADJUSTMENTSSWITCHING ON THE RADIOThe radio switches on when the
button (ON/OFF) is pressed
briefly.
When the radio is turned on, the volume is limited to level 20 if it
was set to a higher value when previously used or to level 5 if it
was previously set to value 0 or to Mute/Pause. The previously set
value is maintained in all other cases.
When the radio is switched on with the key extracted from the
ignition, it switches off automatically after about 20 minutes. After
the radio has switched itself off automatically it can be switched on
for a further 20 minutes by pressing the
button (ON/OFF).
SWITCHING OFF THE RADIOBriefly press the
button (ON/OFF).
SELECTING THE RADIO FUNCTIONSBy pressing the FM AS button quickly and repeatedly, the following
audio sources can be selected cyclically:
❒TUNER (“FM1”, “FM2”, “FMA”).
By pressing the AM button briefly and repeatedly, the following
audio sources can be selected cyclically:
❒TUNER (“MW1”, “MW2”).SELECTING CD FUNCTIONBy pressing the MEDIA button briefly it is possible to select the CD
function.AUDIO SOURCE MEMORY FUNCTIONIf another function (e.g. the radio) is selected whilst listening to a
CD, playback is interrupted and is resumed from the same point
when returning to the CD source.
If another function is selected whilst listening to the radio, the last
station selected is tuned into when returning to Radio mode.VOLUME ADJUSTMENTTo adjust the volume, turn the left knobA(fig. 1).
If the volume level is changed during the transmission of traffic
news, the new setting will only be maintained until the update is
finished.
250
SOUND-SYSTEM

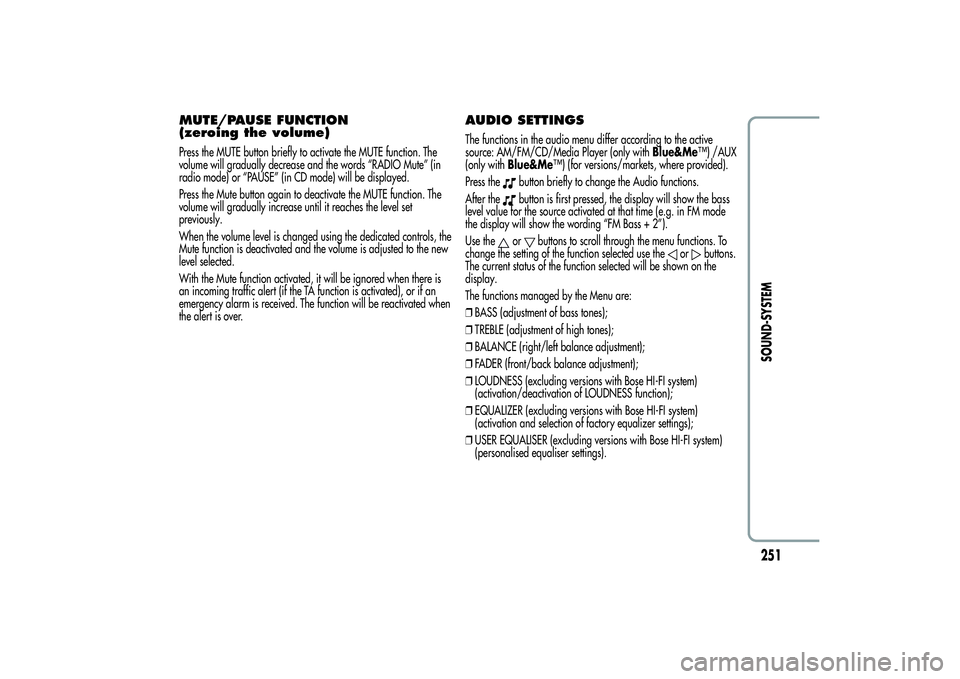

MUTE/PAUSE FUNCTION
(zeroing the volume)Press the MUTE button briefly to activate the MUTE function. The
volume will gradually decrease and the words “RADIO Mute” (in
radio mode) or “PAUSE” (in CD mode) will be displayed.
Press the Mute button again to deactivate the MUTE function. The
volume will gradually increase until it reaches the level set
previously.
When the volume level is changed using the dedicated controls, the
Mute function is deactivated and the volume is adjusted to the new
level selected.
With the Mute function activated, it will be ignored when there is
an incoming traffic alert (if the TA function is activated), or if an
emergency alarm is received. The function will be reactivated when
the alert is over.
AUDIO SETTINGSThe functions in the audio menu differ according to the active
source: AM/FM/CD/Media Player (only withBlue&Me™) /AUX
(only withBlue&Me™) (for versions/markets, where provided).
Press the
button briefly to change the Audio functions.
After thebutton is first pressed, the display will show the bass
level value for the source activated at that time (e.g. in FM mode
the display will show the wording “FM Bass + 2”).
Use theor
buttons to scroll through the menu functions. To
change the setting of the function selected use the
or
buttons.
The current status of the function selected will be shown on the
display.
The functions managed by the Menu are:
❒BASS (adjustment of bass tones);
❒TREBLE (adjustment of high tones);
❒BALANCE (right/left balance adjustment);
❒FADER (front/back balance adjustment);
❒LOUDNESS (excluding versions with Bose HI-FI system)
(activation/deactivation of LOUDNESS function);
❒EQUALIZER (excluding versions with Bose HI-FI system)
(activation and selection of factory equalizer settings);
❒USER EQUALISER (excluding versions with Bose HI-FI system)
(personalised equaliser settings).
251SOUND-SYSTEM

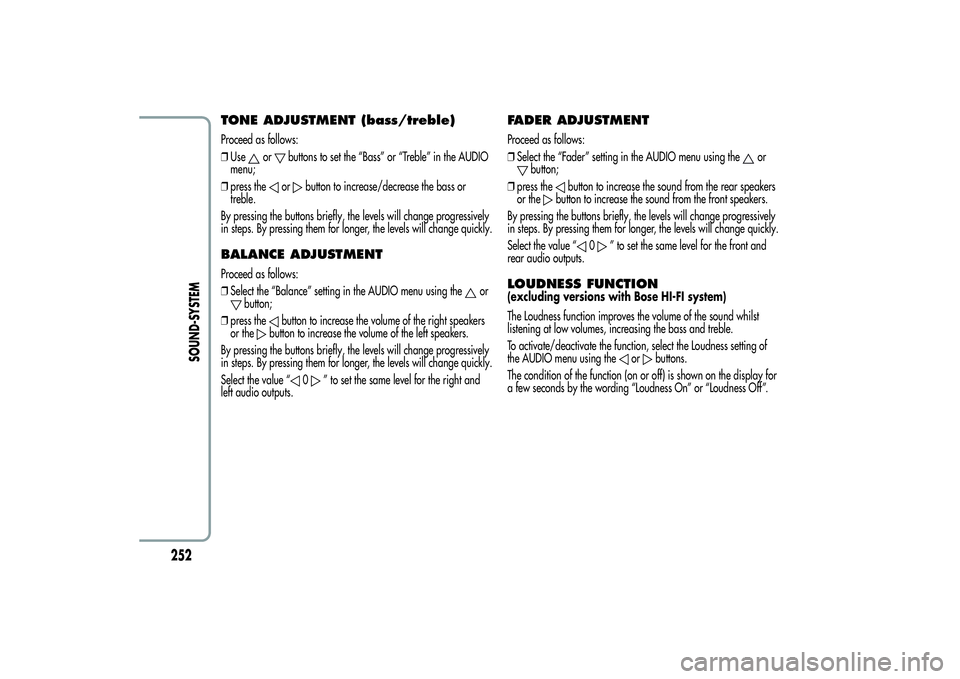

TONE ADJUSTMENT (bass/treble)Proceed as follows:
❒Use
or
buttons to set the “Bass” or “Treble” in the AUDIO
menu;
❒press theor
button to increase/decrease the bass or
treble.
By pressing the buttons briefly, the levels will change progressively
in steps. By pressing them for longer, the levels will change quickly.
BALANCE ADJUSTMENTProceed as follows:
❒Select the “Balance” setting in the AUDIO menu using the
or
button;
❒press the
button to increase the volume of the right speakers
or the
button to increase the volume of the left speakers.
By pressing the buttons briefly, the levels will change progressively
in steps. By pressing them for longer, the levels will change quickly.
Select the value “
0
” to set the same level for the right and
left audio outputs.
FADER ADJUSTMENTProceed as follows:
❒Select the “Fader” setting in the AUDIO menu using the
or
button;
❒press the
button to increase the sound from the rear speakers
or the
button to increase the sound from the front speakers.
By pressing the buttons briefly, the levels will change progressively
in steps. By pressing them for longer, the levels will change quickly.
Select the value “
0
” to set the same level for the front and
rear audio outputs.
LOUDNESS FUNCTION(excluding versions with Bose HI-FI system)
The Loudness function improves the volume of the sound whilst
listening at low volumes, increasing the bass and treble.
To activate/deactivate the function, select the Loudness setting of
the AUDIO menu using the
or
buttons.
The condition of the function (on or off) is shown on the display for
a few seconds by the wording “Loudness On” or “Loudness Off”.
252
SOUND-SYSTEM

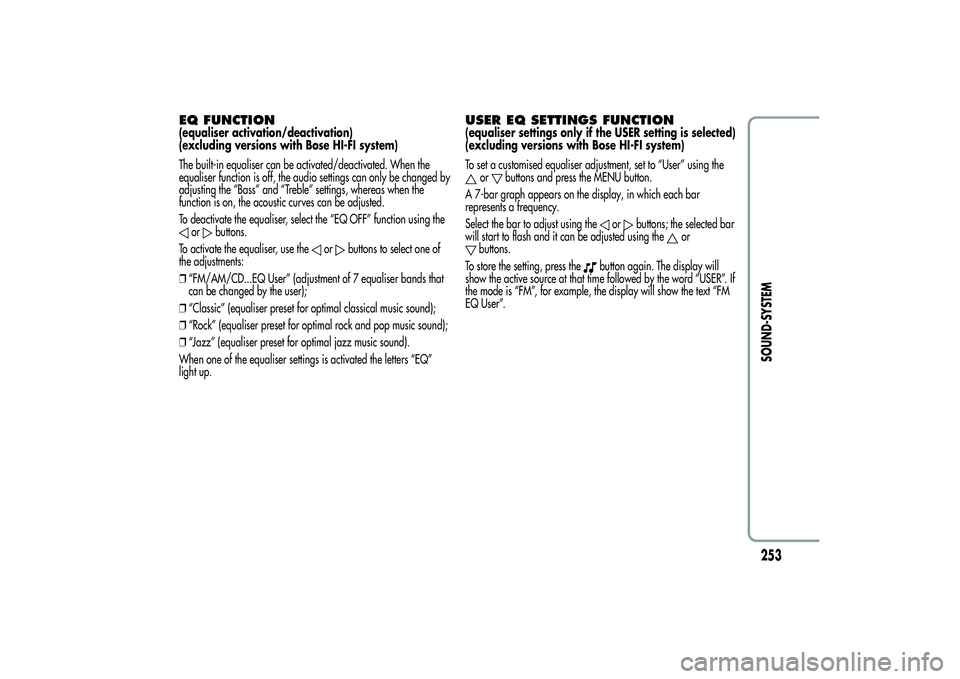

EQ FUNCTION(equaliser activation/deactivation)
(excluding versions with Bose HI-FI system)
The built-in equaliser can be activated/deactivated. When the
equaliser function is off, the audio settings can only be changed by
adjusting the “Bass” and “Treble” settings, whereas when the
function is on, the acoustic curves can be adjusted.
To deactivate the equaliser, select the “EQ OFF” function using the
or
buttons.
To activate the equaliser, use the
or
buttons to select one of
the adjustments:
❒“FM/AM/CD...EQ User” (adjustment of 7 equaliser bands that
can be changed by the user);
❒“Classic” (equaliser preset for optimal classical music sound);
❒“Rock” (equaliser preset for optimal rock and pop music sound);
❒“Jazz” (equaliser preset for optimal jazz music sound).
When one of the equaliser settings is activated the letters “EQ”
light up.
USER EQ SETTINGS FUNCTION(equaliser settings only if the USER setting is selected)
(excluding versions with Bose HI-FI system)
To set a customised equaliser adjustment, set to “User” using the
or
buttons and press the MENU button.
A 7-bar graph appears on the display, in which each bar
represents a frequency.
Select the bar to adjust using the
or
buttons; the selected bar
will start to flash and it can be adjusted using the
or
buttons.
To store the setting, press the
button again. The display will
show the active source at that time followed by the word “USER”. If
the mode is “FM”, for example, the display will show the text “FM
EQ User”.
253SOUND-SYSTEM

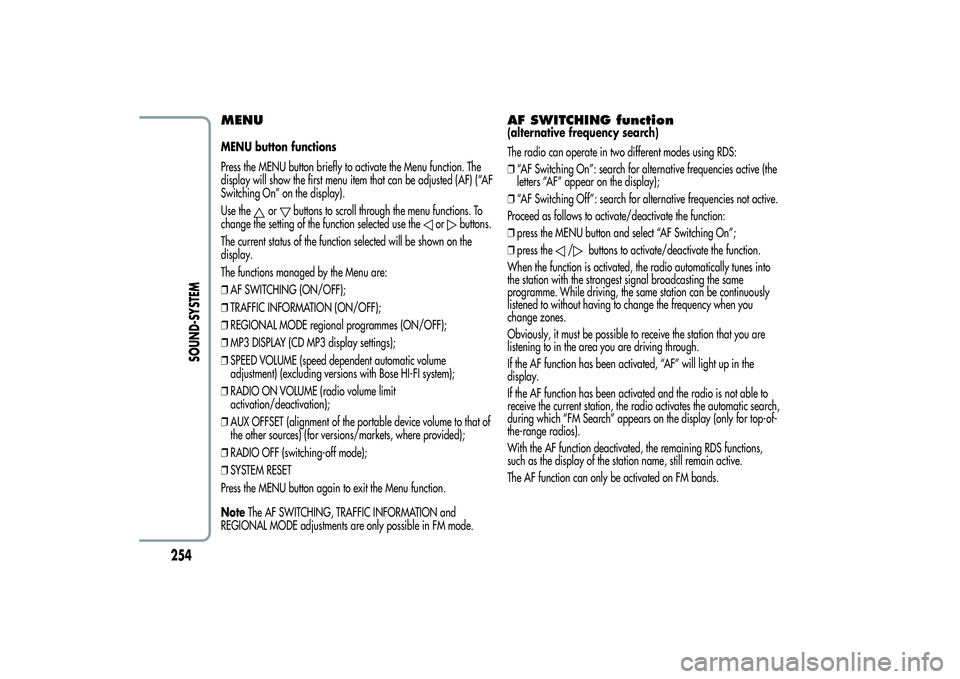

MENUMENU button functions
Press the MENU button briefly to activate the Menu function. The
display will show the first menu item that can be adjusted (AF) (“AF
Switching On” on the display).
Use the
or
buttons to scroll through the menu functions. To
change the setting of the function selected use the
or
buttons.
The current status of the function selected will be shown on the
display.
The functions managed by the Menu are:
❒AF SWITCHING (ON/OFF);
❒TRAFFIC INFORMATION (ON/OFF);
❒REGIONAL MODE regional programmes (ON/OFF);
❒MP3 DISPLAY (CD MP3 display settings);
❒SPEED VOLUME (speed dependent automatic volume
adjustment) (excluding versions with Bose HI-FI system);
❒RADIO ON VOLUME (radio volume limit
activation/deactivation);
❒AUX OFFSET (alignment of the portable device volume to that of
the other sources) (for versions/markets, where provided);
❒RADIO OFF (switching-off mode);
❒SYSTEM RESET
Press the MENU button again to exit the Menu function.
NoteThe AF SWITCHING, TRAFFIC INFORMATION and
REGIONAL MODE adjustments are only possible in FM mode.
AF SWITCHING function(alternative frequency search)
The radio can operate in two different modes using RDS:
❒“AF Switching On”: search for alternative frequencies active (the
letters “AF” appear on the display);
❒“AF Switching Off”: search for alternative frequencies not active.
Proceed as follows to activate/deactivate the function:
❒press the MENU button and select “AF Switching On”;
❒press the
/
buttons to activate/deactivate the function.
When the function is activated, the radio automatically tunes into
the station with the strongest signal broadcasting the same
programme. While driving, the same station can be continuously
listened to without having to change the frequency when you
change zones.
Obviously, it must be possible to receive the station that you are
listening to in the area you are driving through.
If the AF function has been activated, “AF” will light up in the
display.
If the AF function has been activated and the radio is not able to
receive the current station, the radio activates the automatic search,
during which “FM Search” appears on the display (only for top-of-
the-range radios).
With the AF function deactivated, the remaining RDS functions,
such as the display of the station name, still remain active.
The AF function can only be activated on FM bands.
254
SOUND-SYSTEM

TRAFFIC INFORMATION function(traffic information)
Some stations on the FM band (FM1, FM2 and FMA) can
broadcast information about traffic conditions. In this case the
letters “TA” appear on the display.
Proceed as follows to switch the TA function on/off:
❒press the MENU button briefly and select “Traffic info”;
❒press the
/
buttons to activate/deactivate the function.
If the TA function has been activated, the “TA” icon lights up on the
display.
NoteIf the TA function is activated with an audio source other
than Tuner (Radio) (CD, MP3, telephone or Mute/Pause), the radio
can carry out an automatic search and therefore it is possible,
when reactivating the Tuner (Radio) source, that the frequency
tuned into is different from the one previously set.
With the TA function, it is possible to:
❒search only for RDS stations that broadcast in FM and are
enabled to broadcast traffic information;
❒receive traffic information even when the CD player is in
operation;
❒receive traffic information at a minimum preset volume even with
the radio volume off.NoteIn some countries there are radio stations that, even with the
TP function activated, do not transmit traffic information (the “TP”
icon appears on the display).
If the radio is tuned to a station in the AM band, when TA is
activated it will tune into the last selected station in the FM1 band.
The volume at which the traffic news is transmitted depends on the
listening volume:
❒listening volume below 5: traffic news volume 5 (fixed value);
❒listening volume above 5: traffic news volume equal to listening
volume +1.
If the volume is changed during traffic news, the level will not be
shown on the display; the new level will only be maintained during
the news.
While traffic information is being received, “TRAFFIC
INFORMATION” will appear on the display.
The TA function can be interrupted by pressing any button on the
radio.
255SOUND-SYSTEM

REGIONAL MODE function(regional transmission reception)
Some national broadcasters will transmit regional programmes at
certain times of the day (that vary from region to region).
This function makes it possible to tune into local (regional)
broadcasters automatically (see “EON function” paragraph).
If you want the radio to automatically tune into the regional
stations being broadcast on the selected network, the function must
be activated.
To activate/deactivate the function use the
or
buttons.
The current status of the function appears on the display:
❒“Regional On”: function activated;
❒“Regional Off”: function deactivated.
If the function is deactivated and you have tuned into a regional
station working in a given area and you enter a different area,
then the regional station received in the new area will be
broadcast.
NoteIf the AF and REG functions are on at the same time, once a
border between two regions is crossed, the radio may not switch
correctly to a valid alternative frequency.
MP3 DISPLAY function(MP3 CD data display)
This function makes it possible to select the information shown by
the display when listening to a CD containing MP3 tracks.
The function can only be selected if an MP3 CD is inserted: in this
case “MP3 Display” will appear on the display.
To change the function, use the
or
buttons.
The following settings are available:
❒“Title” (track title, if the ID3-TAG is available);
❒“Author” (track author, if the ID3-TAG is available);
❒“Album” (track album, if the ID3-TAG is available);
❒“Folder” name (name assigned to the folder);
❒“File” name (name assigned to the MP3 file).
256
SOUND-SYSTEM
