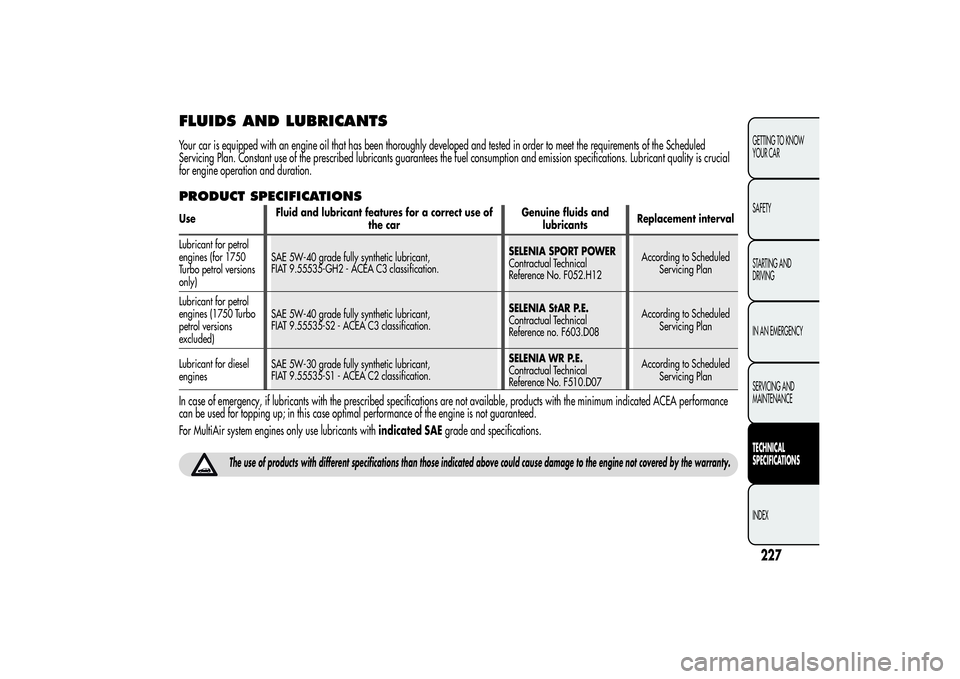

FLUIDS AND LUBRICANTSYour car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the Scheduled
Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant quality is crucial
for engine operation and duration.PRODUCT SPECIFICATIONSUseFluid and lubricant features for a correct use of
the carGenuine fluids and
lubricantsReplacement interval
Lubricant for petrol
engines (for 1750
Turbo petrol versions
only)SAE 5W-40 grade fully synthetic lubricant,
FIAT 9.55535-GH2 - ACEA C3 classification.SELENIA SPORT POWER
Contractual Technical
Reference No. F052.H12According to Scheduled
Servicing Plan
Lubricant for petrol
engines (1750 Turbo
petrol versions
excluded)SAE 5W-40 grade fully synthetic lubricant,
FIAT 9.55535-S2 - ACEA C3 classification.SELENIA StAR P.E.
Contractual Technical
Reference no. F603.D08According to Scheduled
Servicing Plan
Lubricant for diesel
enginesSAE 5W-30 grade fully synthetic lubricant,
FIAT 9.55535-S1 - ACEA C2 classification.SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to Scheduled
Servicing PlanIn case of emergency, if lubricants with the prescribed specifications are not available, products with the minimum indicated ACEA performance
can be used for topping up; in this case optimal performance of the engine is not guaranteed.
For MultiAir system engines only use lubricants withindicated SAEgrade and specifications.
The use of products with different specifications than those indicated above could cause damage to the engine not covered by the warranty.
227GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

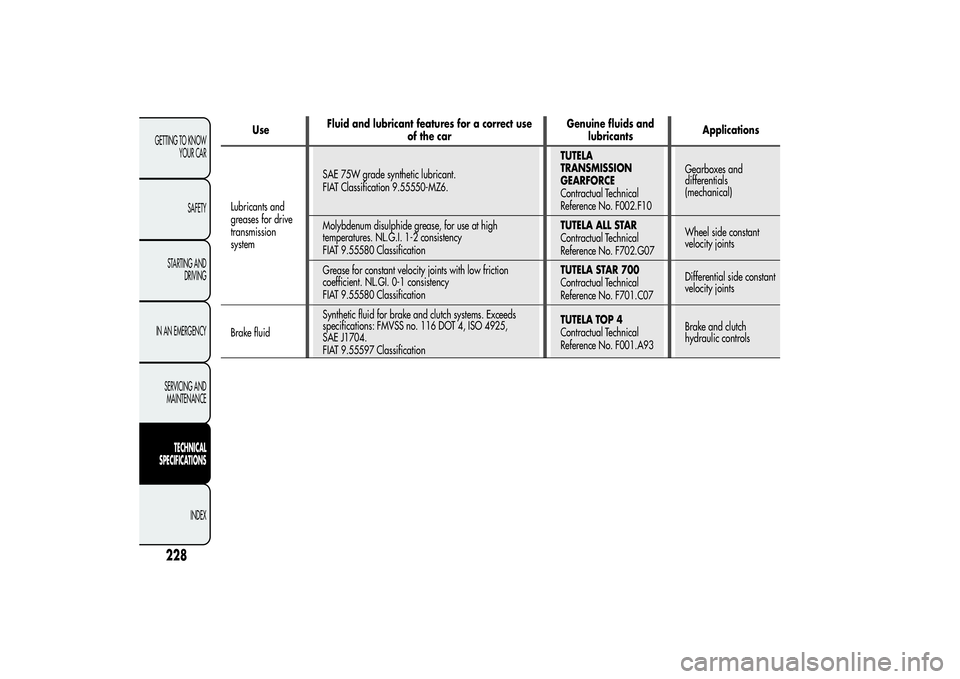

UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsApplications
Lubricants and
greases for drive
transmission
systemSAE 75W grade synthetic lubricant.
FIAT Classification 9.55550-MZ6.TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Gearboxes and
differentials
(mechanical)
Molybdenum disulphide grease, for use at high
temperatures. NL.G.I. 1-2 consistency
FIAT 9.55580 ClassificationTUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low friction
coefficient. NL.GI. 0-1 consistency
FIAT 9.55580 ClassificationTUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
Brake fluidSynthetic fluid for brake and clutch systems. Exceeds
specifications: FMVSS no. 116 DOT 4, ISO 4925,
SAE J1704.
FIAT 9.55597 ClassificationTUTELA TOP 4
Contractual Technical
Reference No. F001.A93Brake and clutch
hydraulic controls
228GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsApplications
Protective agent
for radiatorsRed protective agent with antifreeze action, based on
inhibited monoethylene glycol with organic formula.
Exceeds CUNA NC 956-16, ASTM D 3306
specifications.
FIAT 9.55523 ClassificationPARAFLU
UP
(*)
Contractual Technical
Reference No. F101.M01Mixture: 50% water and
50%PARAFLU
UP
(**)
Diesel fuel
additiveAntifreeze additive for diesel, with protective action for
diesel engines.TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with the
diesel
(25 cc per 10 litres)
Washer fluid for
windscreen/rear
window/
headlampsMixture of alcohol, water and surfactants
CUNA NC 956-11
FIAT 9.55522 ClassificationTUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in
windscreen/rear
window washer/wiper
systems(*)IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**)For particularly harsh climate conditions, a mixture of 60%PARAFLU
UPand 40% distilled water is recommended.
229GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

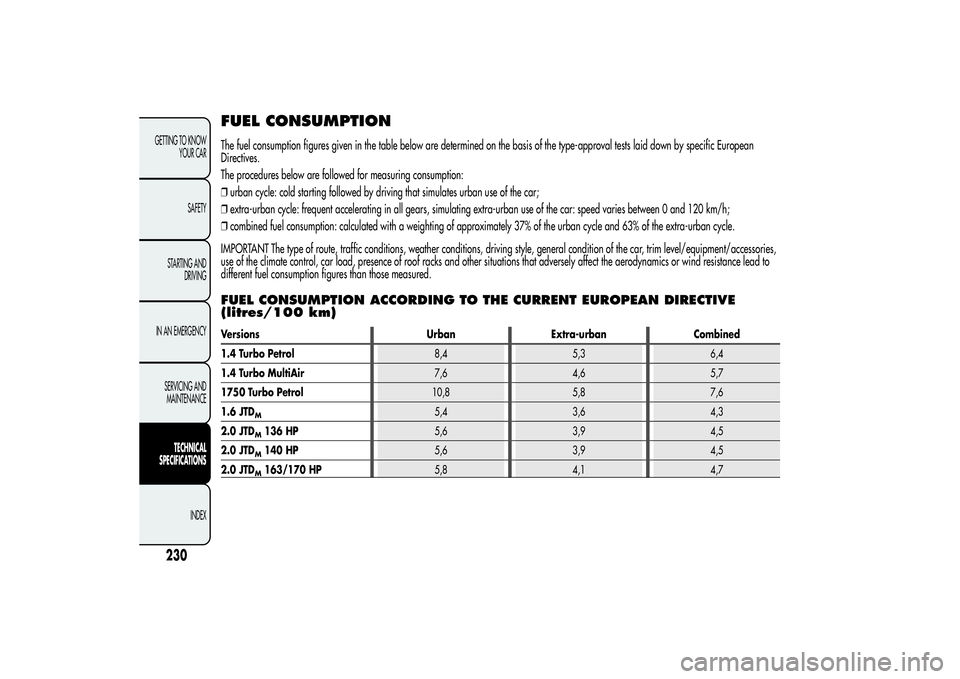

FUEL CONSUMPTIONThe fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by specific European
Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies between 0 and 120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/equipment/accessories,
use of the climate control, car load, presence of roof racks and other situations that adversely affect the aerodynamics or wind resistance lead to
different fuel consumption figures than those measured.FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)Versions Urban Extra-urban Combined
1.4 Turbo Petrol8,4 5,3 6,4
1.4 Turbo MultiAir7,6 4,6 5,7
1750 Turbo Petrol10,8 5,8 7,6
1.6 JTD
M
5,4 3,6 4,3
2.0 JTD
M136 HP5,6 3,9 4,5
2.0 JTDM140 HP5,6 3,9 4,5
2.0 JTDM163/170 HP5,8 4,1 4,7
230GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

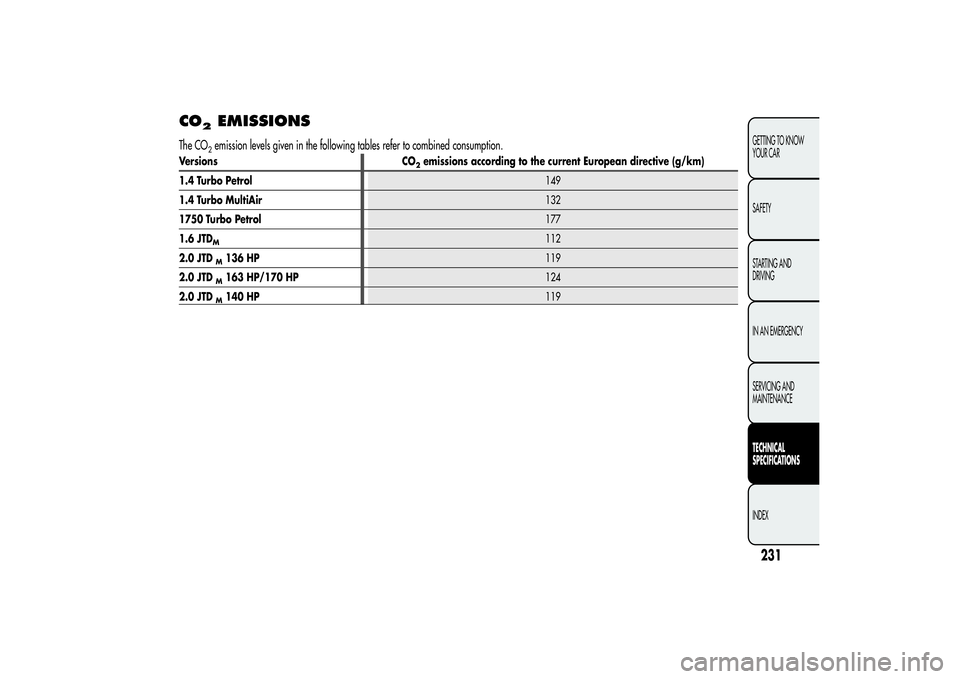

CO
2
EMISSIONS
The CO
2emission levels given in the following tables refer to combined consumption.
Versions CO
2emissions according to the current European directive (g/km)
1.4 Turbo Petrol149
1.4 Turbo MultiAir132
1750 Turbo Petrol177
1.6 JTD
M
112
2.0 JTD
M136 HP119
2.0 JTDM163 HP/170 HP124
2.0 JTDM140 HP119
231GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

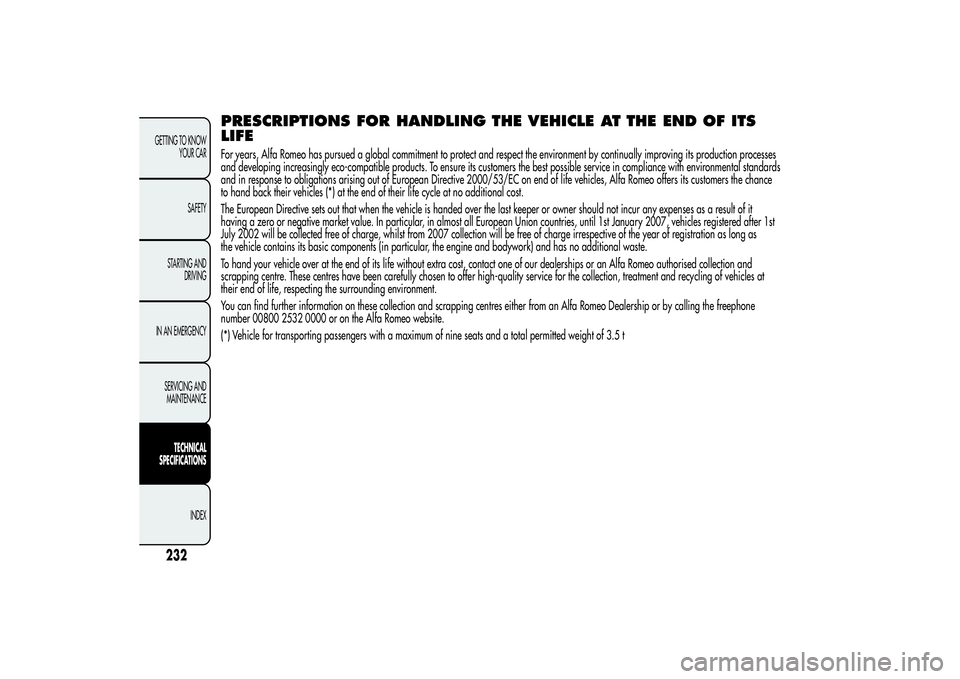

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS
LIFEFor years, Alfa Romeo has pursued a global commitment to protect and respect the environment by continually improving its production processes
and developing increasingly eco-compatible products. To ensure its customers the best possible service in compliance with environmental standards
and in response to obligations arising out of European Directive 2000/53/EC on end of life vehicles, Alfa Romeo offers its customers the chance
to hand back their vehicles (*) at the end of their life cycle at no additional cost.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses as a result of it
having a zero or negative market value. In particular, in almost all European Union countries, until 1st January 2007, vehicles registered after 1st
July 2002 will be collected free of charge, whilst from 2007 collection will be free of charge irrespective of the year of registration as long as
the vehicle contains its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships or an Alfa Romeo authorised collection and
scrapping centre. These centres have been carefully chosen to offer high-quality service for the collection, treatment and recycling of vehicles at
their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an Alfa Romeo Dealership or by calling the freephone
number 00800 2532 0000 or on the Alfa Romeo website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
232GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DASHBOARDThe presence and position of controls, instruments and gauges may vary according to different versions.1. Fixed vent for sending air to side windows – 2. Adjustable air vent – 3. Passenger front air bag – 4. Upper adjustable vents – 5. Hazard warning
lights – 6. Radio navigator display (for versions/markets, where provided) – 7. External light control stalk – 8. Instrument panel – 9. Windscreen
wiper/rear window wiper/trip computer stalk – 10. Headlight alignment corrector (for versions/markets, where provided) and Setup Menu access
buttons – 11. Ignition device – 12. Driver's front air bag – 13. Cruise Control stalk (for versions/markets, where provided) – 14. Control buttons: fog
lights/rear fog light, Start&Stop system (for versions/markets, where provided), door locking/unlocking, AFS light on/off (for versions/markets, where
provided) – 15. “Alfa DNA” system – 16. Gear lever – 17. Heating/ventilation/air conditioning controls – 18. Sound system (for versions/markets,
where provided) – 19. Central adjustable air vents – 20. Glove compartment.
19.5
22.0
cACA
AUTO
MONOC
123
4
56
4789
21
20
19
1817
16
1514
1312
1110
fig. 1
A0K0225
233
RIGHT HAND DRIVE VERSIONS

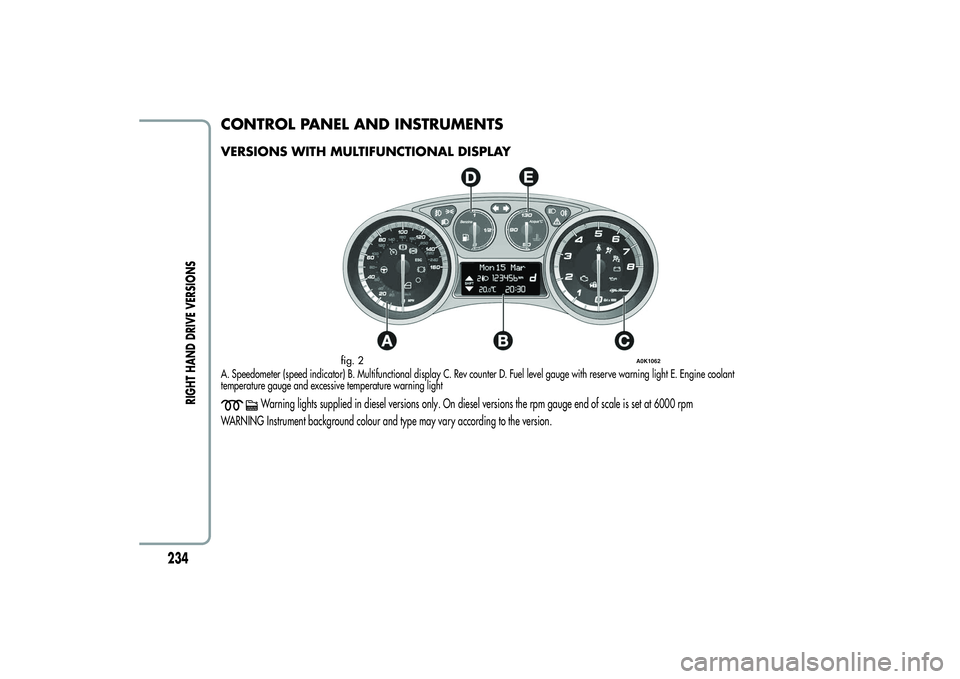

CONTROL PANEL AND INSTRUMENTSVERSIONS WITH MULTIFUNCTIONAL DISPLAYA. Speedometer (speed indicator) B. Multifunctional display C. Rev counter D. Fuel level gauge with reserve warning light E. Engine coolant
temperature gauge and excessive temperature warning light
Warning lights supplied in diesel versions only. On diesel versions the rpm gauge end of scale is set at 6000 rpm
WARNING Instrument background colour and type may vary according to the version.
fig. 2
A0K1062
234
RIGHT HAND DRIVE VERSIONS

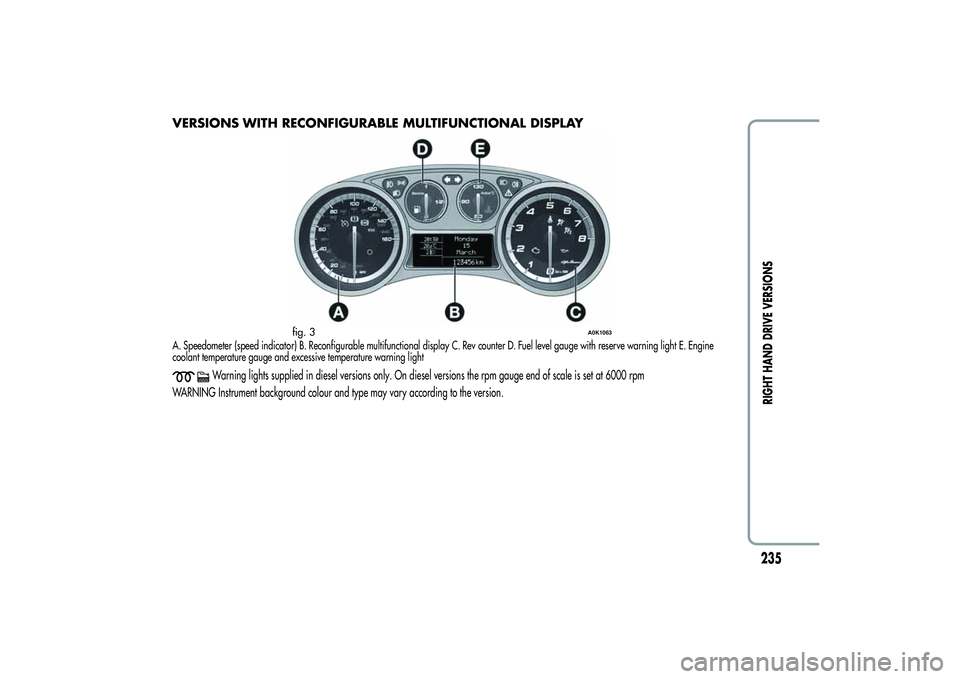

VERSIONS WITH RECONFIGURABLE MULTIFUNCTIONAL DISPLAYA. Speedometer (speed indicator) B. Reconfigurable multifunctional display C. Rev counter D. Fuel level gauge with reserve warning light E. Engine
coolant temperature gauge and excessive temperature warning light
Warning lights supplied in diesel versions only. On diesel versions the rpm gauge end of scale is set at 6000 rpm
WARNING Instrument background colour and type may vary according to the version.
fig. 3
A0K1063
235
RIGHT HAND DRIVE VERSIONS

CHANGING A FUSEFUSEBOX ON DASHBOARDInsert a hand in the seat A fig. 4 and lower the flap B to access the
fuses.
The fuses are located in the fusebox shown in fig. 5.Note
For fuse protected devices refer to the description of “In an emergency”
chapter.
fig. 4
A0K0246
fig. 5
A0K0249
236
