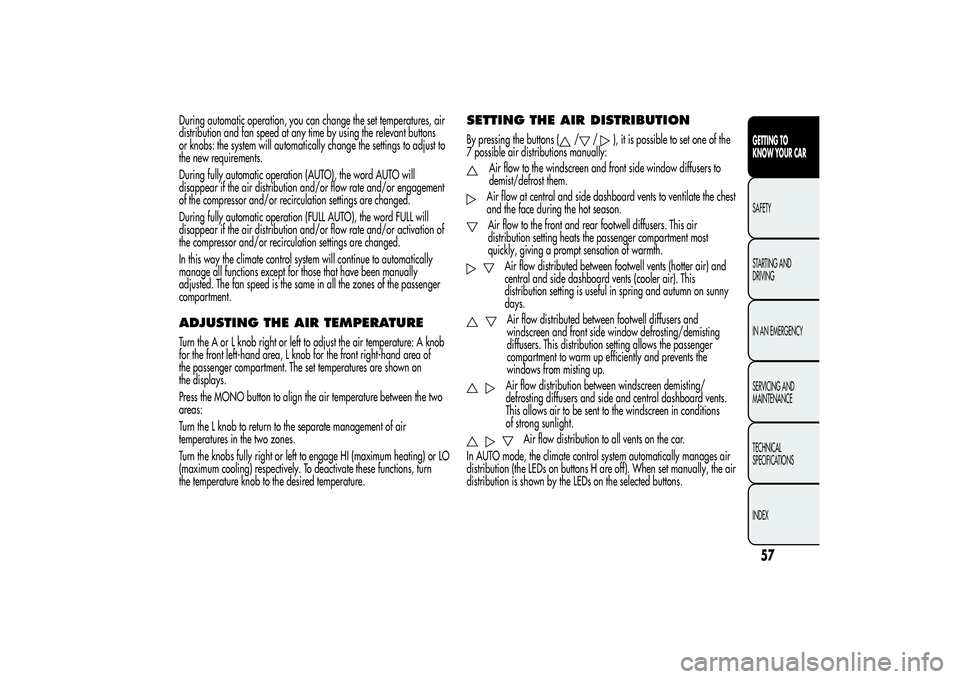

During automatic operation, you can change the set temperatures, air
distribution and fan speed at any time by using the relevant buttons
or knobs: the system will automatically change the settings to adjust to
the new requirements.
During fully automatic operation (AUTO), the word AUTO will
disappear if the air distribution and/or flow rate and/or engagement
of the compressor and/or recirculation settings are changed.
During fully automatic operation (FULL AUTO), the word FULL will
disappear if the air distribution and/or flow rate and/or activation of
the compressor and/or recirculation settings are changed.
In this way the climate control system will continue to automatically
manage all functions except for those that have been manually
adjusted. The fan speed is the same in all the zones of the passenger
compartment.ADJUSTING THE AIR TEMPERATURETurn the A or L knob right or left to adjust the air temperature: A knob
for the front left-hand area, L knob for the front right-hand area of
the passenger compartment. The set temperatures are shown on
the displays.
Press the MONO button to align the air temperature between the two
areas:
Turn the L knob to return to the separate management of air
temperatures in the two zones.
Turn the knobs fully right or left to engage HI (maximum heating) or LO
(maximum cooling) respectively. To deactivate these functions, turn
the temperature knob to the desired temperature.
SETTING THE AIR DISTRIBUTIONBy pressing the buttons (
/
/
), it is possible to set one of the
7 possible air distributions manually:
Air flow to the windscreen and front side window diffusers to
demist/defrost them.Air flow at central and side dashboard vents to ventilate the chest
and the face during the hot season.Air flow to the front and rear footwell diffusers. This air
distribution setting heats the passenger compartment most
quickly, giving a prompt sensation of warmth.
Air flow distributed between footwell vents (hotter air) and
central and side dashboard vents (cooler air). This
distribution setting is useful in spring and autumn on sunny
days.Air flow distributed between footwell diffusers and
windscreen and front side window defrosting/demisting
diffusers. This distribution setting allows the passenger
compartment to warm up efficiently and prevents the
windows from misting up.Air flow distribution between windscreen demisting/
defrosting diffusers and side and central dashboard vents.
This allows air to be sent to the windscreen in conditions
of strong sunlight.
Air flow distribution to all vents on the car.
In AUTO mode, the climate control system automatically manages air
distribution (the LEDs on buttons H are off). When set manually, the air
distribution is shown by the LEDs on the selected buttons.
57GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 62 of 292

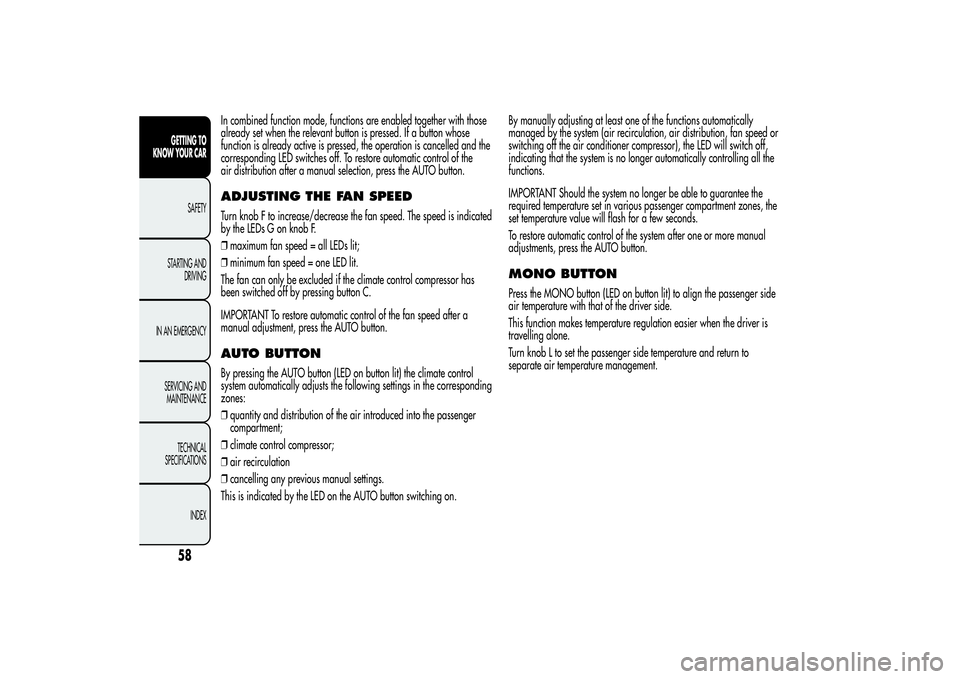

In combined function mode, functions are enabled together with those
already set when the relevant button is pressed. If a button whose
function is already active is pressed, the operation is cancelled and the
corresponding LED switches off. To restore automatic control of the
air distribution after a manual selection, press the AUTO button.ADJUSTING THE FAN SPEEDTurn knob F to increase/decrease the fan speed. The speed is indicated
by the LEDs G on knob F.
❒maximum fan speed = all LEDs lit;
❒minimum fan speed = one LED lit.
The fan can only be excluded if the climate control compressor has
been switched off by pressing button C.
IMPORTANT To restore automatic control of the fan speed after a
manual adjustment, press the AUTO button.AUTO BUTTONBy pressing the AUTO button (LED on button lit) the climate control
system automatically adjusts the following settings in the corresponding
zones:
❒quantity and distribution of the air introduced into the passenger
compartment;
❒climate control compressor;
❒air recirculation
❒cancelling any previous manual settings.
This is indicated by the LED on the AUTO button switching on.By manually adjusting at least one of the functions automatically
managed by the system (air recirculation, air distribution, fan speed or
switching off the air conditioner compressor), the LED will switch off,
indicating that the system is no longer automatically controlling all the
functions.
IMPORTANT Should the system no longer be able to guarantee the
required temperature set in various passenger compartment zones, the
set temperature value will flash for a few seconds.
To restore automatic control of the system after one or more manual
adjustments, press the AUTO button.
MONO BUTTONPress the MONO button (LED on button lit) to align the passenger side
air temperature with that of the driver side.
This function makes temperature regulation easier when the driver is
travelling alone.
Turn knob L to set the passenger side temperature and return to
separate air temperature management.
58GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 63 of 292
AIR RECIRCULATION AND
ENABLEMENT OF AQS FUNCTION
(Air Quality System)The air recirculation is managed according to the following operating
logics:
❒automatic activation: text A on button B lit;
❒forced activation (inside air recirculation always on): indicated by
the LED on the button
A and text A off;
❒forced deactivation (air recirculation always off, air drawn in from
the outside): indicated by the LED on the
buttons A switching
off and text A on button B off.
Forced activation/deactivation can be selected by pressing the
button A.
When the
button is pressed (button E off), the climate control system
automatically activates internal air recirculation (LED on the
button A on). It is still possible to activate outside air
recirculation (LED on the button off) and vice versa, by pressing the
button
A.
The AQS (Air Quality System) function cannot be activated when the
button is pressed (LED on button E off).
AQS (Air Quality System) function activation
The AQS function automatically activates internal air recirculation
when the outside air is polluted (e.g. in traffic queues and tunnels).
IMPORTANT With the AQS function active, after a preset time interval
of the internal air recirculation system functioning, the climate control
system enables the intake of outside air for approximately one minute
to change the air in the passenger compartment. This takes place
regardless of the pollution level of the outside air.IMPORTANT The engagement of the recirculation system makes it
possible to reach the required heating/cooling conditions faster. It is,
however, inadvisable to use it on rainy/cold days as it would
considerably increase the possibility of the windows misting up inside
(especially if the climate control system is off). When the outside
temperature is low, recirculation is forced off (air drawn in from the
outside) to prevent the windows from misting up.
In automatic operation, recirculation is managed automatically by the
system according to outside environmental conditions.
It is advisable not to use the air recirculation function when
the outside temperature is low to prevent the windows
from rapidly misting up.
CLIMATE CONTROL COMPRESSORPress button C to activate/deactivate the compressor (activation is
indicated by the lit LED on the button). The system remembers that the
compressor has been switched off, even after the engine has stopped.
When the compressor is switched off the system deactivates air
recirculation to prevent the windows from misting up and deactivates
the AQS function. In this case, although the system is capable of
maintaining the required temperature, the AUTO LED switches off.
The temperatures will instead flash for a few seconds if the required
temperature cannot be maintained.
To restore automatic control of compressor engagement, press button C
again or press the AUTO button.
59GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 64 of 292
❒if the outside temperature is higher than the set one, the system will
not be able to satisfy the request. The temperature values will then
flash on the display for a few seconds to indicate this;
❒the fan speed can be reset manually.
With the compressor on and the engine running, manual ventilation
cannot be lower than the minimum speed (only one LED lit).
IMPORTANT With the climate control compressor off, air cannot be
introduced to the passenger compartment with a temperature lower
than the outside temperature; moreover, under certain environmental
conditions, windows could mist rapidly since the air is not
dehumidified.RAPID WINDOW DEMISTING/
DEFROSTING (MAX-DEF function)Press the
button to activate (LED on button on) the windscreen and
side window demisting/defrosting function. The climate control system
carries out the following operations:
❒switches on the air conditioning compressor when climatic
conditions are suitable;
❒deactivates air recirculation;
❒sets maximum air temperature (HI) in both zones;
❒sets fan speed according to the engine coolant temperature;
❒directs air flow to windscreen and front side windows diffusers;
❒activates the heated rear window.
❒displays the fan speed (LED G lit).
IMPORTANT The MAX-DEF function remains on for about 3 minutes
from when the engine coolant reaches the appropriate temperature.When the function is activated, the LED on the AUTO button switches
off. With the function activated the only possible manual adjustments
are adjusting the fan speed and turning the heated rear window off.
When the B, C,
or AUTO buttons are pressed, the climate control
system will turn the MAX-DEF off.
HEATED REAR WINDOW
DEMISTING/DEFROSTINGPress the
button to activate (LED on button on) heated rear window
demisting/defrosting. This function switches off automatically after
about 20 minutes or when the engine is turned off. It is not switched on
automatically the next time the engine is started.
For versions/markets where provided, press the
button to activate
demisting/defrosting of exterior rear view mirrors and heated nozzles
(for versions/markets, where provided).
IMPORTANT Do not affix stickers to the inside of the heated rear
window over the heating filaments, to avoid damage that might cause
them to stop working properly.
Thermal comfort windscreen
(for versions/markets, where provided)
Some versions feature a thermal comfort windscreen which, with the
car exposed to the sun, reduces the temperature in the passenger
compartment relative to the outside temperature, thus ensuring greater
comfort.
Humidity sensor
(for versions/markets, where provided)
The humidity sensor helps to prevent the windows from misting up. For
full functionality, it is advisable to activate the AUTO function (LED N
on).
60GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
With compressor off:
Page 65 of 292
When the outside temperature is low, the system could automatically
turn the compressor on and turn air recirculation off for safer driving.TURNING THE CLIMATE CONTROL
SYSTEM OFFPress the
button (LED on button off).
With climate control off:
❒air recirculation is on, thus isolating the passenger compartment
from the outside;
❒the compressor is off;
❒the fan is off;
❒the heated rear window can be switched on or off;
❒the AQS (Air Quality System) function cannot be activated.
IMPORTANT The climate control system control unit stores the
temperatures set before the system was switched off and restores them
when any button of the system is pressed (except for button D).
To restart the climate control system in fully automatic mode press the
AUTO button.
START&STOPAutomatic Climate Control
The automatic climate control system manages the Start&Stop function
(engine off when speed is zero) to ensure adequate comfort inside
the car.
Specifically, the Start&Stop function is turned off when the weather is
particularly hot or cold to guarantee an adequate level of comfort
inside the passenger compartment; therefore, the engine will not be
stopped during these transient conditions, even if the speed is zero.When the Start&Stop function is active (engine off at zero car speed),
the climate control system will request the reactivation of the engine
if the inside temperature conditions rapidly deteriorate (or if the user
requests maximum cooling – LO – or quick demisting – MAX DEF).
With the Start&Stop function on (engine off at zero speed), air flow is
reduced to the minimum to maintain comfort conditions inside the
passenger compartment as long as possible when the system is in
AUTO mode (LED N on).
The climate control system control unit attempts to manage the
discomfort caused by the engine stopping (compressor and engine
coolant pump off) but operation of the climate control system can be
enhanced by turning the Start&Stop off by pressing the dedicated
button on the dashboard.
NoteIn particularly severe climate conditions it is recommended to
limit the use of the Start&Stop function to prevent the compressor from
continuously switching on and off, with consequent rapid misting of the
windows and accumulation of humidity with unpleasant smells in the
passenger compartment.
NoteWhen the Start&Stop function is on (engine off and vehicle
speed zero), the automatic recirculation management is turned off
always taking air in from outside, to reduce the probability of window
misting up (as the compressor is off).
ADDITIONAL HEATER(for versions/markets, where provided)
This allows the passenger compartment to be heated more quickly in
cold weather conditions. The additional heater turns off automatically
after the required comfort conditions are achieved.
61GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 66 of 292

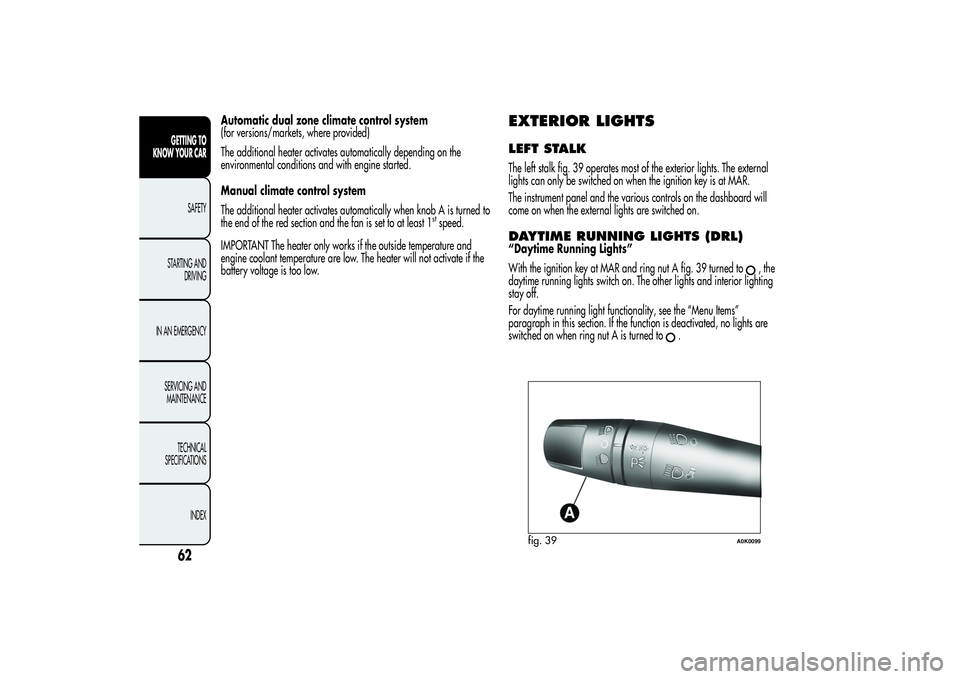

Automatic dual zone climate control system
(for versions/markets, where provided)
The additional heater activates automatically depending on the
environmental conditions and with engine started.
Manual climate control system
The additional heater activates automatically when knob A is turned to
the end of the red section and the fan is set to at least 1
stspeed.
IMPORTANT The heater only works if the outside temperature and
engine coolant temperature are low. The heater will not activate if the
battery voltage is too low.
EXTERIOR LIGHTSLEFT STALKThe left stalk fig. 39 operates most of the exterior lights. The external
lights can only be switched on when the ignition key is at MAR.
The instrument panel and the various controls on the dashboard will
come on when the external lights are switched on.DAYTIME RUNNING LIGHTS (DRL)“Daytime Running Lights”
With the ignition key at MAR and ring nut A fig. 39 turned to
,the
daytime running lights switch on. The other lights and interior lighting
stay off.
For daytime running light functionality, see the “Menu Items”
paragraph in this section. If the function is deactivated, no lights are
switched on when ring nut A is turned to
.
fig. 39
A0K0099
62GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 67 of 292
SIDE LIGHTS/DIPPED BEAM
HEADLIGHTSWith the ignition key turned to MAR, turn ring nut A fig. 39 to
.
The daytime running lights are switched off and the side lights and
dipped headlights are switched on. The warning light
switches
on on the instrument panel.
PARKING LIGHTSThese lights can only be switched on with ignition key at STOP or
removed, by moving ring nut A fig. 39 first to position
and then to
position
.
The warning light
switches on on the instrument panel.
When the direction indicator stalk is activated the side for the lights
(left or right) can be selected.
AUTOMATIC LIGHTING CONTROL
(AUTOLIGHT) (Dusk sensor)(for versions/markets, where provided)
This infrared LED sensor, combined with the rain sensor and located on
the windscreen, detects the variations in outside brightness depending
on the light sensitivity set with the Set-up Menu: the greater the
sensitivity, the less external light is required to activate the exterior
lights.Activation
The dusk sensor activates when ring nut A fig. 39 is turned to
.In
this way the side lights and dipped headlights are activated
automatically according to the external light level.
IMPORTANT The sensor is unable to detect the presence of fog.
Therefore under these circumstances, these lights must be turned on
manually.
When the lights are turned on by the sensor, the fog lights (for
versions/markets, where provided) and the rear fog lights may be
turned on.
When the lights are automatically switched off, the front and rear fog
lights (if activated) are also switched off. The next time the lights are
switched on automatically, the fog lights must be reactivated manually
(if required).
With the sensor active, it is possible to flash the headlights but the
main beam headlights cannot be switched on. If you need to turn these
lights on, turn ring nut A to position
and turn the dipped
headlights on.
When the lights have been activated automatically and are then
switched off by the sensor, the dipped beam headlights are switched
off first, followed by the side lights a few seconds later.
If the sensor is activated but is malfunctioning, the side lights and
dipped beam headlights are switched on irrespective of the outside
light level and the sensor failure is indicated on the instrument panel
display.
It is also possible to deactivate the sensor and switch on these lights if
necessary.
63GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 68 of 292

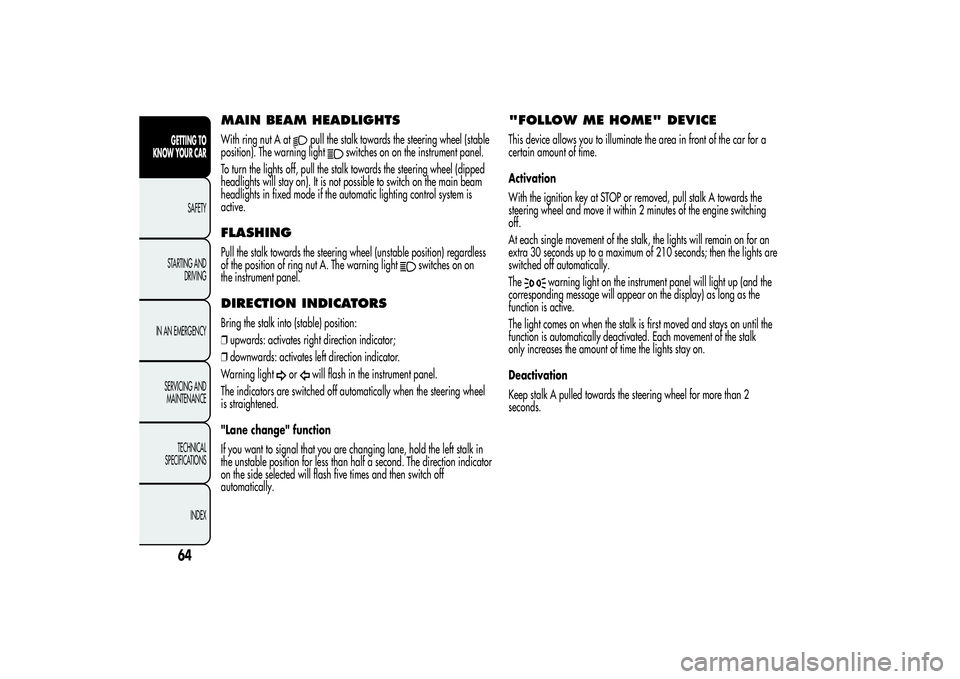

MAIN BEAM HEADLIGHTSWith ring nut A at
pull the stalk towards the steering wheel (stable
position). The warning light
switches on on the instrument panel.
To turn the lights off, pull the stalk towards the steering wheel (dipped
headlights will stay on). It is not possible to switch on the main beam
headlights in fixed mode if the automatic lighting control system is
active.
FLASHINGPull the stalk towards the steering wheel (unstable position) regardless
of the position of ring nut A. The warning light
switches on on
the instrument panel.
DIRECTION INDICATORSBring the stalk into (stable) position:
❒upwards: activates right direction indicator;
❒downwards: activates left direction indicator.
Warning light
or
will flash in the instrument panel.
The indicators are switched off automatically when the steering wheel
is straightened.
"Lane change" function
If you want to signal that you are changing lane, hold the left stalk in
the unstable position for less than half a second. The direction indicator
on the side selected will flash five times and then switch off
automatically.
"FOLLOW ME HOME" DEVICEThis device allows you to illuminate the area in front of the car for a
certain amount of time.
Activation
With the ignition key at STOP or removed, pull stalk A towards the
steering wheel and move it within 2 minutes of the engine switching
off.
At each single movement of the stalk, the lights will remain on for an
extra 30 seconds up to a maximum of 210 seconds; then the lights are
switched off automatically.
The
warning light on the instrument panel will light up (and the
corresponding message will appear on the display) as long as the
function is active.
The light comes on when the stalk is first moved and stays on until the
function is automatically deactivated. Each movement of the stalk
only increases the amount of time the lights stay on.
Deactivation
Keep stalk A pulled towards the steering wheel for more than 2
seconds.
64GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 69 of 292
EXTERNAL COURTESY LIGHTSThis function lights up the car and the space in front of it when the
doors are unlocked.
Activation
When the car is parked and the doors are unlocked by pressing thebutton on the remote control (or the luggage compartment is
unlocked by pressing
), the dipped headlights, side lights and
number plate lights are activated.
The lights remain lit for approximately 25 seconds unless the doors
and boot are locked again with the remote control or the doors or boot
are opened and reclosed. In these cases they go out after 5 seconds.
The exterior courtesy lights can be enabled/disabled using the Setup
Menu (see the paragraph “Menu Items” in this chapter).
WINDOW CLEANINGWINDSCREEN WASHER/WIPERThe right stalk controls windscreen wiper/washer and rear window
wiper/washer operation.
This operates only with the ignition key turned to MAR.
Ring nut A fig. 40 has the following positions:Owindscreen wipers off;
intermittent operation (low speed);
AUTO
rain sensor activation (for versions/markets, where provided)
(the windscreen wipers adapt the operating speed
automatically to suit the intensity of the rain)intermittent operation;continuous slow operation;continuous fast operation.
fig. 40
A0K0097
65GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 70 of 292
Move the stalk upwards (unstable position) to limit operation to the
time for which the stalk is held in this position. When released, the
stalk will return to its default position and the wiper will be
automatically stopped.
Do not use the windscreen wiper to remove layers of
snow or ice from the windscreen. In such conditions,
the windscreen wiper may be subjected to excessive
stress and the motor protection, which prevents operation for a
few seconds, may intervene. If operation is not restored, even
after turning the key and restarting the engine, contact Alfa
Romeo Authorized Services.Do not operate the windscreen wiper with the blades
lifted from the windscreen.
"Smart washing" function
Pull the lever towards the steering wheel (unstable position) to operate
the windscreen washer. Keep the stalk pulled for more than half a
second, with just one movement, to operate windscreen washer/wiper
jet at the same time.
The wiper stops working three strokes after the stalk is released.
A further stroke after approximately 6 seconds completes the cycle.
RAIN SENSOR(for versions/markets, where provided)
This is an infra-red LED sensor fitted on the car windscreen fig. 41.
It is able to detect the presence of rain and consequently manage
windscreen wiping in accordance with the amount of water on the
windscreen.
Activation
The sensor is activated when ring nut A fig. 40 is turned to “automatic”
position (“AUTO” control): the windscreen wiper stroke frequency is
thus adjusted in accordance with the amount of water on the
windscreen.
This frequency can vary from no stroke (no rain - windscreen dry) up
to the 2
ndconstant speed operation (heavy rain - windscreen wet).
The sensitivity of the rain sensor can be adjusted through the Set-up
menu (see paragraph “Menu Items” in this section).
fig. 41
A0K0111
66GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
