If the engine is stopped with the lever in “automatic” position, when it
is next started no wiping cycle will take place even if it is raining.
This prevents accidental activation of the rain sensor when the engine
is started (e.g. when the windscreen is being washed by hand or
the wipers are stuck to the windscreen when there is ice).
To restore automatic operation of the rain sensor, turn the ring nut on
the right stalk A fig. 40 from automatic position (AUTO) toOposition
and then turn A ring nut back to the AUTO position.
When the rain sensor is reactivated using any of the manoeuvres
described above, reactivation is indicated by a single stroke of the
windscreen wipers, regardless of the condition of the windscreen.
If the sensitivity is changed whilst the rain sensor is operating, a
windscreen wiper stroke is carried out to confirm the change.
In the event of malfunction of the rain sensor whilst it is active, the
windscreen wiper operates intermittently at a speed consistent with the
sensitivity setting of the rain sensor, regardless of whether there is
rain on the glass (sensor failure is indicated on the display).
The sensor continues to operate and it is possible to set the windscreen
wiper to continuous mode (1
stor 2
ndspeed). The failure indication
remains for as long as the sensor is active.
REAR WINDOW WASHER/WIPER(for versions/markets, where provided)
Activation
This operates only with the ignition key turned to MAR.
Turn ring nut B fig. 40 from positionOto position
to operate the
rear window wiper as follows:
❒in intermittent mode when the windscreen wiper is not operating;
❒in synchronous mode (at half the speed of the windscreen wiper)
when the windscreen wiper is operating;
❒in continuous mode with reverse gear engaged and the control
active.
With reverse gear engaged and windscreen wiper on, the rear
window wiper is activated in continuous mode. Pushing the stalk
towards the dashboard (unstable position) will activate the rear
window washer jet.
Keep the stalk pushed for more than half a second to activate the rear
window wiper as well. Releasing the stalk will activate the smart
washing function, as described for the windscreen wiper.
67GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 72 of 292

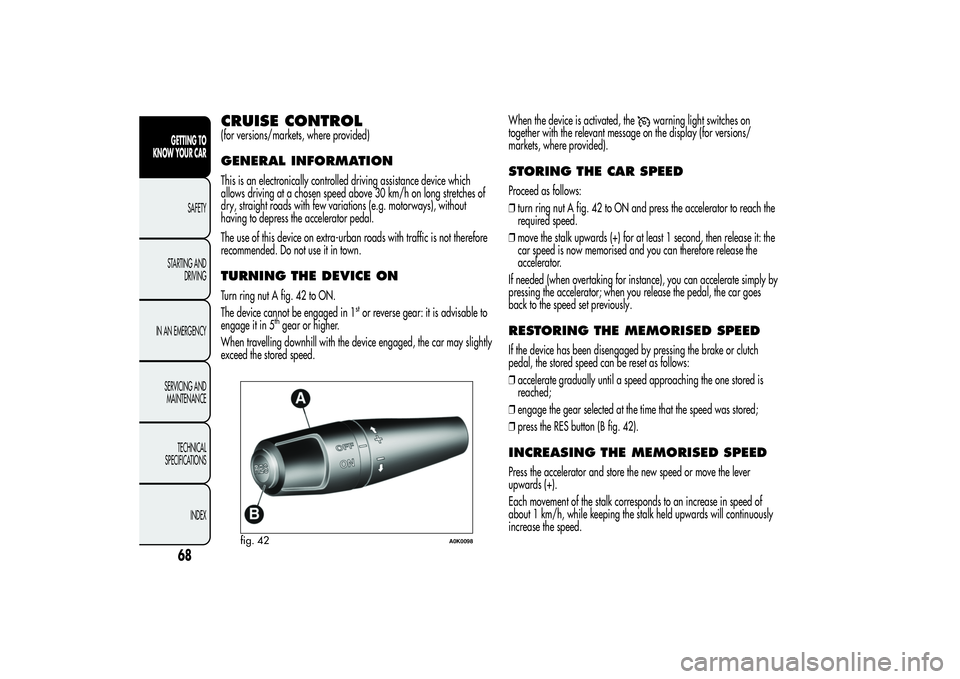

CRUISE CONTROL(for versions/markets, where provided)GENERAL INFORMATIONThis is an electronically controlled driving assistance device which
allows driving at a chosen speed above 30 km/h on long stretches of
dry, straight roads with few variations (e.g. motorways), without
having to depress the accelerator pedal.
The use of this device on extra-urban roads with traffic is not therefore
recommended. Do not use it in town.TURNING THE DEVICE ONTurn ring nut A fig. 42 to ON.
The device cannot be engaged in 1
stor reverse gear: it is advisable to
engage it in 5
thgear or higher.
When travelling downhill with the device engaged, the car may slightly
exceed the stored speed.When the device is activated, the
warning light switches on
together with the relevant message on the display (for versions/
markets, where provided).
STORING THE CAR SPEEDProceed as follows:
❒turn ring nut A fig. 42 to ON and press the accelerator to reach the
required speed.
❒move the stalk upwards (+) for at least 1 second, then release it: the
car speed is now memorised and you can therefore release the
accelerator.
If needed (when overtaking for instance), you can accelerate simply by
pressing the accelerator; when you release the pedal, the car goes
back to the speed set previously.RESTORING THE MEMORISED SPEEDIf the device has been disengaged by pressing the brake or clutch
pedal, the stored speed can be reset as follows:
❒accelerate gradually until a speed approaching the one stored is
reached;
❒engage the gear selected at the time that the speed was stored;
❒press the RES button (B fig. 42).INCREASING THE MEMORISED SPEEDPress the accelerator and store the new speed or move the lever
upwards (+).
Each movement of the stalk corresponds to an increase in speed of
about 1 km/h, while keeping the stalk held upwards will continuously
increase the speed.
fig. 42
A0K0098
68GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 73 of 292

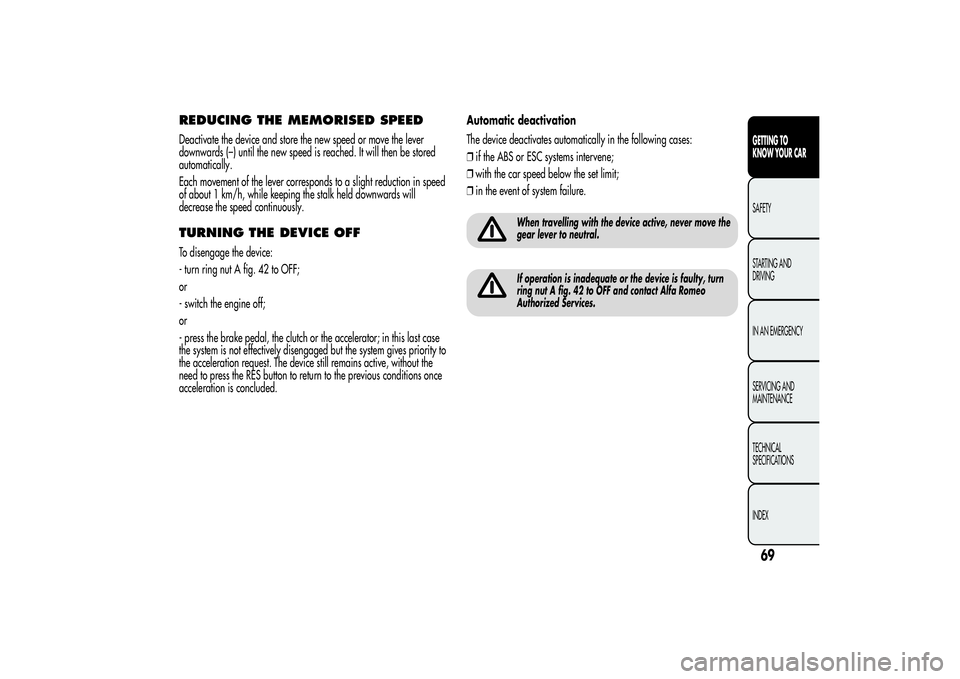

REDUCING THE MEMORISED SPEEDDeactivate the device and store the new speed or move the lever
downwards (–) until the new speed is reached. It will then be stored
automatically.
Each movement of the lever corresponds to a slight reduction in speed
of about 1 km/h, while keeping the stalk held downwards will
decrease the speed continuously.TURNING THE DEVICE OFFTo disengage the device:
- turn ring nut A fig. 42 to OFF;
or
- switch the engine off;
or
- press the brake pedal, the clutch or the accelerator; in this last case
the system is not effectively disengaged but the system gives priority to
the acceleration request. The device still remains active, without the
need to press the RES button to return to the previous conditions once
acceleration is concluded.Automatic deactivation
The device deactivates automatically in the following cases:
❒if the ABS or ESC systems intervene;
❒with the car speed below the set limit;
❒in the event of system failure.
When travelling with the device active, never move the
gear lever to neutral.If operation is inadequate or the device is faulty, turn
ring nut A fig. 42 to OFF and contact Alfa Romeo
Authorized Services.
69GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 74 of 292

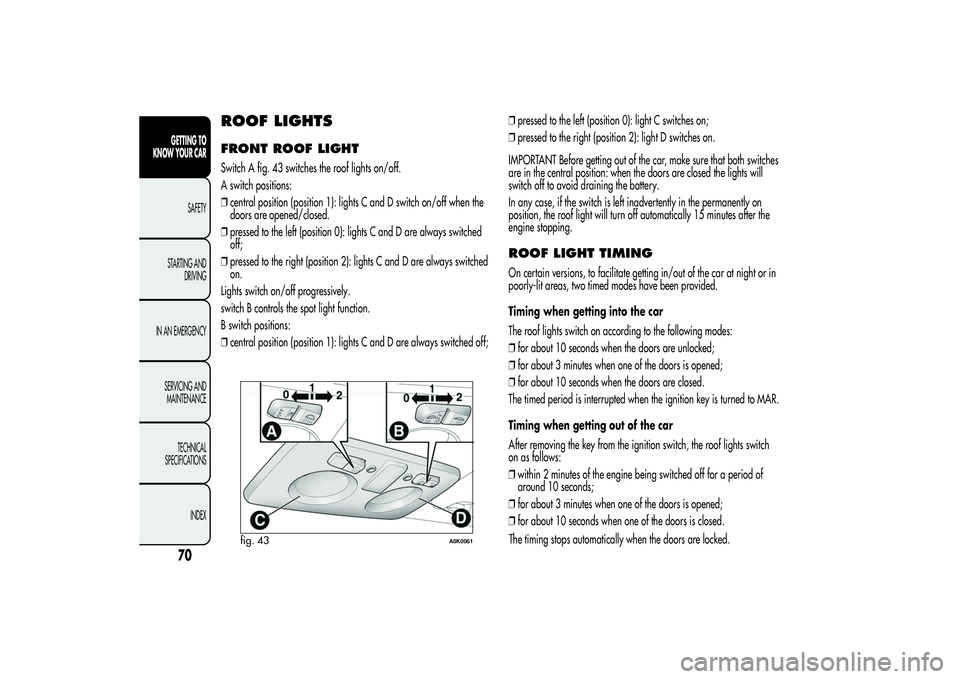

ROOF LIGHTSFRONT ROOF LIGHTSwitch A fig. 43 switches the roof lights on/off.
A switch positions:
❒central position (position 1): lights C and D switch on/off when the
doors are opened/closed.
❒pressed to the left (position 0): lights C and D are always switched
off;
❒pressed to the right (position 2): lights C and D are always switched
on.
Lights switch on/off progressively.
switch B controls the spot light function.
B switch positions:
❒central position (position 1): lights C and D are always switched off;❒pressed to the left (position 0): light C switches on;
❒pressed to the right (position 2): light D switches on.
IMPORTANT Before getting out of the car, make sure that both switches
are in the central position: when the doors are closed the lights will
switch off to avoid draining the battery.
In any case, if the switch is left inadvertently in the permanently on
position, the roof light will turn off automatically 15 minutes after the
engine stopping.
ROOF LIGHT TIMINGOn certain versions, to facilitate getting in/out of the car at night or in
poorly-lit areas, two timed modes have been provided.
Timing when getting into the car
The roof lights switch on according to the following modes:
❒for about 10 seconds when the doors are unlocked;
❒for about 3 minutes when one of the doors is opened;
❒for about 10 seconds when the doors are closed.
The timed period is interrupted when the ignition key is turned to MAR.
Timing when getting out of the car
After removing the key from the ignition switch, the roof lights switch
on as follows:
❒within 2 minutes of the engine being switched off for a period of
around 10 seconds;
❒for about 3 minutes when one of the doors is opened;
❒for about 10 seconds when one of the doors is closed.
fig. 43
A0K0061
70GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
The timing stops automatically when the doors are locked.
Page 75 of 292

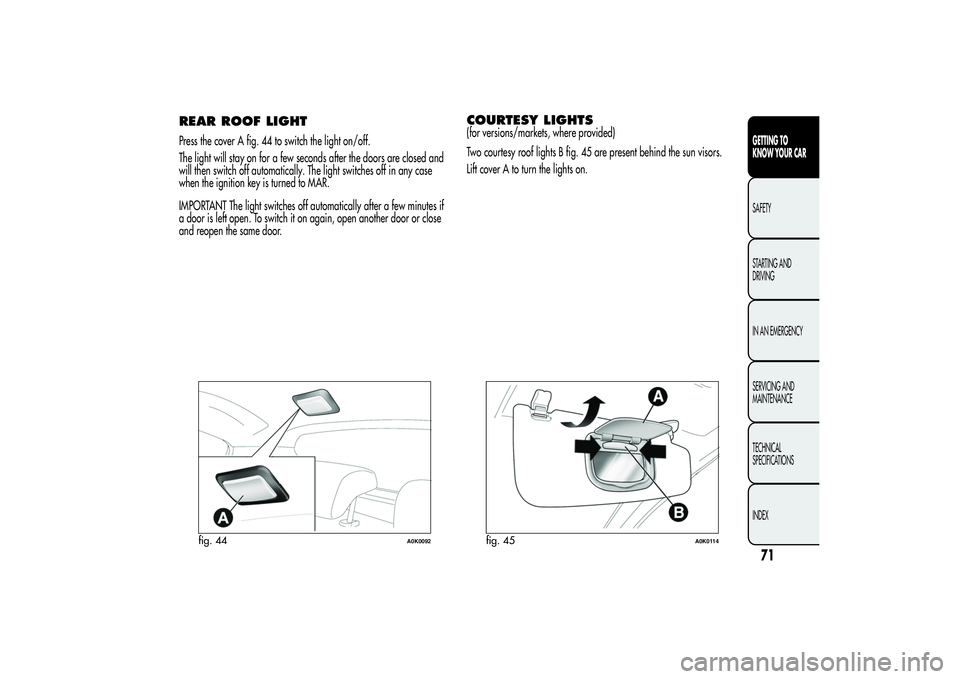

REAR ROOF LIGHTPress the cover A fig. 44 to switch the light on/off.
The light will stay on for a few seconds after the doors are closed and
will then switch off automatically. The light switches off in any case
when the ignition key is turned to MAR.
IMPORTANT The light switches off automatically after a few minutes if
a door is left open. To switch it on again, open another door or close
and reopen the same door.
COURTESY LIGHTS(for versions/markets, where provided)
Two courtesy roof lights B fig. 45 are present behind the sun visors.
Lift cover A to turn the lights on.
fig. 44
A0K0092
fig. 45
A0K0114
71GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 76 of 292

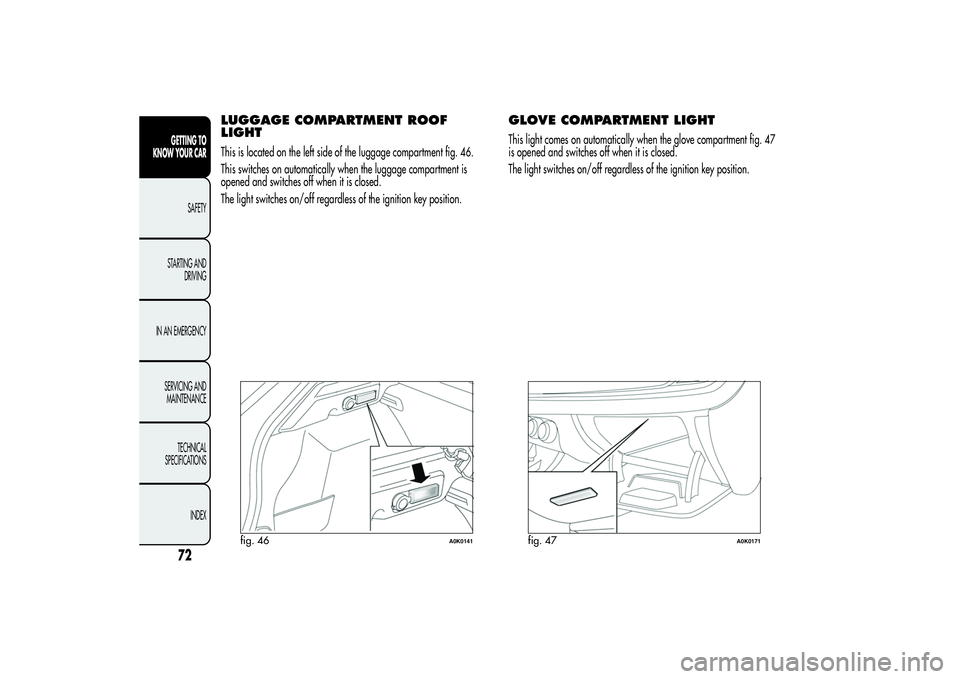

LUGGAGE COMPARTMENT ROOF
LIGHTThis is located on the left side of the luggage compartment fig. 46.
This switches on automatically when the luggage compartment is
opened and switches off when it is closed.
The light switches on/off regardless of the ignition key position.
GLOVE COMPARTMENT LIGHTThis light comes on automatically when the glove compartment fig. 47
is opened and switches off when it is closed.
The light switches on/off regardless of the ignition key position.
fig. 46
A0K0141
fig. 47
A0K0171
72GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 77 of 292

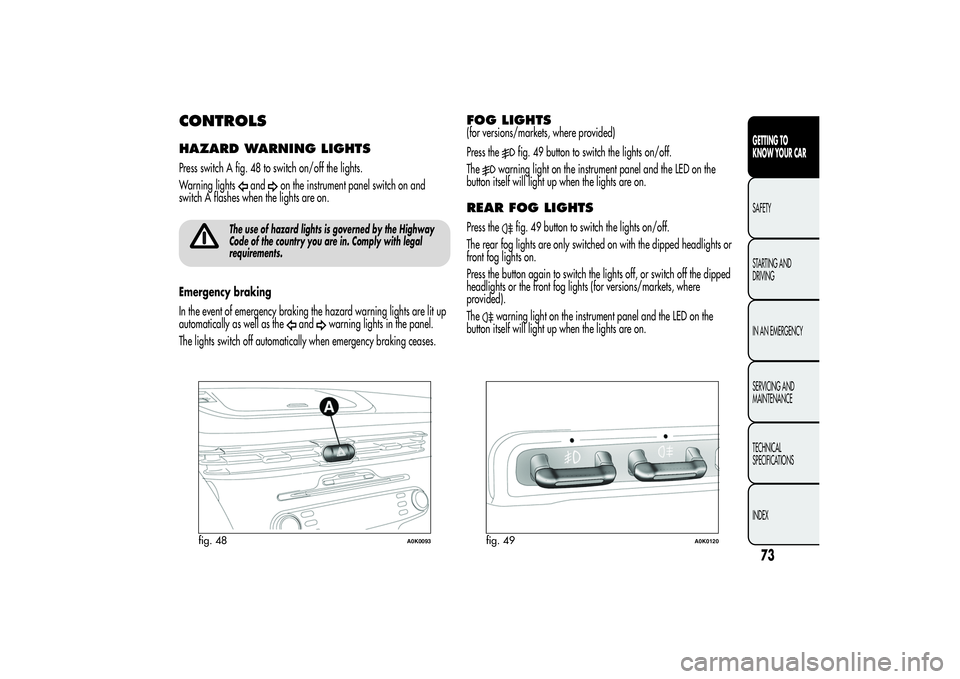

CONTROLSHAZARD WARNING LIGHTSPress switch A fig. 48 to switch on/off the lights.
Warning lights
and
on the instrument panel switch on and
switch A flashes when the lights are on.
The use of hazard lights is governed by the Highway
Code of the country you are in. Comply with legal
requirements.
Emergency braking
In the event of emergency braking the hazard warning lights are lit up
automatically as well as the
and
warning lights in the panel.
The lights switch off automatically when emergency braking ceases.
FOG LIGHTS(for versions/markets, where provided)
Press the
fig. 49 button to switch the lights on/off.
The
warning light on the instrument panel and the LED on the
button itself will light up when the lights are on.
REAR FOG LIGHTSPress the
fig. 49 button to switch the lights on/off.
The rear fog lights are only switched on with the dipped headlights or
front fog lights on.
Press the button again to switch the lights off, or switch off the dipped
headlights or the front fog lights (for versions/markets, where
provided).
The
warning light on the instrument panel and the LED on the
button itself will light up when the lights are on.
fig. 48
A0K0093
fig. 49
A0K0120
73GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 78 of 292
AFS ADAPTIVE LIGHTS(Adaptive Frontlight System)
(for versions/markets, where provided)
This is a system combined with Xenon headlamps which directs the
main light beam and adapts it to the driving conditions round
bends/when cornering, continuously and automatically.
The system directs the light beam to light up the road in the best way,
taking into account the speed of the vehicle, the bend/corner angle
and the speed of steering.
The adaptive lights are automatically activated when the car is started.
In these circumstances, LED A fig. 50 stays off.
When the button is pressed the adaptive lights (if on) are deactivated
and LED A switches on constantly.
Press the button again to turn the adaptive lights back on (LED off).
CENTRAL LOCKINGPress the
fig. 51 button to lock all the doors at the same time (the
LED on the button will light up when the doors are locked).
Locking takes place irrespective of the position of the ignition key.
fig. 50
A0K0123
fig. 51
A0K0145
74GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 79 of 292
FUEL CUT-OFF SYSTEMThis intervenes in the case of an impact causing:
❒the interruption of the fuel supply with the engine consequently
cutting out;
❒the automatic unlocking of the doors;
❒the interior lights being switched on.
The intervention of the system is indicated by a message shown on the
display.
Carefully check the car for fuel leaks, for instance in the engine
compartment, under the car or near the tank area.
After a collision, turn the ignition key to STOP to prevent the battery
from running down.To restore the correct operation of the car, proceed as follows:
❒turn the ignition key to the MAR position;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒turn the ignition key to the STOP position.
If, after a collision, you smell fuel or notice leaks from
the fuel system, do not reactivate the system to avoid
fire risk.
75GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 80 of 292

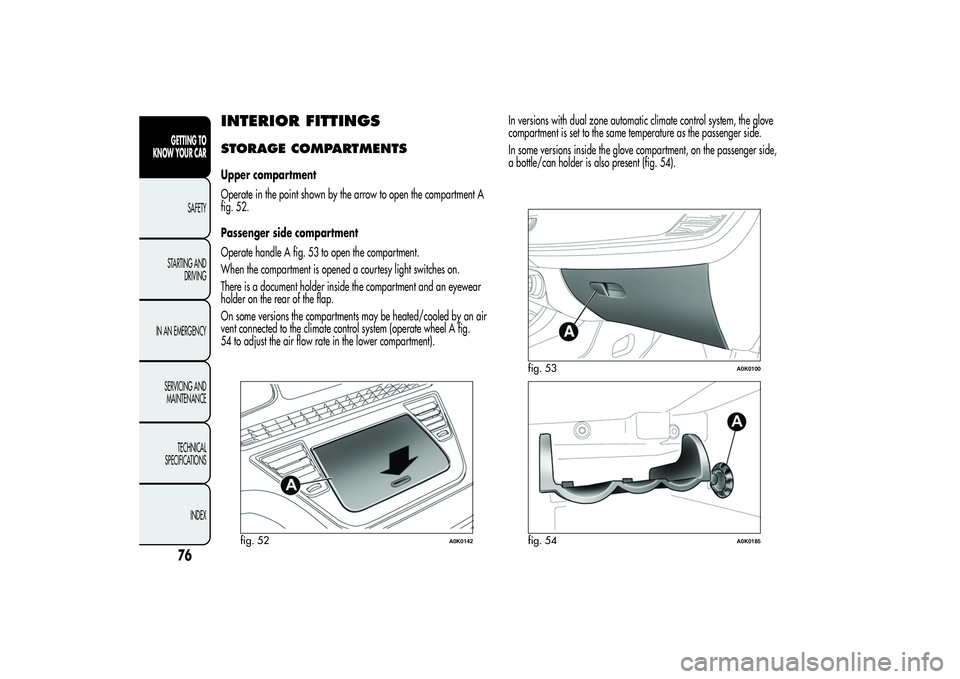

INTERIOR FITTINGSSTORAGE COMPARTMENTSUpper compartment
Operate in the point shown by the arrow to open the compartment A
fig. 52.
Passenger side compartment
Operate handle A fig. 53 to open the compartment.
When the compartment is opened a courtesy light switches on.
There is a document holder inside the compartment and an eyewear
holder on the rear of the flap.
On some versions the compartments may be heated/cooled by an air
vent connected to the climate control system (operate wheel A fig.
54 to adjust the air flow rate in the lower compartment).In versions with dual zone automatic climate control system, the glove
compartment is set to the same temperature as the passenger side.
In some versions inside the glove compartment, on the passenger side,
a bottle/can holder is also present (fig. 54).
fig. 52
A0K0142
fig. 53
A0K0100
fig. 54
A0K0185
76GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
