Page 14 of 292
❒use of the car for short drives, in which the engine does not have
time to reach its regular operating temperature;
❒repeated interruption of the regeneration process, signalled by the
DPF warning light coming on.
If the warning light switches on, the deteriorated
engine oil must be changed as soon as possible, and
never more than 500 km from the first time that the
warning light switches on. Failure to observe the above may
result in severe damage to the engine and invalidate the
warranty. Remember that the operation of this warning light is
not related to the amount of oil in the engine. Therefore, never
top up with oil when the warning light starts flashing.Engine coolant overheating
(red)
Turning the key to the MAR position illuminates the warning light, but it
should switch off after a few seconds.
The warning light turns on when the engine is overheated.
The display will show the dedicated message.
If the warning light comes on when driving, proceed as follows:
❒normal driving conditions: stop the car, switch off the engine and
check that the water level in the reservoir is not below the MIN
mark. In this case, wait for a few minutes for the engine to cool
down, then slowly and carefully open the cap, top up with coolant
and check that the level is between the MIN and MAX reference
on the reservoir itself. Also check visually for any fluid leaks. If the
warning light comes on again at the next engine start-up, contact
Alfa Romeo Authorized Services.❒If the car is used under demanding conditions (e.g. towing trailers
uphill or fully loaded): slow down and, if the light stays on, stop
the car. Stand for 2 or 3 minutes with the engine running and
slightly accelerated to promote a better circulation of coolant. Then
stop the engine. Check the correct liquid level as described above.
IMPORTANT Under severe use of the car, it is advisable to keep the
engine on and slightly accelerated for a few minutes before switching it
off.
Doors not closed correctly
(red)(for versions/markets, where provided)
The warning light (or symbol on the display) lights up when one or
more doors or the tailgate are not closed correctly. An acoustic signal
is activated with the doors open and the car moving.
On some versions the warning light (or symbol on the display) also
lights up when the bonnet is not closed correctly.EOBD/injection system failure
(amber)
Under normal conditions, when the ignition key is turned to MAR-ON,
the warning light switches on, but should switch off as soon as the
engine is started.
10GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 115 of 292
OPERATION WITH TRAILERParking sensor operation is deactivated automatically when the trailer
electric cable plug is fitted into the car tow hook socket. The sensors
are automatically enabled again when the trailer's cable plug is
removed.
The sensor must be free of mud, dirt, snow or ice in order
for the system to work. Be careful not to scratch or damage
the sensors while cleaning them. Avoid using dry, rough
or hard cloths. The sensors should be washed using clean water with
the addition of car shampoo if necessary. When using special washing
equipment such as high pressure jets or steam cleaning, clean the
sensors very quickly keeping the jet more than 10 cm away.When repainting the bumpers or touching up paint in
the sensor area, contact Alfa Romeo Authorized
Services only. Incorrect paint application could affect
the operation of the parking sensors.Parking manoeuvres however are always the driver’s
responsibility. When carrying out such manoeuvres,
always ensure that the manoeuvring area is free of
people (particularly children) and animals. The parking sensor is
designed to assist drivers, who must still never allow their
attention to lapse during potentially dangerous manoeuvres even
if performed at low speed.
GENERAL WARNINGSDuring parking manoeuvres, pay the utmost attention to any obstacles
that could be located above or below the sensors.
Objects located near the rear of the car are not detected under certain
circumstances and could therefore cause damage to the car or be
damaged.
The following conditions may influence the performance of the parking
sensor system:
❒reduced sensor sensitivity and a reduction in the parking assistance
system performance could be due to the presence on the surface of
the sensor of: ice, snow, mud, thick paint
❒the sensors may detect a non-existent obstacle (echo interference)
due to mechanical interference, for example when washing the
car, in rain (strong wind), hail;
❒The signals sent by the sensors can also be altered by the presence
of ultrasonic systems (e.g. pneumatic brake systems or pneumatic
drills) near the vehicle.
❒sensor performance can also be influenced by the position of the
sensors. For example by a change in the ride setting (caused by
the wear of the shock absorbers, suspension), overloading the
vehicle and carrying out specific tuning operations that require the
vehicle to be lowered;
❒The detection of obstacles at the top part of the car may not be
guaranteed because the system detects obstacles that could cause an
impact with the car in the bottom part.
111GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 141 of 292

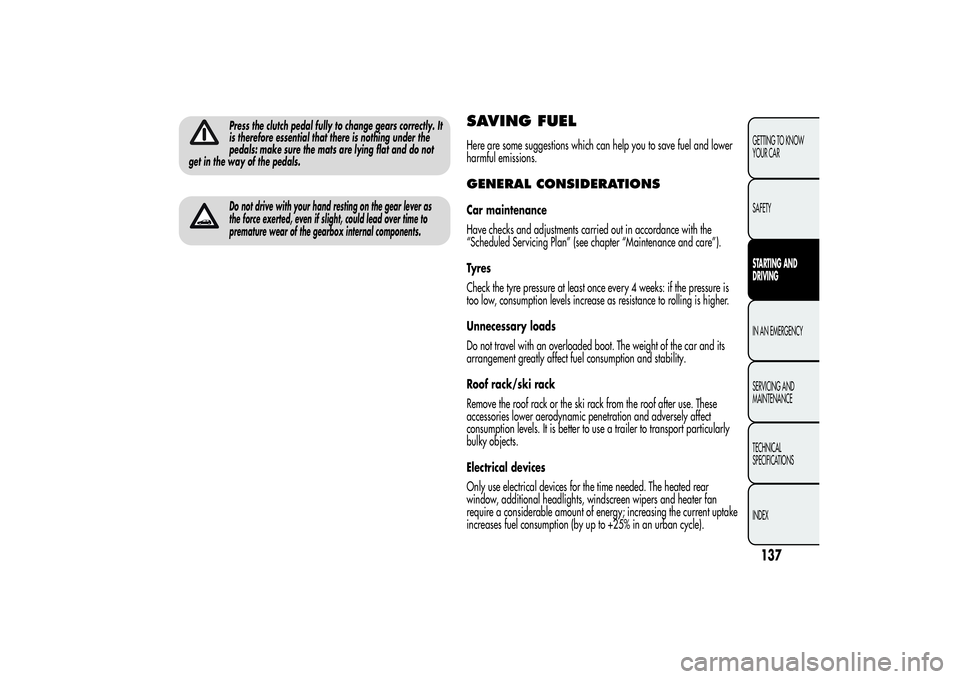

Press the clutch pedal fully to change gears correctly. It
is therefore essential that there is nothing under the
pedals: make sure the mats are lying flat and do not
get in the way of the pedals.Do not drive with your hand resting on the gear lever as
the force exerted, even if slight, could lead over time to
premature wear of the gearbox internal components.
SAVING FUELHere are some suggestions which can help you to save fuel and lower
harmful emissions.GENERAL CONSIDERATIONSCar maintenance
Have checks and adjustments carried out in accordance with the
“Scheduled Servicing Plan” (see chapter “Maintenance and care”).
Ty r e s
Check the tyre pressure at least once every 4 weeks: if the pressure is
too low, consumption levels increase as resistance to rolling is higher.
Unnecessary loads
Do not travel with an overloaded boot. The weight of the car and its
arrangement greatly affect fuel consumption and stability.
Roof rack/ski rack
Remove the roof rack or the ski rack from the roof after use. These
accessories lower aerodynamic penetration and adversely affect
consumption levels. It is better to use a trailer to transport particularly
bulky objects.
Electrical devices
Only use electrical devices for the time needed. The heated rear
window, additional headlights, windscreen wipers and heater fan
require a considerable amount of energy; increasing the current uptake
increases fuel consumption (by up to +25% in an urban cycle).
137GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 143 of 292

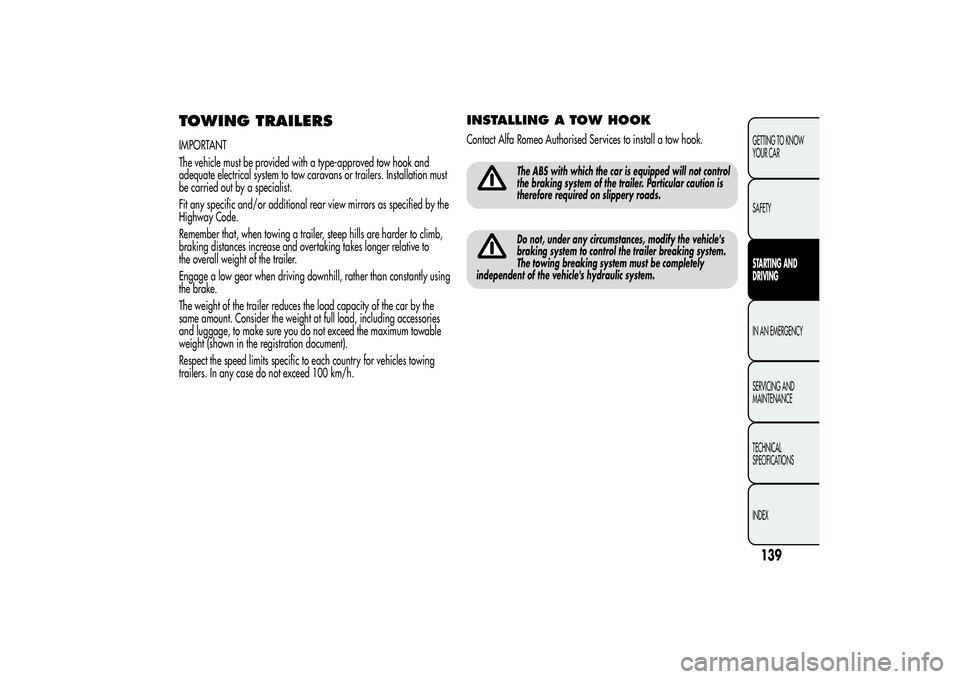

TOWING TRAILERSIMPORTANT
The vehicle must be provided with a type-approved tow hook and
adequate electrical system to tow caravans or trailers. Installation must
be carried out by a specialist.
Fit any specific and/or additional rear view mirrors as specified by the
Highway Code.
Remember that, when towing a trailer, steep hills are harder to climb,
braking distances increase and overtaking takes longer relative to
the overall weight of the trailer.
Engage a low gear when driving downhill, rather than constantly using
the brake.
The weight of the trailer reduces the load capacity of the car by the
same amount. Consider the weight at full load, including accessories
and luggage, to make sure you do not exceed the maximum towable
weight (shown in the registration document).
Respect the speed limits specific to each country for vehicles towing
trailers. In any case do not exceed 100 km/h.
INSTALLING A TOW HOOKContact Alfa Romeo Authorised Services to install a tow hook.
The ABS with which the car is equipped will not control
the braking system of the trailer. Particular caution is
therefore required on slippery roads.Do not, under any circumstances, modify the vehicle's
braking system to control the trailer breaking system.
The towing breaking system must be completely
independent of the vehicle's hydraulic system.
139GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 188 of 292
PERIODIC CHECKSEvery 1,000 km or before long journeys, check and restore the
following if necessary:
❒engine coolant, brake fluid and windscreen washer fluid level;
❒tyre inflation pressure and condition;
❒operation of lighting system (headlamps, direction indicators,
hazard warning lights, etc.);
❒operation of window washer/wiper system and positioning/wear of
windscreen/rear window wiper blades
Check and top up, if required, the engine oil level every 3,000 km.
HEAVY-DUTY USE OF THE CARIf you use the car mainly under one of the following conditions:
❒towing a trailer or caravan;
❒dusty roads;
❒short, repeated journeys (less than 7-8 km) at sub-zero outside
temperatures;
❒engine often idling or driving long distances at low speeds or long
periods of idleness;
the following checks must be performed more frequently than indicated
in the Scheduled Servicing Plan:
❒check front disc brake pad conditions and wear;
❒check cleanliness of bonnet and boot locks, cleanliness and
lubrication of linkage;
❒visually inspect conditions of: engine, gearbox, transmission, pipes
and hoses (exhaust - fuel system - brakes) and rubber elements
(boots - sleeves - bushes - etc.);
❒check battery charge and battery fluid level (electrolyte);
❒visually inspect condition of the accessory drive belts;
❒check and, if necessary, change engine oil and replace oil filter;
❒check and, if necessary, replace pollen filter;
❒check and, if necessary, replace air cleaner.
184GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 206 of 292

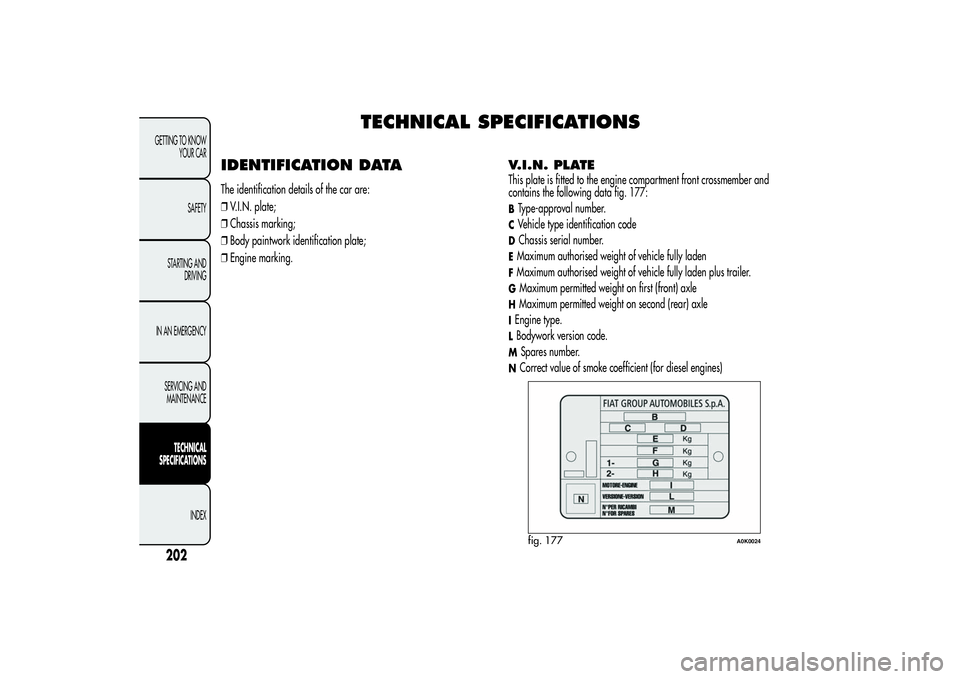

TECHNICAL SPECIFICATIONS
IDENTIFICATION DATAThe identification details of the car are:
❒V.I.N. plate;
❒Chassis marking;
❒Body paintwork identification plate;
❒Engine marking.
V.I.N. PLATEThis plate is fitted to the engine compartment front crossmember and
contains the following data fig. 177:BType-approval number.CVehicle type identification codeDChassis serial number.EMaximum authorised weight of vehicle fully ladenFMaximum authorised weight of vehicle fully laden plus trailer.GMaximum permitted weight on first (front) axleHMaximum permitted weight on second (rear) axleIEngine type.LBodywork version code.M
Spares number.
NCorrect value of smoke coefficient (for diesel engines)fig. 177
A0K0024
202GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 226 of 292

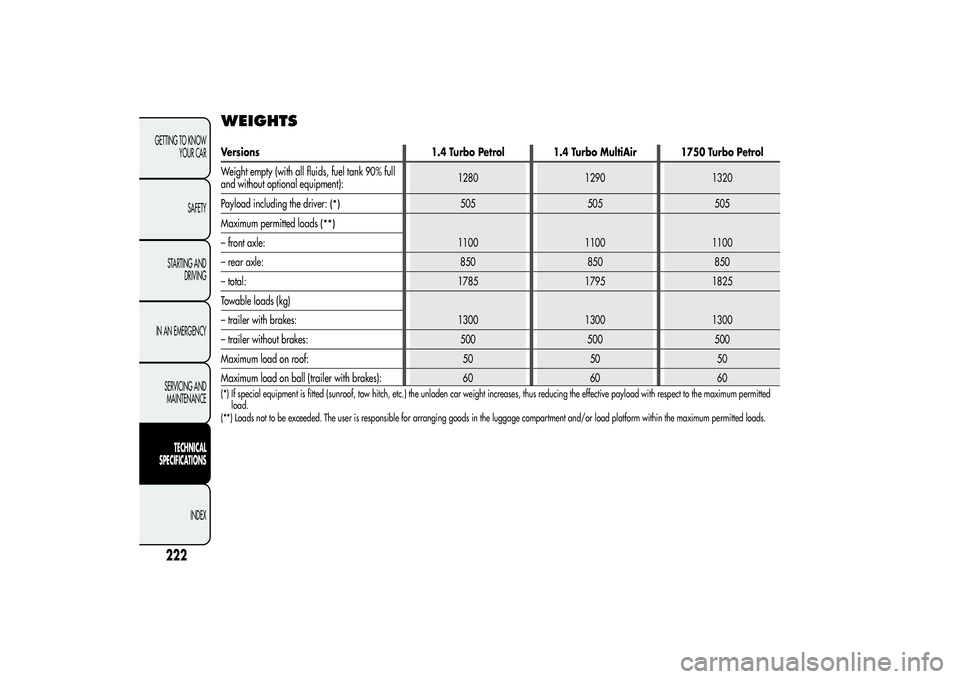

WEIGHTSVersions 1.4 Turbo Petrol 1.4 Turbo MultiAir 1750 Turbo Petrol
Weight empty (with all fluids, fuel tank 90% full
and without optional equipment):1280 1290 1320
Payload including the driver:
(*)
505 505 505
Maximum permitted loads
(**)
1100 1100 1100 – front axle:
– rear axle: 850 850 850
– total: 1785 1795 1825
Towable loads (kg)
1300 1300 1300 – trailer with brakes:
– trailer without brakes: 500 500 500
Maximum load on roof: 50 50 50
Maximum load on ball (trailer with brakes): 60 60 60
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the effective payload with respect to the maximum permitted
load.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
222GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 227 of 292

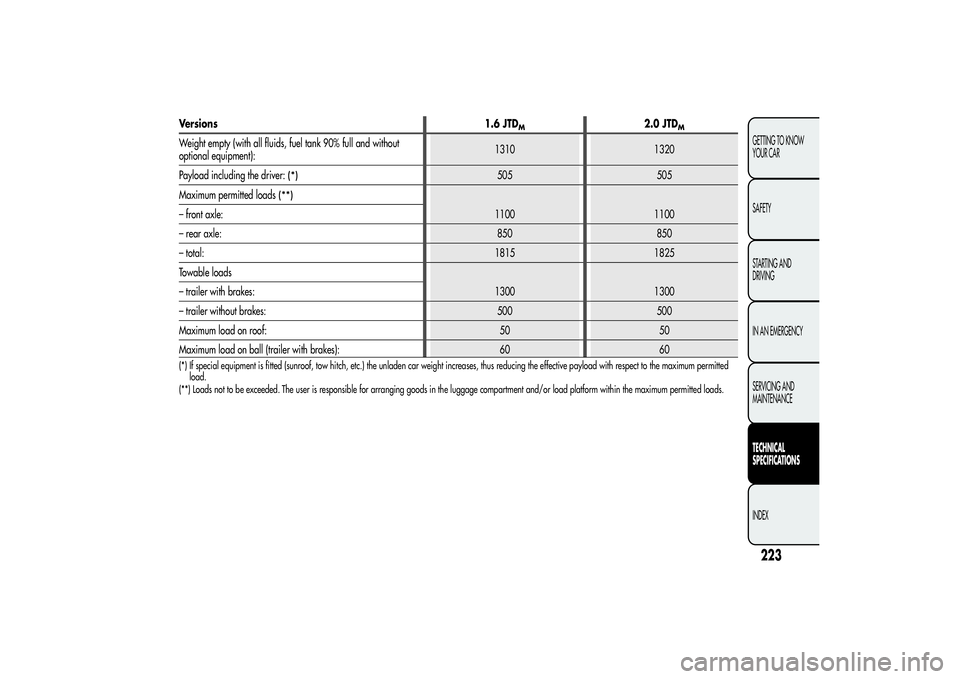

Versions 1.6 JTD
M
2.0 JTD
M
Weight empty (with all fluids, fuel tank 90% full and without
optional equipment):1310 1320
Payload including the driver:
(*)
505 505
Maximum permitted loads
(**)
1100 1100 – front axle:
– rear axle: 850 850
– total:1815 1825
Towable loads
1300 1300 – trailer with brakes:
– trailer without brakes: 500 500
Maximum load on roof: 50 50
Maximum load on ball (trailer with brakes): 60 60
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the effective payload with respect to the maximum permitted
load.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
223GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
Page 289 of 292
Rear window washer jets ...................... 197
Rear window washer
– rear window washer fluid level ......... 191
Rear window washer/wiper .................. 67
Rear Window Wiper
– blade replacement ........................... 197
– blades ............................................ 195
Reconfigurable multifunction display ...... 19
Refuelling ............................................ 224
Refuelling the car ................................. 112
Rev counter .......................................... 6
Rim Protector ....................................... 217
Roof lights ........................................... 70
– Courtesy lights ................................ 71
– Front roof light ................................ 70
– Glove compartment light .................. 72
– Luggage compartment roof light ....... 72
– Rear roof light ................................. 71
Roof rack/ski rack ................................ 94Safe Lock device ................................. 36
Saving fuel .......................................... 137
SBR system (Seat Belt Reminder) ............ 116
Scheduled Servicing Plan ...................... 178
Seat belts............................................. 115
– Use ................................................ 115Seats ................................................... 41
– Front seats ...................................... 41
Setup menu ......................................... 21
Side airbags (Side Bags - Window
Bags) ................................................ 131
Side bags (front side airbags) ............... 131
Side lights/brake lights ......................... 159
Side lights/daytime running lights
(DRL)
– bulb replacement............................. 157
Side lights/dipped beam headlights ...... 63
Ski compartment .................................. 78
“Smart Bag” system
(Multistage front airbags) ................... 129Snow chains....................................... 140
Snow tyres ........................................... 140
Speedometer (speed indicator) .............. 6
Starting the engine ............................... 134
Starting the engine ............................... 142
– Bump starting.................................. 143
– Jump starting .................................. 142
Start&Stop system ................................ 103
Steering lock ........................................ 40
Steering system .................................... 214
Steering wheel ..................................... 45
Storage compartments .......................... 76Storing the car ..................................... 141
Sun visors ............................................ 80
Suspension .......................................... 213
Symbols .............................................. 32
Technical specifications ....................... 202
The keys .............................................. 33
– Code Card...................................... 33
– Key without remote control ............... 34
– Key with remote control.................... 34
Third brake lights
– bulb replacement............................. 161
Towing the car ..................................... 175
– Attaching the tow hook .................... 175
Towing trailers ..................................... 139
– Installing a tow hook........................ 139
Transmission ........................................ 211
TRIP button .......................................... 31
Trip Computer ...................................... 29
Ty r e s
– Fix&Go Automatic (kit) .................... 149
– inflation pressure ............................. 219
– reading the tyre code....................... 215
– Rim Protector tyres ........................... 217
– snow tyres ...................................... 218
– tyres provided ................................. 218
285GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX
