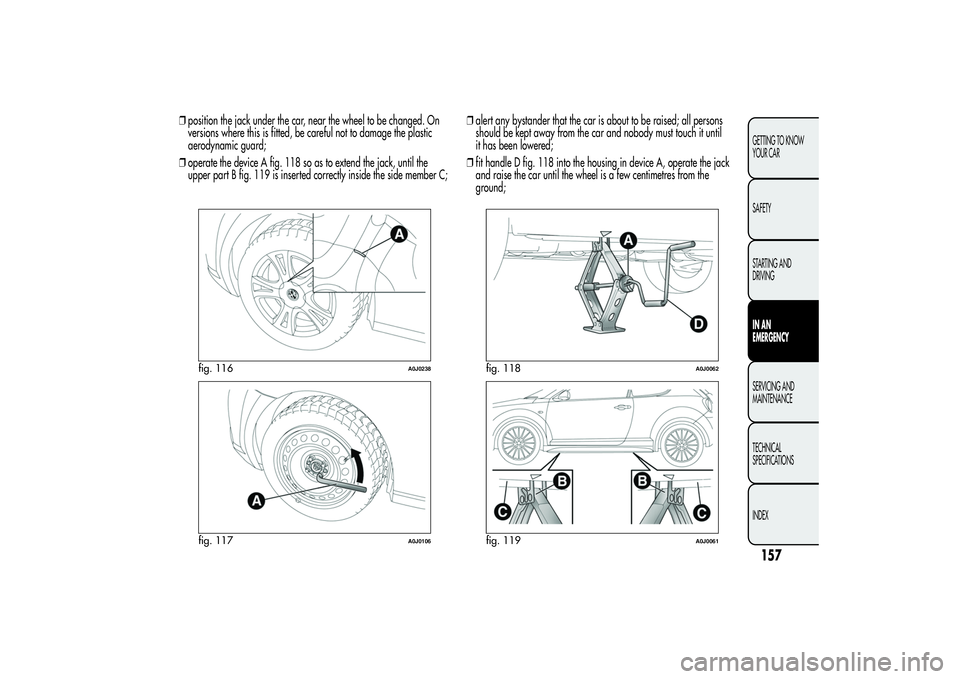

❒position the jack under the car, near the wheel to be changed. On
versions where this is fitted, be careful not to damage the plastic
aerodynamic guard;
❒operate the device A fig. 118 so as to extend the jack, until the
upper part B fig. 119 is inserted correctly inside the side member C;❒alert any bystander that the car is about to be raised; all persons
should be kept away from the car and nobody must touch it until
it has been lowered;
❒fit handle D fig. 118 into the housing in device A, operate the jack
and raise the car until the wheel is a few centimetres from the
ground;
fig. 116
A0J0238
fig. 117
A0J0106
fig. 118
A0J0062
fig. 119
A0J0061
157GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

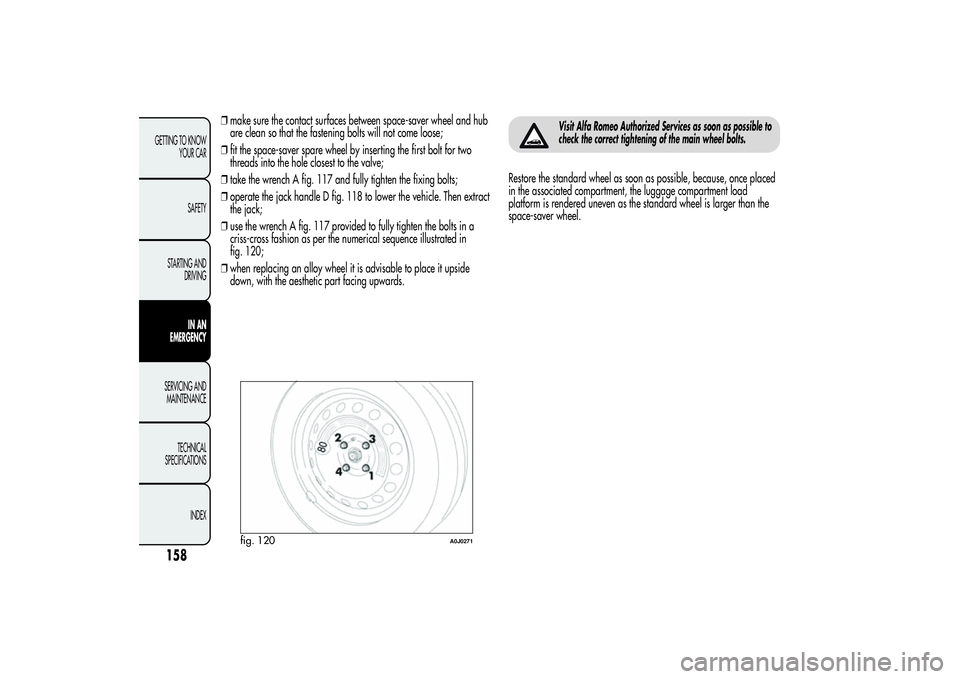

❒make sure the contact surfaces between space-saver wheel and hub
are clean so that the fastening bolts will not come loose;
❒fit the space-saver spare wheel by inserting the first bolt for two
threads into the hole closest to the valve;
❒take the wrench A fig. 117 and fully tighten the fixing bolts;
❒operate the jack handle D fig. 118 to lower the vehicle. Then extract
the jack;
❒use the wrench A fig. 117 provided to fully tighten the bolts in a
criss-cross fashion as per the numerical sequence illustrated in
fig. 120;
❒when replacing an alloy wheel it is advisable to place it upside
down, with the aesthetic part facing upwards.
Visit Alfa Romeo Authorized Services as soon as possible to
check the correct tightening of the main wheel bolts.
Restore the standard wheel as soon as possible, because, once placed
in the associated compartment, the luggage compartment load
platform is rendered uneven as the standard wheel is larger than the
space-saver wheel.
fig. 120
A0J0271
158GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

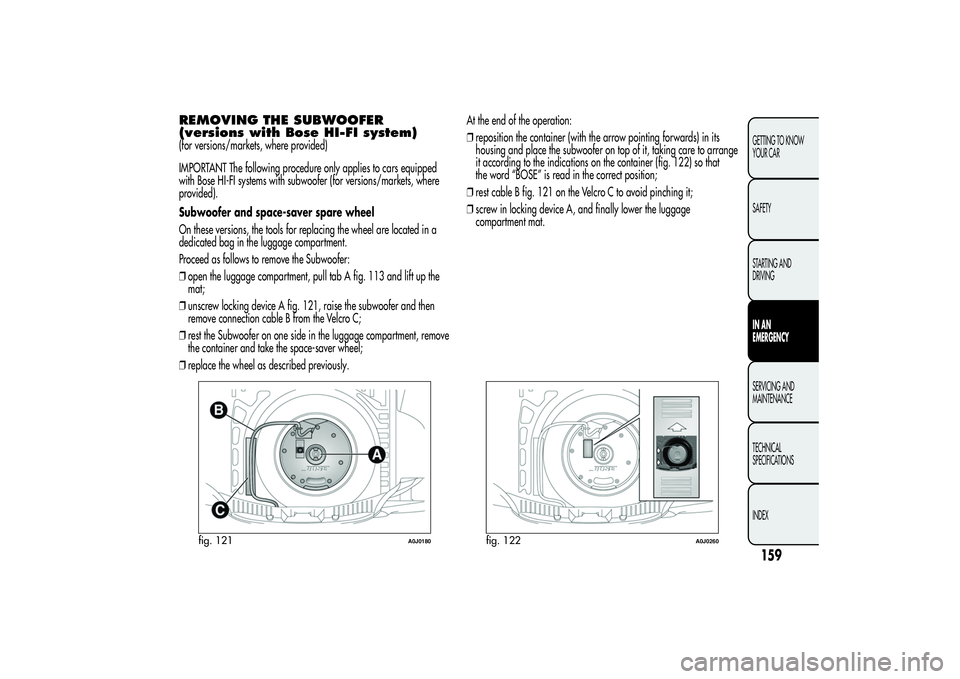

REMOVING THE SUBWOOFER
(versions with Bose HI-FI system)(for versions/markets, where provided)
IMPORTANT The following procedure only applies to cars equipped
with Bose HI-FI systems with subwoofer (for versions/markets, where
provided).
Subwoofer and space-saver spare wheel
On these versions, the tools for replacing the wheel are located in a
dedicated bag in the luggage compartment.
Proceed as follows to remove the Subwoofer:
❒open the luggage compartment, pull tab A fig. 113 and lift up the
mat;
❒unscrew locking device A fig. 121, raise the subwoofer and then
remove connection cable B from the Velcro C;
❒rest the Subwoofer on one side in the luggage compartment, remove
the container and take the space-saver wheel;
❒replace the wheel as described previously.At the end of the operation:
❒reposition the container (with the arrow pointing forwards) in its
housing and place the subwoofer on top of it, taking care to arrange
it according to the indications on the container (fig. 122) so that
the word “BOSE” is read in the correct position;
❒rest cable B fig. 121 on the Velcro C to avoid pinching it;
❒screw in locking device A, and finally lower the luggage
compartment mat.
fig. 121
A0J0180
fig. 122
A0J0260
159GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

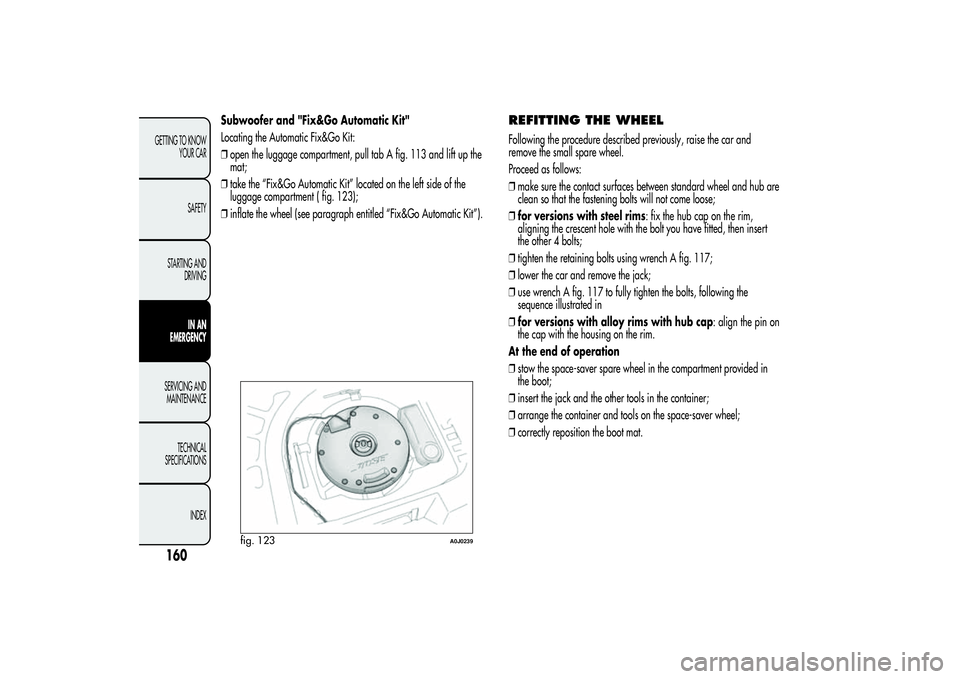

Subwoofer and "Fix&Go Automatic Kit"
Locating the Automatic Fix&Go Kit:
❒open the luggage compartment, pull tab A fig. 113 and lift up the
mat;
❒take the “Fix&Go Automatic Kit” located on the left side of the
luggage compartment ( fig. 123);
❒inflate the wheel (see paragraph entitled “Fix&Go Automatic Kit”).
REFITTING THE WHEELFollowing the procedure described previously, raise the car and
remove the small spare wheel.
Proceed as follows:
❒make sure the contact surfaces between standard wheel and hub are
clean so that the fastening bolts will not come loose;
❒for versions with steel rims: fix the hub cap on the rim,
aligning the crescent hole with the bolt you have fitted, then insert
the other 4 bolts;
❒tighten the retaining bolts using wrench A fig. 117;
❒lower the car and remove the jack;
❒use wrench A fig. 117 to fully tighten the bolts, following the
sequence illustrated in
❒for versions with alloy rims with hub cap: align the pin on
the cap with the housing on the rim.
At the end of operation
❒stow the space-saver spare wheel in the compartment provided in
the boot;
❒insert the jack and the other tools in the container;
❒arrange the container and tools on the space-saver wheel;
❒correctly reposition the boot mat.
fig. 123
A0J0239
160GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

"Fix&Go Automatic" kitThis is located in the luggage compartment.
The kit container also contains a screwdriver and the tow hook.
The kit also contains:
❒a bottle fig. 124 containing sealer and fitted with: filling tube B and
adhesive label C with the wording “max. 80 km/h” to be placed in
a clearly visible position (e.g. on the dashboard) after repairing
the tyre;
❒a compressor D complete with pressure gauge and connectors;
❒an information leaflet fig. 125, providing instructions for using the
kit correctly. This booklet should be given to the persons charged
with handling the tyre treated with this kit;
❒a pair of gloves located in the side compartment of the compressor;
❒adapters for inflating different elements.
IMPORTANT The sealing liquid is suitable for use at temperatures in the
range from –20°C to +50°C. The sealant has an expiry date.
Give the leaflet to the technicians who will be handling
the tyre that was treated using the "Fix&Go Automatic"
kit.In the event of a puncture caused by foreign bodies, the kit
may be used to repair tyres showing damage on the track
or shoulder up to max 4 mm diameter.Holes and damage on the tyre side walls cannot be
repaired. Do not use the tyre quick repair kit if the tyre
is damaged as a result of driving with it deflated.
fig. 124
A0J0112
fig. 125
A0J0113
161GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Repairs are not possible in the case of damage to the
wheel rim (bad groove distortion causing air loss).
Do not remove foreign bodies (screws or nails) from
the tyre.Never operate the compressor for longer than 20
consecutive minutes. Risk of overheating. The kit is not
suitable for definitive repairs, so the repaired tyres
may only be used temporarily.Dispose of the bottle and the sealant liquid properly. Have
the sealing fluid and the cylinder disposed of in compliance
with national and local regulations.
The bottle contains ethylene glycol and latex: it may
cause an allergic reaction. It is harmful if swallowed. It
is irritant for the eyes in case of contact. There could
be a reaction in the event of inhalation or contact. Avoid contact
with the eyes, skin and clothes. In the event of contact, rinse
immediately with plenty of water. If ingested, do not induce
vomiting. Rinse out your mouth, drink large quantities of water
and seek immediate medical attention. Keep out of the reach
of children. The product must not be used by asthmatics. Do not
inhale the vapours during insertion and suction. Call a doctor
immediately if allergic reactions are noted. Store the bottle in the
specific compartment, away from sources of heat. The sealant
fluid has an expiry date. Replace the bottle containing out-of-
date sealant fluid.
162GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

INFLATION PROCEDURE
Wear the protective gloves provided with the kit.
Proceed as follows:
❒engage the handbrake, unscrew the tyre valve cap, take out the
flexible filler pipe A fig. 126 and tighten the ring nut B on the tyre
valve;
❒make sure that switch A fig. 127 for the compressor is in position 0
(off), start the engine, insert the plug A fig. 128 into the power
socket on the central tunnel and switch on the compressor by
bringing switch A fig. 127 to position I (on);
❒inflate the tyre to the pressure indicated in the “Wheels” paragraph
in the “Technical specifications” section. In order to obtain a more
precise reading, check the pressure value on pressure gauge B
fig. 127 with the compressor off;❒if after five minutes it is still impossible to reach at least 1.8 bar,
disengage the compressor from the valve and power socket, then
move the car forwards by approx. ten metres in order to distribute
the sealing fluid inside the tyre evenly, then repeat the inflation
operation;
fig. 126
A0J0214
fig. 127
A0J0114
fig. 128
A0J0116
163GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒if you still cannot obtain a pressure of at least 1.8 bar within 5
minutes from the compressor switching on, do not drive off and
contact Alfa Romeo Authorized Services;
❒after driving for about 10 minutes, stop and check the tyre pressure
again; remember to put the handbrake on;
❒if a pressure value of at least 1.8 bar is detected, restore the correct
pressure (with the engine running and the handbrake engaged),
resume driving and drive with great care to Alfa Romeo Authorized
Services.
Apply the adhesive label where it can be easily seen
by the driver as a reminder that the tyre has been
treated with the quick repair kit. Drive carefully,
particularly on bends. Do not exceed 80 km/h. Do not accelerate
or brake suddenly.If the pressure has fallen below 1.8 bar, do not drive
any further: the Fix&Go Automatic quick tyre repair kit
cannot guarantee the correct hold because the tyre is
too damaged. Contact Alfa Romeo Authorized Services.
Inform the dealership that the tyre has been repaired
using the quick tyre repair kit. Give the leaflet to the
technicians who will be handling the tyre that was
repaired using the quick repair kit.
164GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CHECKING AND RESTORING TYRE
PRESSUREThe compressor can also be used to check and, if necessary, adjust the
tyre pressure.
Release quick connector A fig. 129 and connect it directly to the valve
of the tyre to be inflated.
REPLACING THE BOTTLEProceed as follows:
❒release connector A fig. 130 and disconnect tube B;
❒turn the bottle to be replaced anticlockwise and raise it;
❒fit the new bottle and turn it clockwise;
❒insert connector A and tube B in their housings.
fig. 129
A0J0225
fig. 130
A0J0115
165GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

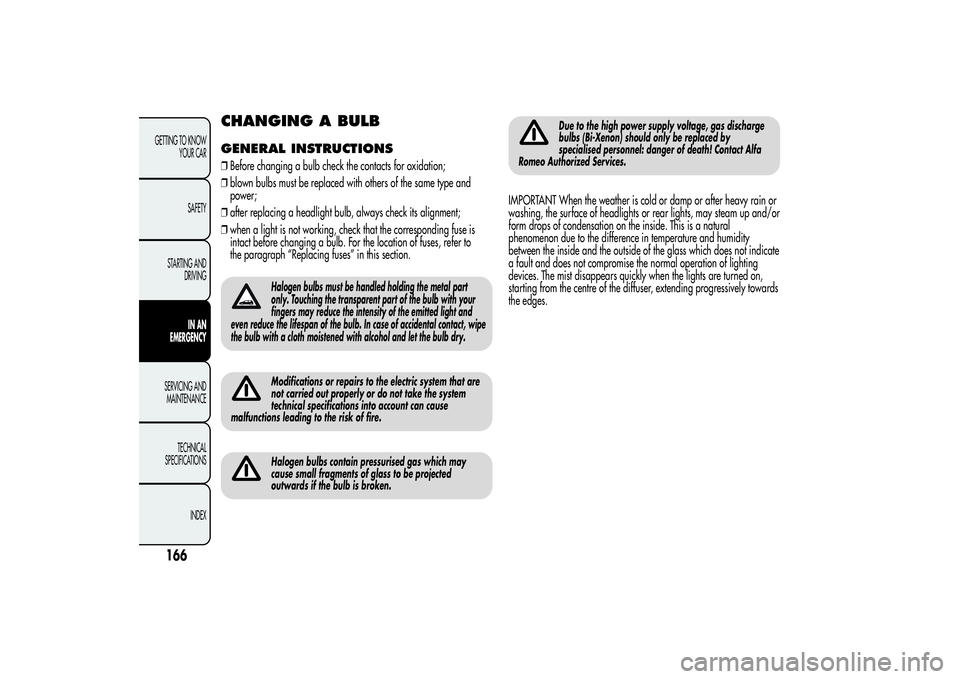

CHANGING A BULBGENERAL INSTRUCTIONS❒Before changing a bulb check the contacts for oxidation;
❒blown bulbs must be replaced with others of the same type and
power;
❒after replacing a headlight bulb, always check its alignment;
❒when a light is not working, check that the corresponding fuse is
intact before changing a bulb. For the location of fuses, refer to
the paragraph “Replacing fuses” in this section.
Halogen bulbs must be handled holding the metal part
only. Touching the transparent part of the bulb with your
fingers may reduce the intensity of the emitted light and
even reduce the lifespan of the bulb. In case of accidental contact, wipe
the bulb with a cloth moistened with alcohol and let the bulb dry.Modifications or repairs to the electric system that are
not carried out properly or do not take the system
technical specifications into account can cause
malfunctions leading to the risk of fire.Halogen bulbs contain pressurised gas which may
cause small fragments of glass to be projected
outwards if the bulb is broken.
Due to the high power supply voltage, gas discharge
bulbs (Bi-Xenon) should only be replaced by
specialised personnel: danger of death! Contact Alfa
Romeo Authorized Services.
IMPORTANT When the weather is cold or damp or after heavy rain or
washing, the surface of headlights or rear lights, may steam up and/or
form drops of condensation on the inside. This is a natural
phenomenon due to the difference in temperature and humidity
between the inside and the outside of the glass which does not indicate
a fault and does not compromise the normal operation of lighting
devices. The mist disappears quickly when the lights are turned on,
starting from the centre of the diffuser, extending progressively towards
the edges.
166GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
