ASTON MARTIN V8 VANTAGE 2010 Workshop Manual

Diagnostic Ports
Appendix & Glossary20-1-2 Workshop Manual May 2007
Appendix & Glossary
Diagnostic Ports (20.01)
Diagnostic ports are provided for:
•OBD II
• Body - including

LHD RHD
PRNDCRUISE000000MILES00 0T10
Engine
Body

Fluids/Capacities
Appendix & Glossary
May 2007 Workshop Manual 20-1-3
Fluids/Capacities
Terms
Frequently used alternative names or spellings for vehicle
components mentioned in this Workshop Manual.
Capacities
Europe UK USA
Engine sump (incl. filter) 9 .5 litres 16.7 pints 10.0 Qts
Engine sump (excl. filter) 8 .5 litres 15.0 pints 9.0 Qts
Engine cooling system 12 litres 21 pints 14.4 Qts
Screen washer reservoir 2.0 litres 3.5 pints 2.2 Qts
Gearbox & Cooler 4.7 litres 7.9 pints 5.6 Qts
Final drive 2.0 litres 3.5 pints 2.2 Qts
Fuel tank 80.0 litres 17.6 galls 88.0 Qts
Recommended Fluids
Engine oil (Initial fill) Castrol Edge Sport 10w60
Do not mix Engine oil with any mineral oils.
Engine coolant 50% water, 50% OAT Coolant (Arteco Havoline XLC only)
Do not mix OAT coolant with any glycol based anti-freeze.
Gearbox oil Shell Transaxle Oil 75w90
Final drive oil Mobil 1 80w140
Brake fluid Castrol Super Response DOT4
Power steering fluid Esso Power steering Fluid
A/C Refrigerant R134A (HFC134A)
A/C Compressor oil ND8
UK EnglishUS English
Bonnet Hood
Boot Trunk
Brake Disc Rotor
Handbrake Parking Brake
Petrol Gasoline
Tyre Tire
Wing Fender
Windscreen Windshield
Sill Rocker Panel

Special Tools - Pictorial Index
Appendix & Glossary20-1-4 Workshop Manual May 2007

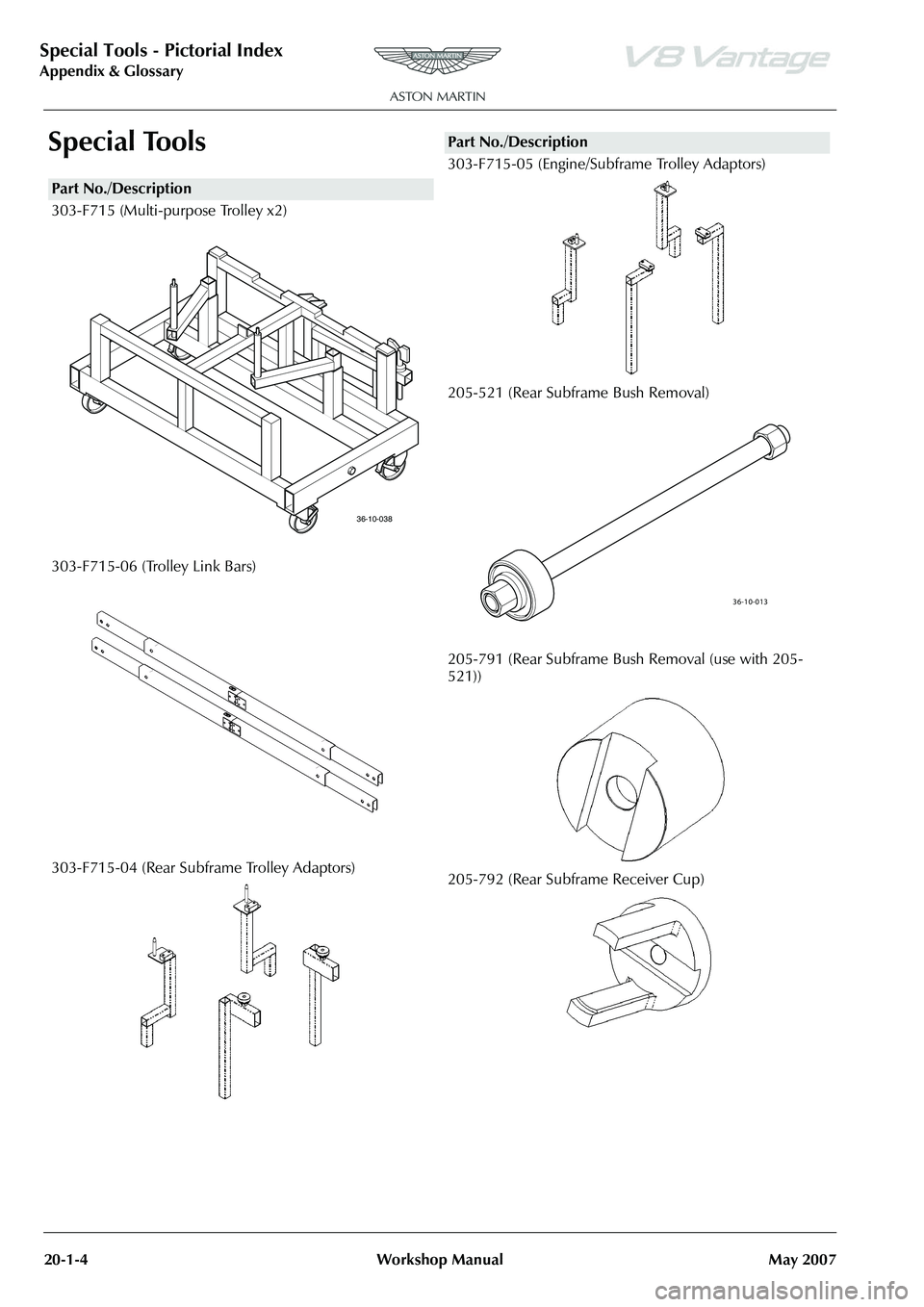

Special Tools
Part No./Description
303-F715 (Multi-purpose Trolley x2)
303-F715-06 (Trolley Link Bars)
303-F715-04 (Rear Subframe Trolley Adaptors)
Part No./Description
36-10-013

Special Tools - Pictorial Index
Appendix & Glossary
May 2007 Workshop Manual 20-1-5
205-793 (Rear Subframe Bush Installer)
310-040 (Fuel Pipe Disconnect Tool)
310-134 (Filler Neck Disconnect Tool)
310-140A (Fuel Pump Install/Remove)303-667 (Clutch Alignment)
501-108 (IP Alignment Pins)
501-073A (Airbag Simulators)
501-103 (Side Airbag and Pretensioner simulators)

Special Tools - Pictorial Index
Appendix & Glossary20-1-6 Workshop Manual May 2007
501-104 (Trim Removal)
412-026 (Quick Disconnect Tool)
412-132 (Quick Disconnect Tool)
412-038 (Quick Disconnect Tool)
412-040 (Quick Disconnect Tool)
Part No./Description
43-27750 (MOST Tester)
43-10047 (Wiring Harness Repair Kit)
(Break-out Box to be used in conjunction with PCM II Test
Lead - 43-10048)
43-10048 (PCM II Test Lead)
Part No./Description

Special Tools - Pictorial Index
Appendix & Glossary
May 2007 Workshop Manual 20-1-7
204-523 (Ball Joint Splitter)
418-583 (Oxygen Sensor Diagnostic Lead)
204-524 (Front Suspension Support)
501-F111 (Door Service Trolley)
Part No./Description

&
501-115 (Front Veneer Removal)
206-100 (Brake Hose Install)
501-112 (Wiper Linkage to Wiper Motor)
206-103 (Handbrake Cable Removal)
Part No./Description



Special Tools - Pictorial Index
Appendix & Glossary20-1-8 Workshop Manual May 2007
501-F116 (IP Removal)
204-321-01 (Spring Compressor Adaptor Plate)
303-021-02 (Engine Support Brackets)
Part No./Description
303-1185 (Flywheel Locking Tool)
303-1186 (Crankshaft Vibration Damper Remover)
303-1187 (Oil Filter Wrench)
Part No./Description

Special Tools - Pictorial Index
Appendix & Glossary
May 2007 Workshop Manual 20-1-9
303-1188 (Sump Filter Plug Tool)
303-1189 (Crankshaft Rear Oil Seal Installer/Remover)
303-1190 (Crankshaft Front Oil Seal Remover)
Part No./Description
303-536 (Engine Lifting Brackets)
303-749 (Engine Lifting Brackets)
303-750 (Crankshaft Front Oil Seal Installer)

Special Tools - Pictorial Index
Appendix & Glossary20-1-10 Workshop Manual May 2007
303-F715-07 (Trolley Adaptor)
308-641 (Gear Shift Locking Tool)
308-642 (Gear Shift Cable Release Tool)
Part No./Description
310-155 (Fuel Tank Drain Adaptor)
303-1215 (Camshaft Aligner)
303-1216 Timing Chain Tensioner
Part No./Description





Special Tools - Pictorial Index
Appendix & Glossary
May 2007 Workshop Manual 20-1-11

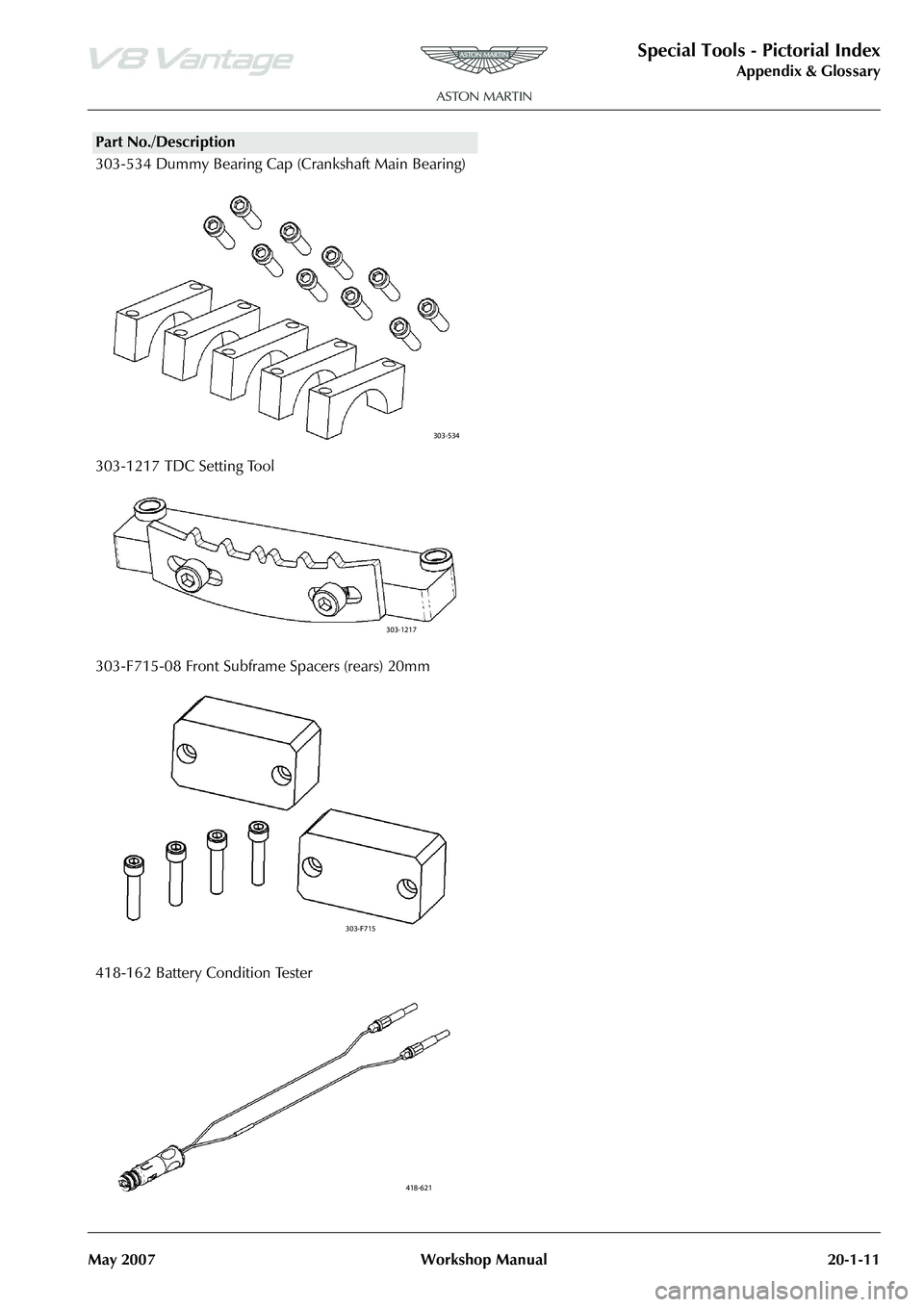

303-534 Dummy Bearing Cap (Crankshaft Main Bearing)
303-1217 TDC Setting Tool
303-F715-08 Front Subframe Spacers (rears) 20mm
418-162 Battery Condition Tester
Part No./Description





&
