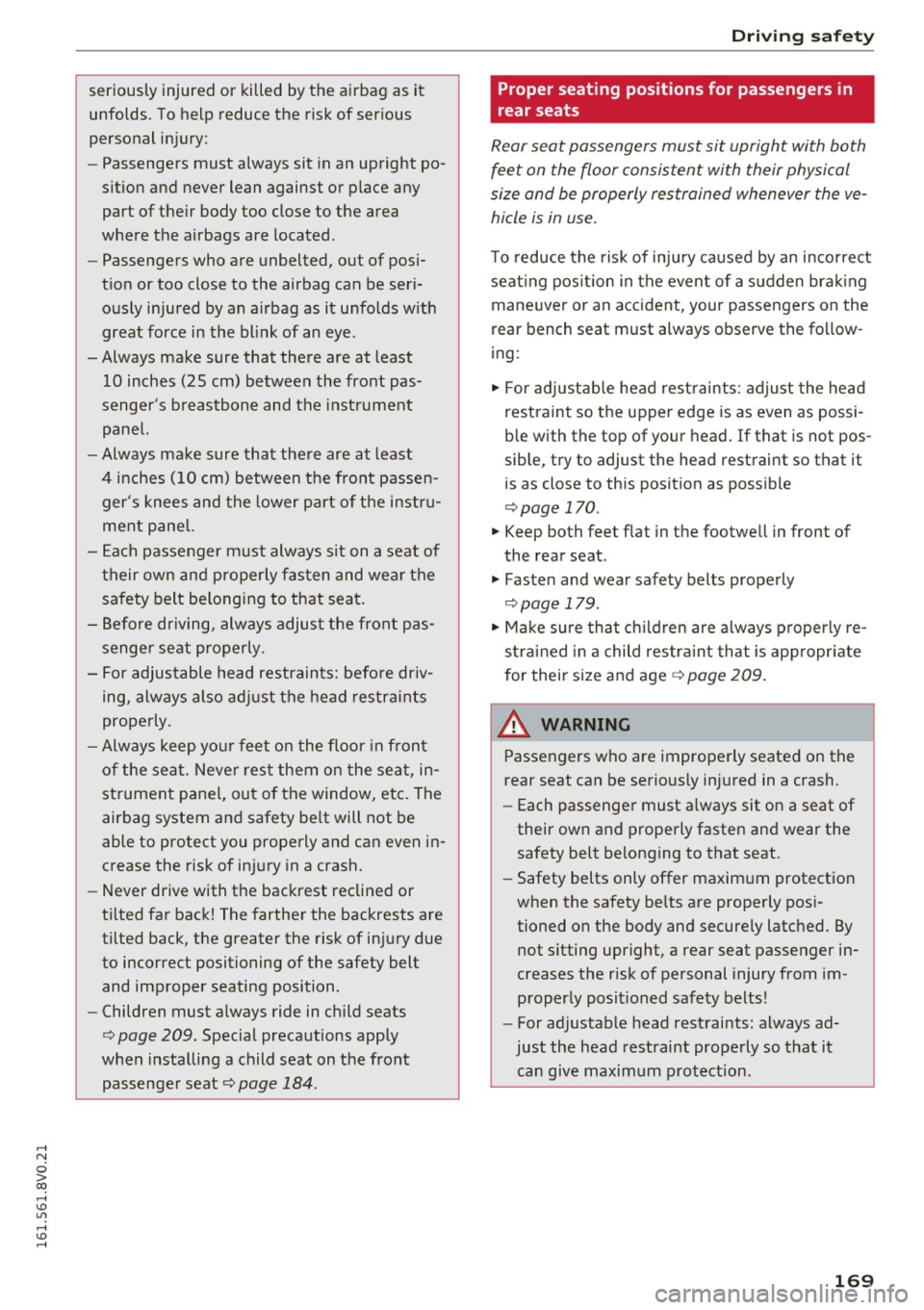

0 > co ,...., seriously injured or killed by the airbag as it
unfolds. To help reduce the risk of serious
personal injury:
- Passengers must always sit in an upright po­
sition and never lean against or place any
part of their body too close to the area
where the airbags are located .
- Passengers who are unbelted, out of posi­
tion or too close to the airbag can be seri­ ously injured by an a irbag as it unfolds w ith
great force in the blink of an eye.
-Always make sure that there are at least 10 inches (25 cm) between the front pas­
senger's breastbone and the instrument
panel.
- Always make sure that there are at least
4 inches (10 cm) between the front passen­
ger's knees and the lower part of the instru­
ment panel.
- Each passenger must always sit on a seat of
their own and properly fasten and wear the safety belt belonging to that seat.
- Before driving, always adjust the front pas­
senger seat properly.
- For adjustable head restraints: befo re driv­
ing, always also adjust the head restraints
properly.
- Always keep you r feet on the floor in front
of the seat. Never rest them on the seat, in­
strument panel, out of the window, etc. The
airbag system and safety be lt will not be
able to protect you properly and can even in­
crease the risk of injury in a crash.
- Never drive with the backrest reclined or
tilted far back! The farther the backrests are
ti lted back, the greater the risk of injury due
to incorrect positioning of the safety belt
and improper seating position .
- Children must a lways ride in child seats
<=> page 209. Special precautions apply
when installing a child seat on the front
passenge r seat¢
page 184 .
Driving safety
Proper seating positions for passengers in
rear seats
Rear seat passengers must sit upright with both
feet on the floor consistent with their physical
size and be properly restrained whenever the ve­
hicle is in use.
To reduce the risk of injury caused by an incorrect
seat ing pos ition in the event of a sudden brak ing
maneuver or an accident, your passengers on the
rear bench seat must always observe the fo llow­
ing :
.,. For adjustab le head restraints: adjust the head
restraint so the upper edge is as even as possi­
ble with the top of your head. If that is not pos­
sible, try to adjust the head restraint so that it
is as close to this position as possible
¢page 170 .
.,. Keep both feet flat in the footwell in front of
the rear seat.
.,. Fasten and wear safety belts properly
¢page 179 .
.,. Ma ke sure that ch ild ren are a lways properly re­
s trained in a child restra int that is app ropr iate
for their size and age ¢
page 209.
A WARNING
Passengers who are improperly seated on the
rear seat can be serious ly injured in a crash.
- Each passenger must always sit on a seat of
their own and properly fasten and wear the
safety belt belonging to that seat.
- Safety belts only offer maxim um protection
when the safety belts are properly posi­
tioned on the body and secure ly latched. By
not sitting upright, a rear seat passenger in­
creases the risk of personal injury from im­
properly posit ioned safety belts!
- For adjustable head restraints: always ad­
just the head restraint properly so that it can give maximum protect ion .
169

Driving safety
Proper adjustment of head restraints
Applies to veh icles: w ith adj ustable head restra ints
Correctly adjusted head restraints are an impor­
tant part of your vehicle 's occupant restraint sys­
tem and can help to reduce the risk of injuries in
accident situations .
Fig. 149 Head rest ra int: v iewed fro m the fro nt
The head restraints must be correctly adjusted to
achieve the best protection.
"Adjust the head restraint so the upper edge is
as even as possible with the top of your head. If
that is not possible, try to adjust the head re­
straint so that it is as close to this position as
possible¢
fig. 149 . Move the head restraint so
that it is as close to the back of the head as
possible .
" If there is a passenger on the rear center seat­
ing pos ition, slide the center head restraint up­
ward at least to the next notch.
Adjusting head restraints¢
page 60.
A WARNING
All seats are equipped with head restraints.
Driv ing without head restraints or with head
restra ints that are not properly adjusted in­
creases the risk of serious or fatal neck injury
dramatically. To help reduce the r isk of injury:
- Always dr ive with the head restraints in
place and properly adjusted .
- Every person in the vehicle must have a
properly adjusted head restraint.
- Always make sure each person in the vehicle
properly adjusts their head restraint. Adjust
the head restraint so the upper edge is as
even as possib le with the top of your head.
If that is not possible, try to adjust the head
170
-
restraint so that it is as close to this position
as possible. Move the head restraint so that
it is as close to the back of the head as pos­
sible .
- Never attempt to adjust head restraint
while driving. If you have driven off and
must adjust the driver headrest for any rea­
son, first stop the vehicle safely before at­
tempting to adjust the head restraint.
- Ch ildren must always be properly restrained
in a child restraint that is appropriate for
their age and size¢
page 209.
Examples of improper seating positions
The occupant restraint system can only reduce
the risk of injury if vehicle occupants are properly
seated .
Improper seating positions can cause serious in­
jury or death . Safety belts can only work when
they are properly positioned on the body. Im­ proper seating positions reduce the effectiveness
of safety belts and will even increase the risk of
i njury and death by moving the safety belt to crit­
ica l areas of the body. Improper seating positions
also increase the risk of serious injury and death
when an airbag deploys and strikes an occupant
who is not in the proper seating position. A driver
is responsible for the safety of all vehicle occu­
pants and especially for children . Therefore:
" Never allow anyone to assume an incorrect
seating position when the vehicle is being used
9 & .
The following bulletins list on ly some samp le po­
sitions that will increase the risk of serious injury
and death . Our hope is that these examples will
make you more aware of seating positions that
are dangerous .
Therefore, whenever the vehicle is moving :
-never stand up in the vehicle
- never stand on the seats
- never kneel on the seats
- never ride with the seatback reclined
- never lie down on the rear seat
- never lean up against the instrument panel

,....,
N

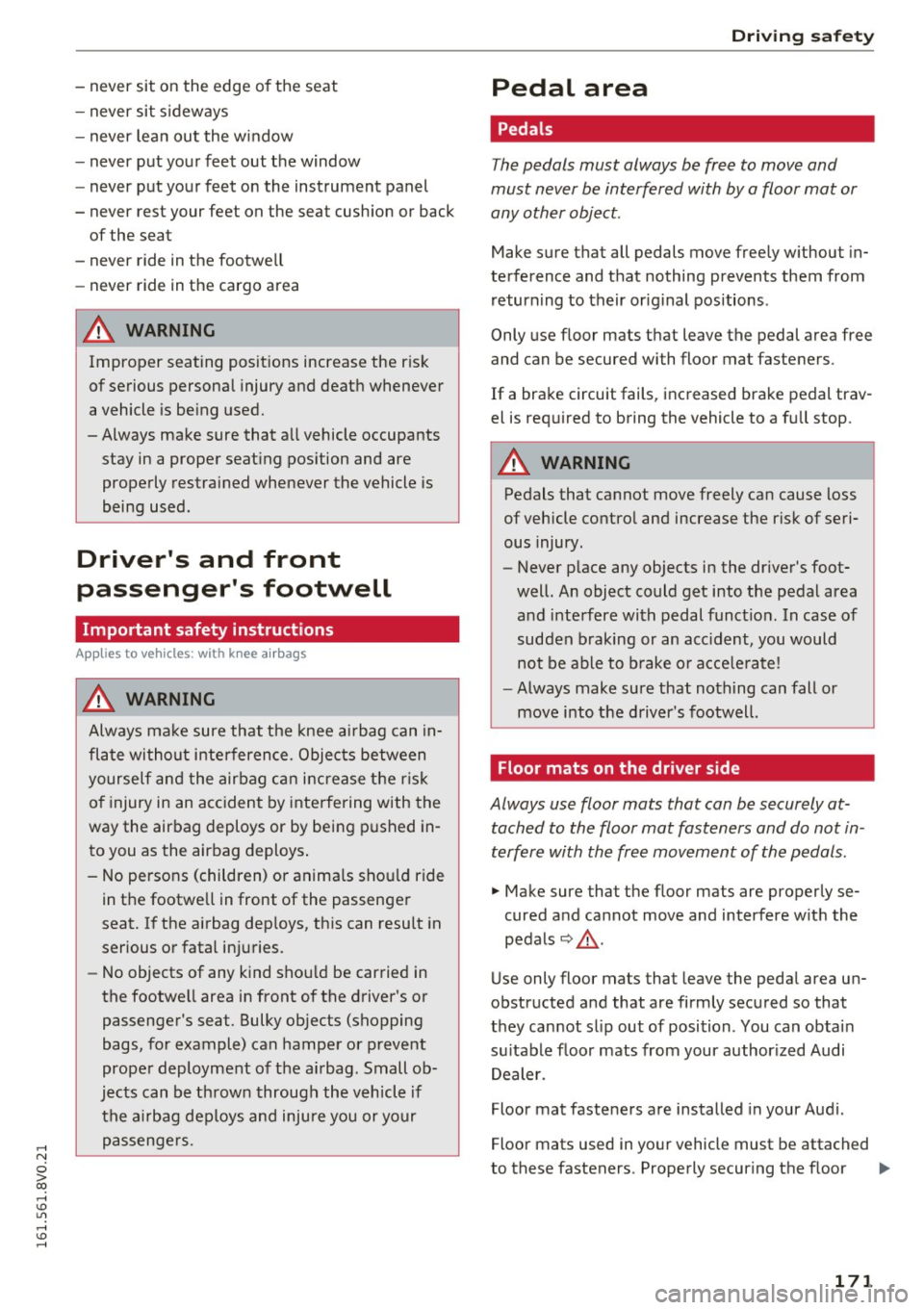

0 > co ,...., -never sit on the edge of the seat
- never sit sideways
- never lean out the window
- never put your feet out the window
- never put your feet on the instrument panel
- never rest your feet on the seat cushion or back
of the seat
- never ride in the footwell
- never ride in the cargo area
8_ WARNING
Improper seating posit ions increase the r isk
of serious personal injury and death whenever
a vehicle is being used.
- Always make sure that all vehicle occupants
stay in a proper seating position and are
properly restrained whenever the vehicle is
being used.
Driver's and front
passenger's footwell
Important safety instructions
Appl ies to vehicles: with knee airbags
8_ WARNING
Always make sure that the knee airbag can in­
flate without interference. Objects between
yourself and the airbag can increase the risk
of injury in an accident by interfering with the
way the airbag deploys or by being pushed in­
to you as the airbag deploys .
- No persons (children) or anima ls shou ld ride
in the footwell in front of the passenger
seat.
If the airbag dep loys, this can result in
serious or fatal injuries .
- No objects of any kind should be carried in
the footwell area in front of the driver's or
passenger's seat. Bulky objects (shopping
bags, for example) can hamper or prevent
proper deployment of the airbag . Small ob­
jects can be thrown through the vehicle if
the airbag deploys and injure you or your
passengers.
Driving safety
Pedal area
Pedals
The pedals must always be free to move and
must never be interfered with by a floor mat or
any other object.
Make sure that all pedals move freely without in­
terference and that nothing prevents them from
returning to their original positions .
Only use floor mats that leave the pedal area free
and can be secured with floor mat fasteners .
If a brake circuit fails, increased brake pedal trav­
el is required to bring the vehicle to a full stop.
8_ WARNING
--
Pedals that cannot move freely can cause loss
of vehicle control and increase the risk of seri­
ous injury.
- Never place any objects in the driver's foot­
well. An object could get into the pedal area
and interfere with pedal function. In case of
sudden braking or an accident, you would
not be able to brake or acce lerate!
-Always make sure that nothing can fall or
move into the driver's footwell.

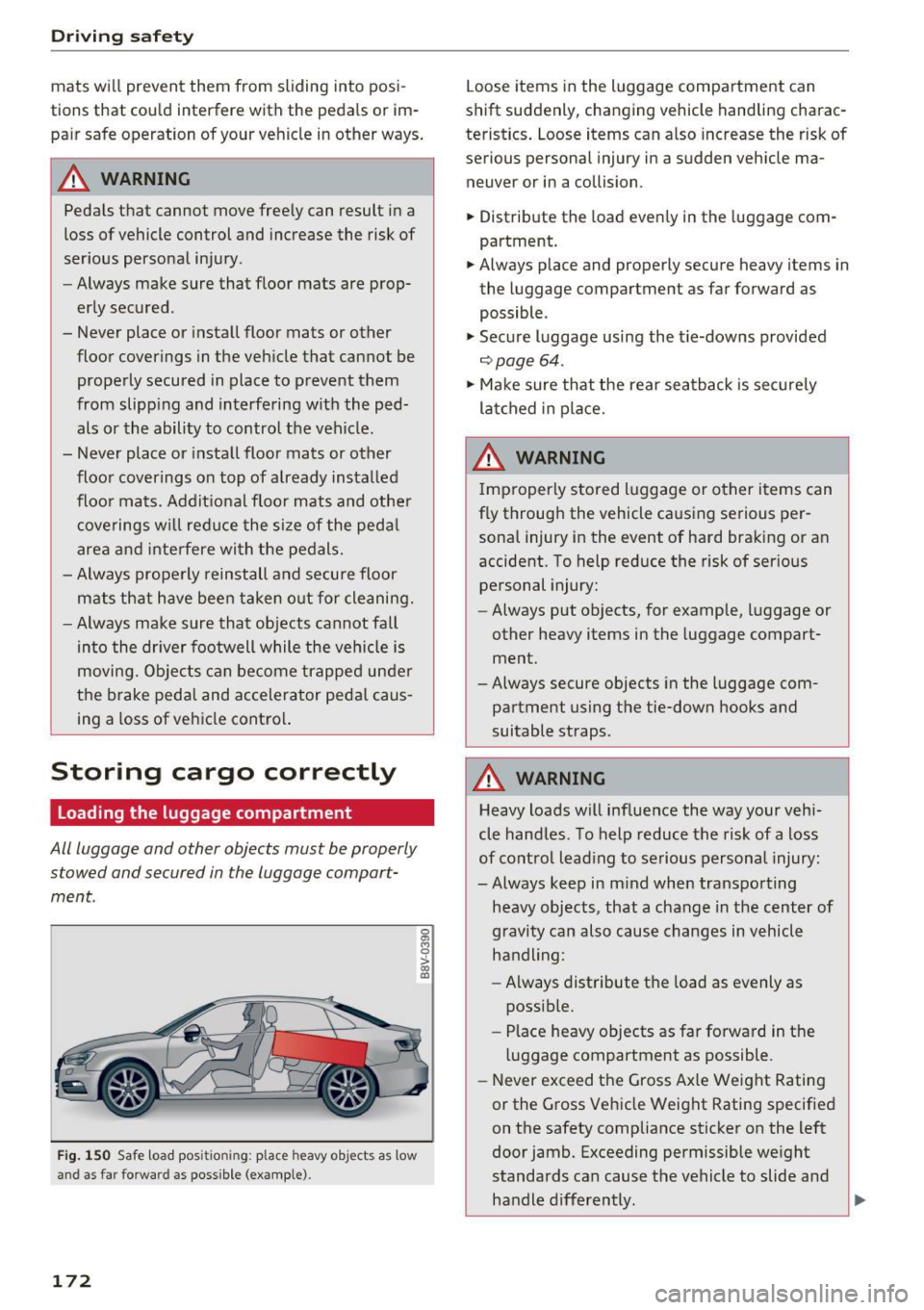

Floor mats on the driver side
Always use floor mats that can be securely at­ tached to the floor mat fasteners and do not in ­
terfere with the free movement of the pedals.
.. Make sure that the floor mats are properly se­
cured and cannot move and interfere with the
pedals~ &-
Use only floor mats that leave the pedal area un­
obstructed and that are firmly secured so that
they cannot slip out of position . You can obtain
suitable floor mats from your author ized Audi
Dealer.
Floor mat fasteners are installed in your Audi .
Floor mats used in your vehicle must be attached
to these fasteners . Properly securing the floor
Ill>
171

Driving safety
mats will prevent them from sliding into posi­
tions that could interfere with the pedals or im­
pair safe operation of your vehicle in other ways.
A WARNING
Pedals that cannot move freely can result in a
loss of vehicle control and increase the risk of
serious personal injury.
- Always make sure that floor mats are prop­
erly secured .
- Never place or install floor mats or other
floor coverings in the vehicle that cannot be
properly secured in place to prevent them
from slipping and interfering with the ped­ als or the ability to control the vehicle.
- Never place or install floor mats or other
floor coverings on top of already installed
floor mats. Addit ional floor mats and other
coverings will reduce the size of the pedal
area and interfere with the pedals.
- Always properly reinstall and secure floor
mats that have been taken out for cleaning.
- Always make sure that objects cannot fall
into the driver footwell while the veh icle is
moving. Objects can become trapped under
the brake pedal and accelerator pedal caus­
ing a loss of vehicle control.
Storing cargo correctly
Loading the luggage compartment
All luggage and other objects must be properly
s towed and secured in the luggage compart­
ment.
Fig. 150 Safe load pos it io nin g: place heavy objects as low
and as far forward as possible (example) .
172
Loose items in the luggage compartment can
shift suddenly, changing vehicle handling charac­
teristics. Loose items can also increase the risk of
serious personal injury in a sudden vehicle ma­
neuver or in a collision.
.,. Distribute the load evenly in the luggage com­
partment.
.,. Always place and properly secure heavy items in
the luggage compartment as far forward as
possible .
.,. Secure luggage using the t ie-downs provided
~ page 64.
.,. Make sure that the rear seatback is securely
latched in place.
A WARNING
Improperly stored luggage or other items can
fly through the vehicle causing serious per­ sonal injury in the event of hard braking or an
accident. To help reduce the risk of serious personal injury:
- Always put objects, for example, luggage or
other heavy items in the luggage compart­
ment.
-Always secure objects in the luggage com­
partment using the tie-down hooks and
suitable straps .
A WARNING
Heavy loads will influence the way your vehi­
cle handles . To help reduce the risk of a loss
of control leading to serious personal injury:
-Always keep in mind when transporting heavy objects, that a change in the center of
gravity can also cause changes in vehicle
handling:
- Always distribute the load as evenly as
possible.
- Place heavy objects as far forward in the
luggage compartment as possible .
- Never exceed the Gross Axle Weight Rating
or the Gross Vehicle Weight Rating specified
on the safety compliance sticker on the left
door jamb. Exceeding permissible weight
standards can cause the vehicle to slide and
handle differently .
Ill>-

.... N
0 > co .... .... -Please observe information on safe driving
~page 166.
A WARNING
To help prevent poisonous exhaust gas from
being drawn into the vehicle, always keep the
rear lid closed while driving .
- Never transport objects larger than those
fitting completely into the luggage area be­
cause the rear lid cannot be fully closed .
-If you absolutely must drive with the rear lid
open, observe the following notes to reduce
the risk of poisoning:
- Close all w indows,
- Close the power roof*,
- Open all air outlets in the instrument pan-
el,
- Switch off the air recirculation,
- Set the fresh air fan to the highest speed .
A WARNING
-
Always make sure that the doors, all win­
dows, the power roof* and the rear lid are se­
curely closed and locked to reduce the risk of
injury when the vehicle is not being used.
- After closing the rear lid, always make sure
that it is properly closed and locked.
- Never leave your vehicle unattended espe­
cially with the rear lid left open. A child
could crawl into the vehicle through the lug­
gage compartment and close the rear lid be­
coming trapped and unable to get out. Be­
ing trapped in a vehicle can lead to serious
personal injury.
- Never let children play in or around the vehi­
cle.
- Never let passengers r ide in the luggage
compartment. Vehicle occupants must al­
ways be properly restrained in one of the ve­
hicle's seating positions.
(D Tips
- Air circulation helps to reduce window fog­
ging. Stale air escapes to the outside
through vents in the trim panel. Be sure to
keep these slots free and open.
Driving safety
-The tire pressure must correspond to the
load. The tire pressure is shown on the tire
pressure label. The tire pressure label is lo­
cated on the driver's side B-pillar . The tire
pressure label lists the recommended cold
tire inflation pressures for the vehicle at its
maximum capacity weight and the tires that
were on your vehicle at the time it was man­ ufactured. For recommended tire pressures
for normal load conditions, please see chap­
ter
~ page 263.
' Tie-downs
The luggage compartment is equipped with four
tie-downs to secure luggage and other items.
Use the tie-downs to secure your cargo properly
~ page 172, Loading the luggage compartment.
In a collision, the laws of physics mean that even
smaller items that are loose in the vehicle will
become heavy missiles that can cause serious in­
jury. Items in the vehicle possess energy which
vary w ith vehicle speed and the weight of the
item. Vehicle speed is the most significant factor.
For example, in a frontal collision at a speed of
30 mph (48 km/h), the forces acting on a 10-lb
(4.5 kg) object are about 20 times the normal
weight of the item. This means that the weight
of the item would sudden ly be about
200 lbs. (90 kg). You can imagine the injuries
that a 200 lbs. (90 kg) item flying freely through
the passenger compartment could cause in a col­
lision like th is.
A WARNING
-Weak, damaged or improper straps used to
secure items to tie-downs can fail dur ing hard
braking or in a collision and cause serious per­
sona l injury.
- Always use suitable mounting straps and
properly secure items to the tie-downs in
the luggage compartment to help prevent
items from shifting or flying forward as dan­
gerous missiles .
- When the rear seat backrest is folded down,
always use suitable mounting straps and
properly secure items to the tie-downs in
173

Driving safety
the lug gage compartmen t to hel p prevent
items from f lying forwa rd as dangerous
missiles into the passenger compartment .
- Never a ttach a child safety seat tethe r strap
to a tie-down.
Reporting Safety Defects
Applicable to U.S.A.
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or
death, you should immediately in­
form the National Highway Traffic Safety Administration (NHTSA) in
addition to notifying Audi of
America, Inc.
If NHTSA receives similar com ­
plaints, it may open an investiga­
tion, and if it finds that a safety defects exis ts in a group of
vehicles, it may order a recall and
remedy campaign . However,
NHTSA cannot become involved in
individual problems between you ,
your dealer , or Audi of America,
Inc.
To contact the NHTSA, you may either call :
Tel. : 1-888-327 -4236 (TTY :
1-800-424-9153 ) or
1 -800 -424 -9393
or you may write to:
174
NHTSA
U.S . Department of Transporta­
tion 1200 New Jersey Av e., S .E.
West Building
Washington, DC 20590
You can also obtain other infor­ mation about motor vehicle safe­
ty from:
http:/ /www. safercar.gov
Applicable to Canada
If you live in Canada and you be­
lieve that your v ehicle has a de­
fect that could cause a cra sh, in­
jury or death, you should immedi­
ately inform Transport Canada,
Defect Investigations and Recalls .
You should also notify Audi Cana­ da .
Canadian customers who wish to report a safety-related defect to
Transport Canada, Defect Investi­ gations and Recalls, may either
call Transport Canada toll -free at:
Tel.: 1-800-333-0510 or
Tel.: 1-819-994-3328 (Ottawa re­ gion and from other countries)
TTY for hearing impaired: Tel.:
1-888-67 5-6863
or contact Transport Canada by mail at:

Transport Canada Motor Vehicle Safety Investiga­
tions Laboratory
80 Noel Street
Gatineau, QC
J8Z OAl
For additional road safety infor­
mation, please visit the Road
Safety website at:
http:/ /www.tc.gc.ca/eng/
roadsafety/menu .htm
Driving safety
175

Safety belts
Safety belts
General notes
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapter explains why safety belts are neces­
sary, how they work and how to adjust and wear
them correctly.
.. Read all the information that follows and heed
all of the instructions and WARNINGS.
&_ WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death .
- Safety belts are the single most effective
means available to reduce the risk of serious
injury and death in automobile accidents .
For your protection and that of your passen­
gers, always correctly wear safety belts
when the vehicle is moving .
- Pregnant women, injured, or physically im­
paired persons must also use safety belts.
Like all vehicle occupants, they are more
likely to be seriously injured if they do not
wear safety belts. The best way to protect a
fetus is to protect the mother -throughout
the entire pregnancy .
Number of seats
Your Audi has a total of five seating positions:
two in the front and three in the rear. Each seat­
ing position has a safety belt.
&_ WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death.
- Never strap more than one person, includ­
ing small children, into any belt .
It is espe­
cially dangerous to place a safety belt over a
child sitting on your lap.
- Never let more people ride in the vehicle
than there are safety belts available.
176
-Be sure everyone riding in the vehicle is
properly restrained with a separate safety
belt or child restraint.
~ Safety belt warning light
Your vehicle has a warning system for the driver
and front seat passenger (on USA models only) to remind you about the importance of buckling­
up .
Fig. 151 Safety be lt warning light in the instrument clu s­
ter -enlarged
Before driving off, always:
.. Fasten your safety belt and make sure you are
wearing it properly .
(0
"'
"' 9
"' .. Make sure that your passengers also buckle up
and properly wear their safety belts .
.. Protect children with a child restraint system
appropriate for the size and age .
The warning light . in the instrument cluster
lights up when the ignition is on as a reminder to
fasten the safety belts. In addition , you will hear
a warning tone for a certain period of time.
Fasten your safety belt and make sure that your
passengers also properly put on their safety
belts.
&_ WARNING
-
-Safety belts are the single most effective
means available to reduce the risk of serious
injury and death in automobile accidents.
For your protection and that of your passen­
gers, always correctly wear safety belts
when the vehicle is moving.
- Failure to pay attention to the warning light
that come on, could lead to personal injury.

.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....
Why use safety belts?
Frontal collisions and the law of physics
Frontal crashes create very strong forces for peo­
ple riding in vehicles .
Fig. 152 Unbelted occupants in a vehicle heading for a wall
Fig . 153 The vehicle crashes into the wall
CD
~ ± The physical principles are simple. Both the vehi­
cle and the passengers possess energy which var ­
ies with vehicle speed and body weight. Engi­
neers call this energy "kinetic energy."
The higher the speed of the vehicle and the
greater the vehicle's weight, the more energy
that has to be "absorbed" in the crash.
Veh icle speed is the most significant factor.
If
the speed doubles from 15 to 30 mph (25 to
50 km/h), the energy increases 4 times!
Because the passengers of this vehicle are not us ­
ing safety belts¢
fig. 152, they will keep mov ing
at the same speed the vehicle was moving just
before the crash, until something stops them -
here, the wall
¢fig. 153.
The same principles apply to people sitting in a
vehicle that is involved in a frontal collision . Even
at city speeds of 20 to 30 mph (30 to 50 km/h),
the forces acting on the body can reach one ton
Safety belts
(2,000 lbs, o r 1,000 kg) or more . At greater
speeds, these forces are even higher.
People who do not use safety belts are also not
attached to their vehicle. In a frontal collision
they will also keep moving forward at the speed
their vehicle was travelling just before the crash.
Of course, the laws of physics don't just apply to
frontal collisions, they determine what happens in all kinds of accidents and co llisions.
What happens to occupants not wearing
safety belts?
In crashes unbelted occupants cannot stop
themselves from flying forward and being in­
jured or killed . Always wear your safety belts!
Fig. 154 A driver not wearing a safety belt is v iolently
thrown forward
Fig. 155 A rear passenger not wearing a safety belt will fly
forwa rd and strike the
driver
Unbelted occupants are not able to resist the tre­
mendous forces of impact by hold ing tig ht or
bracing themselves . Without the benefit of safe­
ty restraint systems, the unrestrained occupant
will slam viol ently into the steering wheel, in­
strument panel, windshield, or whatever e lse is
i n the way
¢fi g. 154. This impact w ith the vehi­
cle interior has all the energy they had just be-
fore the crash.
Ill>-
177

Safe ty belts
Never rely o n airbags alone for protection . Even
when they deploy, airbags provide only additional
protection. A irbags are not supposed to dep loy in
all kinds of accidents. A lthough your Audi is
equipped w ith airbags, all vehicle occupants, in­
cluding the driver, must wear safety belts cor ­
rectly in order to minimize the risk of severe in­
jury or death in a crash .
Remember too, that airbags will deploy only
once and that your safety belts are a lways there
to offer protect ion in those accidents in wh ic h
airbags are not supposed to deploy or when they
have a lready dep loyed. Unbel ted occupants can
a lso be thrown o ut of the veh icle where eve n
mo re severe or fatal injur ies can occur .
It is also important for the rear pass enge rs to
wear safety belts co rrectly. Unbelted passengers
i n t he rea r seats endanger no t on ly themse lves
but also the drive r and other passengers
~ fig . 155. In a frontal collision they will be
thrown forward violently, where they can hit and
in jure the driver and/or front seat passenger.
Safety belts protect
People think it's possible to use the hands to
brace the body in a minor collision . It's simply
not true!
F ig . 1 56 Driver is correctly restrai ned in a sudde n braking
m aneuver
Safety belts used properly can make a b ig d iffer­
ence. Safety belts help to keep passengers in
their seats, gradually reduce energy levels ap­
plied to the body in an accident, and he lp prevent
the uncont rolled moveme nt that can cause seri­
ous injur ies. In addition, safety belts reduce the
danger of being thrown out of the veh icle .
178
Safety be lts attach passengers to the car an d give
them the benefit of being s lowed down more
gently or "soft ly" thro ugh the "give" in the safety
belts, crush zones and other safety feat ures engi­
neered into today's vehicles. By "absorbing" the
k inet ic energy over a longer per iod of t ime, the
safety belts make the forces on the body more
"tole rab le" and less likely to cause inj ury.
Although these examples are based on a frontal
collision, safety be lts ca n also substantially re ­
duce the r isk o f injury in ot her kinds of crashes.
So, whethe r yo u're on a long trip or just going to
the cor ne r store, a lways b uckle up and make s ure
othe rs do, too. Ac ciden t stat ist ics show that veh i­
cl e o ccupants prope rly wearing safety bel ts have
a lowe r risk of being injured and a m uch better
chance of surviving an acc ident . Properly using
safety be lts also great ly increases the ability of
the supp lemental airbags to do their job in a col­
li sion. For this reason, wearing a safety belt is le­
gally required in most countries including much
of the United States and Canada .
Although your Aud i is equipped with airbags, you
still have to wear the safety belts provided. Front
airbags, for examp le, are activated only in some
frontal collisions. The front airbags are not act i­
vated in all frontal collisions, in side and rear co l­
li sions, in roll overs or in cases where the re is not
eno ugh deceleration throug h impa ct to the front
of the vehicle. The same goes for the other a irbag
systems in your Audi. So, always wear your safety
belt and make sure everybody in your vehicle is
properly rest rained!
Important safety instructions about safety
belts
Safety belts must always be correctly positioned
across the strongest bones of your body.
.,. Always wear safety belts as illustrated and de ­
scribed in this chapter.
.,. Make sure that your safety be lts are always
ready fo r use a nd are not damaged .
