Opening th e windows
"' Press the sw itch to the fir st sto p and hold i t
until the window reaches the desi red posi ­
tion .
"' Press the switch briefly to the
se cond stop
to automatically open the window .
Clos ing th e windows
"' Pull the swi tch to t he fir st sto p and hold it
until the window reaches the desi red posi ­
tion .
"' Pull the switch briefly to the
sec on d s top to
automatica lly close the window.
P ow er wi nd ow switch es
@ Sw itch c::> fig. 26 for the window in the
driver's door.
@ Sw itch for the window in the front pas-
senger's door.
© Switch for the left rear w indow.
@ Sw itch for the right rear window.
© Centra l switch for opening or clos ing a ll
side windows at the same time
_& WARNING
- Always remove the ignition key when you
leave your vehicle, even for a short peri­
od of time . This applies particularly when
children remain in the vehicle . Otherw ise
the chi ldren could start the engine or op­
erate electrical equ ipment such as power
windows. The power windows continue
to function unt il the driver's door or
front passenger's door has been opened .
- Pay carefu l attent ion when closing the
window.
It could cause injury by pinch­
ing.
- When locking the veh icle from outs ide,
the vehicle must be unoccupied s ince the
windows can no longer be opened in an eme rgency.
(D Tips
After turning the ignition off you can still
open and close the windows for approxi­
mate ly 10 seconds. The powe r windows
are not switc hed off until the dr iver's door
Opening and clo sin g 39
or front passenger's door has been
opened.
· Convenience opening /closing
With the convenience opening/closing func­
tion, you can centrally and easily open the
windows from the outside.
Con ven ience opening
"' Press the Iii button on the remote contro l
key until all windows have reached the de­
sired position or
"' Hold the key in the driver's door lock unt il all
w indows have reached the desired position.
Convenience clo sing
"' Ho ld the key in the driver's door lock in the
lock posit ion unti l all windows are closed .
Convenienc e closing with the convenience
ke y*
"'Touch the sensor* in one of the door handles
until all windows are closed. Do not p lace
your hand in the door handle when do ing
this.
Adju sting the conv enience opening in the
MM I
"'Select: the I MENU I button >Ca r> Sys tem s*
control button > Vehicle setting s > Central
lo cking
> Long-press to open windows
To enable convenience opening of the win-
dows, the
Front windows and Rear window s
functions must be switched On.
_& WARNING
- Never close the w indows carelessly or in
a n uncontrolled manner, because this in­
creases the risk of inju ry.
- For secur ity reasons, the w indows can
only be opened with the remote control
key at a ma ximum d istance of approxi­
mate ly 6 fee t (2 meters) from the vehi­
cle.
- Always watch the windows while they are
clos ing using the loc k cylinder so that no
one is pinched in the window. C losing
•

40 Opening and closing
stops when the key is moved into the
starting position.
Correcting power window malfunctions
After disconnecting the vehicle battery, the one -touch up and down feature must be acti ­
vated again.
• Pull the power window switch until the win ­
dow is comp lete ly raised.
• Release the switch and pull it again for at
l east one second.

....,
N
r--. > co
rl I.O
"' rl
"' rl
Power top
Automatic power top
General information
The power top opens and closes automatical­ ly . When open, the power top is stored com­
pletely in the power top compartment. The
power top can be opened or closed at speeds
up to 30 mph (SO km/h).
Under normal conditions, the power top is
wind and waterproof. In rare cases, small
droplets of water may form under extreme
weather conditions such as torrential or pro­ longed rain. That is normal and no cause for
concern.
Follow the care instructions to keep the power
top free of leaks and to maintain its appear­
ance
c::> page 204, Core and cleaning. Also ob­
serve the following:
- Op en and stow the power top only when it is
clean and dry . Sharp-edged dirt particles can
cause damage to the rear window and the
power top. Stowing the power top when it is
damp can create imprints in it, and if it is
left that way for long periods of time, mil­
dew and other damage can form.
- Do not leave the power top open for several
weeks or the creases in it may become dis­
colored.
- Remove ice and snow before opening the
power top. Do not use any sharp edged ob­
jects to remove ice and snow or the power
top could be scratched or damaged. The rear
window may be cleared with a standard ice
scraper.
- Do not open the power top when the tem­
perature is below 32 °F (0 °C). The fabric in
the power top loses elasticity in sub-ze ro
temperatures.
_& WARNING
- When positioning the power top, avoid
contact with the supports or other mov­
ing parts. Make sure all of the windows
.
Power top 41
are lowered. Otherwise you could pinch
your hands.
- Never drive when the power top is not
locked correctly. The wind from driving
could cause the power top to open. This
can result in injuries and damage to the
vehicle.
Opening and closing the power top
Fig. 27 Center console: power top switch
Requirement: The power top storage com­
partment must be lowered
c::> page 43 and
the luggage compartment lid must be closed.
.. Switch the ignition on.
.. To open or close the power top, pull or press
the button @during the entire process.
T he status of the power top is shown in the in­
strument cluster display when operating the
power top switch.
You can close the power top when the wind
deflector is installed
~ page 44.
A message will appear in the instrument clus­
ter if the power top cannot be opened or
closed
c::> page 43.
A WARNING
- When operating the power top, make
sure the function is not affected by wind
or other factors and that it does not in­
terfere with other drivers.
- Never drive when the power top is not
locked correctly. The wind from driving
could cause the power top to open. This
can result in injuries and damage to the
vehicle.
-

42 Power top
-Make sure no one will be injured by the
power top supports and other moving
components when opening and closing
the top.
- The headroom in the rear is reduced
when opening and closing the power top. Make sure the rear passengers keep
enough distance from the power top to
reduce the risk of injury.
- When operating the power top, visibility
to the rear is limited . Avoid operating the
top while driving in reverse.
(D Note
-To prevent damage to the power top:
- do not store any objects in the power
top storage compartment.
- make sure there is enough space above
the vehicle when opening or closing
the power top.
- To reduce the risk of damage, make sure
there are no sensitive objects in the pow­
er top storage compartment's range of motion.
@ Tips
- To prevent the battery from draining un­
necessarily, do not open or close the
power top repeatedly when the engine is
switched off.
- A message will appear in the instrument
cluster if there is a malfunction in the
power top c:>
page 43.
-The power top can also be operated
manually temporarily if there is a mal­
function c:>
page 45, Power top emer­
gency operation.
An authorized Audi
dealer or authorized Audi Service Facility
should diagnose and correct the cause of
the malfunction as soon as possible .
- If the vehicle is parked with the power
top open, the vehicle interior is not pro­
tected from damaging weather or unau­
thorized access. Lock any items you leave
behind in the luggage compartment.
Close the power top before leaving the
vehicle. - The
side windows automatically lower
slightly when opening or closing the
power top.
Power top convenience opening and
closing

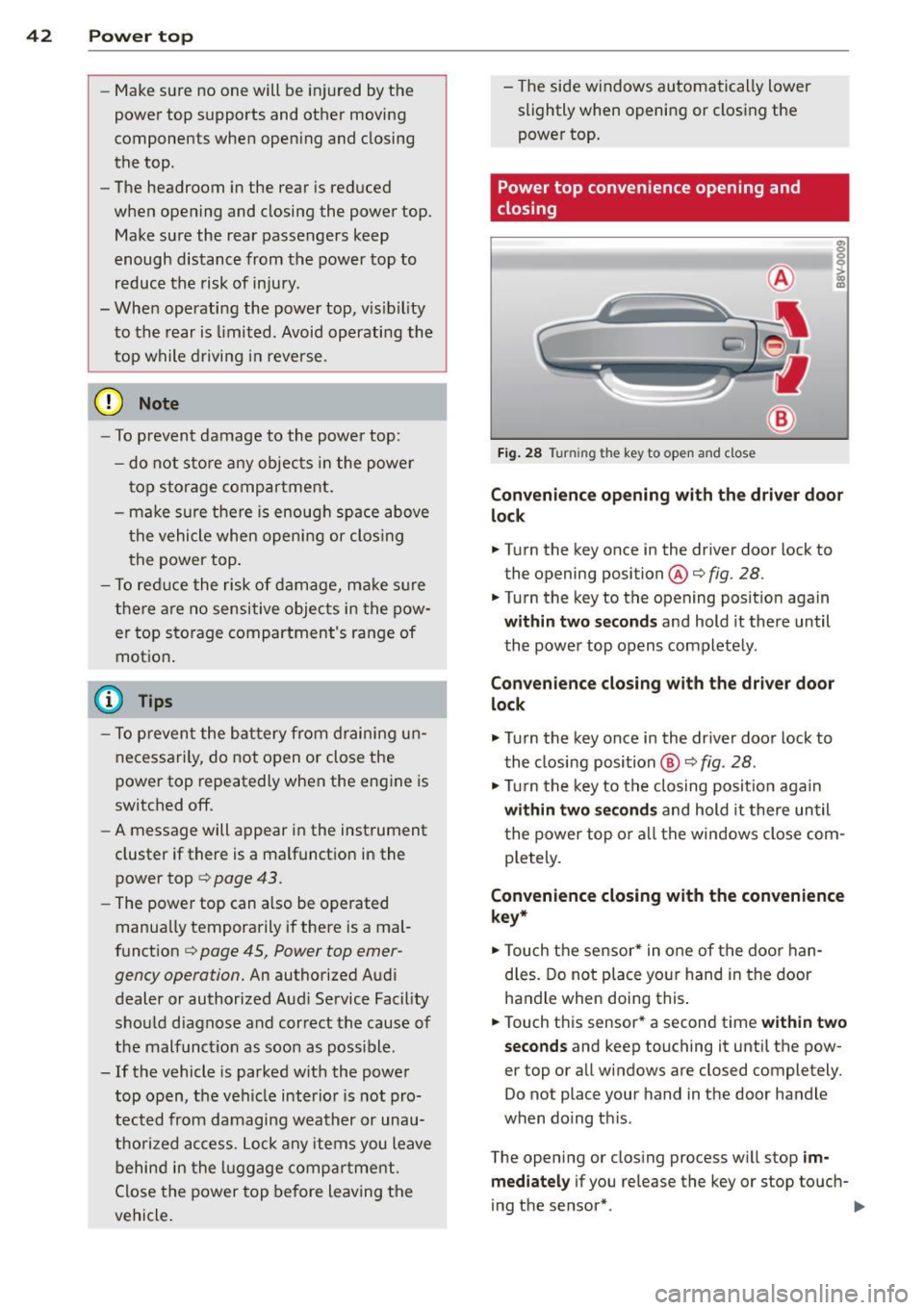

Fig. 28 Tu rnin g the key to open and close
Convenience opening with the driver door
lock
.. Turn the key once in the driver door lock to
the opening position@c:>
fig. 28.
.. Turn the key to the opening position again
within two seconds and hold it there until
the power top opens completely.
Convenience closing with the driver door
lock
.,. Turn the key once in the driver door lock to
the closing position @
c:> fig. 28.
.,. Turn the key to the closing position again
within two seconds and hold it there until
the power top or all the windows close com­
pletely .
Convenience closing with the convenience
key*
.. Touch the sensor* in one of the door han­
dles. Do not place your hand in the door
handle when doing this.
.. Touch this sensor* a second time
within two
seconds
and keep touching it until the pow­
er top or all windows are closed completely .
Do not place your hand in the door handle
when doing this .
The opening or closing process will stop
im­
mediately
if you release the key or stop touch-
ing the sensor*. ..,.

....,
N
r--. > co
rl I.O
"' rl
"' rl
,&_ WARNING
Read and follow the im po rt an t sa fety p re ­
cautions i n
c::> & in Opening and closing
the power top on page 41 .
Power top storage compartment
Fig. 2 9 Luggage compar tm en t: powe r to p sto rage
co mpa rt ment lowe red
F ig. 30 Luggage compart men t: power top storage
compartme nt ra ised
The power top storage compa rtment must b e
l owe red to open the power top . To avo id dam­
a ge, make sure that a re no sensi tive o bje cts in
the s tor age compartmen t's range of mo tion .
Raising the power top storage
compartment
"P ress the trim on the hand le in the d irect io n
of the arrow to raise t he power top s torage
compartment
c::> fig. 2 9.
Lowering the power top storage
compartment
" Press the trim on the handle in the direct io n
of the arrow to lower the power top s torage
compartment
c::> fig. 30 .
The power top storage comp artmen t can be
ra ised when the
power top i s closed . This pro-
Power top 43
vides more cargo space in the luggage com ­
partment.
T he
open power top is sto red and pr otec ted in
t he power top s torage compar tment . The
power top storage compa rtment cannot be
raised when the power top is open. Because of
th is, the cargo area in the luggage compart ­
ment is smaller when the powe r top is open
than when it is closed.
Messages
Soft top: pl ease close trunk lid
This message appears in the instrument cl us­
ter display if the luggage compartment is not closed w hen the power top is operated . Close
the luggage compart ment lid.
Soft top : please lower soft top compartment
T his mess age ap pears if the power top stor ­
age compartment is not lowered when ope n­
ing t he power top. Lower the power top stor­
age compartment ¢
page 43.
Soft top: operation not pos sible
T h is message appears w hen t here is a mal­
func tion. T he powe r top can be o pe ra ted man­
u ally
c::> page 4 5 .
Soft top: operation not pos sible at pres ent
If the power top is operated continually for a
long period of time, the overload protect ion
activates for app rox imately 15 to 30 mi nutes .
You can o pen or close the powe r top aga in af­
te r that.
Soft top: operation not possible at present .
Engine must be running
The power top is a utomat ica lly deactivated if
the battery vo ltage is low. Yo u can open or
close t he power top again after start ing the
engine.
Soft top : operation not possible at present .
Outside temperature too low
The powe r top w ill not open when the tem per-
atu re is be low - 15
°C. ~

44 Power top
Soft top: operation not p ossible. Sp eed t oo
h igh
I f you go above 30 mp h (SO km/h), the power
top cannot be operated due to safety reasons. Reduce the vehicle speed to close or open the
power top.
S oft top: not at limit po siti on. s peed too
high
This m essage appears if you go above 30 mph
(50 km/h) when operati ng the power top. Re­
d uce the vehicle speed and opera te the power
top again .
Soft top s ystem malfunction! You can con­
tinue dri ving
This message appears if there is a malfunction
in the system . T ry to open or close the power
top again . If the message still appears, have
the ma lf u nction corrected by an aut horized
Aud i dealer o r aut ho rized Aud i Service Fac ility.
Soft top sys tem malfunction! You can con­
tinue driving
This message appears if there is a malfunction
in the system . Try to open or close the power
top again.
If the message still appears, then
have an author ized Audi dealer or authorized
Aud i Service Fac ility co rrect the ma lfun ction.
D o not drive more t han 30 mph (50 km/h) u n­
til it is corrected.
8_ WARNING
Never drive when the power top is not
locked correctly . The w ind from dr iv ing
co uld cause the power top to open. Th is
can result in injuries and damage to the
vehicle.
-

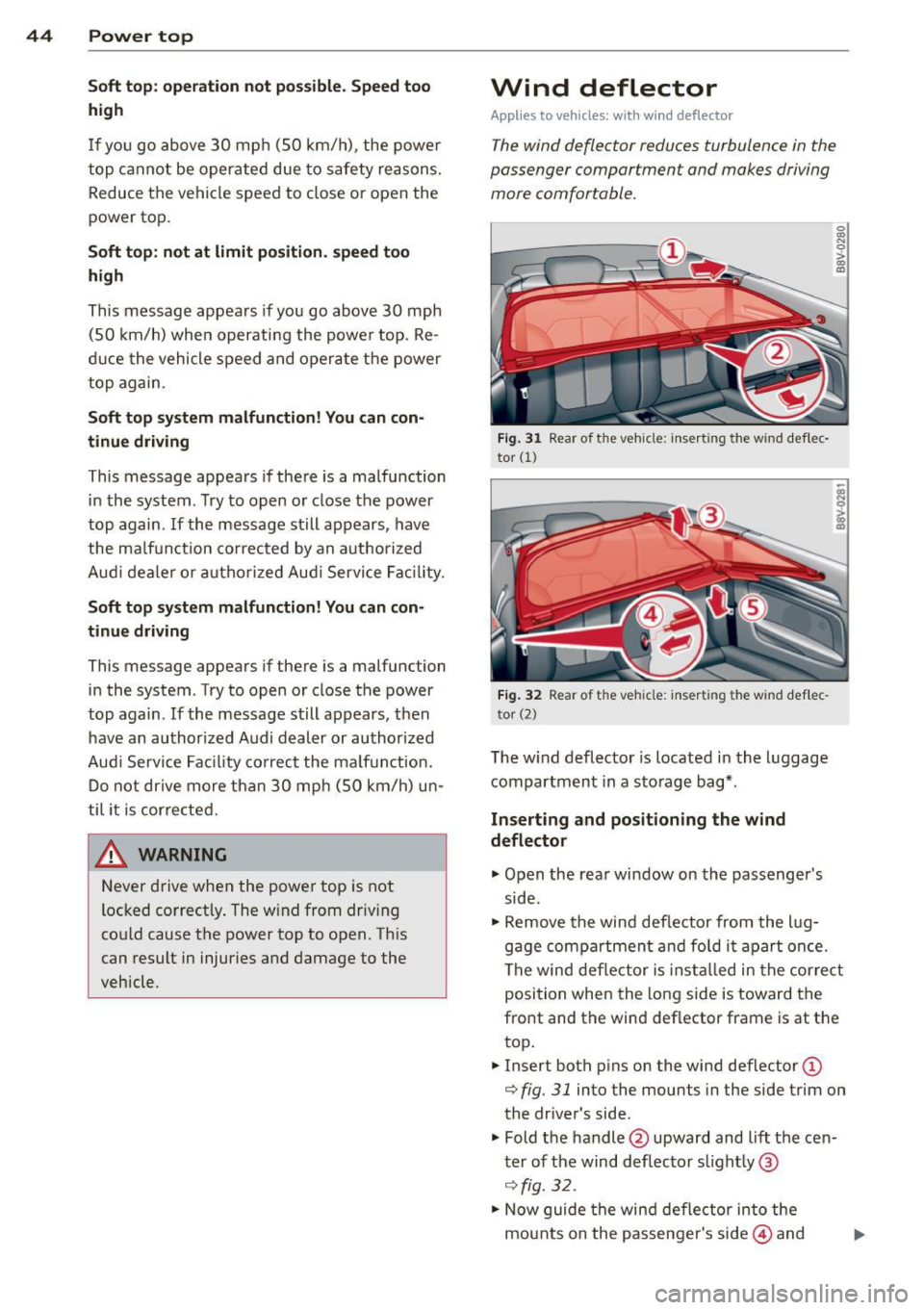

Wind deflector
App lies to veh icles: w ith wind deflecto r
The wind deflector reduces turbulence in the
passenger compartment and makes driving
more comfortable.
Fig . 31 Rear of t he veh icle: inse rt in g the wind de flec·
tor
(1)
F ig . 32 Rear of t he veh icle: insert ing the wind def lec ­
to r (2)
The w ind deflector is located in the l uggage
compartm ent in a sto rage bag*.
Inserting and positioning the wind
deflector
"" Open the rear window on the passenger's
side .
~ 0 > a,
"'
.. Remove the wind def lector from the l ug­
gage compa rtment and fo ld i t a part once.
The wind deflector is insta lled in the cor re ct
position when the long side is toward the
front and the wind deflector frame is at the
top .
.. Insert both p ins on the wind def lector
(D
r::;, fig. 31 into the mounts in the side trim on
the dr ive r's side.
" Fold the handle @upward and lift the cen­
t er of the wind d eflector s light ly @
¢ fig. 32 .
.,_ Now guide the wind deflector into the
mounts on the passenger's side@ and

M N ,....
> co ...... \!) 1.1'1
...... 1.1'1 ......
press lightly in the midd le o f the wind de ­
flector ® until the hand le locks in place .
... Raise the wind deflector completely .
Removing the wind deflector
... Fold the hand le @ ¢fig. 31 upward and
f o ld the w ind deflector frame back .
... Fold the hand le @ ¢fig.
31 upward and lift
the center of the wind deflector slightly @
¢fig . 32.
... Remove the w ind deflector from the mounts
in the side trim on the passenger's side.
... Pull the wind deflector out of the mounts on
the driver side and lift it out .
... Fold the w ind deflector together and store it
secu rely.
A WARNING
- Do not use the w ind de flector to secure
cargo.
- Be careful when ins tall ing so yo u do not
pinch your finge rs .
- Pay atten tion to the traffic when instal­
ling the wind deflector. Install the win d
deflecto r from the s ide of the vehicle
that is away from traffic .
(D Note
Do not lean against the veh icle when in­
s t all ing the wind deflecto r. H ard objec ts
and decorations on clothing s uch as belt
buckles can scratch the pai nt.
(D Tips
- The wind defle ctor works best when al l
of the windows are ro lled up wh ile driv ­
ing.
- Only store the wind deflector in the stor ­
age bag* when it is dry.
Power top 45
Power top emergency
operation
General information
The power top can be closed manually if there
is a malfun ction.
... Set the park ing brake.
... Open a ll wi ndows.
... Switch the ignit ion off .
... Pull the but ton @ for app rox ima tely 10 to
15 seconds to reduce the pressure in the
power top hydraulics ¢
page 41, fig. 2 7 .
Only close the power top manually in an emer­
gency . Have a second person assist. Drive to
an a uthorized Audi dea ler or a uthorized Audi
Service Facility immediately to have the ma l­
function corrected.
A WARNING
- There is a r isk of pinching the hands or
other peop le during all of the power top
emergency operation steps.
- Make sure all windows are lowe red d ur­
ing eme rgency ope ration .
- Do no t rea ch into t he power top sup­
po rts or other mov ing components .
- Never d rive when the powe r top is not
loc ked correctly. The w ind from dr iving
could cause the power top to open. This
can result in injuries and damage to the
vehicle.
(D Tips
The powe r top storage compartmen t cover
i s not latched afte r the emergency opera ­
tion is complete . Drive to an a uthorized
A udi dealer or authorized A udi Service Fa­
cility immediately to have the malfunct ion
corrected.
-
•

46 Power top

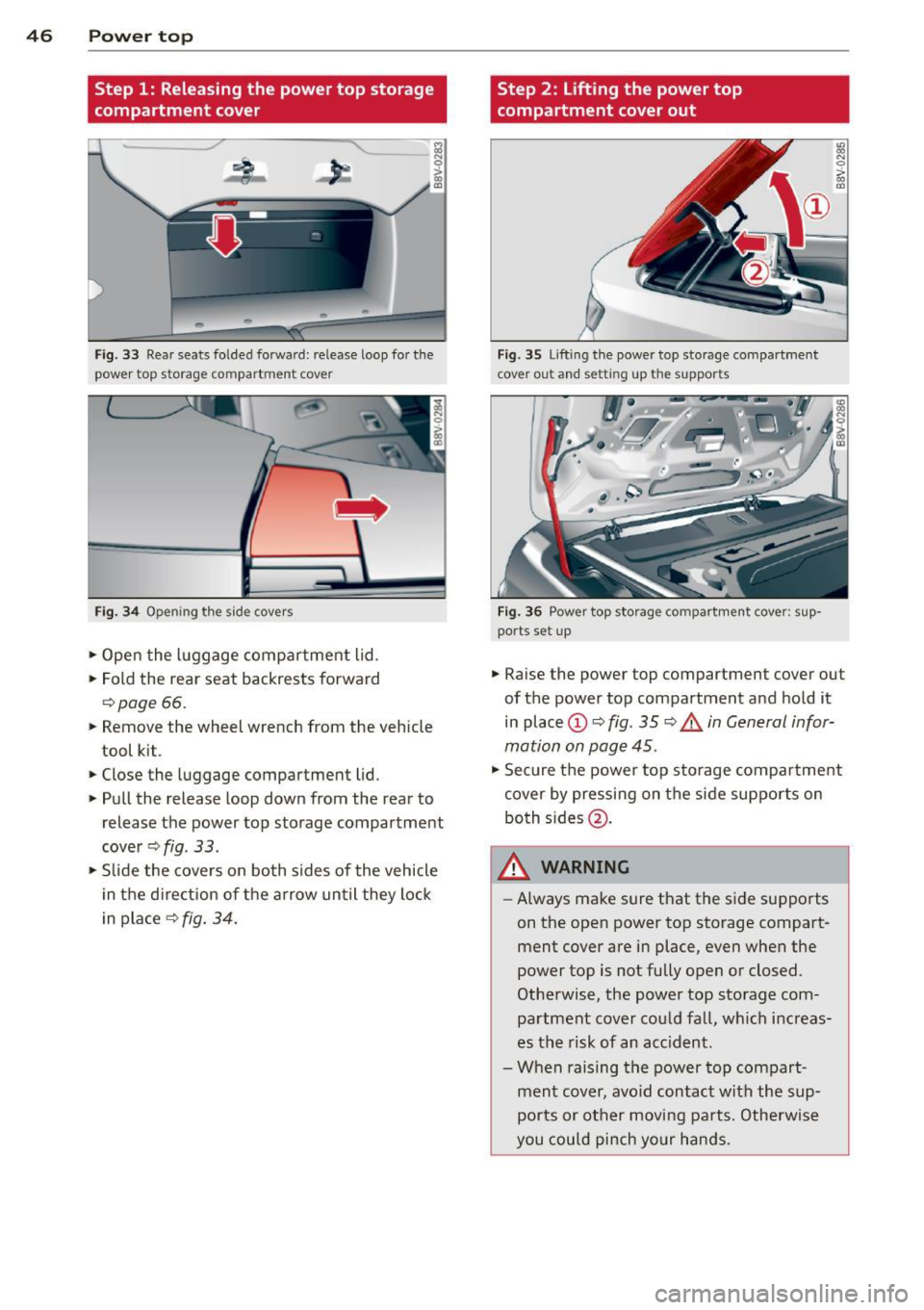

Step 1: Releasing the power top storage
compartment cover
Fig. 33 Rear seats folded forward: release loop for the
power top storage compartment cover
Fig . 34 Opening the side covers
.,. Open the luggage compartment lid.
.,. Fold the rear seat backrests forward
r=;, page 66.
> Remove the wheel wrench from the vehicle
tool kit.
> Close the luggage compartment lid.
.,. Pull the release loop down from the rear to
release the power top storage compartment
cover
r=;, fig . 33.
.,. Slide the covers on both sides of the vehicle
in the direction of the arrow until they lock
in place
r=;, fig. 34.
Step 2 : Lifting the power top
compartment cover out
Fig. 35 Lifting the power top storage compartment
cover out and setting up the supports
Fig. 36 Power top storage compartment cover: s up·
ports set up
.,. Raise the power top compartment cover out
of the power top compartment and hold it
in place
(D r=;, fig. 35 r=;, .& in General infor­
mation on page 45.
.,. Secure the power top storage compartment
cover by pressing on the side supports on
both sides @.
A WARNING ~
-Always make sure that the side supports
on the open power top storage compart­ment cover are in place, even when the
power top is not fully open or closed.
Otherwise, the power top storage com­
partment cover could fall, which increas­
es the risk of an acc ident.
- When raising the power top compart­ ment cover, avoid contact with the sup­
ports or other moving parts. Otherwise
you could pinch your hands.

....,
N
r--. > co
rl I.O
"' rl
"' rl

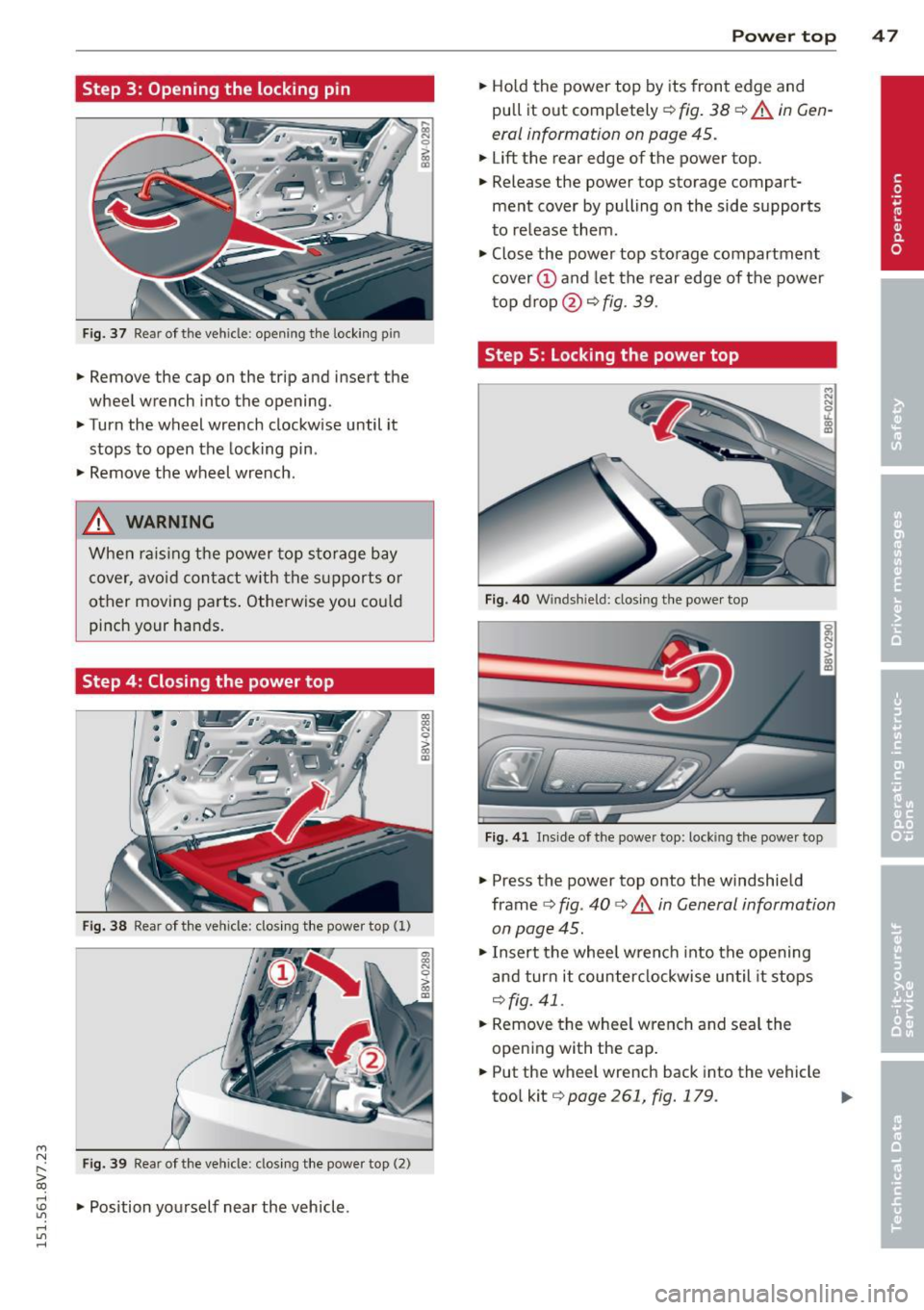

Step 3: Opening the locking pin
Fig. 37 Re ar of the ve hicle : open ing the lock ing p in
.. Remove the cap on the trip and insert the
wheel wrench in to the opening .
.. Turn the wheel wrench clockw ise until it
stops to open the lock ing pin .
.. Remove the wheel wrench .
& WARNING
When rais in g the power top s to rage b ay
cover, avoid con tact w ith the supports o r
-
Power top 4 7
.. Hold the power top by its front edge and
pull it out completely ¢
fig. 38 ¢ A in Gen­
eral information on page
45 .
.. Lift the rear edge of the power top .
.. Release the power top storage compart­
ment cover by pulling on the side supports
to release them .
.. Close the power top sto rage compartment
cover @ and let the rear edge of the power
t op d rop @
¢fig . 39.
Step 5 : locking the power top
other movi ng parts . Othe rwise you cou ld Fi g. 4 0 Winds hield : clos ing t he powe r top
pinch your han ds.
Step 4: Closing the power top
Fig . 3 8 Rear o f the vehicle : closing t he powe r top ( 1)
Fi g. 39 Rear of the vehicle : clos ing t he powe r top (2)
.. Position you rself near the veh icle .
Fig . 4 1 In side of the powe r top: lock ing the power top
.. Press the power top onto the windshie ld
frame
¢ fig . 40 ¢&. in General information
on page
45 .
.. Insert the whee l wrench into the opening
and tur n it counter clockwise until it stops
¢ fig. 41 .
.. Remove the whee l wrench and seal the
openi ng with the cap .
.. Put the wheel wrench back into the vehicle
too l kit ¢
page 261 , fig. 179 . 111>

48 Power top

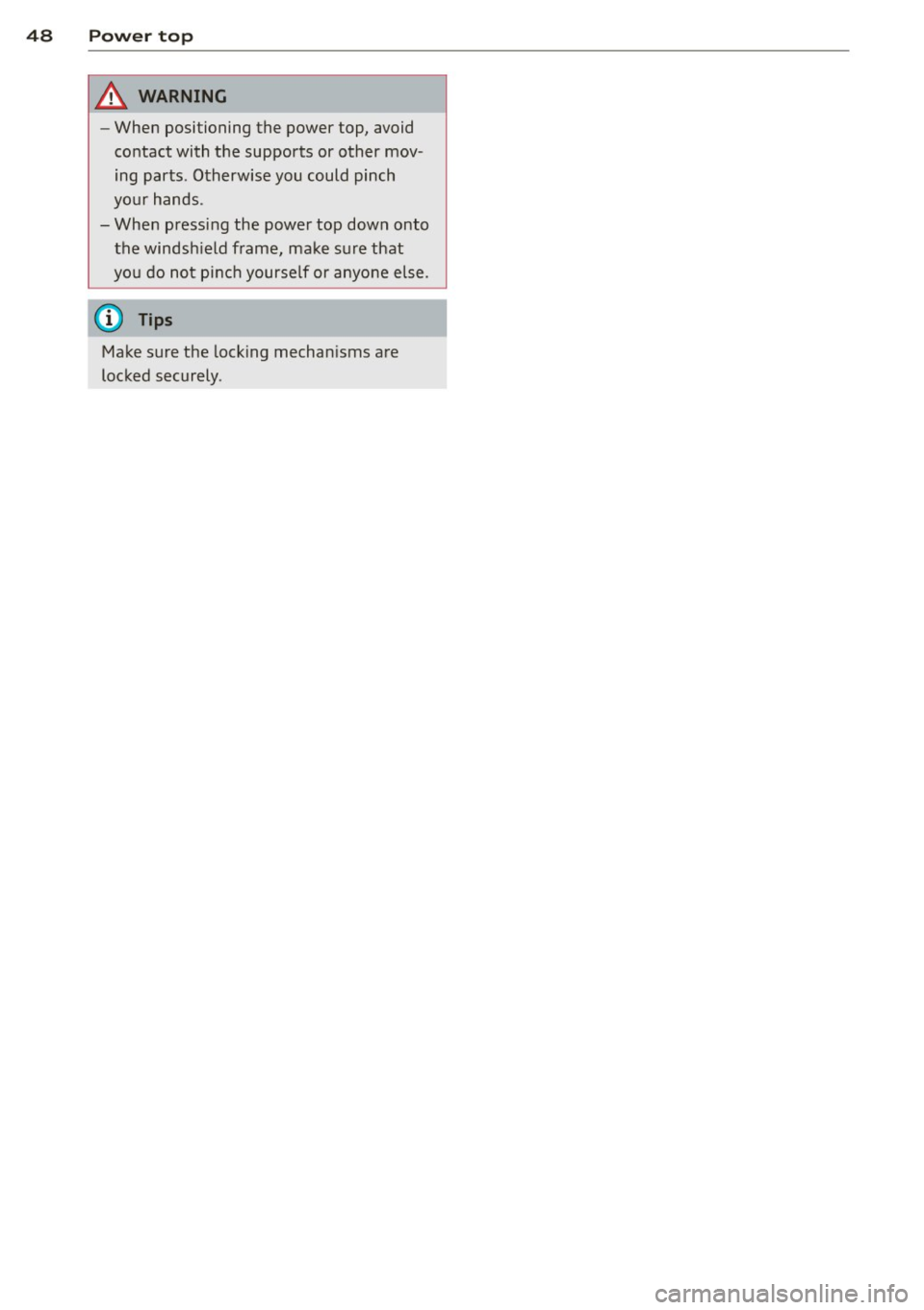

A WARNING
-When positioning the power top, avoid
contact with the supports or other mov ­
ing parts . Otherwise you could pinch
yo ur hands .
- When pressing the power top down onto the windsh ield frame, ma ke s ure that
yo u do not pi nch yourse lf or anyone else.
@ Tips
Make sure the lock ing mechan isms a re
loc ked securely .
-
