Page 1 of 20

AUDI A4 1995 B5 / 1.G 01W Transmission Remove And Install Workshop Manual 34-18


Transmission, removing and
installing

Removing


Special tools and equipment

3282 transmission support
     3282/10 adjustment plate
     3337 ring spanner 7-piec

Page 2 of 20

AUDI A4 1995 B5 / 1.G 01W Transmission Remove And Install Workshop Manual 34-19

Vehicles with 1.8T four-cylinder engine

-  Disconnect wires/and harness connectors as follows:
1 - At solenoid valve for wastegate bypass regulator valve -N75-
2 - At Evaporative Em

Page 3 of 20

AUDI A4 1995 B5 / 1.G 01W Transmission Remove And Install Workshop Manual 34-20

Vehicles with 2.8 liter six-cylinder engine

All models  -  Remove intake air duct -A- (arrows).
-  Unbolt coolant expansion tank -B- (arrows) and lay to one side.
-  Remove Heated O

Page 4 of 20

AUDI A4 1995 B5 / 1.G 01W Transmission Remove And Install Workshop Manual 34-21


4-cylinder engine  -  Remove bracket for noise insulation panel (arrow).

-  Remove heat shield (arrows -1- and -2-) above right drive axle.
Pa
ge 4 of 20 Transmission, removin
g and

Page 5 of 20

AUDI A4 1995 B5 / 1.G 01W Transmission Remove And Install Workshop Manual 34-22


6-cylinder engine  -  Unbolt right transmission support together with bonded rubber mount
(arrows).
-  Loosen clamping sleeves of exhaust system and slide toward Three
Way Catalytic Co

Page 6 of 20

AUDI A4 1995 B5 / 1.G 01W Transmission Remove And Install Workshop Manual 34-23


All models
Note:
Take care not to damage protective coating on drive axles.  -  Remove engine speed (RPM) sensor -G28- on left of transmission
(arrow) and move clear to side.
-  Dis

Page 7 of 20

AUDI A4 1995 B5 / 1.G 01W Transmission Remove And Install Workshop Manual 34-24


Note:
Starter cables do not have to be disconnected.  -  Remove starter from engine/transmission and secure if necessary
Repair Manual, Electrical Equipment, Repair Group 27
 .

Page 8 of 20

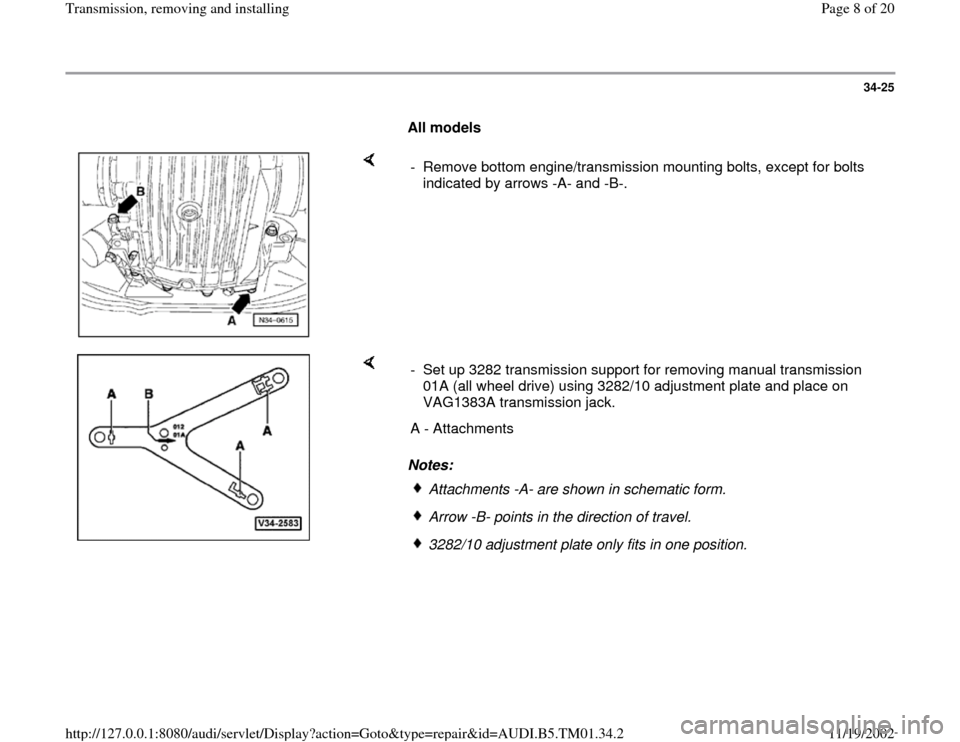

AUDI A4 1995 B5 / 1.G 01W Transmission Remove And Install Workshop Manual 34-25

All models

-  Remove bottom engine/transmission mounting bolts, except for bolts
indicated by arrows -A- and -B-.

Notes:  -  Set up 3282 transmission support for removing man

Page 9 of 20

AUDI A4 1995 B5 / 1.G 01W Transmission Remove And Install Workshop Manual 34-26


Note:
If 3282 transmission support is not available, the transmission can be
removed and installed using the VAG1383A transmission jack and the
VAG1359/2 universal mount.  -  Roll VAG

Page 10 of 20

AUDI A4 1995 B5 / 1.G 01W Transmission Remove And Install Workshop Manual 34-27

4-cylinder engine

6-cylinder engine  -  Remove left transmission support from bonded rubber mount -2-.

-  Remove left and right transmission supports complete with bonded
rubb
