AUDI Q2 2021 Owner´s Manual

System settings
Connection manager
Introduction

The
connection manager
gives
you an overview
of your connected
devices
and their connection
status.

Settings
Connection manager

*
MyPhone
• Additional
phone:

-• Data
connection:

• MMI connect app:
• Audi smartphone:

Fig.
205 Connection manager

•
Select: IMENUI button > Settings
>
Left control
button > MMI settings > Connection manager.

•
Select and confirm a menu option.
If
a
mobile device has already been connected
and you then select and confirm the correspond­
ing menu item, the device's name and connection
mode is displayed under this menu item

^Fig.
205.
You can connect
((vj)
or disconnect
O)
a connec­
ted device individually.
Telephone

Applies
to: vehicles with telephone
- Connect new device: You can search for and
connect
a
mobile phone.
- List of devices already bonded: Select your mo­
bile phone from the List of all devices which
have already been bonded. Or: Insert your own
mini SIM card in the SIM card reader*

^>page
176.
Second phone

Applies
to: vehicles with Audi phone box
- Connect new device: You can search for and
connect
a
mobile phone.
- List of devices already bonded: Select your mo­
bile phone from the List of all devices which
have already been bonded.
Data connection

Applies
to: vehicles with Audi connect (infotainment)

Applies
to: option using the embedded SIM card
- The embedded SIM
card1)
will be used for the
data connection
^>page
191. You do not need
to adjust any other settings.

Applies
to: option using your own SIM card
- Connect new device: You can search for and
connect
a
mobile device (e.g. a smartphone).
- List of devices already bonded: Select your mo­
bile phone from the List of all devices which
have already been bonded. Or: Insert your own
mini SIM card in the SIM card reader*.
© CAUTION
Please always observe the information
•=>©
in
Wi-Fi hotspot on page 202.
MMI connect app

Applies
to: vehicles with Audi connect (infotainment)
Important: The Audi MMI connect app must be
installed on your mobile device and have been

started.

- Connect new device: You can search for and
connect
a
mobile device (e.g. a smartphone).
- List of devices already bonded: Select your mo­
bile device from the List of all devices which
have already been bonded.
Music

Applies
to: vehicles with Bluetooth audio player or Wi-Fi au­

dio
player
Audio player*
Important: The Bluetooth function and the dis­
coverability option of both the MMI system

opage
258 and the mobile phone must be
acti­

vated.

CO

rN
IV
rN
t-H
o <
x)
SIM card installed in vehicle at factory.
257

System settings
- To connect a new device: Press the rotary push­

button.
Select Bluetooth audio player. Search
for and connect a mobile device.
- List of devices already bonded: Select a Blue­
tooth device from the list of all devices which
have already been bonded.
Wi-Fi audio player*
Important: The Wi-Fi hotspot* on the MMI sys­
tem
<=>page
201 and your mobiLe phone must be

activated.

- To connect a new device: Press the rotary push­

button.
Search for and connect
a
Wi-Fi enabled
device.
- To disconnect a Wi-Fi audio player: Deactivate
Wi-Fi on your Wi-Fi enabled device. The device
will be removed from the list automatically.
© CAUTION
Please always observe the information
•=>©
in
Wi-Fi hotspot on page 202.

Directory

Applies to: vehicles with telephone

You
can display the contacts from (other) mobile
phones.
Important: No mobiLe phones are connected to
the MMI via the Bluetooth remote SIM Access
Profile or the Handsfree profile.
- Connect new device: You can search for and
connect
a
new mobile phone. Or: Slide your
own mini SIM card into the slot in the SIM card
reader* until you feel it engage
^>page
176,

Fig. 160.
- List of devices already bonded: Select your mo­
bile phone from the list of all mobiLe phones
which have already been bonded.
Audi smartphone
Applies to: vehicles with Audi smartphone interface
-
Connect
your mobile phone to the Audi music
interface
^>page
241 via a USB adapter

•=>page
240, Fig. 196.
- SeLect your mobile phone from the List of mo­
bile phones already connected.
Further options
Further options may be available in the connec­
tion manager via the right control button de­
pending on the function selected.
Delete Bluetooth device*
The selected mobile phone/mobile device will be
disconnected from the MMI system and removed
from the list of devices already connected.
Display Bluetooth profiles*
You can Connect or Disconnect the Handsfree,
Car phone*, Messages*, Directory/contacts and
Bluetooth audio player profiles individually.
Bluetooth settings*
- Bluetooth: Select and confirm a discoverability
setting
for
the Bluetooth connection. Select
visible to make the MMI visible to other
devi­

ces.
Select invisible to make the MMI invisible
to other devices. Devices which have already
been bonded can connect via Bluetooth even
when discoverability is deactivated. Select off
to switch discoverability off. It is then not pos­
sible to establish a Bluetooth connection.
- Bluetooth audio player: When this function is
switched on
(vf,
the Bluetooth audio player is
available as a source in the Media menu.
- Bluetooth name: The Bluetooth name of the
MMI system (e.g. "AUDI MMI 2017") is dis­
played and can be changed.
Online settings*
- Data connection settings: Refer to
^>page
203,
Configuring the data connection.
- Data usage meter: The number of the data
packets sent/received via the MMI system is

displayed.
Select Reset data meter to reset the
usage statistics to zero.
- Connection status: The mobiLe network provid­
er for data services and the network status are

displayed.

Wi-Fi settings*
Refer to
^>page
201, Wi-Fi hotspot.
258

System settings
Store as default telephone
Applies to: vehicles with telephone
Important: A mobile phone must be connected
to the MMI system
^>page
173.
This mobile phone will be prioritised over other
Bluetooth devices and connected as soon as it is
within range. For this to occur, the Bluetooth
function of both the mobile phone and the MMI
must be switched on. The connected mobile
phone is shown at the top of the device list.
SIM PIN settings*
Applies to: option using your own SIM card
- Automatic PIN entry: When this function is
switched on
[vf,
the SIM PIN is stored in the
MMI after it has been entered for the first time.
You can save the PIN codes of four different
SIM cards on the MMI. If this function is
switched off
O,
the PIN currently stored in the
MMI will be deleted. If the automatic PIN entry
function is activated, the system does not ask
you to enter your SIM PIN explicitly.
- Deactivate PIN query: The system does not ask
for the SIM PIN when you switch it on. The au­
tomatic PIN entry function is ignored in this

case.

- Change PIN: You can change the PIN code for
your SIM
card.
First enter the existing PIN code

for
your SIM
card.
The SIM PIN code can only
consist of numbers from 0 to 9. The new SIM
PIN code has to be entered twice, as a precau­
tionary measure, and is stored on the SIM
card.

Network settings*
- Registration: To dial into your service provid­
er's mobile network automatically or to select a
network manually from the list of available
networks.
- Network selection: You can use this function to
select the available networks for the current
position of the vehicLe. This function is only
available when the manual setting is activated
for registration.
Apple CarPlay sound settings/Android Auto
< sound settings

PI
Applies to: vehicles with Audi smartphone interface
fN

§
Refer to
^>page
260.
About Apple
CarPlay/About
Android Auto
Applies to: vehicles with Audi smartphone interface
Here you will find legal information about using
Apple CarPlay/Android Auto and information
about data transfer for specific devices.
Delete CarPlay device/Delete Android Auto
device
Applies to: vehicles with Audi smartphone interface
Important: Your mobile phone must no longer be
connected to the Audi music interface via a USB
adapter.
To remove your mobile phone from the list of
mobile phones already connected, select and
confirm Delete CarPlay device or Delete Android
Auto device.
© Note
Some SIM cards do not allow the SIM PIN
query to be deactivated
System update

•
Select:
|MENU|
button > Settings > left control
button > System maintenance.
- System update: Insert the storage medium
with the update data into the appropriate drive

tapage
235. Select and confirm the appropri­
ate drive > Start update. The duration of this
process depends on the size of the update.
- Reset driver installation: The media driver
package selected is reset to the factory de­

faults.

- Version information: Information on the soft­
ware version of the MMI and the navigation da­
tabase* is displayed. In addition, you can use
the Software information function to display
information on the MMI's software and licence
conditions.
259

System settings
On-board Handbook
Applies to: vehicles with On-board Handbook

The
On-board Handbook includes the Owner's
Manual
for
your vehicle.
Installing/updating the On-board Handbook
Important: The storage medium on which the
On-board Handbook is stored must have been in­
serted into the relevant drive
^>page
235.
• Select:
|MENU|
button > Settings > Left controL
button > System maintenance > System up­
date > SD card 1, SD card 2, CD/DVD* or USB*.

•
Follow the instructions given by the system.
Starting the Handbook
Important: The Handbook must have been instal­
led previously.

•
Select:
IMENUI
button > Car
>
left control but­
ton > Handbook.
The On-board Handbook will automatically load
in the language that is set underthe option Menu
language in the MMI
^>page
255.
Using the On-board Handbook
The following functions are available when you
are operating the On-board Handbook using the
rotary pushbutton:
- Select and confirm an entry: Turn the rotary
pushbutton to the entry you require and press
the rotary pushbutton.
- Show a picture in full size: Turn the rotary
pushbutton to the desired picture and press the
rotary pushbutton.
- Call up the options menu: You can use the
right controL button to return to the Home
page and open the Index.

/\
WARNING
You should only use the On-board Handbook
when the traffic conditions allow you to do so
safely and when you can maintain proper
con­

trol of your vehicle - risk of injury.
(7) Note
-The On-board Handbook is
not
available in
all countries. Your Audi dealer will be able
to provide you with more detailed informa­

tion.

-Switch off the ignition while you are instal­
ling/updating the On-board Handbook.
- Please note that the On-board Handbook is
not a substitute for the printed Owner's

Manual.

Sound settings

You
can adjust the sound and volume of the MMI
individually.
The
settings depend on the equip­
ment fitted in your vehicle.

Fig.
206 Adjusting balance/fader

•
Select:
|MENU[
button > Sound > Left control
button > Entertainment.
Treble / Bass
You can adjust the settings for Treble and Bass
by turning the rotary pushbutton. Any changes to
the settings only apply to the audio source cur­
rently active. This allows you to set the sound for
each audio source separately.
Balance/fader* (sound focus)
- To set the left/right volume ratio: Press the
rotary pushbutton. Turn the rotary pushbutton
clockwise or anti-clockwise to the desired
posi­

tion.

- To set the front/rear volume ratio*: Press the
rotary pushbutton again. Turn the rotary push­
button clockwise or anti-clockwise to the de­
sired position.
- To set the volume ratio using the MMI touch

pad*:
Move your finger in the desired direction
on the MMI touch pad. •
260

System settings

CO

< o rN
iv
rN
•-i

00
Sound effects
SeLect and confirm a setting for Focus:
-
all:
All the loudspeakers in the vehicle are ac­
tive (evenly distributed sound focus).
- front: Only the loudspeakers in the front of the
vehicle are active.
- rear*: Only the loudspeakers in the rear of the
vehicle are active.
Surround level
You can adjust the surround sound by turning the
rotary pushbutton.

Subwoofer*

You can adjust the subwoofer by turning the ro­
tary pushbutton.
Speed-dependent volume control
You can adjust the automatic volume adaption to
the interior noise level by turning the rotary
pushbutton.
Volume settings
Adjusting the volume
Using the
ON/OFF
button, you can adjust the
vol­

ume of
an
audio source or system message (e.g.
during a speech dialogue*) directly while it is be­
ing played.
- Volume up/down: Turn the ON/OFF button
(T)
^>page
152, Fig. 141 clockwise or
anti-clock­

wise.

- Mute/pause: Briefly press the ON/OFF button.
Or: Turn the ON/OFF button anti-clockwise un­
til the
sy m bol @ •=>
page 161 appears. Any ac­
tive audio/video source will then be paused.
- Unmute/resume: Briefly press the ON/OFF but­

ton.
Or: Turn the ON/OFF button clockwise.

Â
WARNING
The audio system volume should be set at a
level which enables you to hear external
sig­

nals (such as the sirens of police and emer­
gency vehicles)
clearly-failure
to do so could
result in an accident.
When you switch on the MMI system, very
high/very low volume levels are automatically
reduced/increased to a preset level.
Setting the system volume

•
Select:
|MENU|
button > Sound > left control

button.

Telephone
Applies to: vehicles with telephone
Mute telephone: Message and ring tones are si­

lenced.

Ring tone: Refer to
^>page
188, Ring tone and
volume settings.
Ring tone volume: You can adjust the volume of
the ring tone currently selected by turning the ro­
tary pushbutton.
Message volume: You can adjust the volume of
the tone informing you of
a
new message by
turning the rotary pushbutton.
Microphone input level: You can adjust the tele­
phone volume during a call by turning the rotary
pushbutton.
Navigation
Applies to: vehicles with navigation system
Voice guidance: Refer to
^>page
218.
Voice guidance during calls: Refer to

•=>
page 218.
Volume of spoken cues: You can adjust the
vol­

ume of the spoken cues by turning the rotary
pushbutton. Or: You can adjust the volume of the
spoken cues while route guidance is active by
turning the ON/OFF button.
Entertainment fader: This option allows the
vol­

ume of the current audio source to be temporari­
ly reduced when the parking aid is active or while
a navigation cue is being played.
Announcements*
Traffic announcements: Refer to
^>page
229.
DAB announcements*: Refer to
^>page
229. •
261

System settings

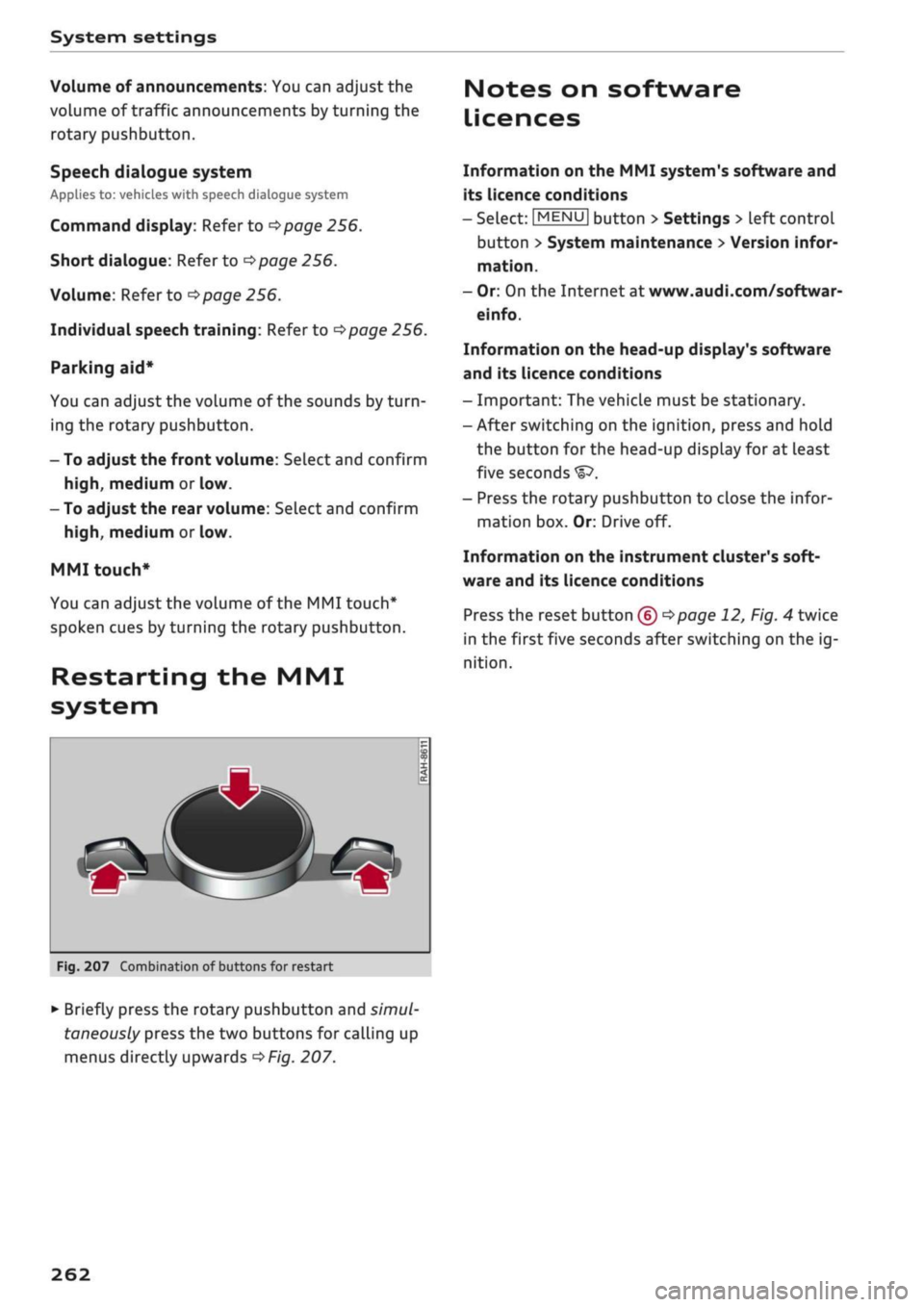

Volume of announcements: You can adjust the
volume of traffic announcements by turning the
rotary pushbutton.
Speech dialogue system

Applies
to: vehicles with speech dialogue system
Command display: Refer to
<=>page
256.
Short dialogue: Refer to
^>page
256.
Volume: Refer to
^>page
256.
Individual speech training: Refer to
^>page
256.
Parking
aid*

You can adjust the volume of the sounds by
turn­

ing the rotary pushbutton.
- To adjust the front volume: Select and confirm

high,
medium or low.
- To adjust the rear volume: Select and confirm

high,
medium or low.
MMI touch*
You can adjust the volume of the MMI touch*
spoken cues by turning the rotary pushbutton.
Restarting the MMI
system

_

Fig.
207 Combination of buttons for restart

•
Briefly press the rotary pushbutton and
simul­

taneously press the two buttons for calling up
menus directly upwards
^>Fig.
207.
Notes on software
Licences
Information on the MMI system's software and
its licence conditions
- Select:
|MENU|
button > Settings > left control
button > System maintenance
>
Version infor­

mation.

- Or: On the Internet at www.audi.com/softwar-

einfo.

Information on the head-up display's software
and its licence conditions
- Important: The vehicLe must be stationary.
- After switching on the ignition, press and hold
the button for the head-up display for at least
five seconds

- Press the rotary pushbutton to close the infor­
mation box. Or: Drive off.
Information on the instrument cluster's soft­
ware and its licence conditions
Press the reset button
(£) ^>page
12, Fig. 4 twice
in the first five seconds after switching on the ig­

nition.

262

Safe driving
Safe driving
General notes
Safety is the first priority
The safety features in your vehicle are harmon­
ised to provide you and your passengers with the
best possible protection in accident situations.
However, they can only be effective if you and
your passengers sit in the correct position and
adjust and use the safety equipment properly.
For these reasons, this chapter explains why
these safety features are so important, how they
can protect you, what you need to remember
when using them, and
how
you and your passen­
gers can gain the most benefit from them. There
are also a number of important safety warnings
which you and your passengers should always ob­
serve in order to minimise the risk of injury.
WARNING
- The information in this chapter is important
for the driver of the vehicle and all passen­

gers.
The other chapters in this manual

(and,
where applicable, in the other litera­
ture supplied with the vehicle) contain fur­
ther important notes which you should read
and observe for your own safety and that of
your passengers.
- Ensure that the complete vehicle wallet is
always in the vehicle. This is especially im­
portant when you lend or sell the vehicle to
others.

CO

<
O
rN
iv
rN
i—i
o < 00
Before every trip
The driver is responsible for the safety of the
passengers and the safe operation of the vehicle
at all times.

For
your own safety and the safety of your pas­
sengers, always note the following points before
every trip:

•
Make sure that all lights and turn signals are
working properly.

•
Check the tyre pressures.

•
Make sure that all windows are clean and give
good visibility to the outside.

•
Secure all luggage and other items carefully

•=>
page 272.
• Make sure that no objects can interfere with
the pedals.

•
Adjust the front seat, head restraint and mir­
rors correctly.
• Applies to: adjustable head restraints: Make
sure that the front passenger's head restraint is
adjusted to the correct position.
• Applies to: adjustable head restraints: Make
sure that the head restraints for the rear pas­
sengers are in the fully raised position.

•
Make sure that children are protected with suit­
able safety seats and properly worn seat belts

•=>
page 267.

•
Sit in the correct position in your seat. Make
sure
that
your passengers are sitting in the cor­
rect positions
^>page
58.

•
Fasten your seat belt correctly. Make sure that
your passengers do the same
^page
275.
What factors can impair your safety?
Safety on the road is directly related to
how
you
drive, and can also be affected by the passengers
in the vehicle.
• The driver is responsible for the safety of the
vehicle and all its occupants. If your ability to
drive is impaired in any way, you endanger
yourself and other road users
,=>^.
Therefore:
• Do not let yourself be distracted by passengers
or by using a mobile phone, etc.

•
Never drive when your driving ability is im­
paired (by medication, alcohol, drugs, etc.).
• Obey all traffic regulations and speed limits
and always maintain a safe distance to the
vehi­

cle in front.

•
Always adjust your speed to suit the
road,
traf­
fic and weather conditions.

•
Take frequent breaks on long trips. Do not drive
for more than two hours without a stop.

•
If possible, avoid driving when you are tired or

stressed.
•
263

Safe driving

/K WARNING

- Distractions while driving or any kind of im­
pairment to your driving ability increase the
risk of accident and injury.
- Do not place loose objects on the dash
pan­

el.
These objects could fly around the interi­
or when the vehicle is moving (under accel­
eration or whilst cornering) and distract the
driver - risk of accident!
264

Safe driving

CO
<
O
rN
iv
rN
•-i

00
Correct sitting positions
Correct driving position

The
correct driving position is important for safe
driving.
25cm

Fig.
208 Adjust seat and sit in correct position
For your own safety, and to reduce the risk of in­
jury in the event of an accident, we recommend
the following driving position.

•
Adjust the driver's seat and steering wheel so
there is a distance of at least 25 cm between
your breastbone and the centre of the steering

wheel
o>F/g.
208.

•
Adjust the height and fore/aft position of the
driver's seat so that you are able to press the
pedals to the floor without fully straightening
your legs
oA.

•
Adjust the backrest to an upright position so
that your back remains in contact with the up­
holstery.

*•
Adjust the longitudinal position of the steering
wheel so that your arms are slightly bent and
you can read the dials and instruments easily.

•
Make sure that you can comfortably reach the
top of the steering wheel.

•
AppLies to adjustable head restraints: Adjust
the head restraint so that the top of the head
restraint is
level
with the top of your head. If
this is not possible, try to adjust the head re­
straint as near as possible to this position.

•
Fasten your seat belt correctly
^>page
275.

•
Keep both feet in the footwell so that you are in
full controL of the vehicle at all times.
For detailed information on how to adjust the
driver's seat, see
^>page
58, Front seats.
A WARNING
A driver who is not sitting in the correct
posi­

tion or who is not wearing a seat belt can be
fatally injured
if
the airbag is triggered.
- Adjust the driver's seat and steering wheel
so there is a distance of at least 25 cm be­
tween your breastbone and the centre of the
steering wheel
^>Fig.
208.
-While driving, always hold the steering
wheel with both hands on the outside of the
rim at about the 9 o'clock and 3 o'clock
posi­

tion.
This reduces the risk of injury if the
driver's airbag inflates.
- Never hold the steering wheel at the 12
o'clock position, or with your hands inside
the rim or on the steering wheel hub. This
could result in serious injuries to the arms,
hands and head if the driver's airbag in­

flates.

- To reduce any risk of injury to the driver dur­
ing a sudden brake application or in an
acci­

dent, never drive with the backrest tilted
too far back. The airbag system and seat
belts can only provide proper protection
when the backrest is in an upright position
and the driver is wearing the seat belt in the
correct position. The further the backrest is
tilted back, the greater the risk of injury due
to incorrect positioning of the belt webbing
or an incorrect sitting position.
- Adjust the head restraint properly so that it
can give maximum protection.
Correct position for the front passenger

The
front seat passenger must sit at least 25 cm
away from the dash panel so that the airbag has
enough room to inflate and give maximum pro­
tection in an accident.
For your own safety and to reduce the risk of in­
jury in the event of
an
accident, we recommend
adjusting the front passenger's seat as follows:

•
Adjust the backrest to an upright position so
that your back remains in contact with the up­
holstery.

•
Adjust the head restraint so that the top of the
head restraint is level with the top of your
265

Safe driving

head.
If this is not possible, try to adjust the
head restraint as near as possible to this
posi­

tion.

•
Keep both feet in the footwell in front of the
seat.

•
Fasten your seat belt correctly
^>page
277.
In exceptional cases you can disable the front
passenger's airbag via the key-operated switch*

^>page
288.
For detailed information on how to adjust the
front passenger's seat, see
^page
58, Front
seats.
A WARNING
A passenger who is not sitting in the correct
position or who is not wearing a seat belt can
be fatally injured if the airbag is triggered.
- Adjust the front passenger's seat so there is
a distance of at least 25 cm between your
breastbone and the dash panel.
- Always keep your feet on the floor when the
vehicle is moving; never rest them on the in­
strument panel, out of the window or on the
seat. If
you
sit in an incorrect position, you
increase your risk of injury in the event of
sudden braking or an accident. If the airbag
is triggered, you could sustain potentially
fatal injuries by sitting out of position.
- To reduce the risk of injury to the front pas­
senger in the case of sudden braking or an
accident, the passenger should never travel
in a moving vehicle with the backrest re­

clined.
The airbag system and seat belt can
only provide proper protection when the
backrest is in an upright position and the
passenger is wearing the seat belt in the
correct position. The further the backrest is
tilted back, the greater the risk of injury due
to incorrect positioning of the belt webbing

or
an incorrect sitting position.
- Always adjust the head restraints properly
for maximum protection.
Correct position for rear passengers
Rear seat passengers should sit upright with
both feet on the floor and wear their seat belts
properly whenever the vehicle is moving.
To reduce any risk of injury in the event of sudden
braking or an accident, passengers in the rear
seats must observe the following:

•
Before carrying passengers on the rear seats,

puLl
the head restraints on the occupied seats
all the way up
^>page
59.
• Keep both feet in the footwell in front of the
rear seat.

•
Fasten your seat belt correctly
^page
278.

•
Use appropriate child restraint systems for
chil­

dren travelling in the vehicle
^>page
267.

/K
WARNING
Rear passengers sitting out of position can
suffer severe injuries.
- Always adjust the head restraints to the
fully raised position for maximum protec­

tion.

- Seat belts only offer maximum protection
when the backrest is in an upright position
and the passengers are wearing the seat
belts properly. By not sitting upright, rear
passengers increase the risk of injury due to
incorrect positioning of the seat belt web­

bing.

Correct adjustment of head restraints
Properly adjusted head restraints are an
impor­

tant part of the vehicle's occupant protection
system.
They
can help to reduce the risk of inju­
ries in most accident situations.

Fig.
209 Head restraint (seen from the front)
266
