Navigation
- Please always note the information in the
chapter
^>page
204, General notes on Audi
connect (infotainment).
- Every vehicle with active Online traffic data
contributes to specifying and predicting the
traffic situation as precisely as possible. For
this purpose, information on the position of
your vehicle is encrypted and transmitted
anonymously to the traffic data providers at
regular intervals. Should you not wish this
to happen, you can switch off the online
traffic information function at any time.
- The online traffic information network is
not yet available in all countries or areas.
Further information can be found on the In­
ternet at www.audi.com.

CO

rN
r^
rN
•-H

00
Troubleshooting
Applies to: vehicles with navigation system
Subject
Search function: The desired des­
tination cannot be found.
Advice
The destination may not be stored in the navigation database. Or:
Check that you have spelt the search term correctly and that the
desired country has been selected for the search function via the
Country selection option
^>page
213.
227

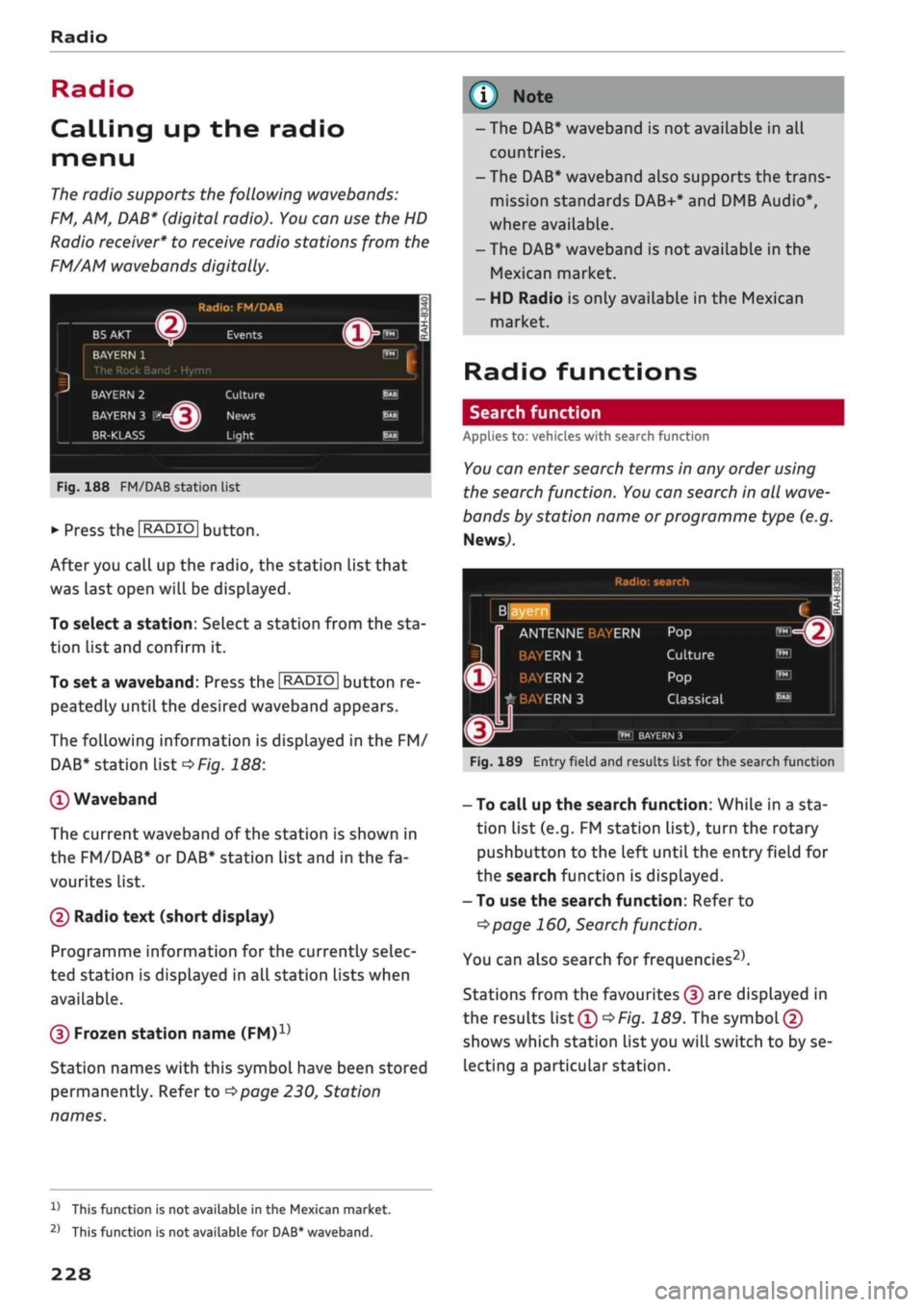

Radio
Radio
Calling up the radio
menu

The
radio supports the following wavebands:

FM,
AM, DAB* (digital radio).
You
can use the HD
Radio
receiver*
to receive radio stations from the
FM/AM wavebands
digitally.

© Note

„
. Radio: FM/DAB

BS
AKT
^j9

BAYERN 1
-^
The Rock Band - Hymn

"
BAYERN 2
BAYERN 3
'Hf»l)

BR-KLASS
Events
Culture
News
Light

/Z^

O
•^^
•

T^M
:

m

Fig.
188 FM/DAB station list

•
Press the
I
RADIO[
button.
After you call up the radio, the station list that
was last open will be displayed.
To select a station: SeLect
a
station from the sta­
tion List and confirm it.
To set a waveband: Press the
I RADIO |
button re­
peatedly until the desired waveband appears.
The following information is displayed in the FM/

DAB*
station List
<*Fig.
188:
©Waveband
The current waveband of the station is shown in
the FM/DAB* or DAB* station list and in the fa­
vourites list.
(D Radio text (short display)
Programme information for the currently seLec­
ted station is displayed in all station lists when
available.
(D Frozen station name
(FM)1'

Station names with this symbol have been stored
permanently. Refer to
^page
230, Station
names.
- The DAB* waveband is not available in all
countries.
- The DAB* waveband also supports the trans­
mission standards DAB+* and DMB Audio*,
where available.
- The DAB* waveband is not available in the
Mexican market.
- HD Radio is only available in the Mexican
market.
Radio functions
Search function
Applies to: vehicles with search function

You
can enter
search
terms in any order using
the search function.
You
can search in all
wave­

bands by station name or programme type (e.g.

News,).

Radio: search
ANTENNE
ERN

Culture ERN 1
ERN 2

#BAYERN3
Classical

r'M
BAYERN 3

Fig.
189 Entry field and results list for the search function
- To call up the search function: While in a sta­
tion list (e.g. FM station list), turn the rotary
pushbutton to the left until the entry field for
the search function is displayed.
- To use the search function: Refer to

^>page
160, Search function.
You can also search for frequencies2'.
Stations from the favourites
(f)
are displayed in
the results list®
^>Fig.
189. The symbol©
shows which station list you will switch to by se­
lecting a particular station.

V
This function is not available in the Mexican market.

2)
This function is not available for DAB* waveband.
228

Radio
Further options
• Select: |RADI0| button > right control button.
The following options may be available to you de­
pending on the waveband:
- Sound settings: Refer to
^>page
260.
- Store as favourite: Refer to
^>page
231, Fa­
vourites.
-Tag this song for
iTunes*:1)2)
Connect your Ap­
ple device to the Audi music interface*. Select
and confirm Tag this song for iTunes. The track
that is currently playing will be copied to your
Apple device. Synchronise your Apple device
with iTunes. The next time you call up your
iTunes library, the tagged tracks
wiLl
be dis­

played.
If no Apple device is connected, the
tagged tracks will be stored temporarily on the
MMI system (max.
50
tracks). As soon as you
connect your Apple device to the Audi music in­
terface, the tags will be imported to the device.
- Programme
guide*:3'
The current and next ra­
dio programmes are Listed in the digital pro­
gramme guide* for all supported stations. Se­
lect and confirm a radio programme to have
more details on the programme displayed.
- Manual station search:4' The frequency bar is

displayed.
Select and confirm the desired
fre­

quency.
- Seek:5' The previous/next receivable frequency
will be set.
- Radio settings: Refer to
^>page
231.

Announcements
• Select: |RADI0| button > right control button >
Announcements.
Traffic
announcements*:6'

- off: Traffic announcements are not played.
- FM: Traffic announcements can be received via
FM and played
by
the system irrespective of the
selected waveband.
- FM/DAB*: You receive traffic announcements
from both wavebands. If DAB traffic announce­
ments are not available from the station cur­
rently set, they will be received from the FM

waveband.

DAB announcements*:6'
Depending on station availability, information

(e.g.
news, weather information) may be played
when the function
Fvf
is switched on.
Volume of announcements:6'
Refer to
•=>page
261.
Radio text
• Select: [RADIO] button > left control button > a
waveband (e.g. FM) > a station.

*•
Select: right control button > Radio text.
Additional information on the programme (e.g.
artist, composer, track) is shown.
To browse radio text entries: Turn the rotary
pushbutton clockwise or anti-clockwise.
Important: A radio text entry must be displayed,
and the station must be transmitting a telephone
number, navigation destination or a text mes­
sage number as Radio Text Plus information.
If a location, telephone number or text message
number has been stored for a radio text entry,
the entry will be displayed with a coloured frame.
The following options are available:
CallVStart route guidanceVWrite text mes­

sage*:

- Select a radio text entry with Radio Text Plus in­
formation and press the rotary pushbutton.

CO

<
O
rN
IV
rN
t-H
o <

W
This function is only available in the Mexican market.

2'
Still under development at the time of print.

3)
Not in the FM, AM station lists

4)
Not in the DAB* waveband or in the mixed FM/DAB* sta­
tion list.

5)
Not in the mixed station list FM/DAB*

6)
This function is not available in the Mexican market.
229

Radio
Select and confirm Call*/Start route guid-
anceVWrite text message*. Or: Press the

|BACK|
button to cancel the process.
The availability of radio text and Radio Text
Plus depends on the radio station.
Station names

•
Select:
I
RADIO
|
button > left control button >

FM.
Select the desired station from the station
list.
Variable station names:
Some stations use variable station names. De­
pending on how the station names are sorted,
the position of
a
variable station name may
change in the station list. You can lock the cur­
rent name of
a
selected station permanently by
selecting the Lock station name1' option.
- Lock station name: Select the right control
button > Confirm. The locked station name will
be marked with the symbol (J)
^>page
228,
Fig. 188.
- Unlock station name: Select the right control
button > Unlock station name. The name re­
ceived for the radio station will be displayed.
Detailed station information view

BR-Klassik

btreichquartett
Es-Dur, D
87
, op.p

Fig.
190 Radio view: Detailed station information
Important: The system must be tuned to a radio

station.
The detailed station information option
must be switched on
^>page
232.
Symbols in the detailed station information view

OFig.
190:

(T)
Radio text availability
Radio text is available for the current station. Re­
fer to
•=>
page 229.
(2) Slide show availability1'
A slide show is available for the current station.
(3) Interference (DAB*, FM HD Radio*)
The station cannot be received.

0
Picture view
You can choose to dispLay a slide show1', cover
art1' or the station logo2'. Refer to
Opage
232,
Preferred image*
(DAB*,
HD Radio waveband,

FM).

Displaying the station list:
Turn the rotary pushbutton. Or: Press the |BACK|

button.

Radio menu

©-!
^
Favourites

|J |
FM/DAB |

f
DAB

Fig.
191 Example: Radio menu

•
Select:
I
RADIO
I
button > left control button.
To set the waveband: SeLect and confirm the
waveband you require in the radio menu

<=>F/g.
191. Or: Press the
[RADIO|
button repeat­
edly until the desired waveband appears. The sta­
tion list will be displayed. •

V
This function is not available in the Mexican market.

2)
Station logos may not be available in all countries.
230

Radio

(T)
Favourites
The favourites List will be displayed. The menu
item Favourites appears if at least one radio sta­
tion has been stored as a favourite. Refer to

*$page
231, Favourites.
©FM/DAB*
The mixed FM/DAB station List* appears when

DAB*
is available. Refer to
opage
228, Calling
up the radio menu.
Other wavebands
Depending on the vehicle's equipment, you may
be able to select other wavebands
©/@/(s)

^>Fig.
191 in the selection menu.
Favourites
You can store your favourite stations from any
waveband in the favourites
list.

Other settings
Radio settings

CO

<
O
rN
IV
rN
t-H
o <

•
Press the
I
RADIO
|
button.
Important: You must be in a station List.
- To store a favourite: Select a station from the
list > right control button > Store as favourite.
Or: Press and hold the rotary pushbutton for
several seconds.
Important: At least one favourite must be stored
in the favourites list.
- To display the favourites list: Select the

I
RADIO
|
button > Favourites.
Important: The favourites list must be displayed.
- To listen to a favourite: SeLect and confirm a
favourite from the
list.

- To move a favourite: SeLect a favourite from
the list > right control button > Move favourite.
Or: Press and hold the rotary pushbutton for
several seconds. Select and confirm the
posi­

tion of the favourite selected.
- To delete a favourite: Select a favourite from
the list > right control button > Delete favour­
ite > Delete this favourite or Delete all favour­

ites.

*'
This function is not available in the Mexican market.

2)
This function is only available in the Mexican market.

•
Select: |RADI0| button > right control button >
Radio settings.
Depending on the waveband setting, you can se­
lect the following options:
Alternative frequency* (FM, DAB*)1'

on:
The tuner attempts to switch to an alterna­
tive frequency of the current station when the re­
ception quality becomes weaker. When the re­
ception is lost in the FM or DAB* waveband, the
system will automatically (in the background)
switch to an alternative station, if there is one
available.
off: Switching to an alternative frequency is
switched off. The current frequency will be main­

tained,
and in some cases may no longer be re­

ceived.
In the FM waveband, the alternative
fre­

quency function is automatically switched on
again when the station is changed.
Switch regional stations* (FM,
DAB*)1'

Important: The Alternative frequency function
must be switched on.
Some stations divide up their programming by
region and provide different content to different
regions. When the function is on
(vf,
the system
switches to related regional stations if the cur­
rent station has poor reception.

Lband
(DAB*)1'
There are two wavebands for the digital radio:
Band III and L band. Ensembles in the band III
usually have a larger range extending into several
regions. They can be received at all times. In
some regions DAB is broadcast in the
L
band.
When this option is on, stations from the L band

will
also be received.
Station names (FM)2'

scrolling:
Scroll texts transmitted by FM stations
will appear on the infotainment display. •
231

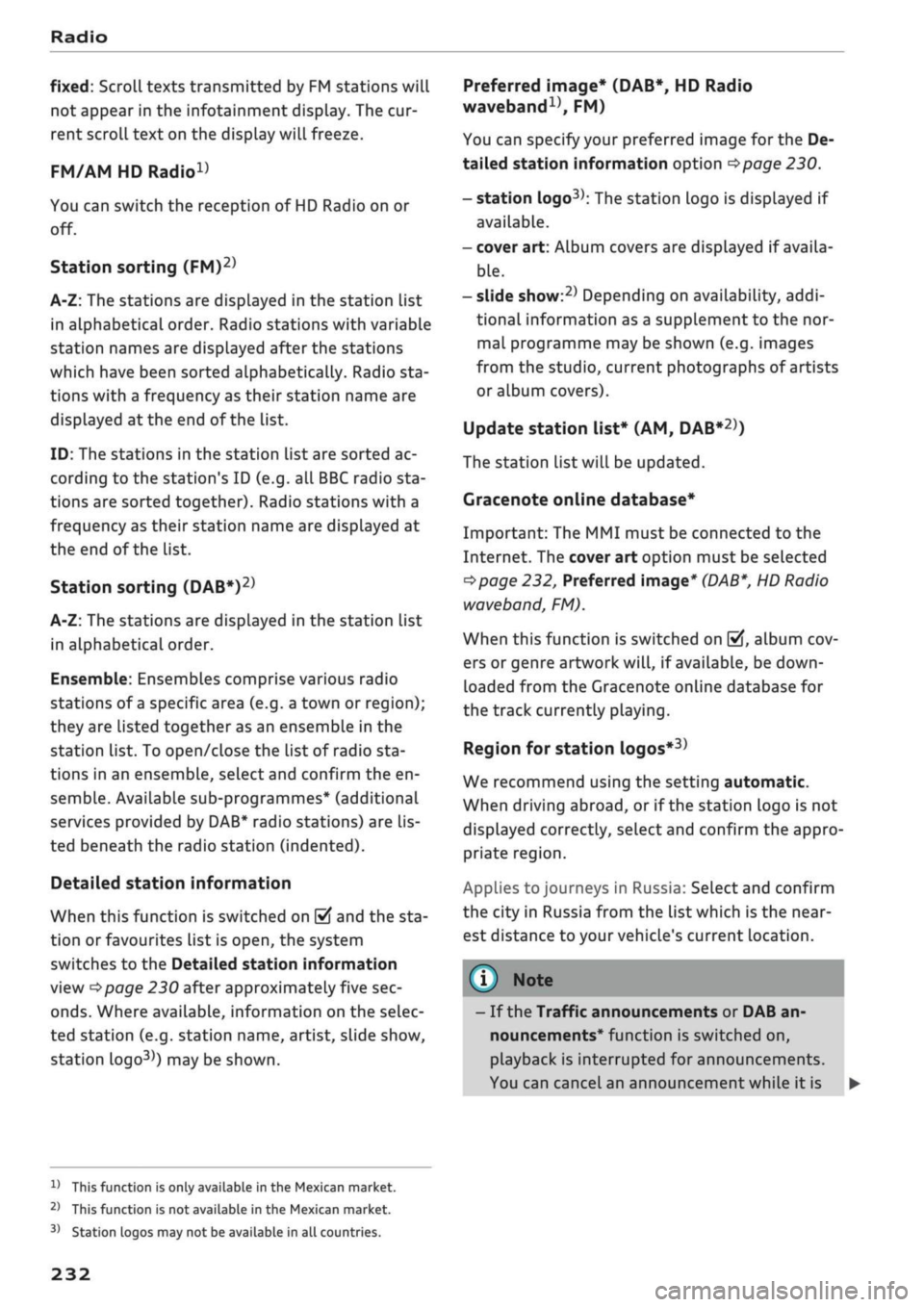

Radio

fixed:
Scroll texts transmitted by FM stations will
not appear in the infotainment display. The cur­
rent scroll text on the dispLay will freeze.
FM/AM HD Radio1'
You can switch the reception of HD Radio on or

off.

Station sorting (FM)2'
A-Z: The stations are displayed in the station list
in alphabetical order. Radio stations with variable
station names are displayed after the stations
which have been sorted alphabetically. Radio sta­
tions with a frequency as their station name are
displayed
at
the end of the list.

ID:
The stations in the station list are sorted ac­
cording to the station's ID (e.g. all BBC radio sta­
tions are sorted together). Radio stations with a
frequency as their station name are displayed at
the end of the list.
Station sorting
(DAB*)2'

A-Z: The stations are displayed in the station list
in alphabetical order.
Ensemble: Ensembles comprise various radio
stations of
a
specific area (e.g. a town or region);
they are listed together as an ensemble in the
station list. To open/close the list of radio sta­
tions in an ensemble, select and confirm the en­
semble. Available sub-programmes* (additional
services provided by DAB* radio stations) are
lis­

ted beneath the radio station (indented).
Detailed station information
When this function is switched on
Ef
and the sta­
tion or favourites list is open, the system
switches to the Detailed station information
view
<^page
230 after approximately five sec­

onds.
Where available, information on the seLec­
ted station (e.g. station name, artist, slide show,
station logo3') may be shown.

11
This function is only available in the Mexican market.

2^
This function is not available in the Mexican market.

3)
Station logos may not be available in all countries.
Preferred image* (DAB*, HD Radio
waveband1', FM)
You can specify your preferred image for the De­
tailed station information option
^>page
230.
- station logo3': The station logo is displayed if
available.
- cover art: Album covers are displayed if availa­

ble.

- slide show:2' Depending on availability,
addi­

tional information as a supplement to the nor­
mal programme may be shown (e.g. images
from the studio, current photographs of artists
or album covers).
Update station list* (AM, DAB*2')
The station list will be updated.
Gracenote online database*
Important: The MMI must be connected to the
Internet. The cover art option must be selected

^>page
232, Preferred image*
(DAB*,
HD Radio
waveband, FM).
When this function is switched on
[vj,
album cov­
ers or genre artwork
will,
if available, be down­
loaded from the Gracenote online database for
the track currently playing.
Region for station logos*3'
We recommend using the setting automatic.
When driving abroad, or if the station Logo is not
displayed correctly, select and confirm the appro­
priate region.
Applies
to
journeys in Russia: SeLect and confirm
the city in Russia from the list which is the near­
est distance to your vehicle's current Location.

(T)
Note
If the Traffic announcements or DAB an
nouncements* function is switched on
playback is interrupted for announcements
You can cancel an announcement while it is
232

Radio
being played by briefly pressing the ON/OFF
button (î)
cépage
152, Fig. 141.
- Not all radio settings for the FM and DAB*
wavebands are available in the mixed sta­
tion list FM/DAB*.
Troubleshooting
Subject
A station with poor reception is no longer
Listed in the station List after you switch to
another station.
Advice
Store the station as a favourite in advance and call it up
via the favourites List
opage
231.

CO

rN
IV
rN
i-H

00
233

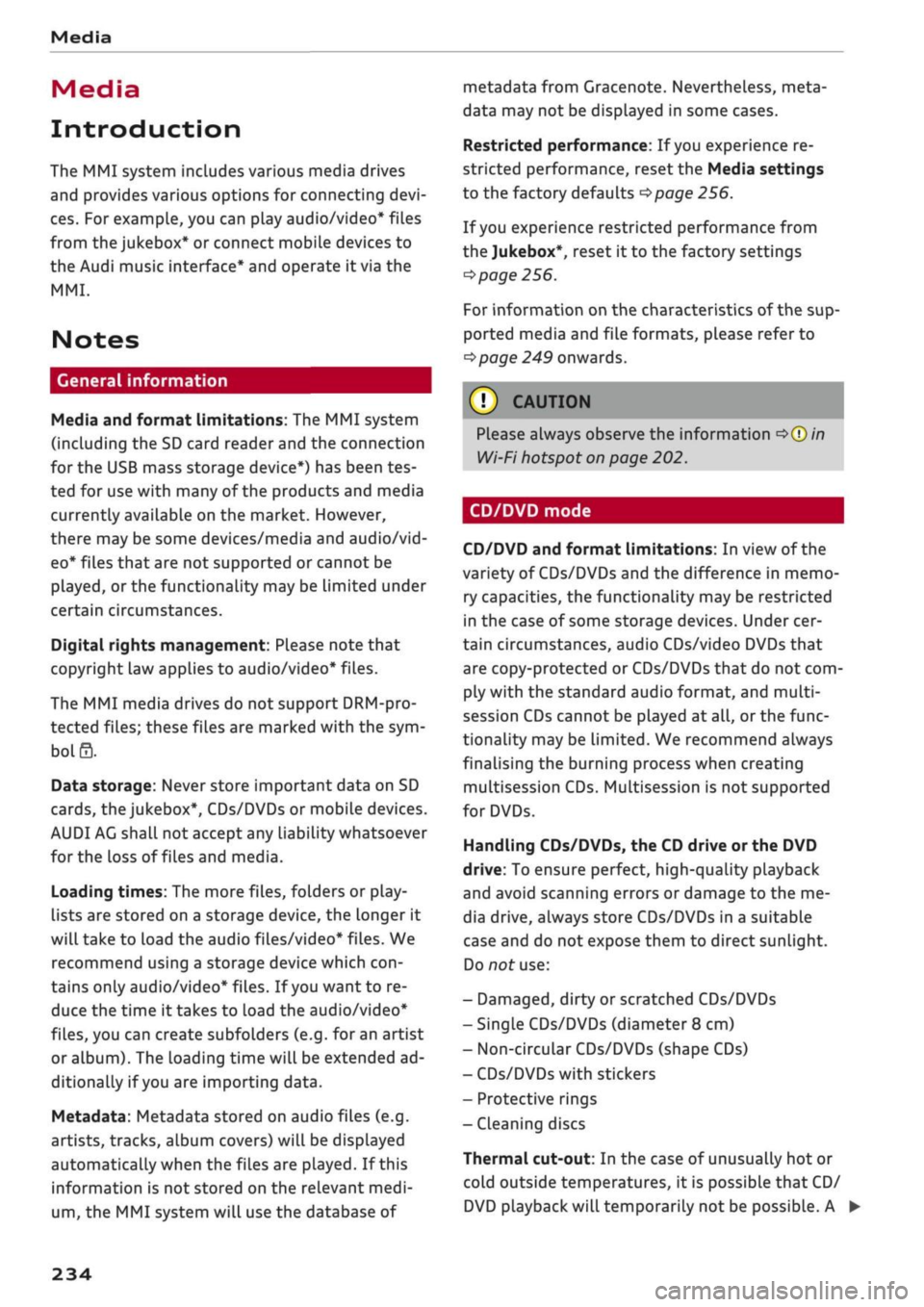

Media
Media
Introduction
The MMI system includes various media drives
and provides various options for connecting
devi­

ces.
For example, you can play audio/video* files
from the jukebox* or connect mobile devices to
the Audi music interface* and operate it via the

MMI.

Notes
General information
Media and format limitations: The MMI system
(including the SD card reader and the connection

for
the USB mass storage device*) has been tes­
ted for use with many of the products and media
currently available on the market. However,
there may be some devices/media and audio/vid­

eo*
files that are not supported or cannot be

played,
or the functionality may be limited under
certain circumstances.
Digital rights management: Please note that
copyright Law applies to audio/video* files.
The MMI media drives do not support DRM-pro-
tected files; these files are marked with the sym­
bol S.
Data storage: Never store important data on SD

cards,
the jukebox*, CDs/DVDs or mobile devices.
AUDI AC shall not accept any liability whatsoever

for
the loss of files and media.
Loading times: The more files, folders or play­
lists are stored on a storage device, the longer it
will take to load the audio files/video* files. We
recommend using a storage device which
con­

tains only audio/video* files. If
you
want to re­
duce the time it takes to load the audio/video*

files,
you can create subfolders (e.g. for an artist
or album). The loading time will be extended ad­
ditionally if
you
are importing data.
Metadata: Metadata stored on audio files (e.g.
artists, tracks, album covers) will be displayed
automatically when the files are played. If this
information is not stored on the relevant medi­

um,
the MMI system will use the database of
metadata from Gracenote. Nevertheless, meta­
data may not be displayed in some cases.
Restricted performance: If
you
experience re­
stricted performance, reset the Media settings
to the factory defaults
^page
256.
If
you
experience restricted performance from
the Jukebox*, reset it to the factory settings

<=>
page 256.
For information on the characteristics of the sup­
ported media and file formats, please refer to

opage
249 onwards.
CAUTION
Please always observe the information
<=>(J)in

Wi-Fi hotspot on page 202.
CD/DVD mode
CD/DVD and format limitations: In view of the
variety of CDs/DVDs and the difference in memo­
ry capacities, the functionality may be restricted
in the case of some storage devices. Under cer­
tain circumstances, audio CDs/video DVDs that
are copy-protected or CDs/DVDs that do not com­
ply with the standard audio format, and multi-
session CDs cannot be played at all, or the func­
tionality may be limited. We recommend always
finalising the burning process when creating

multisession
CDs. Multisession is not supported
for DVDs.
Handling CDs/DVDs, the CD drive or the DVD

drive:
To ensure perfect, high-quality playback
and avoid scanning errors or damage to the me­
dia drive, always store CDs/DVDs in a suitable
case and do not expose them to direct sunlight.
Do not use:
- Damaged, dirty or scratched CDs/DVDs
- Single CDs/DVDs (diameter 8 cm)
- Non-circular CDs/DVDs (shape CDs)
- CDs/DVDs with stickers
- Protective rings
- Cleaning discs
Thermal cut-out: In the case of unusually hot or
cold outside temperatures, it is possible that CD/
DVD playback will temporarily not be possible. A •
234

Media

CO
< o rN
IV
rN
i—i
o <
•H
00
thermal cut-out is installed to protect the CD/
DVD and the reading laser.
Laser devices: Laser devices are divided into the
safety classes 1 to 4, as specified by DIN
IEC
76
(CO) 6/VDE 0837. The optical readers installed in
your vehicle are classified as safety class 1. La­
sers used in devices that fall into this category
are very weak and well screened, so there is no
danger if used correctly.
Media drives
SD card readers

Fig.
192 Inserting an SD card
Depending on the vehicle's equipment, there may
be either one or two SD card readers in the glove

box@ tapage
10, Fig. 2.
- To insert an SD card: The missing corner of the
SD card should be at the front right. Slide the
SD card into the slot in the card reader® until
you
feel
it engage
^>Fig.
192.
- Automatic playback: When an SD card with
supported audio/video files*
^>page
249 is in­

serted,
playback will start automatically.
- To remove an SD card: Briefly press the SD

card.

The SD card readers are called up and operated
via the MMI
© ^page
243, Fig. 199.
© CAUTION
Only use one-piece SD cards. If
you
use adapt­
er cards (more than one piece), the SD card
can become detached from the adapter (e.g.
caused
by
jolting,
etc). Parts could then get
stuck in the drive, impairing the functionality
of the system.
Store the SD cards in a suitable case to pro­
tect them from dirt and dust and to avoid
damage.
DVD drive
Applies to: vehicles with DVD drive



J

®

_

rt™

w-
Audi multimedia

00
(N
00
°p
I <
_J
___

Fig.
193 DVD drive
The DVD drive is located in the glove
box@
^>page
10, Fig. 2.
-To load a CD/DVD: The CD/DVD will be drawn
in automatically. Insert the CD/DVD (text fac­
ing upwards)
into
the DVD slot©
OF/g.
193,
holding it straight.
-Automatic playback: Playback starts automati­
cally when a CD/DVD with supported audio/vid­

eo*
files
^>page
249 is inserted.
-To eject a CD/DVD: Press button®
^F/g.
193.
After it has been ejected, the CD/DVD will be
pulled back into the DVD drive automatically af­
ter about ten seconds if it is not removed from
the DVD slot.
The DVD drive is called up and operated via the

MMI
©
^>page
243, Fig. 199.
CAUTION
- Never use any force to push a CD/DVD into
the drive. The CD/DVD will be drawn into
the slot automatically.
- Do not insert any CDs/DVDs with stickers in­
to the media drive. The stickers could be­
come detached from the CD/DVD and dam­
age the drive.
235

Media

i)
Note
Playback cannot be guaranteed if the CD/DVD
contains audio/video files with a high data

rate.

CD drive
Applies to: vehicles with CD drive
Jukebox
Applies to: vehicles with jukebox

Audi
multimedia

Fig.
194 CD drive
The CD drive is located in the glove
box@
^>page
10, Fig. 2.
- To load a CD: The
CD
will be drawn in automati­
cally. Insert
the
CD (text facing upwards) into

the CD slot
©oF/g.
194, holding it straight.
- Automatic playback: Playback starts automati­
cally when a
CD
with supported audio files

^>page
250,
CD
drive is inserted.
- To eject a CD: Press button ®
^>Fig.
194.
After it has been ejected, the
CD
will automati­
cally be pulled back into the CD player after
about ten seconds if it is not removed from the
CD slot.
The
CD
drive is started and operated via the MMI

^>page
243, Playing media.
CAUTION
- Never use any force to push a CD into the

drive.
The
CD
will be drawn into the slot au­
tomatically.
- Do not insert any CDs with stickers into the
media drive. The stickers could become de­
tached from the CD and damage the drive.
© Note
After you have filled the jukebox with music or
videos, for example from your
SD
card, you can
play them directly from the jukebox. The jukebox
has approximately 10
GB
of storage.

•
Press the |MEDIA| button. Press the left control
button repeatedly until the source overview

^page
243 is displayed. SeLect and confirm
Jukebox.
Filling
the
jukebox
- Press the |MEDIA| button. Press the left control
button repeatedly until the source overview

*=>page
243 is displayed. SeLect one of the
fol­

lowing sources to copy to the jukebox: SD

card*,
CD-ROM*, DVD-ROM*, USB storage de­

vice*.

Important: The media centre (e.g. tracks, al­
bums) must be open.
- To select an entry: Select an entry from the
media centre. SeLect: right control button >
Copy to jukebox
>
This entry or Entire list.
Important: The playlist must be open. Refer to

ï>
page 246.
- To choose a track: Select the track currently be­
ing played. Select: right control button
>
Copy
to jukebox
>
This track/Entire album
or
This
artist.
Important: A video file must be playing.
-Select: right control button > Copy to jukebox.
The copying procedure will start and its status
will be shown on the MMI.
- To hide the copying procedure: Select and
con­

firm Continue copying in background. The
copying procedure will be hidden.
- To cancel the copying procedure: Select and
confirm Cancel copying procedure. Or: Remove
the source from which you are currently import­
ing files. Files that have already been copied
will remain stored. •
Playback cannot be guaranteed if the CD
con­

tains audio files with a high data rate.
236
