,...., Audi drive select Drive settings
Introduction
Applies to vehicles: with Audi drive select
Drive select provides the possibility to experience
d iff erent types of vehicle settings in one veh icle.
F or instance, using the three
Comfort, Auto and
Dynamic modes, the driver can switch from a
sporty to a comfortab le driving mode with the
press of a button.
Addit ionally, in vehicles with MM I*, the vehicle
setup for
Individual* mode can be customized by
you. This makes it possible to combine settings
such as a sporty engine tuning with comfortable
steering.
A WARNING
-
Improper use of the drive select can cause
collisions, other accidents and serious person­
al injury.
Description
App lies to vehicles: with Audi drive select
The vehicle setup in each mode depends on the
veh icle's features . However, the engine, auto­
matic transmission and steering are always in­
volved.
Engine and automatic transmission
Depending on the mode, the engine and the au ­
tomatic transm ission respond quicker or in a
more balanced manner to accelerator pedal
movements . In the sporty dynam ic mode, the au­
tomatic transmission shifts at higher RPMs .
Steering
The steering adapts in terms of steering effort
and steering ratios . Indirect steer ing that moves
eas ily, like the steering in comfort mode, is best
suited to long drives on a highway. In contrast,
dynamic mode provides sporty, direct steering.
The follow ing applies to vehicles with dynam ic
steering*: the steering rat io changes based on
vehicle speed in order to ma inta in optim um
steering effort for the driver at all times. This
Audi drive select
sets the steering to be less sensitive at higher
speeds in order to provide improved vehicle con­
tro l. At reduced speeds, however, steering is
more direct in order to keep the steering effort as
minimal as possible when the driver is maneuver­
ing the vehicle. At low and average speeds, dy ­
nam ic steering additionally prov ides more re­
sponsive steering performance .
Adaptive dampers*
The adaptive dampers* use sensors to record in­
formation regarding steering movements, brak­ ing and acceleration operations by the driver,
road surface, driving speed, and load . This makes
it possible to adapt damping to the driving situa­
t ion virtua lly in real time. Drive select also makes
it possible to sat isfy the desire for sporty suspen­
sion (Dynamic) and comfortable suspension
(Comfort) without giving up balanced tuning (Au­
to).
Engine sound*
T he sound of the eng ine is adapted to the select ­
ed mode and ranges from subtle to spo rty.
Adaptive cruise control*
The behavior when accelerating can be adjusted
from comfortable to sporty, depending on the drive select mode. Adaptive cruise control also
responds to the driv ing behavior of the vehicle
ahead in a more conservative or sporty manner.
(D Tips
- In some models, the maximum vehicle
speed can only be reached in the
Auto and
Dynamic modes.
- Selecting the
Dynamic mode results in spo r­
ty shift ing characteristics. The S gear posi­
tion engages automatically.
- In vehicles that have dynamic steering*, op­
erating noise is heard when starting or stop­
ping the engine . This does not indicate a
prob lem.
119

Audi drive select
Selecting the driving mode
Applies to vehicles: with Audi drive select
You con choose between Comfort, Auto, Dynam­
ic
and Individual* modes .
al 9
c:=====:-~ ID
drive I I a,. "-"elect _ --~
Fig . 132 Center conso le: Cont rol for dr ive se lect
F ig . 133 MM !•: Audi drive select
.,. To set the mode, press the r.ri:t. button
¢fig. 132 multiple times until the desired
mode is displayed in the instrument cluster. Or
Adjusting the Individual mode
Applies to vehicles: with Audi drive select and MMI
.,. In the MMI*, select: ICARI function button >
Comfort , Auto, Dynamic or Individual*.
In vehicles withou t MMI*, the r:i:t. button is found
u nderneath the selecto r lever.
You can change the driving mode when the vehi­
cle is stationary or while driving.
If traffic per ­
mits, after changing modes, briefly take your
foot off the accelerator pedal so that the recently
selected mode is also activated for the engine
and transm ission .
Comfort -provides a comfort-oriented vehicle
setup and is suited for long drives on highways.
Auto· provides an overal l comfortable yet dy­
namic driving feel and is suited for every day use.
Dynamic · gives the driver a sporty driving feel
and is suited to a sporty driving style.
Individual * -q page 120.
A WARNING
Pay attention to traffic when operating drive
select to prevent potential risk of an acc ident .
You con personally specify the vehicle setup in the MMI" .
.,. Se lect : ICARI funct ion button > Set individual
control button. Once you se lect the menu, you
will automatically drive in the
individual mode .
The equipment in your veh icle will determine
which settings you can adjust . T he following ta-
Systems Comfort
Engine/transmission
ba lanced
Steering comfortable
Dynamic steering* comfortable/ind irect
Adaptive dampers* comfortable
120
ble provides an overview of the character istics of
each driving mode.
Auto Dynamic
balanced sporty
balanced sporty
balanced/d irect sporty/direct
balanced sporty

.... N
co
er::
co
.... .... Systems Comfort
Engine sound*
subtle
Adaptive cruise control* comfortable
a) Subtle in the driving position D and sporty in the driving position S.
(D Tips
Your Individual mode settings are automati­
cally stored and assigned to the remote con­
trol key being used .
Audi drive select
Auto Dynamic
subtle/sportyal sporty
balanced sporty
121

Automatic transmissio n
Automatic transmission
tiptronic
Introduction
The automat ic transmission is controlled e lec­
tron ically . The transmission upshifts or down­
shifts automatically depending on wh ich dr ive
p rogram is selected. The powe r is transferred by
a torque converter .
When a
moderate driving style is used, the
transmission se lects the most economical d riving
mode .
It will then change up early and de lay the
downshifts to give better fuel economy .
The transm ission switches to a spo rty mode afte r
a kick-down or when the drive r uses a
sport y
d riv ing sty le
charac ter ized by quick accelerator
pedal movements, heavy acce leration, frequent
changes in speed and traveling at the maximum
speed.
If desired, the dr iver can a lso select the gears
manually ( tiptronic mod e) ¢ page 126.
Selector lever positions
0 ;:t 0 ct CX) a,
Fig. 1 34 Disp lay in the instrument cl uster: selector lever in
position P
The selector lever position engaged appears next
to the selector lever as well as in the instrument
cluster display .
P -Pa rk
In this selector lever position the transmission is
mechanically locked. Engage P only when the ve­
h icle is
completely stopped¢.& in Driving the
automatic transmission on page 124 .
122
To shift in or out of pos ition P, you m ust first
press and hold the brake pedal and then press
the release button in the selector lever hand le
while moving the selector lever to or from P. You can sh ift out of this position on ly w ith the igni­
tion on .
R -Reve rse
Se lect R only when the vehicle is at a full stop
and the engine is running at idle speed c> .& in
Driving the automatic transmission on
page 124.
Befo re yo u move the selector lever to R, press
both the button in the hand le of the se lector lev­
er
and the brake peda l at the same time.
When the ignition is on, the backup lights i llumi ­
nate when the se lector lever is moved into R .
N -Neutral
The t ra nsmission is in neutra l in this position .
S hi ft to this pos it ion for s tand ing wi th the brakes
applied
¢ .&. in Driving the automatic transmis­
sion on page 124 .
The vehicle can also ro ll when
the engine is stopped .
When the vehicle is stationa ry o r at speeds be low
1 mph (2 km/h), you must a lways apply the foot ­
brake before and whi le moving the lever out of N .
D/S -Normal position for driving forward
In the D/5 position, the transmission can be op­
erated either in the normal mode Dor in the
spo rt mode 5. To se lect the sport mode 5, p ull
t h e se lecto r lever back briefly. Pulling the leve r
back again will select the normal mode D . The in­
strument cluster d isplay shows the se lected driv­
i ng mode.
In the
normal mode D, t he transmission auto­
matically selects the suitable gear ratio . It de­
pends on engine load, vehicle speed and d riving
style.
Se lect t he
sport mode 5 for sporty drivi ng . The
vehicle makes fu ll use of the engine 's power.
Shifting may become noticeable when accelerat ­
i ng . Hybrid drive* : electric driving is not possible .
When the vehicle is stationary o r at speeds be low
1 mph (2 km/h), you must a lways apply the foot ..,.

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl ..... brake before and wh
ile moving th e le ver to D/S
out of N.
A WARNING
Read and follow all WARNINGS¢ & in Driv­
ing the automatic transmission on
page 124.
(D Note
Coasting downhill with the transmission in N
and the engine not running will result in dam­
age to the automatic transmission and possi­
bly the catalytic converter .
(D Tips
-On vehicles with Audi drive select*, you can
adjust the sporty shift characteristics in the
Dynamic driving mode .Swill appear in the
i nstrument cluster display instead of 0.
- If you accidentally select N while driving ,
take your foot off the accelerator pedal im­
mediately and wa it for the engine to slow
down to idle before selecting D/S .
- Hybrid drive*: if the
l-,,sv ! button r::::;, page 100
is pressed while in sport mode S, the trans­
mission switches automatically to the nor­
mal mode D.
- If there is a power failure, the selector lever
will not move out of the P posit ion. The
eme rgency release can be used if this hap­
pens
¢ page 127.
'
Automatic transmission
Automatic Shift Lock (ASL)
The Automatic Shift Lock safeguards you again st
accidentally shifting into a forward or the re­
verse gear and causing the vehicle to move unin­
tentionally .
Fig. 13S Shi ft gat e: se lec tor le ver loc i< po sition s and re­
lea se butto n highlighted
The selector lever lock is released as follows :
.,. Turn the ignition on.
"" Step on the brake pedal.
At the same time
press and hold the release button on the side of
the gear selector knob
r::::;, fig. 135 with your
thumb until you have moved the selector lever
to the desired position .
Automatic selector lever lock
The selector lever is locked in the P and N po si­
tions when the ignit ion is turned on . You must
press the brake peda l and the release button to
select another position. As a reminder to the
driver , the following warn ing appears in the in­
strument cluster d isplay when the se lector is in P
and N:
When stationary apply brake pedal while select­
ing gear
The Automatic Shift Lock only functions when the
vehicle is stat ionary or at speeds be low 1 mph
(2 km/h) .
At speeds above about 1 mph (2 km/h) the Auto ·
matic Shift Lock is automatically deact ivated in
the N pos it ion .
A time delay element preven ts the selec tor lever
from locking when it is moved through the N po ­
sition (going from R to D/S). The locking element
will lock the selector lever if the lever is left in N .,..
123

Automatic transmissio n
(N eu tra l) for more than approx imately 1 second,
w ithout th e brake peda l being pressed.
Release button
The release button on the se lec to r lever preven ts
the lever from being accidentally sh ifted into cer­
tain posit ions . Press ing t his but ton deactivates
the selector lever lock . Depending on the direc­
tion of the shift, the selector lever locks at differ ­
ent positions. The positions are high lighted in
the illustrat ion ¢
fig. 135 .
Ignition key safety int erlock
The key cannot be removed from the igni tion un ­
less the selector lever is in the P park pos ition .
When the ignition key is removed, the selector lever will be locked in the P pos ition.
Driving the automatic transmission
F ig. 1 36 Shi ft gat e on t he c en te r co nsole : se lecto r lev er
w ith release b utto n
Starting the engine
~ The selector lever must be in P or N.
Starting off
~ Press and hold the brake pedal.
~ Press and hold the release button in the selec­
tor lever handle, se lect the des ired selector lev­
er posit ion such as D/S and release the button.
~ Wait briefly until the transmission has shifted
(you w ill feel a slight movement) .
~ Remove your foot from the brake pedal and ac­
cele rate .
Stopp ing temporarily
~ Keep the veh icle stationary us ing the braking
pedal, for example at traffic lights .
124
~ Do not press the acce lerato r pedal when doing
this.
~ To prevent the veh icle from ro lling when you
start driving, set the parking brake when stop­
ping on steep incl ines¢ &_.
The parking brake wi ll re lease automatically and
the ve hicle w ill start moving once you press the
acce lerator pedal.
Stopping /par king
If the se lector lever is not in the P position whe n
you open the driver's door, the vehicle cou ld roll.
The message
Tr ansmis sion: Car may roll! Shift
to park!
appears.
~ Press and hold the brake peda l un til the vehicle
has come to a comp lete stop .
~ Apply the parking brake¢ page 90, Parking .
~ Select the P selector lever posit ion ¢ &_ .
Stopping on an incline
~ Always press the brake pedal to ho ld the vehi ­
cle in p lace and prevent it from "rolling back"
¢ &_ . D o
not try to prevent the vehicle from
"rolling back" when a gear is engaged by in­
creas ing the engine speed ¢(D .
Starting on an incline
~ Ac tivate the pa rk ing br ake.
~ With the d riving gear selected, press the accel ­
erator pedal carefully. The parking brake will
release a utomatica lly if your seat belt is fas­
tened.
Under certain circumstances, such as driving in
the mounta ins, it may be useful to switch tempo ­
rarily to the manual sh ift program in order to ad­
j ust the gears to the dr iv ing cond it ions by hand
¢ page 126.
On slopes, activate the parking b rake first and
then move the selector lever to the P position.
This prevents too m uch stress from being placed
on the locking mechanism.
A WARNING
- Unintended vehicle movement can cause se­
rious injury .

,....,
N
co
er::
co
,...., -Never leave your vehicle with the engine
running while in gear. If you must leave
your vehicle when the engine is running, ac­ tivate the parking brake and move the selec­
tor lever to P.
- Power is still transmitted to the wheels
when the engine is running at idle. To pre ­
vent the vehicle from "creeping", you must keep your foot on the brake when the en­
gine is running and the selector lever is in D/
5 or R or "tiptronic" mode is selected .
- Do not press the accelerator pedal when
changing the selector lever position while
the vehicle is stationary and the engine is running.
- Never shift into R or P while driving.
- Before driving down a steep slope, reduce
your speed and shift into a lower gear with "tiptronic" .
- Do not ride the brakes or press the brake
pedal too often or too long when driving
down a hill. Constant braking causes the
brakes to overheat and substantially re­
duces braking performance, increases brak­
ing distance or causes complete failure of
the brake system .
- To prevent the vehicle from rolling back
when stopping on inclines, always hold it in
place with the brake pedal or parking brake.
- Never hold the vehicle on an incline with a
slipping clutch. The clutch opens automati­
cally when it becomes too hot from the
overload . An indicator lamp
[ijJ illuminates
and a driver message appears
c> page 126
when the clutch is overloaded .
- If the engine must remain running, never
have any driving position engaged when
checking under the hood.
Make sure these­
lector lever has securely engaged and is
locked in P with the parking brake set
c> page 220. Otherwise, any increase in en­
gine speed may set the vehicle in motion,
even with the parking brake applied.
(D Note
- When stopping on an incline, do not try to
hold the vehicle in place by pressing the ac­
celerator pedal while a driving gear is se-
Automatic transmission
lected. This can cause the transmission to
overheat and can damage it. Activate the
parking brake or press the brake pedal to
prevent the vehicle from rolling.
- Allowing the vehicle to roll when the engine
is stopped and the selector lever is in N will
damage the transmission because it is not
lubricated under those circumstances.
(!) Tips
For safety reasons, the parking brake is re­
leased automatically only when the driver's
safety belt is engaged in the buckle.
Hill descent control
The hill descent control system assists the driver
when driving down decline s.
Hill descent control is activated when the selec­
to r lever is in D/S and you press the brake pedal.
The transmission automatically selects a gear
tha t is suitable for the incline. Hill descent con­
trol tries to maintain the speed achieved at the
time of braking, within physical and technical
limitations. It may still be necessary to adjust the
speed with the brakes .
Hill descent control switches off once the decline
levels out or you press the accelerator pedal.
When the speed is set in the cruise control sys­
tem
c> page 95 , hill descen t control is also ac ti­
vated .
A WARNING
Hill descent control cannot overcome physical
limitations, so it may not be able to maintain
a constant speed under all conditions . Always
be ready to apply the brakes.
125

Automatic transmission

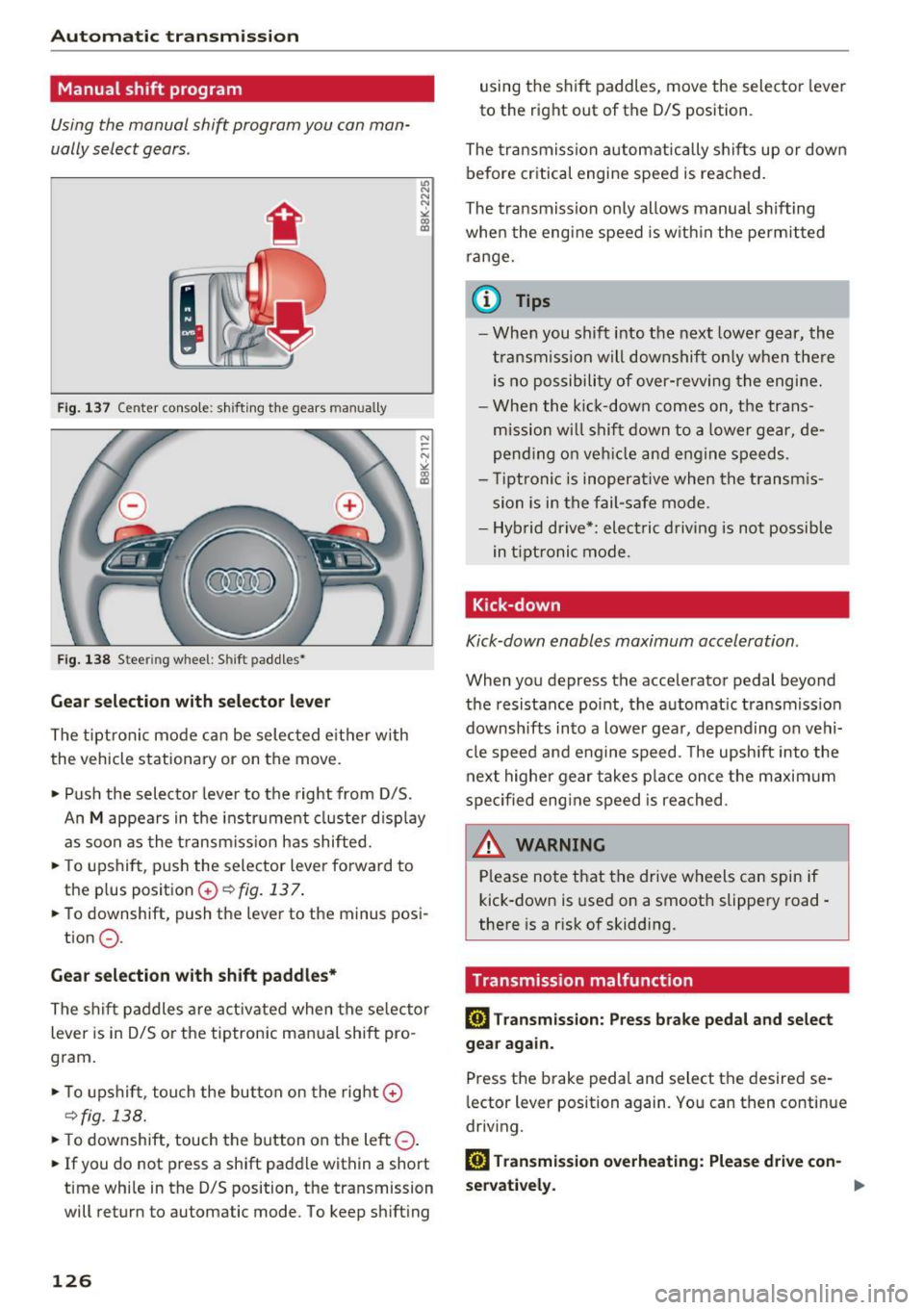

Manual shift program
Using the manual shift program you can man­
ually select gears .
Fig. 137 Center console: shifting the gears man ually
Fig. 138 Stee rin g whee l: S hift paddles •
Gear selection with selector lever
The tiptronic mode can be selected eith er with
the vehicle stationary or on the
move.
• Push the selector lever to the right from D/S.
u, N
N
N
" ll1
An M appears in the instrument cluster displa y
as soon as the transmission has shifted.
• To upshift, push the selector lever forward to
the plus position
G) ¢ fig. 137 .
• To downshift, push the lever to the minus posi-
tion
0 .
Gear selection with shift paddles*
The shift paddles are activated when the selector
lever is in D/S or the tiptronic manual shift pro­
gram.
• To upshift , touch the button on the right
G)
¢fig. 138.
• To downshift, touch the button on the left 0-
• If you do not press a shift paddle within a short
time while in the D/S position, the transmission
will return to automatic mode. To keep shifting
126
using the shift paddles, move the selector lever
to the right out of the D/S position .
The transmissron automatically shifts up or down
before critical engine speed is reached.
The transmission only allows manual shifting
when the engine speed is within the permit ted
range.
(D Tips
- When you shift into the next lower gear, the
t ransm ission will downshift only when there
is no possibili ty of
over-revving the engine.
- When the kick-down comes on, the trans­
mission will shift down to a lower gear, de­
pending on vehicle and engine speeds.
- Tiptr onic is inoperat ive when the transmis­
sion is in the fail-safe mode.
- Hybrid drive*: elect ric driving is not possible
in t iptronic mode .
Kick-down
Kick-down enables maximum acceleration .
When you depress the accelerator pedal beyond
the resistance point, the automat ic transmission
downshifts into a lower gear, depending on vehi­
cle speed and engine speed. T he upsh ift into the
next higher gear takes place once the maximum
specified eng ine speed is reached.
A.::!!. ARNING
-Please note that the drive wheels can spin if
kick-down is used on a smooth slippery road -
there is a risk of skidd ing.
Transmission malfunction
ml Transmission: Press brake pedal and select
gear again.
Press the brake pedal and select the desired se­
lector lever position again. You can then continue
driving.
ml Transmission overheating: Please drive con-
servatively . .,,.

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl ..... The transmission temperature has increased sig
­
nificantly due to the sporty driving manner. Drive
in a less sporty manner until the temperature re­
turns to the normal range and the indicator light
switches of .
rm Transmission malfunction: You can continue
driving
There is a system malfunct ion in the transmis­
sion. You may continue driving. Drive to your au­
thorized Audi dealer or qualified repair facility
soon to have the malfunction corrected.
rm Transmission malfunction: Limited driving
functionality
There is a system malfunction in the transmis­
sion . T he transmission is sw itching to emergency
mode. This mode only shifts into certain gears or
will no longer shift at all. The engine may stall.
Drive to your authorized Audi dea ler or qualified
repair facility immediately to have the malfunc­
tion corrected .
rm Transmission malfunction: Stop vehicle and
shift to park.
Do not continue driving. Select the P selector lev­
e r position and see your a uthorized Aud i dea ler
or qualified repair facility for assistance .
(D Note
If the transmission switches to emergency
mode, you sho uld take the vehicl e to an au­
thorized Audi dealership as soon as possible
to have the condition corrected.
Automatic transmission

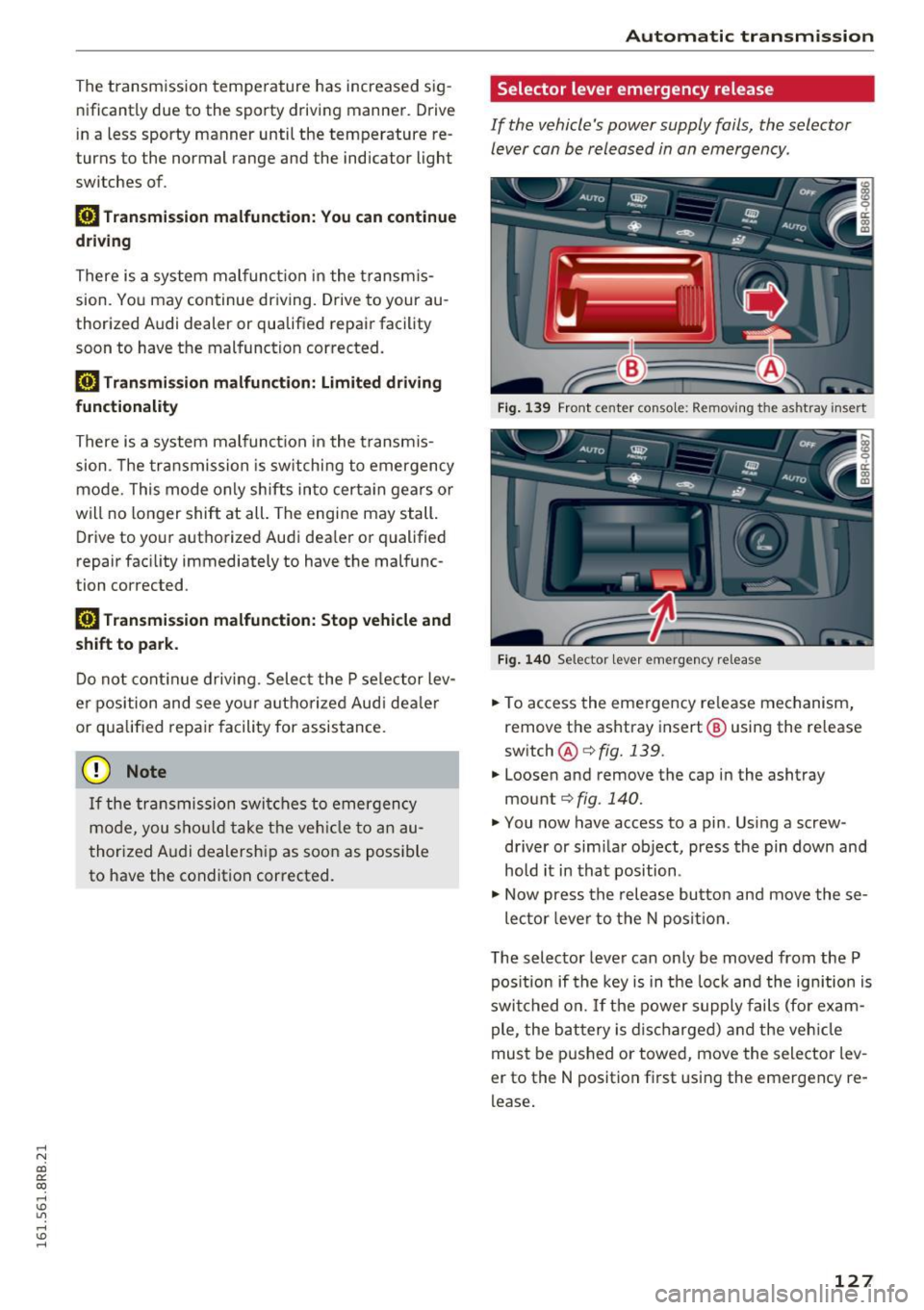

Selector lever emergency release
If the vehicle 's power supply fails, the selector
lever can be released in an emergency .
Fig. 139 Front center conso le: Removing the ashtray insert
Fig. 140 Selector lever emergency release
.,. To access the emergency re lease mechanism,
remove the ashtray insert@ using the release
switch @Qfig.139.
.,. Loosen and remove the cap in the ashtray
mount
Q fig. 140.
.,. You now have access to a pin . Using a screw­
driver or sim ilar object, press the pin down and
hold it in that position .
.,. Now press the release button and move these-
lector lever to the N position.
The selector lever can only be moved from the P
pos ition if the key is in the lock and the ignition is
switched on. If the power supply fails (for exam­
ple, the battery is discharged) and the vehicle
must be pushed or towed, move the selector lev­
er to the N position f irst using the emergency re­
lease .
127

Parking system
Parking system
Parking system plus with
rearview camera
Introduction
Applies to vehicles: with Audi parking system plus with rear­
view camera
Fig. 141 Parkin g mo de 1 : Back ing i nto a pa rk in g space
Fig. 142 Parkin g mo de 2: par allel parking
Vehicles with the Audi parking system plus with
rearview camera are equipped with a
rearview
ca mera
in addition to the acoustic and visual
parking system .
You can choose between parking modes to help
you when parking your vehicle . Use "parking
mode 1" when park ing in a parking space or ga­
rage
Q fig . 141. If you are going to be parallel
parking, use "parking mode 2 "
~ fig. 142.
128
General Information
Applies to vehicles: with Audi parking system plus with rear­
view camera
Fig. 143 Area cover ed (!) an d area not covered @by the
rearv iew camera .
-
==== ffl
Fig. 144 Rear lid: Loca tion of the rearview ca mera
Sensors in the bumper
U')
~ ci: CIO m
8 ci: CIO m
Sensors are located in the front and rea r bump ­
ers . If these detect an obstacle , audible and visu­
al signa ls warn you . The range at which the sen­
sors begin to measure is approxima tely:
side 3
ft (0.90 m)
front center 4
ft (1.20 m)
s ide 2
ft (0.60 m)
rear center 5.2 ft (1.60 m)
The closer you get to the obstacle , the shorter
the interval between the audible signals . A con­
t inu ous tone sounds when the obstacle is less
than approximately
1 foo t (0.30 meters) away .
Do not continue driving farther.
If the distance to an obstacle remains constant ,
the volume of the distance warning gradua lly
drops after about four seconds (this does not ap­
ply in the continuous tone range).
