Winter operation
The cold time of year places a special strain on
the battery, resulting in reduced starting pow­
er. So before the cold weather starts, have the battery inspected and charged as necessary.
A WARNING
-All work on the battery requires technical knowledge. Please contact an authorized
Audi dealer or another authorized facility
for questions about the battery -danger
of acid burns and explosion hazard!
- The battery must not be opened! Do not try to change the battery's liquid level,
otherwise detonating gas will escape
from the battery- explosion hazard!
Working on the battery
®
~
I
@
®
Always wear eye protection.
Battery acid contains sulfuric
acid. Always wear gloves and eye
protection.
No
- sparks
- flames
- smoking.
When a battery is charged, it pro­
duces hydrogen gas which is ex­ plosive and could cause personal
injury.
Always keep the battery well out
of reach of children.
The following WARNINGS are very important
when working on the battery:
A WARNING
Whenever working on the battery or on
the electrical system, there is the risk of injury, accident and even fire. Read and
heed the following WARNINGS:
- Always wear eye protection . Do not let
battery acid or any lead particles get on
your skin or clothing. Shield your eyes.
Checking and filling 179
Explosive gases can cause blindness or
other injury.
- Battery acid contains sulfuric acid. Sulfu­
ric acid can cause blindness and severe
burns.
- Always wear gloves and eye protection.
Do not tilt the battery because acid
could leak out of the ventilation open­
ings.
- If you get battery acid in your eyes or
on your skin, immediately rinse with
cold water for several minutes and get medical attention.
- If you should ingest any battery acid,
seek medical attention immediately.
- Do not expose the battery to an open
flame, electric sparks or an open light.
- Do not smoke.
- Do not interchange the positive and neg-
ative cables.
- When working on the battery, be sure
not to short-circuit the terminals with
tools or other metal objects. This would
cause the battery to heat up very quickly,
which could lead to damage or explosion
and personal injury.
- When a battery is charged, it produces
hydrogen gas which is explosive and
could cause personal injury.
- Always keep the battery well out of the
reach of children.
- Before work is done on the electrical sys­
tem, disconnect the negative ground ca­
ble.
- Before performing any work on the elec­ trical system, switch off the engine and ignition as well as any electrical equip­
ment. The negative cable on the battery
must be disconnected. If you are just go­
ing to replace a light bulb, then it is
enough to switch off the lights.
- Before disconnecting the battery, switch
off the anti-theft alarm system! Other­
wise you will set off the alarm.
- When disconnecting the battery, first
disconnect the negative cable and then
the positive cable.
•
•

180 Checking and filling
- Before reconnecting the battery, make
sure all electrical consumers are switch­ ed off. Reconnect the positive cable first
and then the negative cable. Never inter­
change the cables -th is could start a fire!
- Never charge a frozen or a thawed-out
battery . It could explode! If a battery has
frozen, then it must be rep laced. A dis­
charged battery can freeze over at 32 °F
(0 °C).
- Make su re the vent hose is always attach­
ed to the opening on the side of the bat­
t ery.
- Never use batteries which are damaged.
Dange r of explos ion! A lways rep lace a
damaged batte ry.
& WARNING
C alifornia Propos ition
65 Warning:
- Battery posts, te rm inals and related ac­
c essories cont ain le ad and lead com­
pounds, chemicals known to the State of
California to ca use cancer and re produc ­
t ive p roblems . Wash hands after han­
dling.
(D Note
- Do no t disconnect the vehi cle bat tery
when the ignition is switched on or when
t h e engine is running, otherwise, you will
damage e lectronic components in the
electrical system.
- If your vehicle is go ing to stand for a
l ong period of time witho ut being driven,
protect the battery from "free zing", ot h­
erwise it w ill be damaged and w ill then
have to be replaced . Charging the battery
Connec
tions for charging the battery are lo­
cated in the luggage compartment.
F ig . 14 5 Lugg age co mpar tment : ba ttery cove r
Fig. 146 Lu ggage co mpa rtm en t: c onn ecto rs fo r a
c h arger a nd ju mp start c ables
Do not connect the negative c able direct ly to
the negative terminal on the battery . Connect
it to a
jump sta rt p in instead c:, fig . 146 .
.,. Always read and heed a ll WARNINGS c;, .&.
in Working on the battery on page 179 and
¢ .&_ .
.,. Switch off the ignition and all electrical con­
sumers .
.,. Open the luggage compa rtment lid
c:> page37 .
.,. Remove the batte ry cove r c:, fig. 145.
.,. Connec t the terminal clamps from t he
charger to the batte ry te rminal (red = "posi­
tive") and the jump start pin
c:, fig . 146
(black or brown= "negative") as specified .
.,. On ly now plug the mains lead for the charg­
ing equ ipment into the wa ll outlet and turn
it on .
.,. When the battery is fully cha rged : Turn the
charg ing equipment off and remove the
ma ins lead from the wall out let .
.,. Now remove the cla mps fo r the ch arg ing
equ ipment.

~ Install the battery cover.
~ Close the luggage compartment lid
¢page 37.
When charging at low voltages (e.g . with a
trickle charger ), the battery cables do not
have to be disconnected first. Before charging
at
high voltages, i.e. "fast charging", you
must disconnect both cables. In either case,
follow the instructions from the manufacturer
of the charger .
Fastcharging a battery is
dangerous ¢ & in
Working on the battery on page 179 .
It re­
quires special charging equipment and the knowledge to go with it. We recommend hav ­
ing your battery fast charged only by a quali­
fied workshop.
A discharged battery can
freeze at tempera­
tures of only 32 °F (0 °C) . Allow a frozen bat ­
tery to thaw completely before attempting to
charge it¢ & . However, we recommend not
using a thawed battery again because the bat­
tery casing can be cracked due to ice forma ­
tion and can leak battery acid .
Do not open the battery caps when charging
the battery.
_& WARNING
-
Charging a battery can be dangerous.
- Never charge a frozen battery .
It may ex­
plode because of gas trapped in the ice.
Allow a frozen battery to thaw out first.
- Do not reuse batteries which were fro­
zen. The battery housing may have
cracked and weakened when the battery
froze.
- Charge the battery in a well ventilated
area. Keep away from open flame or elec­
trical spark. Do not smoke. Hydrogen gas
generated by the battery is explosive.
- To reduce the danger of explosion , never
connect or disconnect charger cables
while the charger is operating.
- Fast charging a battery is dangerous and
should only be attempted by a compe­
tent technician with the proper equip­ ment.
Checking and filling 181
- Battery acid that may spill during charg­
ing should be washed off with a solution
of warm water and baking soda to neu­
tralize the acid .
@ Note
Never use a fast charger as a booster to
start the engine. This will seriously dam­
age sensitive electronic components, such
as control units, relays, radio, etc ., as well
as the battery charger .
(D Tips
-The vehicle battery must not be charged
with a standard small charger that plugs
into the cigarette lighter or outlet .
- Only charge the battery through the con­
nections in the luggage compartment.
Replacing the battery
The new battery mus t have the same specifi­
cations as the old one.
Your vehicle is equipped with an intelligent
energy management system for distributing
electricity¢
page 147 . The battery charges
better in vehicles with the energy manage ­
ment system than in vehicles without the sys­
tem . To ensure that the additional power is
available after replacing the battery , replacing
with the same type of battery from the same manufacturer (like the battery that was deliv­
ered with the vehicle) is recommended. An au­
thorized dealer must code the battery in the
energy management control module.
The new battery must have the same capacity,
voltage (12 volts), current and design and it
must be sealed with plugs. The battery must
conform to the standards TL 825 06 (from
April 2008) and VW 7 SO 73 (from April 2010).
Since the vehicle battery is difficu lt to reach,
we recommend having the battery replaced by
an authori zed Audi RB dealer or other quali-
fied workshop . ..,. •
•

182 Checking and filling
(D Note
- Your vehicle is equipped with a specia l
battery. Installing a different type of
battery can cause prob lems in the vehi­
cle electrical system. When replacing the
vehicle battery, always install one with
the same spec ificat ions as the original
battery .
- Make sure that the gas venting hose is
always connected to the o riginal open ing
on the battery side. Otherw ise gasses or
ba tte ry acid could leak out .
- Battery holder and term inals a lways
have to be secured cor rectly.
- Read and follow the warnings under
9 page 179, Working on the battery be­
fore performing any work on the batte ry.
@) For the sake of the environment
Because of the problem of proper disposal
of a battery, we recommend your author­
ized Audi dealer change the battery for
you . Batteries contain sulfur ic ac id and
lead and must always be disposed of prop­
erly in compliance with a ll environmenta l
reg ulations. D isposing of vehicle batteries
improperly is very dangerous to the envi­
ronment. Make sure that the removed bat­
tery ca nnot overbalance, otherwise sulfu­
r ic acid might escape!
Windshield washer
container
Fig. 147 Luggage compa rtment : W inds hield washer
fl uid reservo ir
The windshield washer container O is located
in the luggage compartment. You can find the
reservo ir capacity in the table in
¢page 218.
Clean water should be used when filling up. If
possible, use soft water to prevent scaling on
the washer jets . Always add a glass cleaner
solution (with frost protection in the winter) .
(D Note
- Do not mix engine coolant antifreeze or
any other additives to fill up the wind­
shield washer reservoir.
- Do not use glass cleaners containing
pai nt so lvent; you risk damaging the
paint.

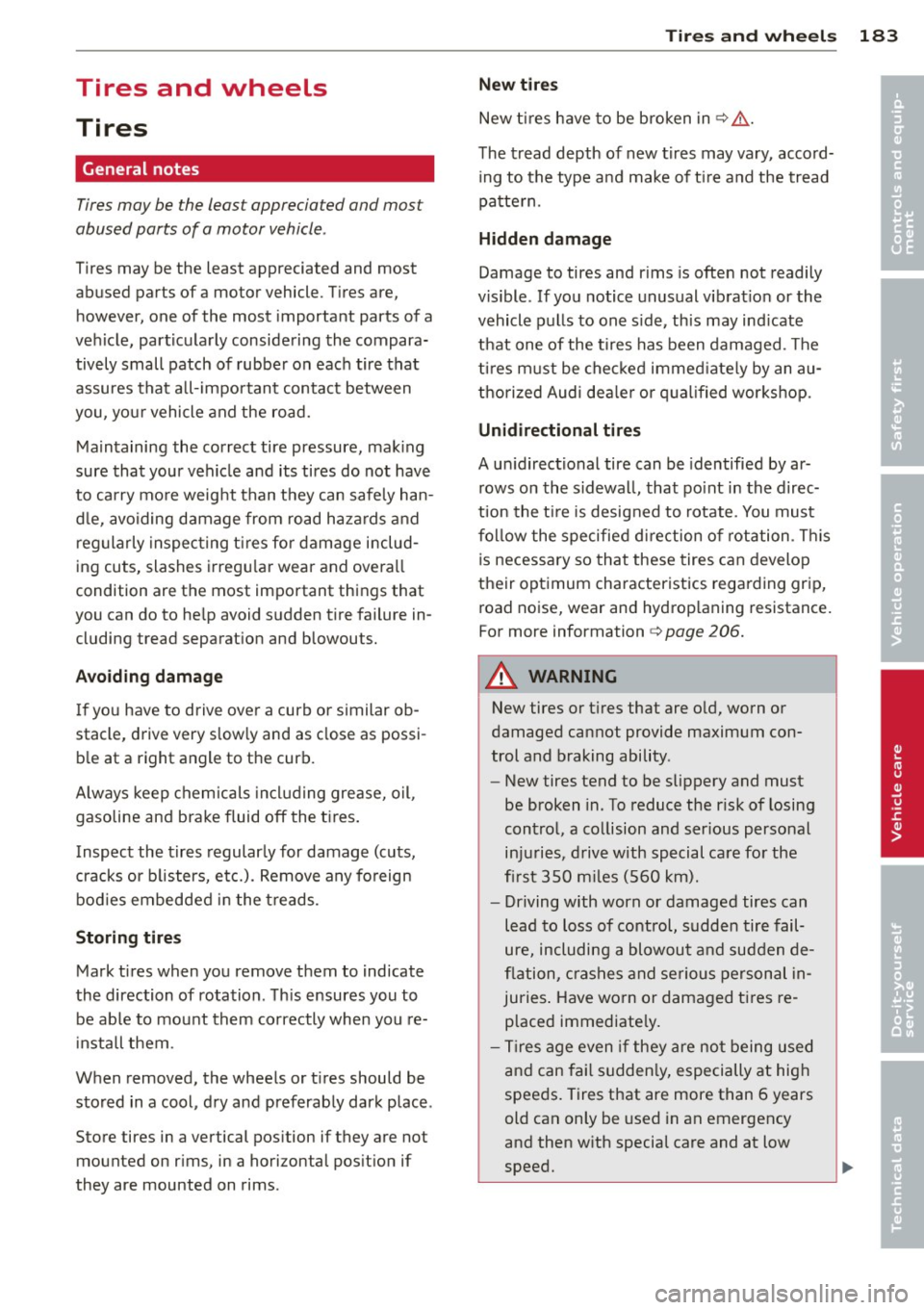

Tires and wheels
Tires
General notes
Tires may be the least appreciated and most
abused parts of a motor vehicle .
Tires may be the least appreciated and most
abused parts of a motor vehicle . T ires are,
however, one of the most important parts of a
vehicle, particularly considering the compara­
tively small patch of rubber on eac h tire that
assures that a ll- important contact between
you, you r vehicle and the road.
Maintaining the correct tire pressure, mak ing
sure that your vehicle and its tires do not have
to carry mo re weight than they can safely han­
d le, avoiding damage from road hazards and
r eg ularly inspec ting t ires for damage i nclud­
ing cuts, slashes irregu la r wear and ove rall
condition are the most important things that
you can do to he lp avoid sudden tire failure in­
cluding tread separat ion and blowouts.
Avoiding damage If you have to d rive over a curb or similar ob­
stacle, drive very slow ly and as close as possi ­
b le at a right angle to the curb.
A lways keep chemicals includ ing grease, o il ,
gasoline and brake fluid off the t ires .
I nspect the t ires regularly for damage (cuts,
cracks or b listers, etc.). Remove any fo reign
bod ies embedde d in the treads.
Storing tires Mark tires when you remove them to indicate
the direction of rotation . T his ensures you to
be ab le to mount them correctly when you re­
i nstall them .
When removed, the whee ls or t ires should be
sto red in a cool, d ry and preferably dark place .
Store tires in a vertical pos ition if they are not
mounted on rims, in a horizontal pos it ion if
they are mounted on rims .
Tires an d wheel s 183
New tires
New tir es have to be broken in ¢ & .
The tread depth of new t ires may vary, accord­
ing to the type a nd make of t ire and the tread
pa tte rn.
Hidden damage
Damage to tires and r ims is ofte n not readily
visible . If you notice unusual v ib rat io n or the
vehicle p ulls to one s ide, th is may ind icate
that one of the t ires has been damaged . T he
ti res m ust be chec ked immed iate ly by an au­
thorized Audi dea le r or q ua lified wor kshop .
Unidirectional tires
A un idirectional tire can be identified by ar­
rows on the s idewa ll, that po int in the direc­
tion the t ire is designed to rotate. You mus t
f ol low the specified di rection o f rotation . T his
is necessary so that these tires can develop
their optimum characteristics regarding grip, road noise, wear and hydrop laning resistance.
For more information ¢
page 206.
A WARNING
New tires or t ires that are o ld, worn or
damaged cannot provide maximum con­
trol and braking ability .
-
-New tires tend to be slippery and must
be broken in. To reduce the r isk of losing
control, a co llision and ser ious personal
in ju ries, d rive with special ca re fo r the
fi rst 350 m iles ( 560 km).
- Driving with worn or damaged tires can
lead to loss of control, sudden tire fail­
ure, including a blowout and sudden de­
fl ation, c ras hes and se riou s personal in­
juries . Have wo rn or damaged t ires re­
placed immediate ly.
- Ti res age even if they are not being used
and can fai l sudden ly, especially at hig h
spee ds. Tires that are more than 6 years
old can only be used in an emergency
and then w ith special care and at low
speed.
•
•

184 Tire s and wheel s
-Ne ver mount used tires on yo ur vehicle if
yo u are not sure of their "previous histo­
ry. " Old used tires may have been dam­
aged even though the damage cannot be
seen that can lead to sudden tire failure
and loss of vehicle control.

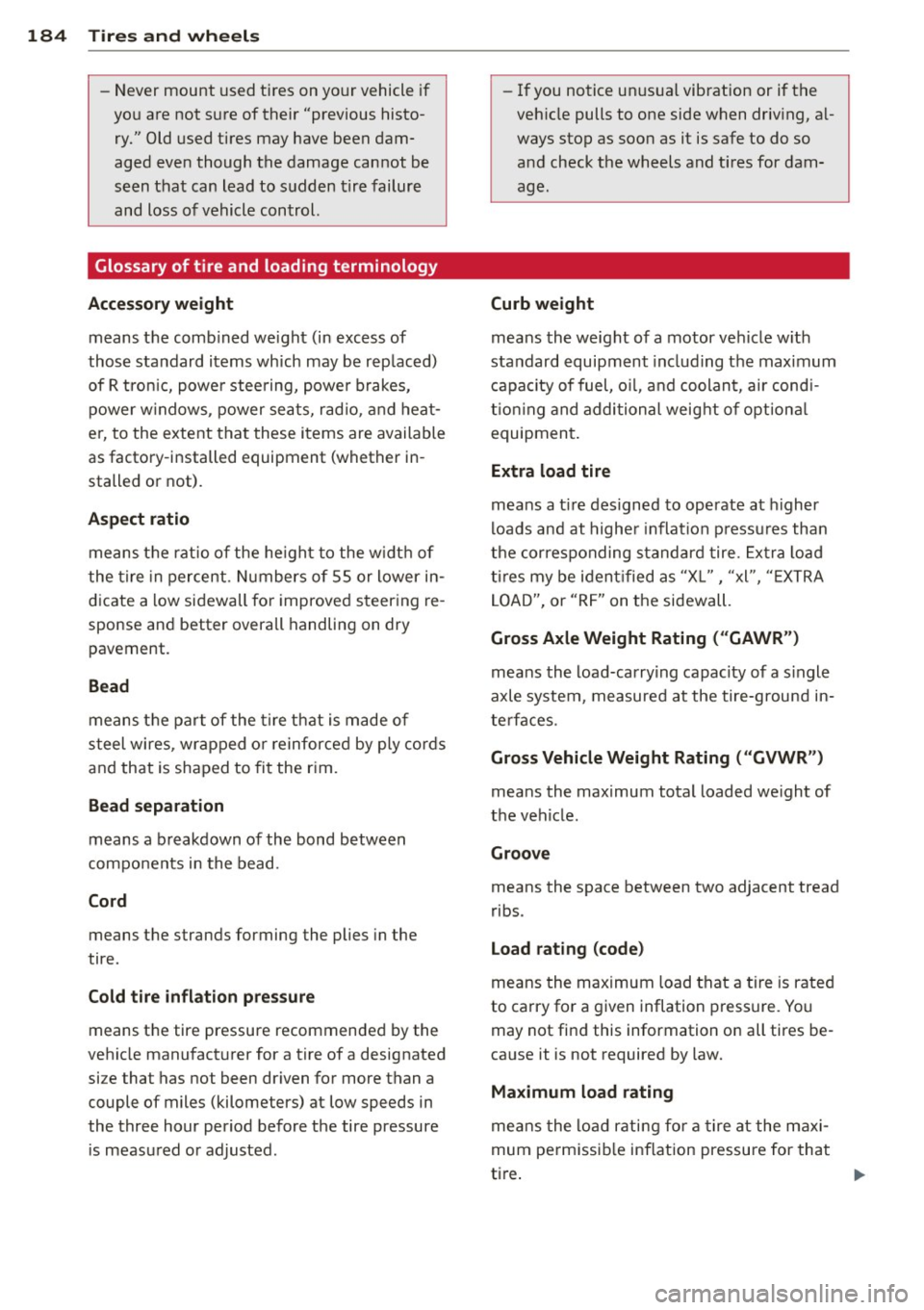

Glossary of tire and loading terminology
Accessory weight means t he comb ined we ight (in excess of
those standard items which may be rep laced)
of R t ron ic, powe r stee ring, powe r brakes,
power w indows, power sea ts, r ad io, and hea t­
e r, to the extent that these i tems are available
as facto ry -in stalled equipment (whether in ­
stalled or not).
Aspect ratio
means t he ratio o f the he ight to the w idth of
the tire in percent. Numbers of 55 or lower in ­
d icate a low sidewall fo r improved s teer ing re ­
sponse and better overall handling on dry
pavement.
Bead
means t he part of the tire that is made o f
steel wires, wr apped o r reinforce d by p ly co rds
and that is shaped to fi t the r im.
Bead separation
means a b reakdown of the bond between
compo nents in the bead.
Cord means the strands forming the plies in the
tire.
Cold tire inflation pressure
means t he tire pressure recommended by the
ve hicle manufacturer for a tire of a designated
size that has not been dr iven for more than a
couple of miles (kilometers) at low speeds in
the three hour period before the tire pressure i s measu red or adjusted. -
If you notice un usual vibration or if the
veh icle pulls to one side when driv ing, a l­
ways stop as soon as it is safe to do so and check the wheels and tires for dam­
age.
Curb weight
means the we ight of a motor ve hicle w it h
standard equipment includ ing the max imum
capa city of fuel, o il, and coolant, a ir cond i­
ti on ing and additional weig ht o f option al
equipmen t.
Extra load tire
means a t ire designed to operate at higher
loads and at highe r inflat ion p ress ures tha n
the cor responding standard tire. Extr a load
t i r es my be i dent ified as "XL" , "xl", "E XTRA
LO AD", or "RF" on the sidewall.
Gross Axle Weight Rating ( "GAWR ")
means the load-carry ing capacity of a s ingle
axle system, measured at the tire-ground in­
te rfaces.
Gross Vehicle Weight Rating ( "GVWR ")
means the maximum tota l loaded we ight of
the vehicle.
Groove
means the space between two adjacent tread
ribs .
Load rat ing (code )
me ans the maximum load that a tire is rated
to carry fo r a given inflation press ure. Yo u
may not fi nd this information on all tires be­
ca use it is not required by law.
Maximum load rating
me ans the lo ad r ati ng fo r a tire a t the m axi­
mum perm issib le inf lation pressure for that
ti re .

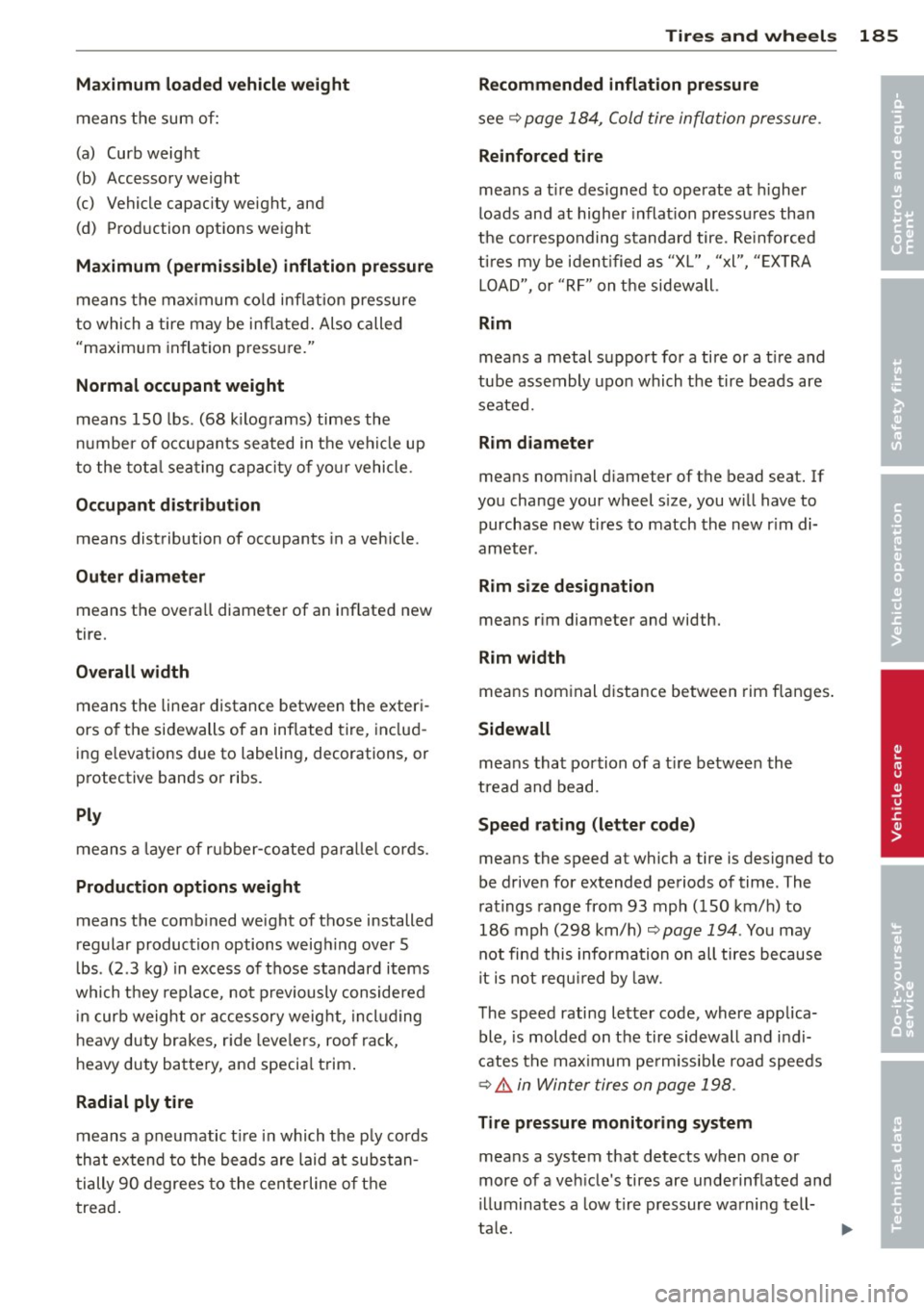

Maximum loaded vehicle weight
means the sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight, and
(d) Production options weight
Maximum (permissible) inflation pressure
means the maximum cold inflation pressure
to which a tire may be inflated. Also called
"maximum inflation pressu re."
Normal occupant weight
means 150 lbs. (68 k ilograms) times the
number of occupants seated in the vehicle up
to the total seating capacity of your vehicle.
Occupant distribution
means distribution of occupants in a vehicle .
Outer diameter means the overall diameter of an inflated new
tire.
Overall width
means the linear distance between the exteri­
ors of the sidewalls of an inflated tire, includ­
ing e levations due to labeling, decorations, or
protective bands or ribs.
Ply
means a layer of rubber-coated para llel cords.
Production options weight
means the comb ined weight of those installed
regular production options weighing over 5
lbs . (2 .3 kg) in excess of those standard items
which they replace, not previously considered
in curb weight or accessory weight, including
heavy duty brakes, r ide leve lers, roof rack,
heavy duty battery, and specia l trim .
Radial ply tire
means a pneumatic t ire in which the p ly cords
that extend to the beads are laid at substan­
tially 90 degrees to the centerline of the
tread.
Tires and wheels 185
Recommended inflation pressure
see~
page 184, Cold tire inflation pressure.
Reinforced tire
means a t ire designed to operate at higher
loads and at higher inflat ion pressures than
the corresponding standard tire. Reinforced
ti res my be ident ified as "XL" , "xl", " EXTRA
LOAD", or "RF" on the sidewall.
Rim
means a metal support for a tire or a t ire and
tube assembly upon which the tire beads are
seated.
Rim diameter
means nom inal d iameter of the bead seat. If
you change your wheel s ize, you w ill have to
purchase new tires to match the new r im di­
ameter.
Rim size designation
means r im diameter and width.
Rim width
means nom inal distance between rim fla nges.
Sidewall
means that portion of a tire between the
tread and bead.
Speed rating (letter code)
means the speed at which a tire is designed to
be driven for extended periods of time. The
ratings range from 93 mph (150 km/h) to
186 mph (298 km/h)
~pag e 194 . You may
not find this information on all tires because
it is not requ ired by law.
T he speed rating letter code, where applica­
ble, is molded on the tire sidewall and indi­
cates the maximum pe rmissib le road speeds
~ .&. in Winter tires on page 198.
Tire pressure monitoring system
means a system that detects when one or
more of a veh icle's tires are underinflated and
illuminates a low tire pressure warning tell­
tale.
•
•

186 Tires and wheels

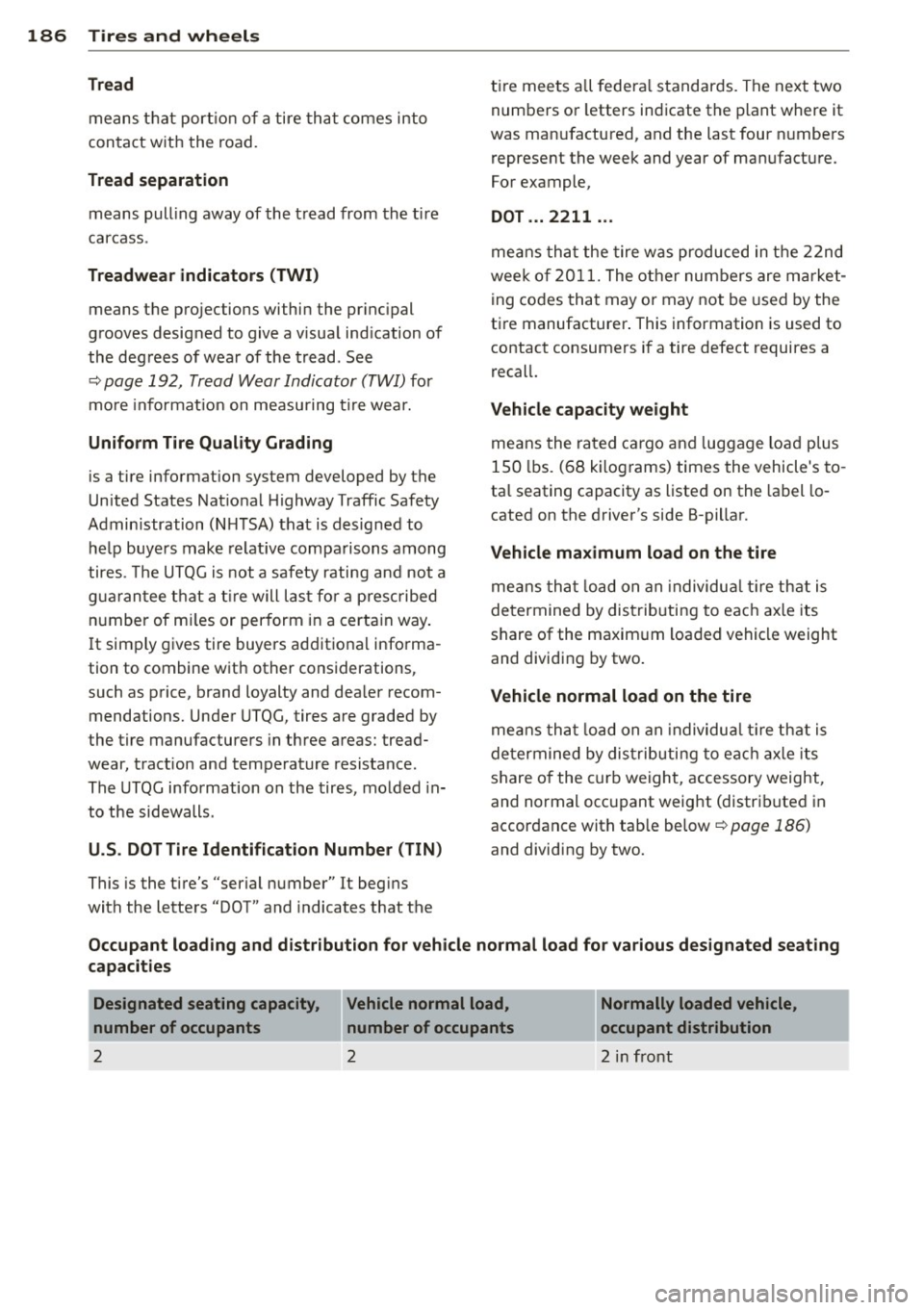

Tread
means that portion of a tire that comes into
contact with the road.
Tread separation
means pull ing away of the tread from the tire
carcass .
Treadwear indicators (TWI)
means the projections within the principal
grooves designed to give a v isual ind ication of
the degrees of wear of the tread. See
~ page 192, Tread Wear Indicator (TWI) for
more informat ion on measuring tire wear.
Uniform Tire Quality Grading
is a tire information system developed by the
United States National Highway Traffic Safety
Administration (NH TSA) that is designed to
help buyers make relative comparisons among
tires. The UTQG is not a safety rating and not a
guarantee that a tir e will last fo r a prescribed
number of miles or perform in a certain way.
It simply gives tire buyers additional informa­
tion to combine w ith other considerations,
such as price, brand loyalty and dea ler recom­
mendations. Under UTQG, tires are graded by
the tire manufacturers in three areas: tread­
wear, traction and temperature resistance.
The UTQG information on the tires, molded in­
to the sidewalls .
U.S. DOT Tire Identification Number (TIN)
This is the tire's "serial number" It begins
with the letters "DOT" and indicates that the ti
re meets a ll federal standards. The next two
numbers or letters indicate the plant where it
was manufactured, and the last four numbers
represent the week and year of manufacture.
For example,
DOT . .. 2211 ...
means that the tire was produced in the 22nd
week of 2011. The other numbers are market­
ing codes that may or may not be used by the
tire manufacturer . This information is used to
contact consumers if a tire defect requires a
recall.
Vehicle capacity weight
means the rated cargo and luggage load plus
150 lbs. (68 kilograms) times the vehicle's to­
ta l seating capacity as listed on the label lo­
cated on the driver's side B-pillar.
Vehicle maximum load on the tire
means that load on an individua l tire that is
determined by distributing to each axle its
share of the maximum loaded vehicle weight
and dividing by two.
Vehicle normal load on the tire
means that load on an individua l tire that is
determined by distributing to eac h axle its
share of the curb weight, accessory weight,
and normal occupant weight (distributed in
accordance with tab le below ~
page 186)
and dividing by two.
Occupant loading and distribution for vehicle normal load fo r various designated seating
capacities
I Designated seating capacity, Vehicle normal load,
number of occupants number of occupants
2 2
Normally loaded vehicle,
occupant distribution
•
2 in front

Tires and wheels 187

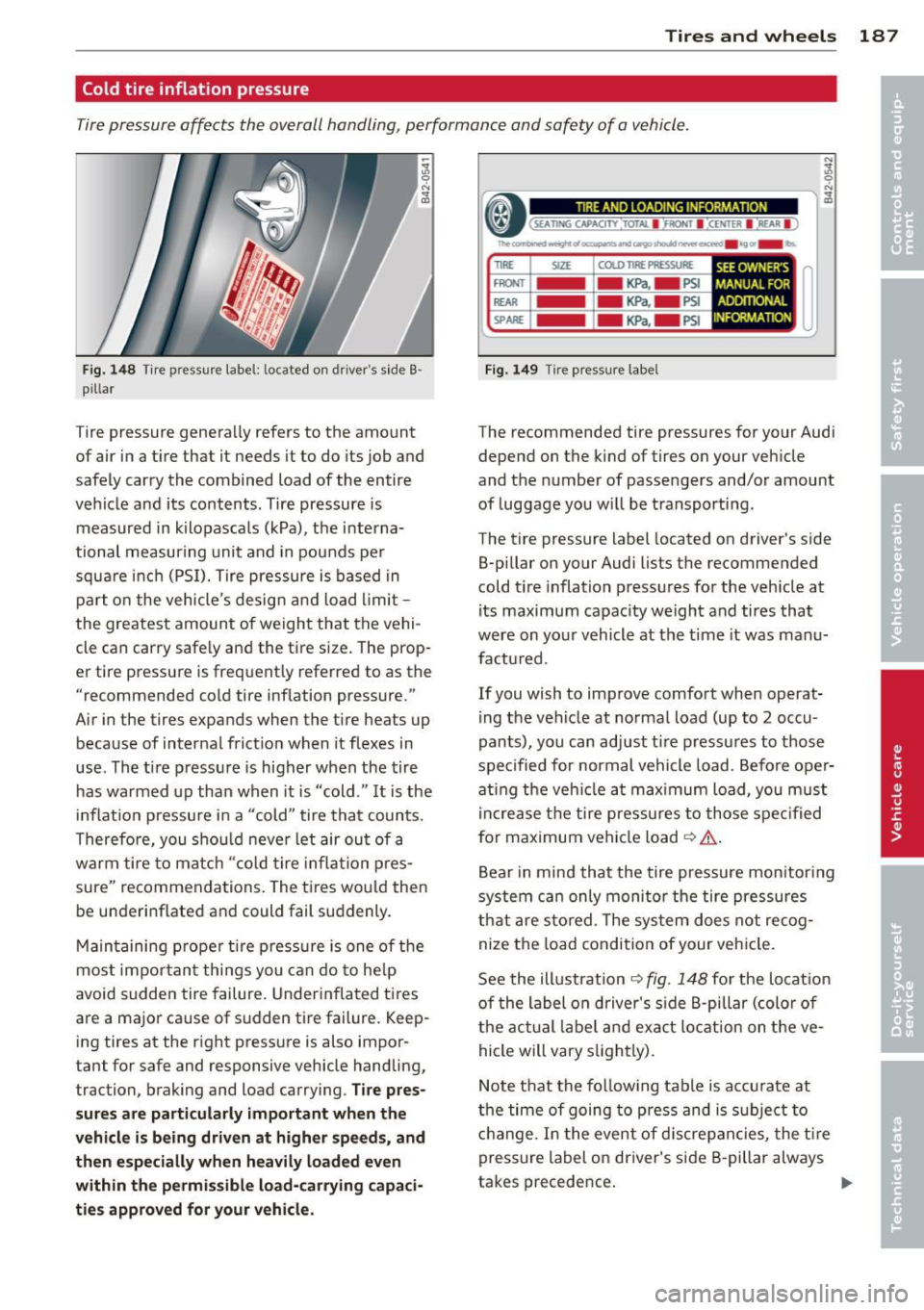

Cold tire inflation pressure
Tire pressure affects the overall handling , performance and safety of a vehicle .
Fig . 1 48 Tir e pr essur e la b el: located on drive r's s ide B ·
p ill ar
Tire pressu re genera lly refers to the amount
of air in a t ire tha t it needs it to do its job and
safely carry the combined load of the entire
vehicle and its contents . Tire pressure is
measured in kilopasca ls (kPa), the i nterna­
tional measuring unit and in pounds pe r
square inc h (PSI). Tire pressure is based in
p ar t o n the vehicle's desig n an d load limit­
the greatest amount of weight that the vehi­
cle can carry safe ly and the ti re size . The prop ­
er tire pressure is freq uent ly referred to as the
"recommended cold tire inf lation pressure ."
Air in the tires expands when the tire heats up
because of interna l frict io n when it flexes in
use . The ti re p ressu re is higher when the tire
has warmed up than when it is "cold ." It is the
i nflat io n pressure i n a "cold" tire that counts.
Therefo re, you s ho ul d never let air ou t of a
warm tire to matc h "cold tire infla tion p res­
sure" recommendations . The tires wo uld then
be underinf lated a nd could fail suddenly.
M ain taining proper t ire press ure is one of the
most impor tan t thi ngs you c an do to he lp
avoid sudden tire failure. Underinfla ted tires
are a major cause of s udden tire failure . Keep­
ing tires at the r ight pressure is also impor­
tant for safe and responsive vehicle handling,
traction, b rak ing and load carrying .
Tire pres­
sures are particularly important wh en th e
vehicle is being driven at higher speeds , and
then especially when heavily loaded even
within the permi ssible load -carrying capaci­
ties approved for your vehi cle.
"' ..,
-~ --------------- ~ a ;l!; TIRE AND LOADING INFORMATION
• (SfATING CAPAOTY JOTAI. I }ROHT I :CUITTR I :R£AR I)
l'hl!o combned~c:loo:upain.sanoatg0,sbo&AdnM'fexeeC1 •"'.gcw -b.
COI.O TIRE PRESSURE
- KPa.- PSI
- KPa,- PSI
_ KPa,. PSI
Fig. 149 Tir e p ressure label
SEE OWNER'S
MANUA L FOR
ADDITTONAL
INFOl n
u
The recommended tire pressures for your Audi
depe nd on the ki nd of tires on your ve hicle
and t he number of passe ngers and/or amount
of luggage you w ill be t ransporting .
The t ire pressure label located on driver's side
B-pillar on your Audi lists the recommended
cold t ire inflation pressu res for the veh icle at
its maximum capac ity weight and ti res that
were on yo ur vehicle at the time it was manu­
factu red.
If you wish to improve comfort when operat­
i ng the vehicle at normal load (up to 2 occu ­
pants), yo u can adjust ti re pressu res to those
specified for normal vehicle load. Befo re ope r­
at ing the veh icle a t max imum load, you must
incr ease t he tire pressures to those spe cified
f or maximum vehi cle load
Q .& .
Bear in mind that the tire pressure mon itor ing
system ca n only moni to r the tire pressures
that are sto red. The sys tem does not recog­
nize the load condi tion of your veh icle.
See the illustration
9 fig. 148 fo r the lo cat io n
of the label o n driver's s ide B-pillar (color o f
the actu al la bel a nd exa ct lo cat ion on t he ve ­
hicle will vary s ligh tly) .
Note t hat the follow ing table is acc urate at
the time of going to press and is s ubject to
c h ange. In the event of d iscre pan cies, the t ire
pressure label on driver's si de B- pillar always
ta kes precede nce . ..,.

188 Tire s and wheel s

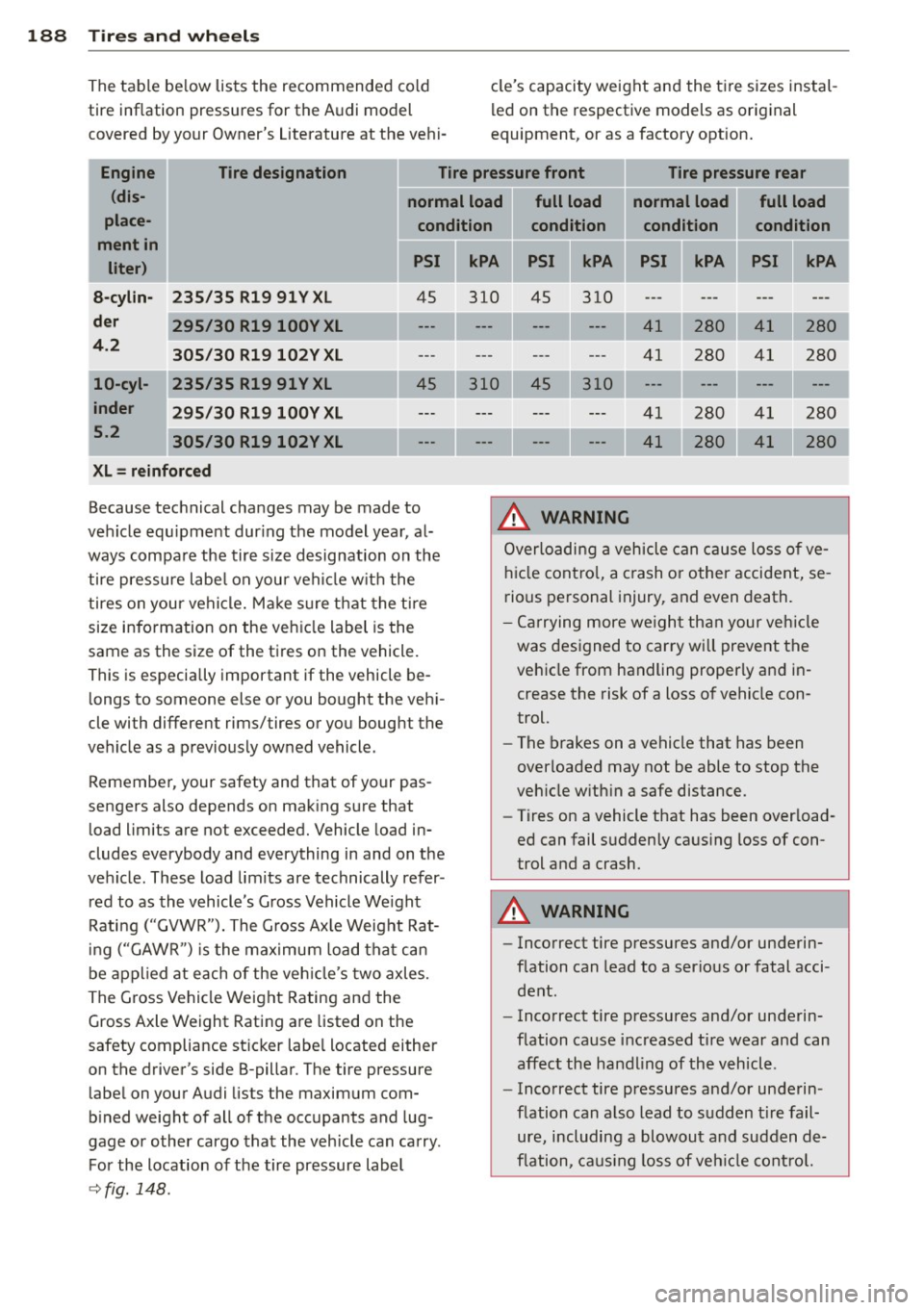

The table below lists the recommended cold
tire inflation pressures for the Audi model
covered by your Owner's Literature at the vehi- cle's capacity weight and the ti
re sizes instal­
led on the respective models as original
equipment, or as a factory option.
Engine
(dis­
place­
ment in Tire designation
Tire pressure front Tire pressure rear
normal load full load normal load full load condition condition condition condition
liter )
a -cylin­
der
4 .2
inder
5.2 235
/3 5 R1 9 9 1 V
XL
295 /30 R19 100V X L
305 /30 R1 9 10 2V X L
235 /35 R19 91 V X L
295 /30 R1 9 100V XL
305 /30 R19 102V X L
XL= reinfor ced
PSI
45
Because tec hnical changes may be made to
vehicle equ ipment dur ing the model yea r, al­
ways compare the tire size designation on the
tire pressure labe l on you r vehi cle w it h the
tires on your vehicle. Ma ke s ure that the ti re
size information on the veh icle label is the
same as the size of the tires on the vehicle.
This is especially important if the vehicle be­
longs to someone else or you bought the vehi­
cle with different rims/tires or you bought the
vehicle as a previously owned vehicle.
Remember, your safety and that of your pas­
sengers also depends on mak ing sure that
load limits are not exceeded. Vehicle load in­
cludes everybody and everything in and on the
vehicle . These load lim its are technically refer­
red to as the vehicle's G ross Vehicle We ight
Rati ng ("GVWR"). The G ross Ax le Weight Rat­
i ng ("GAWR") is the max imum load that can
be app lied at each o f the veh icle's two axles.
The G ross Vehicle Weight Rating and the
Gross Axle Weight Rating are listed on the
safety compliance stic ker labe l located either
on the driver's side B-pillar. The tire pressure
labe l on your Audi lists the maximum com­
b ined weight of all of the occupants and lug­
gage or other cargo that the veh icle can carry.
For the location of the tire pressure label
¢ fig. 148.
kPA PSI kPA PSI
310 45 310
41
41
kPA PSI
280 41
280 41
kPA
280
280
280
280
.&_ WARNING
Overloading a vehicle can cause loss o f ve­
h icle cont ro l, a crash o r other accident, se ­
r ious pe rsonal injury, and even death.
- Ca rrying more we igh t than your veh icle
was designed to car ry wi ll prevent the
vehicle from handling properly and in­
crease the risk of a loss of vehicle con­
trol.
- The brakes on a vehicle that has been
overloaded may not be able to stop the
veh icle w ith in a safe distance.
- Tires on a vehicle that has been over load­
ed can fail s uddenly caus ing loss of con­
trol and a crash.
.&_ WARNING
- Incorrect tire pressures and/or underin­
flation can lead to a serious or fatal acci­
dent.
- Inco rrect tire pressures and/or underin­
f lation cause increased tire wear and can
affect the handling of the vehicle.
- Inco rrect tire pressures and/or underin­
f lation can a lso lead to s udden t ire fail­
ure, including a blowout and sudden de­
fl ation, ca using loss of veh icle cont ro l.
