AUDI S3 2015 Owners Manual

....,
N
0 > co
rl I.O
"' ....,
"' rl

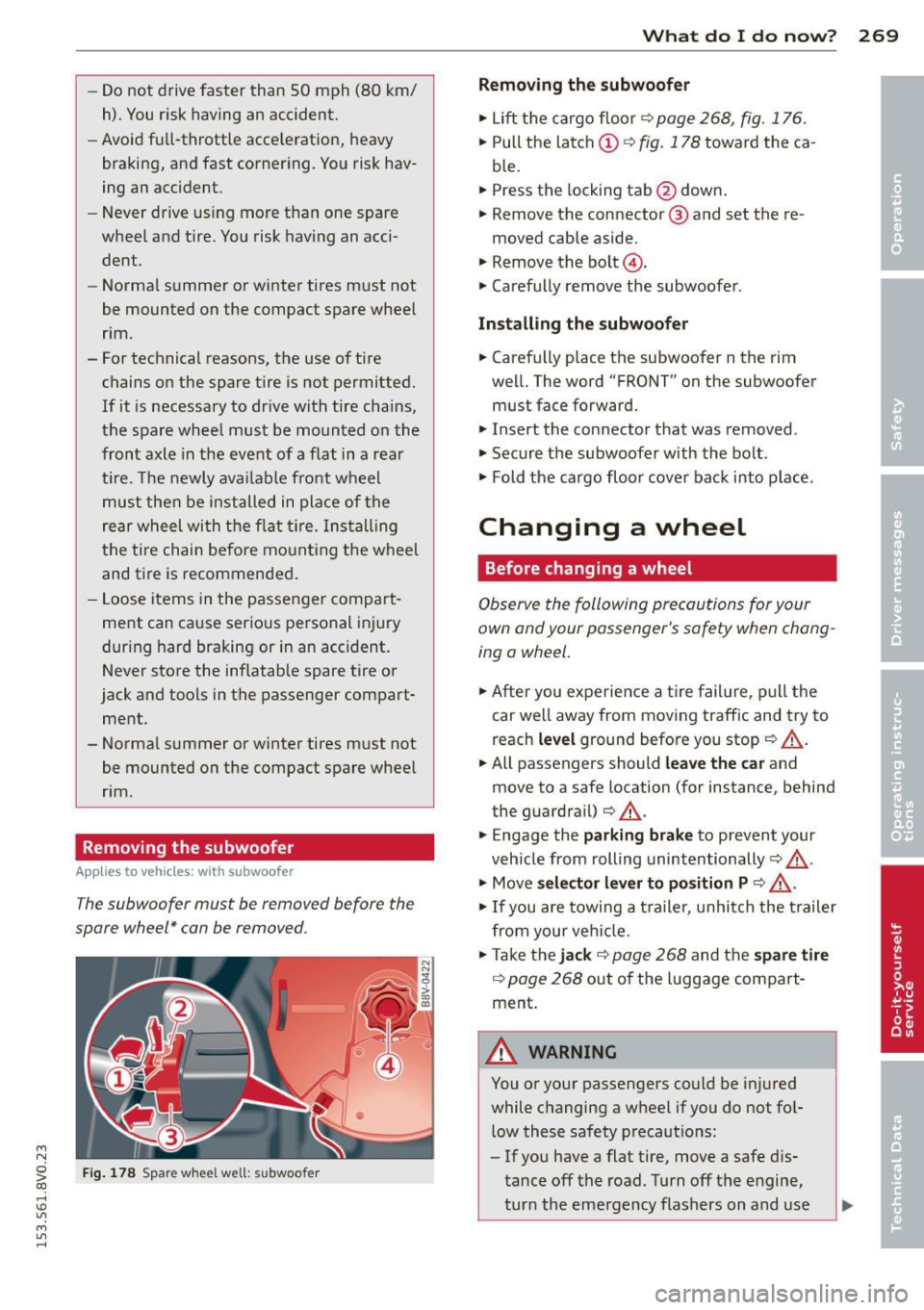

-Do not drive faster than 50 mph (80 km/
h). You r isk having an accident.
- Avoid full-throttle acceleratio n, heavy
braking, and fast cornering . You risk hav­
ing an acc ident.
- Never drive us ing more than one spare
wheel and tire. You risk having an acci­
dent.
- Normal summer or winter tires must not
be mounted on the compact spare whee l
rim.
- For technical reasons, the use of tire
chains on the spare tire is not permitted.
If it is necessary to dr ive with tire chains,
the spare wheel must be mounted on the
front axle in the event of a flat in a rear
t ir e. The newly ava ilable front wheel
must then be i nstalled in pla ce of the
re ar wheel with the f lat tir e. Ins tall ing
the tire chai n befo re mo unting the wheel
and tire is recommended .
- Loose items in the passenger compart­
ment can cause serio us personal inj ury
dur ing hard braking or in an accident.
Never store the inf latable spare tire or
jack and tools in the passenger compart­ ment.
- Norma l summer or winter tires m ust not
be mounted on the compact spare wheel
rim .
Removing the subwoofer
App lies to vehicles : with subwoofer
The subwoofer must be removed before the
spare wheel* can be removed .
Fig. 178 Spa re whee l w ell : subwoo fer
What do I do now ? 269
Removing the subwoofer
.,. Lift the cargo floor¢ page 268, fig . 176.
.,. Pull the latch (D ¢ fig. 178 toward the ca -
ble.
.,. Press the locking tab @down .
.,. Remove the connector ® and set the re-
moved cable as ide .
.,. Remove the bolt @ .
.,. Carefully remove the subwoofer .
Installing the subwoofer
.,. Carefully place the subwoof er n the rim
wel l. The word "FRONT" on the subwoofer
must face forward.
.,. Insert the connector that was removed.
.,. Secure the subwoofer with the bolt .
.,. Fold the cargo floo r cover back into place.
Changing a wheel
Before changing a wheel
Observe the following precautions for your
own and your passenger 's safety when chang ­
ing a wheel .
.,. Aft er you experience a tire failure, pull the
car we ll away from mov ing traffic and try to
reac h
level ground before you stop ¢ &_ .
.,. All passenge rs should
leave the car and
move to a safe location (for instance, behind
the guardrail)¢ &_ .
.,. Engage the
parking brake to prevent your
veh icle from rolling unintentionally¢&_ .
.,. Move
sel ector lever to po sition P ¢ ,&. .
.,. If you are towing a t ra iler, unhi tch the trailer
from your ve hicle .
.,. Take t he
jack ¢ page 268 and the sp a re tire
¢ page 268 out of the luggage com part ­
ment .
A WARNING
You or your passengers could be inj ured
while changing a w heel if you do not fo l­
l ow these safety p recaut io ns:
- If you have a flat tire, move a safe d is­
tance off the road. Turn off the engine,
turn the emergency flashers on and use

2 70 What do I do now ?

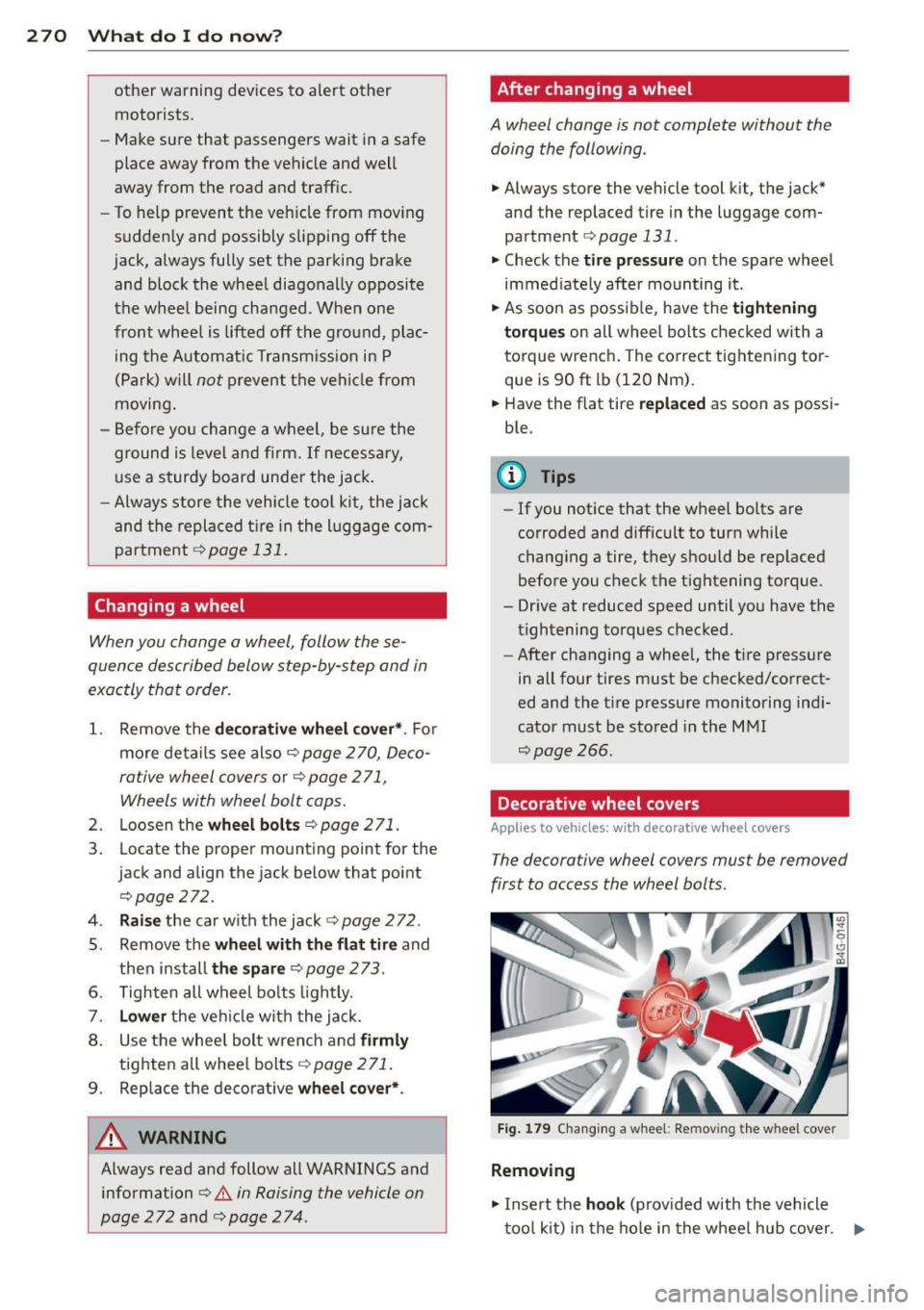

other warning devices to alert other
motorists.
- Make sure that passengers wait in a safe
place away from the vehicle and well
away from the road and traff ic.
- To help prevent the ve hicle from mov ing
sudden ly and possibly slipping off the
jack, always fully set the parking brake and block the whee l diago na lly opposite
the whee l being changed . When one
front whee l is lifted off the gro und, plac ­
ing the A utomat ic Transm iss ion in P
( P ark) will
no t prevent t he ve hicl e from
movin g.
- B efore yo u change a w heel, be su re the
gr ound is leve l and fir m.
If necess ary,
use a s turdy board under the j ack.
- Alw ay s store the vehicle tool ki t, the j ack
and the repl aced t ire i n the l ugg age com­
partment
¢ page 131.
Changing a wheel
When you change a wheel, follow these­
quence described below step-by -step and in
exactly that order.
1. Remove the decorative wheel cover* . Fo r
mo re details see also¢
page 2 70, Deco­
rative wheel covers
or ¢ page 2 71 ,
Wheels with wheel bolt caps .
2. Loosen the wheel bolts r::!> page 271.
3 . Locate the proper mo unting point for the
jack and align the jack below that point
¢ page 272.
4 .
Raise the car w ith the jack ¢ page 2 72.
5. Remove the wheel with the flat tire and
then install
the spare ¢ page 2 73.
6. Tighten all wheel bo lt s li ghtly.
7 .
Lower the ve hicle w ith the jack.
8. Use the wheel bolt wrench and
firmly
t ig hten all whee l bolts <:!> page 271.
9. Replace the decorative wheel cove r* .
A WARNING
A lways read and follow all WARNINGS and
informati on
r::!> &. in Raising the vehicle on
page
2 72 a nd r:!> page 274 .
After changing a wheel
A wheel change is not complete without the
doing the following .
"'Always store the vehicle toot kit, the jack*
and the replaced tire in the luggage com­
pa rtment
¢ page 131.
"' Check the tire pr essure on the spare whee l
immed iate ly afte r mounting i t.
"' As soon as poss ib le, have the
tight ening
torques
on all whee l bolts chec ked with a
torque wre nch . The correc t tig hten ing tor ­
que is 90 ft l b (120 Nm).
"' Have the flat tire
replaced as soon as possi­
ble.
@ Tips
- If you not ice that the wheel bo lts are
corroded and difficult to turn while
chang ing a tire, t hey should be rep laced
before you check the tig htening to rque.
- Dr ive at reduced speed until you have the
t ightening torques checked.
- After changing a whee l, the t ire p ress ure
in all four tires must be chec ked/co rrect­
ed and the tire p ress ure monito ring ind i­
cator must be s to red in the MMI
r::!> page 266.
' Decorative wheel covers
Applies to vehicles: w ith decorative whee l covers
The decorative wheel covers mus t be removed
first to access the wheel bolts.
Fig. 1 79 Cha ngin g a w hee l: Re mov ing th e w heel cove r
Removing
"' Insert the hook (p rov ided with th e vehicle
t oo l ki t) in the ho le in the whee l hub cover . .,._

....,
N
0 > co
rl I.O
"' ....,
"' rl
.. Pull off the decorative wheel cover
r=> fig. 179.
Wheels with wheel bolt caps
Applies to vehicles: with wheel bolts with caps
The caps must be removed first from the
wheel bolts before the bolts can be un­
screwed .
Fig. 180 Ch ang ing a w hee l: re movi ng the wheel bo lt
caps
Removing
.. Push the plastic clip (provided with the vehi­
cle tool kit) over the whee l bolt cap until the
inner reta iners on the clip align with the
edge of the cover .
.. Remove the cap with the
plastic clip (vehicle
tool kit)
r=> fig. 180.
Refitting
.. Place the caps over the wheel bolts and
push them back on.
The caps are to protect and keep the wheel bolts clean.
What do I do now? 271
Loosening and tightening the wheel
, bolts
The wheel bolts must be loosened before rais­
ing the vehicle .
Fig. 181 Changing a whee l: loosening the whee l bol ts
Loosening
"' "' -0 > g3
.. Slide the wheel wrench onto the wheel bolt
as far as it will go .
.. Take tight hold of the
end of the wrench
handle and turn the wheel bolts
counter­
clockwise
about one single turn in the d irec­
tion of arrow
c:> fig . 181 .
Tightening
.. Slide the wheel wrench onto the wheel bolt
as far as it w ill go.
.. Take tight hold of the
end of the wrench
handle and turn each wheel bolt
clockwise
until it is seated .
A WARNING
- Do not use fo rce or hurry when changing
a wheel - you can ca use the vehicle to slip
off the jack and cause serious personal
inj uries.
-Do not loosen the wheel bolts more than
one turn
befo re you raise the vehicle with
the jack . - Yo u risk an injury .
(D Tips
-Never use the hexagonal socket in the
hand le of the screwdriver to loosen or
tig hten the wheel bolts .
- If a wheel bolt is very tight, you may find
it eas ier to loosen by carefully pushing
down on the end of the wheel bolt
wrench with
one foot only. As you do so, Ill>-

272 What do I do now?
hold on to the car to keep your balance
and take care not to slip.
Raising the vehicle
Th e ve hicl e must b e lifted with the jack first
before the wheel can be removed.
Fig. 182 Sill p anels : m arkin gs
Fig. 183 Sill: positio ning t he veh icle jack
.. Engage the parking brake to prevent your
vehicle from rolling unintentionally.
.. Move the
selector lever to position P .
.. Find the marking (imprint) on the sill that is
nearest the wheel that will be changed
~ fig . 182. Behind the marking, there is a
lifting point on the sill for the vehicle jack.
.. Vehicles with a sill : Note the position of the
sill when positioning the vehicle jack
r::!) fig. 183.
.. Place the vehicle jack (vehicle tool kit) on a
firm surface. Use a flat , stable support if
necessary . On a slippery surface such as tile,
you should use a non-slip pad (such as a rub ­
ber mat)
¢ _& .
.. Turn the vehicle jack located under the lift­
ing point on the sill to raise the jack until its
arm @Q
fig. 183 is located under the des­
ignated plastic mount Q
.&., Q (D .
.. Align the jack so that its arm @ Q
fig. 183
engages in the designated lifting point in the door sill and
the movable base @ lies
flat on the ground. The base @ must be
ver­
tical
under the lifting point@ .
.. Wind the jack up further until the flat tire
comes off the ground Q
.&_.
Position the vehicle jack only under the desig­
nated lifting points on the sill
Qfig . 182.
There is exactly one location for each wheel.
The jack must not be positioned at any other location Q
,&q(j) _
An unstable surface under the jack can cause
the vehicle to slip off the jack. Always provide a firm base for the jack on the ground . If nec­
essary place a sturdy board or similar support
under the jack . On
hard, slippery surfaces
(such as tiles) use a rubber mat or similar to
prevent the jack from slipping Q
,&.
_& WARNING
- You or your passengers could be injured
while changing a wheel if you do not fol­
low these safety precautions:
- Position the vehicle jack only at the
designated lifting points and align the
jack. Otherwise, the vehicle jack could
slip and cause an injury if it does not
have sufficient hold on the vehicle .
- A soft or unstable surface under the
jack may cause the vehicle to slip off
the jack . Always provide a firm base for
the jack on the ground. If necessary,
use a sturdy board under the jack.
- On hard, slippery surface (such as tiles)
use a rubber mat or similar to prevent
the jack from slipping.
- Only raise your vehicle with the vehicle
jack provided by the factory. If you use
a vehicle jack for another vehicle, your
vehicle can slide and cause injury.
- Changes in temperature or load can af­
fect the height of the vehicle .
- Never start the engine when the vehi­
cle is raised, which could cause an acci-
dent.
~

....,
N
0 > co
rl I.O
"' ....,
"' rl
-Support the vehicle securely with ap­
propriate stands if work is to be per­
formed underneath the vehicle;
otherw ise, there is a potential risk for
injury .
- To help prevent injury to yourself and
your passenge rs:
- Do not raise the vehicle until yo u are
sure the jack is secu rely engaged .
- Passenge rs must no t remai n in the ve­
h icle when it is jacked up .
- Ma ke sure that passengers wait in a
safe place away from the vehicle and
well away from the road and traff ic.
- Make sure ja ck position is correct, ad­
jus t as necessary and then conti nue to
raise the jack .
- Changes i n tem pera ture or load can af­
fect the height of the vehi cle.
(D Note
Do not lift the vehi cle by the s ill. Pos ition
the vehicle jac k only at the designated lift­
ing points o n the sill. Othe rwise, your vehi­
cle will be damaged .
Taking the wheel off/installing the spare
Follow these instructions step-by-step for
changing the wheel.
F ig . 1 84 Chan gin g a w hee l: us ing t he sc rew driver han ­
dl e (w it h t he bla de removed) to t urn th e bolts
What do I d o now ? 273
Fig . 1 8 5 Changi ng a wheel : al ig nme nt p in in sid e th e
t op hole
After yo u have loosened all wheel bo lts and
raised the vehicle
off the ground, remove and
replace the wheel as follows :
Removing the wheel
.,. Use the he xag onal so cket in the scre wdriv ­
er handle
to comple tely remove the top­
most whee l bolt and set it aside on a
clean
surface ¢ fig. 184.
.,. Screw the threaded end of the alignment
pin from the tool kit hand- tight into the
empty bolt hole
Q fig . 185.
.,. Then remove the other wheel bolts as de­
scribed above .
.,. Take
off the whee l leaving the alignment pin
in the bo lt ho le
¢ (D .
Putting on the comp act spare wheel
.,. Lift the spare wheel and carefully slide it
over the alignment p in to g uide it in place
¢ (D .
.,. Use the hexagona l socket in the screwd river
h a ndle to screw in a nd tig hten all whee l
bolts
slightly .
.,. Remove the alignment pin and insert and
tighten the remaining whee l bolt slightly
like the rest .
.,. Turn the jack hand le counter-clockwise to
lower the veh icle until the jack is fully re­
leased .
.,. Use the wheel bo lt wrench to tighten all
wheel bo lts firm ly
i=;, page 271. Tighten
them
c rosswise, from one bolt to the (ap­
proximately) opposite one, to keep the
wheel cente red.

274 What do I do no w?
When removing or installing the wheel,
the rim could hit the brake rotor and dam­
age the rotor. Work carefully and have a
second person help you.
Never use the hexagonal socket in the han ­
dle of the screwdriver to loosen or t ighten
the wheel bolts.
- Pull the reversible b lade from the screw­
driver before yo u use the hexagonal
socket in the handle to turn the whee l
bo lts.
- When mounting tires with
unid irectional
tread design
make sure the tread pat­
tern is pointed the r ight way
¢page 274.
- The wheel bolts should be clea n and easy
to tu rn . Check for d irt and corrosion on
the mat ing su rfaces of both the whee l
and the h ub. Remove a ll dirt from these
su rfaces before remo unti ng the wheel.
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern p ointed in
the right direction.
Using a spare tire with a tread pattern
intended for use in a specific direction
When using a sp are tire w ith a tread pa tte rn
i nten ded for use in a specific direc tion, p lease
note t he following:
- T he direction of rotation is marked by an a r­
row on the side of the tire.
- If the spare t ire has to be installed in the in­
c orrec t direction, use the spa re tire only
tempor arily si nce the t ire will no t be able to
achieve its op timum performance character­
istics with regard to aquaplaning, noise and
wear .
- We recommend tha t you pay particular a t­
tention to this fact during wet weather and
that you adjust your speed to matc h road
condit ions. -
Replace the flat ti re with a new one and
have it insta lled on your vehicle as soo n as
possible to resto re the hand ling advantages
of a unidirectional tire.
Notes on wheel changing
Please read t he information ¢ page 254, New
tires and replacing tires and wheels
if you a re
going to use a spa re tire which is different
from the t ires on you r vehicle.
After you change a tire:
- Check the tire pre ssure on the spare imme­
diately after installation .
- Have the wheel bolt tightening torque
c hecked with a torque wrench as soon as
possible by your author ized Audi dealer or
a qualified service stat ion.
- With steel and alloy wheel r ims, the wheel
bolts a re co rrectly tightened at a torque of
90 ft lb (120 Nm ).
- If you notice that the wheel bolts are cor ­
roded and difficult to turn while changing
a tire , they should be replaced before you
check the t ightening torque .
- Replace the flat tire w ith a new one and
have it installed on your vehicle as soon as
po ssible . Remount the wh eel cover.
Until then , dr ive with e xtra care and at re­
duced speeds.
A WARNING
= -
- If you are going to equ ip your vehicle
with tires o r rims which differ from those
which were facto ry installed, then be
s ure to read the information¢
page 25 4,
New tires and repla cing tires and
wheels.
- Always m ake s ure the dam age d wheel o r
even a flat tire a nd the jack and tool ki t
are properly secu red in the luggage com­
pa rtment and are not loose in the pas ­
senger compartment.
- In an accident or sudden maneuver they
could fly forwa rd, injuring anyone in the
veh icle.

M N
0 > co ,...., \!) 1.1'1
M 1.1'1 ,....,

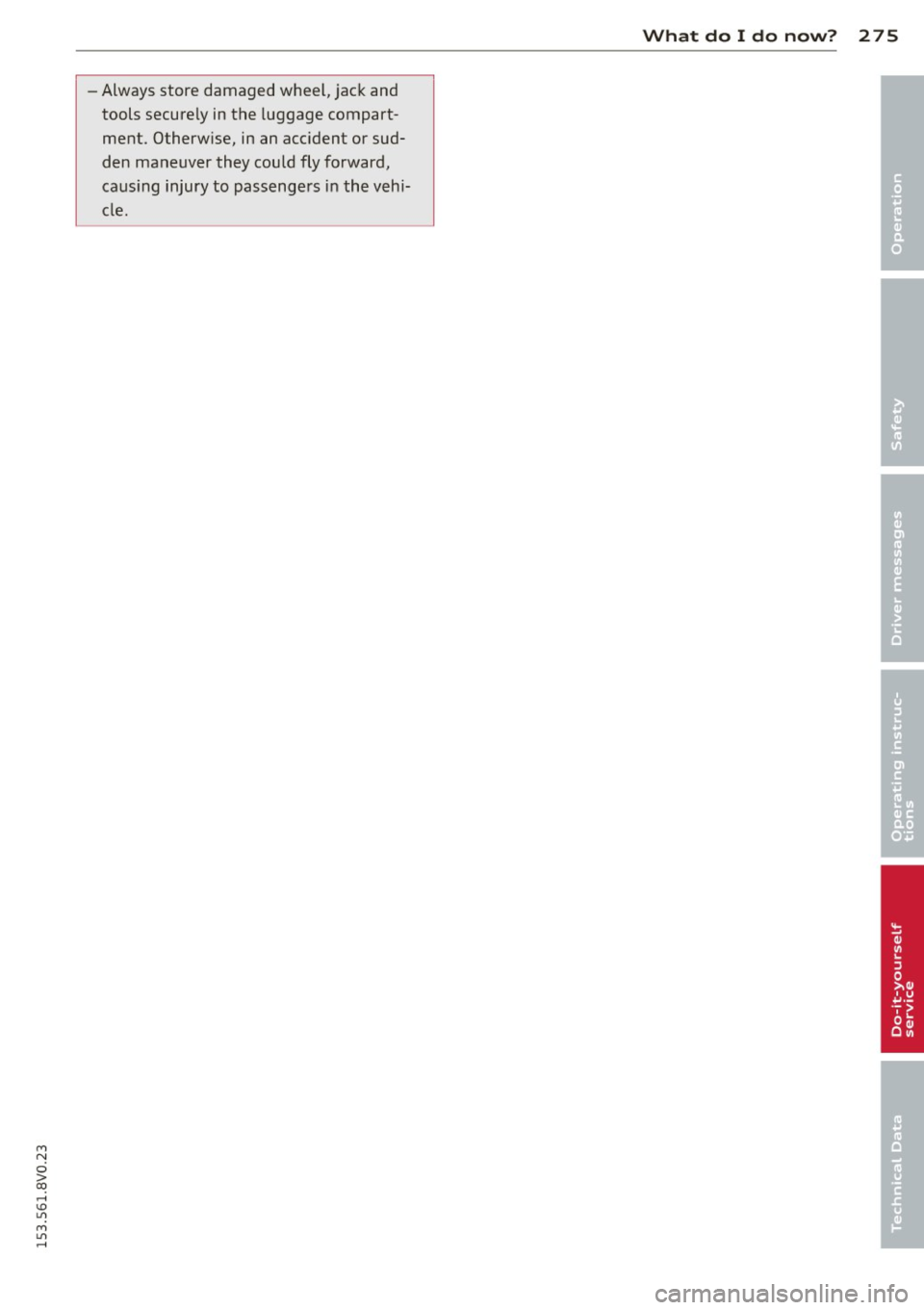

-Always store damaged wheel, jac k and
tools secure ly in t he luggage compart­
ment. Otherw ise, in an acc ident or sud­
den ma neuver they could fly forward,
caus ing injury to passeng ers in the vehi­
cle.
What do I do now? 275
•
•
•

2 76 Fuses and bulbs
Fuses and bulbs
Electrical fuses
Replacing fuses
Fuses that have blown will have metal strips
that have burned through.
Fig. 186 Steering column area: cover
Fig. 187 Left side of the engi ne co mpar tmen t: fuse
cover
Fuses in the interior
The fuses are behind the cover in the steering
column area
¢ fig. 186.
"'Turn off the ignition and the failed electrical
equipment.
"'Check the following table to see which fuse
belongs to the equipmen t
¢page 277.
"'Remove the cover ("AIRBAG" label)
c:> fig. 186. Begin at the bottom right corner
-arrow- .
"' Remove the plastic clip from the fuse panel
cover in the eng ine compartment
c:> fig. 187.
"' Remove the blown fuse using the plast ic
clamp and replace the f use with an ident ica l
new one.
"'Install the cover.
Fuses in the engine compartment
"'Turn off the ignition and the failed electrical
equipment.
"' Check the following table to see which fuse
belongs to the equipment
c::;, page 2 78.
"'Remove the fuse panel cover ¢fig. 187 .
"'Remove the plastic clip from the fuse panel
cover
c:> fig. 187.
"' Remove the blown fuse using the plastic
clamp and replace the fuse with an identical
new one.
The indiv idual circuits are protected by safety
fuses. The fuses are located under the steer­
ing wheel beh ind a cover and in the left side of
the engine compartment .
_&. WARNING
-
Do not repa ir fuses and never replace a
blown fuse with one that has a higher amp
rating. This can cause damage to the elec­
trica l system and a fire.
(D Note
- If there are multip le fuse values in a cell
in the follow tables, for examp le
5/10/20, it is because of equipment-re­
lated differences. Replace the burned
fuse with an identical new one .
-If a new fuse should burn out again
shortly after you have installed it, have
the electrical system checked by your au­
thorized Audi dealer or qualified repair
facility as soon as possible .
(D Tips
- The following table does not list fuse lo­
cations that are not used.
- Some of the following tables on ly apply
to in certain models or options.

....,
N
0 > co
rl I.O
"' ....,
"' rl

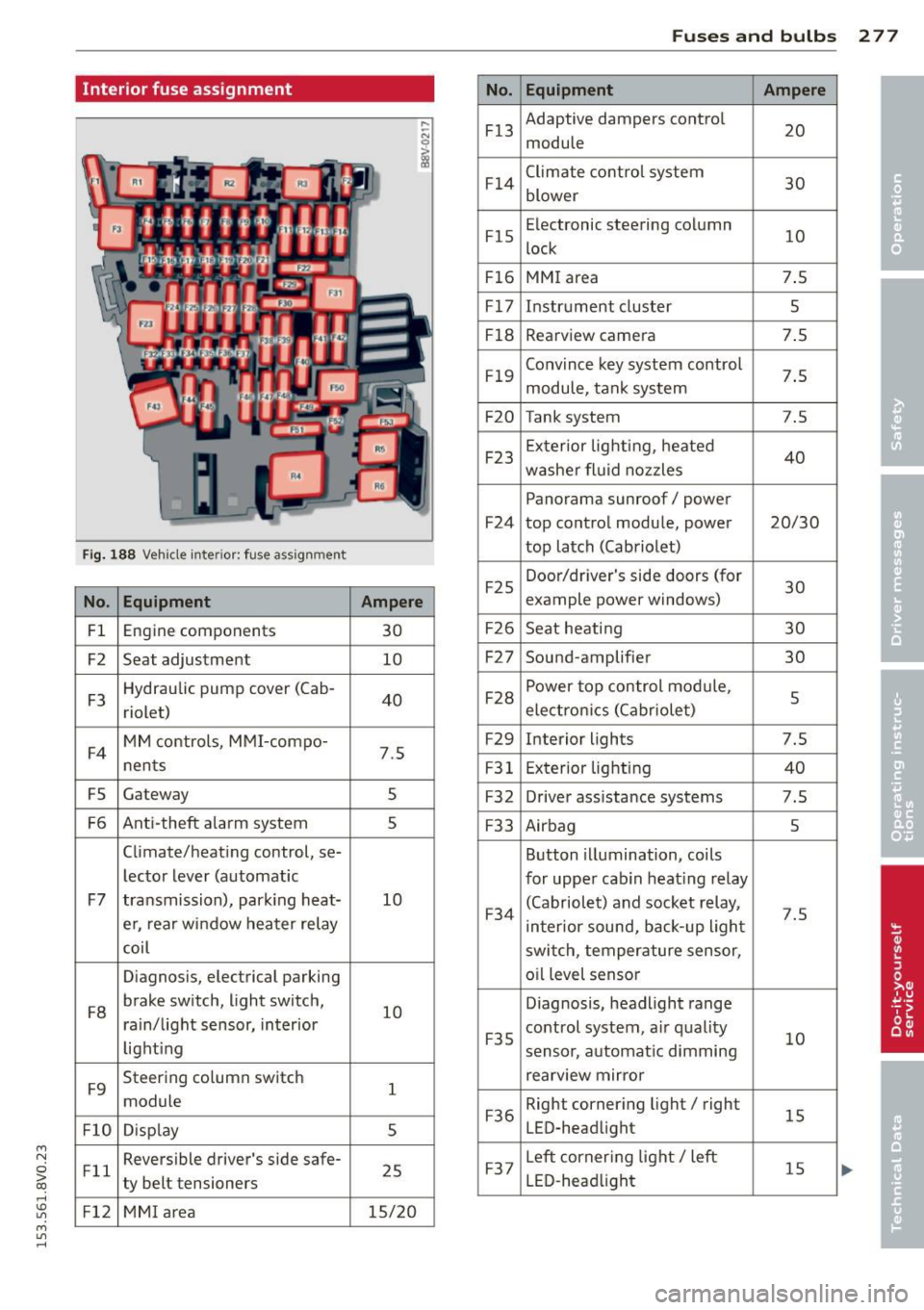

Interior fuse assignment
Fig. 188 Vehicle inter ior: fuse assignment
No . Equ ipment
Fl Engine components
F2 Seat adjustment
F 3 Hydraulic pump
cover (Cab-
riolet)
F4 MM controls, MMI-compo-
nents
FS Gateway
F 6 Anti-theft alarm system
Climate/heating control,
se-
lector lever (automatic
F7 transmission), park ing heat-
e r, rear window heater relay
coil
Diagnosis, electrical parking
F 8 brake
switch, light switch,
rain/light sensor, interior
light ing
F9 Steering
column switch
module
Fl0 Disp lay
Fll Reversible driver's
side safe-
ty belt tensioners
Fl2 MMI a rea
No .
Fl 3
Fl4
Fl5
Fl6
Fl7
Fl8
Fl9
F20
F23
F24
F25
Ampere
30 F26
10 F27
40 F28
F29
7.5
F31
s F32
5 F33
10 F34
10 F35
1 F36
5
25 F37
15/20
Fu se s and bulb s 2 77
Equipment Ampere
Adaptive dampers control
20
module
Climate control system 30
blower
Electronic steering column
10
lock
MM I area 7.5
Instrument cluster 5
Rearview camera 7.5
Conv ince key system control
7.5
module, tank system
Tank system 7.5
Ex terior lighting, heated
40
washer fluid nozzles
Panorama sunroof/ power
top control modu le, power 20/30
top latch (Cabriolet)
Door/dr iver's side doors (for
30
example power windows)
Seat heati ng 30
Sound-amplifier 30
Power top con trol module,
5
electron ics (Cabriolet)
Interior lights 7.5
Ex terior lighting
40
Driver assistance systems 7.5
Airbag 5
Button illumination, coils
for upper cab in heat ing relay
(Cabriolet) and socket relay,
7.5
interior sound, back-up ligh t
switch, temperature sensor, o il level sensor
Diagnosis, headlight range
control system, air quality
10
senso r, a utomat ic dimming
rearview mir ror
Right corner ing light/ right
15
LED-headlight
Left corner ing light/ left
15
LED -head light

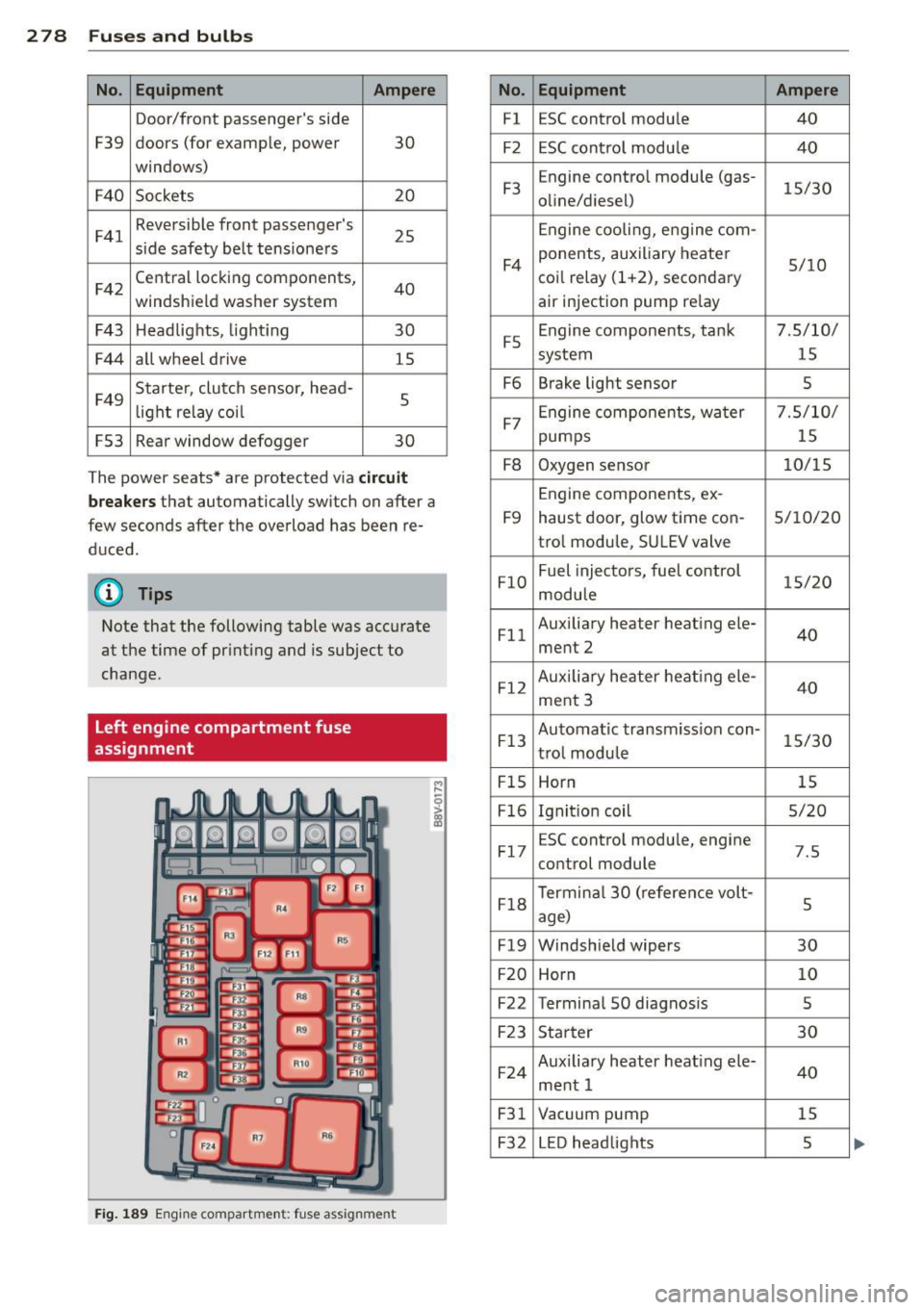

2 78 Fuses and bulbs
No . Equipment Ampere
Door/front passenger's side
F39 doors (for example, power 30
windows)
F40 Sockets 20
F41 Reversible front passenger·s
25
side safety belt tensioners
F42 Central locking components,
40
windshield washer system
F43 Headlights , light ing 30
F44 all wheel drive
15
F49 Starter, clutch sensor, head-
s light
relay coil
FS3 Rear window defogger
30
The power seats* are protected via
circuit
breakers
that automatically switch on after a
few seconds after the overload has been re­
duced.
@ Tips
Note that the following table was accurate
at the time of print ing and is subject to
change.
Left engine compartment fuse
assignment
Fig. 189 Engine compartment : fuse assignment
No.
Fl
F2
F3
F4
F5
F6
F7
F8
F9
FlO
Fll
Fl2
Fl3
Fl5 Fl6
Fl7
Fl8 Fl9
F20 F22
F23
F24
F3 1
F32
Equipment Ampere
ESC control modu le 40
ESC cont rol module 40
Engine control module (gas-
15/30
oline/diesel)
Engine cooling, engine com-
ponents, auxiliary heater 5/10
coil relay (1+2), secondary
air injection pump relay
Engine components, tank 7.5/10/
system 15
Brake light sensor
5
Engine components, water 7.5/10/
pumps 15
Oxygen sensor 10/15
Engine components, ex-
haust door, glow t ime con-
5/10/20
trol module, SU LEV valve
Fuel injectors, fuel control
15/20
module
Auxiliary heater heating ele-
40
ment2
Auxi lia ry heater heating ele-
40
ment 3
Automatic transmission con- 15/30
trol module
Horn 15
Ignit ion coil 5/20
ESC contro l module, engine
7.5
control module
T ermina l 30 (reference volt-
5
age)
Windshield wipers 30
Horn 10
Terminal SO diagnosis 5
Starter 30
Auxiliary heater heat ing ele-
40
ment 1
Vacuum pump 15
LED headlights 5
