defect that could cause a crash,
injury or death, you should im­
mediately inform Transport
Canada, Defect Investigations
and Recalls. You should also no­
tify Volkswagen Group Canada, Inc.
Canadian customers who wish
to report a safety-related de­
fect to Transport Canada, De­
fect Investigations and Recalls, may either call Transport Cana­
da toll-free at:
Tel.: 1-800-333-0510 or
Tel.: 1-819-994-3328 (Ottawa region and from other coun­
tries)
TTY for hearing impaired: Tel.:
1-888-675-6863
or contact Transport Canada by
mail at:
Transport Canada Motor Vehicle Safety Investiga­
tions Laboratory 80 Noel Street
Gatineau, QC
J8Z 0Al
For additional road safety infor­
mation, please visit the Road
Safety website at:
Driving Safely 99
http://www.tc .gc.ca/eng/
roadsafety/menu.htm •
•
'

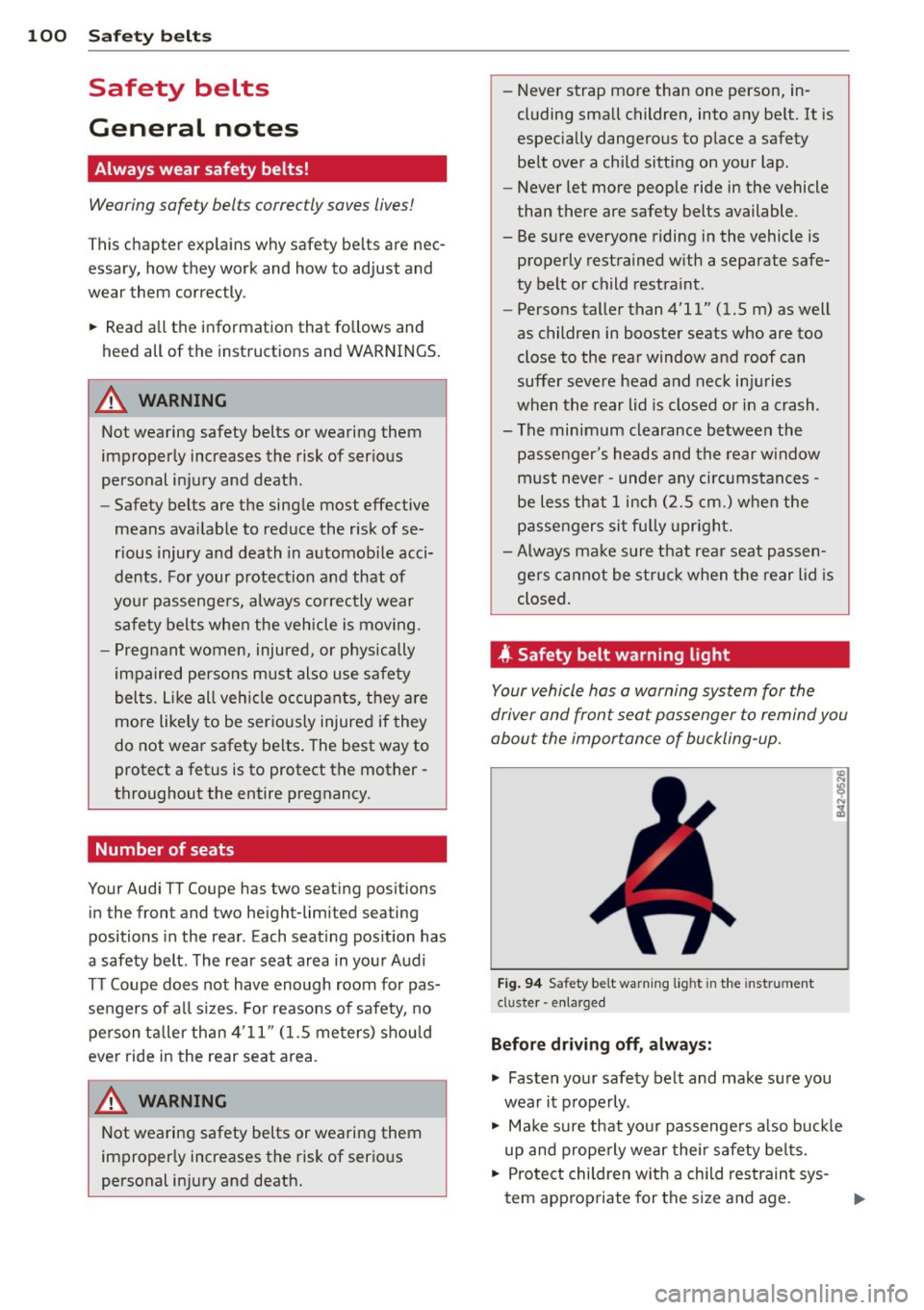

100 Safety belts
Safety belts
General notes
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapter explains why safety belts are nec­
essary, how they work and how to adjust and
wear them correctly .
.. Read all the information that follows and
heed all of the instructions and WARNINGS.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of serious
personal injury and death.
- Safety belts are the single most effective
means available to reduce the risk of se­
rious injury and death in automobile acci­
dents. For your protection and that of
your passengers, always correctly wear
safety belts when the vehicle is moving.
- Pregnant women, injured, or physically
impaired persons must also use safety
belts. Like all vehicle occupants, they are
more likely to be seriously injured if they
do not wear safety belts. The best way to
protect a fetus is to protect the mother -
throughout the entire pregnancy.
Number of seats
Your Audi TT Coupe has two seating positions in the front and two height-limited seating
positions in the rear. Each seating position has
a safety belt. The rear seat area in your Audi
TT Coupe does not have enough room for pas­
sengers of all sizes. For reasons of safety, no
person taller than 4'11" (1.S meters) should
ever ride in the rear seat area.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of serious
personal injury and death. -
Never strap more than one person, in­
cluding small children, into any belt.
It is
especially dangerous to place a safety belt over a child sitting on your lap.
- Never let more people ride in the vehicle
than there are safety belts available.
- Be sure everyone riding in the vehicle is
properly restrained with a separate safe­
ty belt or child restraint.
- Persons taller than 4'11" (1.5 m) as well
as children in booster seats who are too
close to the rear window and roof can
suffer severe head and neck injuries
when the rear lid is closed or in a crash .
- The minimum clearance between the passenger's heads and the rear window
must never -under any circumstances -
be less that 1 inch (2.5 cm.) when the
passengers sit fully upright.
- Always make sure that rear seat passen­
gers cannot be struck when the rear lid is
closed.
,! Safety belt warning light
Your vehicle has a warning system for the
driver and front seat passenger to remind you
about the importance of buckling-up.
Fig. 94 Safety belt warning light in the instrument
cluster· enlarged
Before driving off, always:
" Fasten your safety belt and make sure you
wear it properly .
.. Make sure that your passengers also buckle
up and properly wear their safety belts.
.. Protect children with a child restraint sys-
tem appropriate for the size and age.
Ill-

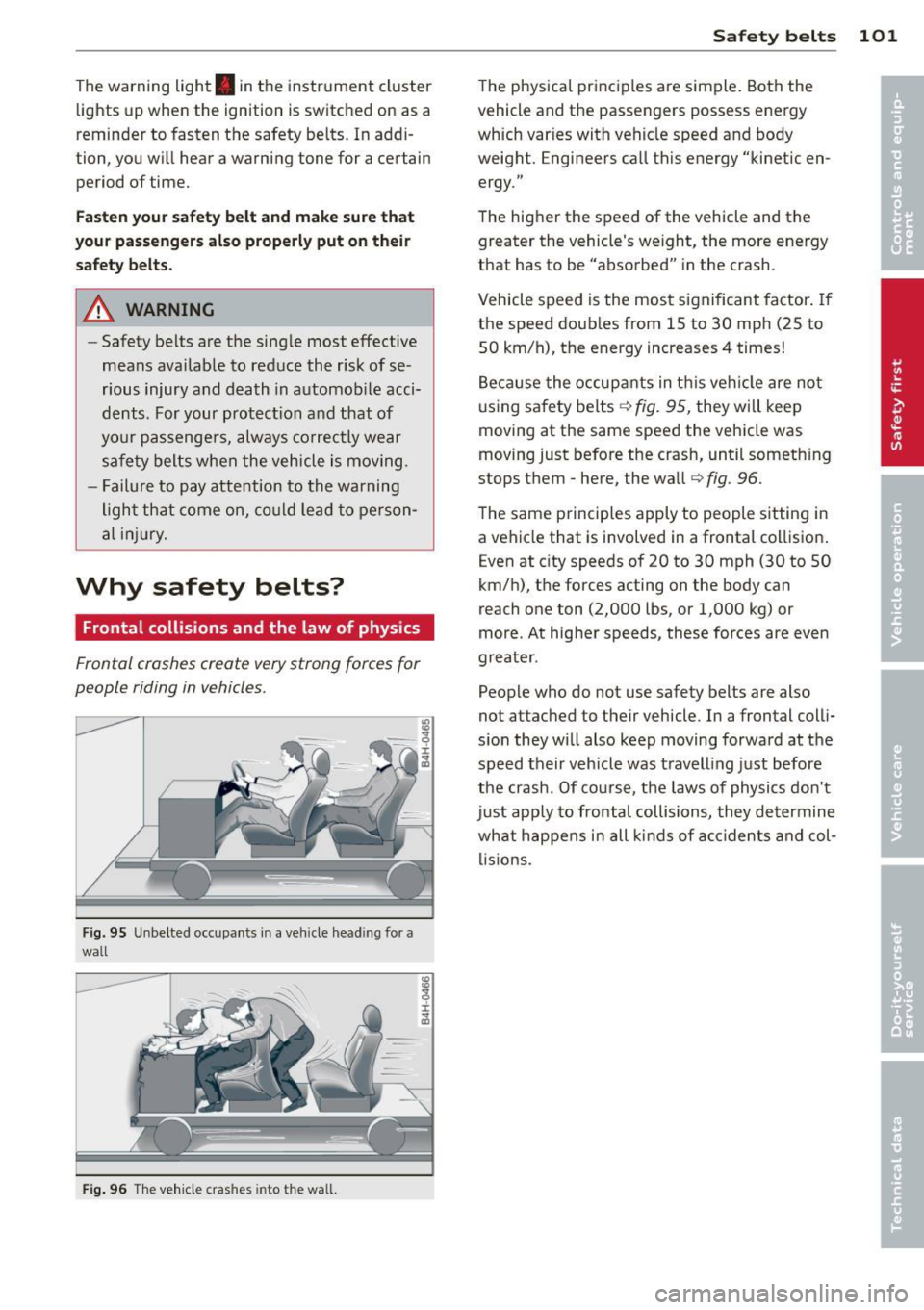

The warning light. in the instrument cluster
lights up when the ignition is switched on as a
reminder to fasten the safety belts. In addi ­
tion, you w ill hear a warning tone for a certain
period of time.
Fasten your safety belt and make sure that
your passengers also properly put on their
safety belts.
A WARNING
- Safety belts are the sing le most effective
means availab le to reduce the risk of se­
rious injury and death in automob ile acci­
dents. For your protect ion and that of
yo ur passengers, always correctly wear
sa fety belts when the vehicle is moving.
- Failure to pay attention to the warning
ligh t that come on, could lead to person­
al injury.
Why safety belts?
Frontal collisions and the law of physics
Frontal crashes create very strong forces for
people riding in vehicles.
Fig. 95 Unb elted occupa nts in a vehicle head ing for a
wall
Fig. 96 T he ve hicle crashes into the wall.
Safety belts 101
The physical principles are simple . Both the
vehicle and the passengers possess energy
which var ies with vehicle speed and body
weight. Engineers call this energy "kinetic en­
ergy."
The higher the speed of the vehicle and the
greater the vehicle's we ight, the more energy
that has to be "absorbed" in the crash.
Vehicle speed is the most significant factor . If
the speed doubles from 15 to 30 mph (25 to
50 km/h), the energy increases 4 times!
Because the occupants in this vehicl e are not
using safety belts¢
fig. 95, they will keep
moving at the same speed the vehicle was
moving just before the crash, until someth ing
stops them - here, the wall¢
fig. 96.
The same principles apply to people sitting in
a vehicle that is involved in a frontal coll ision .
Even at city speeds of 20 to 30 mph (30 to 50
km/h), the forces acting on the body can
reach one ton (2,000 lbs, or 1,000 kg) or
more . At higher speeds, these forces are even
greater.
Peop le who do not use safety belts are also
not attached to their vehicle . In a frontal colli­
s ion they will also keep moving forward at the
speed their vehicle was travell ing just before
the crash . Of co urse, the laws of physics don't
just apply to frontal collisions, they determine
what happens in all kinds of accidents and col­
lisions .

102 Safet y belt s
What happens to occupants not wearing
safety belts?
In crashes unbelted occupants cannot stop
themselves from flying forward and being in­
jured or killed. Always wear your safety belts!
F ig . 97 A driver not wearing a safety belt is violently
thrown forward
F ig. 98 A rear passenger not wearing a safety belt will
fly forward a nd strike the d river
Unbelted occupants are not able to res ist the
tremendous fo rces of impact by holding tight
or brac ing thems elves. Without the benefit of
safety restraint systems, the unres trained o c­
cupa nt w ill slam vio lent ly into the steering
wheel, instrument panel, winds hield, or what ­
ever else is in the way
q fig . 97 . This impact
with the vehicle interior has all the energy
they had just before the crash.
Neve r rely on airbags a lone for p rotection .
Even when they deploy, airbags provide only
addit ional protection . Airbags are not sup ­
posed to deploy in all kinds of accidents. Al­
though your Audi is equipped with a irbags, all
vehicle occupants, including the driver, must
wear safety belts correctly in order to min i­
mize the risk of severe inju ry or death in a
crash.
Remember too, that a irbags will deploy on ly
once and that your safety belts are always there to offe
r protection in those accidents in
which airbags are not supposed to dep loy or
when they have already dep loyed . Unbelted
occupa nts can also be thrown o ut of the ve hi­
cle where even more severe or fatal injuries
can occur .
It is also important for the rear passengers to
wear safety belts correctly. Unbelted passen­
gers in the rear seats endanger not only them­
se lves but also the driver and othe r passen­
gers¢
fig. 98 . In a frontal coll is ion they w ill
be th rown forward violently, where they can
hi t and i njur e the d river a nd/or fro nt sea t pas­
senger.
Safety belts protect
People think it's possible to us e the hands to
brace the body in a minor collision. It 's simply
not true!
Fig. 9 9 Driver is proper ly restrained in a sudden brak­
in g maneuve r.
Safety be lts used p roperly can make a big dif­
fere nce. Safe ty belts help to keep passengers
in the ir seats, gradua lly reduce energy leve ls
applied to the body in an accident, and he lp
prevent the uncontrolled movement that ca n
ca use serio us inju ries . In addition, safety be lts
reduce the danger of being thrown out of the
vehicle.
S afety be lts attach passenge rs to the car and
give them the benefit of being slowed down
more gently or "softly" through the "give" in
the safety belts, crush zones and other safety
features engineered into today's vehicles. By
"absorbing" the kinetic energy over a longer
per iod of t i me, the safety be lts make th e
lilJJ,

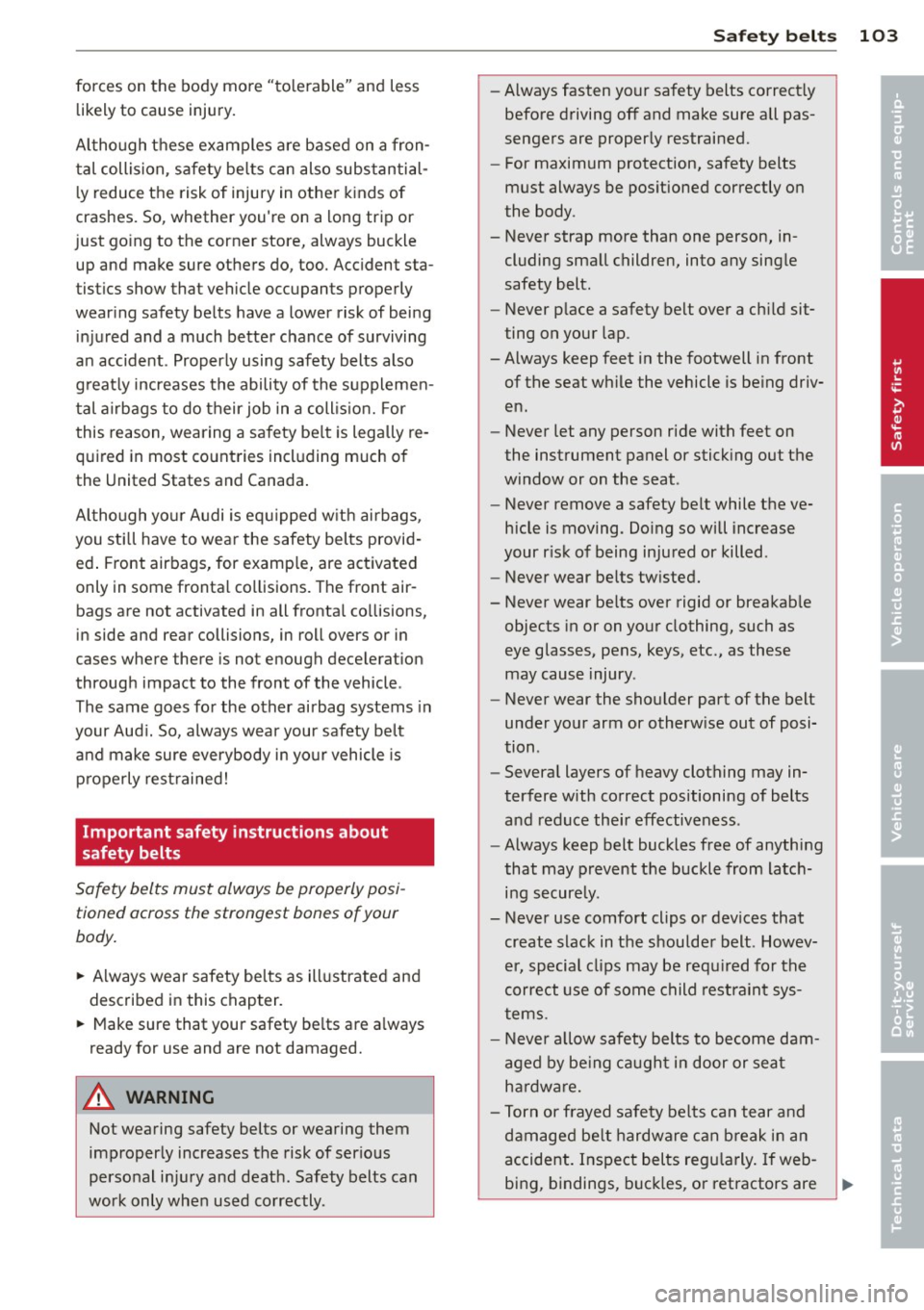

forces on the body more "tolerable" and less likely to cause injury.
Although these examples are based on a fron­
tal collision , safety belts can also substantial­
ly reduce the risk of injury in other kinds of
crashes. So, whether you're on a long trip or
just going to the corner store, always buckle
up and make sure others do, too. Accident sta­
tistics show that vehicle occupants properly
wearing safety belts have a lower risk of being
injured and a much better chance of surviving
an accident . Properly using safety belts also
greatly increases the ability of the supplemen­
tal airbags to do their job in a collision. For
this reason, wearing a safety belt is legally re­
quired in most countries including much of
the United States and Canada.
Although your Audi is equipped with airbags ,
you still have to wear the safety belts provid­
ed. Front airbags, for example, are activated
only in some frontal collisions. The front air­
bags are not activated in all frontal collisions,
in side and rear collisions, in roll overs or in
cases where there is not enough deceleration
through impact to the front of the vehicle .
The same goes for the other airbag systems in
your Audi. So, always wear your safety belt
and make sure everybody in your vehicle is
properly restrained!
Important safety instructions about
safety belts
Safety belts must always be properly posi­
tioned across the strongest bones of your
body.
.,. Always wear safety belts as illustrated and
described in this chapter.
.,. Make sure that your safety belts are always
ready for use and are not damaged.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of serious
personal injury and death. Safety belts can
work only when used correctly .
Safety belts 103
-Always fasten your safety belts correctly
before driving off and make sure all pas­
sengers are properly restrained.
- For maximum protection, safety belts
must always be positioned correctly on
the body .
- Never strap more than one person, in­ cluding small children, into any single
safety belt.
- Never place a safety belt over a child sit­
ting on your lap.
-Always keep feet in the footwell in front
of the seat while the vehicle is being driv­
en.
- Never let any person ride with feet on
the instrument panel or sticking out the
window or on the seat.
- Never remove a safety belt while the ve­
hicle is moving . Doing so will increase
your risk of being injured or killed .
- Never wear belts twisted.
- Never wear belts over rigid or breakable objects in or on your clothing, such as
eye glasses, pens, keys, etc., as these
may cause injury .
- Never wear the shoulder part of the belt
under your arm or otherwise out of posi­
tion .
- Several layers of heavy clothing may in­
terfere with correct positioning of belts and reduce their effectiveness .
- Always keep belt buckles free of anything
that may prevent the buckle from latch­
ing securely.
- Never use comfort clips or devices that
create slack in the shoulder belt. Howev­
er, special clips may be required for the
correct use of some child restraint sys­
tems .
- Never allow safety belts to become dam­
aged by being caught in door or seat
hardware.
- Torn or frayed safety belts can tear and
damaged belt hardware can break in an
accident. Inspect belts regularly. If web-
bing, bindings, buckles, or retractors are .,..
L,_ _______________ _J
•
•

104 Safety belts
damaged, have belts replaced by an au­
thorized Audi dealer or qualified
workshop.
- Safety belts that have been worn and
loaded in an accident must be replaced
with the correct replacement safety belt
by an authorized Audi dealer or qualified
workshop. Replacement may be necessa­
ry even if damage cannot be clearly seen.
Anchorages that were loaded must also
be inspected.
- Never remove, modify, disassemble, or
try to repair the safety belts yourself.
- Always keep the belts clean . Dirty belts
may not work properly and can impair
the function of the inertia reel
c:> page 174, Safety belts.

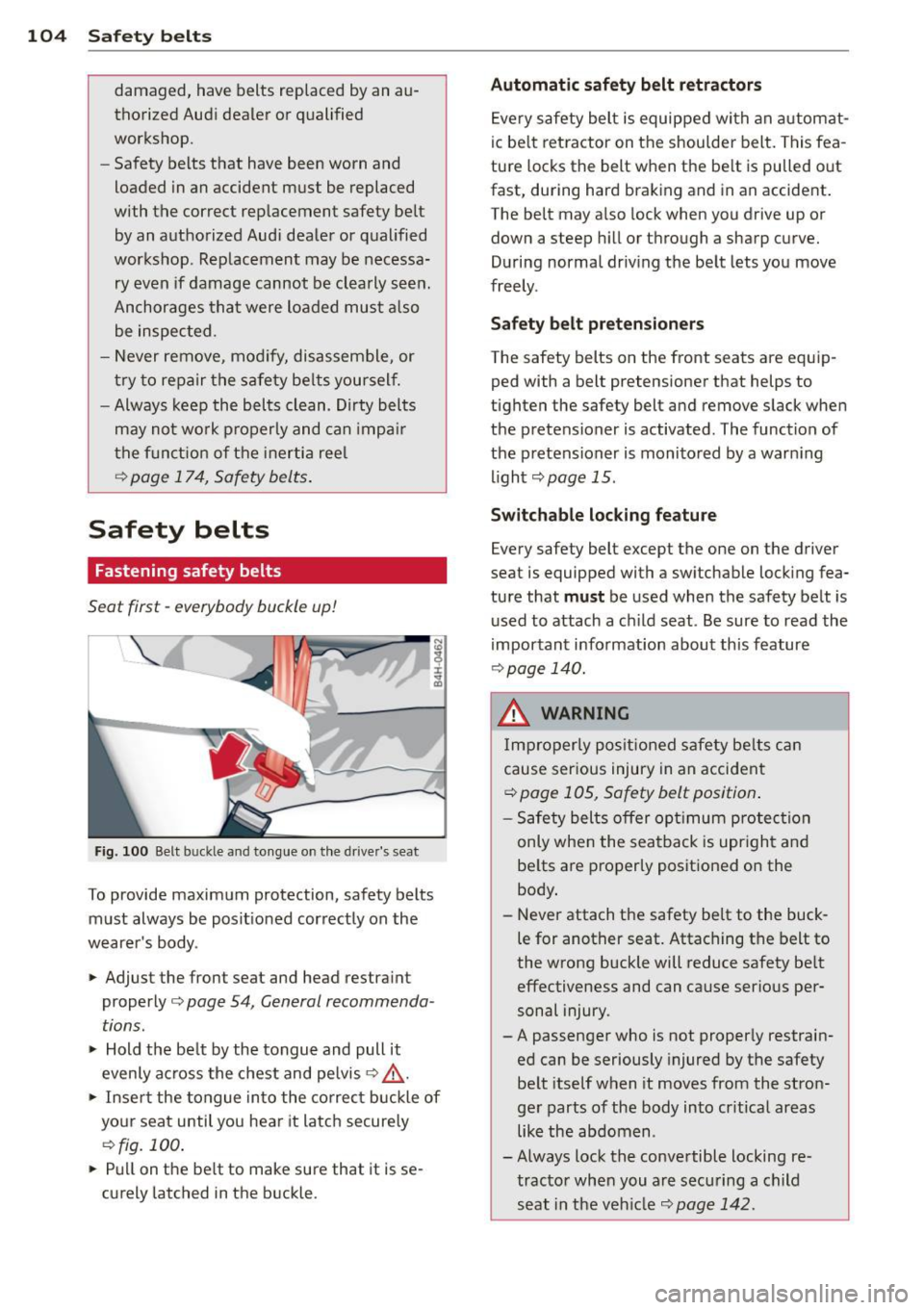

Safety belts
Fastening safety belts
Seat first -everybody buckle up!
,
Fig. 100 Belt buck le an d tongue o n the driver' s seat
To provide maximum protection, safety belts
must always be positioned correctly on the
wearer's body .
• Adjust the fron t sea t and he ad restraint
properly
c:> page 54, General recommenda ­
tions .
• Hold the belt by the tongue and pull it
evenly across the chest and pelvis
c:> &-
• Insert the tongue into the correct buckle of
your seat until you hear it latch securely
c:> fig. 100.
• Pull on the belt to make sure that it is se ­
curely latched in the buckle .
Automatic safety belt retractors
Every safety belt is equipped with an automat­
ic belt retractor on the shoulder belt. This fea­
ture locks the belt when the belt is pulled out
fast, during hard braking and in an accident.
T he belt may also lock when you drive up or
down a steep hill or through a sharp curve.
During normal driving the belt lets you move
freely .
Safety belt pretensioners
The safety belts on the front seats are equip­
ped with a belt pretensioner that helps to
tighten the safety belt and remove slack when
the pretensioner is activated. The function of
the pretensioner is monitored by a warning light
c:> page 15 .
Switchable locking feature
Every safety belt except the one on the driver
seat is equipped with a switchable locking fea­
ture that
must be used when the safety belt is
used to attach a child seat . Be sure to read the
important information about this feature
c:> page 140.
_& WARNING
Improperly positioned safety belts can
cause serious injury in an accident
c:> page 105, Safety belt position .
-Safety belts offer optimum protection
only when the seatback is upright and
belts are properly positioned on the
body .
-
-Never attach the safety belt to the buck­
le for another seat. Attaching the belt to
the wrong buckle will reduce safety belt
effectiveness and can cause serious per­
sonal injury .
- A passenger who is not properly restrain­
ed can be seriously injured by the safety
belt itself when it moves from the stron-
ger parts of the body into cr itical areas
like the abdomen .
- Always lock the- convertible locking re­ tractor when you are securing a child seat in the vehicle
c:> page 142 .

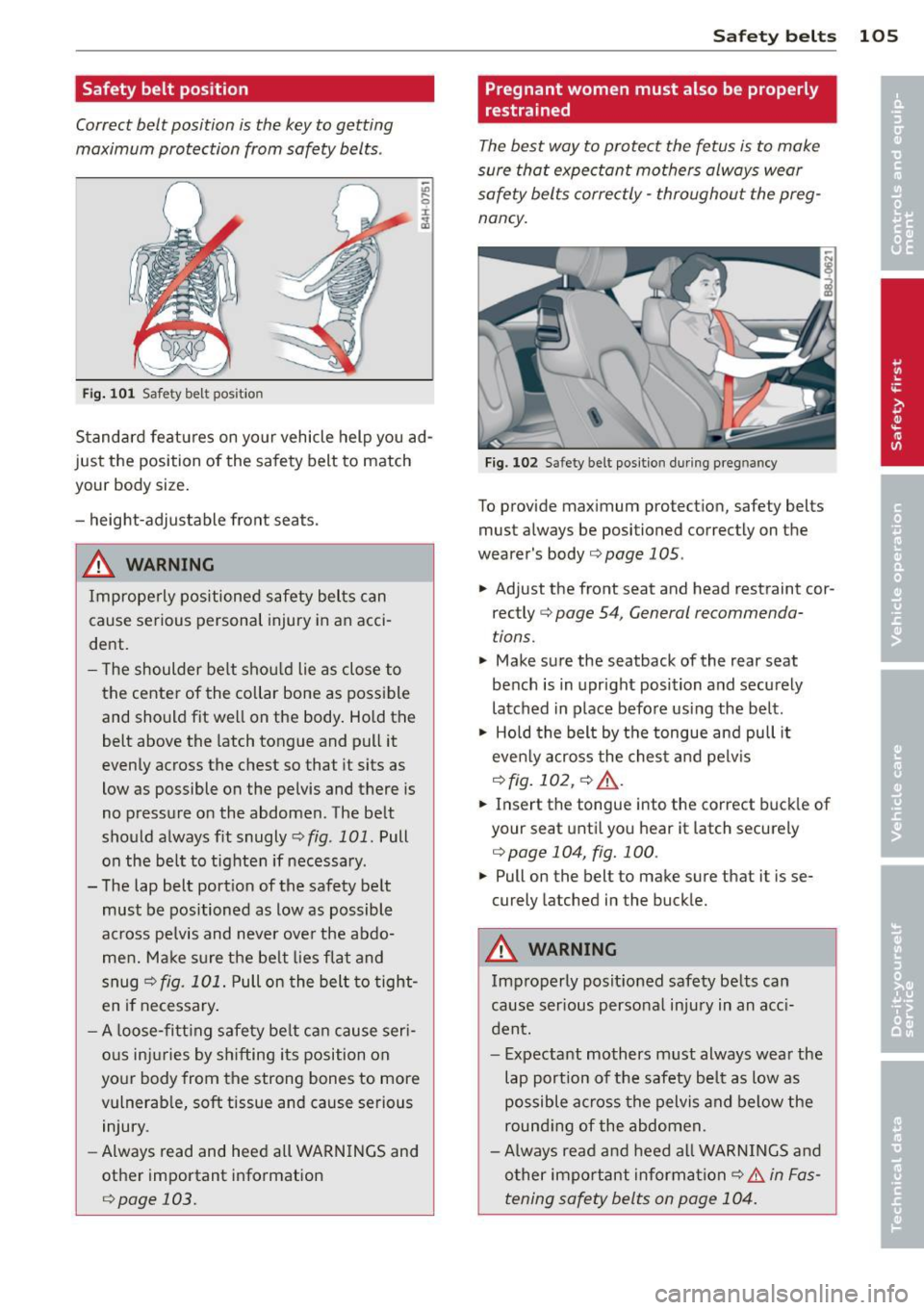

Safety belt position
Correct be.It position is the key to getting
maximum protection from safety belts .
Fig. 1 01 Safety belt pos it io n
Standard features on yo ur vehicle help you ad­
just the position of the safety belt to match
your body size.
- height-adjustable front seats.
& WARNING
Improperly positioned safety belts can
cause serious personal injury in an acci­
dent.
-
- T he shoulder be lt shou ld lie as close to
the cente r of the collar bone as poss ible
and should fit we ll on the body . Ho ld the
belt above the latch tongue and pull it
evenly across the chest so that it sits as
low as possible on the pelvis and there is
no pressure on the abdomen. The be lt
should always fit snugly
c:> fig . 101 . Pull
on the belt to tighten if necessary .
- The lap belt port ion of the safety be lt
must be positioned as low as possible
across pelvis and never ove r the abdo­
me n. Ma ke su re the be lt lies flat and
snug
c:> fig. 101 . Pull on the belt to tight­
en if necessary .
- A loose-fi tt ing safety be lt c an cause seri­
o us inj uries by s hifting its position on
yo ur body from the strong bones to more
vulnerab le, soft tissue and cause serious
injury.
- Always read and heed all WARN INGS and
other important info rmation
c:> page 103.
Safety belts 105
Pregnant women must also be properly
, restrained
The best way to protect the fetus is to make
sure that expectant mothers always wear
safety belts corre ctly -throughout the preg­
nancy.
Fi g. 102 Safety be lt po sit ion d uring preg nancy
To provide max imum protect ion, safety belts
must a lways be positioned correctly on the
wearer 's body
c> page 105.
.,. Adjust the front seat and head restraint cor­
rectly
c:> p age 54 , General recommenda­
t ions .
.,. Make s ure the seatback of the rear seat
bench is in upright position and securely
latched in p lace befo re using the belt.
.,. Hold the belt by t he tongue and pull it
even ly across the ches t and pelv is
c> fig.10 2,c> .&., .
.,. Insert the tongue into the correct buck le of
your seat unti l yo u h ear it latch securely
<=> page 104, fig. 100 .
.,. Pull on the belt to make sure that it is se­
curely latched in the buck le.
& WARNING
Imp roperly posit ioned safety belts can
cause ser ious persona l inju ry in an acc i­
dent.
-
- Expectant mothers must always wear the
lap port ion of the safety belt as low as
possible a cross the pelvis and below the
round ing of the abdomen.
- Always read a nd heed all WAR NIN GS a nd
o ther impo rtant inform ation
c:> & in Fas­
tening safety belts on page 104.

106 Safety belts
Unfastening safety belts
Unbuckle the safety belt with the red release
button only after the vehicle has stopped .
Fig. 103 Releasing the tongue from the buckle
• Push the red release button on the buckle
c> fig. 103. The belt tongue will spring out
of the buckle ~
,A.
0 r-­N 0 ±.
"' a,
• Let the belt wind up on the retractor as you
guide the belt tongue to its stowed position.
A WARNING
Never unfasten safety belt while the vehi­
cle is moving . Doing so will increase your
r isk of being injured or killed .
Improperly worn safety belts
Incorrectly positioned safety belts can cause
severe injuries.
Wearing safety belts improperly can cause se­
rious injury or death. Safety belts can only
work when they are correctly positioned on the body . Improper seating positions reduce
the effectiveness of safety belts and will even
increase the risk of injury and death by mov­
ing the safety belt to critical areas of the
body. Improper seating positions also in­
crease the risk of serious injury and death
when an airbag deploys and strikes an occu­
pant who is not in the correct seating posi­
tion . A driver is responsible for the safety of
all vehicle occupants and especially for chil­
dren. Therefore:
• Never permit anyone to assume an incorrect
sitting position in the vehicle while traveling
c>,&. .
A WARNING
-Improperly worn safety belts increase the
risk of ser ious personal injury and death
whenever a vehicle is being used.
- Always make sure that all vehicle occu­
pants are correctly restrained and stay in
a correct seating position whenever the
veh icle is being used.
- Always read and heed all WARNINGS and
other important information
~ page 103.
Safety belt preten­
sioners
How safety belt pretensioners work
In front and side collisions above a particular
severity, safety belts in use are tensioned au­
tomatically .
The safety belts for the front seating positions
are equipped with safety belt pretensioners .
The system is activated by sensors in front
and side collisions of great severity. This tight­
ens the belt and takes up belt slack
c> .&. in
Service and disposal of safety belt preten­
sioner on page 107.
Taking up the slack helps
to reduce forward occupant movement during
a collision.
(D Tips
The safety belt pretensioner can only be
activated once .
- In minor frontal and side collisions, in
rear -end collisions, in a rollover and in
accidents involving very little impact
force, the safety belt pretensioner are
not activated.
- When the safety belt pretensioner is ac­
tivated, a fine dust is released. This is normal and is not caused by a fire in the
vehicle.
- The relevant safety requirements must
be observed when the vehicle or compo­
nents of the system are scrapped. A
qualified dealership is familiar with
II>

these regulations and will be pleased to pass on the information to you.
- Be sure to observe all safety, environ­
mental and other regulations if the vehi­
cle or individual parts of the system, par­
ticularly the safety belt or airbag, are to
be disposed. We recommend you have
your authorized Audi dealer perform this
service for you .

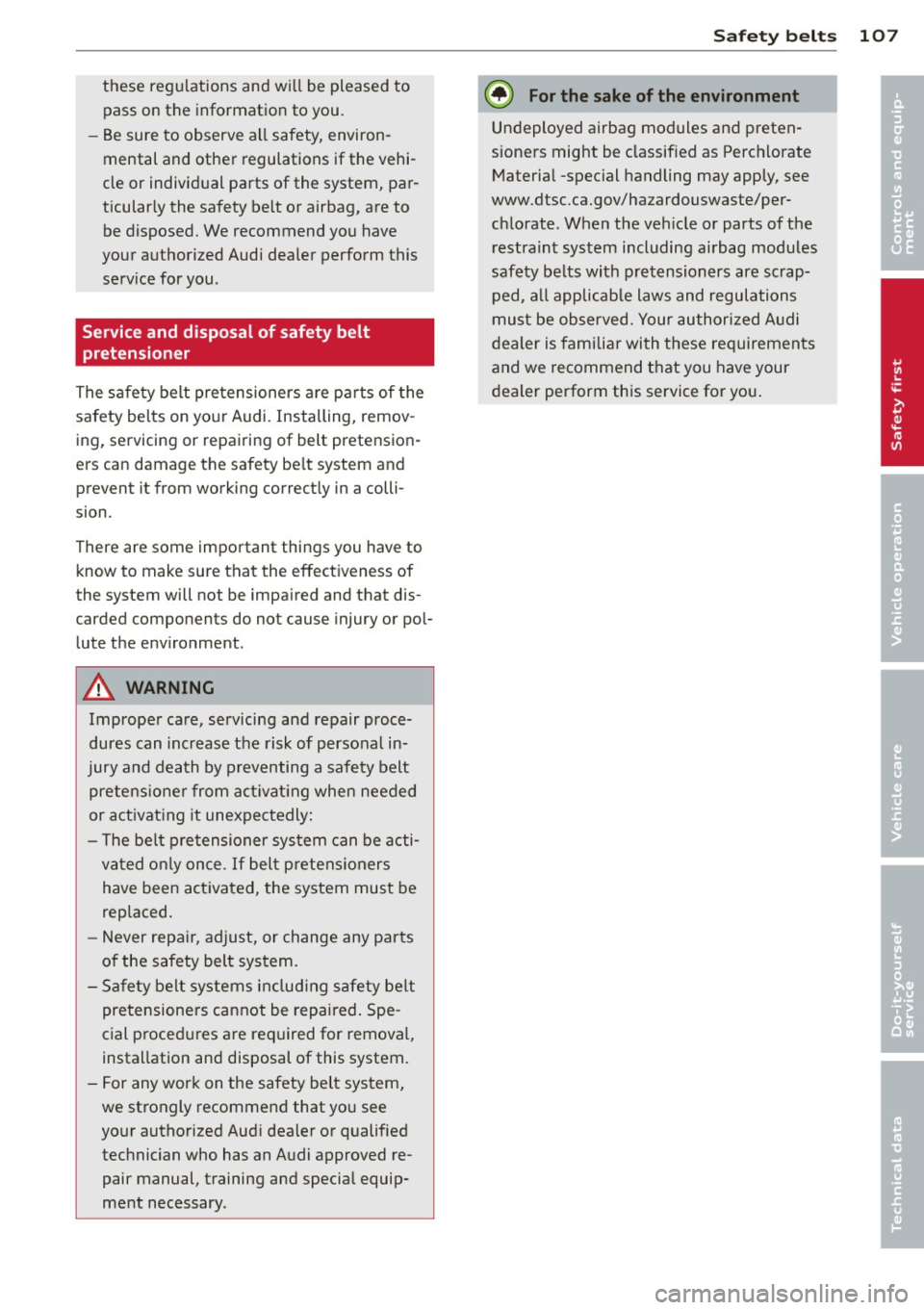

Service and disposal of safety belt
pretension er
The safety belt pretensioners are parts of the
safety belts on your Audi. Installing, remov­
ing, servicing or repairing of belt pretension­
ers can damage the saf ety belt system and
prevent it from working correctly in a colli ­
sion.
There are some important things you have to know to make sure that the effectiveness of
the system will not be impaired and that dis­
carded components do not cause injury or pol­
lute the environment .
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal in­
jury and death by preventing a safety belt
pretens ioner from activating when needed
or activating it unexpectedly:
- The belt pretensioner system can be acti­
vated only once.
If belt pretens ioners
have been activated, the system must be
replaced.
- Never repair, adjust, or change any parts
of the safety belt system.
- Safety belt systems includ ing safety belt
pretensioners cannot be repaired. Spe­
cial procedures are required for removal,
installation and disposal of this system.
- For any work on the safety belt system,
we strongly recommend that you see
your authorized Audi dealer or qualified technician who has an Audi approved re­
pair manual, training and special equip­
ment necessary .
Safety belts 107
@:) For the sake of the environment
Undeployed airbag modules and preten­
sioners might be classified as Perchlorate
Material -special handling may apply, see
www . dtsc. ca.gov/hazard o u swa ste/ per-
ch lo rate . When the vehicle or parts of the
restraint system including airbag modules
safety be lts with pretensioners are scrap­
ped, all applicable laws and regulations
must be observed. Your authorized Audi
dealer is familiar with these requirements
and we recommend that you have your
dealer perform this service for you. •
•

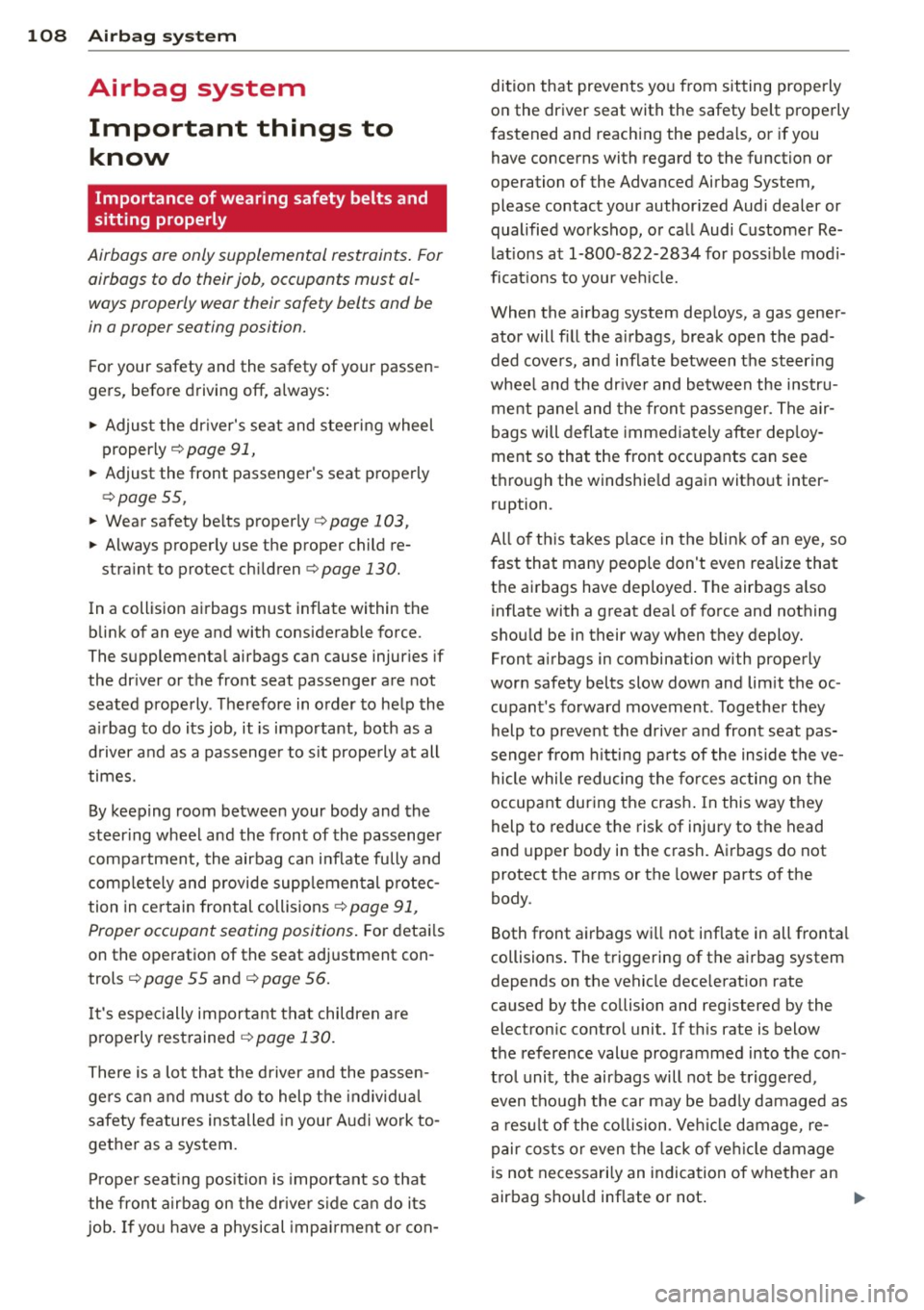

108 Airbag sys tem
Airbag system
Important things to know
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For
airbags to do their job , occupants must al­
ways properly wear their safety belts and be
in a proper seating position.
F or your safety and the safety of your passen­
gers, before driving off, a lways:
• Adjust the dr iver's seat and steering wheel
properly ¢
page 91,
• Adjust the front passenger's seat properly
r=:;page 55,
• Wear safety be lts properly r=; page 103,
• Always properly use the proper child re-
stra int to protect children¢
page 130.
In a collision airbags must inflate within the
blink of an eye and with considerable force .
The supplementa l airbags can cause injuries if
the dr iver or the front seat passenger are not
seated properly . Therefore in order to help the
a irbag to do its job, it is impo rtant, both as a
d river and as a passenge r to s it prope rly at all
times.
By keeping room between your body and the
steering wheel and the front of the passenge r
compa rtment, the airbag can inflate fully and
comp lete ly and provide supp lemental protec­
tion in ce rtain frontal collisions
r=:; page 91,
Proper occupant seating positions .
For detai ls
on the operat ion of the seat adjustment con­
trols ¢
page 55 and c:, page 56.
It's especially important that children a re
properly restrained ¢
page 130.
There is a lot that the driver and the passen­
gers can and must do to help the individua l
safety features installed in your A udi work to­
gether as a system.
P rope r seat ing pos ition is important so that
the front airbag on the drive r side can do its
job. If yo u have a physical impa irment or con- dition that prevents yo
u from sitting properly
o n the driver seat with the safety belt properly
fastened and reaching the peda ls, or if you
have concerns with regard to the function or
operation of the Advanced Airbag System,
please contact your author ized Audi dealer or
qualified workshop, o r call Audi Customer Re­
lations at 1-800-822-2834 fo r poss ible modi­
fica tions to your ve hicle.
When the airbag system dep loys, a gas gener ­
ator will f il l the a irbags, break open t he pad­
ded cove rs, and inflate between t he steering
whee l and the dr ive r and be tween the instru­
ment pane l and the fron t passenger. The a ir­
bags will deflate immediately after dep loy­
me nt so that the front occupants can see
t hr ough the windshie ld again witho ut inter­
ruption .
All of th is takes p lace in the b link o f an eye, so
fast that many peop le don't even realize tha t
t h e airbags have deployed. The airbags a lso
inflate with a great dea l of force and nothing
shou ld be in their w ay when they deploy.
Front a irbags in combination with properly
wor n safety belts slow down and lim it the oc ­
cupant's forward movement . T ogether they
help to prevent the drive r and front seat pas­
senger from hitti ng pa rts of the inside the ve­
hicle while reducing the forces acting on the
occupant dur ing the crash . In this way they
help to reduce the risk of injury to the head
and upper body in the crash. A irbags do not
protect the arms or the lower parts of the
body.
Both front airbags wi ll not inflate in all fronta l
collisions . The triggering of the airbag system
depends on the vehicle dece lerat ion rate
caused by the co llision and registered by the
electron ic control unit. If th is rate is below
the reference value programmed into the con ­
t rol unit , the airbags will not be trigge red,
even though the car may be badly damaged as
a res ult of the co llision . Ve hicl e damage, re­
pair costs o r even the lack of ve hicle damage
is not necessari ly an indication of whether an
airbag shou ld inflate or not .
IJll-
